TOYOTA PRIUS 2014 3.G Owners Manual

5
When trouble arises
521
5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
Warning messageDetailsCorrection
procedure
(Flashes) The hybrid battery (traction
battery) is low.
A buzzer also sounds. When stopping the
vehicle for a long
period of time, shift
the shift position to
P. The hybrid bat-
tery (traction bat-
tery) cannot be
charged with the
shift position in N.
(Flashes) The hybrid battery (traction
battery) power has dropped
because a long period of time
has elapsed after shifting the
shift position to N.
A buzzer also sounds. Restart the hybrid
system when start-
ing the vehicle.
(Flashes) The transmission is out of P
when attempting to start the
hybrid system.
Shift the shift posi-
tion to P before
pressing the
“POWER” switch.
(Flashes) The driver’s door is opened
when the shift position is in N,
D or B with the hybrid system
on.
Shift the shift posi-
tion to P.
(Flashes) Indicates that the accelerator
pedal is depressed while the
shift position is in N.
A buzzer also sounds. Release the accel-
erator pedal and
shift the shift posi-
tion to D or R.

522 5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
Warning messageDetailsCorrection procedure
(Flashes) Pressed the P position switch
while the vehicle is running.
The shift position automati-
cally changed to N. To shift the shift
position to P, stop
the vehicle com-
pletely and press
the P position
switch.
(Flashes) The accelerator pedal is
depressed to stop the vehicle
on an upward slope etc.
A buzzer also sounds.
If this continues, the hybrid
system may overheat. Release the accel-
erator pedal and
depress the brake
pedal.
EV drive mode cannot be
switched to. A buzzer also sounds.
The reason why EV drive
mode cannot be used is
shown (may not be shown in
some instances.) Use the EV drive
mode when it
becomes available.
(Flashes
3times) EV drive mode has been auto-
matically canceled.
A buzzer also sounds.
The reason why EV drive
mode cannot be used is
shown (may not be shown in
some instances.) Drive normally for a
short time.

5
When trouble arises
523
5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
■
Warning message in radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same
speed or the vehicle ahead is traveling more quickly than your vehicle.
● When the vehicle ahead is traveling at very low speed.
● Immediately after cruise control speed is set.
● At the instant the accelerator pedal is depressed.
■ The LKA (Lane-Keeping Assist) lane departure warning function (if
equipped)
In the following cases, the warning message will not be displayed even if a
lane line is crossed.
● When the vehicle speed deviates from the operating range of the LKA
system functions
● When the lane lines cannot be recognized
● When the steering wheel is turned as far as necessary to cause the vehi-
cle to change lanes

524 5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem,
check that the warning message and light turn off.
Interior buzzerExterior buzzerWarning messageDetailsCorrection procedure
Once 
(Comes on for 15 seconds.)
(Flashes) The electronic
key is not
detected when
attempting to
start the hybrid
system.
Confirm
the loca-
tion of the
electronic
key.
Once 3 times (Flashes)An open door
other than the
driver’s door is
closed while the
electronic key is
outside the
detection range
and the
“POWER”
switch is in
ACCESSORY
or ON mode.
Confirm
the loca-
tion of the
electronic
key.

5
When trouble arises
525
5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
Interior
buzzerExterior buzzerWarning messageDetailsCorrection procedure
Once 3 times (Flashes)The driver’s
door is opened
and closed
while the elec-
tronic key is out-
side the
detection range
and the
“POWER”
switch is in
ACCESSORY
or ON mode
with the shift
position in P. Turn the
“POWER”
switch to
OFF or
confirm
the loca-
tion of the
electronic
key.
Contin-
uous 
(Flashes)The driver’s
door has been
opened with the
shift position in
a position other
than P and with-
out first turning
the “POWER”
switch is OFF.
Shift the
shift posi-
tion to P.

526 5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once Contin-
uous
(Displayed alternately)(Flashes) The electronic
key has been
taken outside
the vehicle and
the doors have
been locked
without first
turning the
“POWER”
switch to OFF.
(vehicles with
entry function)
Turn the
“POWER”
switch to
OFF and
lock the
doors
again.

5
When trouble arises
527
5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
Interior
buzzerExterior buzzerWarning messageDetailsCorrection procedure
Once Contin-
uous
(Flashes)An attempt to
lock the doors
has been made
using the smart
key system
while the elec-
tronic key is
inside the vehi-
cle. (vehicles
with entry func-
tion)
Take the
electronic
key out-
side the
vehicle,
and lock
the doors
again.
With the key
inside the vehi-
cle, a front door
has been
opened, the
lock lever has
been pulled in
the lock direc-
tion, the door
has been
closed and an
attempt has
been made to
lock the door.

528 5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Contin-
uous Contin-
uous
(Displayed alternately)(Flashes) The driver’s
door is opened
and closed
while the elec-
tronic key is out-
side the
detection range
and the
“POWER”
switch is in
ACCESSORY
or ON mode
with the shift
position not in P.
• Shift the
shift posi-
tion to P.
• Confirm the loca-
tion of the
electronic
key.
Once 
(Comes on for 15 seconds.)
The electronic
key battery is
low. Replace
the bat-
tery.
(
P. 460)
Once 
(Flashes)An open door
has been
closed and the
“POWER”
switch has been
turned twice to
the ACCES-
SORY mode
from OFF. Press the
“POWER”
switch
while
applying
the
brakes.

5
When trouble arises
529
5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
Interior
buzzerExterior buzzerWarning messageDetailsCorrection procedure
Once 
(Flashes)The elec-
tronic key
does not
operate
properly.
P. 548
 Power
was
turned off
due to
the auto-
matic
power off
function.Next time when
starting the
hybrid system,
increase the
engine speed
slightly and
maintain that
level for approxi-
mately 5 min-
utes to recharge
the battery.
NOTICE
■
While the engine oil level warning is displayed
Continued engine operation with low engine oil will damage the engine.
■ Engine oil maintenance message
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.

530
5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)

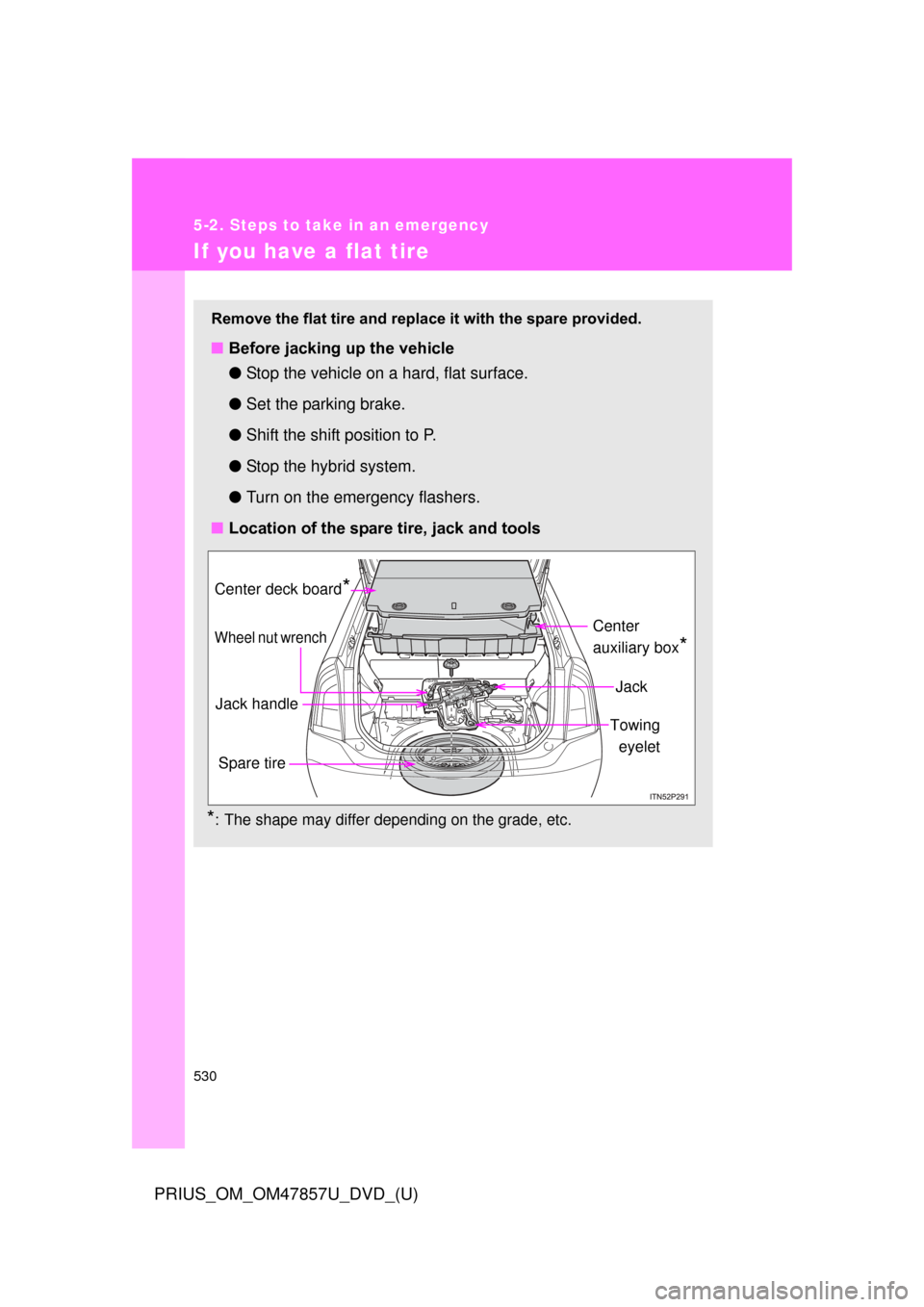

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
*: The shape may differ depending on the grade, etc.
Center deck board*
Wheel nut wrench
Jack handle
Spare tire Towing
eyelet
Jack
Center
auxiliary box
*
