TOYOTA PRIUS 2014 3.G Owners Manual

5
When trouble arises
561
5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striki ng other vehicles, objects or people. The
vehicle may also lunge forward or lu nge back suddenly as it becomes free.
Use extreme caution.
■ When changing the shift position
Be careful not to change the shift position with the accelerator pedal
depressed.
Changing the shift position to any positions other than P or N may cause the
vehicle to accelerate abruptly, causing an accident and resulting in death or
serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Set the parking brake and shift the shift position to P. Stop
the hybrid system.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires
to help provide traction.
Restart the hybrid system.
Shift the shift position to D or R, release the parking brake
and carefully apply the accelerator to free the vehicle.STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

562 5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
NOTICE
■To avoid damage to the hybrid transmission and other components
●Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

5
When trouble arises
563
5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)

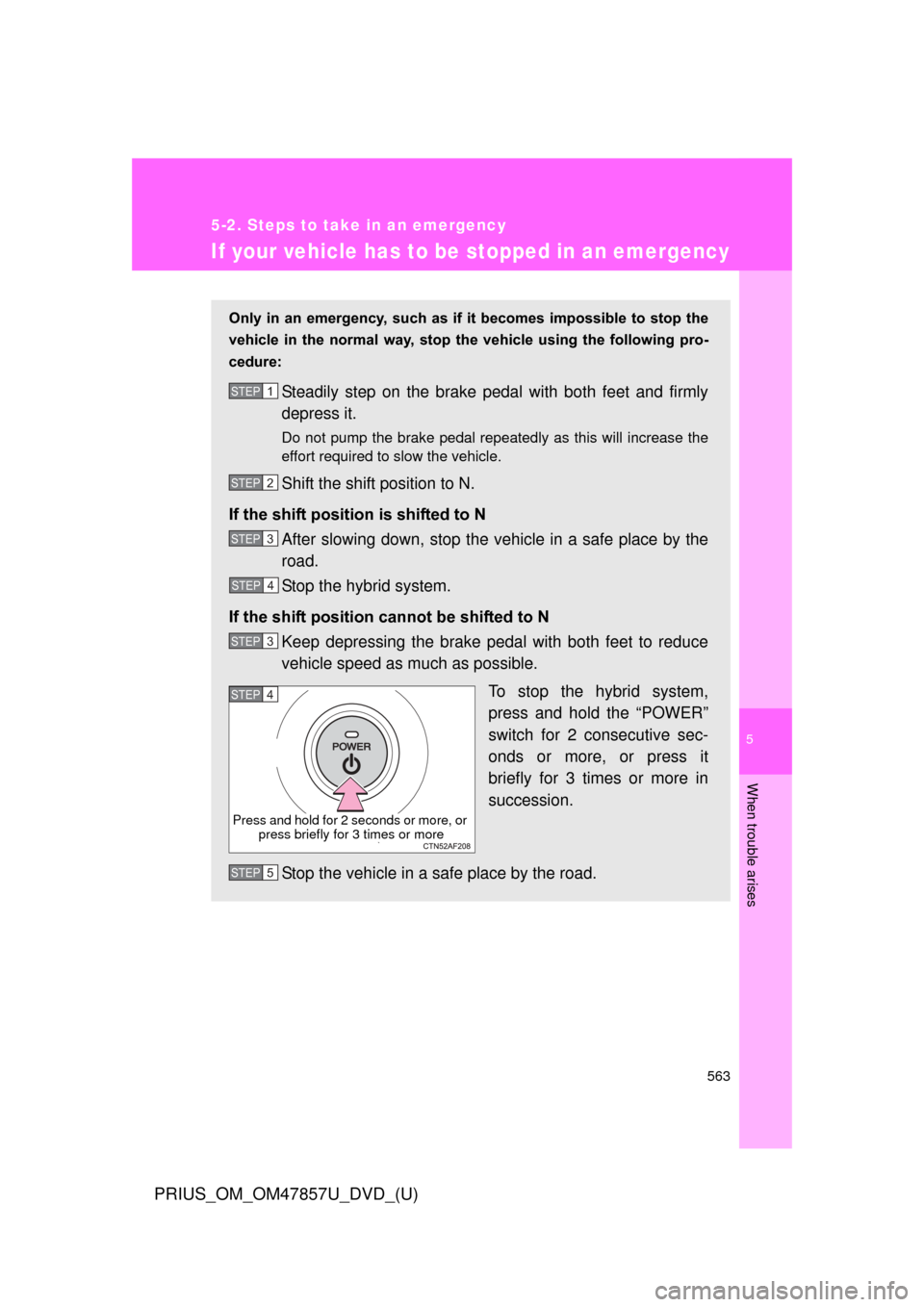

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift position to N.
If the shift position is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the hybrid system.
If the shift position cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
To stop the hybrid system,
press and hold the “POWER”
switch for 2 consecutive sec-
onds or more, or press it
briefly for 3 times or more in
succession.
Stop the vehicle in a safe place by the road.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 3
STEP 4
Press and hold for 2 seconds or more, or press briefly for 3 times or more
STEP 5

564 5-2. Steps to take in an emergency
PRIUS_OM_OM47857U_DVD_(U)
CAUTION
■If the hybrid system has to be turned off while driving
Power assist for the steering will be lost, making the steering wheel heavier
to turn. Decelerate as much as possible before turning off the hybrid system.

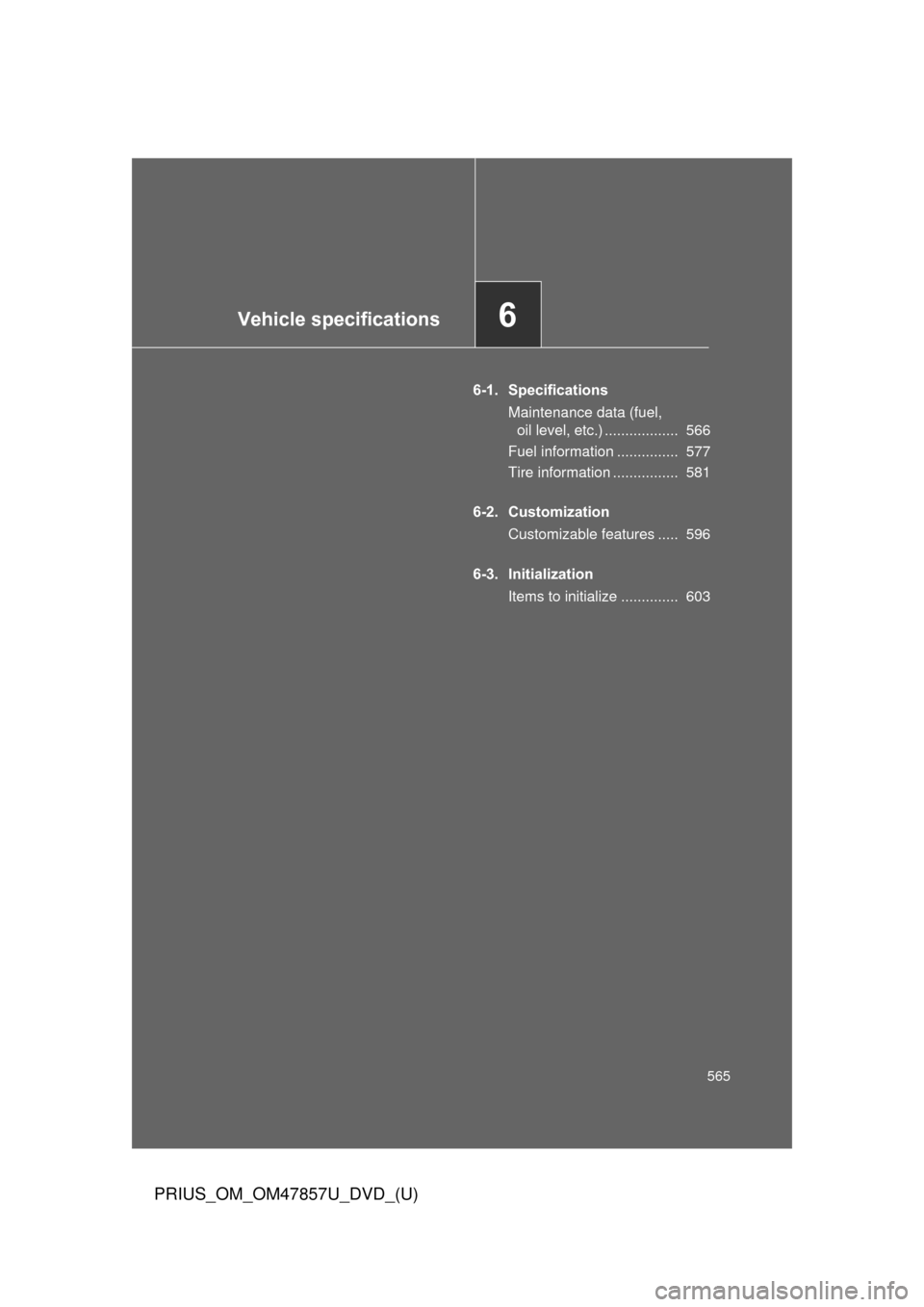

Vehicle specifications6
565
PRIUS_OM_OM47857U_DVD_(U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) .................. 566
Fuel information ............... 577
Tire information ................ 581
6-2. Customization Customizable features ..... 596
6-3. Initialization Items to initialize .............. 603

566
PRIUS_OM_OM47857U_DVD_(U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Unladen vehicle
*2: Vehicles without moon roof with Solar Panel
*3: Vehicles with moon roof with Solar Panel
*4: Vehicles with 15-inch tires
*5: Vehicles with 17-inch tires
Overall length176.4 in. (4480 mm)
Overall width68.7 in. (1745 mm)
Overall height*158.7 in. (1490 mm)*2
59.3 in. (1505 mm)*3
Wheelbase106.3 in. (2700 mm)
Tread
Front60.0 in. (1525 mm)*4
59.6 in. (1515 mm)*5
Rear59.8 in. (1520 mm)*4
59.4 in. (1510 mm)*5
Vehicle capacity weight
(Occupants + luggage) 825 lb. (370 kg)

567
6-1. Specifications
6
Vehicle specifications
PRIUS_OM_OM47857U_DVD_(U)
Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
This number is also stamped
under the right-hand front seat.
ITO61P101

568 6-1. Specifications
PRIUS_OM_OM47857U_DVD_(U)
■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Fuel
Model1.8 L 4-cylinder (2ZR-FXE)
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.17  3.48 in. (80.5  88.3 mm)
Displacement 109.7 cu.in. (1798 cm3)
Valve clearance
(engine cold) Automatic adjustment
Fuel typeUnleaded gasoline only
Octane Rating
87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)11.9 gal. (45 L, 9.9 Imp.gal.)

569
6-1. Specifications
6
Vehicle specifications
PRIUS_OM_OM47857U_DVD_(U)
Electric motor (Traction motor)
Hybrid battery (traction battery)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more
than 5 minutes, and check the oil level on the dipstick.
Ty p ePermanent magnet motor
Maximum output 60 kW
Maximum torque 153 ft•lbf (207 N•m, 21.1 kgf•m)
Ty p eNickel-Metal hydride battery
Voltage 7.2 V/module
Capacity6.5 Ah (3HR)
Quantity 28 modules
Overall voltage 201.6 V
Oil capacity
(Drain and refill 
reference
*)
With filter
Without filter
4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)

570 6-1. Specifications
PRIUS_OM_OM47857U_DVD_(U)
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is ex plained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the visc osity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be be tter suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
Outside temperature
