3414-5. Using the driving support systems
4
Driving

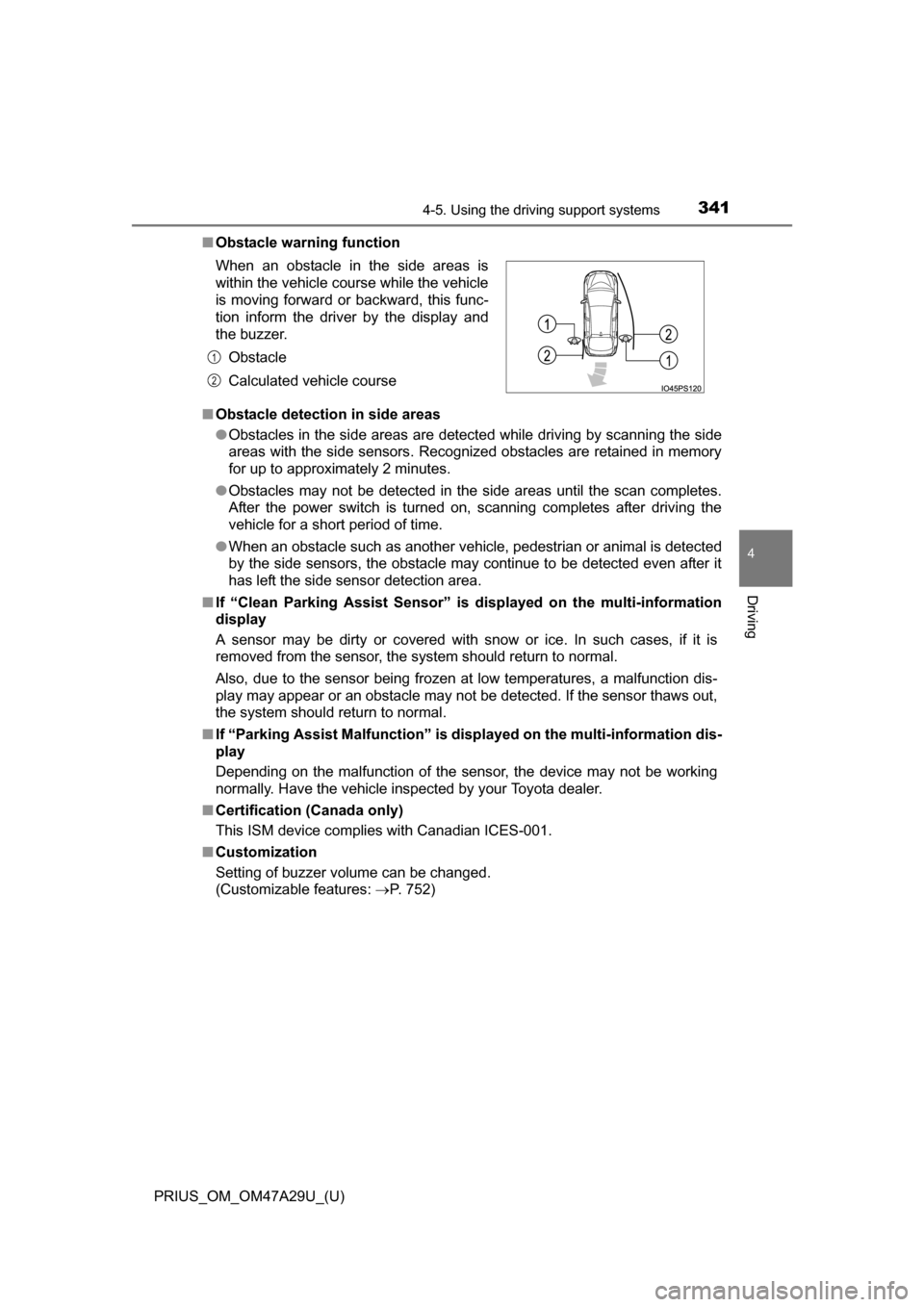

■Obstacle warning function
■ Obstacle detection in side areas
●Obstacles in the side areas are detec ted while driving by scanning the side
areas with the side sensors. Recognized obstacles are retained in memory
for up to approximately 2 minutes.
● Obstacles may not be detected in the side areas until the scan completes.
After the power switch is turned on, scanning completes after driving the
vehicle for a short period of time.
● When an obstacle such as another vehicle, pedestrian or animal is detected
by the side sensors, the obstacle may continue to be detected even after it
has left the side sensor detection area.
■ If “Clean Parking Assist Sensor” is displayed on the multi-information
display
A sensor may be dirty or covered with snow or ice. In such cases, if it is
removed from the sensor, the system should return to normal.
Also, due to the sensor being frozen at low temperatures, a malfunction dis-
play may appear or an obstacle may not be detected. If the sensor thaws out,
the system should return to normal.
■ If “Parking Assist Malf unction” is displayed on the multi-information dis-
play
Depending on the malfunction of the sensor, the device may not be working
normally. Have the vehicle inspected by your Toyota dealer.
■ Certification (Canada only)
This ISM device complies with Canadian ICES-001.
■ Customization
Setting of buzzer volume can be changed.
(Customizable features: P. 752)
When an obstacle in the side areas is
within the vehicle course while the vehicle
is moving forward or backward, this func-
tion inform the driver by the display and
the buzzer.
Obstacle
Calculated vehicle course
1
2

342
PRIUS_OM_OM47A29U_(U)
4-5. Using the driving support systems
WARNING

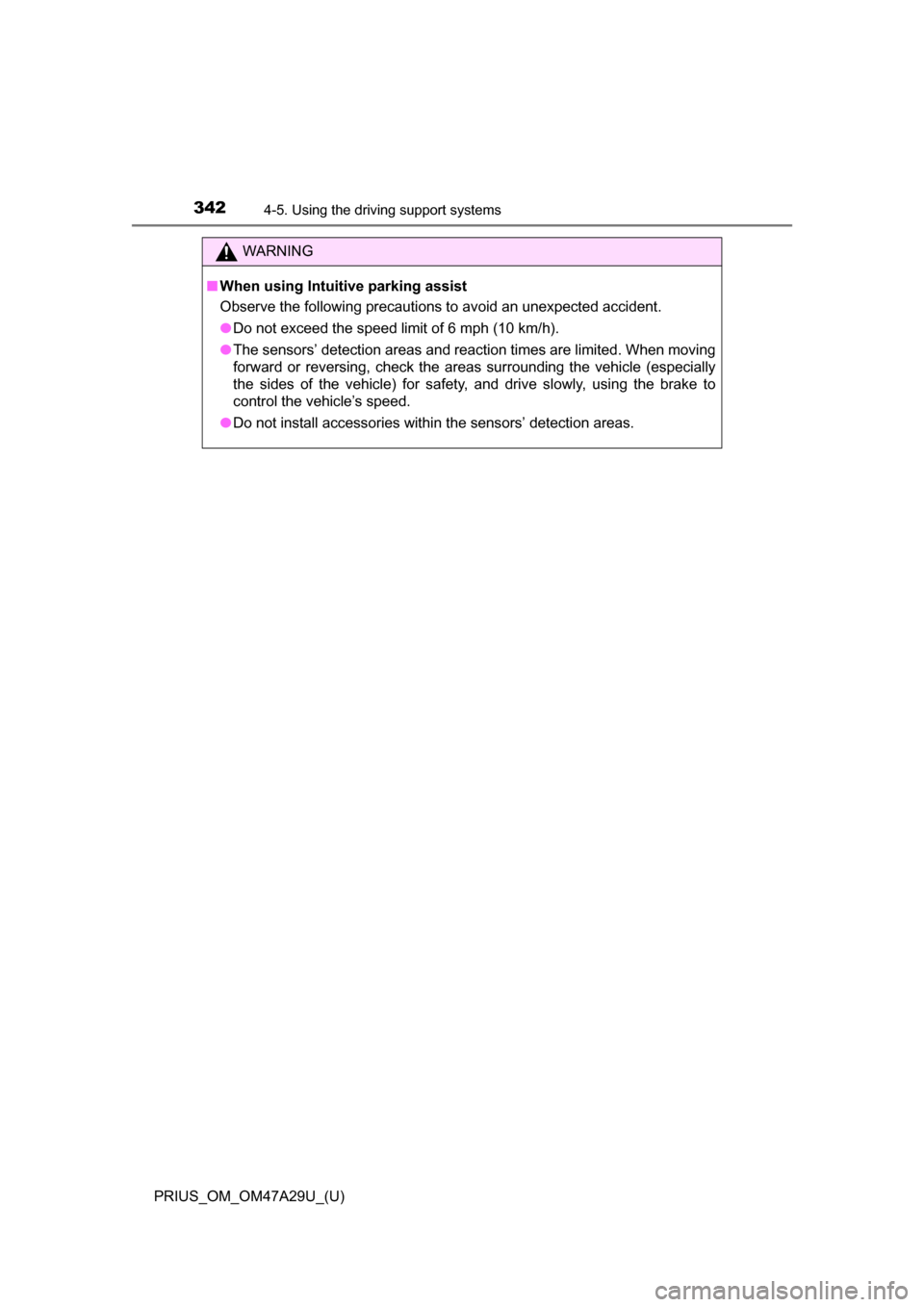

■When using Intuitive parking assist
Observe the following precautions to avoid an unexpected accident.
●Do not exceed the speed limit of 6 mph (10 km/h).
● The sensors’ detection areas and reaction times are limited. When moving
forward or reversing, check the areas surrounding the vehicle (especially
the sides of the vehicle) for safety, and drive slowly, using the brake to
control the vehicle’s speed.
● Do not install accessories within the sensors’ detection areas.

PRIUS_OM_OM47A29U_(U)
3434-5. Using the driving support systems
4
Driving
WARNING

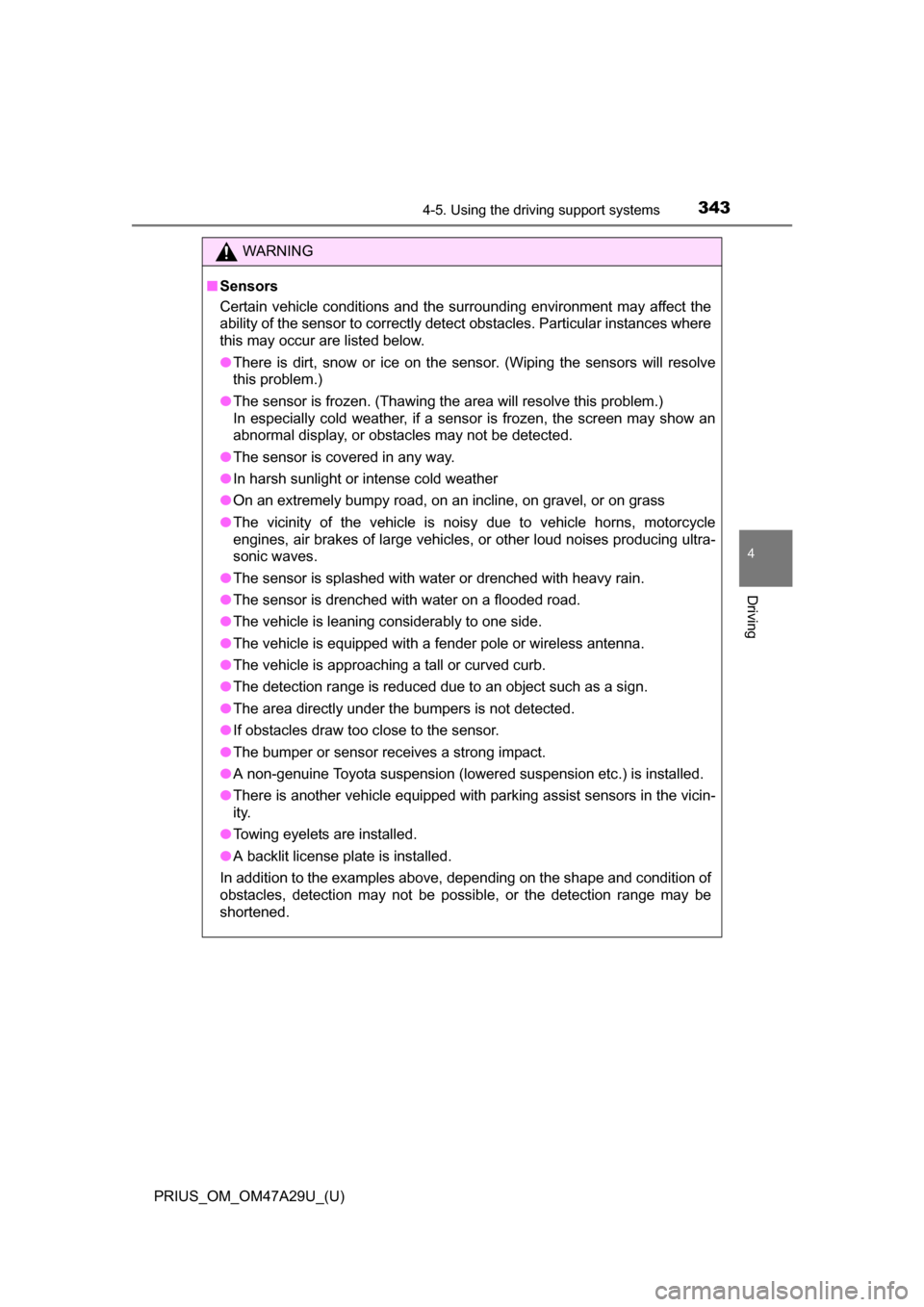

■Sensors
Certain vehicle conditions and the surrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where
this may occur are listed below.
●There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve
this problem.)
● The sensor is frozen. (Thawing the area will resolve this problem.)
In especially cold weather, if a sensor is frozen, the screen may show an
abnormal display, or obstacles may not be detected.
● The sensor is covered in any way.
● In harsh sunlight or intense cold weather
● On an extremely bumpy road, on an incline, on gravel, or on grass
● The vicinity of the vehicle is noisy due to vehicle horns, motorcycle
engines, air brakes of large vehicles , or other loud noises producing ultra-
sonic waves.
● The sensor is splashed with water or drenched with heavy rain.
● The sensor is drenched with water on a flooded road.
● The vehicle is leaning considerably to one side.
● The vehicle is equipped with a fender pole or wireless antenna.
● The vehicle is approaching a tall or curved curb.
● The detection range is reduced due to an object such as a sign.
● The area directly under the bumpers is not detected.
● If obstacles draw too close to the sensor.
● The bumper or sensor receives a strong impact.
● A non-genuine Toyota suspension (lowered suspension etc.) is installed.
● There is another vehicle equipped with parking assist sensors in the vicin-
ity.
● Towing eyelets are installed.
● A backlit license plate is installed.
In addition to the examples above, depending on the shape and condition of
obstacles, detection may not be possible, or the detection range may be
shortened.

344
PRIUS_OM_OM47A29U_(U)
4-5. Using the driving support systems
WARNING
■Side sensors
In the following situations, the clearance sonar may not operate normally
and may result in an unexpected accident. Drive carefully.
●Obstacles may not be detected in the side areas until the vehicle is driven
for a short time and a scan of the side areas is completed ( P. 341).
● Even after the scan of the side areas is completed, obstacles such as
other vehicles, people or animals that approach from the sides cannot be\
detected.
● Even after the scan of the side areas is completed, obstacles may not be
detected depending on the surrounding situation of the vehicle.
At that time, the side sensor operation displays ( P. 336) temporary turn
off.
■ Obstacles which may not be properly detected
●The shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of
your vehicle
• People may not be detected if they are wearing certain types of cloth- ing.
• Moving objects such as people or animals

PRIUS_OM_OM47A29U_(U)
3454-5. Using the driving support systems
4
Driving
NOTICE

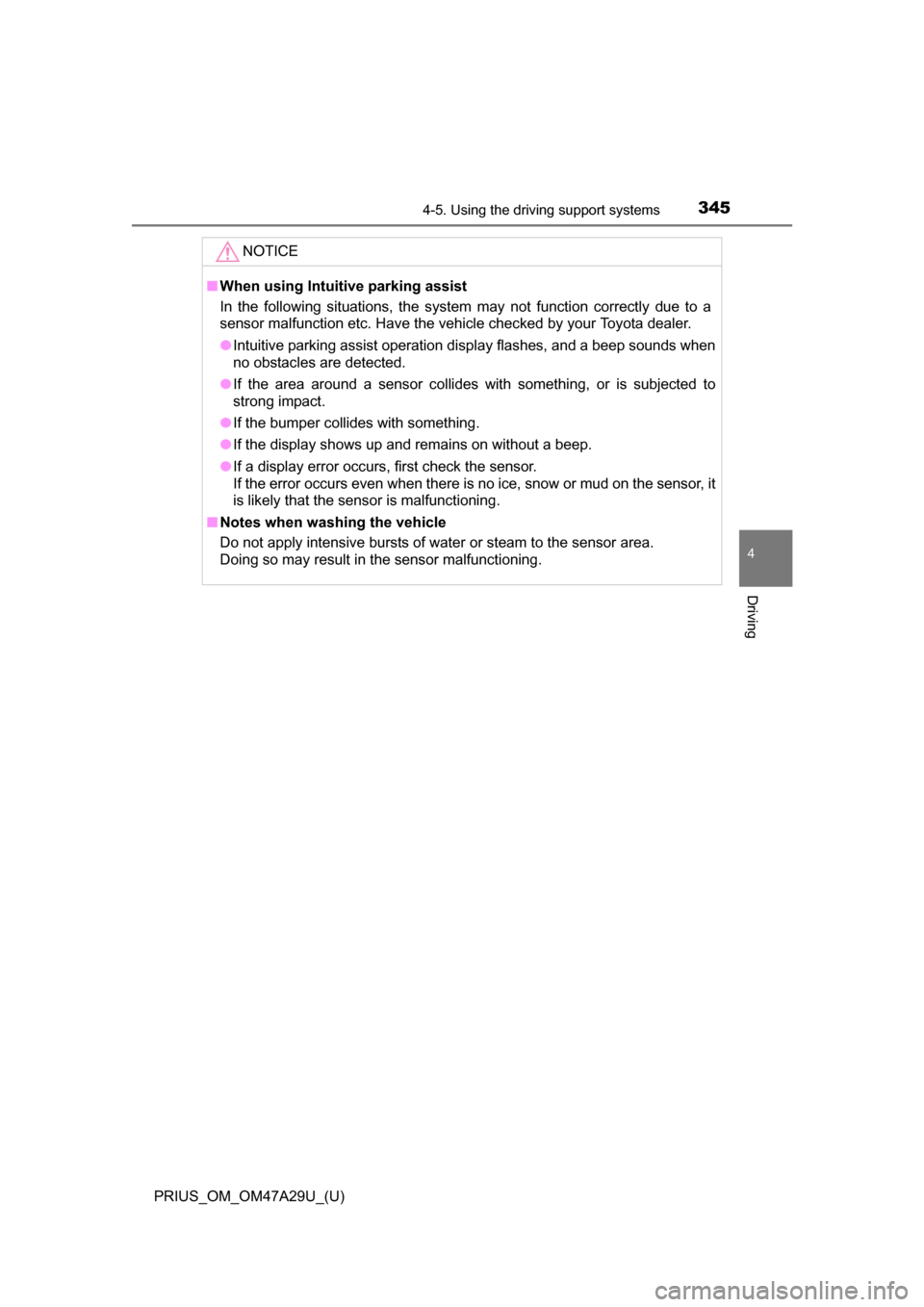

■When using Intuitive parking assist
In the following situations, the system may not function correctly due t\
o a
sensor malfunction etc. Have the vehicle checked by your Toyota dealer.
●Intuitive parking assist operation display flashes, and a beep sounds when
no obstacles are detected.
● If the area around a sensor collides with something, or is subjected to
strong impact.
● If the bumper collides with something.
● If the display shows up and remains on without a beep.
● If a display error occurs, first check the sensor.
If the error occurs even when there is no ice, snow or mud on the sensor, it
is likely that the sensor is malfunctioning.
■ Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

346
PRIUS_OM_OM47A29U_(U)
4-5. Using the driving support systems
Intelligent Clearance Sonar
The system operates in the following situations when an obstacle is
detected in the traveling direction of the vehicle.
◆The vehicle is driven at low speeds and the brake pedal is not
depressed, or is depressed too late
◆The accelerator pedal is depressed too far
: If equipped
When a collision may occur with an obstacle while parking or
traveling at low speeds, when the vehicle suddenly moves for-
ward due to mistaken accelerator pedal operation, or when the
vehicle moves due to the wrong shift position being selected,
the sensors detect obstacles to the front or rear in the traveling
direction of the vehicle, and the system operates to lessen
impact with obstacles such as walls, and reduce resulting dam-
age.

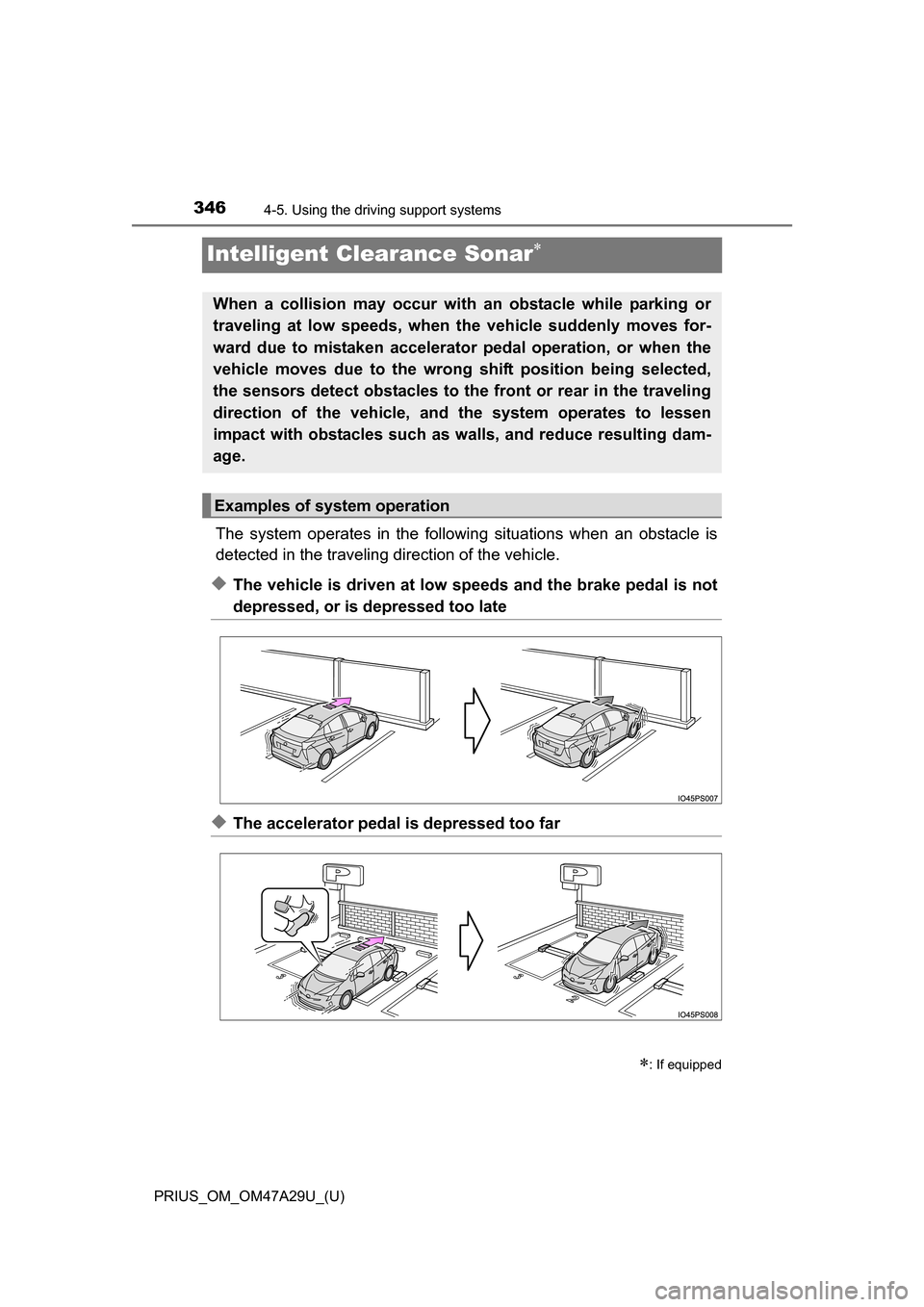

Examples of system operation

PRIUS_OM_OM47A29U_(U)
3474-5. Using the driving support systems
4
Driving

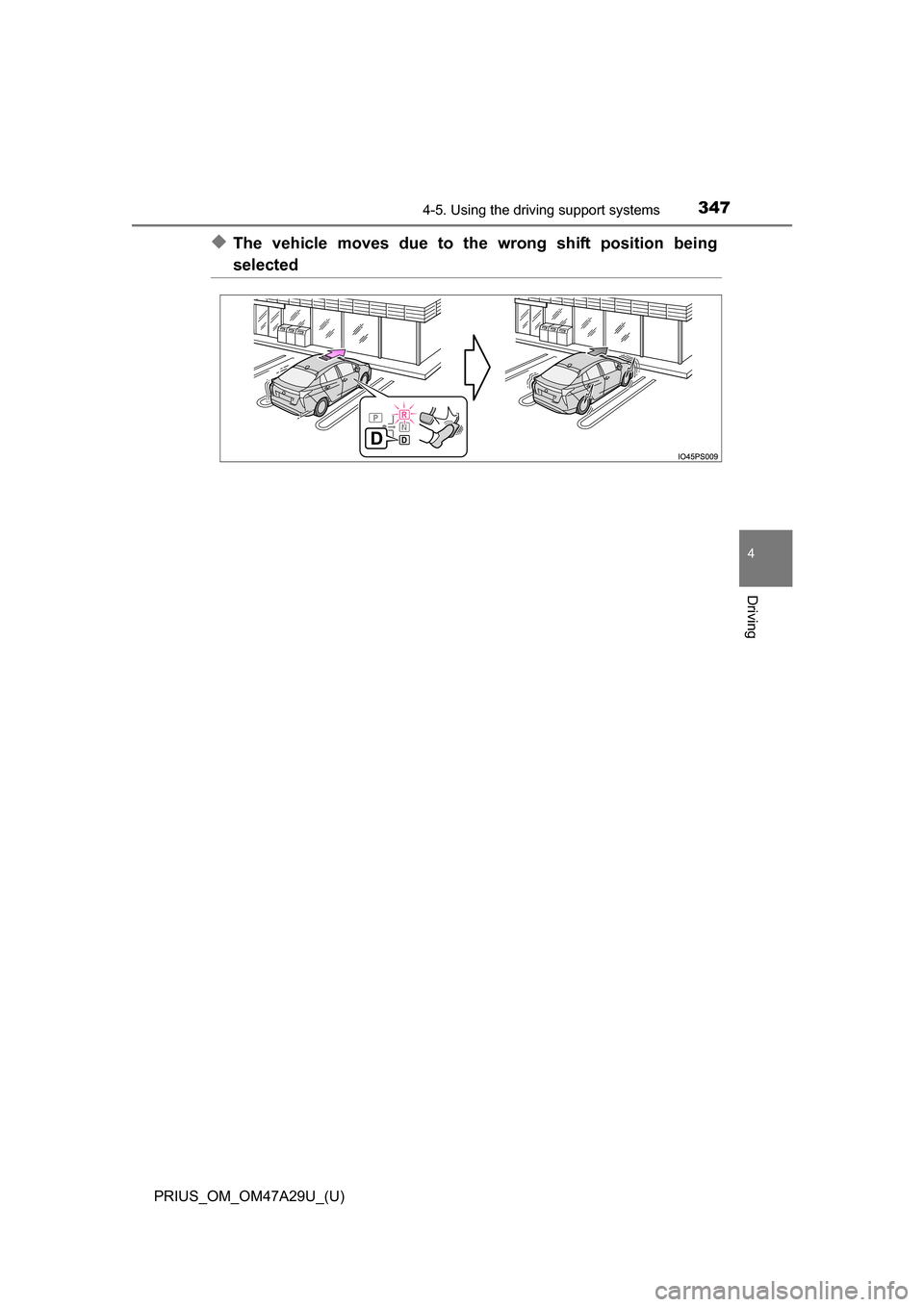

◆The vehicle moves due to the wrong shift position being
selected

348
PRIUS_OM_OM47A29U_(U)
4-5. Using the driving support systems

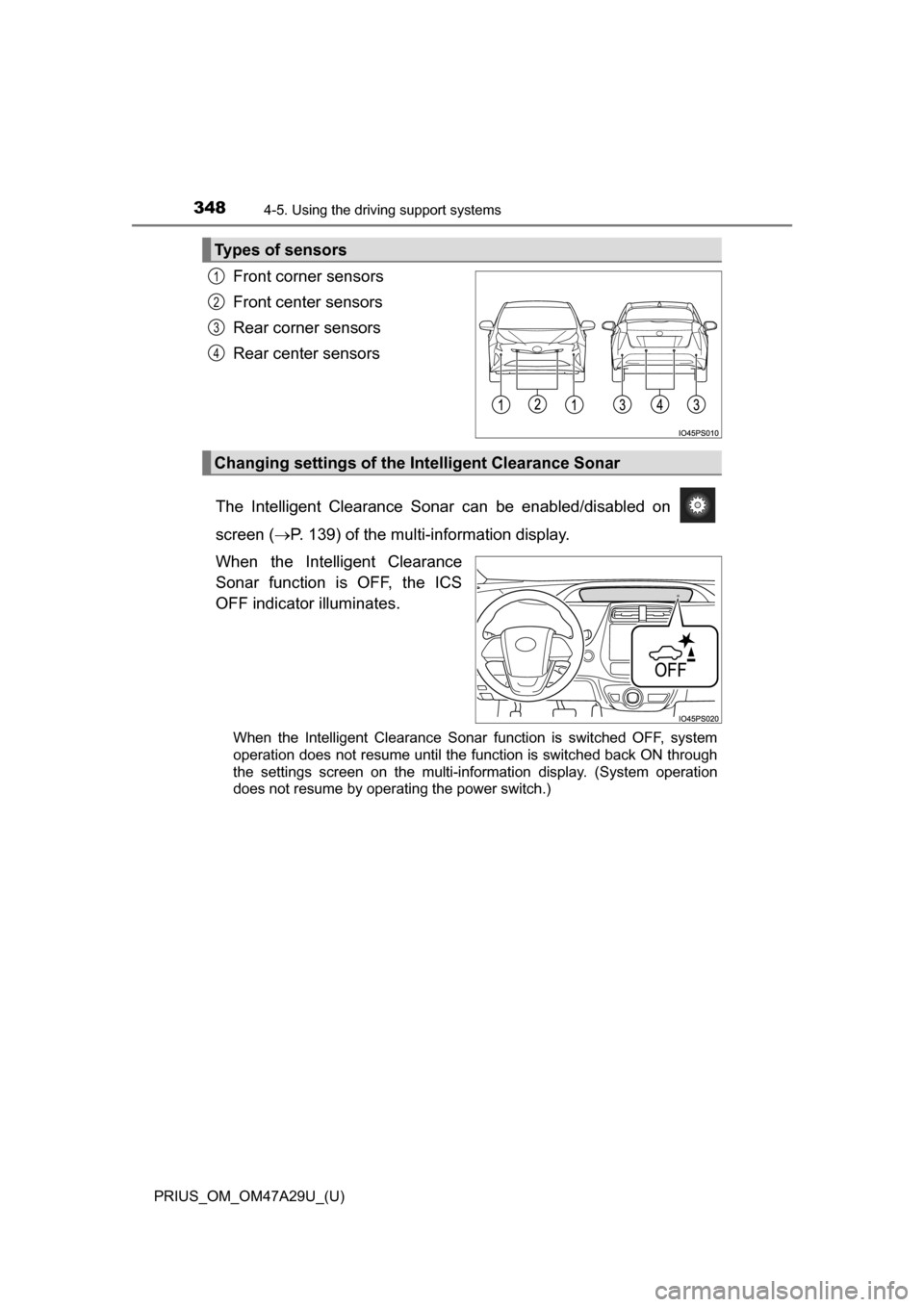

Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors
The Intelligent Clearance Sonar can be enabled/disabled on
screen ( P. 139) of the multi-information display.
When the Intelligent Clearance
Sonar function is OFF, the ICS
OFF indicator illuminates.
When the Intelligent Clearance Sonar function is switched OFF, system
operation does not resume until the function is switched back ON through
the settings screen on the multi-information display. (System operation
does not resume by operating the power switch.)
Types of sensors
1
2
3
4
Changing settings of the In telligent Clearance Sonar

PRIUS_OM_OM47A29U_(U)
3494-5. Using the driving support systems
4
Driving
When the Intelligent Clearance Sonar function detects an obstacle
with a probability of collision, hybr id system output is restricted to
restrain an increase in vehicle spe ed. (Hybrid system output restric-
tion control: A)
Furthermore, when the accelerato r pedal continues to be depressed,
the brakes are applied to reduce t he vehicle speed. (Brake control: B)

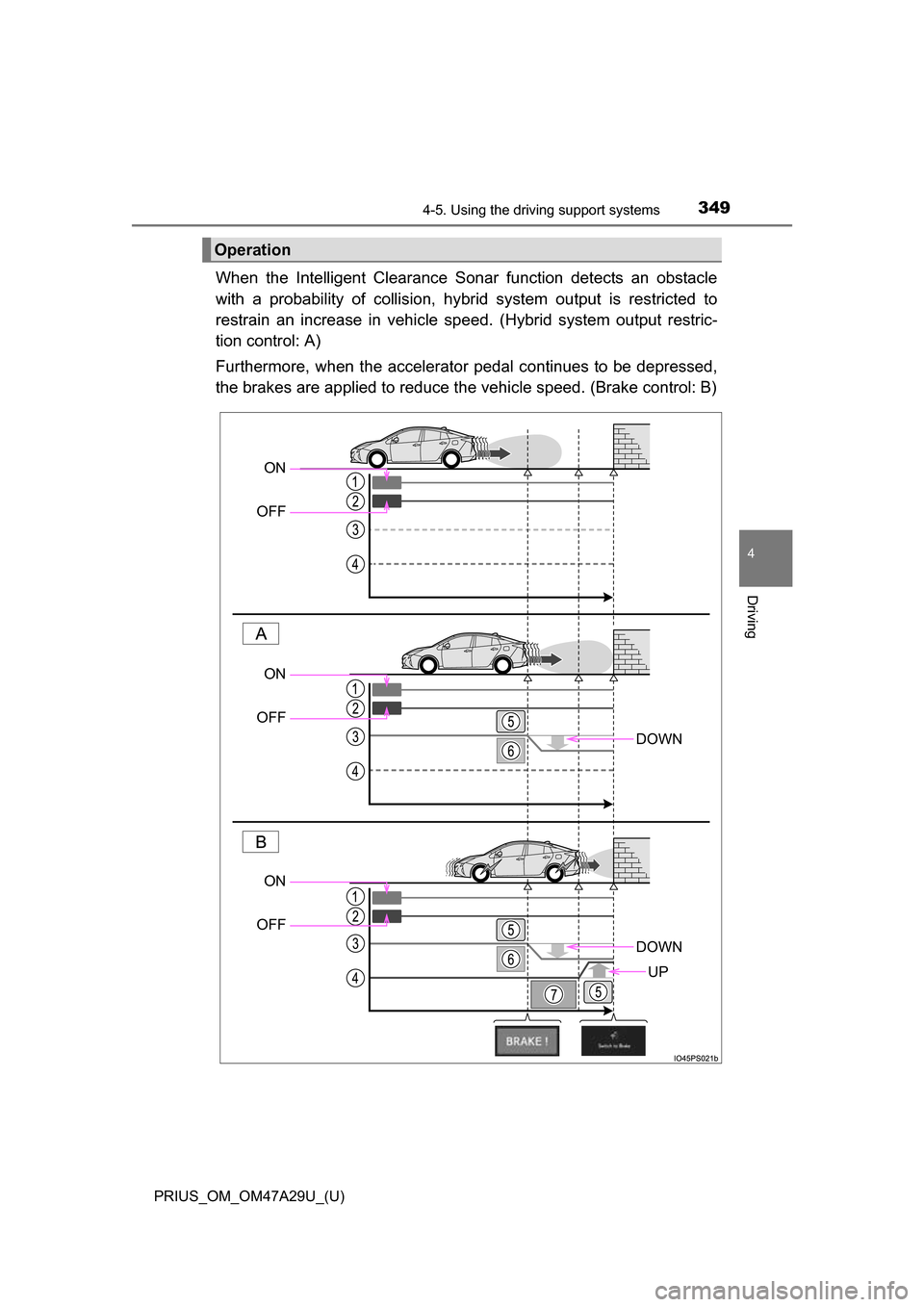

Operation
DOWN
DOWN
UP
ON
OFF
ON
OFF
ON
OFF

350
PRIUS_OM_OM47A29U_(U)
4-5. Using the driving support systems

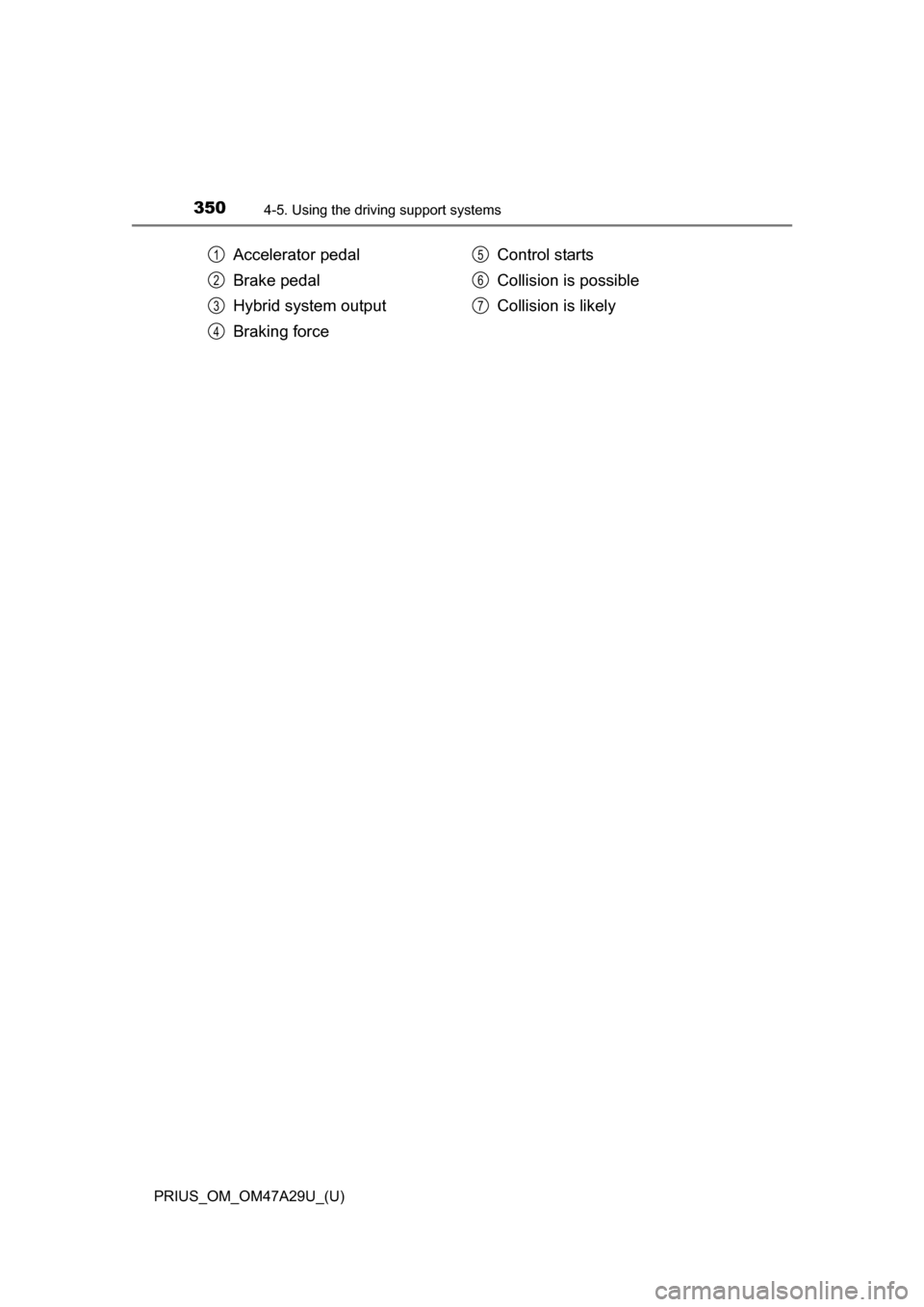

Accelerator pedal
Brake pedal
Hybrid system output
Braking force Control starts
Collision is possible
Collision is likely1
2
3
4
5
6
7
