TOYOTA PRIUS 2016 4.G Quick Reference Guide

SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
19
pg 543
pg 484
Push “vv” to change between the following information screens, “” to
select, “vv” to switch contents and “” to go back:
Split screen mode shown above (can also be viewed in simple screen mode.)
The main display shows basic drive information. Push “
” to view more info
for mileage and average fuel consumption display:
For more details, see Owner’s Manual. Average fuel consumption display
Mileage display (odometer/trip
meters/driving range)
Power outlets
Front
Rear
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
Microphone
Without moon roof
With moon roof
Steering wheel audio and
telephone controls
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to mute/unmute
or pause/resume the current operation.
“
vv” Use to search within the selected audio medium (radio, CD, etc.).
End call
Start call
Steering wheel switches
and telephone controls (Bluetooth®)*
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and
the system. Refer to “Bluetooth
® Device Pairing Section,” in this guide, for more
information about phone connections and compatibility.
* Position of buttons may vary on some vehicles, for more details please refer to the Owner’s Manual.
Volume
control
Talk
switch
Warning message display
Settings display
Driving assist system information
(if equipped)
134261_Prius_QRG_GUTS.indd 1912/18/15 1:31 PM

Eject CD
Push to turn
ON/OFF Seek station/
CD track select
Map card
insert
Push to display
audio screen
Touch screen display
Turn to tune
radio stations
manually or
select tracks or
files
Touch to pause
or resume
playing
Refer to the
“2016 Entune™ Audio Quick Reference Guide” or the “Navigation System
Owner’s Manual ” for more details.
Type 1 - Entune™ Audio
Type 2 - Entune™ Premium (JBL®) Audio with Integrated Navigation and App Suite
Access to
navigation
system
Push to display
home screen
20
FEATURES/OPERATIONS
By inserting a USB or an auxilary cable plug into the USB/AUX port, you can listen
to music from a portable audio device through the vehicle’s speaker system while in
USB/AUX mode.
Refer to the “Navigation System Owner’s Manual” for instructions and more
information.
Audio
USB/AUX port
Color Head-up display (HUD)
(if equipped)
Meter control switches adjust position and brightness of HUD
Head-up display (HUD) switch activates or switches between items
Vehicle speed display
Hybrid system current driving and energy regeneration status
Insert display driving support system information
Route guidance display (if equipped with navigation system)
The color head-up display can display the current vehicle speed and hybrid system
indicator in front of the driver. Also, it can display various types of information to
assist the driver.
The power switch must be in ACCESSORY or ON mode.
A portable device can be charged by just placing Qi standard wireless charge
compatible portable devices according to the Wireless Power Consortium, such as
smart phones and mobile batteries, etc., on the charge area.
This function cannot be used with portable devices that are larger than the
charging area. Also, depending on the portable device, it may not operate as
normal.
See Owner’s Manual for compatible portable devices.
Qi-compatible wireless charging
(if equipped)
Push power supply charging button.
(1)
Charge
area
Orange light - device is charging.
*reen light - device is finished charging.
134261_Prius_QRG_GUTS.indd 2012/18/15 1:31 PM

Seek station/
CD track select
Turn to tune
radio stations
manually or
select tracks or
files Touch to pause
or resume
playing
Refer to the “2016 Entune™ Audio Quick Reference Guide” or the “Navigation System
Owner’s Manual ” for more details.
SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
21
By inserting a USB or an auxilary cable plug into the USB/AUX port, you can listen
to music from a portable audio device through the vehicle’s speaker system while in
USB/AUX mode.
Refer to the “Navigation System Owner’s Manual” for instructions and more
information.
Color Head-up display (HUD)
(if equipped)
Meter control switches adjust position and brightness of HUD
Head-up display (HUD) switch activates or switches between items
Vehicle speed display
Hybrid system current driving and energy regeneration status
Insert display driving support system information
Route guidance display (if equipped with navigation system)
The color head-up display can display the current vehicle speed and hybrid system
indicator in front of the driver. Also, it can display various types of information to
assist the driver.
The power switch must be in ACCESSORY or ON mode.
A portable device can be charged by just placing Qi standard wireless charge
compatible portable devices according to the Wireless Power Consortium, such as
smart phones and mobile batteries, etc., on the charge area.
This function cannot be used with portable devices that are larger than the
charging area. Also, depending on the portable device, it may not operate as
normal.
See Owner’s Manual for compatible portable devices.
Qi-compatible wireless charging
(if equipped)
Push power supply charging button.
(1)(2)
Place charging side of device on the
charge area.
Operation
indicator light
Charge area
Orange light - device is charging.
*reen light - device is finished charging.
pg 458, 464
134261_Prius_QRG_GUTS.indd 2112/18/15 1:31 PM

22
FEATURES/OPERATIONS
Intelligent Parking Assist (IPA)
(if equipped)
When the sensors detect an obstacle, the buzzer and MID display informs the
driver of the approximate position and distance of the obstacle by illuminating
continuously (far) or blinking (near).
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for more details.
Corner sensors (front and rear)
Side sensors (front and rear)
pg 544
pg 554
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the
screen contrast and brightness.
Refer to the Owner‘s Manual for more details on this system.
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
Clock
To adjust the time, use meter control switches to go to the screen on the MID.
Then, select the
option to access the clock setting.
134261_Prius_QRG_GUTS.indd 2212/18/15 1:31 PM

SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
23
Intelligent Parking Assist (IPA)
(if equipped)
When the sensors detect an obstacle, the buzzer and MID display informs the
driver of the approximate position and distance of the obstacle by illuminating
continuously (far) or blinking (near).
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for more details.
Corner sensors (front and rear)
Side sensors (front and rear)
Front
center sensor
Rear
center sensor
pg 359
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the
screen contrast and brightness.
Refer to the Owner‘s Manual for more details on this system.1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Increase speed
To adjust the time, use meter control switches to go to the screen on the MID.
Then, select the
option to access the clock setting.
134261_Prius_QRG_GUTS.indd 2312/18/15 1:31 PM

24

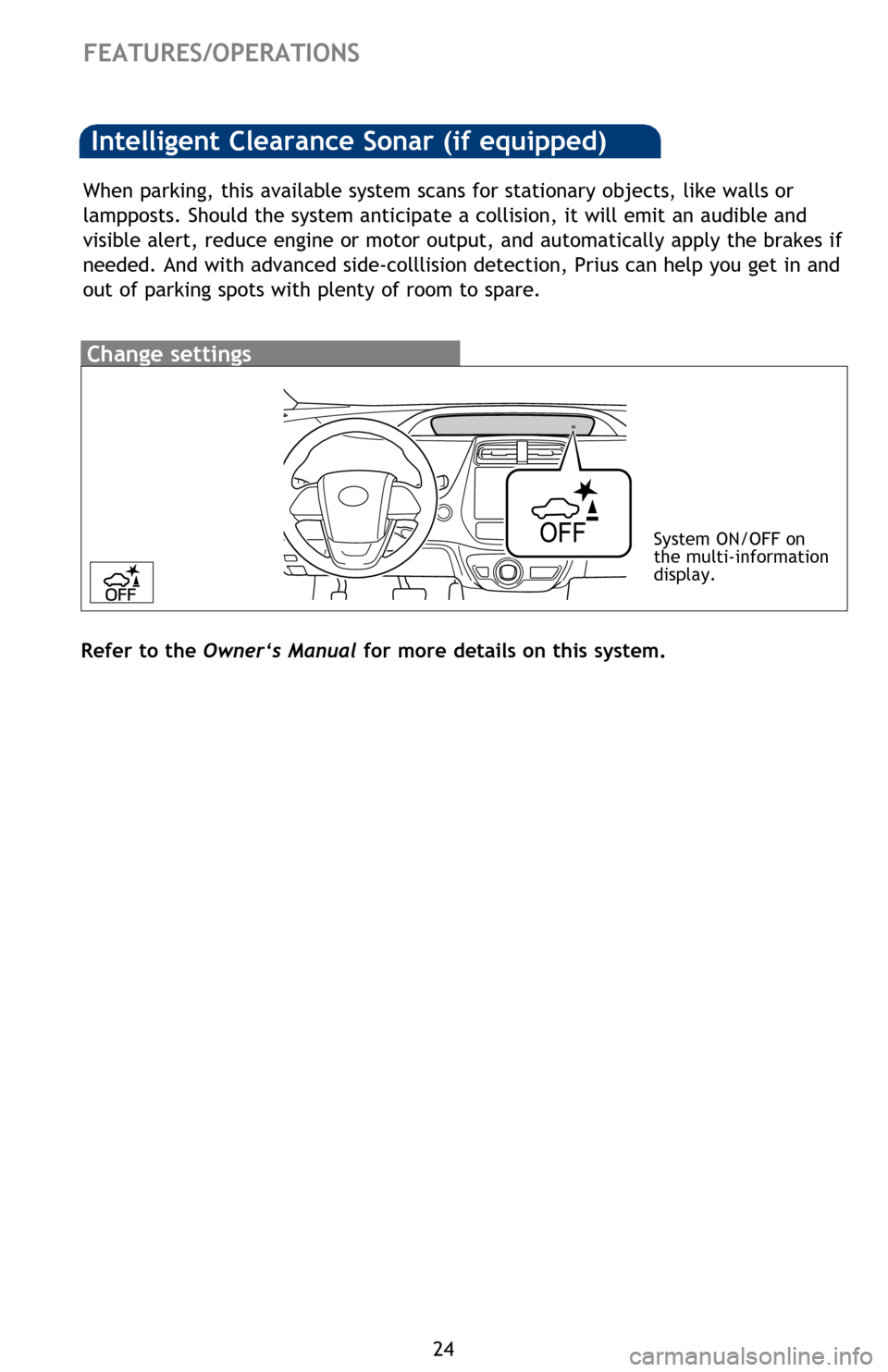

Intelligent Clearance Sonar (if equipped)
When parking, this available system scans for stationary objects, like walls or
lampposts. Should the system anticipate a collision, it will emit an audible and
visible alert, reduce engine or motor output, and automatically apply the brakes if
needed. And with advanced side-colllision detection, Prius can help you get in and
out of parking spots with plenty of room to spare.
FEATURES/OPERATIONS
pg 346
Change settings
Refer to the Owner‘s Manual for more details on this system.
System ON/OFF on
the multi-information
display.

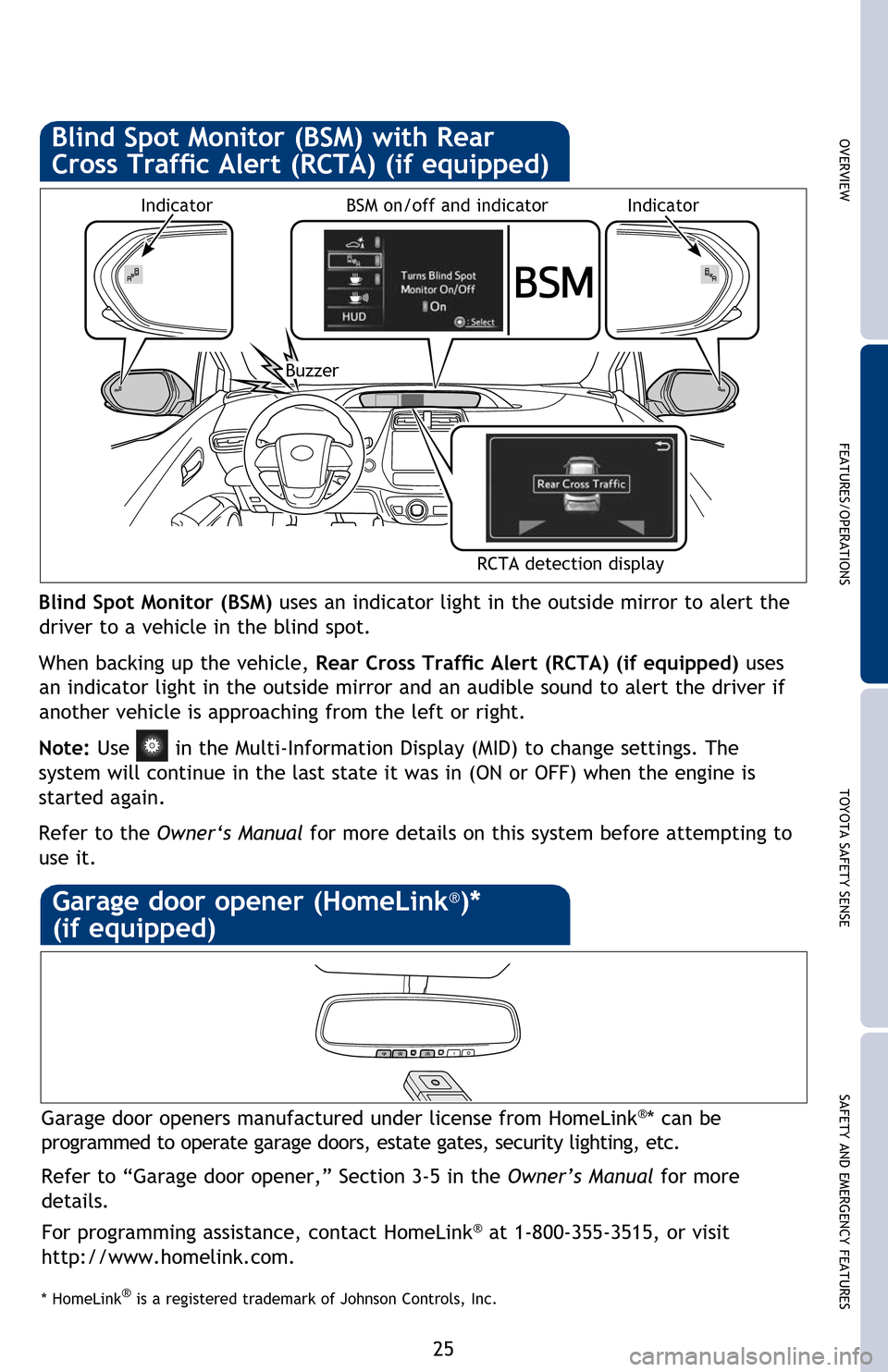

Blind Spot Monitor (BSM) with Rear
&ross Traf

25
SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
When parking, this available system scans for stationary objects, like walls or
lampposts. Should the system anticipate a collision, it will emit an audible and
visible alert, reduce engine or motor output, and automatically apply the brakes if
needed. And with advanced side-colllision detection, Prius can help you get in and
out of parking spots with plenty of room to spare.
Refer to the Owner‘s Manual for more details on this system.
System ON/OFF on
the multi-information
display.
Blind Spot Monitor (BSM) with Rear
&ross Traf

26
Quick overview-Toyota Safety Sense P
(if equipped)
TOYOTA SAFETY SENSE
Sensors
Two types of sensors, located behind the front grille and windshield, detect
information necessary to operate the drive assist systems. The single-lens camera
in front of inside rear view mirror detects and recognizes shapes and visible white
or yellow lane markings.

Radar sensor
Camera sensor

Pre-Collision System (PCS)
The Pre-Collision System uses a radar sensor and camera sensor to help detect
vehicles and pedestrians in front of your vehicle. If the system determines that
the possibility of a frontal collision with a vehicle or pedestrian is high, the system
warns the driver to take evasive action while the potential brake pressure is
increased to help the driver avoid collision or reduce the impact to the vehicle and
it’s occupants.
Note: PCS is enabled each time the engine switch is turned to Ignition On. The
system can be disabled/enabled and the warning timing of the system can be
changed.
Pre-collision warning
When the system determines that the possibility of a frontal collision is high,
a buzzer will sound and a warning message will be displayed on the multi-
information display to urge the driver to take evasive action.
Pre-collision brake assist
When the system determines that the possibility of a frontal collision is high, the
system applies greater braking force in relation to how strongly the brake pedal is
depressed.
Pre-collision braking
When the system determines that the possibility of a frontal collision is high, the
system warns the driver. If the system determines that the possibility of a collision
is extremely high, the brakes are automatically applied to help avoid the collision
or reduce the collision speed.
Toyota Safety Sense (TSS) P is a set of active safety technologies designed to
help prevent or mitigate collisions across a wide range of traffic situations. T66 P
is designed to help support the driver’s awareness, decision making and vehicle
operation contributing to a safe and comfortable driving experience.
Pre-Collision System (PCS)
Provides collision avoidance or damage mitigation support in
speed ranges where rear end collisions are likely to occur.
Lane Departure Alert (LDA)
Provides notification regarding the risN of unintended
lane departure.
Auto High Beams (AHB)
Vehicle detects lights of leading or opposing vehicles and
automatically changes between high and low beam headlight
settings.
Pedestrian Detection Function
Advanced sensor system helps to recognize pedestrians in some
circumstances and provides collision avoidance support and/or
damage mitigation.
Full-Speed Dynamic Radar Cruise Control (DRCC)
The vehicle automatically accelerates, decelerates and stops to
match the speed changes of the preceding vehicle at any speed.
Refer to the Owner’s Manual for more details to understand these functions
and complete safety precautions before attempting to use any of TOYOTA
SAFETY SENSE P functions.
134261_Prius_QRG_GUTS.indd 2612/18/15 1:32 PM

27
Two types of sensors, located behind the front grille and windshield, detect
information necessary to operate the drive assist systems. The single-lens camera
in front of inside rear view mirror detects and recognizes shapes and visible white
or yellow lane markings.

Radar sensor
Camera sensor

Pre-Collision System (PCS)
The Pre-Collision System uses a radar sensor and camera sensor to help detect
vehicles and pedestrians in front of your vehicle. If the system determines that
the possibility of a frontal collision with a vehicle or pedestrian is high, the system
warns the driver to take evasive action while the potential brake pressure is
increased to help the driver avoid collision or reduce the impact to the vehicle and
it’s occupants.
Note: PCS is enabled each time the engine switch is turned to Ignition On. The
system can be disabled/enabled and the warning timing of the system can be
changed.
Pre-collision warning
When the system determines that the possibility of a frontal collision is high,
a buzzer will sound and a warning message will be displayed on the multi-
information display to urge the driver to take evasive action.
Pre-collision brake assist
When the system determines that the possibility of a frontal collision is high, the
system applies greater braking force in relation to how strongly the brake pedal is
depressed.
Pre-collision braking
When the system determines that the possibility of a frontal collision is high, the
system warns the driver. If the system determines that the possibility of a collision
is extremely high, the brakes are automatically applied to help avoid the collision
or reduce the collision speed.
Toyota Safety Sense (TSS) P is a set of active safety technologies designed to
help prevent or mitigate collisions across a wide range of traffic situations. T66 P
is designed to help support the driver’s awareness, decision making and vehicle
operation contributing to a safe and comfortable driving experience.
Pre-Collision System (PCS)
Provides collision avoidance or damage mitigation support in
speed ranges where rear end collisions are likely to occur.
Auto High Beams (AHB)
Vehicle detects lights of leading or opposing vehicles and
automatically changes between high and low beam headlight
settings.
Pedestrian Detection Function
Advanced sensor system helps to recognize pedestrians in some
circumstances and provides collision avoidance support and/or
damage mitigation.
Full-Speed Dynamic Radar Cruise Control (DRCC)
The vehicle automatically accelerates, decelerates and stops to
match the speed changes of the preceding vehicle at any speed.
Refer to the
Owner’s Manual for more details to understand these functions
and complete safety precautions before attempting to use any of TOYOTA
SAFETY SENSE P functions.
SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
134261_Prius_QRG_GUTS.indd 2712/18/15 1:32 PM

28
TOYOTA SAFETY SENSE
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select from the MID.
(3) Press “
” from the meter switches.
Each time “
” is pressed, the response to the warning distance changes as
follows:
Far
Middle (default)
Near
Note: The PCS warning timing is set when the power switch is turned off.

Changing the pre-collision warning distance

Disabling the Pre-Collision System (PCS)
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select from the MID.
(3) Press “
” from the meter switches.
The Pre-Collision System will be disabled.
Note: The system is automatically enabled each time the power switch is
turned to ON mode.
The Lane Departure Alert system recognizes visible white or yellow lane markers
via camera sensor. The system alerts the driver with a warning buzzer sound
and message in the Multi-Information Display (MID) when it detects the vehicle
deviating from or swaying multiple times within its lane.
Lane Departure Alert (LDA) with
Steering Assist (SA) function
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: The system will continue in the last state it was in (ON or OFF)
when the engine is started again.
Turning on the LDA system
As part of PC6 this function is also designed to first provide an alert and then
automatic braking if needed.
Pedestrian Detection Function
The Pre-Collision System also features a pedestrian detection function. Using
a millimeter wave radar and monocular camera sensor, this advanced sensor
system can recognize pedestrians in some circumstances. It may provide detection
capability while driving at low as well as higher speeds.
134261_Prius_QRG_GUTS.indd 2812/18/15 1:32 PM
