TOYOTA PRIUS 2016 4.G Quick Reference Guide

29
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “ ” switches and select from the MID.
(3) Press “
” from the meter switches.
Each time “
” is pressed, the response to the warning distance changes as
follows:
Far
Middle (default)
Near
Note: The PCS warning timing is set when the power switch is turned off.


(1) Press “ ” switches and select from the Multi-Information Display (MID).
(2) Press “ ” switches and select from the MID.
(3) Press “
” from the meter switches.
The Pre-Collision System will be disabled.
Note: The system is automatically enabled each time the power switch is
turned to ON mode.
The Lane Departure Alert system recognizes visible white or yellow lane markers
via camera sensor. The system alerts the driver with a warning buzzer sound
and message in the Multi-Information Display (MID) when it detects the vehicle
deviating from or swaying multiple times within its lane.
Lane Departure Alert (LDA) with
Steering Assist (SA) function
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: The system will continue in the last state it was in (ON or OFF)
when the engine is started again.
Turning on the LDA system
Monocular camera sensor
Millimeter wave radar
As part of PC6 this function is also designed to first provide an alert and then
automatic braking if needed.
Pedestrian Detection Function
The Pre-Collision System also features a pedestrian detection function. Using
a millimeter wave radar and monocular camera sensor, this advanced sensor
system can recognize pedestrians in some circumstances. It may provide detection
capability while driving at low as well as higher speeds.
SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
134261_Prius_QRG_GUTS.indd 2912/18/15 1:32 PM

30
TOYOTA SAFETY SENSE
The LDA function displays when the Multi-Information Display (MID) is
switched to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible lane
marNers on the road are detected. A side

31
The LDA function displays when the Multi-Information Display (MID) is
switched to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible lane
marNers on the road are detected. A side

32
TOYOTA SAFETY SENSE
Full-Speed Dynamic Radar Cruise Control
(DRCC) (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Vehicle will cruise at a set speed, decelerate to maintain selected distance from
a slower vehicle traveling in front and accelerate back up to the selected speed if
the vehicle in front changes lanes or speeds up.

(1) Push the “ON-OFF” button. The “RADAR READY” or “
” indicator will come
on.
(2) Push the lever down to SET speed, push it up to Resume and pull it or depress brake to Cancel.
(3) Push up to increase the set speed, push down to decrease (1mph increments).
Increase
speed(3)
Decrease speed
Adjusting set speed
Cancel1
Resume2
Set
(2)
Turning system ON/OFF
(1)
Note: If you hold the ON-OFF
button for 1.5 seconds or
more, the system switches to
constant speed control mode.
In vehicle-to-vehicle distance control mode, the vehicle automatically accelerates,
decelerates and stops to match the speed changes of the preceding vehicle at any
speed. ,n constant speed control mode the vehicle runs at a fi[ed speed.
Use the DRCC with full-speed range on freeways and highways.
Adjusting distance
This mode employs a radar sensor to detect the presence of vehicles up to
approximately 400ft (120m) ahead, determines the current vehicle-to-vehicle
following distance and operates to maintain a suitable following distance from the
vehicle ahead.
(1) Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-
vehicle distance can also be set by operating the vehicle-to-vehicle distance
control.
(2) Deceleration cruising and follow-up cruising when a preceding vehicle
driving slower than the set speed appears When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the stop lights will come on at this
time). The system will respond to changes in the speed of the vehicle ahead in
order to maintain the vehicle-to-vehicle distance set by the driver. A warning
tone warns you when the system cannot decelerate sufficiently to prevent your
vehicle from closing in on the vehicle ahead.
Note:
Vehicle-to-vehicle distance may lessen when traveling on long downhill
slopes.
Vehicle-to-vehicle
distance button
Indicators
Display
Set speed
Cruise control switch
134261_Prius_QRG_GUTS.indd 3212/18/15 1:32 PM

33
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Vehicle will cruise at a set speed, decelerate to maintain selected distance from
a slower vehicle traveling in front and accelerate back up to the selected speed if
the vehicle in front changes lanes or speeds up.

(1) Push the “ON-OFF” button. The “RADAR READY” or “
” indicator will come
on.
(2) Push the lever down to SET speed, push it up to Resume and pull it or depress brake to Cancel.
(3) Push up to increase the set speed, push down to decrease (1mph increments).
Increase
speed
Note: If you hold the ON-OFF
button for 1.5 seconds or
more, the system switches to
constant speed control mode.
In vehicle-to-vehicle distance control mode, the vehicle automatically accelerates,
decelerates and stops to match the speed changes of the preceding vehicle at any
speed. ,n constant speed control mode the vehicle runs at a fi[ed speed.
Use the DRCC with full-speed range on freeways and highways.
Adjusting distance
To change the vehicle-to-
vehicle distance

Push the “
” button
to cycle through the
settings, which will change
progressively.
LONG (default setting)
MIDDLE
SHORT.
preceding
vehicle mark
This mode employs a radar sensor to detect the presence of vehicles up to
approximately 400ft (120m) ahead, determines the current vehicle-to-vehicle
following distance and operates to maintain a suitable following distance from the
vehicle ahead.
(1) Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-
vehicle distance can also be set by operating the vehicle-to-vehicle distance
control.
(2) Deceleration cruising and follow-up cruising when a preceding vehicle
driving slower than the set speed appears When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the stop lights will come on at this
time). The system will respond to changes in the speed of the vehicle ahead in
order to maintain the vehicle-to-vehicle distance set by the driver. A warning
tone warns you when the system cannot decelerate sufficiently to prevent your
vehicle from closing in on the vehicle ahead.
Note:
Vehicle-to-vehicle distance may lessen when traveling on long downhill
slopes.
(1) (2) (3)
SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
134261_Prius_QRG_GUTS.indd 3312/18/15 1:32 PM

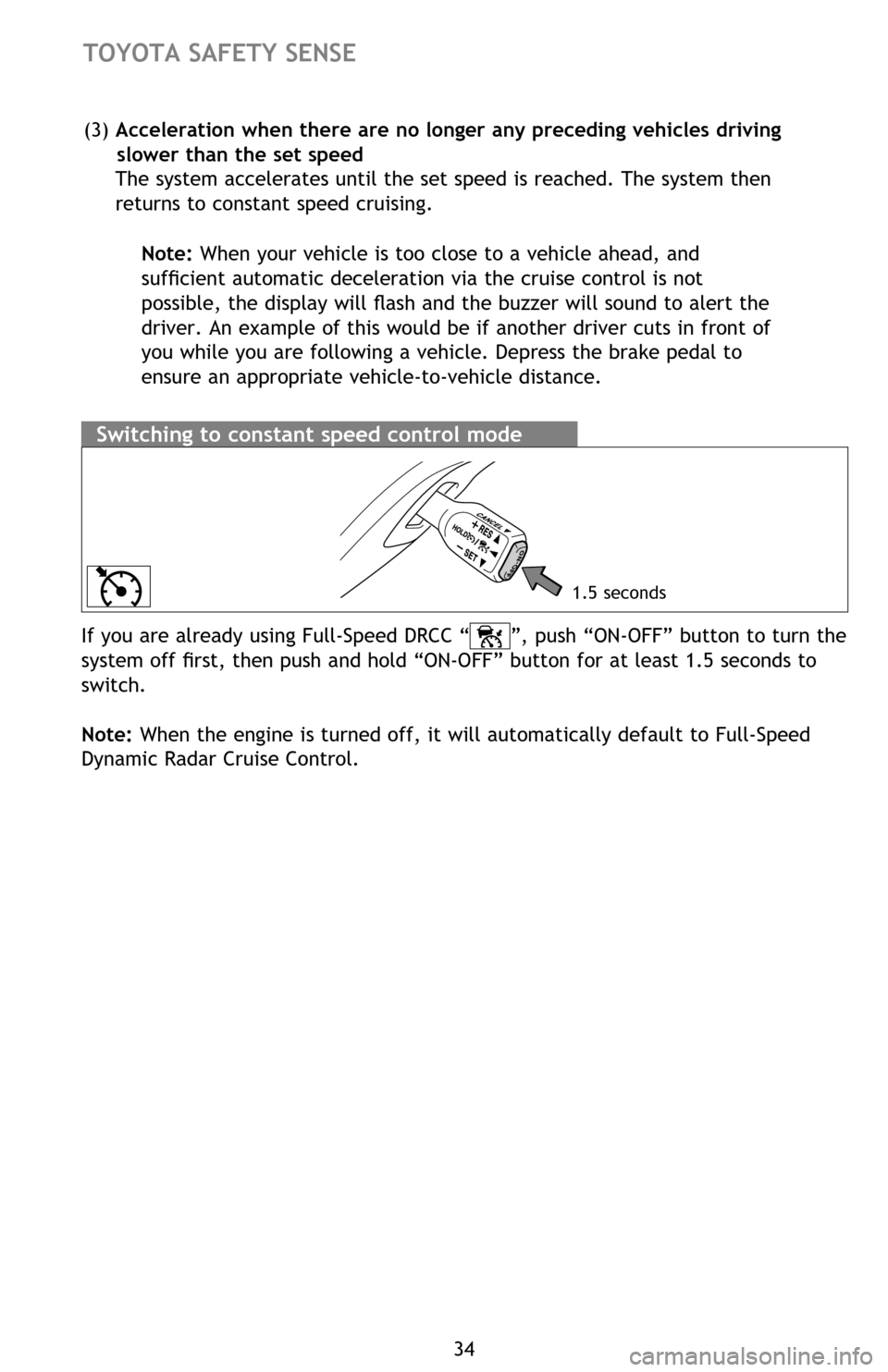

34
TOYOTA SAFETY SENSE
Switching to constant speed control mode
If you are already using Full-Speed DRCC “”, push “ON-OFF” button to turn the
system off first then push and hold

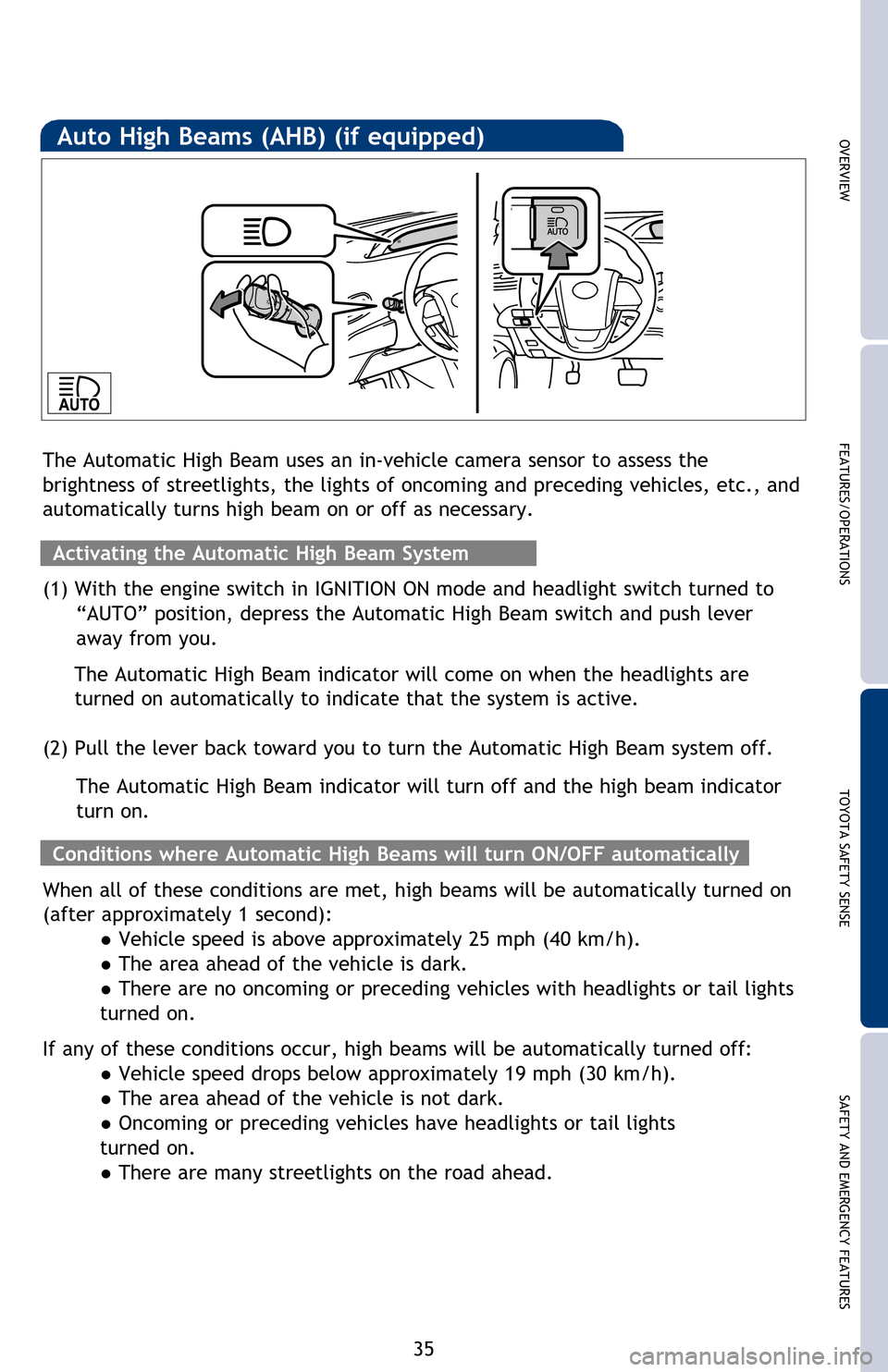

35
If you are already using Full-Speed DRCC “”, push “ON-OFF” button to turn the
system off first then push and hold

36
SAFETY AND EMERGENCY FEATURES
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
If the Tire Pressure Warning indicator “” illuminates without blinking, adjust
tire pressures to factory-specified levels.
The light will turn off after a few
minutes. The warning light may come on due to temperature changes or changes
in tire pressure from natural air leaNage.
,f the tire pressure indicator

SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
37
SAFETY AND EMERGENCY FEATURES
Take up slack
If the Tire Pressure Warning indicator “” illuminates without blinking, adjust
tire pressures to factory-specified levels.
The light will turn off after a few
minutes. The warning light may come on due to temperature changes or changes
in tire pressure from natural air leaNage.
,f the tire pressure indicator

38
SAFETY AND EMERGENCY FEATURES
Star Safety SystemTM
Enhanced Vehicle Stability Control provides cooperative control of the ABS, TRAC,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of traction occurs
during a turn.
Enhanced Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control. VSC helps prevent loss of traction during cornering by reducing Hybrid System
output, and Traction Control helps maintain traction on loose gravel and wet, icy,
or uneven surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits Hybrid System output and applies the brakes to the spinning wheel.
This transfers power to the wheels that still have traction to help keep you on
track.
Traction Control (TRAC)
All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
With compact spare tire
With full-size spare tire
With tire repair kit and tools (vehicles without spare tire)
Tire repair kit components
Removing the spare tire
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Jack handle
Towing eyelet
Wheel nut wrench
Spare tire
Jack
Emergency tire puncture repair kit Hose
Air release cap
Power plug
Air pressure gauge
Compressor switch
Sticker
Spare Tire/Tire Repair Kit & tools
Tool location
