1012. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
Warning lightsPages
*1Brake system warning light (U.S.A.) P. 673
*1Brake system warning light (Canada)
(Red)P. 673
*1Brake system warning light
(Yellow)P. 673
*1Charging system warning light
P. 673
*1Low engine oil pressure warning lightP. 673
*1Malfunction indicator lamp (U.S.A.) P. 673
*1Malfunction indicator lamp (Canada) P. 673
*1SRS warning lightP. 674
*1ABS warning light (U.S.A.) P. 674
*1ABS warning light (Canada)P. 674
*1Electric power steering system warning light
(Red/yellow)P. 674
*1,2PCS warning light (if equipped)
P. 674
*1Slip indicator light P. 674
*1High coolant temperature warning lightP. 675

102
PRIUS_OM_OM47B89U_(U)
2. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: The light flashes or illuminates to indicate a malfunction.
*3: The light flashes to indicate a malfunction.

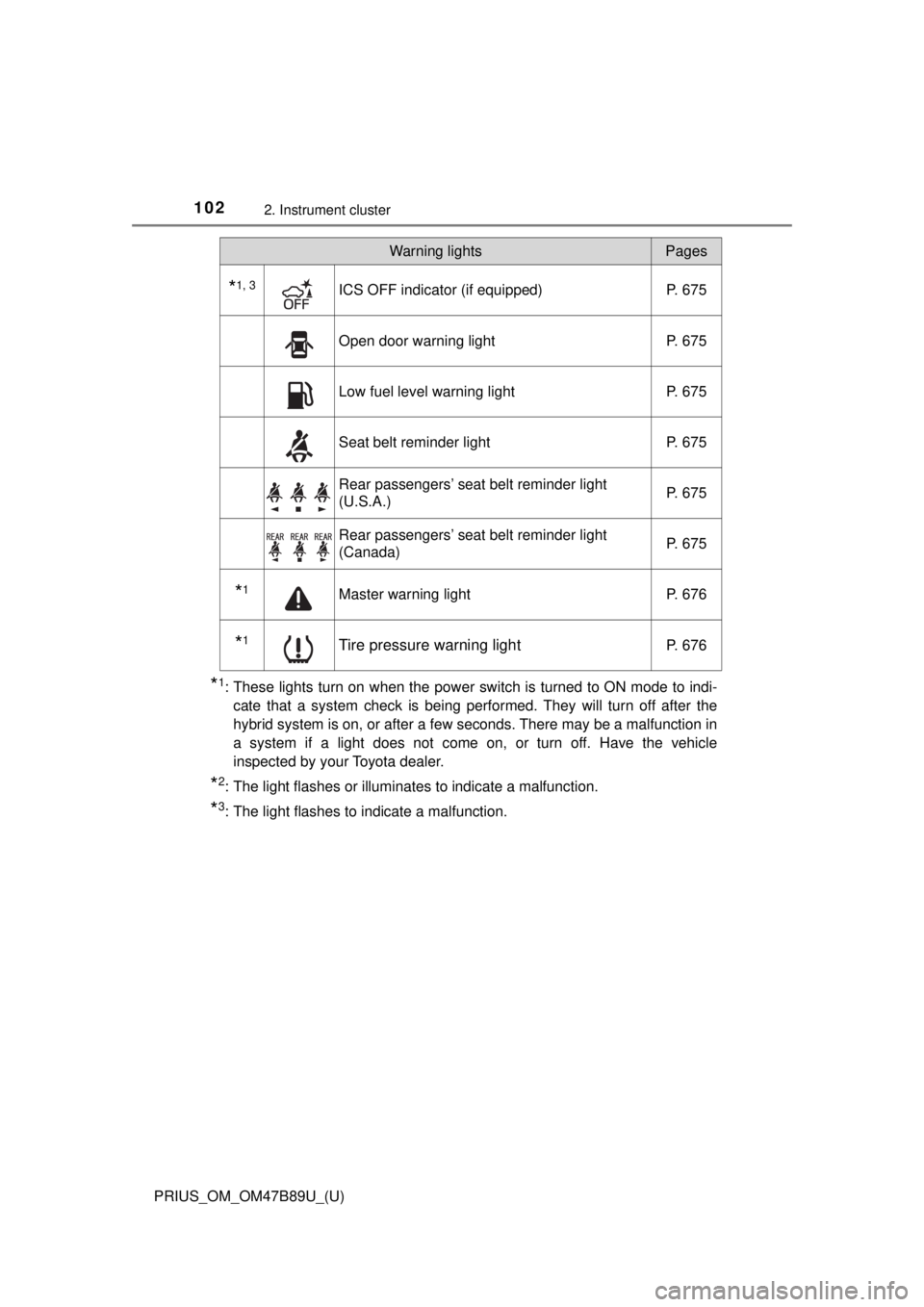

*1, 3ICS OFF indicator (if equipped) P. 675
Open door warning lightP. 675
Low fuel level warning lightP. 675
Seat belt reminder lightP. 675
Rear passengers’ seat belt reminder light
(U.S.A.) P. 675
Rear passengers’ seat belt reminder light
(Canada)P. 675
*1Master warning light
P. 676
*1Tire pressure warning lightP. 676
Warning lightsPages

PRIUS_OM_OM47B89U_(U)
1032. Instrument cluster
2
Instrument cluster

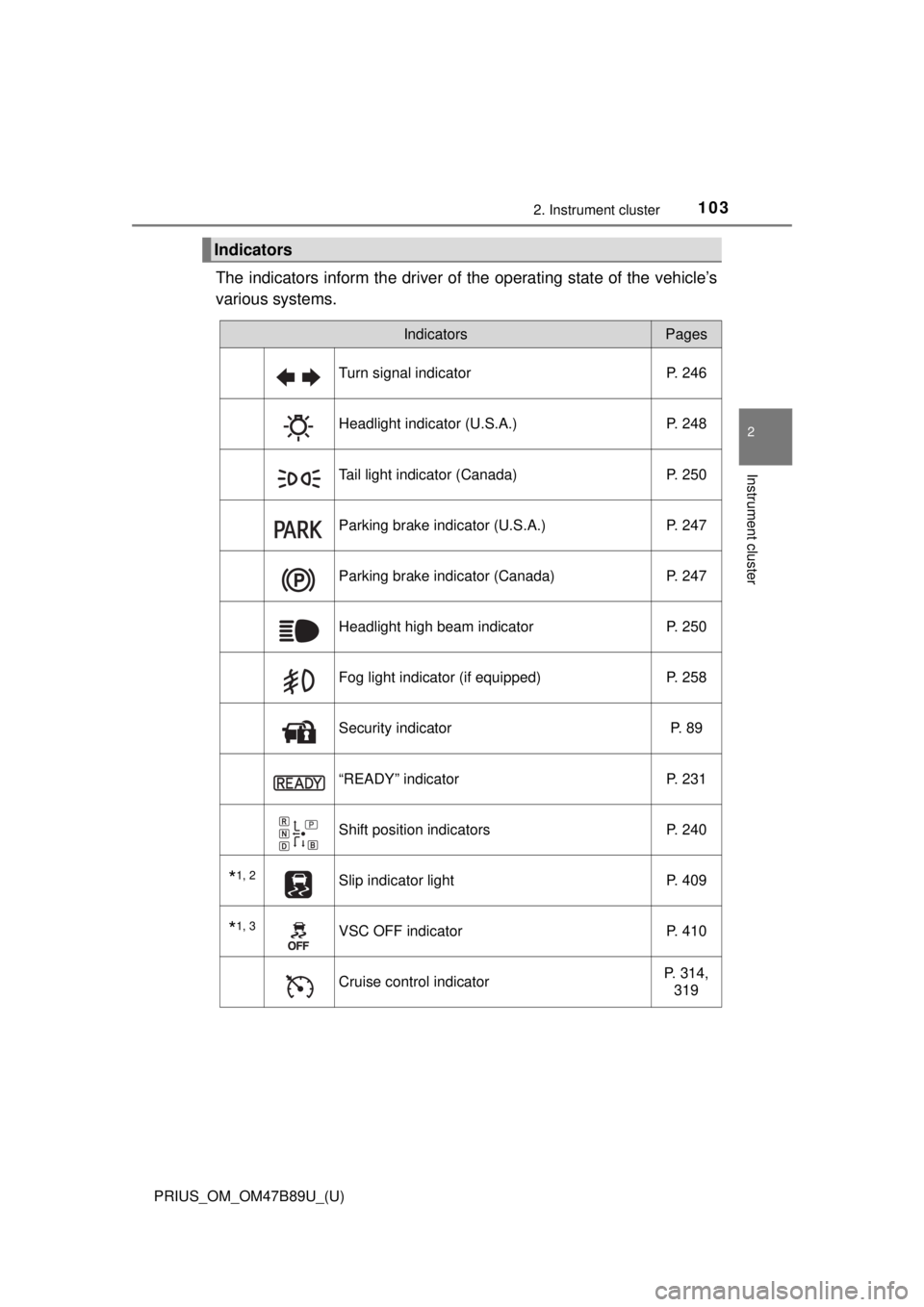

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
IndicatorsPages
Turn signal indicator P. 246
Headlight indicator (U.S.A.) P. 248
Tail light indicator (Canada) P. 250
Parking brake indicator (U.S.A.) P. 247
Parking brake indicator (Canada)P. 247
Headlight high beam indicatorP. 250
Fog light indicator (if equipped) P. 258
Security indicator P. 89
“READY” indicatorP. 231
Shift position indicators P. 240
*1, 2Slip indicator light P. 409
*1, 3VSC OFF indicatorP. 410
Cruise control indicatorP. 314,
319

104
PRIUS_OM_OM47B89U_(U)
2. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
Dynamic radar cruise control indicator (if
equipped) P. 304
Cruise control “SET” indicatorP. 304,
319
*1, 3PCS warning light (if equipped) P. 285
LDA indicator (if equipped)P. 297
Steering control indicator (if equipped)P. 298
Automatic High Beam indicator (if equipped) P. 253
“BSM” indicator (if equipped)P. 326
Intuitive parking assist indicator (if equipped) P. 339
*1, 3ICS OFF indicator (if equipped) P. 352
*1S-APGS indicator (if equipped)P. 367
*1“AIR BAG ON/OFF” indicator (U.S.A.) P. 50
*1“AIR BAG ON/OFF” indicator (Canada)P. 50
IndicatorsPages

PRIUS_OM_OM47B89U_(U)
1052. Instrument cluster
2
Instrument cluster
■Main display and multi-information display
*: The displayed indicator changes according to the current driving mode.
■
Multi-information display (symbol display*)
*: These symbols are displayed along with a message. Also, the symbol dis- plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.

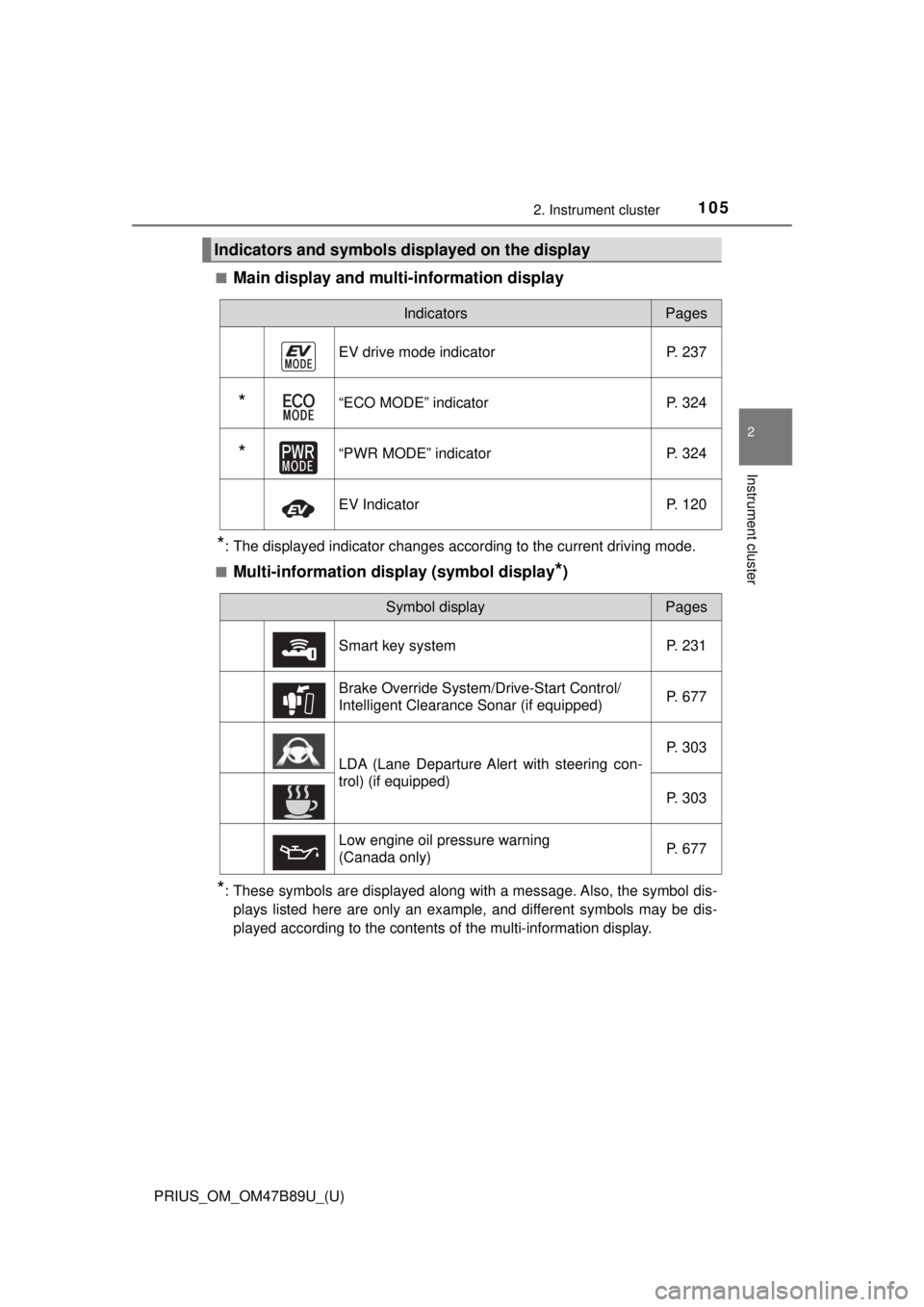

Indicators and symbols displayed on the display
IndicatorsPages
EV drive mode indicator P. 237
*“ECO MODE” indicator P. 324
*“PWR MODE” indicatorP. 324
EV IndicatorP. 120
Symbol displayPages
Smart key system P. 231
Brake Override System/Drive-Start Control/
Intelligent Clearance Sonar (if equipped) P. 677
LDA (Lane Departure Alert with steering con-
trol) (if equipped)P. 303
P. 303
Low engine oil pressure warning
(Canada only) P. 677

106
PRIUS_OM_OM47B89U_(U)
2. Instrument cluster
■BSM (Blind Spot Monitor) outsid e rear view mirror indicators
(if equipped) ( →P. 326)
• When the BSM function is enabled on the screen of the multi-infor- mation display, the power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.
●
Indicators are also displayed on the out-
side rear view mirrors.
● In order to confirm operation, the BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is in ON
mode, the BSM function is enabled
on the screen of the multi-infor-
mation display.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could r\
esult
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. ( →P. 735)

107
PRIUS_OM_OM47B89U_(U)
2. Instrument cluster
2
Instrument cluster

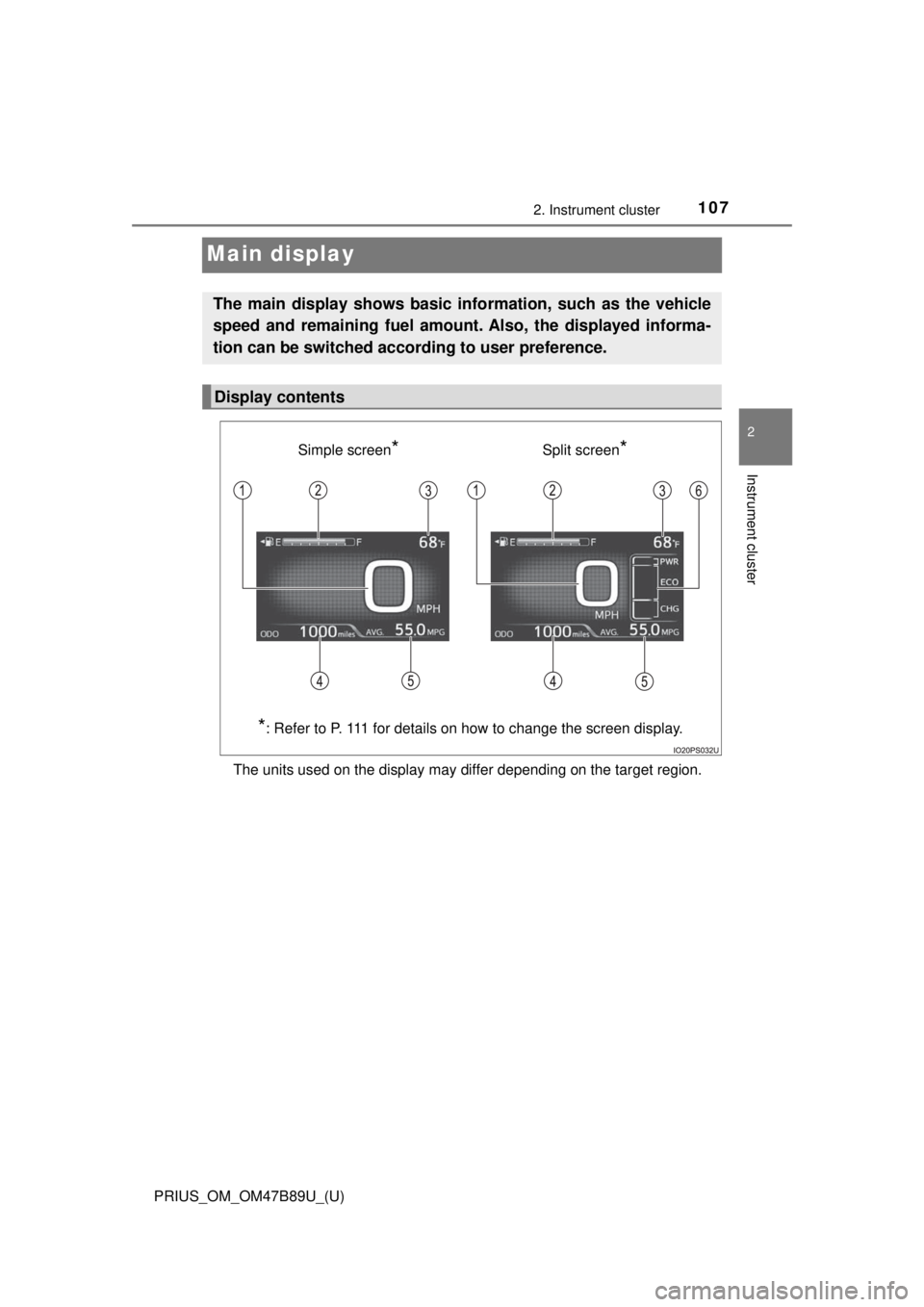

Main display
The units used on the display may differ depending on the target region.
The main display shows basic information, such as the vehicle
speed and remaining fuel amount . Also, the displayed informa-
tion can be switched according to user preference.
Display contents
Simple screen*Split screen*
*
: Refer to P. 111 for details on how to change the screen display.

108
PRIUS_OM_OM47B89U_(U)
2. Instrument cluster
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 37°F (3 °C) or less, and then
stops flashing.
Mileage display (odometer/trip meters/driving range)
The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. ( →P. 109)
Average fuel consumption display
The average fuel consumption that is linked with the contents of the mile-
age display can be displayed. ( →P. 109)
Sub-screen
When split screen is selected for the main display, information such as the
Hybrid System Indicator and current fuel consumption can be displayed.
(→P. 1 1 1 )
1
2
3
4
5
6

PRIUS_OM_OM47B89U_(U)
1092. Instrument cluster
2
Instrument cluster
Each time is pressed, the mileage display and fuel consumption
display change in the following order from 1 to 6.
Mileage display
Average fuel consumption dis-
play
After 1 to 6 are displayed, the dis-
plays return to 1.
Use the displayed average fuel
consumption as a reference.

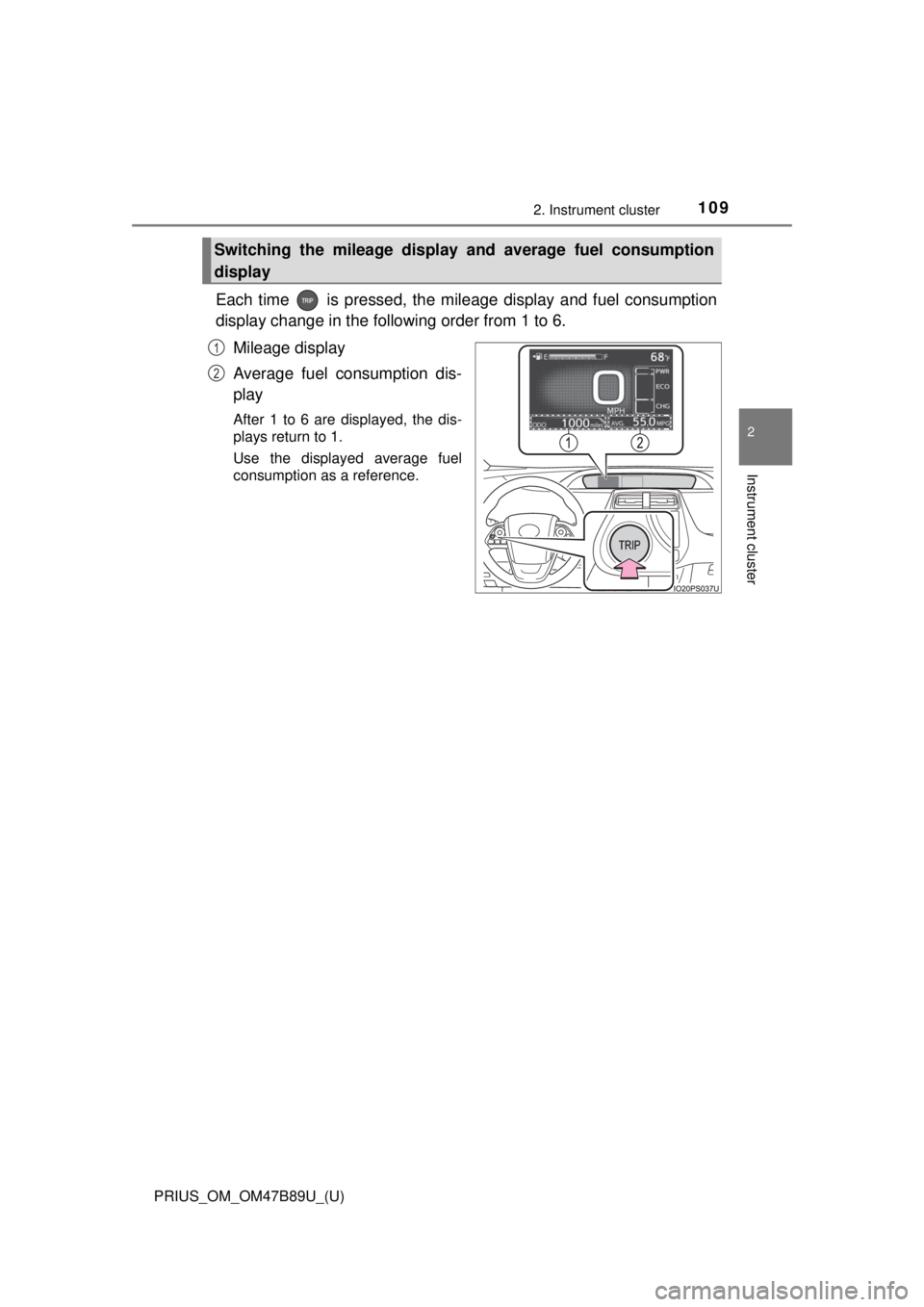

Switching the mileage display and average fuel consumption
display
1
2

110
PRIUS_OM_OM47B89U_(U)
2. Instrument cluster
*1: If is pressed and held while this item is displayed, the information isreset.
*2: This item is reset each time the hybrid system starts.

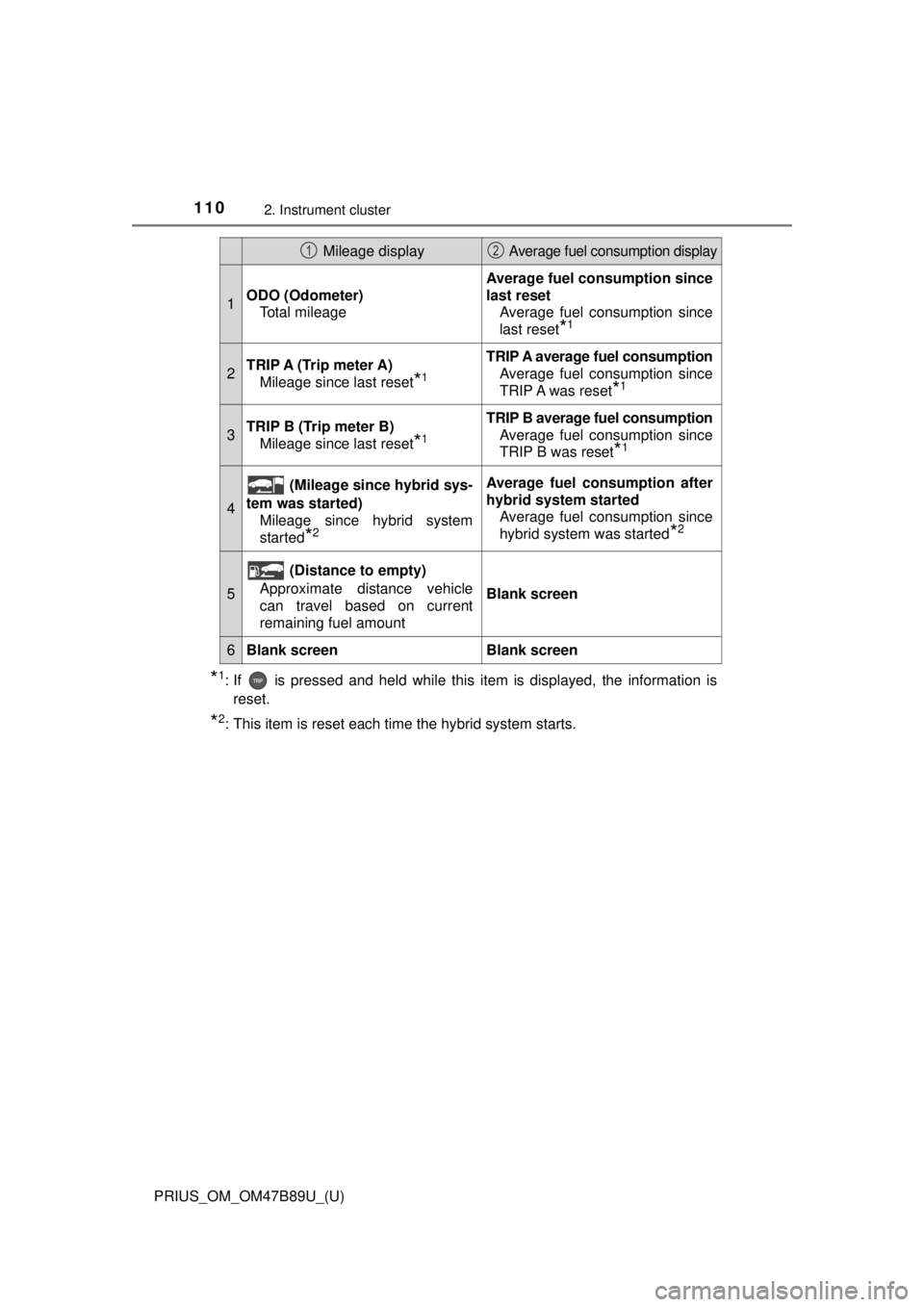

Mileage display Average fuel consumption display
1ODO (Odometer) Total mileage
Average fuel consumption since
last resetAverage fuel consumption since
last reset
*1
2TRIP A (Trip meter A)Mileage since last reset
*1
TRIP A average fuel consumption
Average fuel consumption since
TRIP A was reset
*1
3TRIP B (Trip meter B)Mileage since last reset
*1
TRIP B average fuel consumptionAverage fuel consumption since
TRIP B was reset
*1
4
(Mileage since hybrid sys-
tem was started) Mileage since hybrid system
started
*2
Average fuel consumption after
hybrid system startedAverage fuel consumption since
hybrid system was started
*2
5
(Distance to empty)
Approximate distance vehicle
can travel based on current
remaining fuel amount
Blank screen
6Blank screenBlank screen
12
