TOYOTA PRIUS 2019 Accessories, Audio & Navigation (in English)

141
2. MOBILE ASSISTANT OPERATION
PRIUS_Wide Navi_OM47C48U_(U)
18.10.10 10:30
VOICE COMMAND SYSTEM
4
MICROPHONE
It is not necessary to speak directly into
the microphone when using the Mobile
Assistant. (Microphone location:
P.128)
INFORMATION
● Wait for the listening beeps before using
the Mobile Assistant.
● The Mobile Assistant may not recognize
commands in the following situations:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while the
Mobile Assistant is being used.
• The air conditioning speed is set high.
• The air conditioning vents are turned toward the microphone.

142
2. MOBILE ASSISTANT OPERATION
PRIUS_Wide Navi_OM47C48U_(U)
18.10.10 10:30

5
143
PRIUS_Wide Navi_OM47C48U_(U)
18.10.10 10:30
1
2
3
4
5
6
7
8

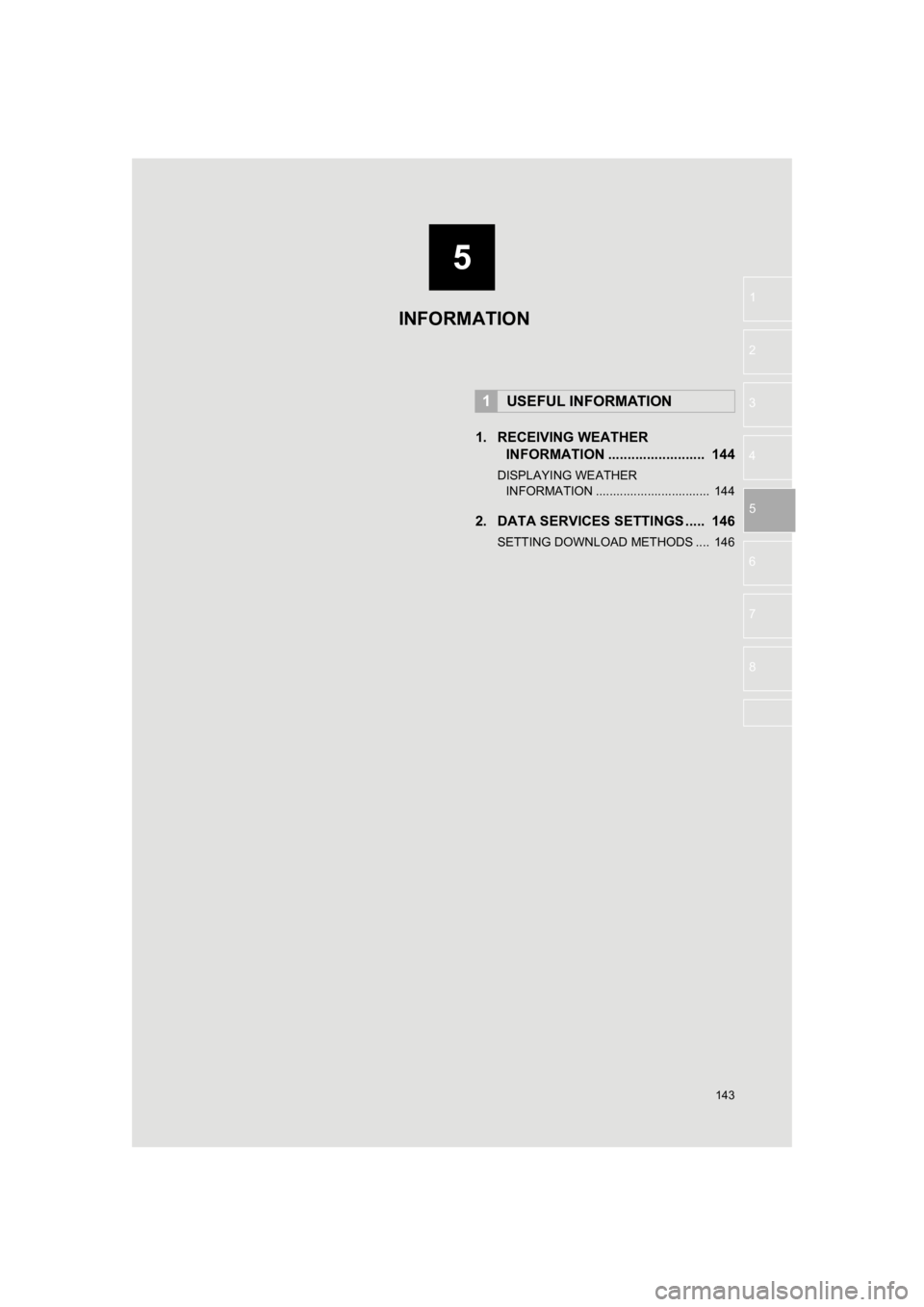

1. RECEIVING WEATHER INFORMATION ......................... 144
DISPLAYING WEATHER
INFORMATION ................................. 144
2. DATA SERVICES SET TINGS ..... 146
SETTING DOWNLOAD METHODS .... 146
1USEFUL INFORMATION
INFORMATION

144
PRIUS_Wide Navi_OM47C48U_(U)
18.10.10 10:30

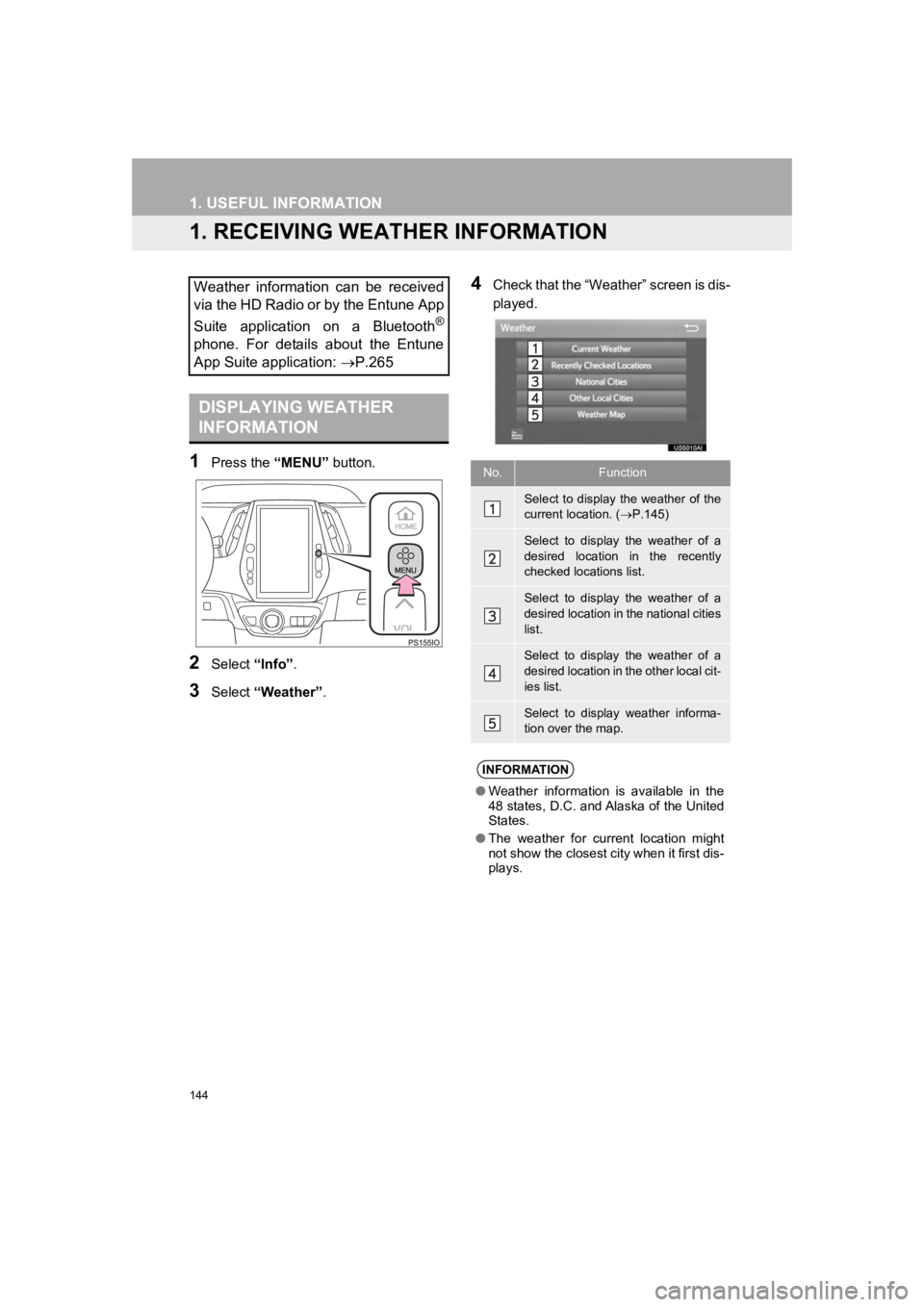

1. USEFUL INFORMATION
1. RECEIVING WEATHER INFORMATION
1Press the “MENU” button.
2Select “Info”.
3Select “Weather” .
4Check that the “Weather” screen is dis-
played.Weather information can be received
via the HD Radio or by the Entune App
Suite application on a Bluetooth
®
phone. For details about the Entune
App Suite application: P.265
DISPLAYING WEATHER
INFORMATION
No.Function
Select to display the weather of the
current location. ( P.145)
Select to display the weather of a
desired location in the recently
checked locations list.
Select to display the weather of a
desired location in the national cities
list.
Select to display the weather of a
desired location in the other local cit-
ies list.
Select to display weather informa-
tion over the map.
INFORMATION
● Weather information is available in the
48 states, D.C. and Alaska of the United
States.
● The weather for current location might
not show the closest city when it first dis-
plays.

145
1. USEFUL INFORMATION
PRIUS_Wide Navi_OM47C48U_(U)
18.10.10 10:30
INFORMATION
5
1Display the “Weather” screen.
(P.144)
2Select “Current Weather” .
3Select the desired ta b to be displayed.
DISPLAYING THE WEATHER
OF THE CURRENT LOCATION

146
1. USEFUL INFORMATION
PRIUS_Wide Navi_OM47C48U_(U)
18.10.10 10:30

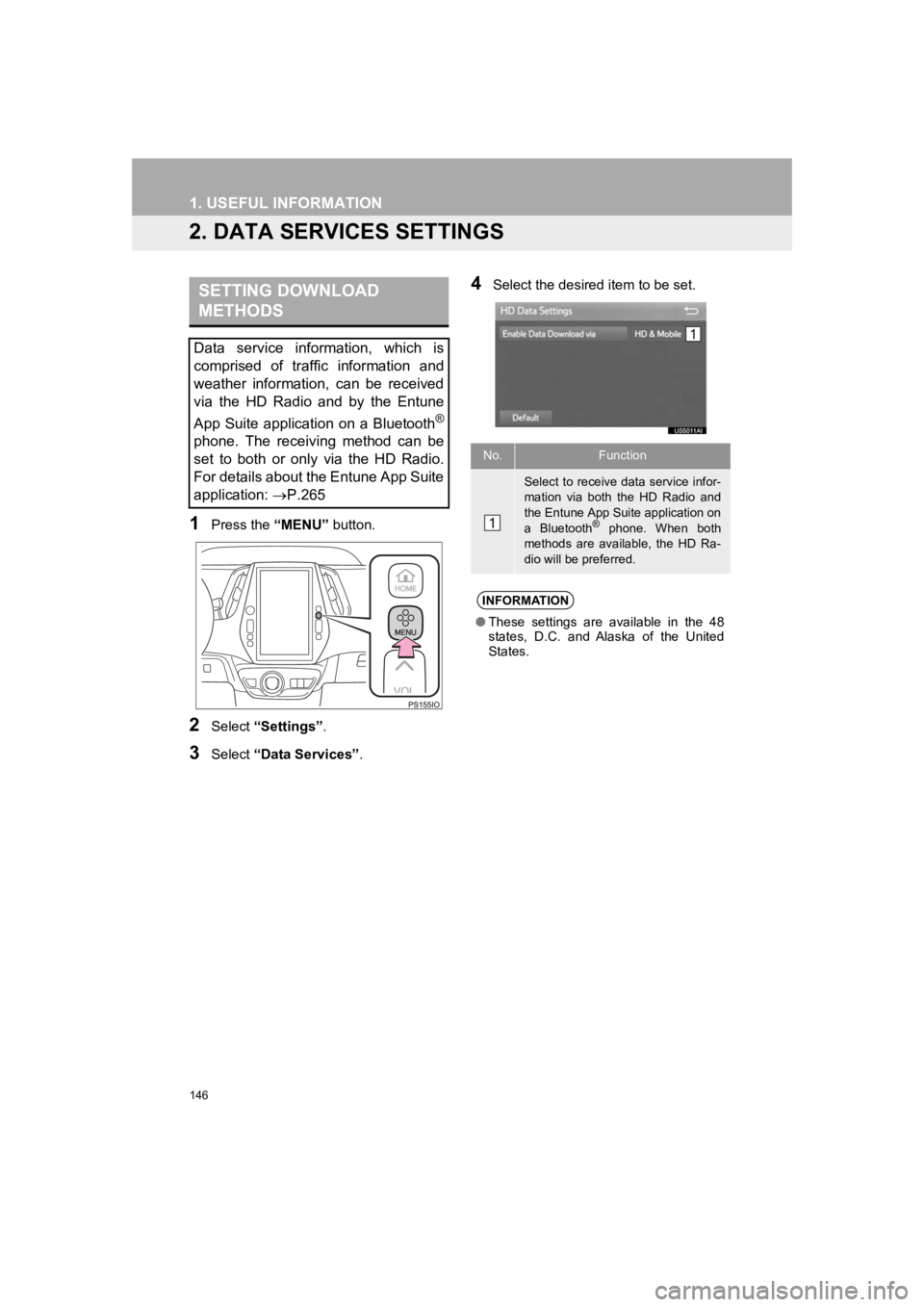

2. DATA SERVICES SETTINGS
1Press the “MENU” button.
2Select “Settings” .
3Select “Data Services” .
4Select the desired item to be set.SETTING DOWNLOAD
METHODS
Data service information, which is
comprised of traffic information and
weather information, can be received
via the HD Radio and by the Entune
App Suite application on a Bluetooth
®
phone. The receiving method can be
set to both or only via the HD Radio.
For details about the Entune App Suite
application: P.265No.Function
Select to receive data service infor-
mation via both the HD Radio and
the Entune App Suite application on
a Bluetooth
® phone. When both
methods are available, the HD Ra-
dio will be preferred.
INFORMATION
● These settings are available in the 48
states, D.C. and Alaska of the United
States.

6
147
PRIUS_Wide Navi_OM47C48U_(U)
18.10.10 10:30
1
2
3
4
5
6
8 7

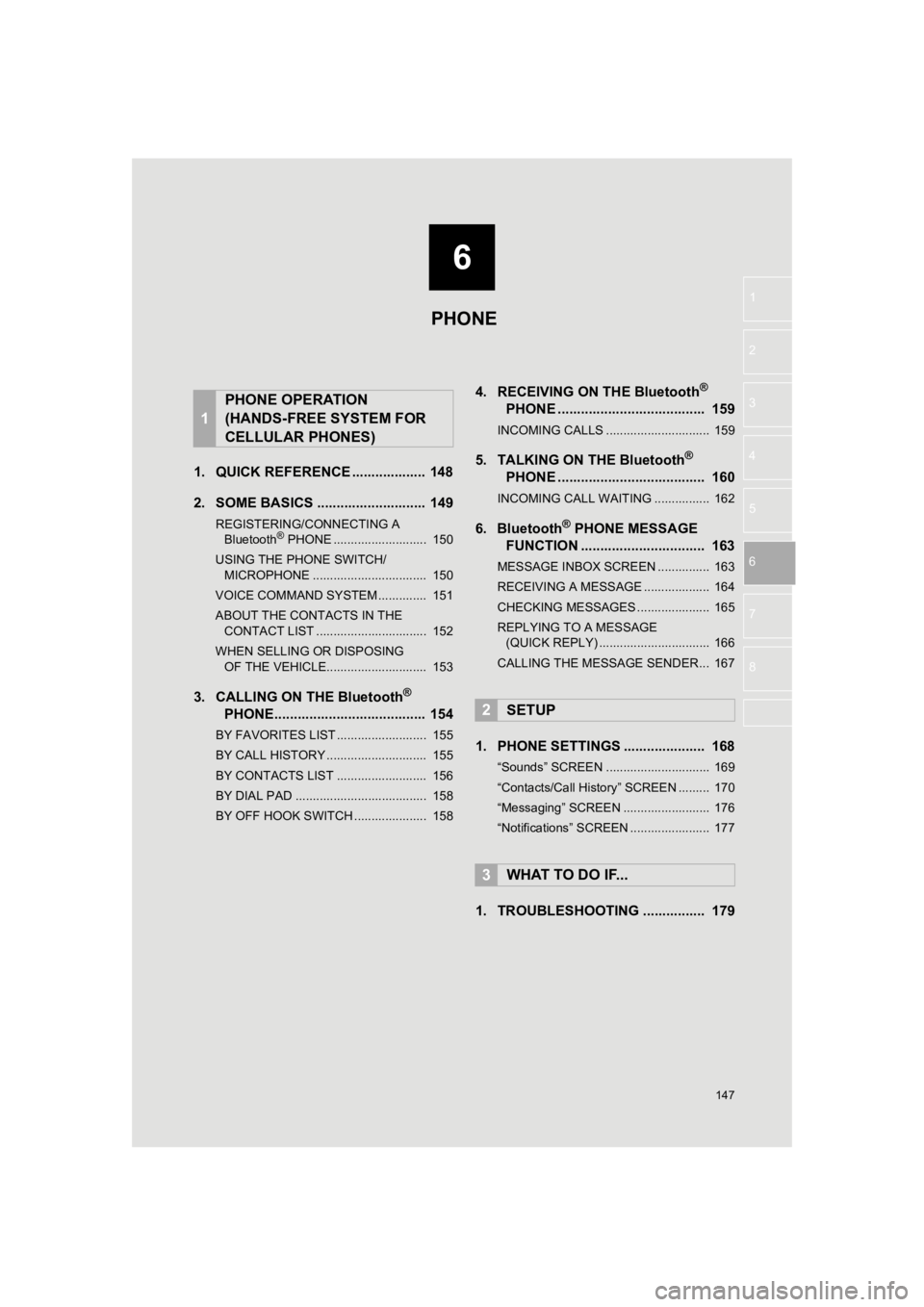

1. QUICK REFERENCE ................... 148
2. SOME BASICS ............................ 149
REGISTERING/CONNECTING A Bluetooth® PHONE ........................... 150
USING THE PHONE SWITCH/ MICROPHONE ................................. 150
VOICE COMMAND SYSTEM .............. 151
ABOUT THE CONTACTS IN THE CONTACT LIST ................................ 152
WHEN SELLING OR DISPOSING OF THE VEHICLE............................. 153
3. CALLING ON THE Bluetooth®
PHO N

E....................................... 154
BY FAVORITES LIST .......................... 155
BY CALL HISTORY ............................. 155
BY CONTACTS LIST .......................... 156
BY DIAL PAD ...................................... 158
BY OFF HOOK SWITCH ..................... 158
4. RECEIVING ON THE Bluetooth®
PHONE .

..................................... 159
INCOMING CALLS .............................. 159
5. TALKING ON THE Bluetooth®
PHONE .

..................................... 160
INCOMING CALL WAITING ................ 162
6. Bluetooth® PHONE MESSAGE
FUNCTION ...... ....................... ... 163
MESSAGE INBOX SCREEN ............... 163
RECEIVING A MESSAGE ................... 164
CHECKING MESSAGES ..................... 165
REPLYING TO A MESSAGE
(QUICK REPLY) ................................ 166
CALLING THE MESSAGE SENDER... 167
1. PHONE SETTINGS ..................... 168
“Sounds” SCREEN .............................. 169
“Contacts/Call History” SCREEN ......... 170
“Messaging” SCREEN ......................... 176
“Notifications” SCREEN ....................... 177
1. TROUBLESHOOTING ................ 179
1
PHONE OPERATION
(HANDS-FREE SYSTEM FOR
CELLULAR PHONES)
2SETUP
3WHAT TO DO IF...
PHONE

148
PRIUS_Wide Navi_OM47C48U_(U)
18.10.10 10:30
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)

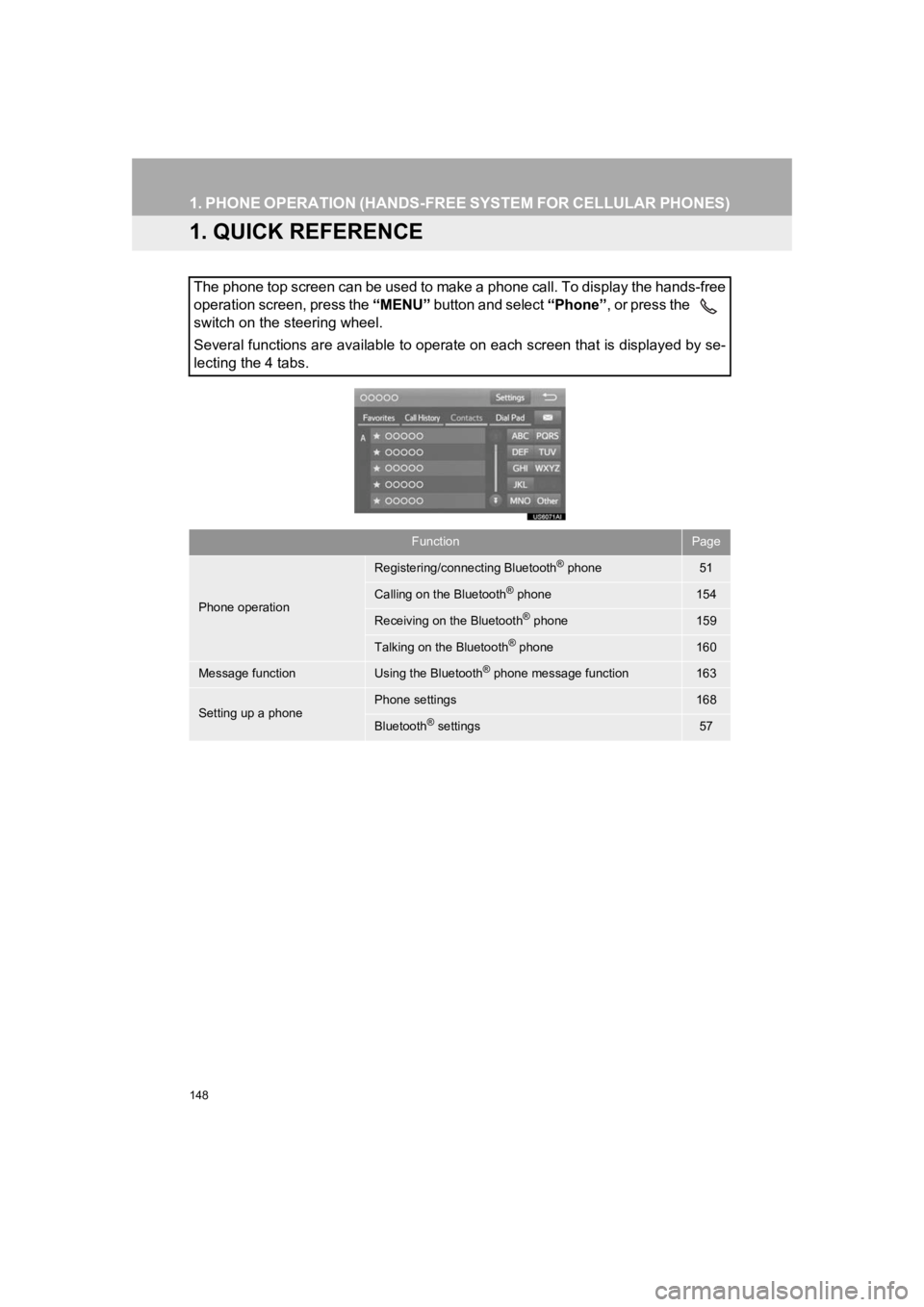

1. QUICK REFERENCE
The phone top screen can be used to make a phone call. To display the hands-free
operation screen, press the “MENU” button and select “Phone”, or press the
switch on the steering wheel.
Several functions are available to operate on each screen that is displayed by se-
lecting the 4 tabs.
FunctionPage
Phone operation
Registering/connecting Bluetooth® phone51
Calling on the Bluetooth® phone154
Receiving on the Bluetooth® phone159
Talking on the Bluetooth® phone160
Message functionUsing the Bluetooth® phone message function163
Setting up a phonePhone settings168
Bluetooth® settings57

149
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
PRIUS_Wide Navi_OM47C48U_(U)
18.10.10 10:30
PHONE
6
2. SOME BASICS
The hands-free system enables calls
to be made and received without hav-
ing to take your hands off the steering
wheel.
This system supports Bluetooth
®.
Bluetooth® is a wireless data system
that enables cellular phones to be used
without being connected by a cable or
placed in a cradle.
The operating procedure of the phone
is explained here.
WARNING
● While driving, do not use a cellular
phone or connect the Bluetooth® phone.
● Your audio unit is fitted with Bluetooth
®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroni-
zation therapy-pacemakers or
implantable cardioverter defibrillators
should maintain a reasonable distance
between themselves and the Bluetooth
®
antennas. The radio waves may affect
the operation of such devices.
● Before using Bluetooth
® devices, users
of any electrical medical device other
than implantable cardiac pacemakers,
cardiac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manu-
facturer of the device for information
about its operation under the influence
of radio waves. Radio waves could have
unexpected effects on the operation of
such medical devices.
NOTICE
● Do not leave your cellular phone in the
vehicle. The temperature inside may rise
to a level that could damage the phone.
INFORMATION
●This system is not guaranteed to oper-
ate with all Bluetooth® devices.
● If your cellular phone does not support
Bluetooth
®, this system cannot function.
● In the following conditions, the system
may not function:
• The cellular phone is turned off.
• The current position is outside the
communication area.
• The cellular phone is not connected.
• The cellular phone has a low battery.
● When using Bluetooth
® audio and
hands-free at the same time, the follow-
ing problems may occur:
• The Bluetooth
® connection may be
cut.
• Noise may be heard on the Bluetooth
®
audio playback.

150
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
PRIUS_Wide Navi_OM47C48U_(U)
18.10.10 10:30
Steering switch
Volume control switches
 Press the “+” side to increase the volume.
 Press the “-” side to decrease the vol-
ume.
On hook switch
Off hook switch
REGISTERING/CONNECTING
A Bluetooth® PHONE
To use the hands-free system for cellu-
lar phones, it is necessary to register a
cellular phone with the system.
( P.51)
Bluetooth® PHONE CONDITION
DISPLAY
The condition of the Bluetooth
® phone
appears on the upper right side of the
screen. ( P.20)
USING THE PHONE SWITCH/
MICROPHONE
By pressing the phone switch, a call
can be received or ended without tak-
ing your hands off the steering wheel.
