TOYOTA PRIUS 2019 (in English) Owner's Guide

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

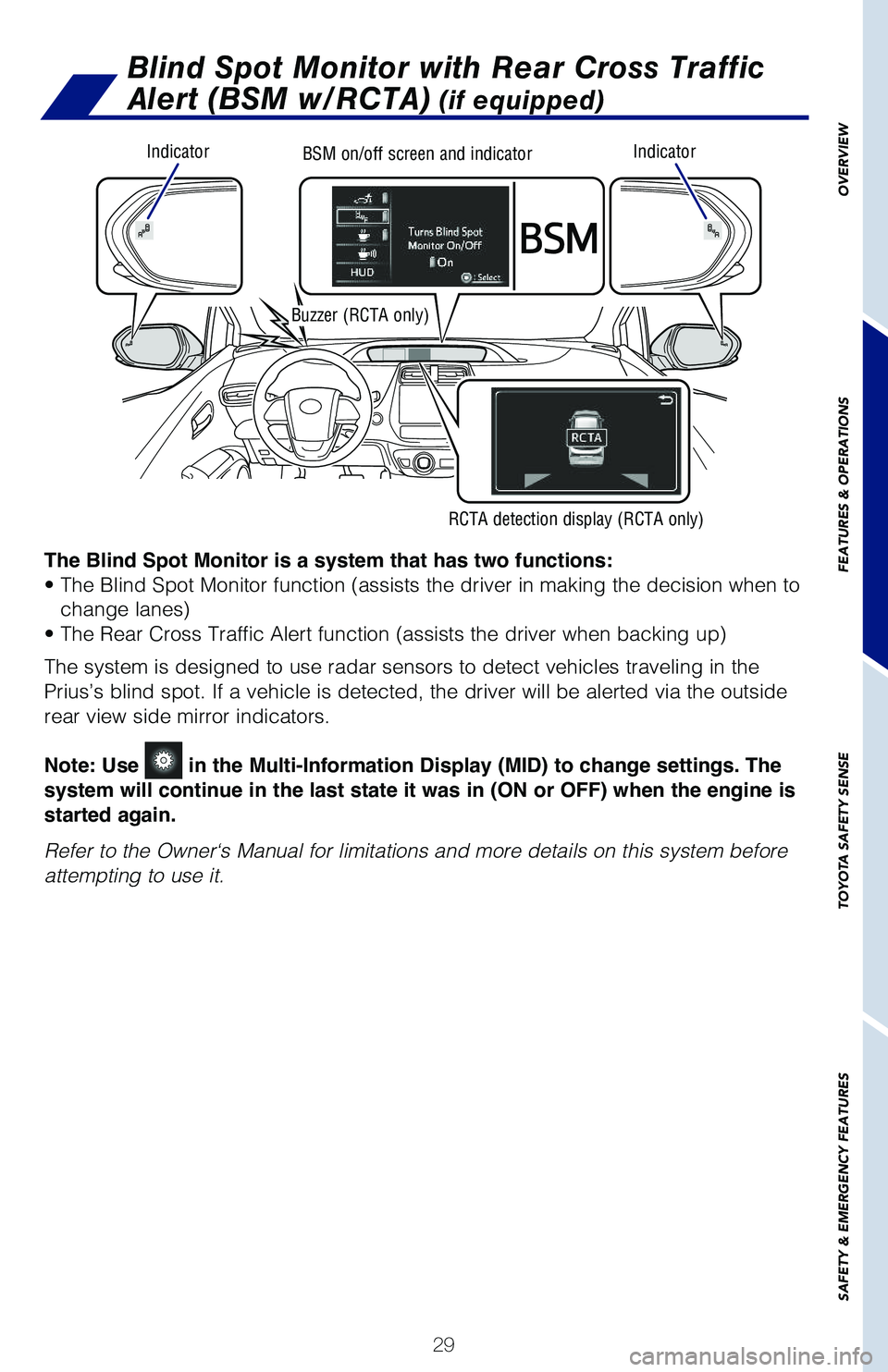

Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA) (if equipped)
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when to
change lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling in the
Prius’s blind spot. If a vehicle is detected, the driver will be alerted via the outside
rear view side mirror indicators.
Note: Use in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
IndicatorIndicatorBSM on/off screen and indicator
Buzzer (RCTA only)
RCTA detection display (RCTA only)
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2911/26/18 10:52 PM

30
FEATURES & OPERATIONS

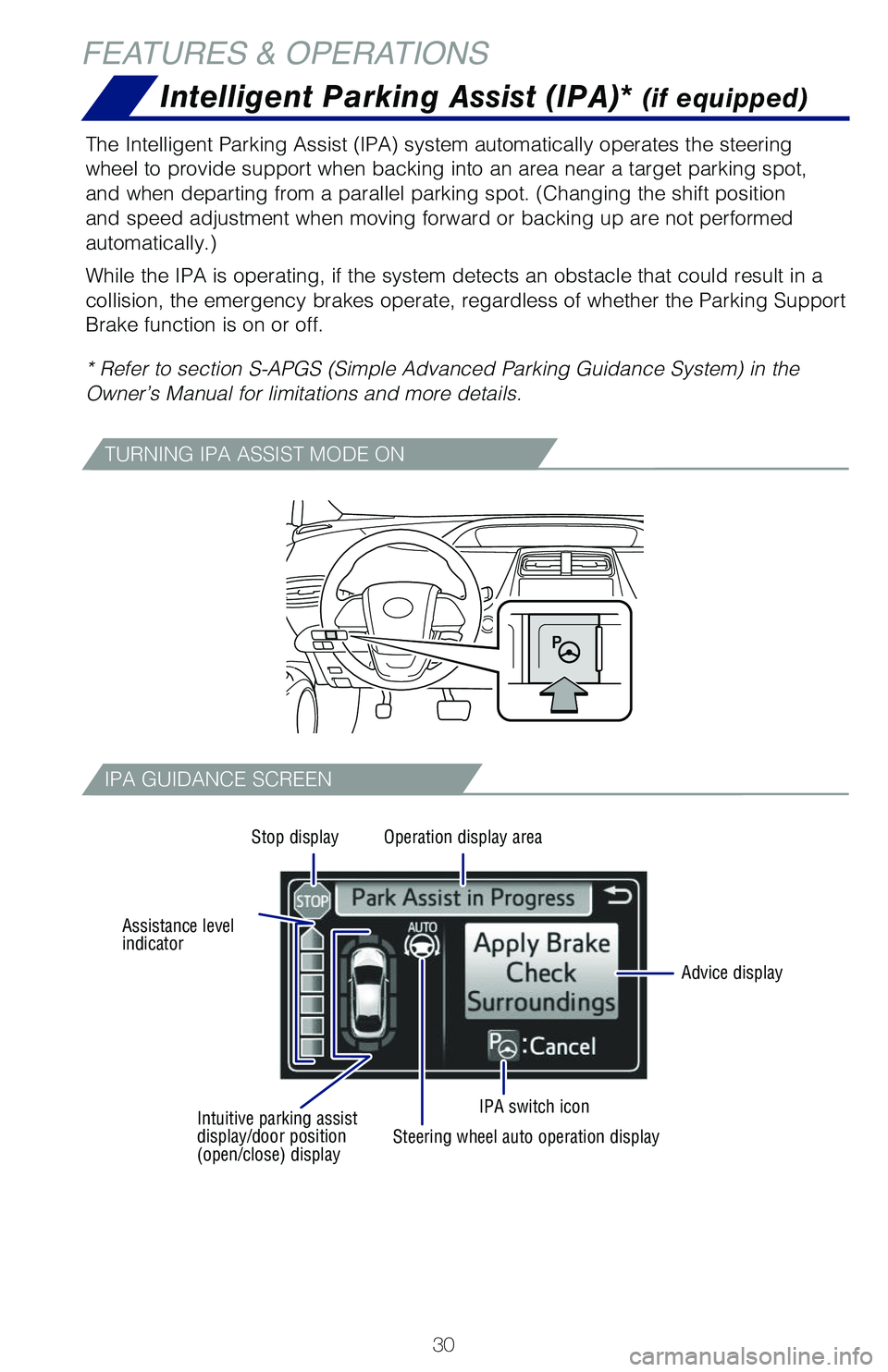

The Intelligent Parking Assist (IPA) system automatically operates the steering
wheel to provide support when backing into an area near a target parking spot,
and when departing from a parallel parking spot. (Changing the shift position
and speed adjustment when moving forward or backing up are not performed
automatically.)
While the IPA is operating, if the system detects an obstacle that could result in a
collision, the emergency brakes operate, regardless of whether the Parking Support
Brake function is on or off.
* Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for limitations and more details.
TURNING IPA ASSIST MODE ON
IPA GUIDANCE SCREEN
IPA switch icon
Steering wheel auto operation displayIntuitive parking assist display/door position (open/close) display
Assistance level indicator
Stop displayOperation display area
Advice display
Intelligent Parking Assist (IPA)* (if equipped)
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 3011/26/18 10:52 PM

31

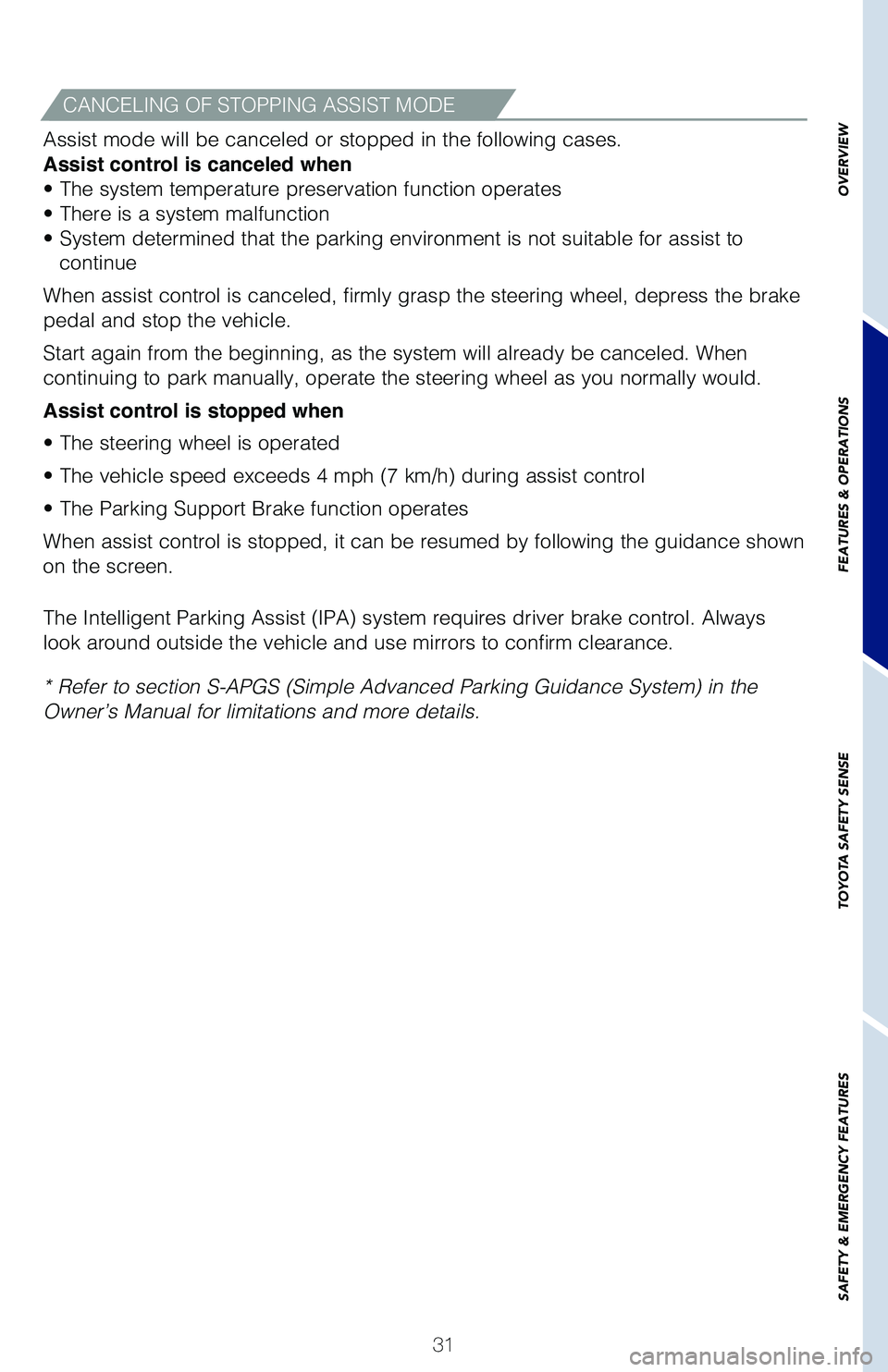

Assist mode will be canceled or stopped in the following cases.
Assist control is canceled when
• The system temperature preservation function operates
• There is a system malfunction
• System determined that the parking environment is not suitable for assist to
continue
When assist control is canceled, firmly grasp the steering wheel, depress the brake
pedal and stop the vehicle.
Start again from the beginning, as the system will already be canceled. When
continuing to park manually, operate the steering wheel as you normally would.
Assist control is stopped when
• The steering wheel is operated
• The vehicle speed exceeds 4 mph (7 km/h) during assist control
• The Parking Support Brake function operates
When assist control is stopped, it can be resumed by following the guidance shown
on the screen.
The Intelligent Parking Assist (IPA) system requires driver brake control. Always
look around outside the vehicle and use mirrors to confirm clearance.
* Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for limitations and more details.
CANCELING OF STOPPING ASSIST MODE
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 3111/26/18 10:52 PM

32

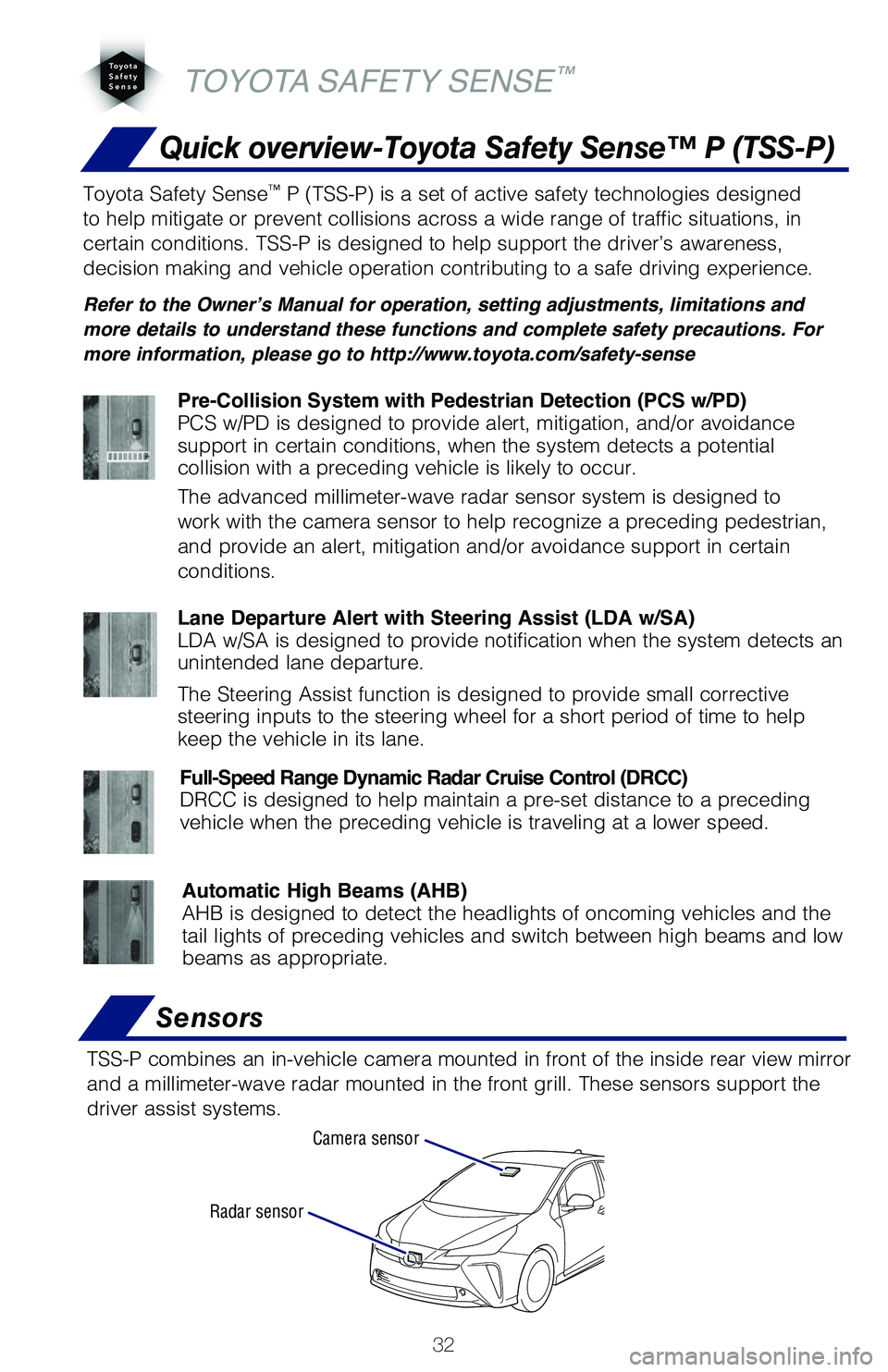

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grill. These sensors support the
driver assist systems.
Camera sensor
Radar sensor
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic situations, in
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Lane Departure Alert with Steering Assist (LDA w/SA)LDA w/SA is designed to provide notification when the system detects an unintended lane departure.
The Steering Assist function is designed to provide small corrective steering inputs to the steering wheel for a short period of time to help keep the vehicle in its lane.
Automatic High Beams (AHB)AHB is designed to detect the headlights of oncoming vehicles and the tail lights of preceding vehicles and switch between high beams and low beams as appropriate.
Pre-Collision System with Pedestrian Detection (PCS w/PD)PCS w/PD is designed to provide alert, mitigation, and/or avoidance support in certain conditions, when the system detects a potential collision with a preceding vehicle is likely to occur.
The advanced millimeter-wave radar sensor system is designed to
work with the camera sensor to help recognize a preceding pedestrian,
and provide an alert, mitigation and/or avoidance support in certain
conditions.
Full-Speed Range Dynamic Radar Cruise Control (DRCC)DRCC is designed to help maintain a pre-set distance to a preceding vehicle when the preceding vehicle is traveling at a lower speed.
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 3211/26/18 10:52 PM

33
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

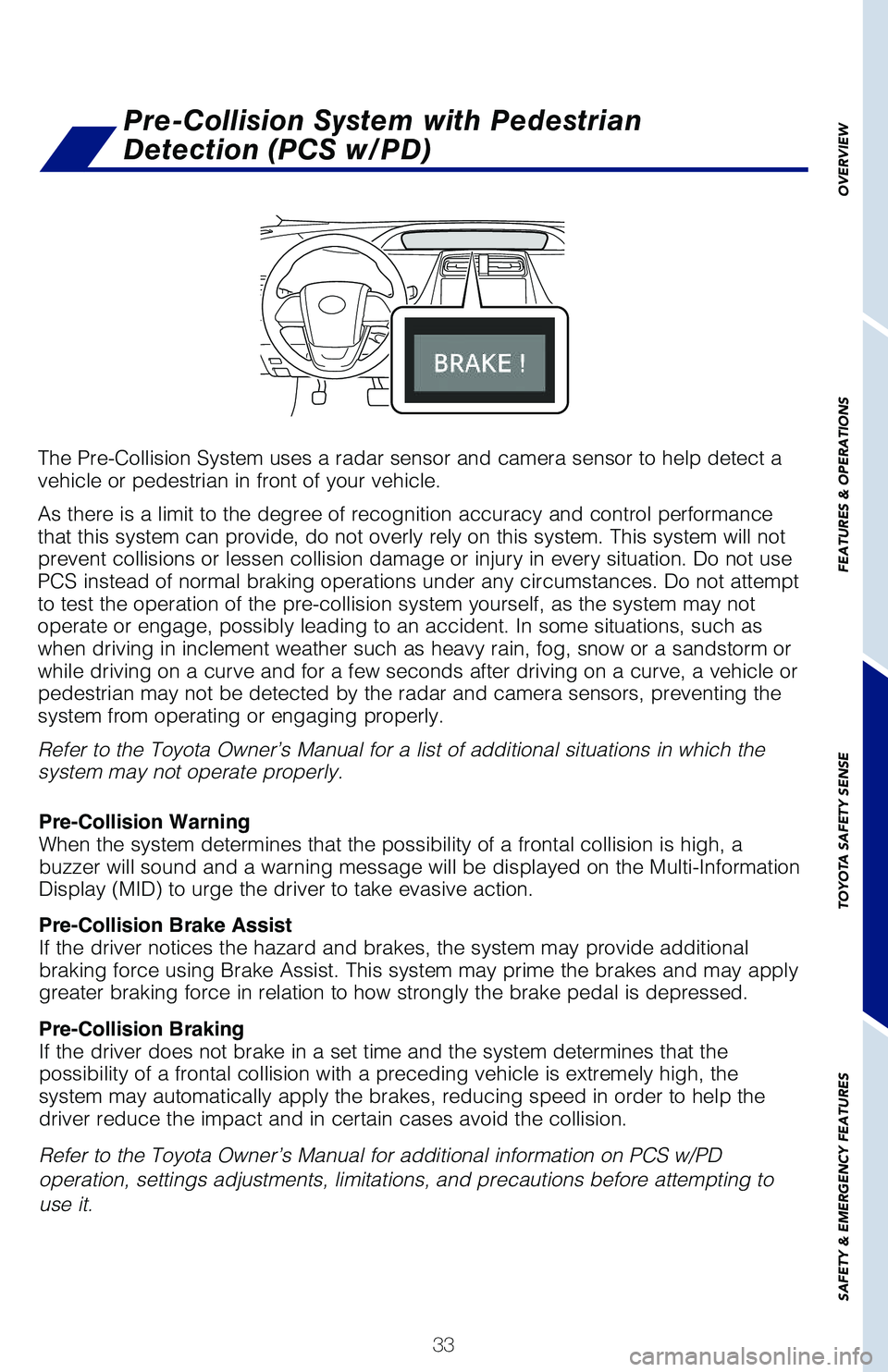

The Pre-Collision System uses a radar sensor and camera sensor to help detect a vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance that this system can provide, do not overly rely on this system. This system will not prevent collisions or lessen collision damage or injury in every situation. Do not use PCS instead of normal braking operations under any circumstances. Do not attempt to test the operation of the pre-collision system yourself, as the system may not operate or engage, possibly leading to an accident. In some situations, such as when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or while driving on a curve and for a few seconds after driving on a curve, a vehicle or pedestrian may not be detected by the radar and camera sensors, preventing the system from operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situations in which the system may not operate properly.
Refer to the Toyota Owner’s Manual for additional information on PCS w/PD
operation, settings adjustments, limitations, and precautions before attempting to
use it.
Pre-Collision WarningWhen the system determines that the possibility of a frontal collision is high, a buzzer will sound and a warning message will be displayed on the Multi-Information Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake AssistIf the driver notices the hazard and brakes, the system may provide additional braking force using Brake Assist. This system may prime the brakes and may apply greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision BrakingIf the driver does not brake in a set time and the system determines that the possibility of a frontal collision with a preceding vehicle is extremely high, the system may automatically apply the brakes, reducing speed in order to help the driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection (PCS w/PD)
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 3311/26/18 10:52 PM

34

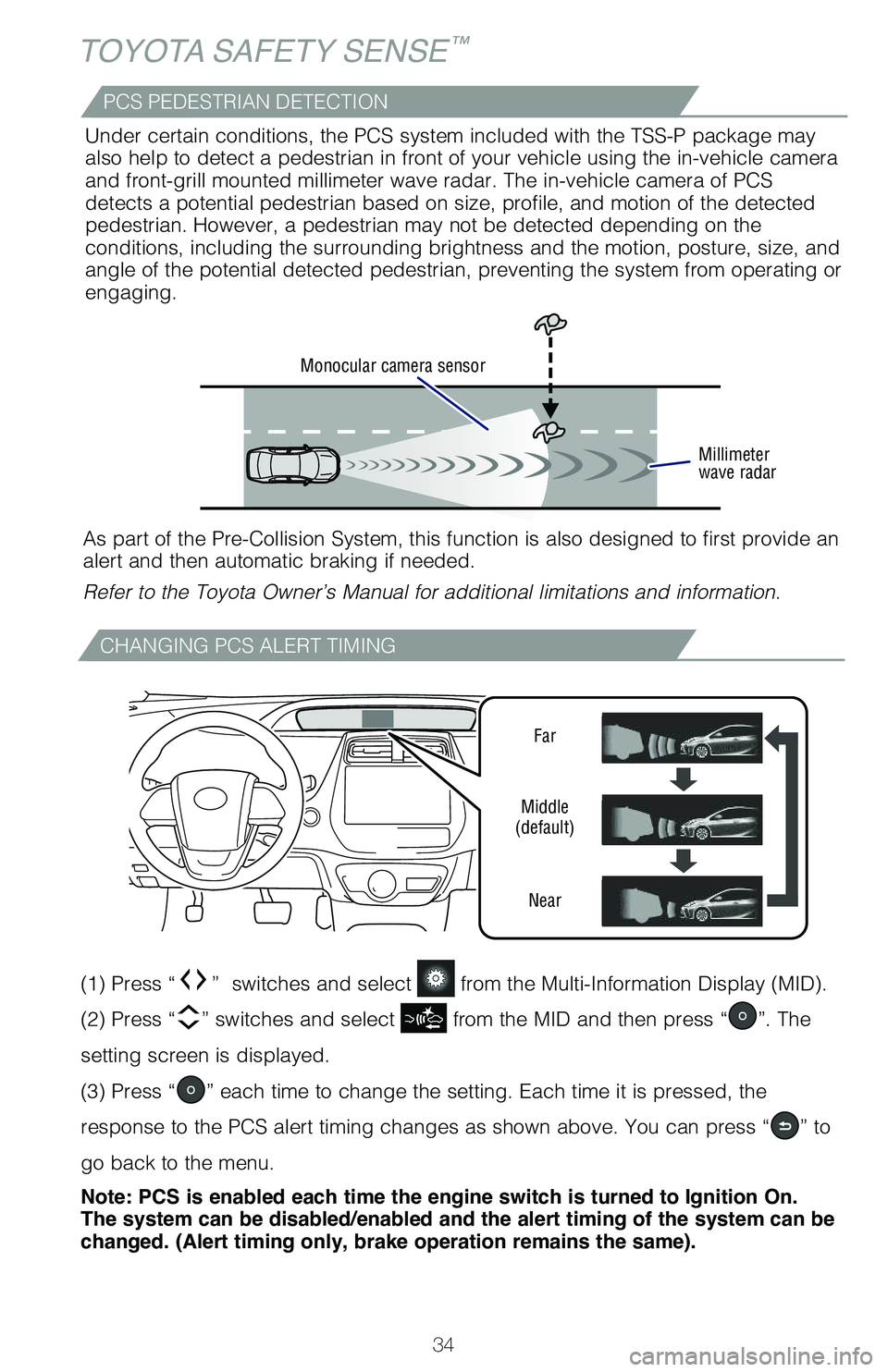

CHANGING PCS ALERT TIMING
TOYOTA SAFETY SENSE™
Far
Middle(default)
Near
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “” switches and select from the MID and then press “”. The
setting screen is displayed.
(3) Press “” each time to change the setting. Each time it is pressed, the
response to the PCS alert timing changes as shown above. You can press “” to
go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On. The system can be disabled/enabled and the alert timing of the system can be changed. (Alert timing only, brake operation remains the same).
Monocular camera sensor
Millimeterwave radar
As part of the Pre-Collision System, this function is also designed to first provide an alert and then automatic braking if needed.
Under certain conditions, the PCS system included with the TSS-P package may also help to detect a pedestrian in front of your vehicle using the in-vehicle camera and front-grill mounted millimeter wave radar. The in-vehicle camera of PCS detects a potential pedestrian based on size, profile, and motion of the detected pedestrian. However, a pedestrian may not be detected depending on the conditions, including the surrounding brightness and the motion, posture, size, and angle of the potential detected pedestrian, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION
Refer to the Toyota Owner’s Manual for additional limitations and information.
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 3411/26/18 10:52 PM

35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

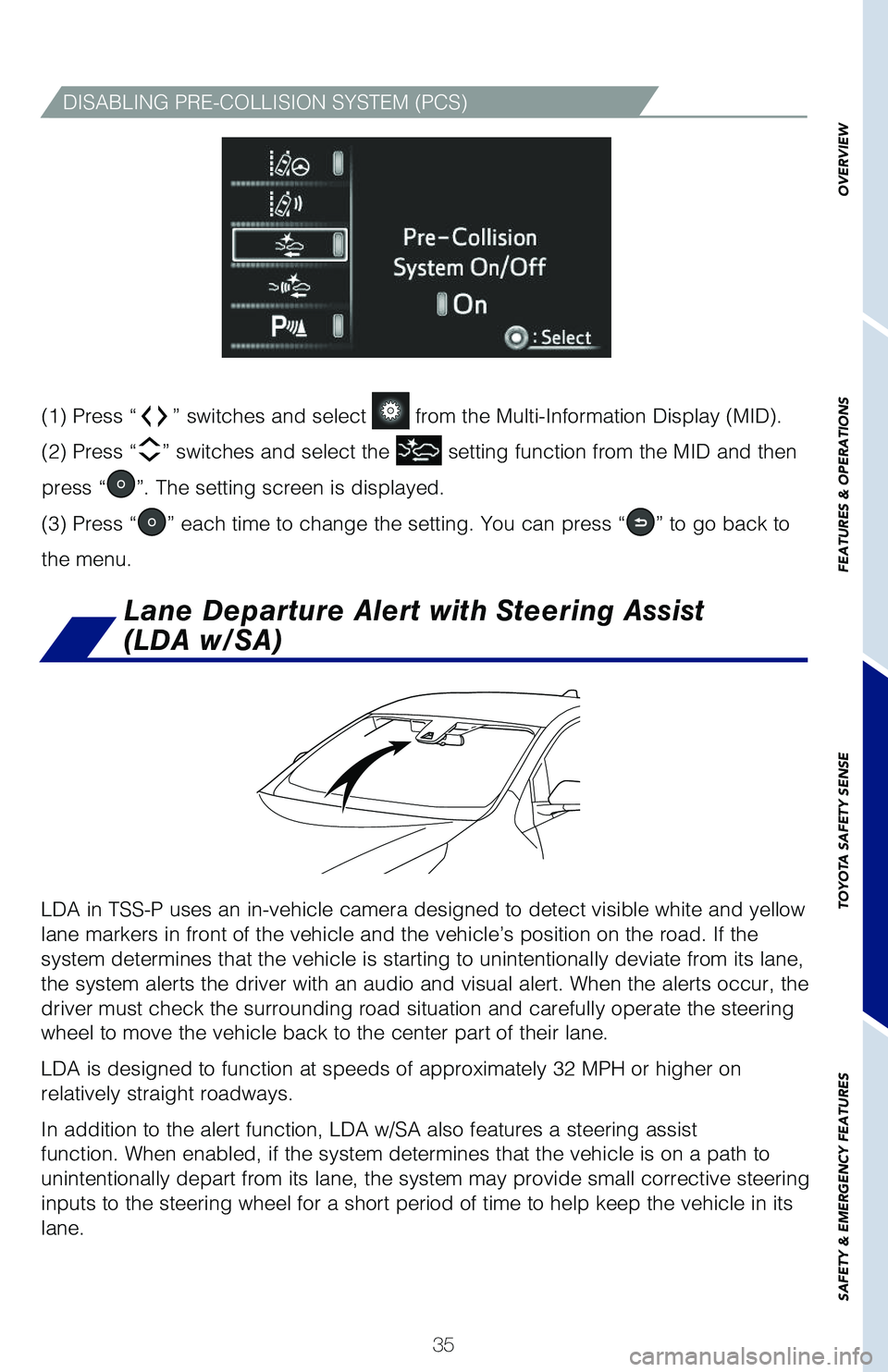

DISABLING PRE-COLLISION SYSTEM (PCS)
LDA in TSS-P uses an in-vehicle camera designed to detect visible white and yellow
lane markers in front of the vehicle and the vehicle’s position on the road. If the
system determines that the vehicle is starting to unintentionally deviate from its lane,
the system alerts the driver with an audio and visual alert. When the alerts occur, the
driver must check the surrounding road situation and carefully operate the steering
wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 MPH or higher on
relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering assist
function. When enabled, if the system determines that the vehicle is on a path to
unintentionally depart from its lane, the system may provide small corrective steering
inputs to the steering wheel for a short period of time to help keep the vehicle in its
lane.
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “” switches and select the setting function from the MID and then
press “”. The setting screen is displayed.
(3) Press “” each time to change the setting. You can press “” to go back to
the menu.
Lane Departure Alert with Steering Assist
(LDA w/SA)
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 3511/26/18 10:52 PM

36
TOYOTA SAFETY SENSE™

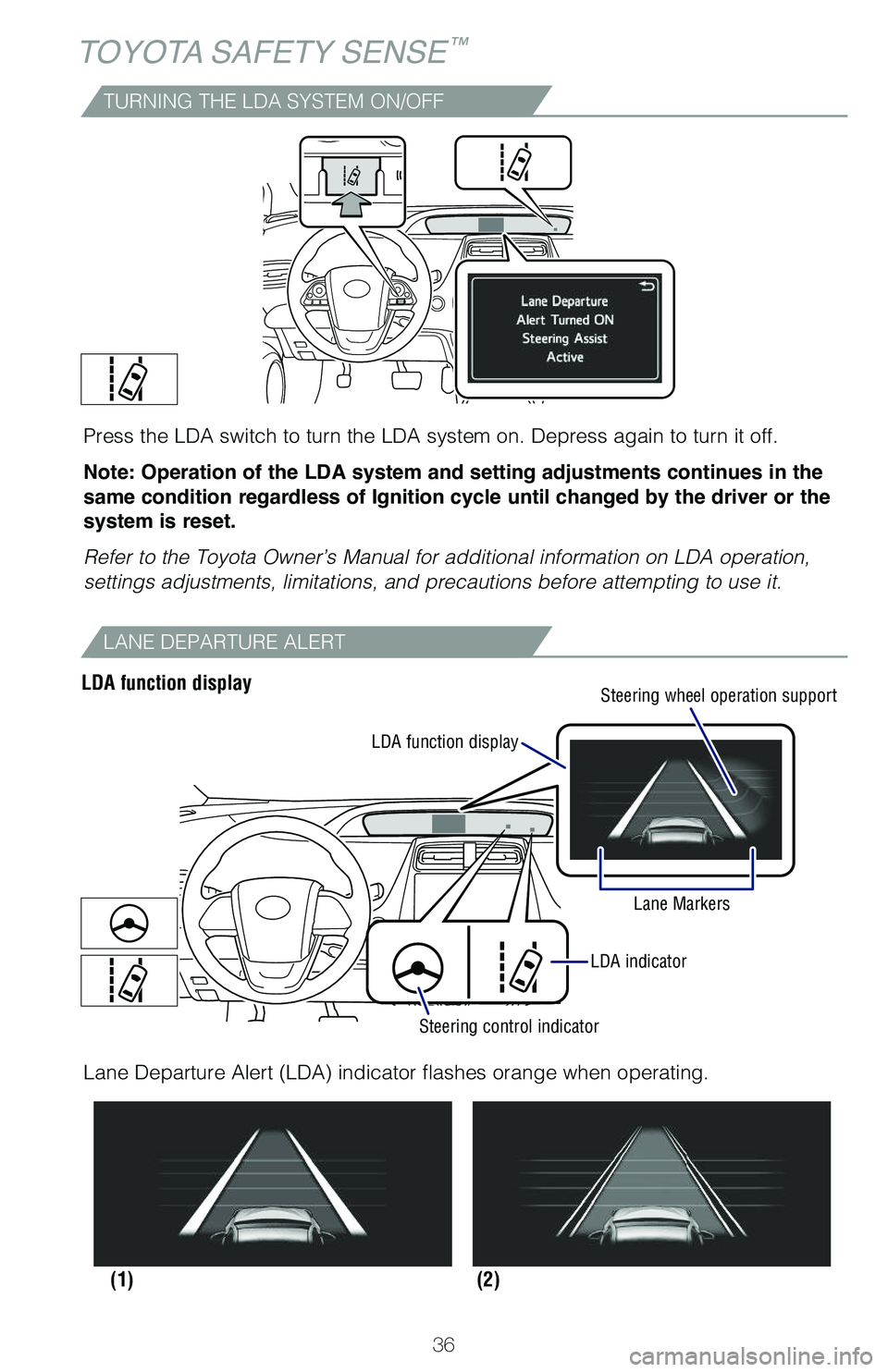

TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
Refer to the Toyota Owner’s Manual for additional information on LDA operation,
settings adjustments, limitations, and precautions before attempting to use it.
LANE DEPARTURE ALERT
LDA function display
Steering control indicator
LDA indicator
LDA function display
Lane Markers
(2)(1)
Lane Departure Alert (LDA) indicator flashes orange when operating.
Steering wheel operation support
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 3611/26/18 10:52 PM

37
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

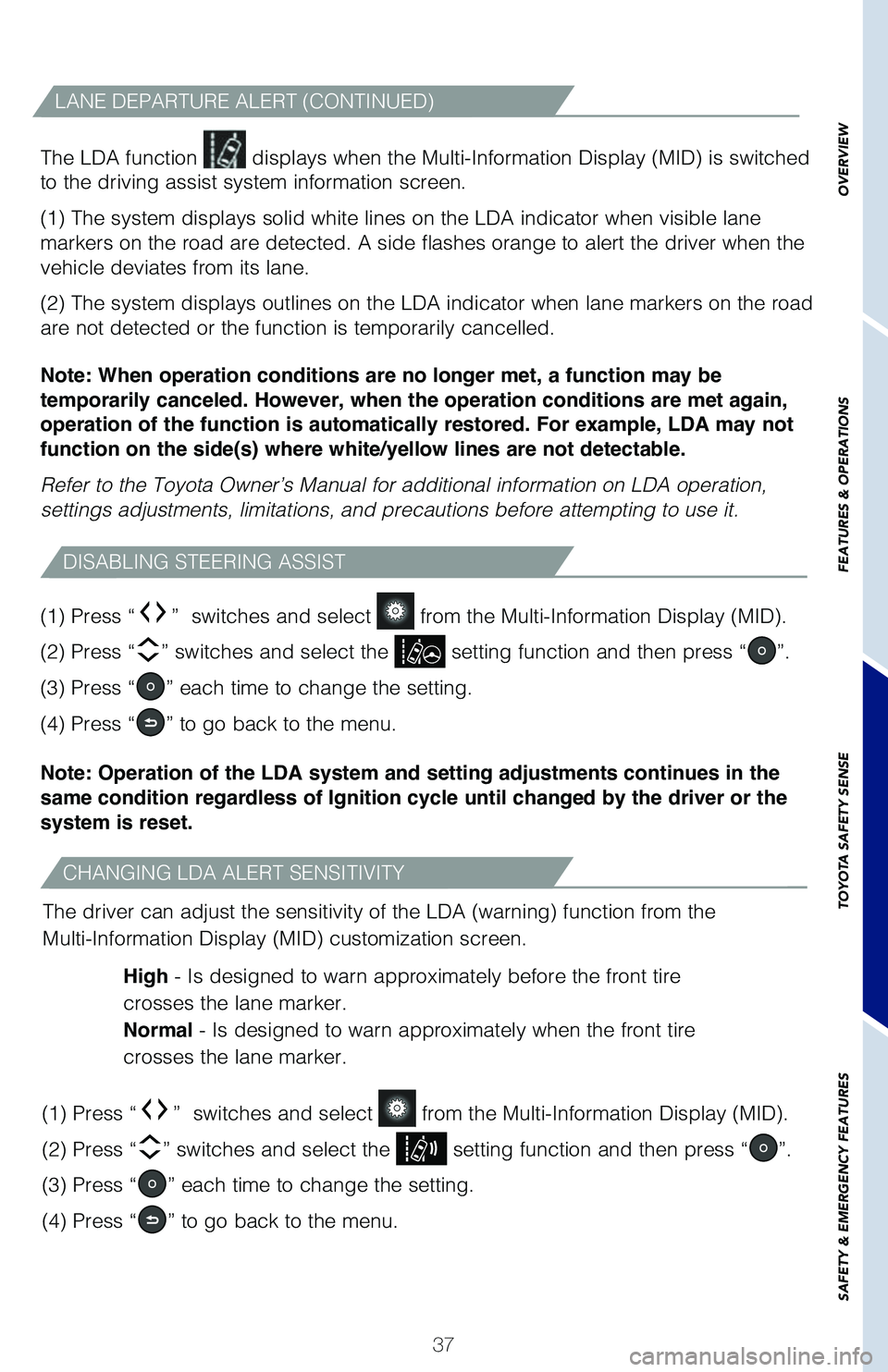

LANE DEPARTURE ALERT (CONTINUED)
The LDA function displays when the Multi-Information Display (MID) is switched
to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible lane
markers on the road are detected. A side flashes orange to alert the driver when the
vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers on the road
are not detected or the function is temporarily cancelled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable.
Refer to the Toyota Owner’s Manual for additional information on LDA operation,
settings adjustments, limitations, and precautions before attempting to use it.
CHANGING LDA ALERT SENSITIVITY
DISABLING STEERING ASSIST
The driver can adjust the sensitivity of the LDA (warning) function from the
Multi-Information Display (MID) customization screen.
High - Is designed to warn approximately before the front tire
crosses the lane marker.
Normal - Is designed to warn approximately when the front tire
crosses the lane marker.
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “” switches and select the setting function and then press “”.
(3) Press “” each time to change the setting.
(4) Press “” to go back to the menu.
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “” switches and select the setting function and then press “”.
(3) Press “” each time to change the setting.
(4) Press “” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 3711/26/18 10:52 PM

38
TOYOTA SAFETY SENSE™

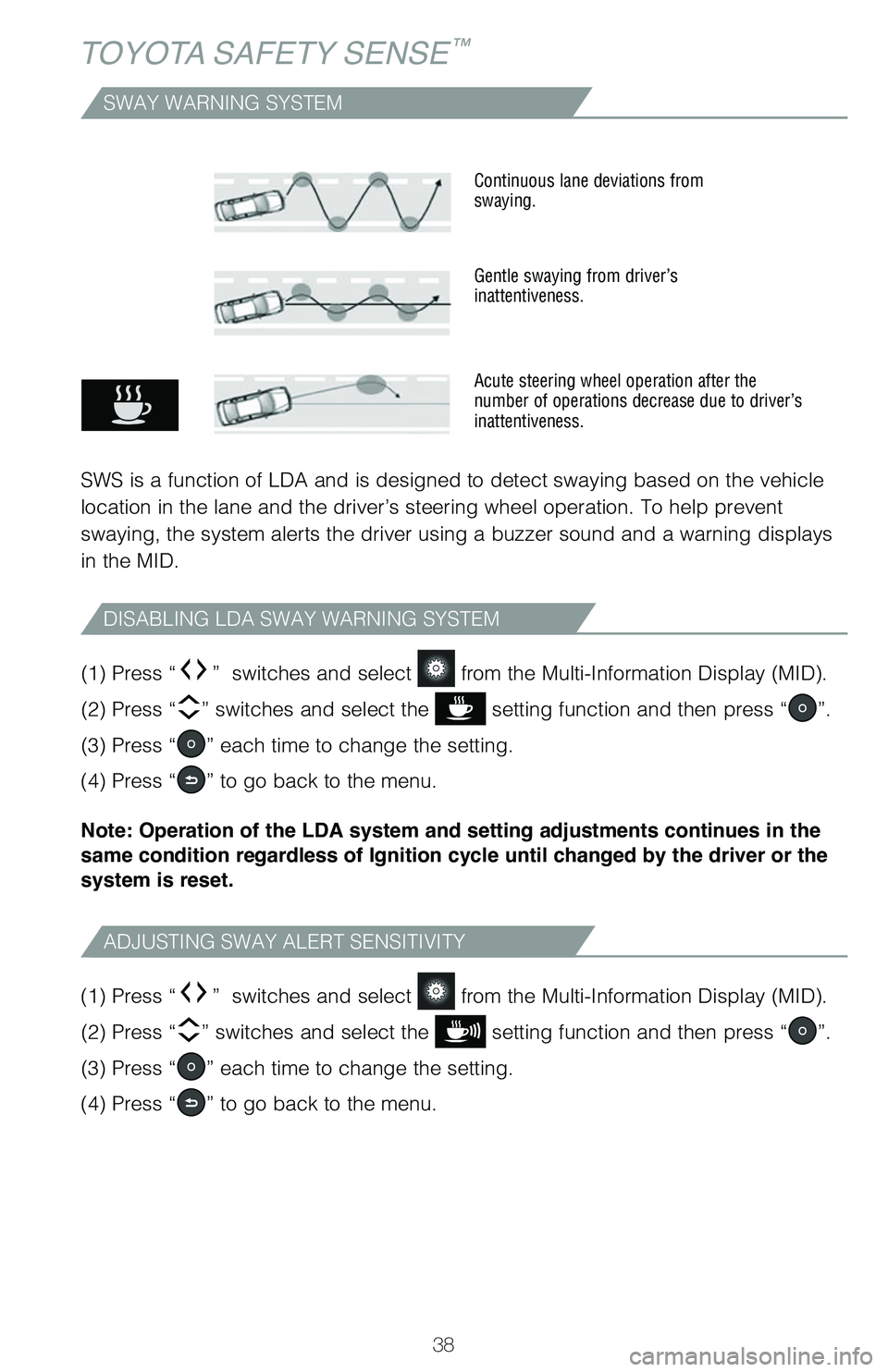

SWAY WARNING SYSTEM
SWS is a function of LDA and is designed to detect swaying based on the vehicle
location in the lane and the driver’s steering wheel operation. To help prevent
swaying, the system alerts the driver using a buzzer sound and a warning displays
in the MID.
Continuous lane deviations from swaying.
Gentle swaying from driver’sinattentiveness.
Acute steering wheel operation after the number of operations decrease due to driver’s inattentiveness.
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “” switches and select the setting function and then press “”.
(3) Press “” each time to change the setting.
(4) Press “” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “” switches and select the setting function and then press “”.
(3) Press “” each time to change the setting.
(4) Press “” to go back to the menu.
ADJUSTING SWAY ALERT SENSITIVITY
DISABLING LDA SWAY WARNING SYSTEM
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 3811/26/18 10:52 PM
