TOYOTA PRIUS 2021 Accessories, Audio & Navigation (in English)

633-1. Basic operation
3
Audio/visual system
2Select the desired screen
button.
Select to adjust the sound
balance between the front
and rear speakers.
Select to adjust the sound
balance between the left and
right speakers.
■Automatic sound levelizer
(ASL)
The system adjusts to the opti-
mum volume and tone quality
according to vehicle speed to
compensate for increased road
noise, wind noise, or other
noises while driving.
1 Select “Automatic Sound
Levelizer”.
2 Select “High”, “Mid”, “Low” or
“Off”.
■Screen format settings
The screen format can be
selected for USB video.
1 Press the “MENU” button.
2 Select “Setup”.
3 Select “Audio”. 4
Select “Common”.
5 Select “Screen Format”.
6 Select the desired item to be
adjusted.
Select to display a 4:3
screen, with either side in
black.
Select to enlarge the image
horizontally and vertically to
full screen.
Select to enlarge the image
by the same ratio horizontally
and vertically.
■Contrast and brightness
adjustment
The contrast and brightness of
the screen can be adjusted.
1 Press the “MENU” button.
2 Select “Setup”.
3 Select “Audio”.
4 Select “Common”.
5 Select “Display”.
6 Select the desired item to be
adjusted.
 “Contrast”
“+”: Select to strengthen the con-
trast of the screen.
“-”: Select to weaken the contrast of
Audio screen adjustment
A
B
A
B
C

643-1. Basic operation
the screen.
“Brightness”
“+”: Select to brighten the screen.
“-”: Select to darken the screen.
●Depending on the audio source,
some functions may not be avail-
able.
1 Press this switch to operate
the voice command system.
 The voice command system
and its list of commands can
be operated. ( P.102)
Voice command system

653-2. Radio operation
3
Audio/visual system
3-2.Radio operation
*1: Audio with DCM/Audio Plus
*2: This function is not made avail-able in some countries or areas.
The radio operation screen can
be reached by the following
methods:
 P.60
Audio
Select to display the audio
source selection screen.
Select to display the preset
stations screen. ( P.66)
Select to display a list of
receivable stations. ( P.67)
Select to display the radio
options screen. ( P.67)
Select to display the sound
setting screen. ( P.62)
Select to tune to preset sta-
tions/channels. ( P.66)
Audio Plus
Select to display the audio
source selection screen.
Select to display the preset
stations screen. ( P.66)
Select to display the cache
radio operation screen.
( P.66)
Select to display a list of
receivable stations. ( P.67)
Select to display the radio
options screen. ( P.67)
Select to display the sound
setting screen. ( P.62)
Select to tune to preset sta-
tions/channels. ( P.66)
Displays items on the chan-
nels registered to smart
favorites ( P.71, P.88)
Displays the artist info and
song title or album
Select to change the dis-
played information.
Displays messages when
available
Displays cover art, station
logo, etc.
Displays information about AM/FM/SiriusXM
(SXM)*1, 2 radio
Overview
Control screen
A
B
C
D
E
F
A
B
C
D
E
F
G
H
I
J
K

663-2. Radio operation
the song/track currently
being played
Select to display HD) multi-
cast channels available.
(P.69)
Press to seek for stations in
the relevant program
type/channel category.
Press and hold for continu-
ous seek.
Turn to step up/down fre-
quencies/channels.
Turn to move up/down the
station list. Also, the knob
can be used to enter selec-
tions on the list screens by
pressing it.
●The radio automatically changes
to stereo reception when a stereo
broadcast is received.
●The radio automatically blends to
an HD Radio signal in AM or FM
where available.
Radio mode has a mix preset
function, which can store up to 36 stations (6 stations per page
x 6 pages) from any of the AM,
FM or SXM bands.
1
Tune in the desired station.
2 Select and hold “(Hold Edit)”.
 To change the preset station
to a different one, select and
hold the preset station.
●The number of preset radio sta-
tions displayed on the screen can
be changed. ( P.87)
SXM radio program can be
cached and played back in a
time-shifted manner.
*: This function is not made avail-
able in some countries or areas.
■Automatic playback of the
cache
If the radio broadcast is inter-
rupted by another audio output,
such as an incoming phone call,
the system will automatically
cache the interrupted portion
and perform time-shift playback
when the interruption ends. This
function is available when “Auto
Pause” is set to on. ( P.67)
Control panel
Presetting a station
L
A
B
&DFKLQJDUDG\
LRSURJUDP

673-2. Radio operation
3
Audio/visual system
■Playing back the cache
manually
The broadcast cached in the
program cache can be played
back manually.
1 Select “SXM Replay”.
2 Select the desired cache
radio operation button.
Returns to the live radio
broadcast
Displays the replay offset
from the current time
Select to change current/pre-
vious track
Fast rewinds continuously
Pauses the playback (To
restart, select )
Fast forwards continuously
Select to change the next
track
●The system can sto re less than 60
minutes of SXM. Cached data will
be erased when the radio mode or
station is changed or when the
audio system is turned off.
1 Select “Station List”.
2 Select “AM”, “FM” or “SXM”.
 Select the desired program
genre when the genre selec-
tion screen is displayed.
3 Select the desired station.
■Refreshing the station list
(AM/FM)
1 Select “Station List”.
“Cancel Refresh”: Select to can-
cel the refresh.
“Source”: Select to change to
another audio source while
refreshing.
●The audio/visual s ystem sound is
muted during refresh operation.
●In some situations, it may take
some time to update the station
list.
1 Select “Options”.
2 Select the desired item to be
set.
Select to turn automatic play-
A
B
C
D
E
F
G
Selecting a station from
the list
Radio options
A

683-2. Radio operation
back of the cache on/off.*
When “SXM Tune Start” is
turned on, the current song is
played from the beginning
when you select the chan-
nel.
*
Select to turn digital AM
Radio mode on/off.
*
Select to turn digital FM
Radio mode on/off.
*
Analog FM only: Select to
display RBDS text mes-
sages.
Select to scan for receivable
stations. (Type scan in case
SXM is current program
type/channel category.)
*: This function is not made avail-able in some countries or areas.
This audio/visual system is
equipped with Radio Broadcast
Data Systems (RBDS). RBDS
mode allows text messages to
be received from radio stations
that utilize RBDS transmitters.
When RBDS is on, the radio can
do the following functions.
• Only selecting stations of a
particular program type
• Displaying messages from radio stations
• Searching for a stronger sig- nal station RBDS features are available
only when listening to an FM
station that broadcasts RBDS
information and the “FM Info”
function is on. (
P.67)
HD Radio™ Technology is the
digital evolution of analog
AM/FM radio. Your radio prod-
uct has a special receiver which
allows it to receive digital broad-
casts (where available) in addi-
tion to the analog broadcasts it
already receives. Digital broad-
casts have better sound quality
than analog broadcasts as digi-
tal broadcasts provide free,
crystal clear audio with no static
or distortion. For more informa-
tion, and a guide to available
radio stations and programming,
refer to www.hdradio.com
.
HD Radio features included in
Toyota radios:
 Digital Sound-
HD Radio broadcasts deliver
crystal-clear, digital audio
quality to listeners.
 HD2/HD3 Channels-
FM stations can provide addi-
tional digital only audio pro-
gramming with expanded
content and format choices on
HD2/HD3 channels.
 PSD-
Program Service Data (PSD)
Radio broadcast data sys-
tem
B
C
D
E
F
8VLQJ+'5DGLRŒWHFK
QRORJ\

693-2. Radio operation
3
Audio/visual system
gives you on-screen informa-
tion such as artist name and
song title.
 Artist Experience-
Images related to the broad-
cast are displayed on the
radio screen, such as album
cover art and station logos.
*: This function is not made avail-
able in some countries or areas.
■Certification
HD Radio Technology manufac-
tured under license from iBiquity
Digital Corporation. U.S. and For-
eign Patents. For patents see
http://dts.com/patents
. HD Radio,
Artist Experience, and the HD, HD
Radio, and “ARC” logos are regis-
tered trademarks or trademarks of
iBiquity Digital Corporation in the
United States and/or other coun-
tries.
■Multicast
On the FM radio frequency most
digital stations have “multiple” or
supplemental programs on one
FM station.
1 Select .
2 Select the desired channel. 
Turning the “TUNE SCROLL”
knob can also select the
desired multicast channel.
■Experience
 Mismatch of time alignment- a
user may hear a short period
of programming replayed or
an echo, stutter or skip.
Cause: The radio stations analog
and digital volume is not properly
aligned or the station is in ballgame
mode.
Action: None, radio broadcast
issue. A user can contact the radio
station.
Sound fades, blending in and
out.
Cause: Radio is shifting between
analog and digital audio.
Action: Reception issue, may clear-
up as the vehicle continues to be
driven. Turning the indicator of the
“HD Radio AM” and “HD Radio FM”
button off can force radio in an ana-
log audio.
 Audio mute condition when an
HD2/HD3 multicast channel
had been playing.
Cause: The radio does not have
access to digital signals at the
moment.
Action: This is normal behavior,
wait until the digital signal returns. If
out of the coverage area, seek a
new station.
Audio mute delay when
selecting an HD2/HD3 multi-
Available HD Radio™
technology
Troubleshooting guide

703-2. Radio operation
cast channel preset.
Cause: The digital multicast content
is not available until HD Radio™
broadcast can be decoded and
make the audio available. This
takes up to 7 seconds.
Action: This is normal behavior,
wait for the audio to become avail-
able.
Text information does not
match the present song
audio.
Cause: Data service issue by the
radio broadcaster.
Action: Broadcaster should be noti-
fied. Complete the form:
hdradio.com/sta tions/feedback
.
No text information shown for
the present selected fre-
quency.
Cause: Data service issue by the
radio broadcaster.
Action: Broadcaster should be noti-
fied. Complete the form:
hdradio.com/sta tions/feedback
.
All SiriusXM services, including
satellite radio and data services,
plus streaming services, require
a subscription, sold separately
or as a package by Sirius XM
Radio Inc., after any trial sub-
scription which may be included
with your vehicle purchase or
lease. To subscribe after your
trial subscription, call 1-877-
447-0011.
*: This function is not made avail-
able in some countries or areas.
■IMPORTANT INFORMATION
ABOUT YOUR SUBSCRIP-
TION
Your SiriusXM services will
automatically stop at the end of
your trial unless you decide to
subscribe. If you decide to con-
tinue service, the paid subscrip-
tion plan you choose will
automatically renew and you will
be charged the rate in effect at
that time and according to your
chosen payment method. Fees
and taxes apply. You may can-
cel at any time by calling 1-866-
635-2349. See SiriusXM Cus-
tomer Agreement for complete
terms at www.siriusxm.com
. All
fees and programming subject
to change. Traffic information
not available in all markets.
HOW TO SUBSCRIBE TO
SiriusXM Radio Services*
NOTICE
●It is prohibited to copy, decom-
pile, disassemble, reverse engi-
neer, hack, manipulate, or
otherwise make available any
technology or software incorpo-
rated in receivers compatible
with the SiriusXM Satellite
Radio System or that support
the SiriusXM website, the
streaming service or any of its
content. Furthermore, the
AMBE
® voice compression soft-
ware included in this product is
protected by intellectual prop-
erty rights including patent
rights, copyrights, and trade
secrets of Digital Voice Sys-
tems, Inc.

713-2. Radio operation
3
Audio/visual system
●ABOUT SiriusXM Services
• Most in-car trials today include
SiriusXM’s best package  All
Access. It includes every channel
available on your radio, plus
streaming.
●SiriusXM All Access Subscription
• Listen everywhere with All Access. You get every channel
available in your ride, plus you can
listen on the app and online  so
you can enjoy the best SiriusXM
has to offer, any where life takes
you. It’s the only package that
gives you all of our premium pro-
gramming, including Howard
Stern, every NFL, MLB
® and NBA
game, every NASCAR® race,
NHL® games, 24/7 talk channels
dedicated to the biggest leagues,
and more. You get all kinds of
commercial-free m usic, including
artist-dedicated channels and
more, plus sports, news, talk and
entertainment.
●RADIO OPERATION
• Look for the Sirius, XM, SiriusXM, Band, SAT, AUX, Radio or Source
button and you’re in. If you can’t
hear us, it’s easy to get started:
Locate your Radio ID by turning to
Channel 0. If you don’t see your
number there, go to siri-
usxm.com/activationhelp to find it.
Visit siriusxm.com/refresh
or call
1-855-MYREFRESH (697-3373)
to send a refresh signal to your
radio.
Each SiriusXM tuner is identified
with a unique radio ID. The radio
ID is required when activating
an SiriusXM Satellite service or
when reporting a problem.
 If “Ch 000” is selected using
the “TUNE SCROLL” knob, the ID code, which is 8 alpha-
numeric characters, will be
displayed. If another channel
is selected, the ID code will no
longer be displayed. The
channel (000) alternates
between displaying the radio
ID and the specific radio
code.
Up to 20 channels can be regis-
tered as presets in the cache.
For channel registration, refer to
( P.87).
1 Select channels registered to
smart favorites.
2 Select “SXM Replay”.
●Caches up to 30 minutes for each
Smart Favorite preset.
●The radio plays the track from
start when that track has not previ-
ously been heard by the user and
the station is registered as a smart
favorite.
●When “SXM Tune Start” is turned
on ( P.67), the current song is
played from the beginning when
you select the channel.
●Displays icons on the channels
registered to smart favorites.
(  P.65)
Displaying the radio ID
Smart favorites

723-2. Radio operation
When problems occur with the SiriusXM tuner, a message will
appear on the screen. Referring to the table below to identify the
problem, take the suggested corrective action.
●Contact the SiriusXM Listener Ca re Center at 1-877-447-0011 (U.S.A.) or
1-877-438-9677 (Canada).

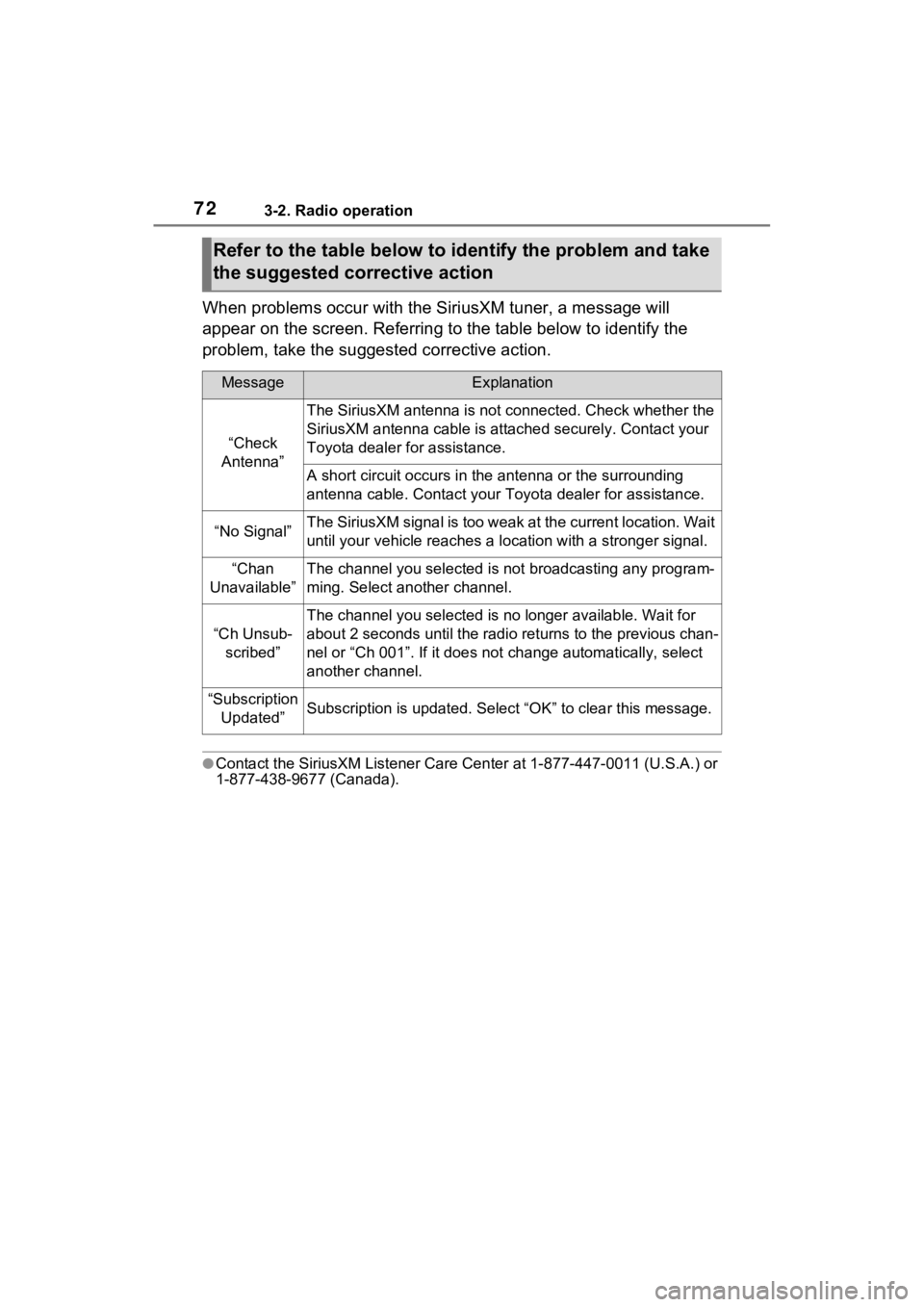

Refer to the table below to identify the problem and take
the suggested corrective action
MessageExplanation
“Check
Antenna”
The SiriusXM antenna is not c onnected. Check whether the
SiriusXM antenna cable is atta ched securely. Contact your
Toyota dealer fo r assistance.
A short circuit occurs in the antenna or the surrounding
antenna cable. Contact your T oyota dealer for assistance.
“No Signal”The SiriusXM signal is too weak at the current location. Wait
until your vehicle reaches a l ocation with a stronger signal.
“Chan
Unavailable”The channel you selected is not broadcasting any program-
ming. Select another channel.
“Ch Unsub- scribed”
The channel you selected is no longer available. Wait for
about 2 seconds until the radio returns to the previous chan-
nel or “Ch 001”. If i t does not change automatically, select
another channel.
“Subscription Updated”Subscription is updated. Select “OK” to clear this message.
