TOYOTA PRIUS 2022 Owners Manual

381
PRIUS_OM_OM47F01U_(U)
4-5. Using the driving support systems
4
Driving
S-APGS (Simple Advanced Parking Guidance
System)

■Function summary
The Simple Advanced Parking Guidance System automatically
operates the steering wheel to provide support when backing into
an area near a target parking spot, and when departing from a par-
allel parking spot. (Changing the shift position and speed adju st-
ment when moving forward or backing up are not performed
automatically.)
● The Simple Advanced Parking Guidance System does not park
the vehicle automatically. It is a system that provides support
when pulling out of a perpendicular or parallel parking spot.
● The Simple Advanced Parking Guidance System provides steer-
ing wheel operation assistance to guide the vehicle toward the
selected intended parking spot. The selected intended parking
spot may not always be reach able, depending on road and vehi-
cle conditions at the time of parking, and the distance to the
intended parking spot.
■Linking with the Parki ng Support Brake function
While the Simple Advanced Parking Guidance System is operating,
if the system detects an obstacl e that could result in a collision, the
emergency brakes operate, regardl ess of whether the Parking Sup-
port Brake function is on or off. ( P. 383)
: If equipped
Simple Advanced Parking Guidance System
WARNING
●When backing up or proceeding forward, be sure to directly conf irm the
safety of the area to the front or rear, and the area around th e vehicle, and
slowly back up or proceed forward while adjusting the vehicle s peed by
depressing the brake pedal.
● If it seems the vehicle may make contact with a pedestrian, ano ther vehi-
cle or any other obstacles, stop the vehicle by depressing the brake pedal,
and then press the S-APGS switch ( P. 384) to turn the system off.

382
PRIUS_OM_OM47F01U_(U)
4-5. Using the driving support systems

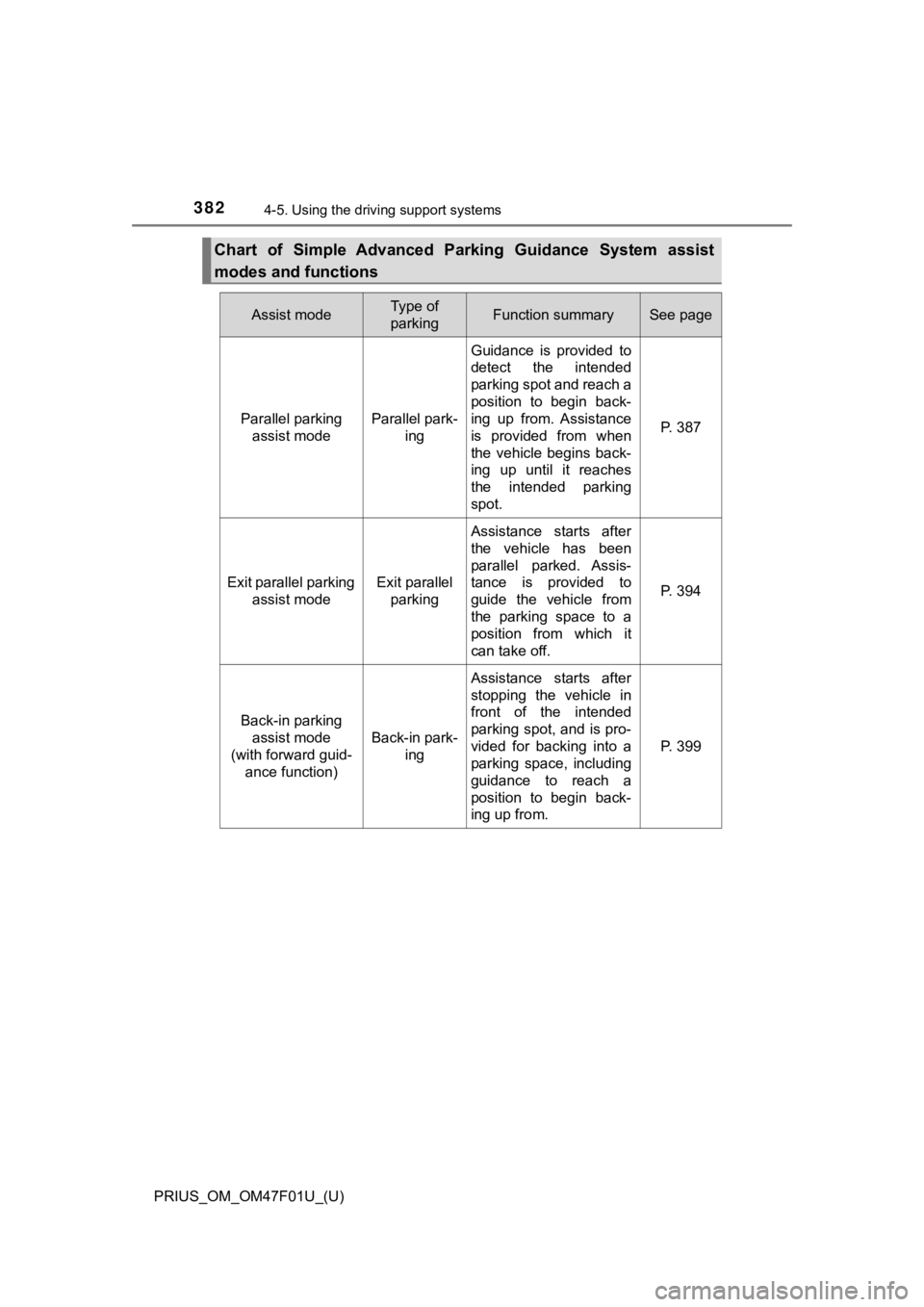

Chart of Simple Advanced Parking Guidance System assist
modes and functions
Assist modeType of
parkingFunction summarySee page
Parallel parking
assist modeParallel park- ing
Guidance is provided to
detect the intended
parking spot and reach a
position to begin back-
ing up from. Assistance
is provided from when
the vehicle begins back-
ing up until it reaches
the intended parking
spot.
P. 387
Exit parallel parking
assist modeExit parallel parking
Assistance starts after
the vehicle has been
parallel parked. Assis-
tance is provided to
guide the vehicle from
the parking space to a
position from which it
can take off.
P. 394
Back-in parking assist mode
(with forward guid- ance function)
Back-in park-
ing
Assistance starts after
stopping the vehicle in
front of the intended
parking spot, and is pro-
vided for backing into a
parking space, including
guidance to reach a
position to begin back-
ing up from.
P. 399

PRIUS_OM_OM47F01U_(U)
3834-5. Using the driving support systems
4
Driving
■Parking Support Brake function while the Simple Advanced Parkin g
Guidance System is operating
While the Simple Advanced Parking Guidance System is operating, if the sys-
tem detects an obstacle that could result in a collision, hybri d system output
restriction control and brake control of the Parking Support Br ake function are
operated, regardless of whether the Parking Support Brake funct ion is on or
off. ( P. 372)
● After the Parking Support Brake function operates, operation of the Simple
Advanced Parking Guidance System is temporarily stopped, and operation
of the Parking Support Brake function is indicated on the multi -information
display. ( P. 376)
● When operation of the Simple Advanced Parking Guidance System i s
stopped 3 times by operation of the Parking Support Brake funct ion, the
Simple Advanced Parking Guidance System is canceled.
● Once the Simple Advanced Parking Guidance System becomes availa ble
after the Parking Support Brake function is operated, a message prompting
you to shift is displayed on the multi-information display. Ope ration of the
Simple Advanced Parking Guidance System can be resumed by shift ing
according to the prompt on the multi-information display and pr essing the
S-APGS switch ( P. 384) again.
■ Shifting while the Simple Advanced Parking Guidance System is operat-
ing
If the system determines that the driver intends to move forwar d or in reverse,
assistance continues even if the driver shifted before being prompted to do so
by the system. However, because driver operation differs from the guidance
provided by the system, the number of turning maneuvers may inc rease.
■ Customization
Settings (e.g. obstacle detection range) can be changed. (Custo mizable fea-
tures: P. 686)

384
PRIUS_OM_OM47F01U_(U)
4-5. Using the driving support systems
■Switching using the S-APGS switch
Press the switch
This allows you to switch func-
tions and cancel or restart assist
modes.
While the power switch is on, the vehicle speed is approximately
19 mph (30 km/h) or less, each time the S-APGS switch is pressed
the function switc hes as follows.
The selected function is indicated on the operation display are a of the
multi-information display. ( P. 385)
*: The back-in parking assist mode can be switched to when its op erating
conditions are met ( P. 403). When the operating conditions are not met,
it switches to off.
Switching assist mode
When the S-APGS switch is
pressed with the shift position
not in PWhen the S-APGS switch is
pressed with the shift position
in P
Back-in parking assist mode*
Parallel parking assist mode
Off
Exit parallel parking
assist mode Off

PRIUS_OM_OM47F01U_(U)
3854-5. Using the driving support systems
4
Driving
The guidance screen is displayed on the multi-information display.
Assistance level indicator
Displays a gauge indicating the
level until the vehicle’s stopping
position/the position at which assist
control ends.
Stop display
When illuminated, depress the
brake pedal and stop the vehicle at
once.
Operation display area
Displays the operating condition of the Simple Advanced Parking Guid-
ance System.
Advice display
Follow the instructions on the display and perform any indicate d opera-
tions. As an example, the illustration shows the display indica ting it is nec-
essary to depress the brake pedal in order to control the vehicle speed and
to confirm the safety of your surroundings.
S-APGS switch icon
Displayed when the assist mode can be changed and the system ca n be
turned off or on using the S-APGS switch.
Steering wheel auto operation display
Displays when the steering wheel auto operation is being perfor med.
Intuitive parking assist display/door position (open/close) display
P. 359
■S-APGS indicator inside the meter (P. 111 )
This indicator illuminates when the steering wheel auto operation is being
performed by the Simple Advanced Parking Guidance System. After control
ends, the indicator blinks for a short period of time and then turns off.
■ Intuitive parking assist pop-up display
While the Simple Advanced Parking Guidance System is operating, if the
intuitive parking assist detects an obstacle, the intuitive parking assist display
automatically pops up on the guidance screen ( P. 359), regardless of
whether the intuitive parking assist is on or off. (P. 358)
Guidance screen
1
2
3
4
5
6
7

386
PRIUS_OM_OM47F01U_(U)
4-5. Using the driving support systems
Assist mode will be can celed or stopped in the following cases.
■Assist control is canceled when
●The system temperature pres ervation function operates
● There is a system malfunction
● System determined that the parki ng environment is not suitable
for assist to continue
When assist control is canceled, firmly grasp the steering wheel,
depress the brake pedal and stop the vehicle.
Start again from the beginning, as the system will already be c an-
celed. When continuing to park manually, operate the steering
wheel as you normally would.
■Assist control is stopped when
● The steering wheel is operated
● The vehicle speed exceeds 4 mph (7 km/h) during assist control
● The Parking Support Brake function operates
When assist control is stopped, it can be resumed by following the
guidance shown on the screen.
■ If the vehicle speed is about to exceed the speed limit during assist con-
trol
Canceling or stopping assist mode
A buzzer sounds and the message indi-
cating there is possibility that the vehicle
speed may exceed the speed limit.
When the message is displayed, immedi-
ately depress the brake pedal to deceler-
ate. If the vehicle continues to accelerate,
assist control will be canceled when the
vehicle speed exceeds a certain speed.
( P. 408)

PRIUS_OM_OM47F01U_(U)
3874-5. Using the driving support systems
4
Driving
■Function summary
If a parking space can be detected, you will be guided forward until
you reach the assist control star ting position, and then the parallel
parking assist mode can be us ed. Furthermore, depending on the
parking space and other conditions, multi-turn maneuvering assi st
control is also prov ided if necessary.
Continue moving forward
with the vehicle parallel to
the curb or road, and stop so
that the center of the target
parking spot appears nearly
perpendicular to the vehicle.
Then press the S-APGS
switch 1 time to select the
parallel parking assist mode.
Travel straight ahead paral-
lel with the road or curb so
that the parking space is
detected.
A sound is issued and a display is shown to notify you when the
vehicle reaches a position wher e assist control can be used to
begin backing up from, and then when the shift position is
changed according to guidance provided by the system, steering
wheel auto oper ation begins.
If the detected parking space or road width (distance to the si de of the
road across from the parking space) is narrow, or if there are obstacles
in front of the vehicle, guidance will not be issued.
Parking is complete
This completes the assist mode. Depending on the condition of t he
parking space, guidance to starting points for moving forward and back-
ing up, as well as the steering wheel auto operation, are repea ted any
time multi-turn maneuvering is necessary following step from the
time the vehicle begins backing up until parking completes.
How to parallel park (paral lel parking assist mode)
1
2
3
4
3

388
PRIUS_OM_OM47F01U_(U)
4-5. Using the driving support systems
■Parking
Stop so that the center of the target parking spot appears near ly
perpendicular to vehicle. Then press the S-APGS switch 1 time
and check that the display on the multi-information display
switches to “Parallel Parking”.
● The mode switches each time the S-APGS switch is pressed.
( P. 384)
● When the vehicle speed is approximately 19 mph (30 km/h) or
higher, pressing the S-APGS switch will not cause the screen
to switch to the “Paral lel Parking” display.
1

PRIUS_OM_OM47F01U_(U)
3894-5. Using the driving support systems
4
Driving
Travel straight ahead paral-
lel with the road (or curb),
and maintain a gap of
approximately 3.3 ft. (1 m)
from any parked vehicles.
●Proceed slowly.
● The system will begin
searching for a parking
space.
● While searching for a
space, the turn signal lever
( P. 255) can be operated
to select a parking space
on the left or right.
● When stopping the func-
tion, press the S-APGS
switch once to turn the
function off.
● When a parking space is
detected, the screen will
change.2
3.3 ft.
(1 m)

390
PRIUS_OM_OM47F01U_(U)
4-5. Using the driving support systems
When a beep sounds once
and the stop display ( P. 3 8 5 )
is shown on the display, stop
the vehicle.
When the shift position is changed to R, a high-pitched beep is
emitted and assist control will start.
● When the steering wheel auto operation starts, the steering
wheel auto operation display ( P. 385) and assistance level
indicator ( P. 385) will be shown in the display area.
● To stop assist control, press the S-APGS switch.
Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel without applying any force, direc tly
confirm the safety of the area t o the rear and around the vehic le,
confirm that there are no obsta cles in the parking space, and
slowly back up while adjusting your speed by depressing the
brake pedal.
● When backing up too quickly, a sharp beeping sound is emit-
ted and assist cont rol is stopped. (P. 386)
● When the vehicle cannot be cleanly entered within the target
parking spot on the first try and multi-turn maneuvering is nec -
essary, proceed to step .
When multi-turn maneuvering is not necessary, proceed to
step .3
4
5
6
12
