4618-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52E68U)
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound. Once

After the “POWER” switch has
been turned off with the shift
lever in a position other than P,
the shift lever has been shifted
to P.

Turn the “POWER” switch
off.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)

4628-2. Steps to take in an emergency
PRIUS c_U (OM52E68U)
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the hybrid system.
● Turn on the emergency flashers. ( P. 430)
*: Jack handle, wheel nut wrench and towing eyelet
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 3 9 8
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle

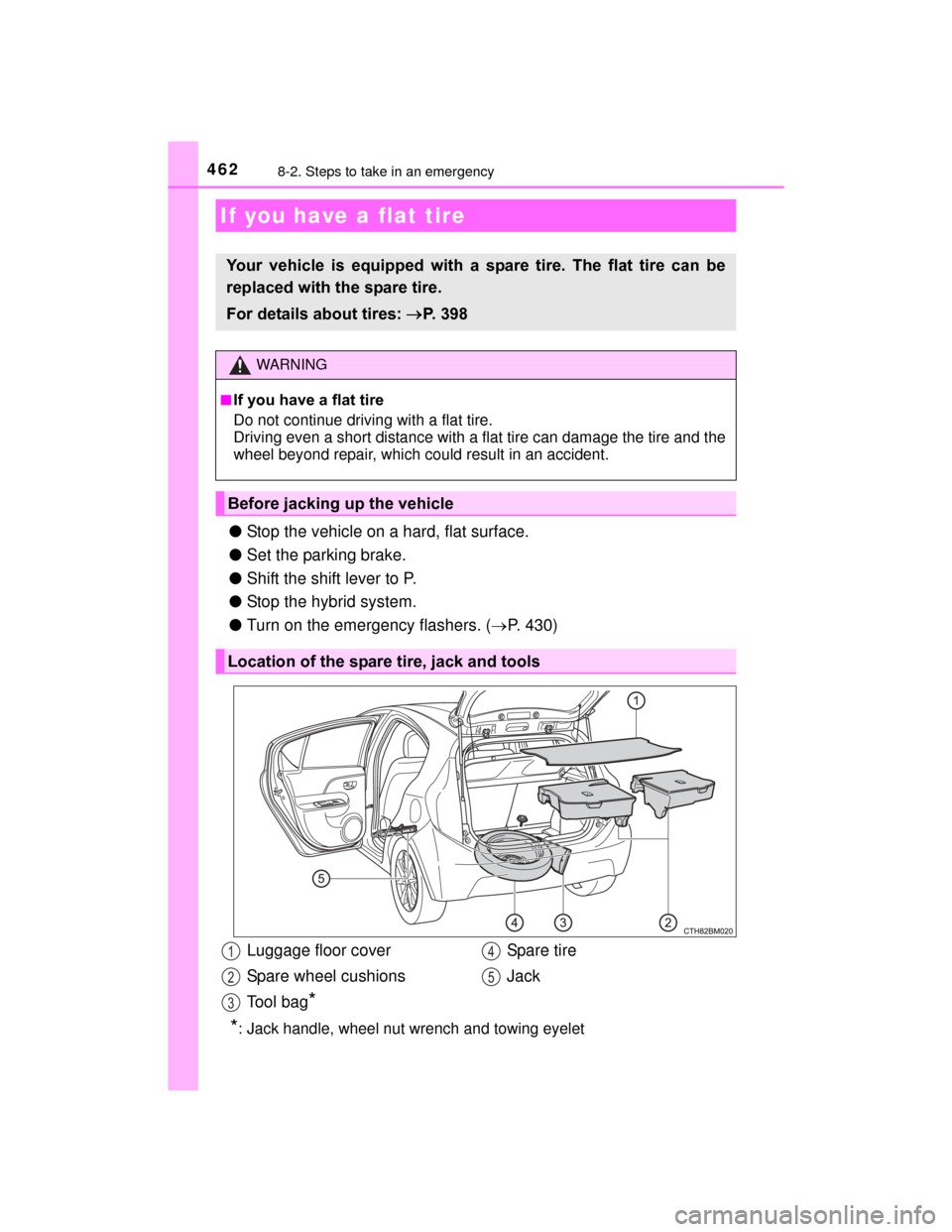

Location of the spare tire, jack and tools
Luggage floor cover
Spare wheel cushions
To o l b a g
*
Spare tire
Jack1
2
3
4
5

4638-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52E68U)
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the hybrid system while your vehicle is supported by
the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.

4648-2. Steps to take in an emergency
PRIUS c_U (OM52E68U)

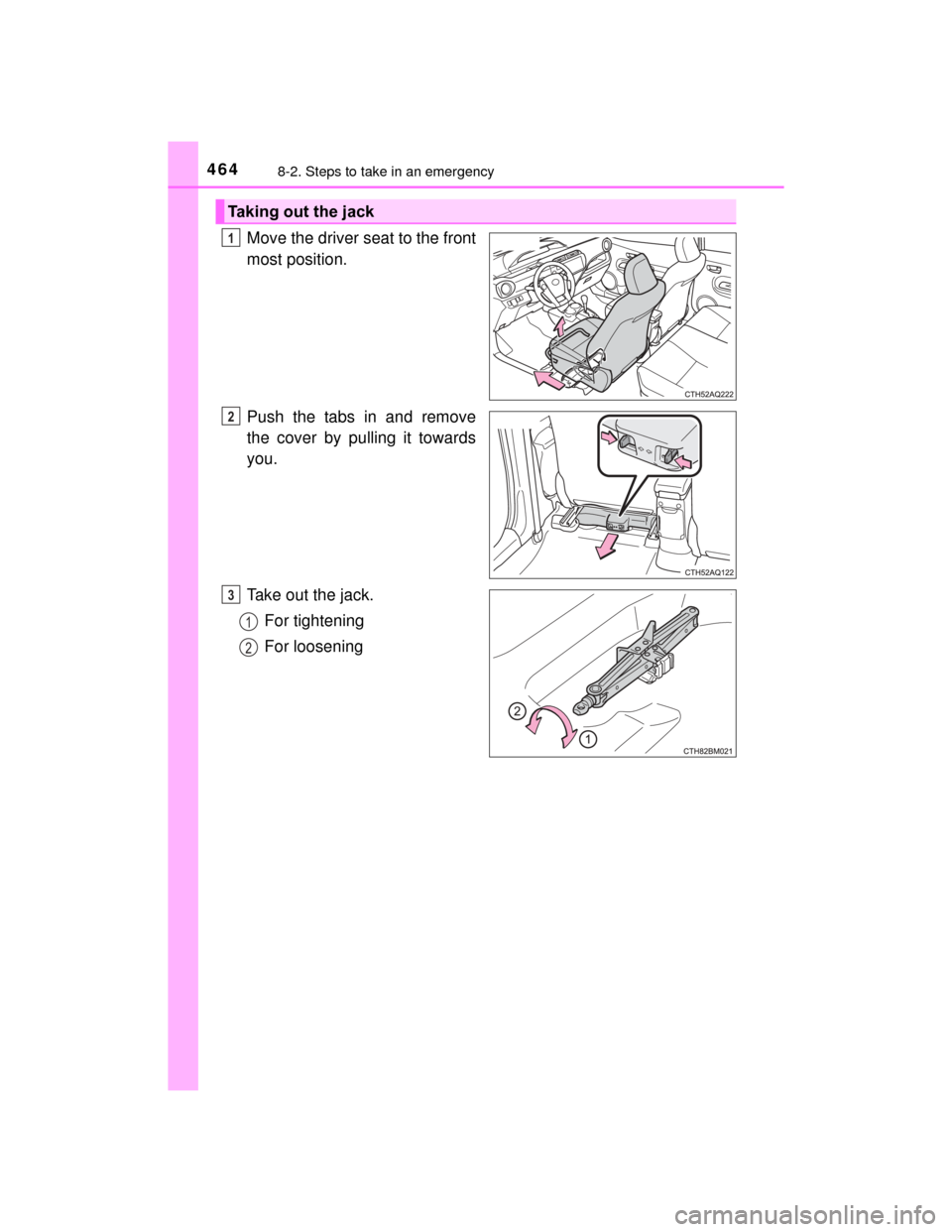

Move the driver seat to the front
most position.
Push the tabs in and remove
the cover by pulling it towards
you.
Take out the jack.For tightening
For loosening
Taking out the jack
1
2
3
1
2

4658-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52E68U)

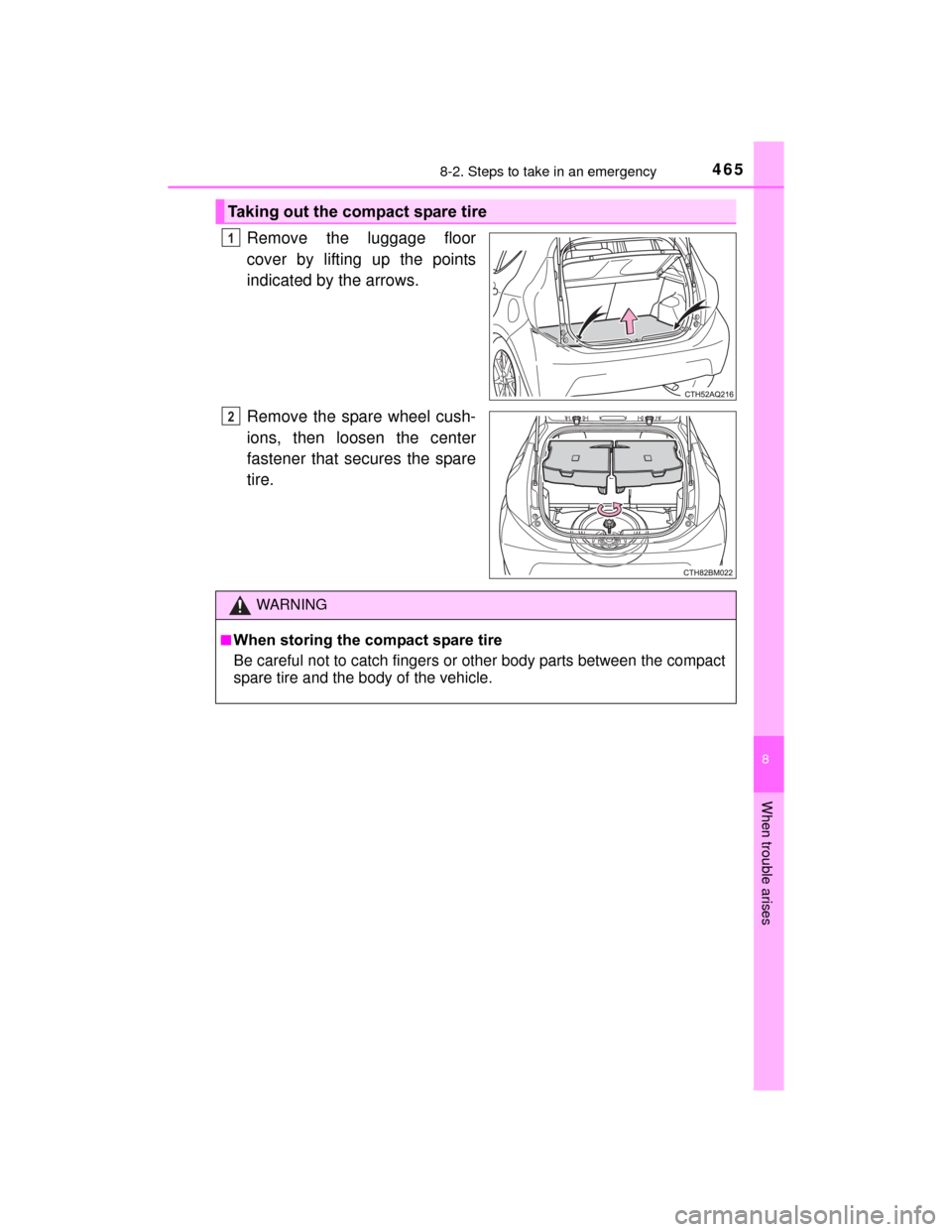

Remove the luggage floor
cover by lifting up the points
indicated by the arrows.
Remove the spare wheel cush-
ions, then loosen the center
fastener that secures the spare
tire.
Taking out the compact spare tire
1
2
WARNING
■When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.

4668-2. Steps to take in an emergency
PRIUS c_U (OM52E68U)

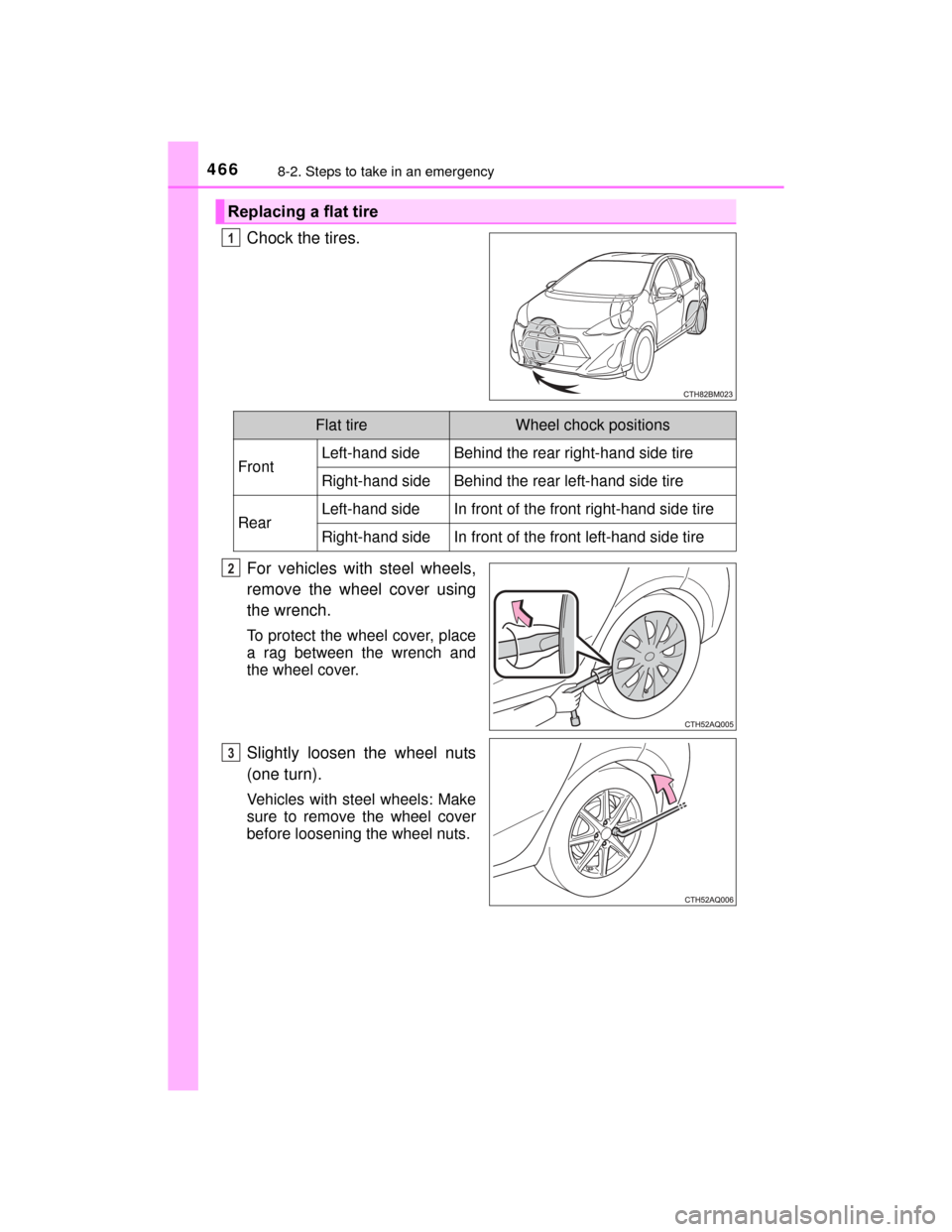

Chock the tires.
For vehicles with steel wheels,
remove the wheel cover using
the wrench.
To protect the wheel cover, place
a rag between the wrench and
the wheel cover.
Slightly loosen the wheel nuts
(one turn).
Vehicles with steel wheels: Make
sure to remove the wheel cover
before loosening the wheel nuts.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3

4678-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52E68U)

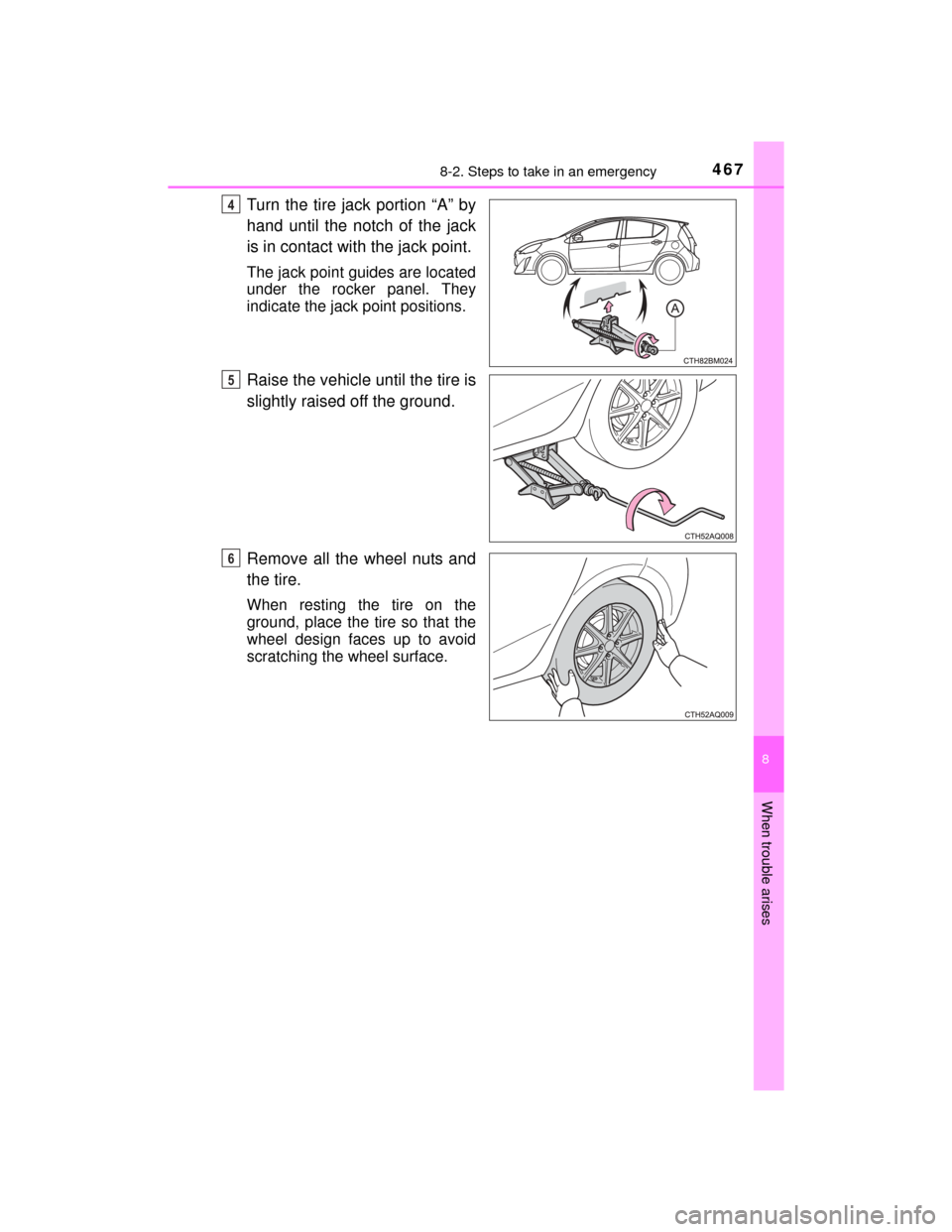

Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5
6

4688-2. Steps to take in an emergency
PRIUS c_U (OM52E68U)
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off
the wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifi- cally designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the tapered ends facing inward. ( P. 410)

4698-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52E68U)
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.

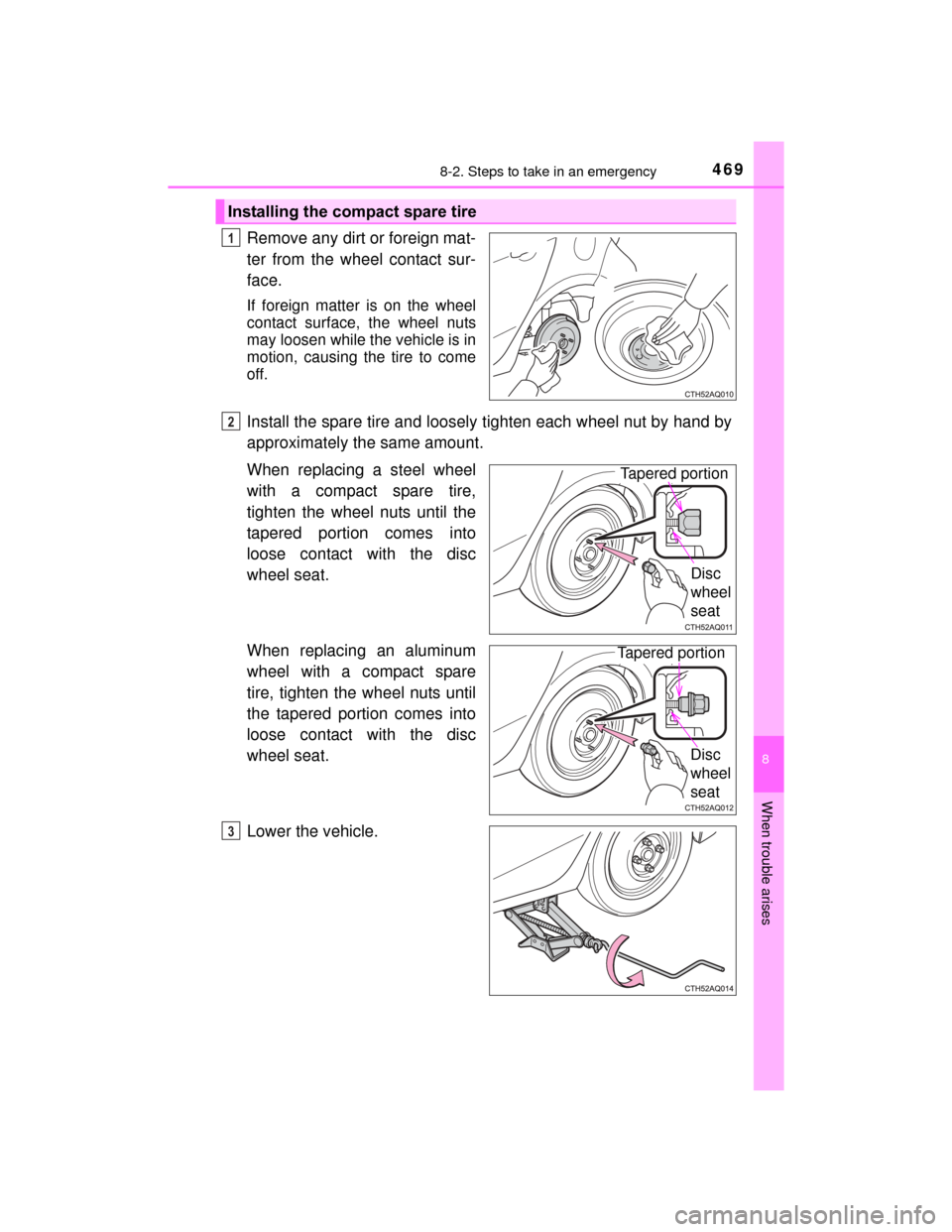

Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing a steel wheel
with a compact spare tire,
tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
When replacing an aluminum
wheel with a compact spare
tire, tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
Installing the compact spare tire
1
2
Tapered portionDisc
wheel
seat
Tapered portion
Disc
wheel
seat
3

4708-2. Steps to take in an emergency
PRIUS c_U (OM52E68U)

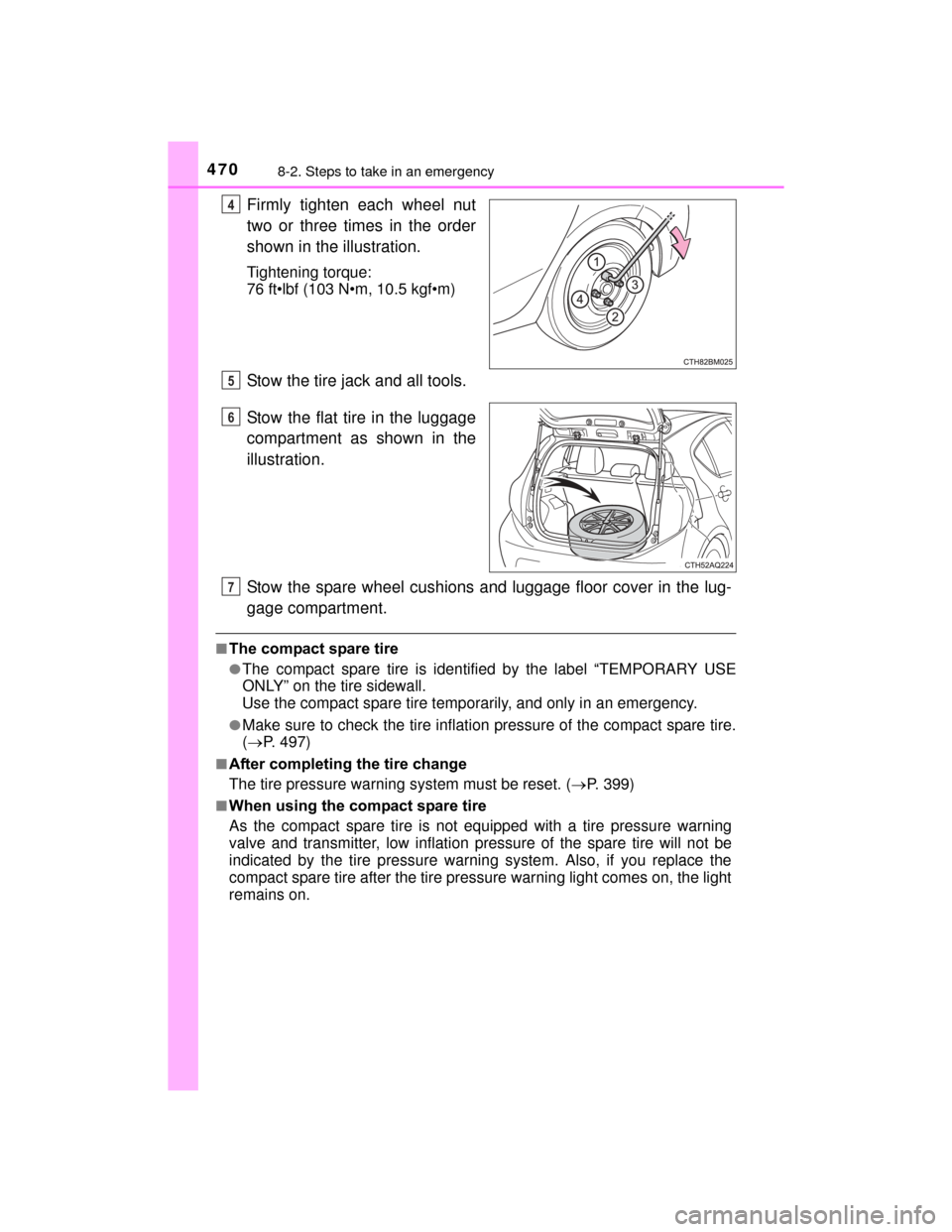

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the tire jack and all tools.
Stow the flat tire in the luggage
compartment as shown in the
illustration.
Stow the spare wheel cushions and luggage floor cover in the lug-
gage compartment.
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
( P. 497)
■After completing the tire change
The tire pressure warning system must be reset. ( P. 399)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light
remains on.
4
5
6
7
