5118-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52J11U)
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
(→ P. 539)
■After completing the tire change
The tire pressure warning system must be reset. ( →P. 433)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light
remains on.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the
vehicle.
Fit tire chains to the front tires.
1
2
3

5128-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)
WARNING
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-
ure to observe this precaution may lead to an accident causing death or
serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the po ssibility of personal injury during a
collision or sudden braking.
• ABS & Brake assist
• VSC
•TRAC
• Cruise control (if equipped)
• PCS (Pre-collision system) (if
equipped)
• LDA (Lane Departure Alert with steering control) (if equipped)
• Automatic High Beam (ifequipped)
• EPS
• Rear view monitor system (if
equipped)
• Navigation system (if equipped)

5138-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52J11U)
NOTICE
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( →P. 433)

5148-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)
One of the following may be the cause of the problem:
●Vehicles with a smart key system: The electronic key may not be
functioning properly. ( →P. 516)
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( →P. 217)
● Vehicles with immobilizer syst em: There may be a malfunction in
the immobilizer system. ( →P. 8 4 )
● There may be a malfunction in the steering lock system.
● Vehicles with a smart key system : The hybrid system may be mal-
functioning due to an electrical problem such as an open circuit or a
blown fuse. However, depending on the type of malfunction, an
interim measure is available to start the hybrid system. (→P. 515)
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. ( →P. 518)
● The 12-volt battery terminal connections may be loose or corroded.
(→ P. 428)
If the hybrid system will not start
Reasons for the hybrid system not starting vary depending on
the situation. Check the follo wing and perform the appropriate
procedure:
The hybrid system will not start even though the correct starting
procedure is being followed. ( →P. 184, 188)
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.

5158-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52J11U)
One of the following may be the cause of the problem:
●The 12-volt battery may be discharged. ( →P. 518)
● One or both of the 12-volt batter y terminals may be disconnected.
( → P. 428)
Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.
When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the “POWER”
switch is functioning normally.
Do not use this starting procedure except in case of emergency.
Set the parking brake.
Shift the shift lever to P.
Turn the “POWER” switch to ACCESSORY mode.
Press and hold the “POWER” switch for about 15 seconds.
Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer.
The interior lights and headlight s do not turn on, or the horn
does not sound.
Emergency start function (vehicles with a smart key system)
1
2
3
4

5168-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)
Use the mechanical key (→P.
121) in order to perform the fol-
lowing operations (driver’s door
only):
Unlocks the doors
Locks all the doors
Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 5 seconds
unlocks the other doors.
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Toyota emblem side
of the electronic key to the
“POWER” switch.
When the electronic key is
detected, a buzzer sounds and the
“POWER” switch will turn to ON
mode.
When the smart key system is
deactivated in customization set-
ting, the power switch will turn to
ACCESSORY mode.

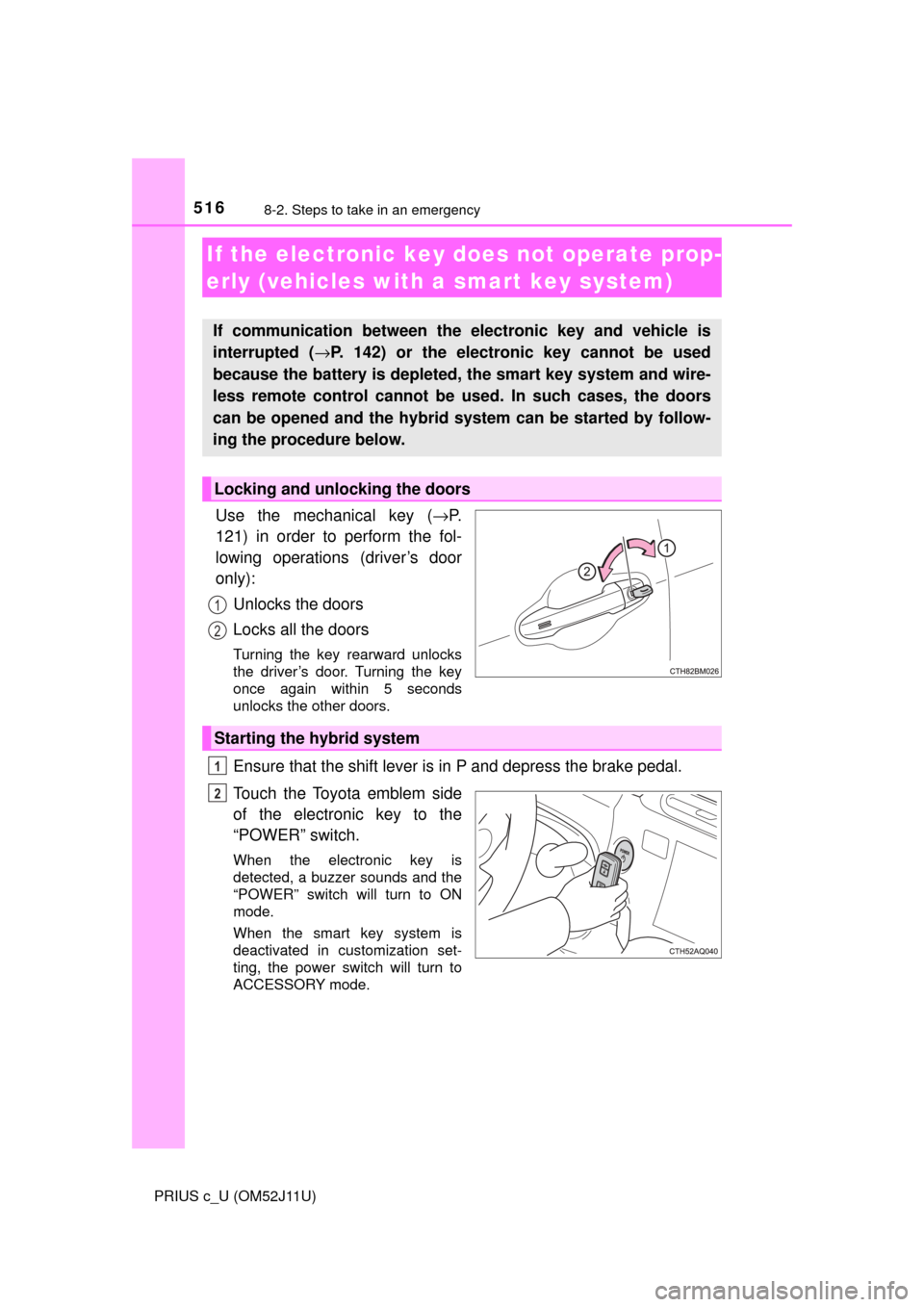

If the electronic key do es not operate prop-
erly (vehicles with a smart key system)
If communication between the electronic key and vehicle is
interrupted (→P. 142) or the electronic key cannot be used
because the battery is depleted, the smart key system and wire-
less remote control cannot be used. In such cases, the doors
can be opened and the hybrid system can be started by follow-
ing the procedure below.
Locking and unlocking the doors
1
2
Starting the hybrid system
1
2

5178-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52J11U)
Firmly depress the brake pedal and check that is displayed
on the multi-information display.
Press the “POWER” switch.
In the event that the “P OWER” switch still cannot be operated, contact
your Toyota dealer.
■ Stopping the hybrid system
Shift the shift lever to P and press the “POWER” switch as you normally do
when stopping the hybrid system.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(→P. 448)
■ Changing “POWER” switch modes
Release the brake pedal and press the “POWER” switch in above.
The hybrid system does not start and modes will be changed each time the
switch is pressed. ( →P. 189)
■ If the doors cannot be locked or unlocked by the smart key system
Lock and unlock the doors by the mechanical key or wireless remote contr\
ol.
■ When the electronic key does not work properly
●Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features →P. 556)
● Check if battery-saving mode is set. If it is set, cancel the function.
(→P. 141)
3
4
3

5188-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
Open the hood and remove the
fuse box cover.
Push the tab in and lift the cover
off.
Open the exclusive jump start-
ing terminal cover.
Push the tab in and open the cover.
If the vehicle 12-volt battery is discharged
The following procedures may be used to start the hybrid sys-
tem if the vehicle’s 12-volt battery is discharged.
You can also call your Toyota de aler or a qualified repair shop.
1
2

5198-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52J11U)

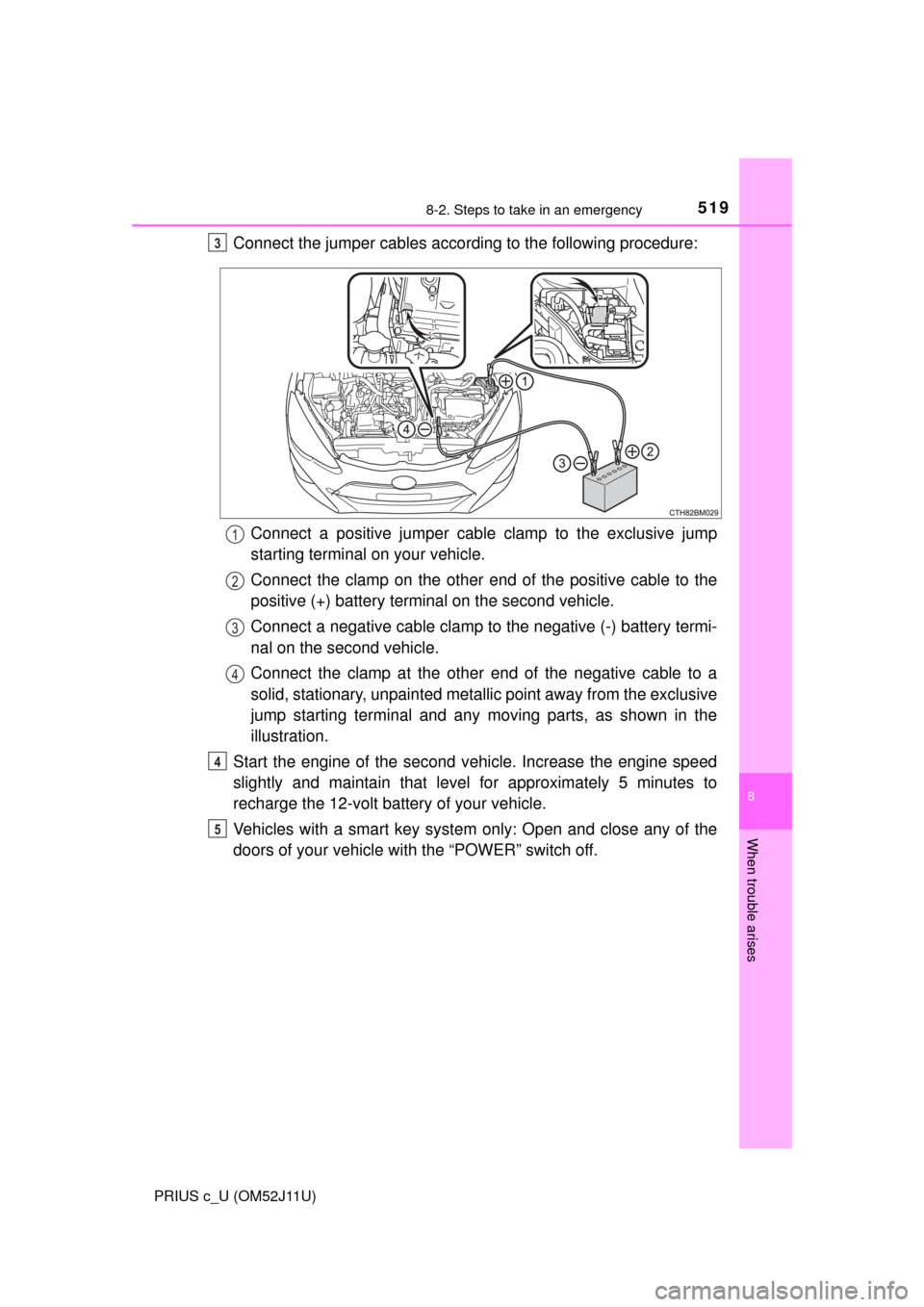

Connect the jumper cables according to the following procedure:Connect a positive jumper cabl e clamp to the exclusive jump
starting terminal on your vehicle.
Connect the clamp on the other e nd of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the exclusive
jump starting terminal and any moving parts, as shown in the
illustration.
Start the engine of the second v ehicle. Increase the engine speed
slightly and maintain that le vel for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.
Vehicles with a smart key system only: Open and close any of the
doors of your vehicle with the “POWER” switch off.3
1
2
3
4
4
5

5208-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)
Vehicles without a smart key system:
Maintain the engine speed of the second vehicle and start the
hybrid system of your vehicle by turning the engine switch to the
“ON” position.
Vehicles with a smart key system:
Maintain the engine speed of t he second vehicle and start the
hybrid system of your vehicle by turning the “POWER” switch to ON
mode.
Make sure the “READY” indicato r comes on. If the indicator does
not come on, contact your Toyota dealer.
Once the hybrid system has start ed, remove the jumper cables in
the exact reverse order from which they were connected.
Close the exclusive jump starting terminal cover, and reinstall the
fuse box cover to its original position.
When installing, first hook the fuse box cover onto the two rear tabs.
Once the hybrid system starts, ha ve the vehicle inspected at your
Toyota dealer as soon as possible.
6
7
8
9
