TOYOTA PRIUS C 2017 NHP10 / 1.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2017, Model line: PRIUS C, Model: TOYOTA PRIUS C 2017 NHP10 / 1.GPages: 596, PDF Size: 10.05 MB
Page 491 of 596

4918-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52J11U)
(If equipped)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
→Turn the high beam on.
(If equipped)
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
braking and pre-collision brake assist are dis-
abled (The pre-collision warning function will be
operational)
→Turn the VSC on. ( →P. 239, 265)
(If equipped)
Indicates that the pre-collision system is disabled.
→ Have the vehicle inspect ed by your Toyota
dealer.
Indicates that the hybrid battery (traction battery)
is low A buzzer also sounds.
→ When stopping the vehicle for a long
period of time, shift the shift lever to P. The
hybrid battery (traction battery) cannot be
charged with the shift position in N.
Indicates that the hybrid battery (traction battery)
power has dropped because a long period of time
has elapsed after shifting the shift lever to N A buzzer also sounds.
→ Shift the shift lever to P and restart the
hybrid system when starting the vehicle.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
Page 492 of 596

4928-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)Indicates that the driver’s door was opened with
the shift position in N, D or B
A buzzer also sounds.
→ Shift the shift lever to P.
Indicates that the accelerator pedal is depressed
while the shift position is in N A buzzer also sounds.
→ Release the accelerator pedal and shift the
shift lever to D, B or R.
Indicates that the engine switch is turned to the
“ACC” or “LOCK” position (vehicles without a
smart key system) or the “POWER” switch is
turned to ACCESSORY mode or turned off (vehi-
cles with a smart key system) and the driver’s
door is opened while the lights are turned on A buzzer also sounds.
→ Turn the lights off.
Indicates that the EV drive mode is not avail-
able
*2
The reason the EV drive mode is not available
(the vehicle is idling, battery charge is low,
speed is higher than the EV drive mode operat-
ing speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
→ Use the EV drive mode when it becomes
available.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
Page 493 of 596

4938-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52J11U)Indicates that the EV drive mode has been auto-
matically canceled
*2
The reason the EV drive mode is not available
(the battery charge is low, speed is higher than
the EV drive mode speed range, accelerator
pedal is depressed too much) may be dis-
played.
A buzzer also sounds.
→ Drive the vehicle for a while.
Indicates that the TRAC (Traction Control) sys-
tem has been deactivated
→ Turn the TRAC on. ( →P. 265)
Indicates that the accelerator and brake pedals
are being depressed simultaneously, and the
Brake Override System is operating. ( →P. 169)
→ Release the accelerator or brake pedal.
Indicates that the shift lever is shifted while the
accelerator pedal is being depressed
A buzzer also sounds.
→ Release the accelerator pedal.
Warning messageDetails/Actions
(Flashes 3
times)
(Flashes)
(Flashes)
Page 494 of 596

4948-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)
*1: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
*2: For the EV drive mode operating conditions:→P. 196
(If equipped)
The system is temporarily canceled because the
operating conditions of the front sensor (tempera-
ture, etc.) are not met.
The following systems may be suspended:
• PCS (Pre-Collision system) (if equipped)
• LDA (Lane Departure Alert) (if equipped)
• Automatic High Beam (if equipped)
→ The system can be operated when the
operating conditions of the front sensor
(temperature, etc.) are met. Turn the system
off, wait for a while, and then turn the sys-
tem back on.
(If equipped)
The area of the windshield in front of the front
sensor is fogged up or covered with dirt, rain, ice,
snow, etc.
The following systems may be suspended:
• PCS (Pre-Collision system) (if equipped)
• LDA (Lane Departure Alert) (if equipped)
• Automatic High Beam (if equipped)
→ Turn the system off, clear the windshield of
dirt, fog, ice, etc. then turn the system back
on. (→P. 225)
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system cannot be used because the vehicle
speed is lower than approximately 32 mph (50
km/h)
→Drive the vehicle at 32 mph (50 km/h) or
higher.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system is suspended (The vehicle speed is too
high for the system to operate.)
→Reduce the vehicle speed.
Warning messageDetails/Actions
(Flashes)
(Flashes)
Page 495 of 596

4958-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52J11U)
Carrying out the corresponding action turns the message off.
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Other displayed message
Displayed messageDetails/Actions
Maintenance of the hybrid battery (traction battery)
cooling component is required The filter may be clogged, the air intake vent
may be blocked or there may be a gap in the
duct.
→ Have maintenance performed on the hybrid
battery (traction batter y) cooling component
at your Toyota dealer.
Have the malfunction repaired immediately. (vehicles with a
smart key system)
Interior
buzzerExterior buzzerWarning messageDetails/Actions
Once ⎯ The electronic key is not
detected when an attempt is
made to start the hybrid sys-
tem.
→
Start the hybrid system
with the electronic key
present.
(Flashes)
Page 496 of 596

4968-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)

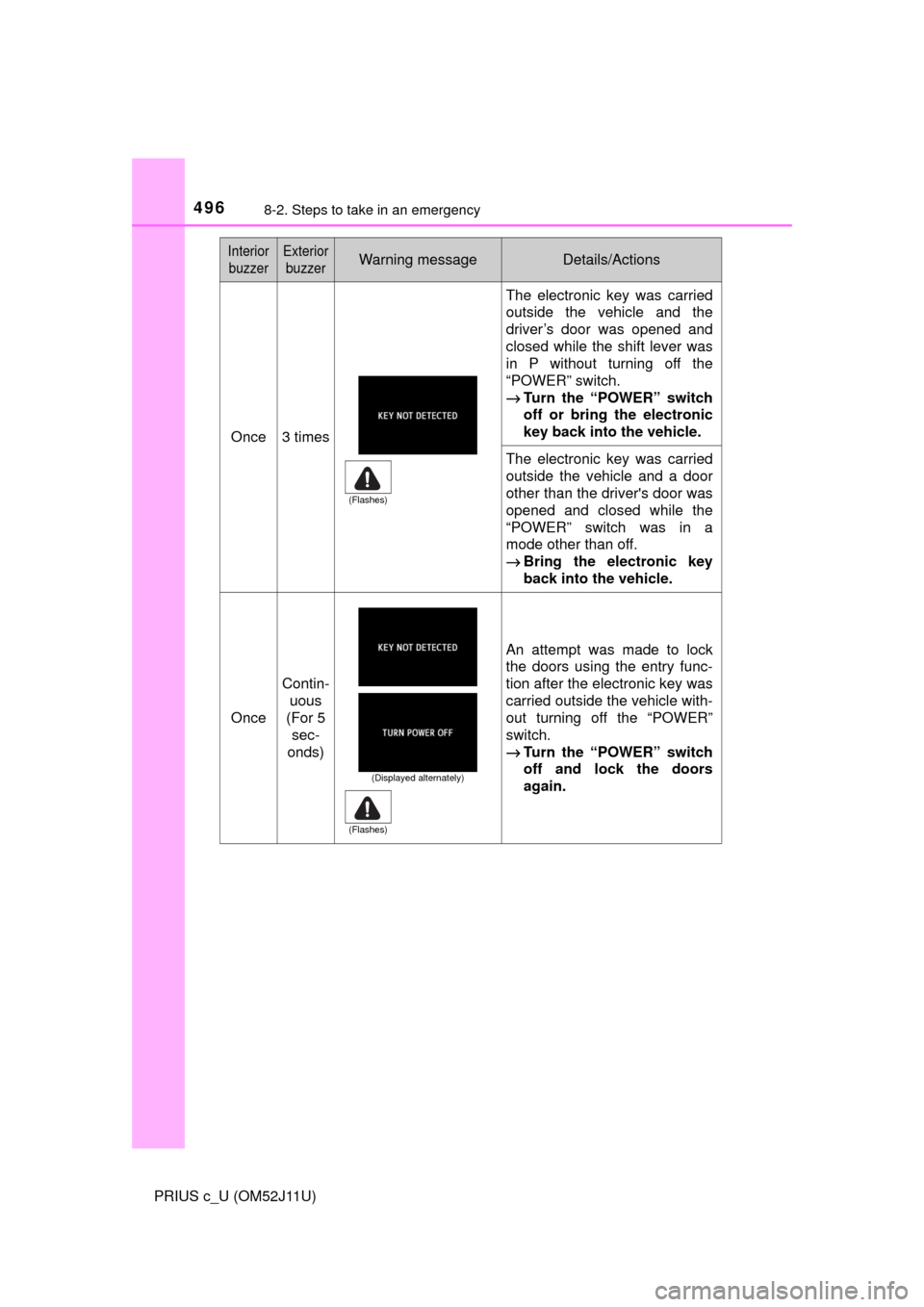

Once3 times
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while the shift lever was
in P without turning off the
“POWER” switch.
→Turn the “POWER” switch
off or bring the electronic
key back into the vehicle.
The electronic key was carried
outside the vehicle and a door
other than the driver's door was
opened and closed while the
“POWER” switch was in a
mode other than off.
→Bring the electronic key
back into the vehicle.
Once
Contin-
uous
(For 5 sec-
onds)
An attempt was made to lock
the doors using the entry func-
tion after the electronic key was
carried outside the vehicle with-
out turning off the “POWER”
switch.
→ Turn the “POWER” switch
off and lock the doors
again.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Displayed alternately)
(Flashes)
Page 497 of 596

4978-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52J11U)

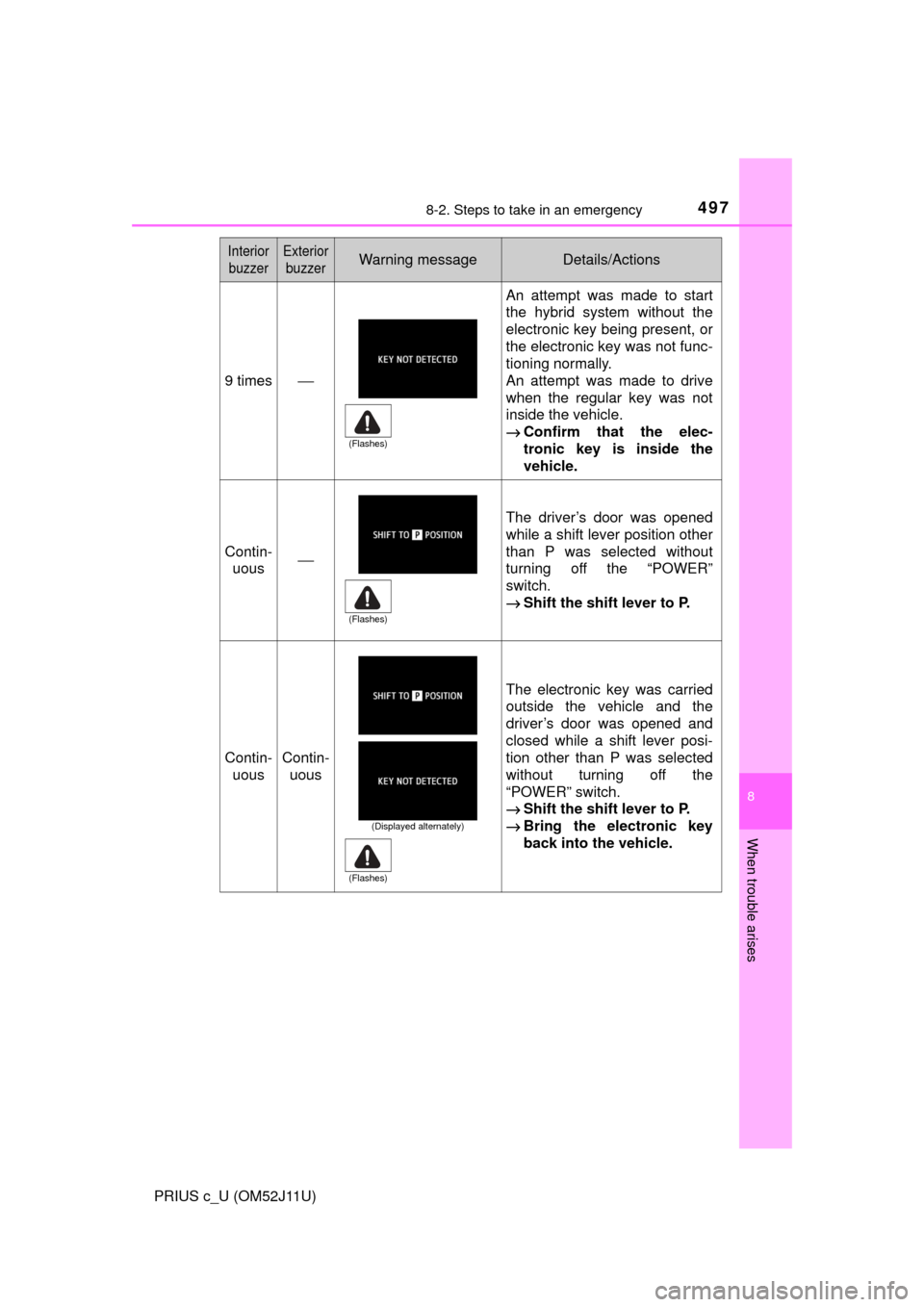

9 times⎯
An attempt was made to start
the hybrid system without the
electronic key being present, or
the electronic key was not func-
tioning normally.
An attempt was made to drive
when the regular key was not
inside the vehicle.
→Confirm that the elec-
tronic key is inside the
vehicle.
Contin-
uous⎯
The driver’s door was opened
while a shift lever position other
than P was selected without
turning off the “POWER”
switch.
→ Shift the shift lever to P.
Contin-
uousContin-uous
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while a shift lever posi-
tion other than P was selected
without turning off the
“POWER” switch.
→ Shift the shift lever to P.
→ Bring the electronic key
back into the vehicle.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)
Page 498 of 596

4988-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)
⎯

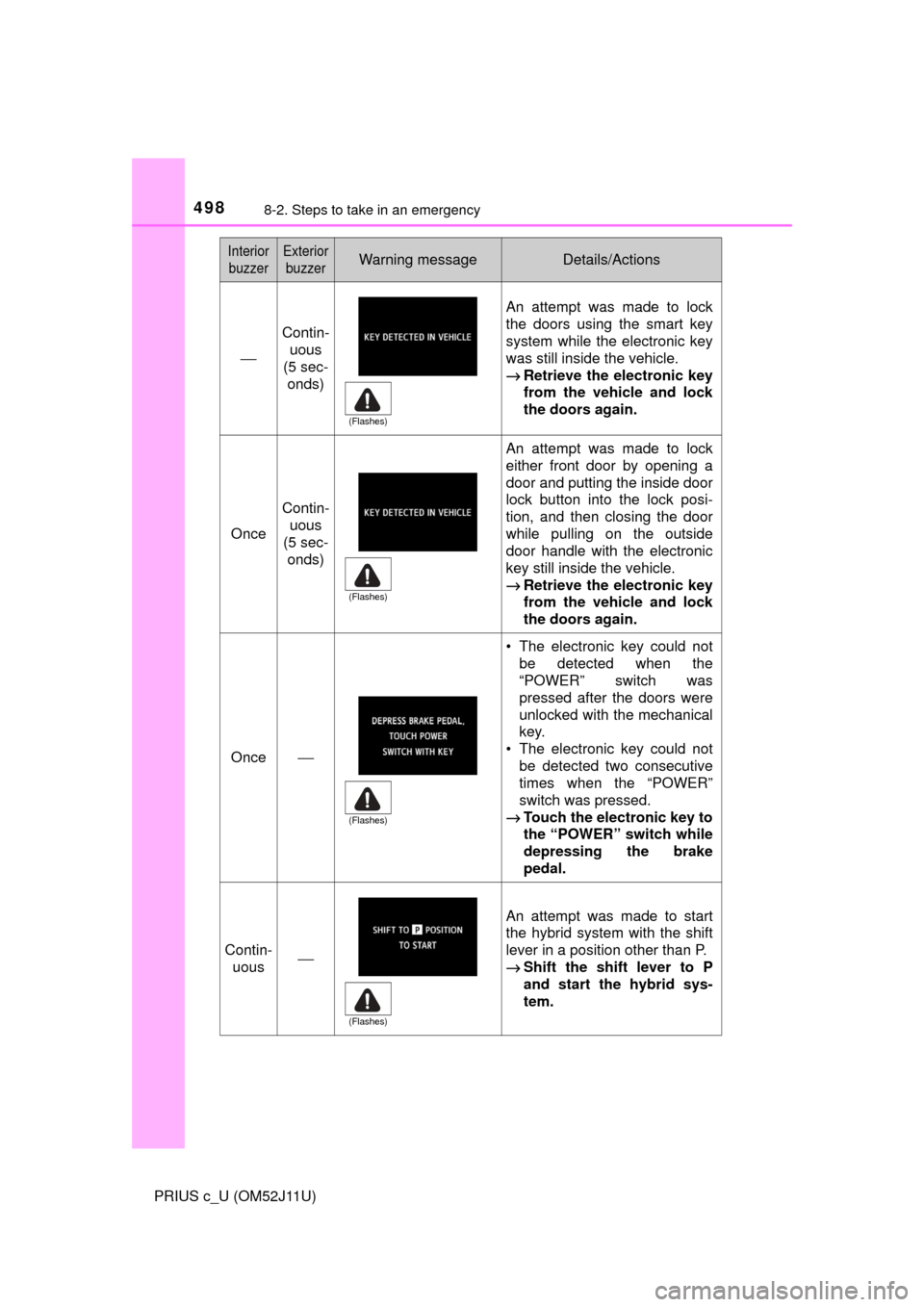

Contin-uous
(5 sec-
onds)
An attempt was made to lock
the doors using the smart key
system while the electronic key
was still inside the vehicle.
→ Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
Contin-
uous
(5 sec- onds)
An attempt was made to lock
either front door by opening a
door and putting the inside door
lock button into the lock posi-
tion, and then closing the door
while pulling on the outside
door handle with the electronic
key still inside the vehicle.
→ Retrieve the electronic key
from the vehicle and lock
the doors again.
Once⎯
• The electronic key could not
be detected when the
“POWER” switch was
pressed after the doors were
unlocked with the mechanical
key.
• The electronic key could not
be detected two consecutive
times when the “POWER”
switch was pressed.
→ Touch the electronic key to
the “POWER” switch while
depressing the brake
pedal.
Contin-
uous⎯
An attempt was made to start
the hybrid system with the shift
lever in a position other than P.
→ Shift the shift lever to P
and start the hybrid sys-
tem.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)
Page 499 of 596

4998-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52J11U)
⎯⎯

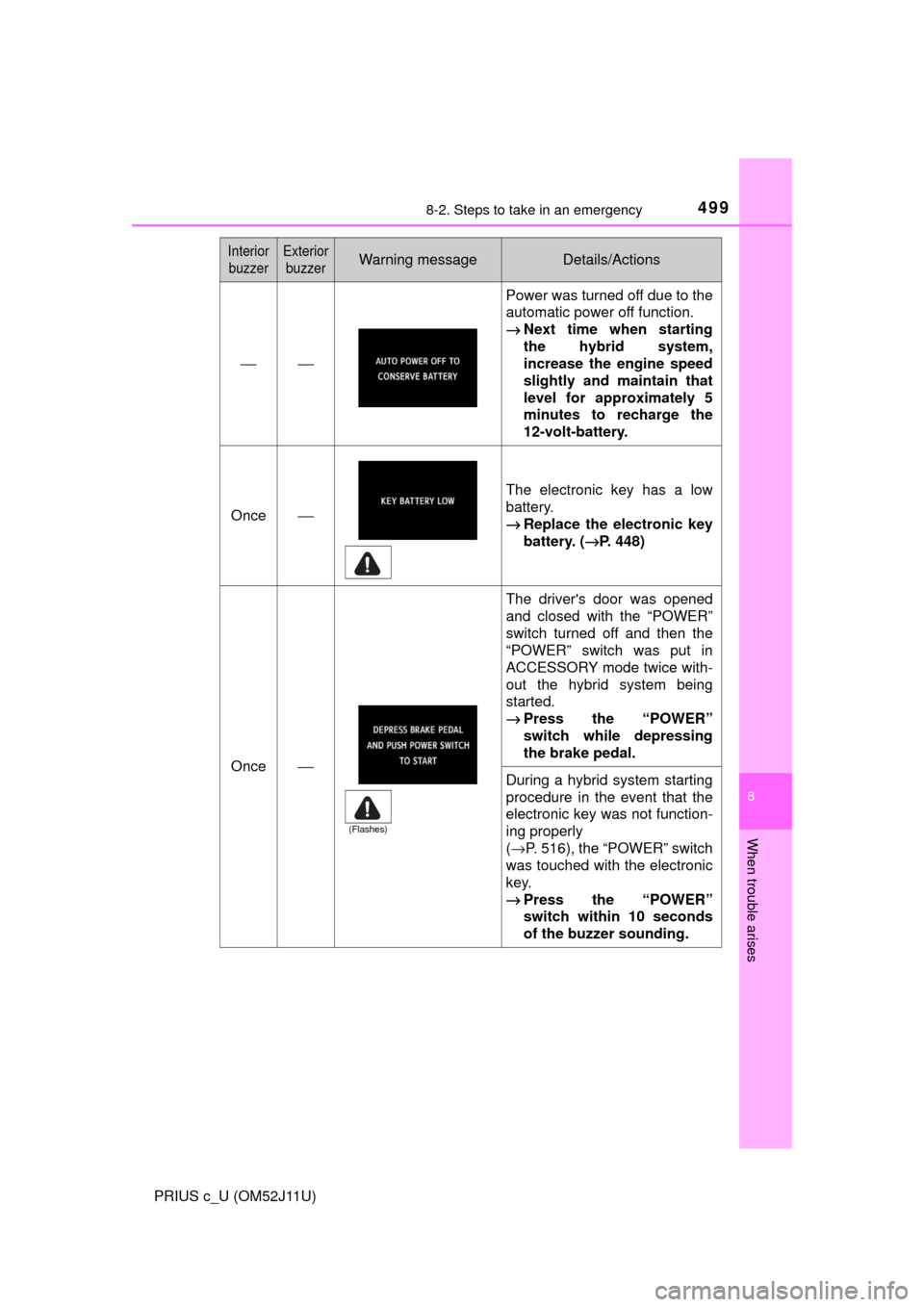

Power was turned off due to the
automatic power off function.
→Next time when starting
the hybrid system,
increase the engine speed
slightly and maintain that
level for approximately 5
minutes to recharge the
12-volt-battery.
Once⎯
The electronic key has a low
battery.
→Replace the electronic key
battery. ( →P. 448)
Once⎯
The driver's door was opened
and closed with the “POWER”
switch turned off and then the
“POWER” switch was put in
ACCESSORY mode twice with-
out the hybrid system being
started.
→Press the “POWER”
switch while depressing
the brake pedal.
During a hybrid system starting
procedure in the event that the
electronic key was not function-
ing properly
(→P. 516), the “POWER” switch
was touched with the electronic
key.
→ Press the “POWER”
switch within 10 seconds
of the buzzer sounding.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
Page 500 of 596

5008-2. Steps to take in an emergency
PRIUS c_U (OM52J11U)
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

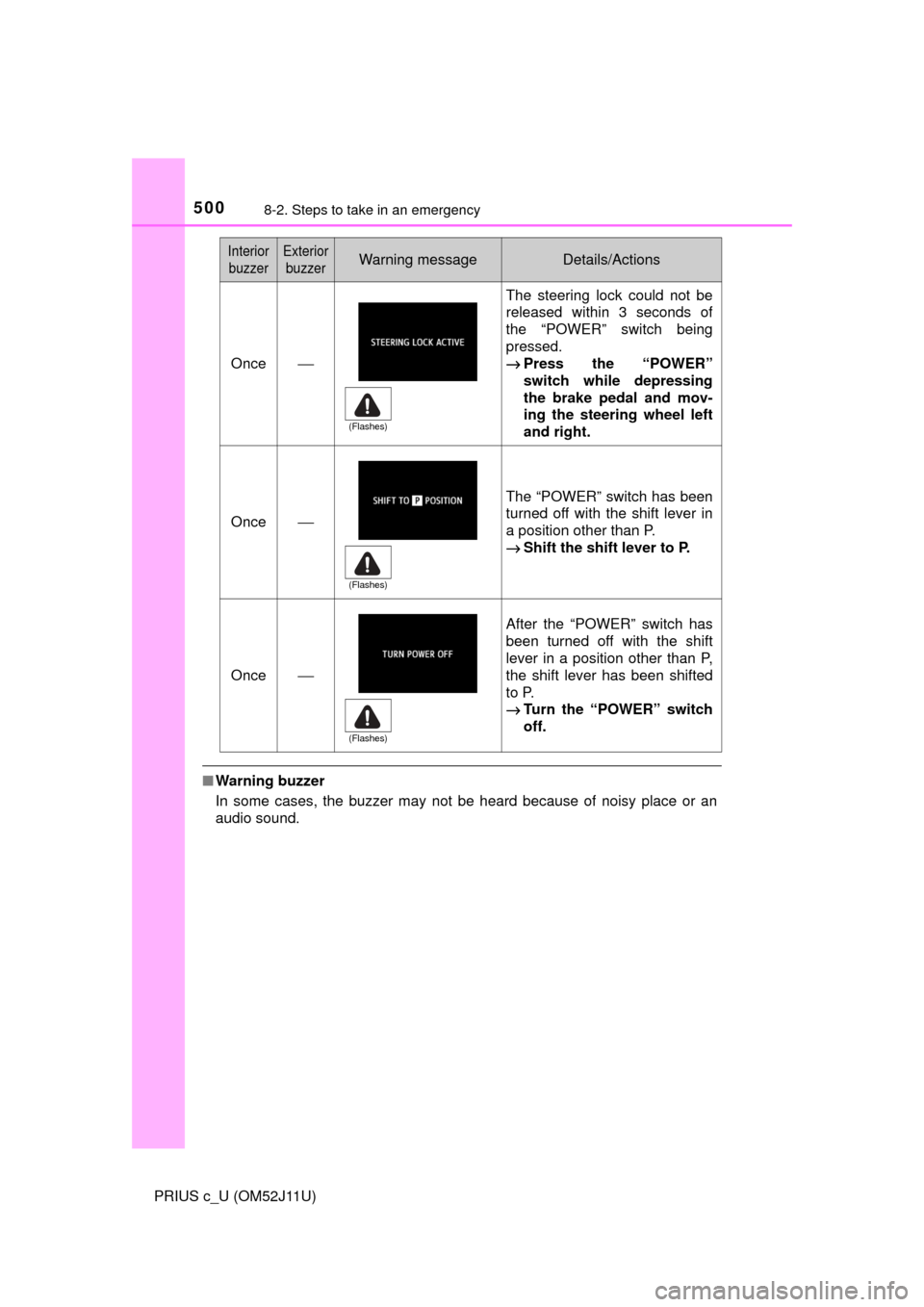

Once⎯
The steering lock could not be
released within 3 seconds of
the “POWER” switch being
pressed.
→ Press the “POWER”
switch while depressing
the brake pedal and mov-
ing the steering wheel left
and right.
Once
⎯
The “POWER” switch has been
turned off with the shift lever in
a position other than P.
→ Shift the shift lever to P.
Once
⎯
After the “POWER” switch has
been turned off with the shift
lever in a position other than P,
the shift lever has been shifted
to P.
→ Turn the “POWER” switch
off.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
