TOYOTA PRIUS C 2018 Owners Manual (in English)

1112. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)Audio system
Multi-information
display

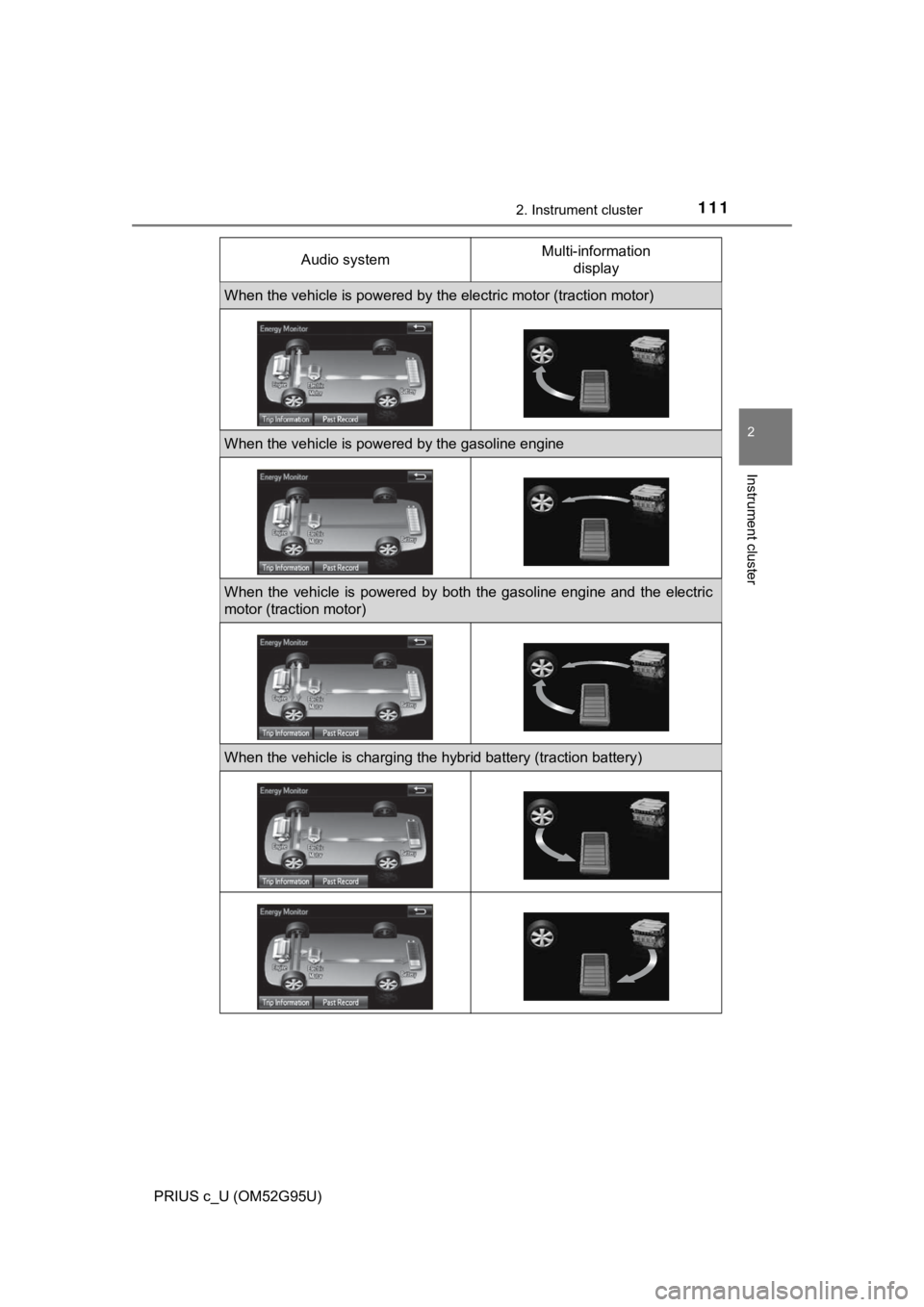

When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by the gasoline engine
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is charging the hybrid battery (traction battery)

1122. Instrument cluster
PRIUS c_U (OM52G95U)
These images are examples only, and may vary slightly from actual
conditions.
When there is no energy flow
Hybrid battery (traction battery) statusLow FullLow Full
Audio system
Multi-information
display

1132. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)■
Trip information
Multimedia system
Press the “CAR” button. ( →P. 1 1 0 )
If the “Energy Monitor” or “Past Record” screen is displayed, touch “Trip
Information”.
Navigation system
Press the “APPS” button. ( →P. 1 1 0 )
Touch “Eco” on the “Apps” screen.
If the “Energy Monitor” or “Past Record” screen is displayed, touch “Trip
Information”.
Resetting the consumption
data
Fuel consumption in the
past 15 minutes
Regenerated energy in the
past 15 minutes
Displays the average vehi-
cle speed since the hybrid
system was started
Displays the elapsed time since the hybrid system was started
Cruising range
One symbol indicates 50 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual condi-
tions.
Fuel consumption screen (audio system)
1
2
1
2
3
4
5
6

1142. Instrument cluster
PRIUS c_U (OM52G95U)■
Past record
Multimedia system
Press the “CAR” button. ( →P. 1 1 0 )
If the “Energy Monitor” or “Trip In formation” screen is displayed, touch
“Past Record”.
Navigation system
Press the “APPS” button. ( →P. 1 1 0 )
Touch “Eco” on the “Apps” screen.
If the “Energy Monitor” or “Trip In formation” screen is displayed, touch
“Past Record”.
Resetting the past record
data
Best past fuel consump-
tion
Average fuel consumption
Previous fuel consump-
tion record
Updating the average fuel
consumption data
Displays a maximum of five past record of the average fuel consump-
tion.
The image is example only, and may vary slightly from actual condi-
tions.
1
2
1
2
3
4
5

1152. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
→P. 1 0 3
■Remaining hybrid battery (tract ion battery) charge display
The charge amount of the hybrid battery (traction battery) is automatically
controlled by the hybrid system. For this reason, even if electricity is recov-
ered via the regenerative braking, or electricity is generated via the gasoline
engine, the displayed hybrid battery (traction battery) charge amount may not
reach the highest level (level 8). However, this does not indicate a malfunc-
tion.
■ Resetting the consumption data (audio system)
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “Past Record” screen will reset the past records and best past fuel con-
sumption. Selecting “Yes” on the following screen will confirm resetting of all
the data.
■ Updating the past record data (audio system)
Selecting “Update” on the “Past Record” screen will update the past record
data.
Fuel consumption screen (Multi-information display)

1162. Instrument cluster
PRIUS c_U (OM52G95U)

117
3
Operation of
each component
PRIUS c_U (OM52G95U) 3-1. Key information
Keys .................................. 118
3-2. Opening, closing and locking the doors
Side doors ......................... 125
Back door .......................... 134
Smart key system ............. 139
3-3. Adjusting the seats Front seats ........................ 148
Rear seats......................... 149
Head restraints.................. 153
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 156
Inside rear view mirror ...... 158
Outside rear view mirrors ............................. 159
3-5. Opening and closing the windows
Power windows ................. 161
Moon roof .......................... 165

118
PRIUS c_U (OM52G95U)
3-1. Key information
The following keys are provided with the vehicle.Master keys
Operating the wireless remote control function
Va l e t k e y
Electronic keys
• Operating the smart key system
• Operating the wireless remote control function
Mechanical keys
Key number plate
Keys
The keys
Ty p e AType B
Ty p e C
1
2
3
4
5

1193-1. Key information
3
Operation of each component
PRIUS c_U (OM52G95U)
Locks all the doors (→P. 126)
Unlocks all the doors ( →P. 126)
Sounds the alarm (press and hold) ( →P. 120)
To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key.
( →P. 522)
Wireless remote control (if equipped)
Vehicles without a smart key
systemVehicles with a smart key sys-
tem
Using the mechanical key (vehic les with a smart key system)
1
2
3

1203-1. Key information
PRIUS c_U (OM52G95U)
■Panic mode
Vehicles without a smart key system
Vehicles with a smart key system
■ If you lose your keys
New genuine keys can be made by your Toyota dealer using the other keys
(including mechanical key) and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft. When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the wireless remote control.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the electronic key.
