TOYOTA PRIUS C 2018 Owners Manual (in English)

1213-1. Key information
3
Operation of each component
PRIUS c_U (OM52G95U)■
Key battery depletion
Vehicles without a smart key system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (→ P. 453)
Vehicles with a smart key system
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the hybrid
system stops. ( →P. 505)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( →P. 453)
• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appl iances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
■ Replacing the battery
→P. 453
■ Confirmation of the registered key number (vehicles with a smart key
system)
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
■ If a wrong key is used (vehicles with a smart key system)
The key cylinder rotates freely to isolate inside mechanism.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: →P. 562)

1223-1. Key information
PRIUS c_U (OM52G95U)■
Certification for wireless remote control
For vehicles sold in the U.S.A. and Puerto Rico

1233-1. Key information
3
Operation of each component
PRIUS c_U (OM52G95U)
For vehicles sold in Canada

1243-1. Key information
PRIUS c_U (OM52G95U)
NOTICE
■To prevent key damage
Observe the following:
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers.
● Do not place the keys near medical electrical equipment (such as micro-
wave therapy equipment and low- frequency therapy equipment) or carry
them on your person when receiving medical treatment.
■ Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■ When a vehicle key is lost ( vehicles with a smart key system)
If the key remains lost, the risk of vehicle theft increases significantly. Visit
your Toyota dealer immediately with all remaining electronic keys that was
provided with your vehicle.

125
3
Operation of each component
PRIUS c_U (OM52G95U)
3-2. Opening, closing and locking the doors
◆Entry function (if equipped)
Carry the electronic key to enable this function.Grip the driver's door handle
to unlock the door.
* (Grip the
passenger's door handle to
unlock all the doors.)
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*: The door unlock settings can be changed. ( →P. 132)
Touch the lock sensor (the indentation on the side of the door
handle) to lock the doors.
Check that the door is securely locked.
Side doors
Unlocking and locking the doors from the outside
1
2

1263-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
◆Wireless remote controlLocks all the doors
Check that the door is securely locked.
Unlocks all the doors
Pressing the button unlocks the driver’s door. Pressing the button again
within 3 seconds unlocks the other doors.
◆Key
Turning the key operates the doors as follows:
Vehicles without a smart key system
Locks all the doors
Unlocks all the doors
Driver’s side only: Turning the
key unlocks the driver’s door.
Turning the key again within 5
seconds unlocks the other
doors.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical
key. ( →P. 522)
Vehicles without a smart key
systemVehicles with a smart key sys-
tem
1
2
1
2

1273-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
■Operation signals
Vehicles without a smart key system
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
Vehicles with a smart key system
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)
■ Security feature
Vehicles without a smart key system
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Vehicles with a smart key system
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the electronic key, the key may be
detected as being in the vehicle. In this case, vehicle may be unlocked.\
)
■ When the door cannot be locked by th e lock sensor on the surface of the
door handle (vehicles with a smart key system)
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■ If the smart key system or the wireless remote control does not operate
properly
Vehicles with a smart key system: Use the mechanical key to lock and unlock
the doors. ( →P. 522)
Replace the key battery with a new one if it is depleted. ( →P. 453)
Use your palm to touch the lock sensor.

1283-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
◆Door lock switchLocks all the doors
Unlocks all the doors
◆Inside lock buttonsLocks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside door lock button to the lock position.
Close the door.
Vehicles without a smart key system
The door cannot be locked if either of the front doors is open and the
key is in the power switch.
Vehicles with a smart key system
The door cannot be locked if the power switch is in ACCESSORY or
ON mode, or the electronic ke y is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2

1293-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
Rear door child-protector lock
1
2

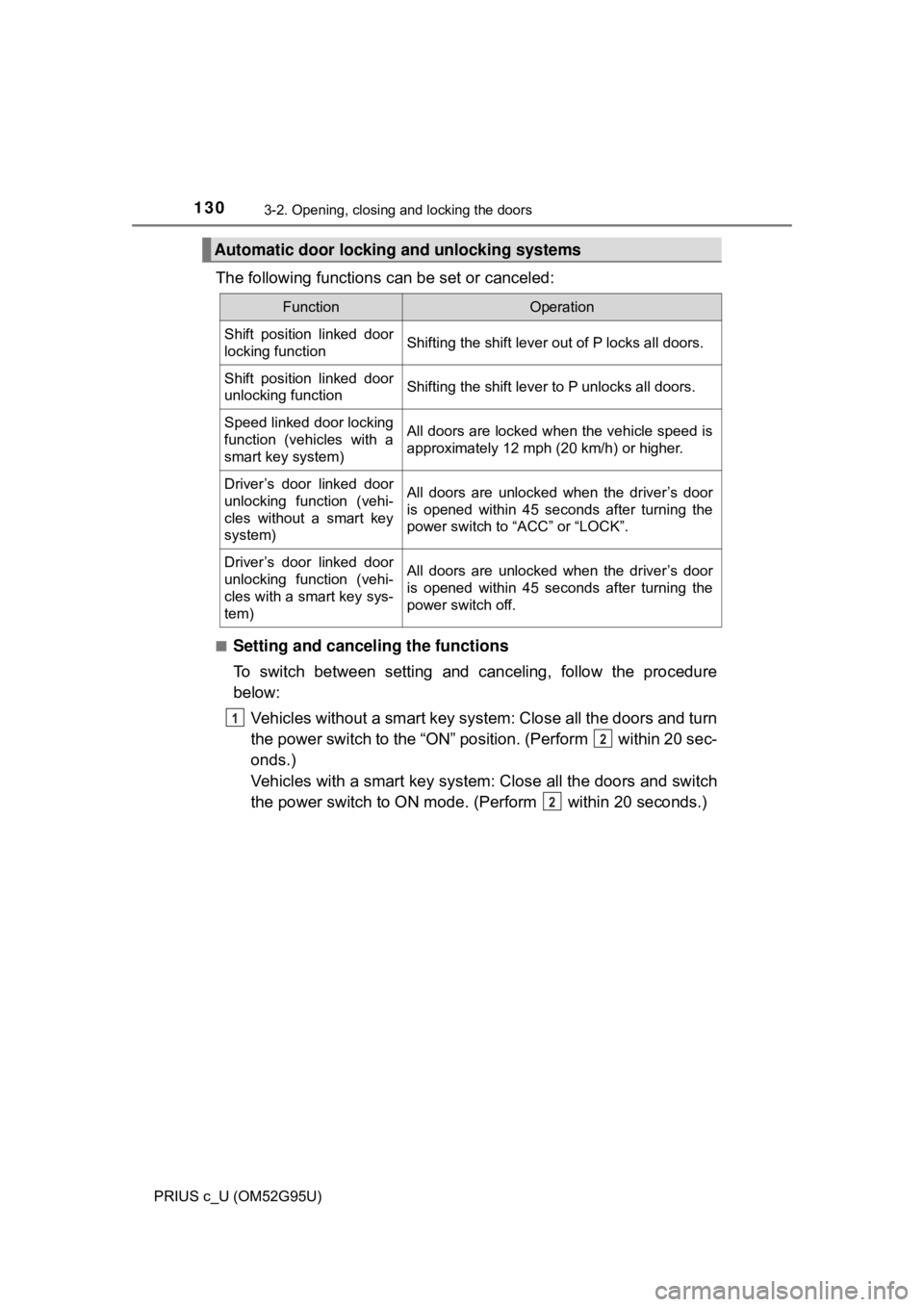

1303-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
The following functions can be set or canceled:
■Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:Vehicles without a smart key system: Close all the doors and turn
the power switch to the “ON” position. (Perform within 20 sec-
onds.)
Vehicles with a smart key system: Close all the doors and switch
the power switch to ON mode. (Perform within 20 seconds.)
Automatic door lockin g and unlocking systems
FunctionOperation
Shift position linked door
locking functionShifting the shift lever out of P locks all doors.
Shift position linked door
unlocking functionShifting the shift lever to P unlocks all doors.
Speed linked door locking
function (vehicles with a
smart key system)All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function (vehi-
cles without a smart key
system)All doors are unlocked when the driver’s door
is opened within 45 seconds after turning the
power switch to “ACC” or “LOCK”.
Driver’s door linked door
unlocking function (vehi-
cles with a smart key sys-
tem)All doors are unlocked when the driver’s door
is opened within 45 seconds after turning the
power switch off.
1
2
2
