611-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
WARNING
■Child restraint precautions
● Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop or an accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of sudden stop, sudden swerve or an
accident.

621-1. For safe use
PRIUS c_U (OM52G95U)
Child restraint LATCH anchors
LATCH anchors are provided for
the outside rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (→P. 34)
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat.

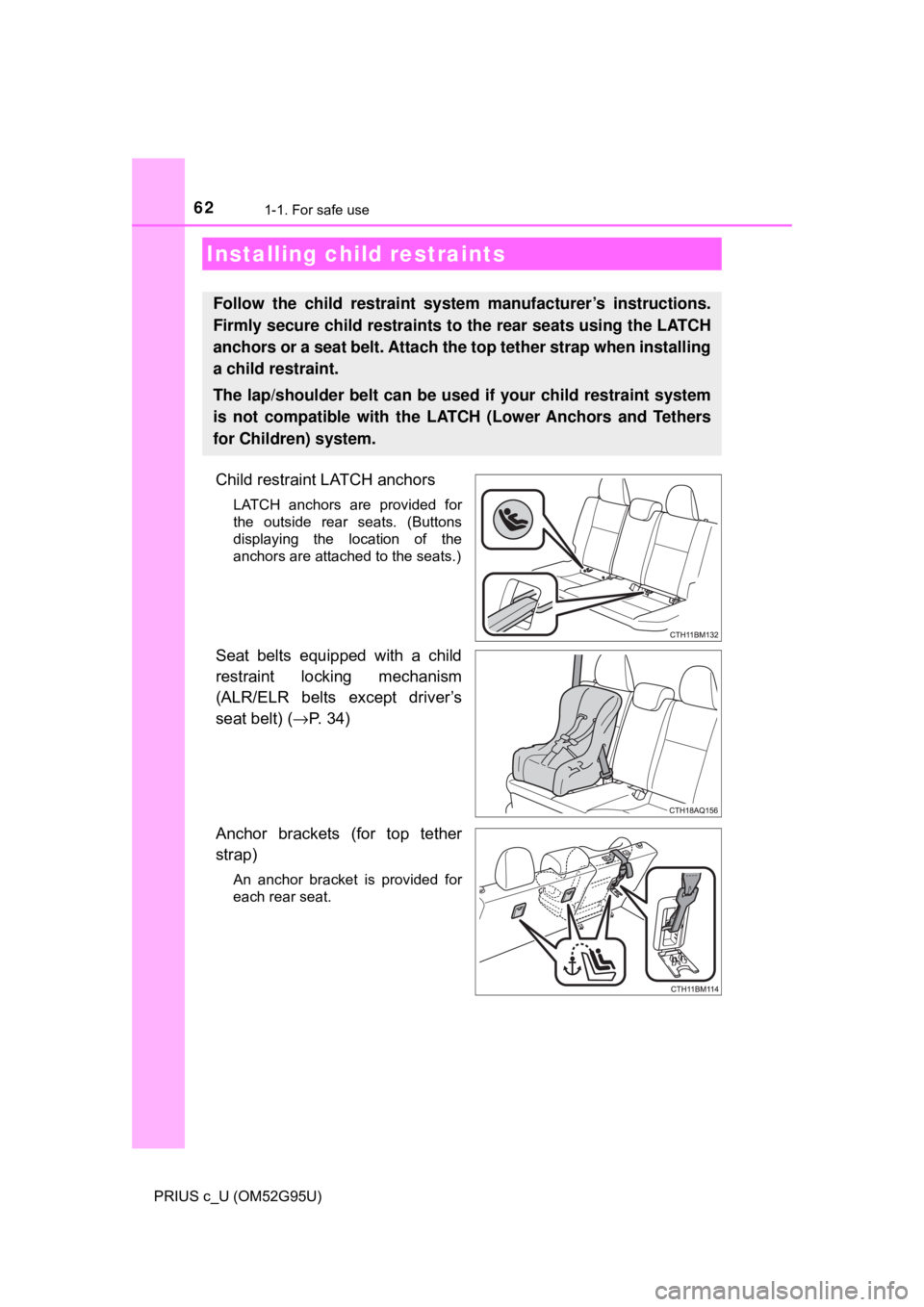

Installing child restraints
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the rear seats using the LATCH
anchors or a seat belt. Attach the top tether strap when installing
a child restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.

631-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
Remove the head restraint (→P. 153)
Widen the gap in the seat cushion slightly.
Flip up and fold the cover, and
fix it with the hook-and-loop fas-
tener.
Ty p e A
Latch the hooks of the lower
straps onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be latched
onto the top tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.

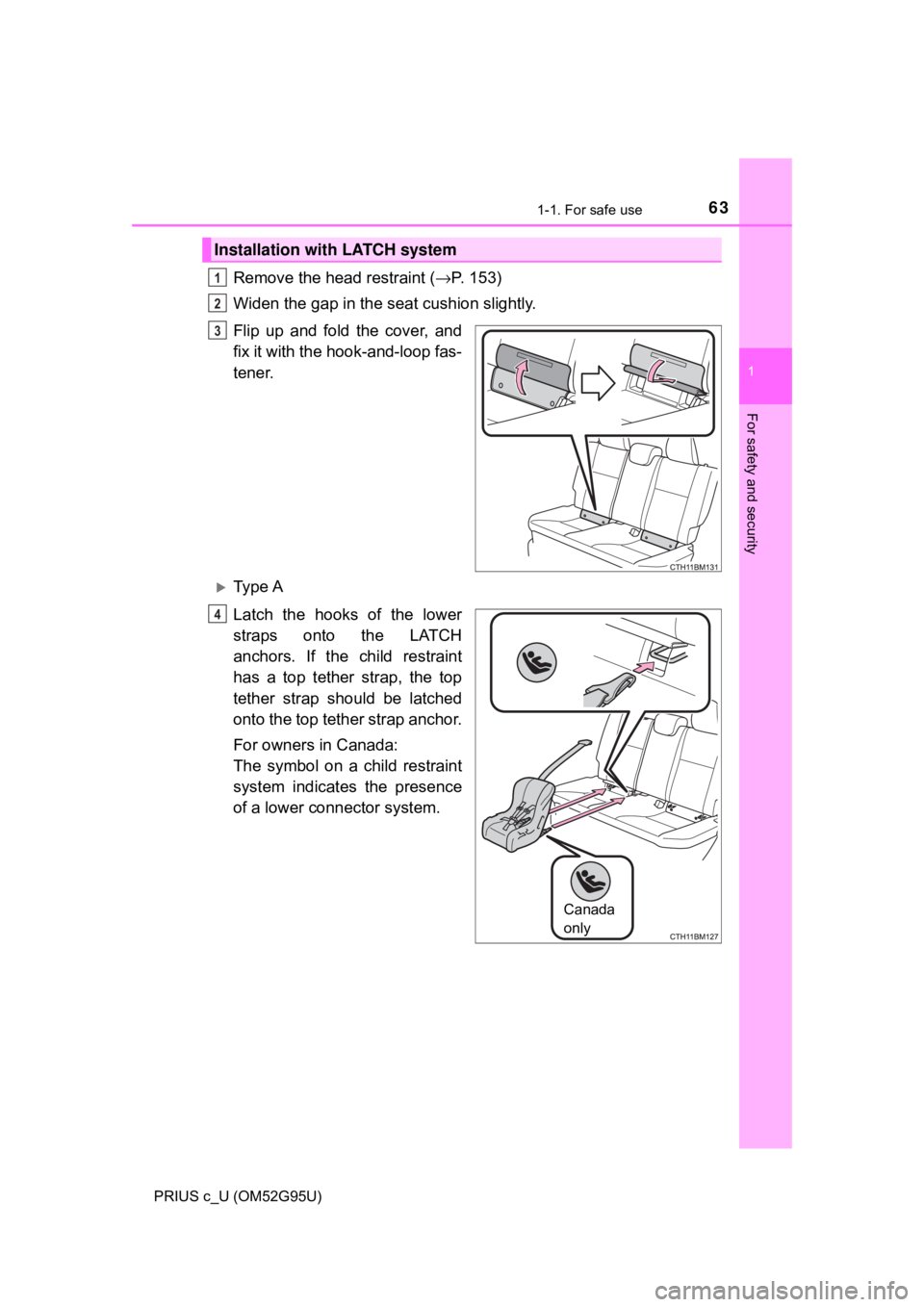

Installation with LATCH system
1
2
3
Canada
only
4

641-1. For safe use
PRIUS c_U (OM52G95U)
Ty p e B

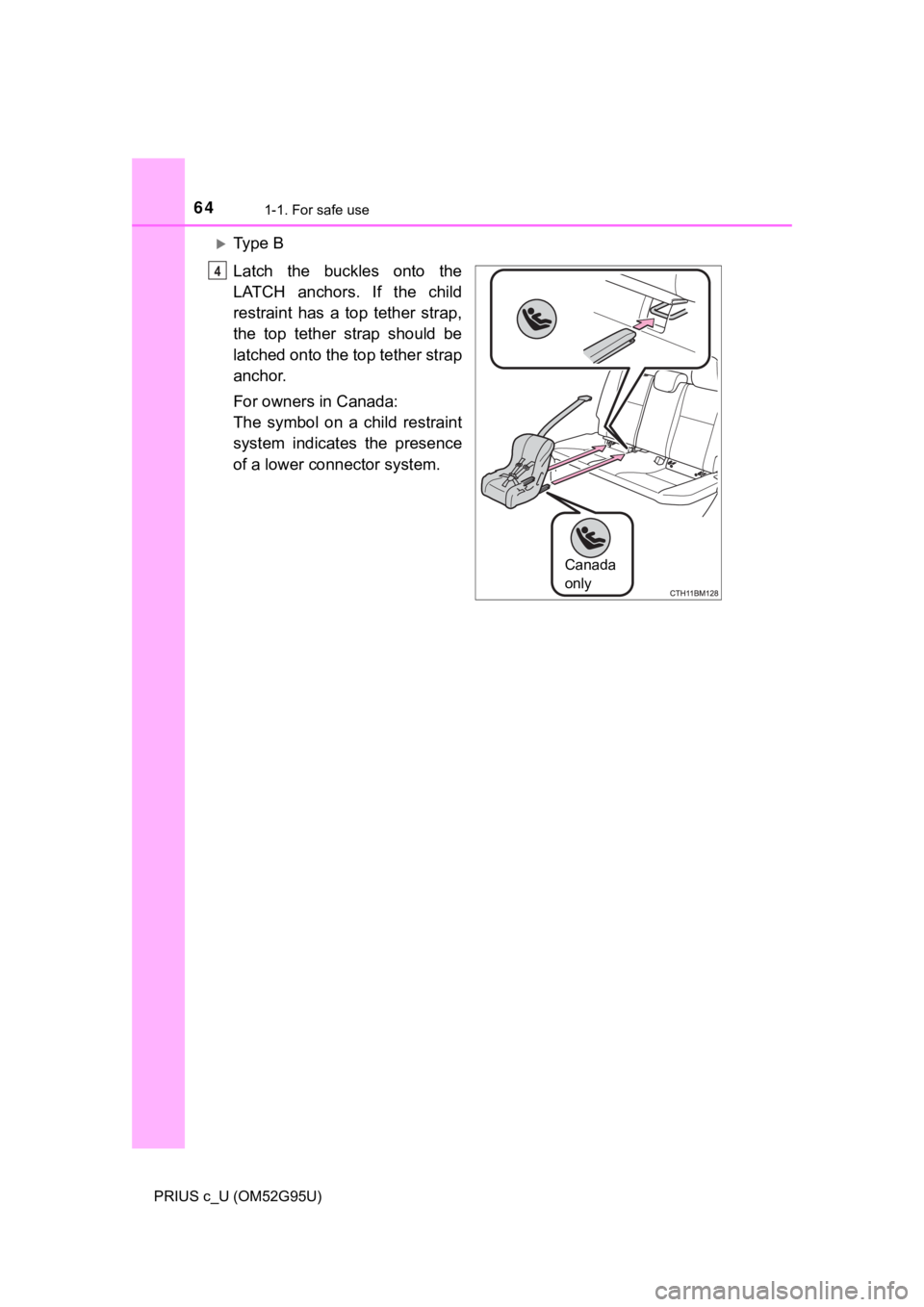

Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
Canada
only
4

651-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)■

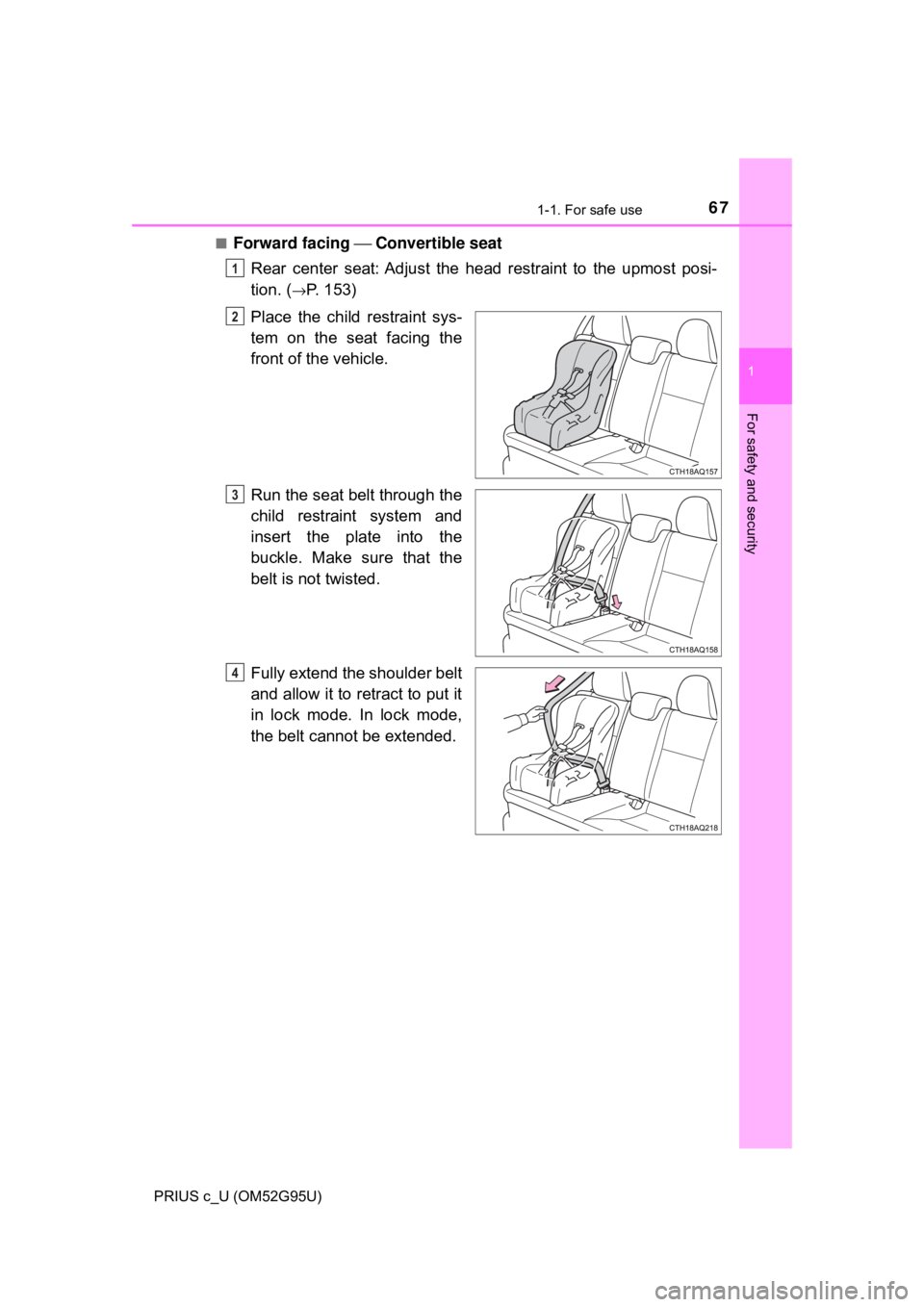

Rear facing
⎯ Infant seat/convertible seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Installing child restraints using a seat belt (child restraint lock
function belt)
1
2

661-1. For safe use
PRIUS c_U (OM52G95U)

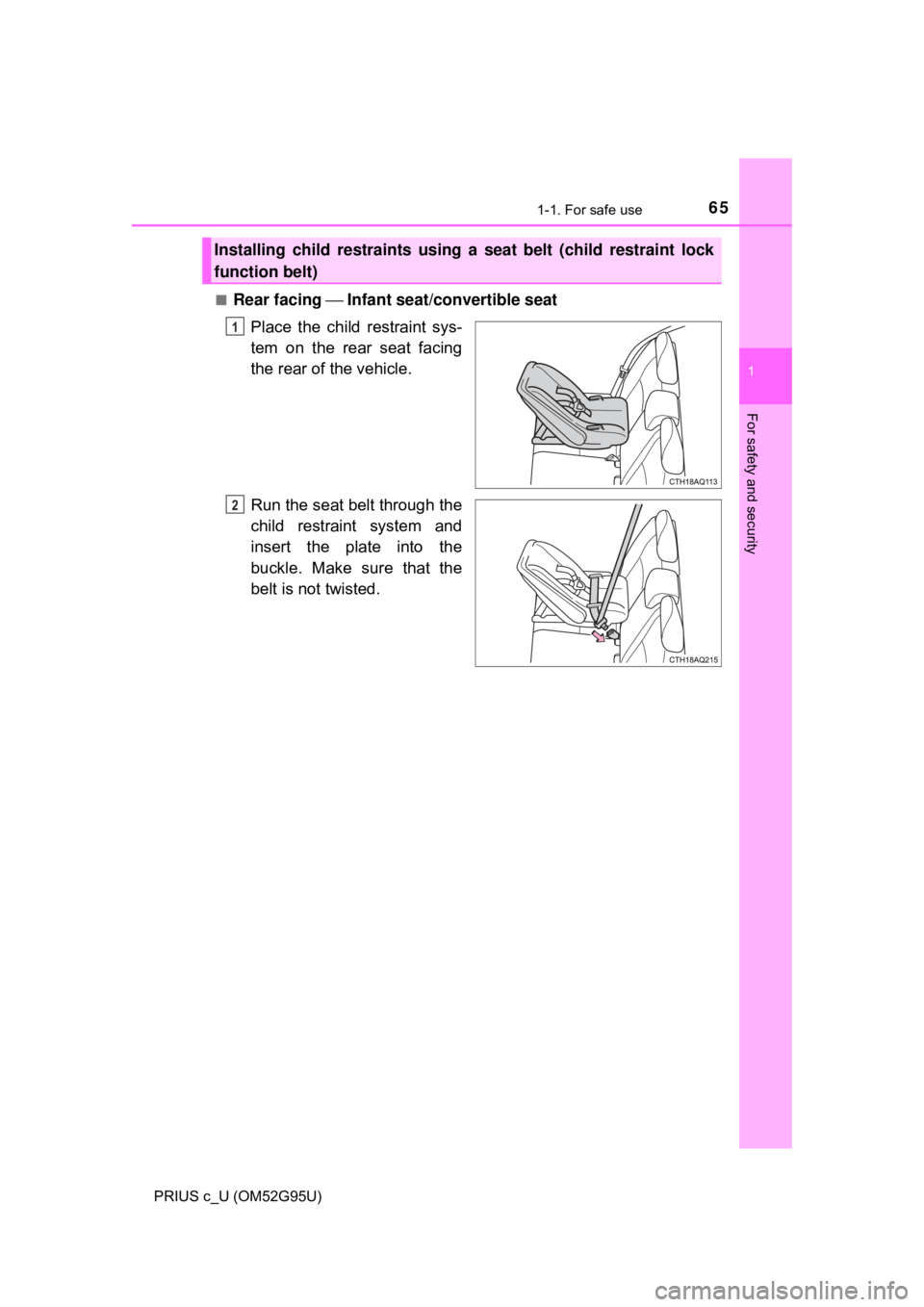

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
3
4

671-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)■
Forward facing
⎯ Convertible seat
Rear center seat: Adjust the head restraint to the upmost posi-
tion. (
→P. 153)
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
1
2
3
4

681-1. For safe use
PRIUS c_U (OM52G95U)

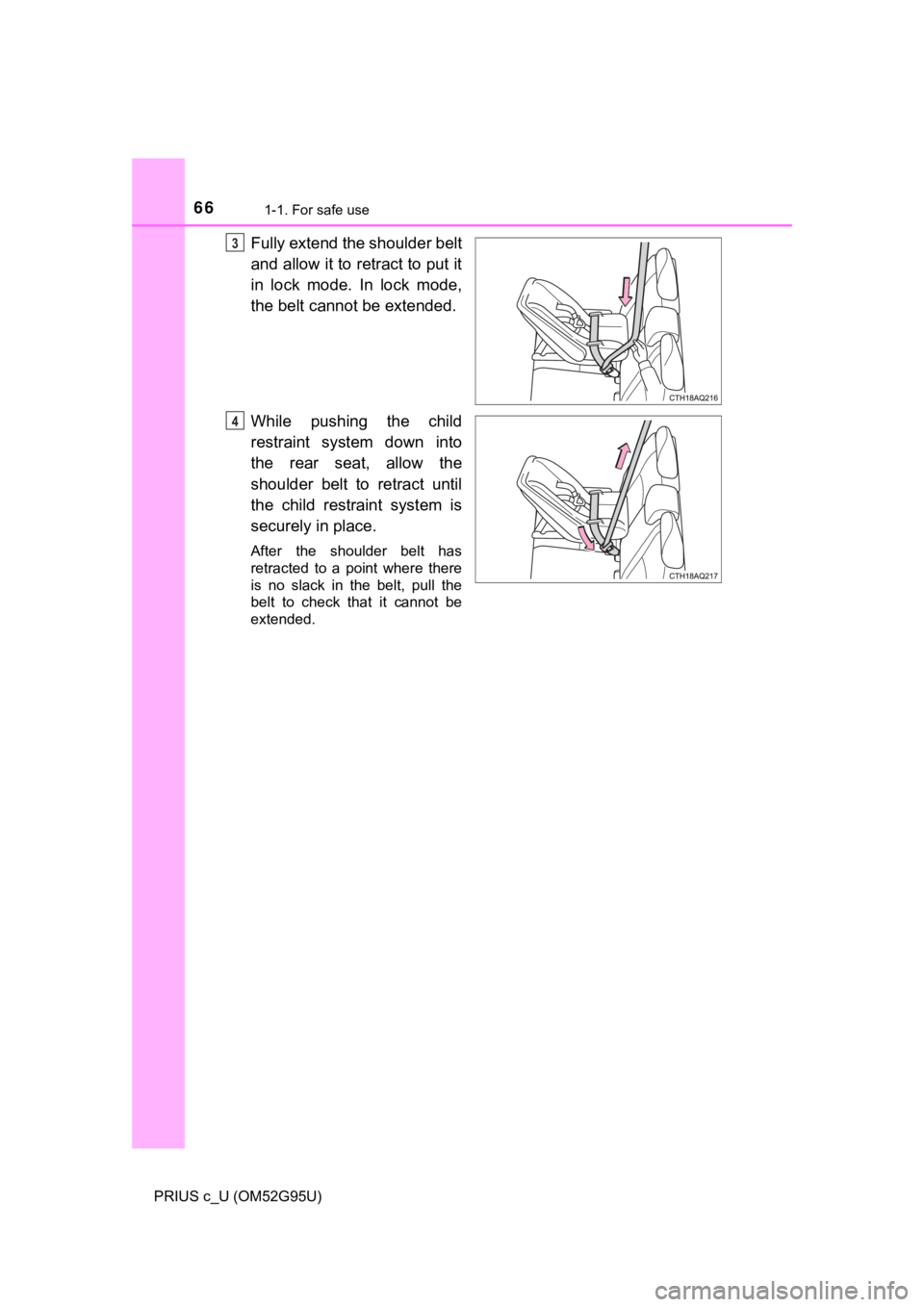

While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (→P. 70)
5
6

691-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)■

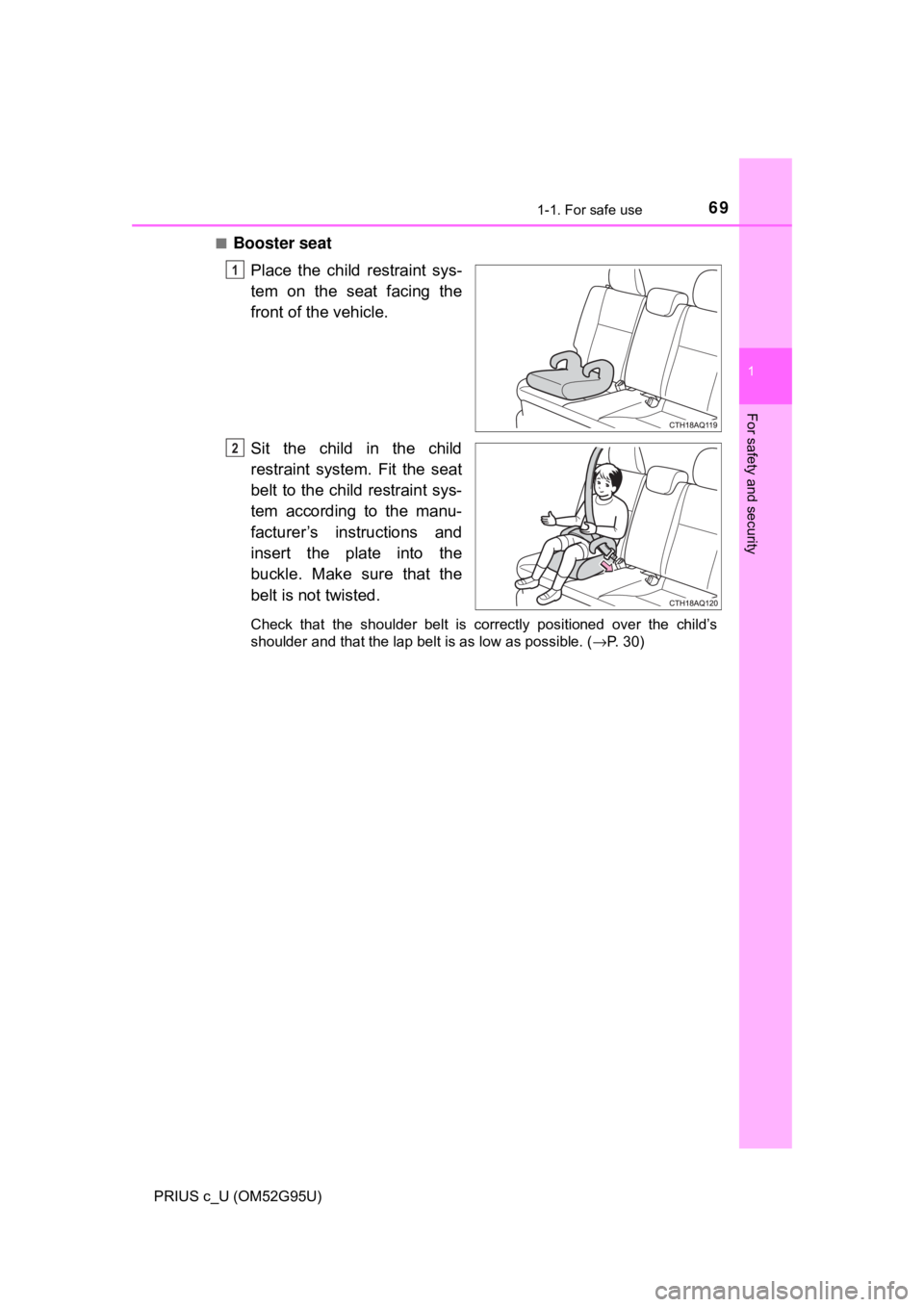

Booster seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. ( →P. 30)
1
2

701-1. For safe use
PRIUS c_U (OM52G95U)
Push the buckle release button
and fully retract the seat belt.Remove the luggage cover (if equipped). ( →P. 399)
Remove the head restraint ( →P. 153)
Secure the child restraint syst em using the LATCH anchors or a
seat belt.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
Reinstall the luggage cover (if equipped) and the head restraint.
■ Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.

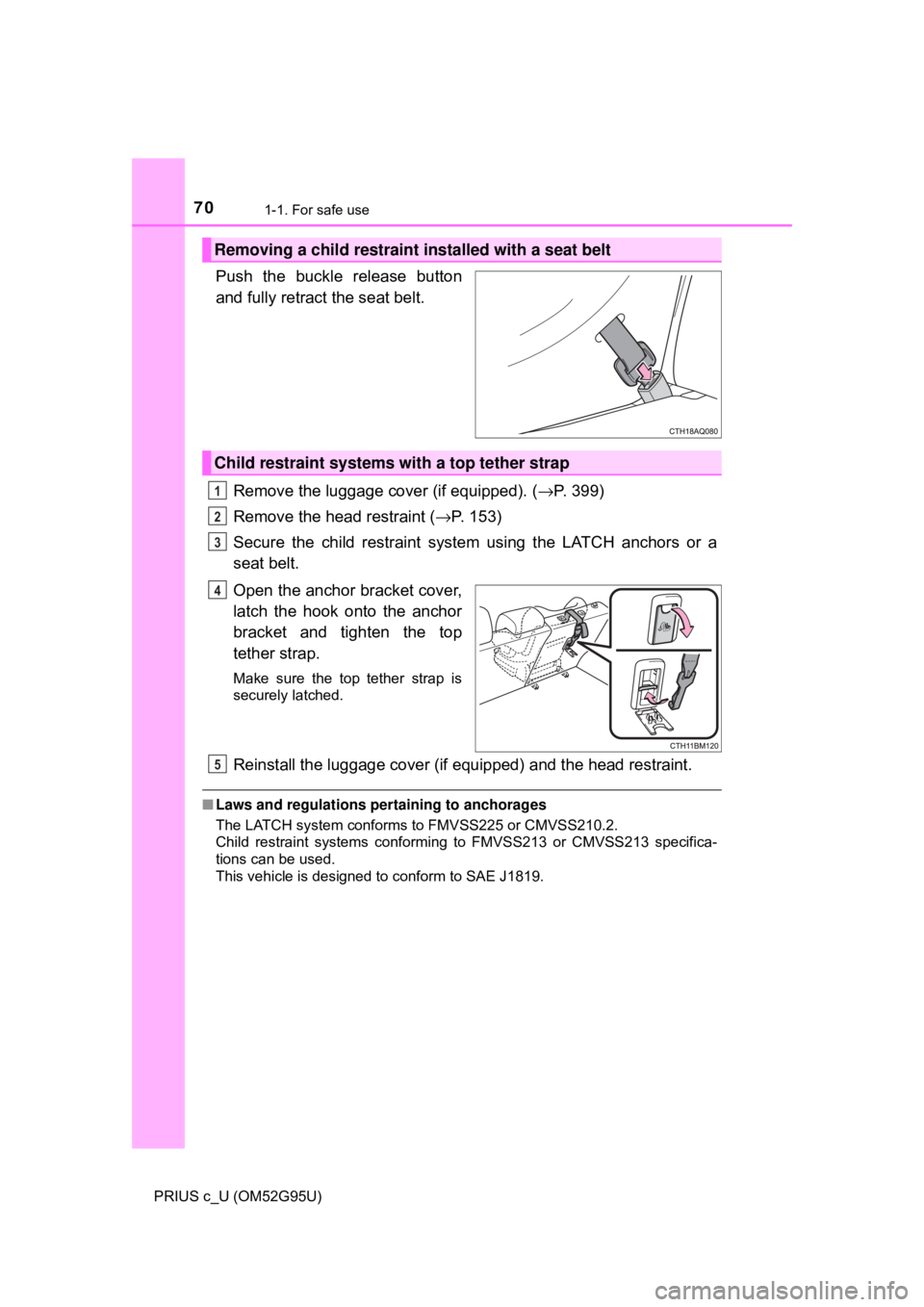

Removing a child restraint installed with a seat belt
Child restraint systems with a top tether strap
1
2
3
4
5
