19

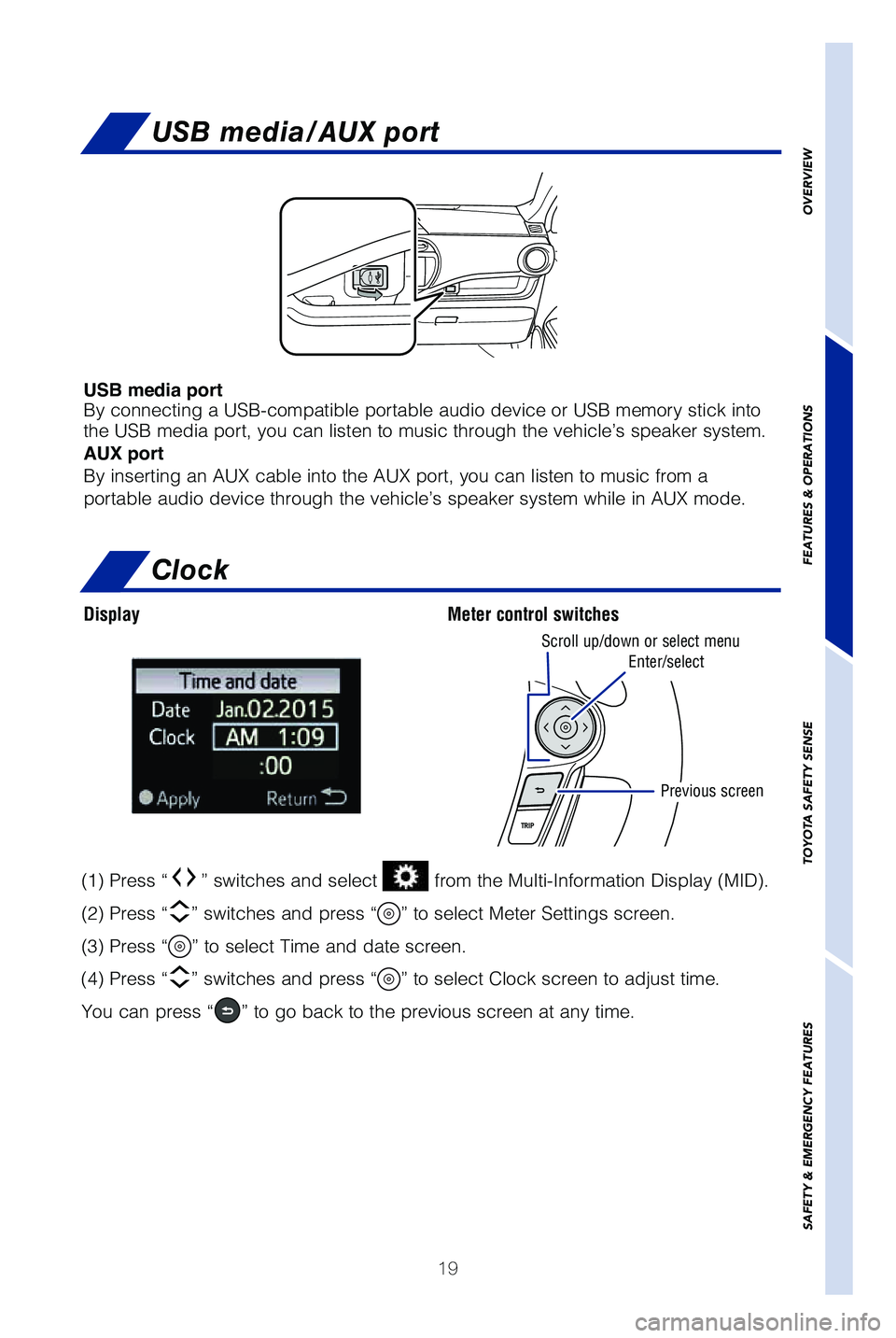

USB media/AUX port
USB media port
By connecting a USB-compatible portable audio device or USB memory stick\
into
the USB media port, you can listen to music through the vehicle’s spe\
aker system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music fro\
m a
portable audio device through the vehicle’s speaker system while in A\
UX mode.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Clock
Display Meter control switches
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and press “” to select Meter Settings screen.
(3) Press “
” to select Time and date screen.
(4) Press “
” switches and press “” to select Clock screen to adjust time.
You can press “
” to go back to the previous screen at any time.
Scroll up/down or select menu
Enter/select
Previous screen
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 197/20/18 8:33 PM
Page 22 of 48
20

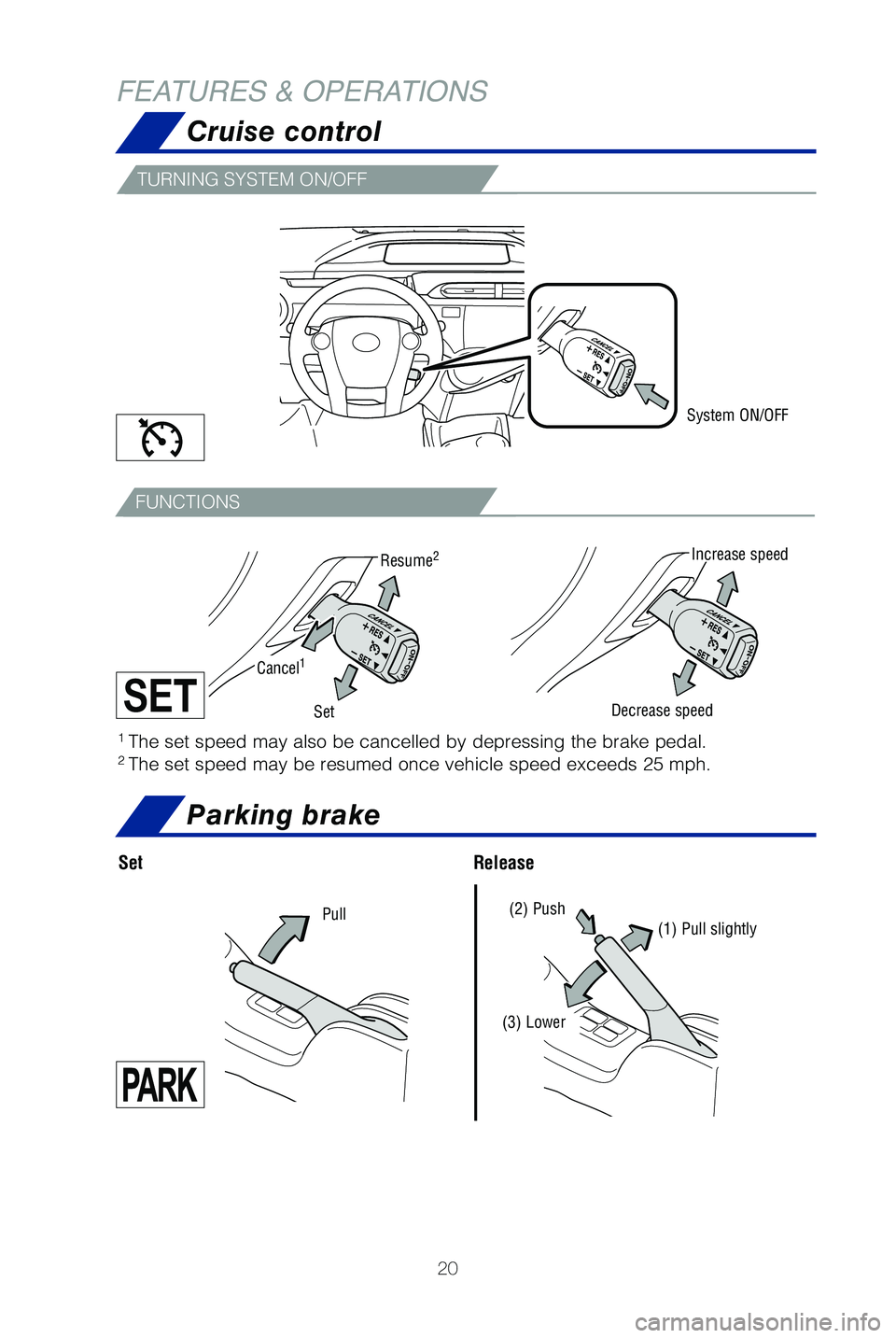

Cruise control
Parking brake
FEATURES & OPERATIONS
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
SetRelease
Pull(2) Push(1) Pull slightly
(3) Lower
TURNING SYSTEM ON/OFF
FUNCTIONS
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 207/20/18 8:33 PM
Page 23 of 48
21

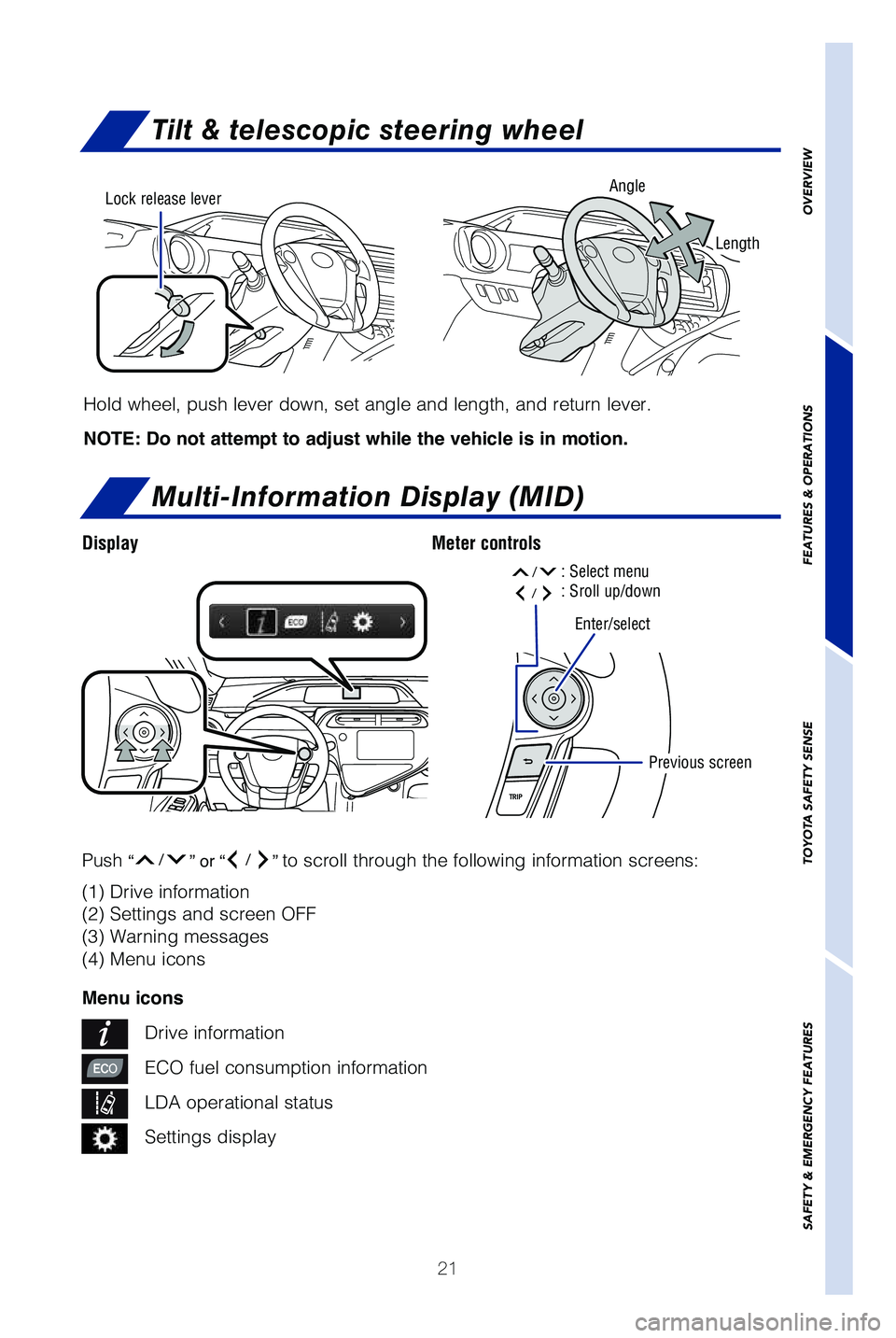

Tilt & telescopic steering wheel
Multi-Information Display (MID)
DisplayMeter controls
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Angle
Length
Lock release lever
(1) Drive information
(2) Settings and screen OFF
(3) Warning messages
(4) Menu icons
Menu icons
Drive information
ECO fuel consumption information
LDA operational status
Settings display
Push
“/” or “/” to scroll through the following information screens:
Enter/select
Previous screen
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
: Select menu/: Sroll up/down/
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 217/20/18 8:33 PM
Page 24 of 48
22
FEATURES & OPERATIONS

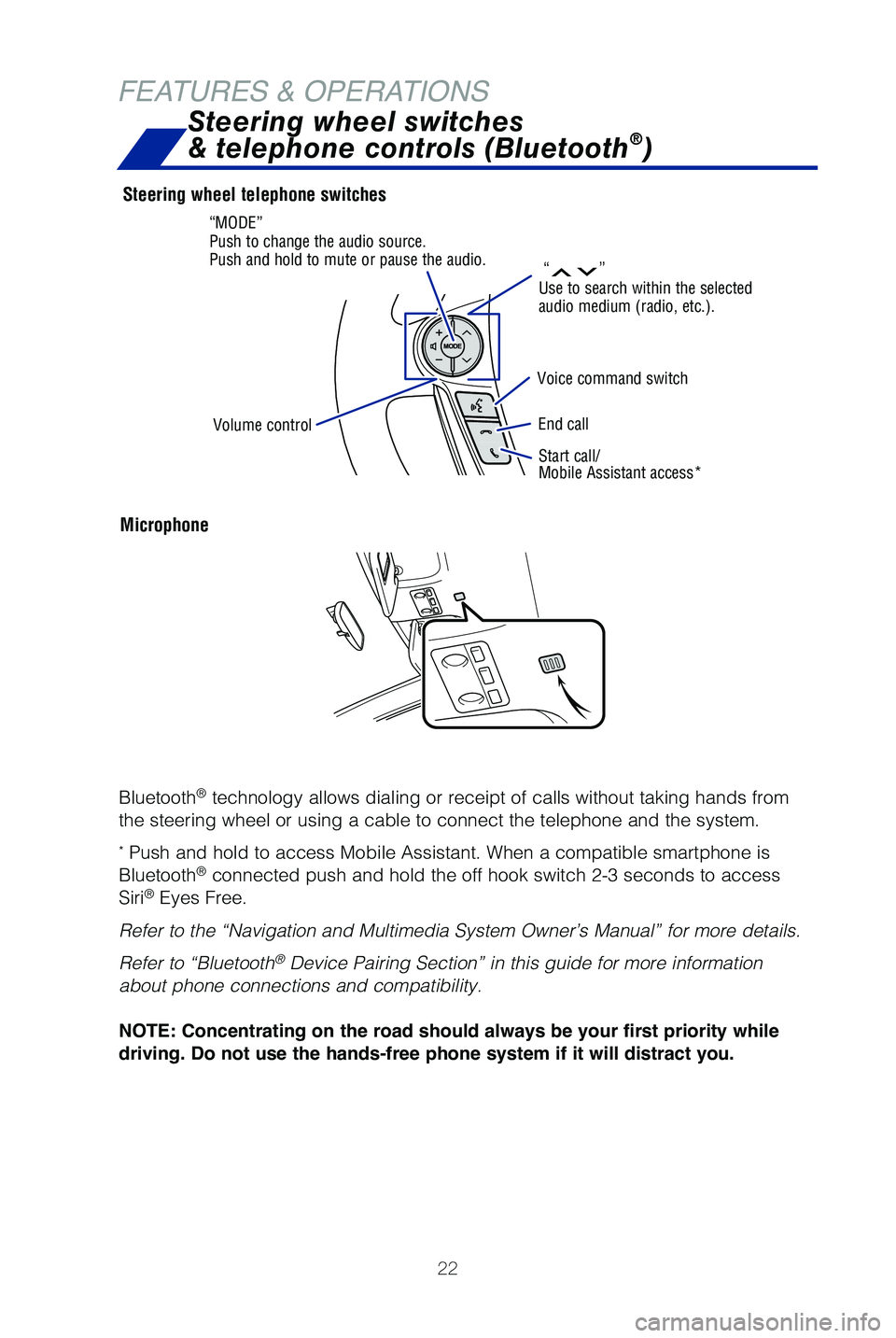

Microphone
Start call/
Mobile Assistant access*
Steering wheel telephone switches
Bluetooth
® technology allows dialing or receipt of calls without taking hands from\
the steering wheel or using a cable to connect the telephone and the sys\
tem.
* Push and hold to access Mobile Assistant. When a compatible smartphone \
is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
Refer to “Bluetooth
® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the hands-free phone system if it will distract you.
Steering wheel switches
& telephone controls (Bluetooth®)
“”Use to search within the selected
audio medium (radio, etc.).
“MODE”
Push to change the audio source.
Push and hold to mute or pause the audio.
Voice command switch
End callVolume control
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 227/20/18 8:33 PM

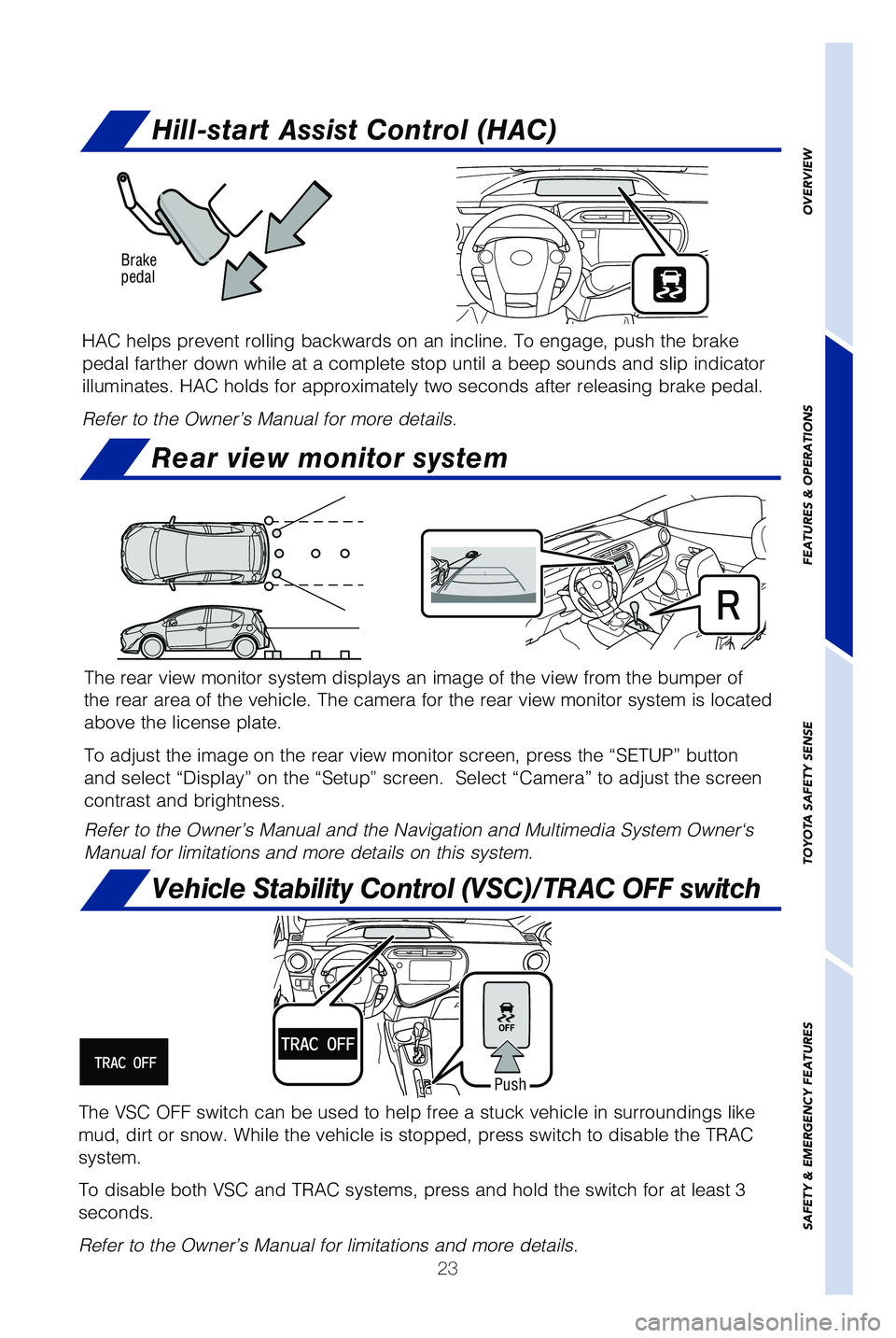

Page 25 of 48
23
Hill-start Assist Control (HAC)
HAC helps prevent rolling backwards on an incline. To engage, push the b\
rake
pedal farther down while at a complete stop until a beep sounds and slip\
indicator
illuminates. HAC holds for approximately two seconds after releasing bra\
ke pedal.
Refer to the Owner’s Manual for more details.
Brake
pedal
Rear view monitor system
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP\
” button
and select “Display” on the “Setup” screen. Select “Came\
ra” to adjust the screen
contrast and brightness.
Refer to the Owner’s Manual and the Navigation and Multimedia System \
Owner‘s
Manual for limitations and more details on this system.
Corners of bumper
Vehicle Stability Control (VSC)/TRAC OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\
ngs like
mud, dirt or snow. While the vehicle is stopped, press switch to disable\
the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at l\
east 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
Push
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 237/20/18 8:33 PM
Page 26 of 48
24
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential colli\
sion
with a preceding vehicle is likely to occur.
Laser sensors are designed to work with the camera sensor to help
recognize a preceding pedestrian, and provide an alert, mitigation and/o\
r
avoidance support in certain conditions.
Lane Departure Alert (LDA)LDA is designed to provide notification when the system detects an
unintended lane departure.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and the
tail lights of preceding vehicles and switch between high beams and low \
beams as appropriate.
Laser sensors
Camera sensor

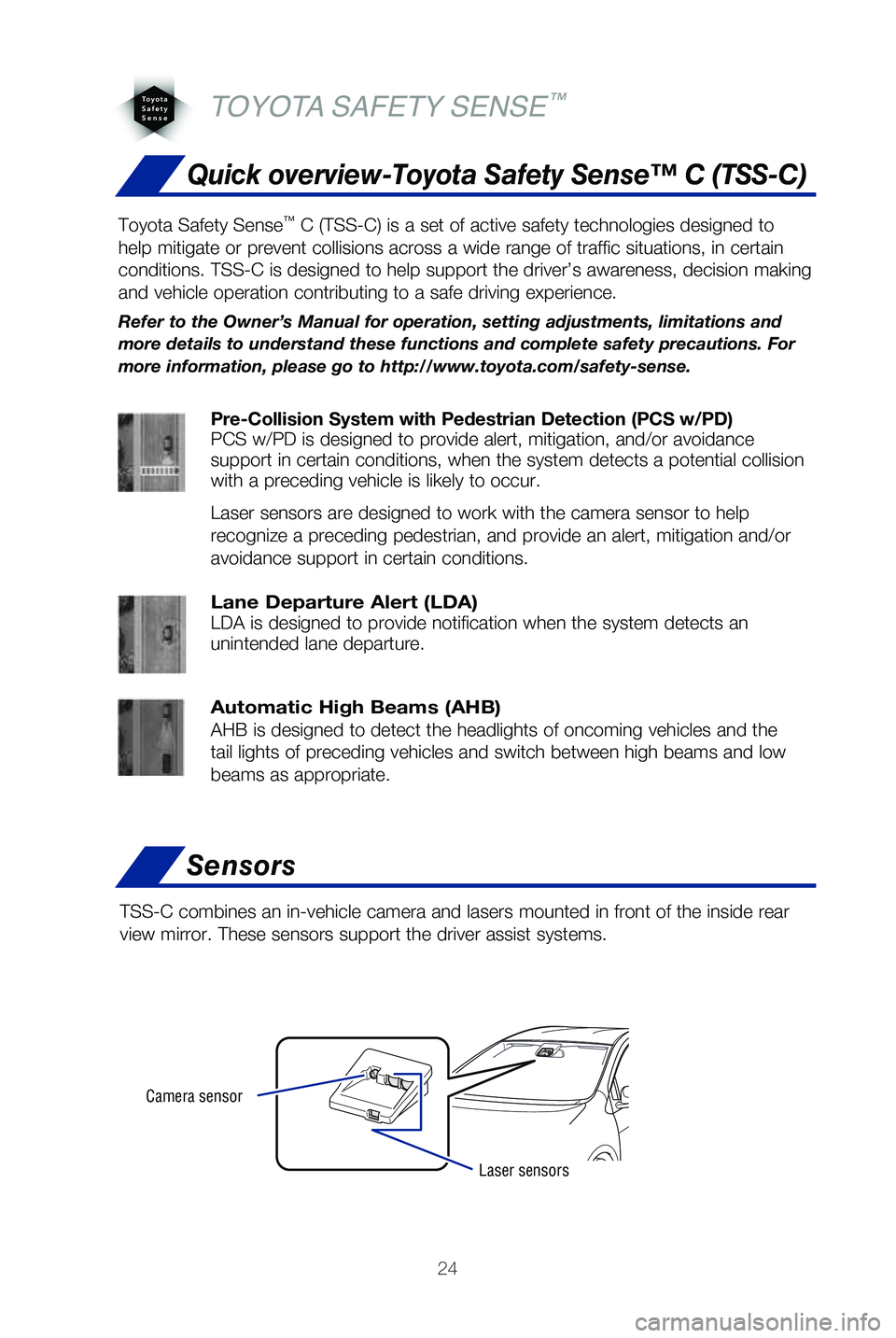

Quick overview-Toyota Safety Sense™ C (TSS-C)
Sensors
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ C (TSS-C) is a set of active safety technologies designed to
help mitigate or prevent collisions across a wide range of traffic situa\
tions, in certain
conditions. TSS-C is designed to help support the driver’s awareness,\
decision making
and vehicle operation contributing to a safe driving experience.
Refer to the Owner’s Manual for operation, setting adjustments, limit\
ations and
more details to understand these functions and complete safety precautio\
ns. For
more information, please go to http://www.toyota.com/safety-sense.
TSS-C combines an in-vehicle camera and lasers mounted in front of the i\
nside rear
view mirror. These sensors support the driver assist systems.
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 247/20/18 8:33 PM
Page 27 of 48
25

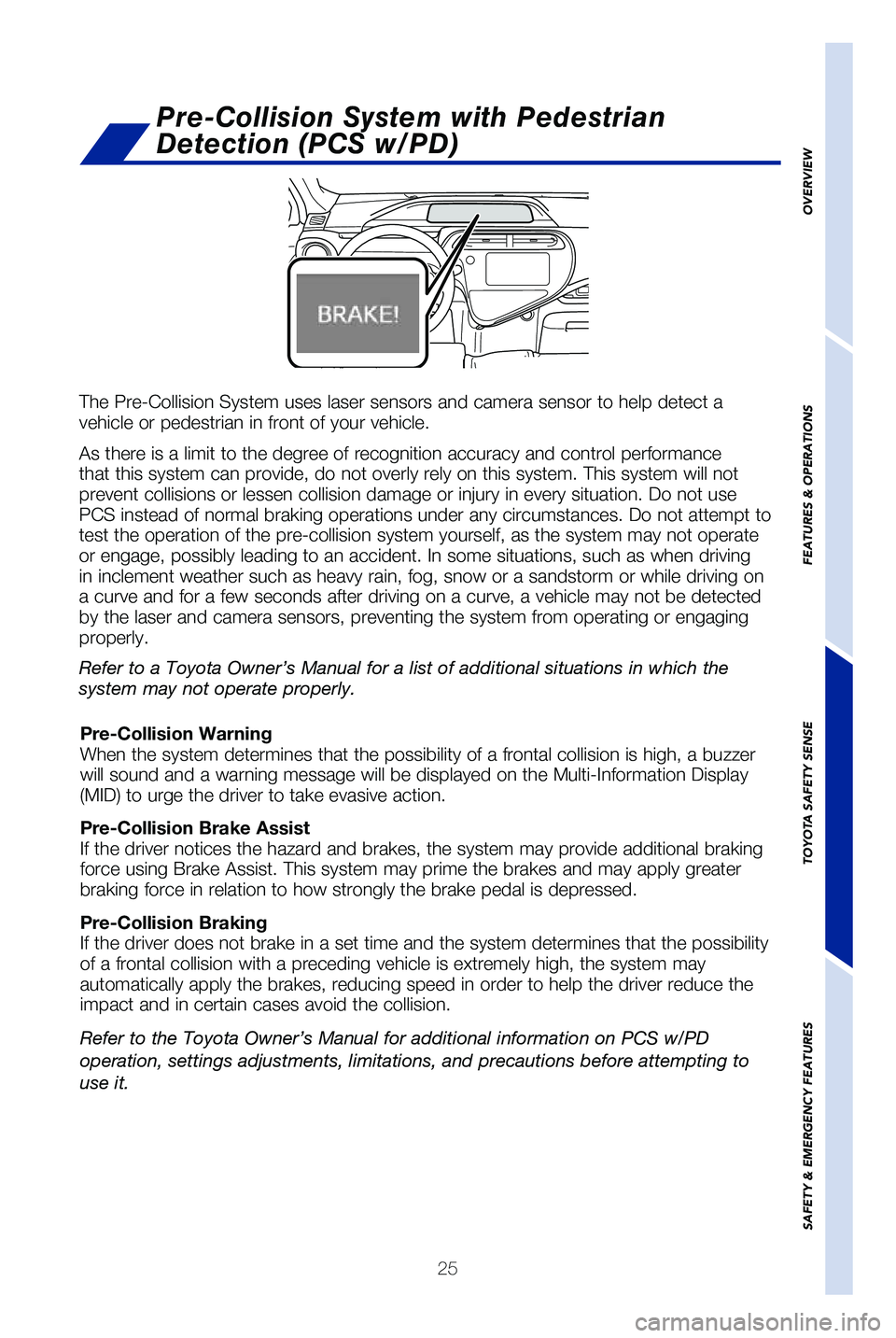

The Pre-Collision System uses laser sensors and camera sensor to help de\
tect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control pe\
rformance
that this system can provide, do not overly rely on this system. This sy\
stem will not
prevent collisions or lessen collision damage or injury in every situati\
on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\
attempt to
test the operation of the pre-collision system yourself, as the system m\
ay not operate
or engage, possibly leading to an accident. In some situations, such as \
when driving
in inclement weather such as heavy rain, fog, snow or a sandstorm or whi\
le driving on
a curve and for a few seconds after driving on a curve, a vehicle may no\
t be detected
by the laser and camera sensors, preventing the system from operating or\
engaging
properly.
Refer to a Toyota Owner’s Manual for a list of additional situations \
in which the
system may not operate properly.
Refer to the Toyota Owner’s Manual for additional information on PCS \
w/PD
operation, settings adjustments, limitations, and precautions before att\
empting to
use it.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a buzzer
will sound and a warning message will be displayed on the Multi-Informat\
ion Display
(MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional braking
force using Brake Assist. This system may prime the brakes and may apply\
greater
braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the possibility
of a frontal collision with a preceding vehicle is extremely high, the s\
ystem may
automatically apply the brakes, reducing speed in order to help the driv\
er reduce the
impact and in certain cases avoid the collision.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Pre-Collision System with Pedestrian
Detection (PCS w/PD)
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 257/20/18 8:33 PM
Page 28 of 48
26

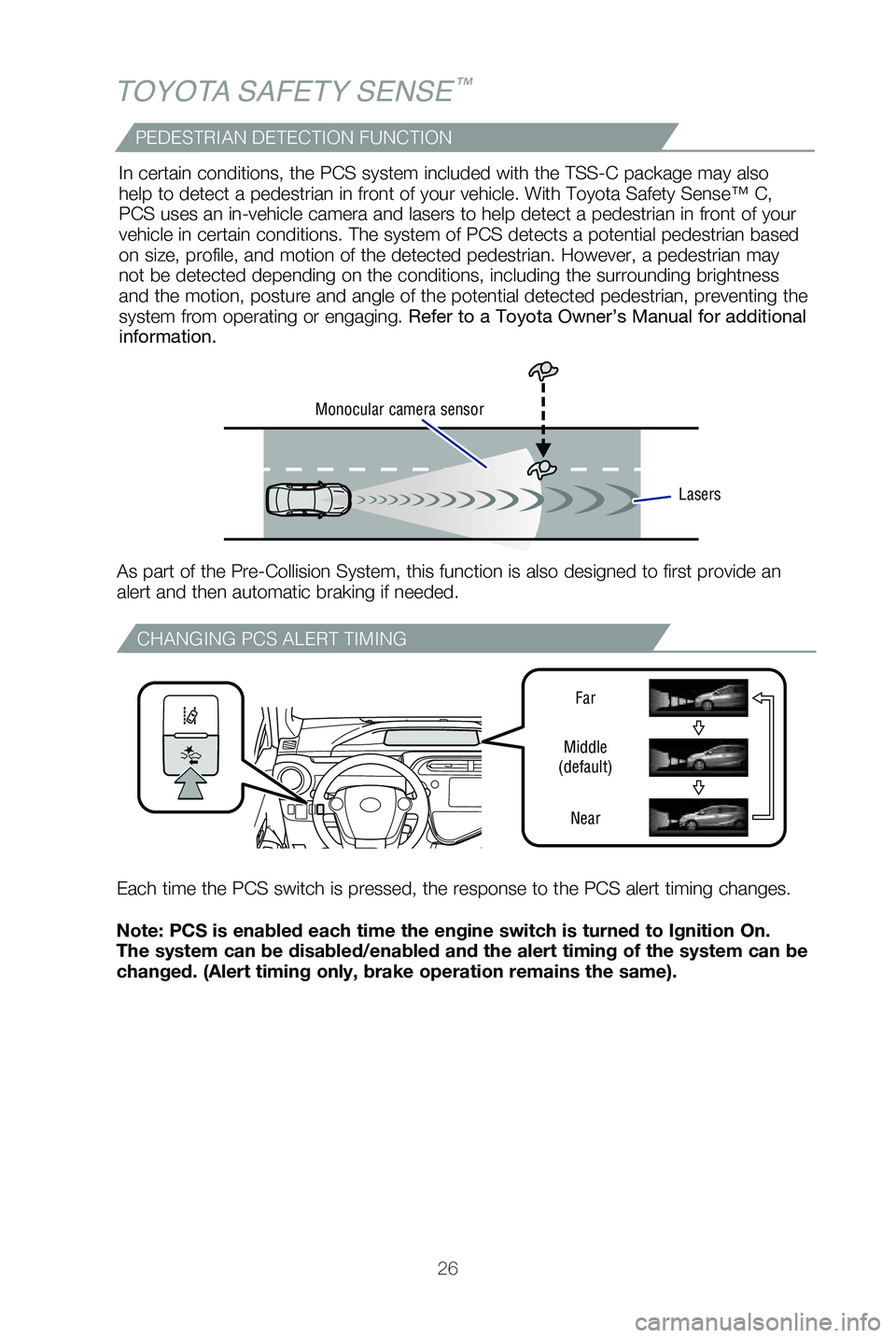

TOYOTA SAFETY SENSE™
Note: PCS is enabled each time the engine switch is turned to Ignition O\
n.
The system can be disabled/enabled and the alert timing of the system ca\
n be
changed. (Alert timing only, brake operation remains the same).
Monocular camera sensor
Lasers
As part of the Pre-Collision System, this function is also designed to f\
irst provide an
alert and then automatic braking if needed. In certain conditions, the PCS system included with the TSS-C package ma\
y also
help to detect a pedestrian in front of your vehicle. With Toyota Safety\
Sense™ C,
PCS uses an in-vehicle camera and lasers to help detect a pedestrian in \
front of your
vehicle in certain conditions. The system of PCS detects a potential ped\
estrian based
on size, profile, and motion of the detected pedestrian. However, a pede\
strian may
not be detected depending on the conditions, including the surrounding b\
rightness
and the motion, posture and angle of the potential detected pedestrian, \
preventing the
system from operating or engaging. Refer to a Toyota Owner’s Manual for additional
information.
PEDESTRIAN DETECTION FUNCTION
CHANGING PCS ALERT TIMING
Each time the PCS switch is pressed, the response to the PCS alert timin\
g changes.
Far
Middle
(default)
Near
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 267/20/18 8:33 PM
Page 29 of 48
27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

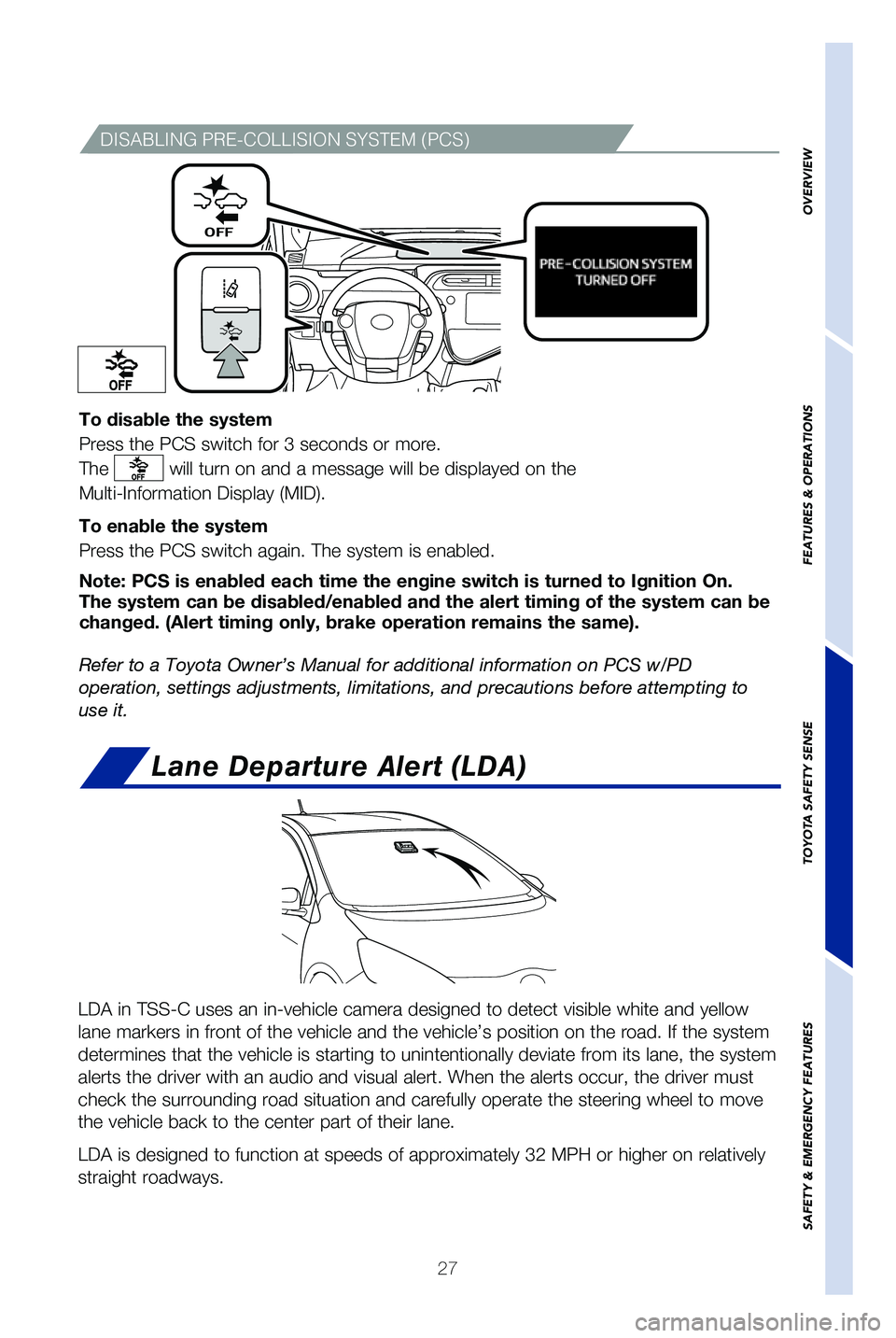

DISABLING PRE-COLLISION SYSTEM (PCS)
To disable the system
Press the PCS switch for 3 seconds or more.
The
will turn on and a message will be displayed on the
Multi-Information Display (MID).
To enable the system
Press the PCS switch again. The system is enabled.
Note: PCS is enabled each time the engine switch is turned to Ignition O\
n.
The system can be disabled/enabled and the alert timing of the system ca\
n be
changed. (Alert timing only, brake operation remains the same).
Refer to a Toyota Owner’s Manual for additional information on PCS w/\
PD
operation, settings adjustments, limitations, and precautions before att\
empting to
use it.
Lane Departure Alert (LDA)
LDA in TSS-C uses an in-vehicle camera designed to detect visible white \
and yellow
lane markers in front of the vehicle and the vehicle’s position on th\
e road. If the system
determines that the vehicle is starting to unintentionally deviate from \
its lane, the system
alerts the driver with an audio and visual alert. When the alerts occur,\
the driver must
check the surrounding road situation and carefully operate the steering \
wheel to move
the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 MPH or higher \
on relatively
straight roadways.
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 277/20/18 8:33 PM
Page 30 of 48
28
LANE DEPARTURE ALERT
The LDA function displays when the Multi-Information Display (MID) is \
switched to the
driving assist system information screen.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met aga\
in,
operation of the function is automatically restored. For example, LDA ma\
y not
function on the side(s) where white/yellow lines are not detectable.
Refer to the Toyota Owner’s Manual for additional information on LDA \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it. The system displays solid white lines
on the LDA indicator when visible lane
markers on the road are detected. A
side flashes orange to alert the driver
when the vehicle deviates from its lane. The system displays outlines on the
LDA indicator when lane markers on the
road are not detected or the function is
temporarily cancelled.
TOYOTA SAFETY SENSE™
Lane Departure Alert (LDA) indicator flashes orange when operating. LDA function display
Lane markers
Press the LDA switch to turn the LDA system on. Depress again to turn it\
off.
Note: Operation of the LDA system and setting adjustments continues in t\
he
same condition regardless of Ignition cycle until changed by the driver \
or the
system is reset.
Refer to the Toyota Owner’s Manual for additional information on LDA \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
TURNING ON THE LDA SYSTEM
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 287/20/18 8:33 PM
