Page 11 of 48
9

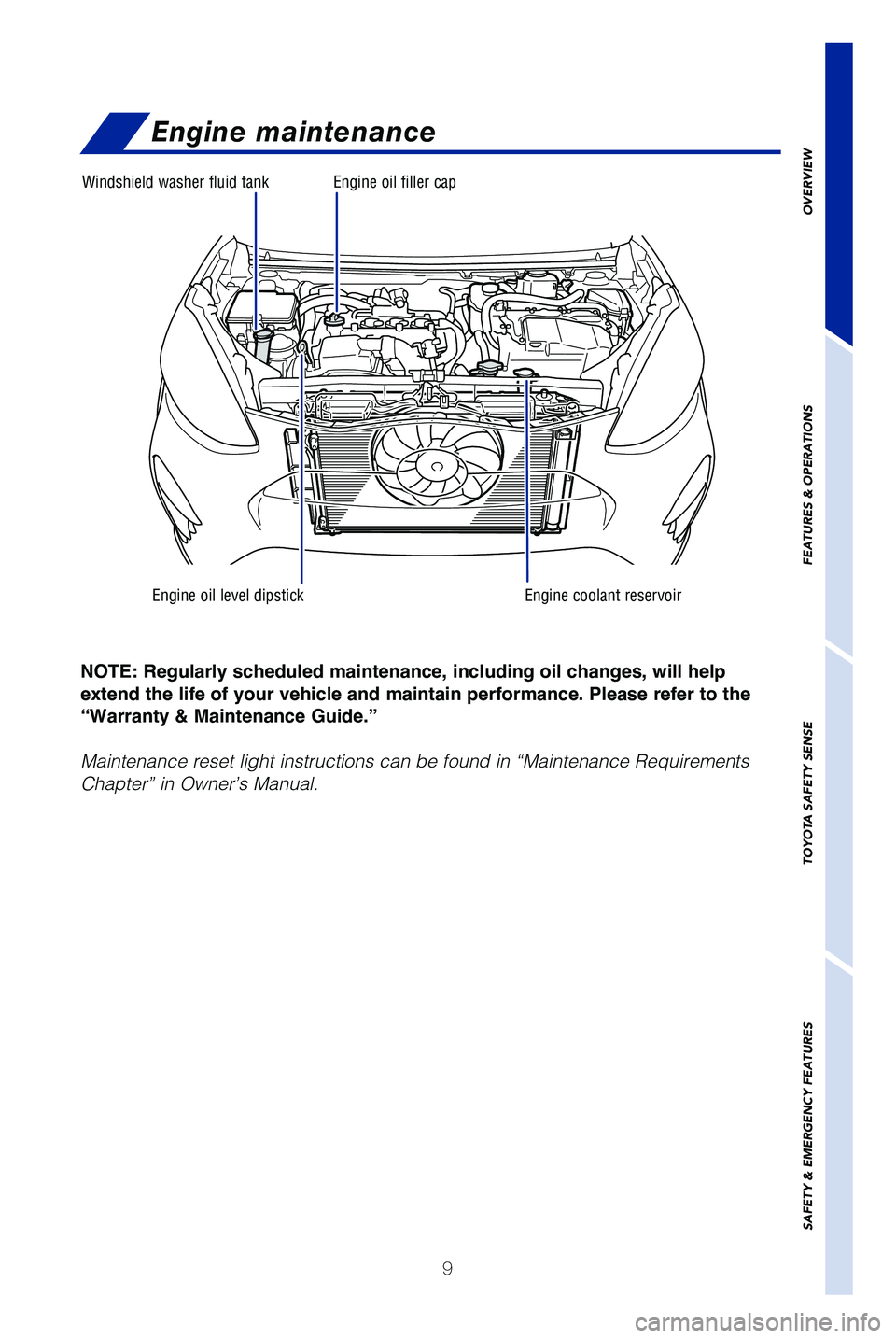

Engine maintenance
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Maintenance reset light instructions can be found in “Maintenance Req\
uirements
Chapter” in Owner’s Manual.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 97/20/18 8:33 PM
Page 12 of 48
10
FEATURES & OPERATIONS

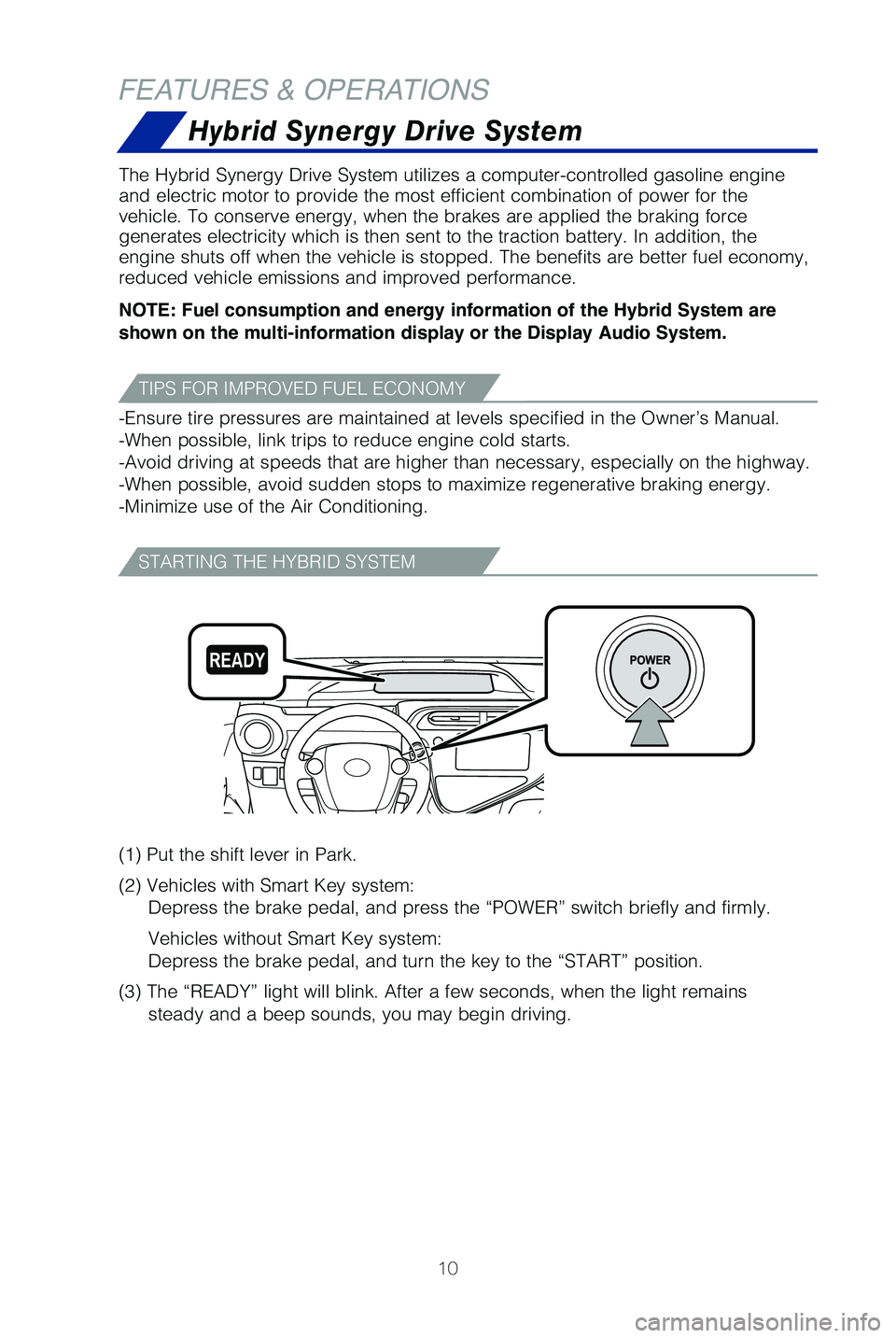

The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the
vehicle. To conserve energy, when the brakes are applied the braking for\
ce
generates electricity which is then sent to the traction battery. In add\
ition, the
engine shuts off when the vehicle is stopped. The benefits are better fu\
el economy,
reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are shown on the multi-information display or the Display Audio System.
-Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on t\
he highway.
-When possible, avoid sudden stops to maximize regenerative braking ener\
gy.
-Minimize use of the Air Conditioning.
(1) Put the shift lever in Park.
(2) Vehicles with Smart Key system:
Depress the brake pedal, and press the “POWER” switch briefly and \
firmly.
Vehicles without Smart Key system:
Depress the brake pedal, and turn the key to the “START” position.\
(3) The “READY” light will blink. After a few seconds, when the \
light remains
steady and a beep sounds, you may begin driving.
Hybrid Synergy Drive System
TIPS FOR IMPROVED FUEL ECONOMY
STARTING THE HYBRID SYSTEM
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 107/20/18 8:33 PM
Page 13 of 48
11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Hybrid transmission
Drive mode
ECO MODE
EV MODE
1 The “POWER”/ignition switch must be “ON” and the brake pedal\
depressed to
shift from Park.
2 The engine brake is the equivalent of downshifting. Shift to “B” w\
hen engine
braking is desired (e.g. downhill driving, coasting to a stop).
Park1
Reverse
Neutral
Drive
Engine brake2
Push
Eco Mode helps achieve low fuel consumption during trips that involve fr\
equent
accelerating and braking.
Refer to the Owner’s Manual for more details.
EV Drive Mode allows the electric motor (traction motor), powered by t\
he hybrid
battery (traction battery), to be used to drive the vehicle under cert\
ain driving
conditions.
Push
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 117/20/18 8:33 PM
Page 14 of 48
12
Lock release buttonLock release buttons
FRONT (ADJUSTABLE TYPE)/REAR CENTER
REAR OUTBOARD
Seats-Head restraints
Seat adjustments-Front
Seat position (forward/backward) Height crank
(driver’s side; if equipped) Seatback angle
FEATURES & OPERATIONS
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 127/20/18 8:33 PM
Page 15 of 48
13

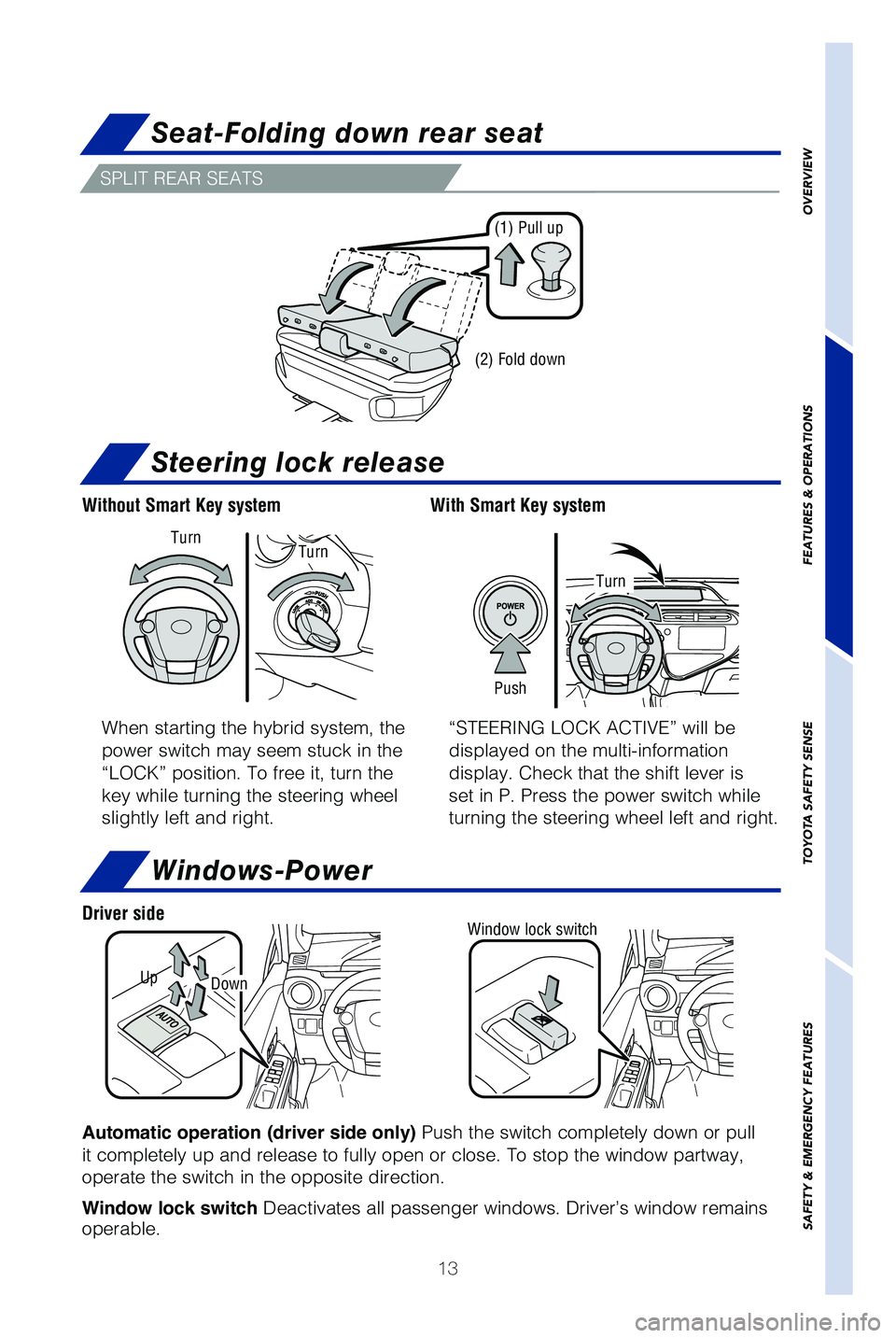

Seat-Folding down rear seat
Windows-Power
(1) Pull up
(2) Fold down
Up
Window lock switch
Automatic operation (driver side only) Push the switch completely down or pull
it completely up and release to fully open or close. To stop the window \
partway,
operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Driver side
Down
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
When starting the hybrid system, the
power switch may seem stuck in the
“LOCK” position. To free it, turn the
key while turning the steering wheel
slightly left and right. “STEERING LOCK ACTIVE” will be
displayed on the multi-information
display. Check that the shift lever is
set in P. Press the power switch while
turning the steering wheel left and right.
With Smart Key system
Without Smart Key system
Push
Turn
Turn
Turn
Steering lock release
SPLIT REAR SEATS
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 137/20/18 8:33 PM
Page 16 of 48
14

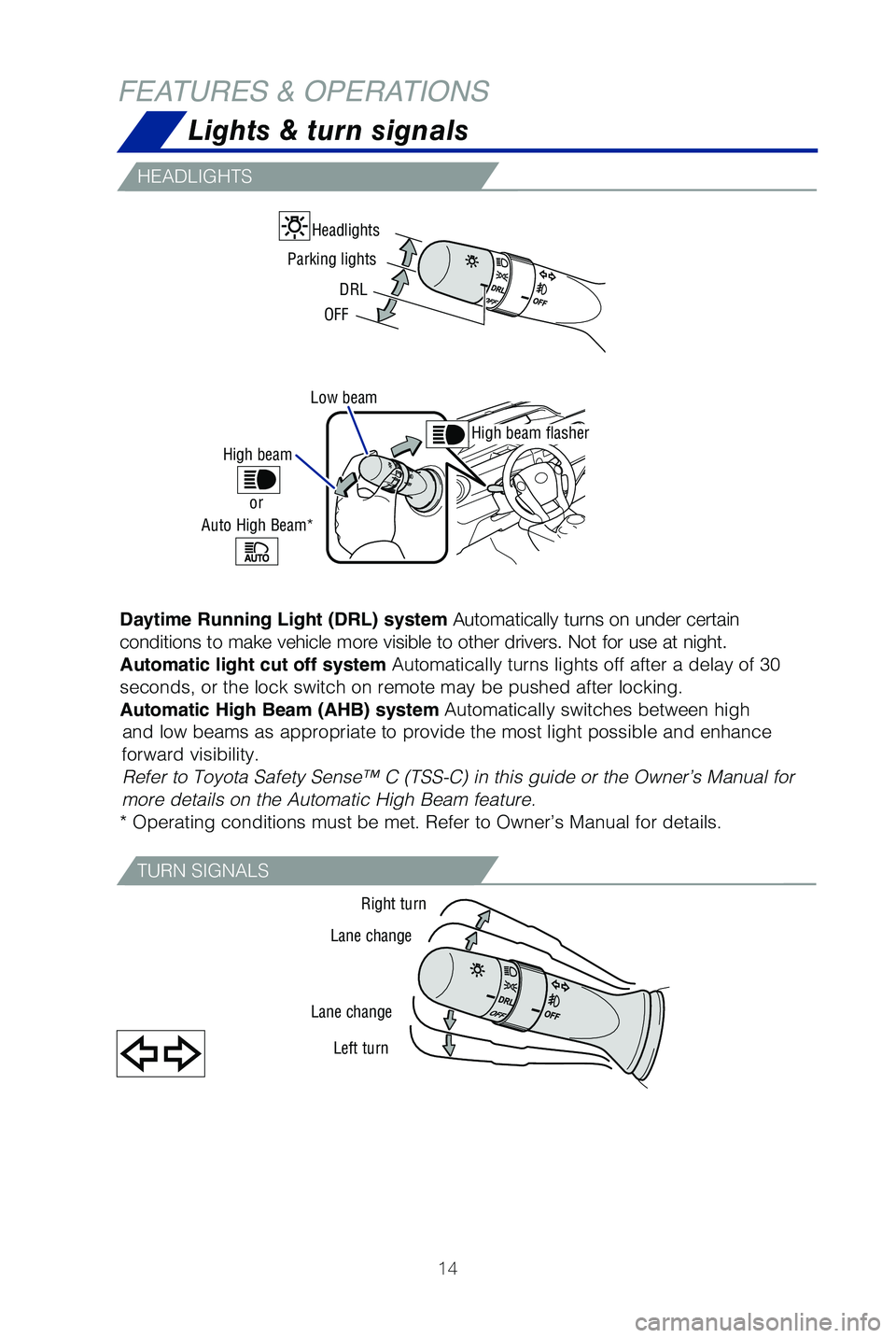

Right turn
Lane change
Lane change Left turn
TURN SIGNALS
FEATURES & OPERATIONS Lights & turn signals
Low beam
or
Auto High Beam*
High beam
High beam flasher
Parking lightsHeadlights
OFF
DRL
HEADLIGHTS
Daytime Running Light (DRL) system Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\
night. Automatic light cut off system Automatically turns lights off after a delay of 30
seconds, or the lock switch on remote may be pushed after locking.
Automatic High Beam (AHB) system Automatically switches between high and low beams as appropriate to provide the most light possible and enha\
nce
forward visibility. Refer to Toyota Safety Sense™ C (TSS-C) in this guide or the Owner’\
s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for detai\
ls.
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 147/20/18 8:33 PM
Page 17 of 48
15

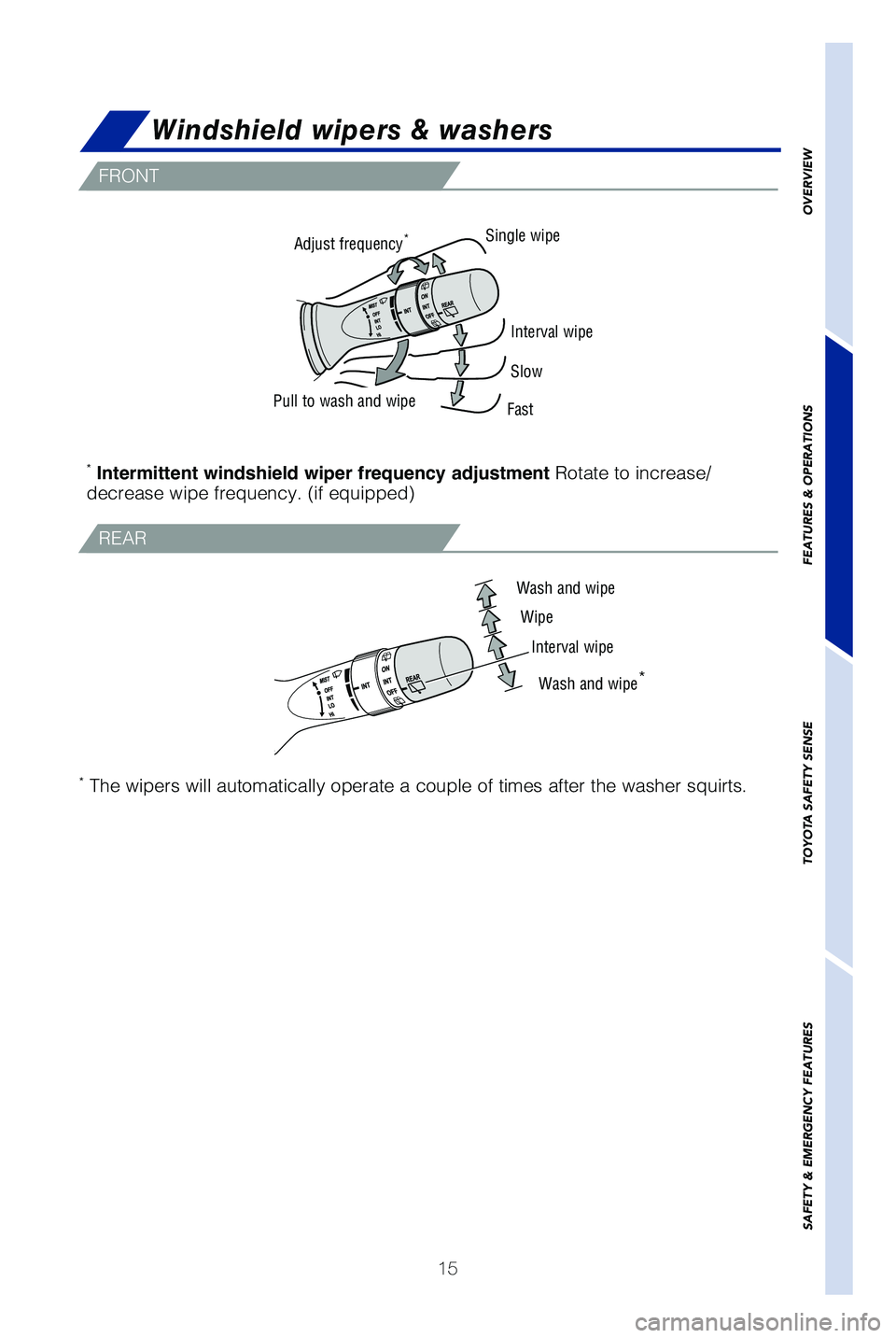

Single wipeSlow
Fast
Pull to wash and wipe Adjust frequency
*
*
Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency. (if equipped)
* The wipers will automatically operate a couple of times after the washe\
r squirts.
FRONT
REAR
Wash and wipe
Wipe
Interval wipe
Wash and wipe *
Interval wipe
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Windshield wipers & washers
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 157/20/18 8:33 PM
Page 18 of 48
16
FEATURES & OPERATIONS

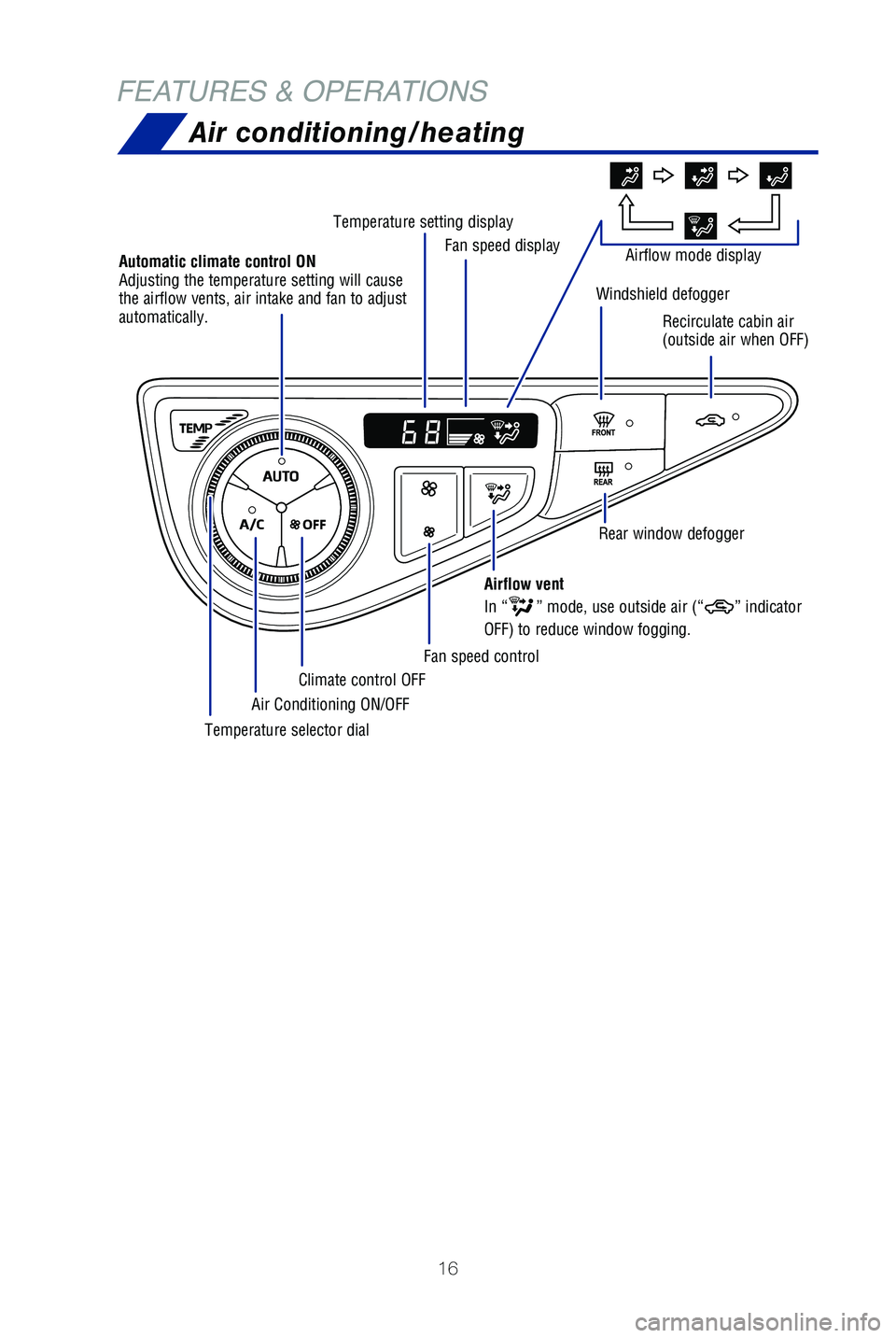

Air conditioning/heating
Automatic climate control ON
Adjusting the temperature setting will cause
the airflow vents, air intake and fan to adjust
automatically. Temperature setting display
Fan speed display Airflow mode display
Windshield defogger
Rear window defogger
Fan speed control Recirculate cabin air
(outside air when OFF)
Airflow vent
In “
” mode, use outside air (“” indicator
OFF) to reduce window fogging.
Climate control OFF
Air Conditioning ON/OFF
Temperature selector dial
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 167/20/18 8:33 PM
Page 19 of 48
17

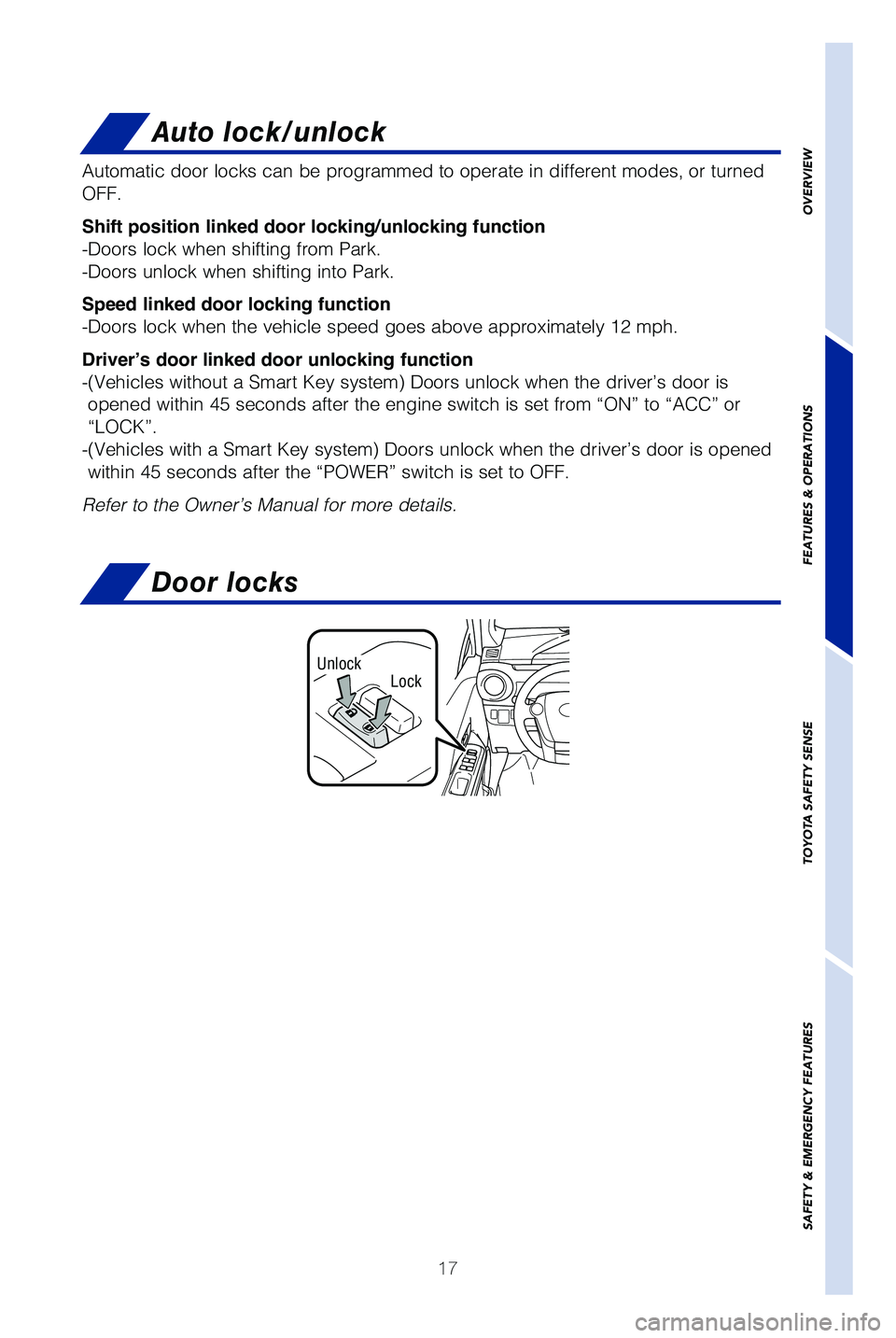

Auto lock/unlock
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph.
Driver’s door linked door unlocking function
-(Vehicles without a Smart Key system) Doors unlock when the driver’\
s door is opened within 45 seconds after the engine switch is set from “ON” \
to “ACC” or
“LOCK”.
-(Vehicles with a Smart Key system) Doors unlock when the driver’s \
door is opened within 45 seconds after the “POWER” switch is set to OFF.
Refer to the Owner’s Manual for more details.
Door locks
LockUnlock
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 177/20/18 8:33 PM
Page 20 of 48
18

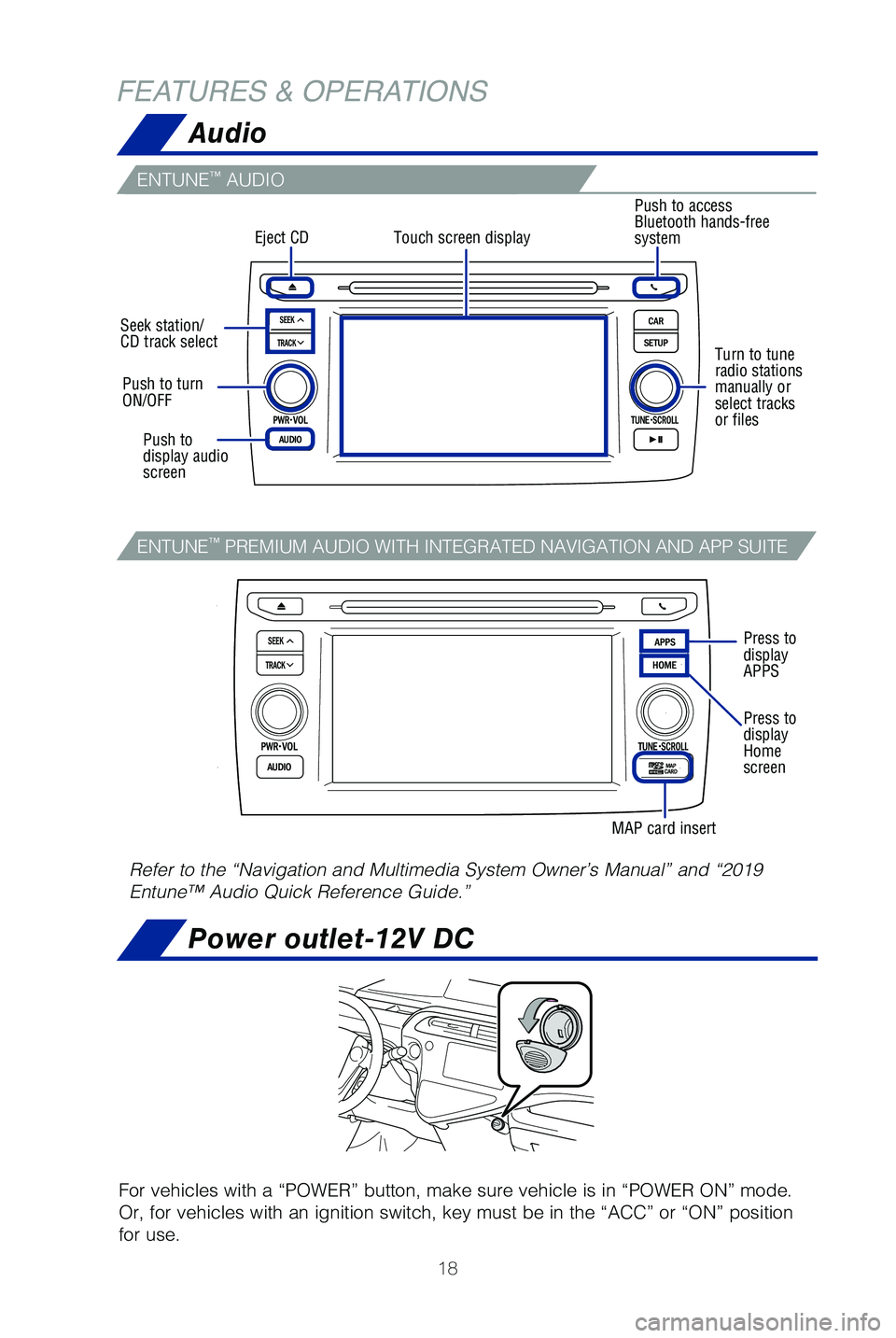

FEATURES & OPERATIONSAudio
Power outlet-12V DC
For vehicles with a “POWER” button, make sure vehicle is in “PO\
WER ON” mode.
Or, for vehicles with an ignition switch, key must be in the “ACC”\
or “ON” position
for use.
Touch screen displayEject CD
Seek station/
CD track select
Push to turn
ON/OFF
Push to
display audio
screen
Turn to tune
radio stations
manually or
select tracks
or files
Push to access
Bluetooth hands-free
system
Refer to the “Navigation and Multimedia System Owner’s Manual” \
and “2019
Entune™ Audio Quick Reference Guide.”
Press to
display
APPS
Press to
display
Home
screen
MAP card insert
ENTUNE™ AUDIO
ENTUNE™ PREMIUM AUDIO WITH INTEGRATED NAVIGATION AND APP SUITE
49125b_MY19_Prius_c_QRG_V2_ML_0713.indd 187/20/18 8:33 PM
