Page 511 of 684
511
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
4
Maintenance and care
Replace the light bulb, and install
the bulb base.

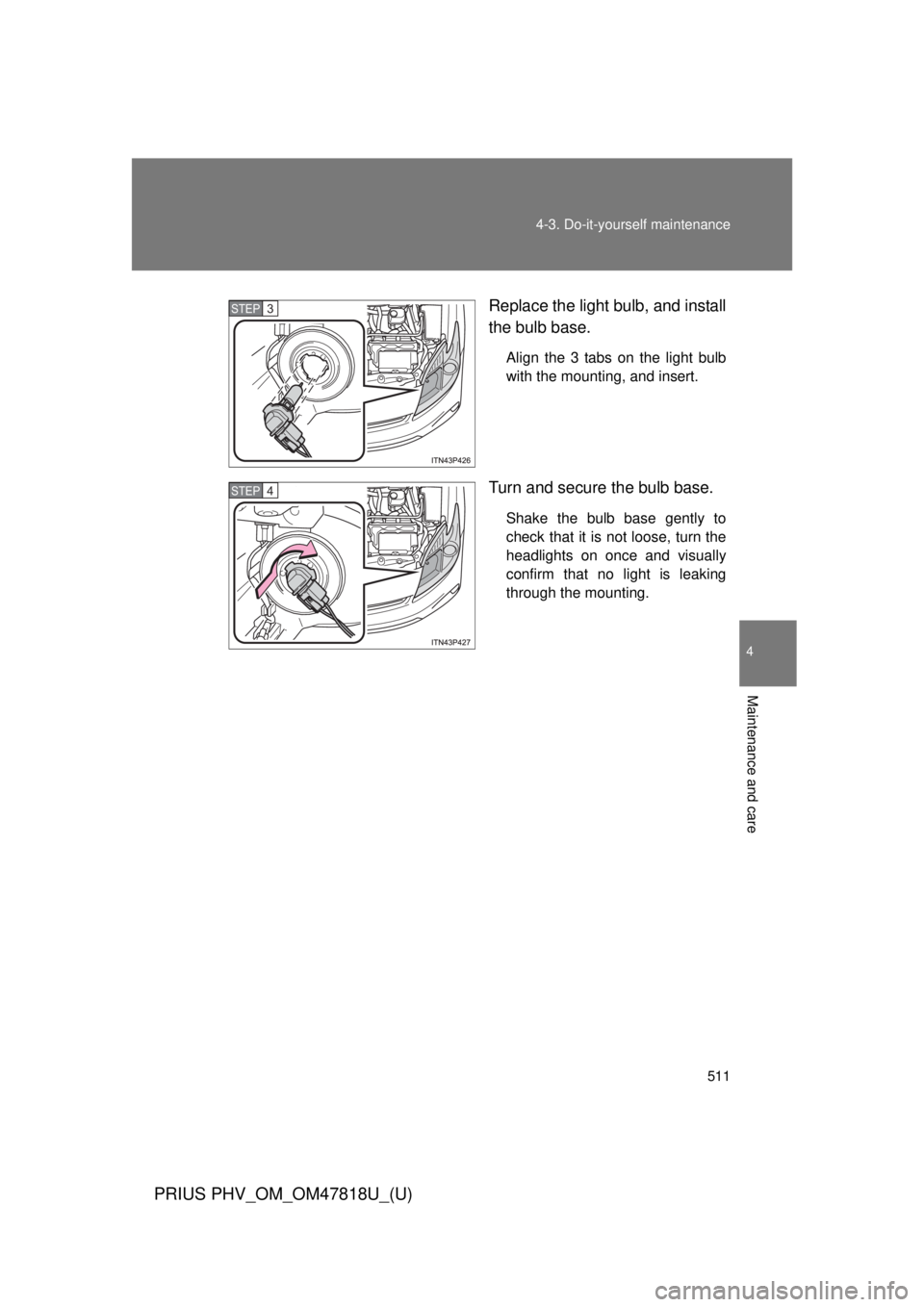

Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
STEP 3
STEP 4
Page 512 of 684
512 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)

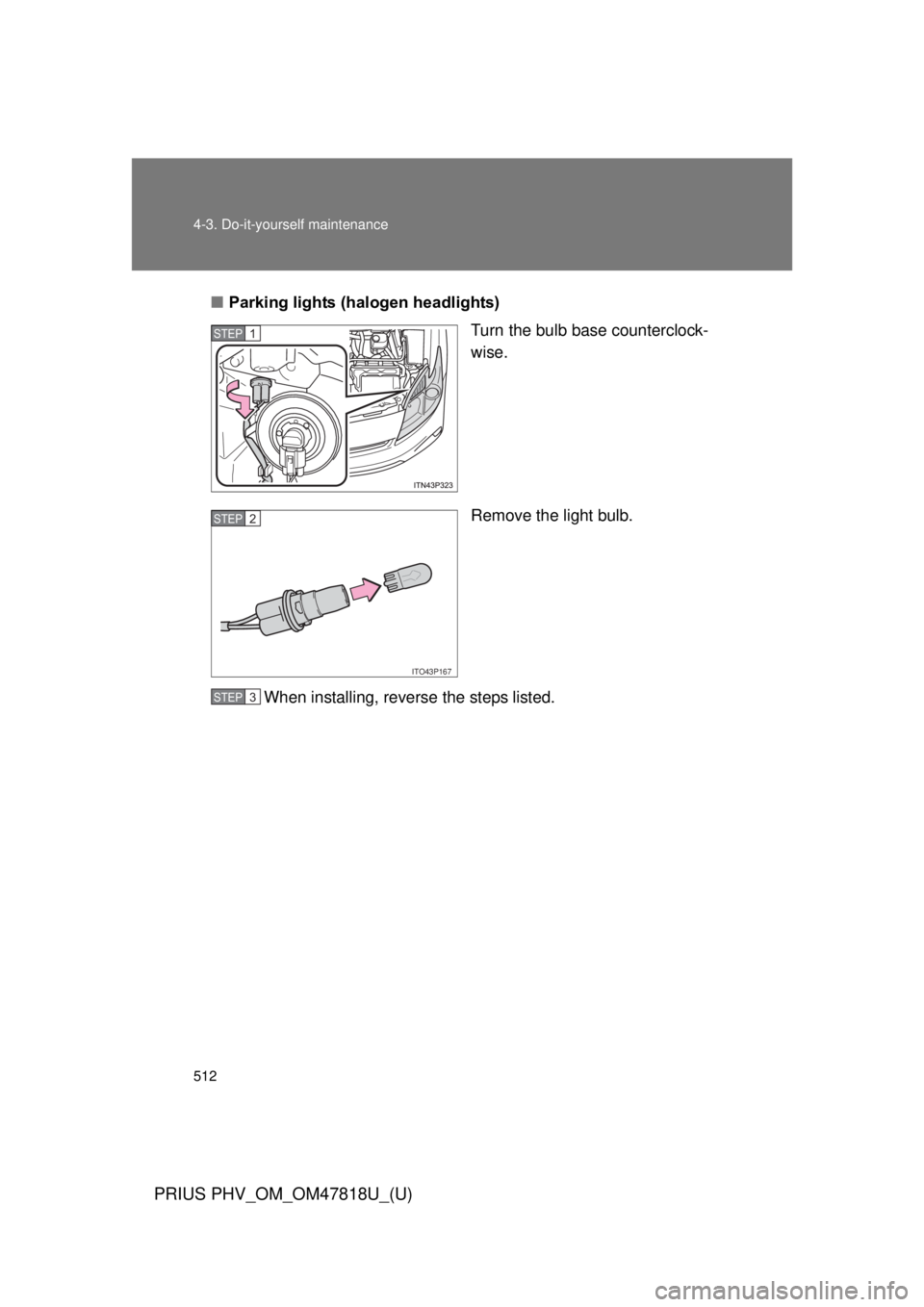

■Parking lights (halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P167
STEP 2
STEP 3
Page 513 of 684
513
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
4
Maintenance and care
■

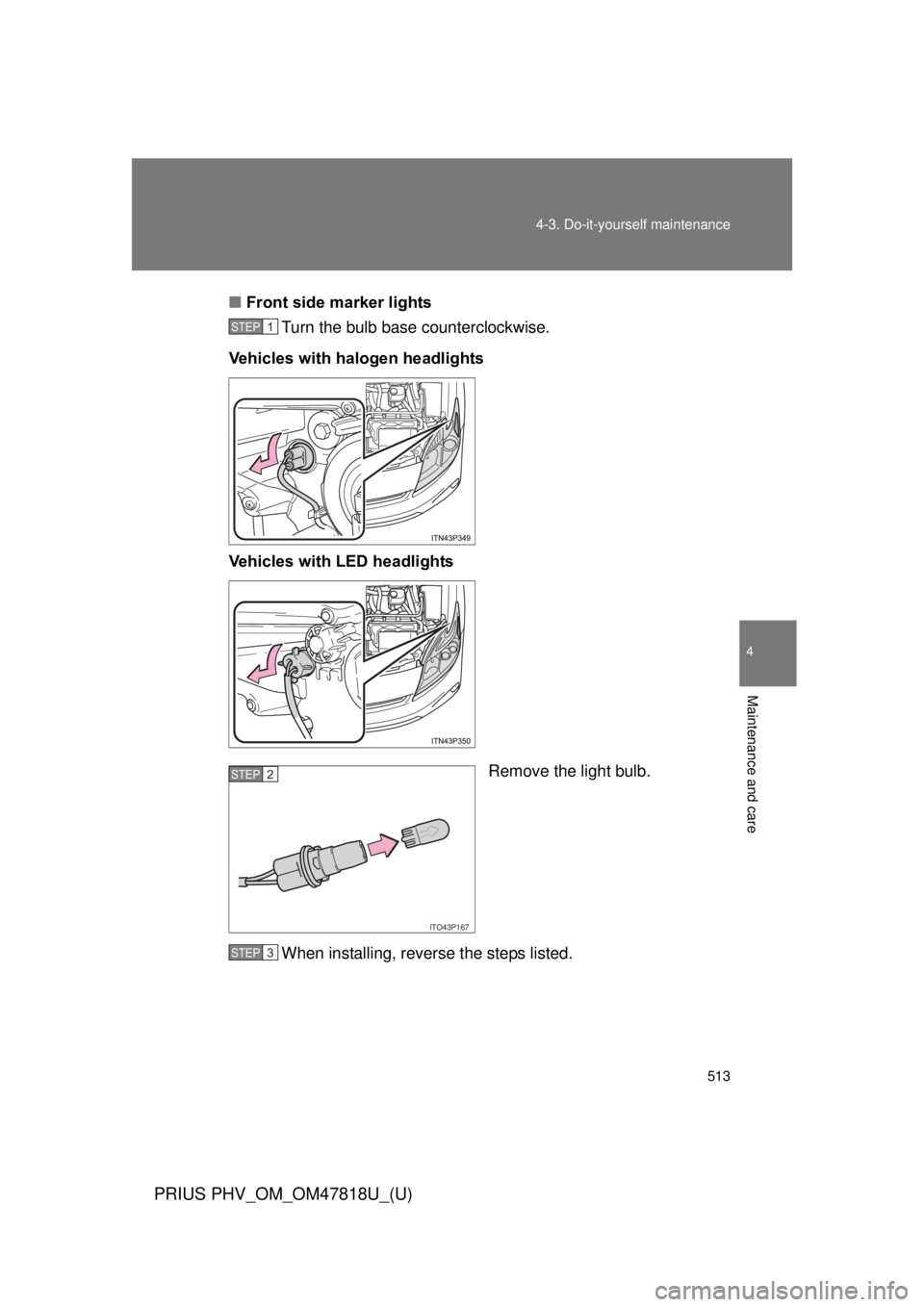

Front side marker lights
Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with LED headlights
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P167
STEP 2
STEP 3
Page 514 of 684
514 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)

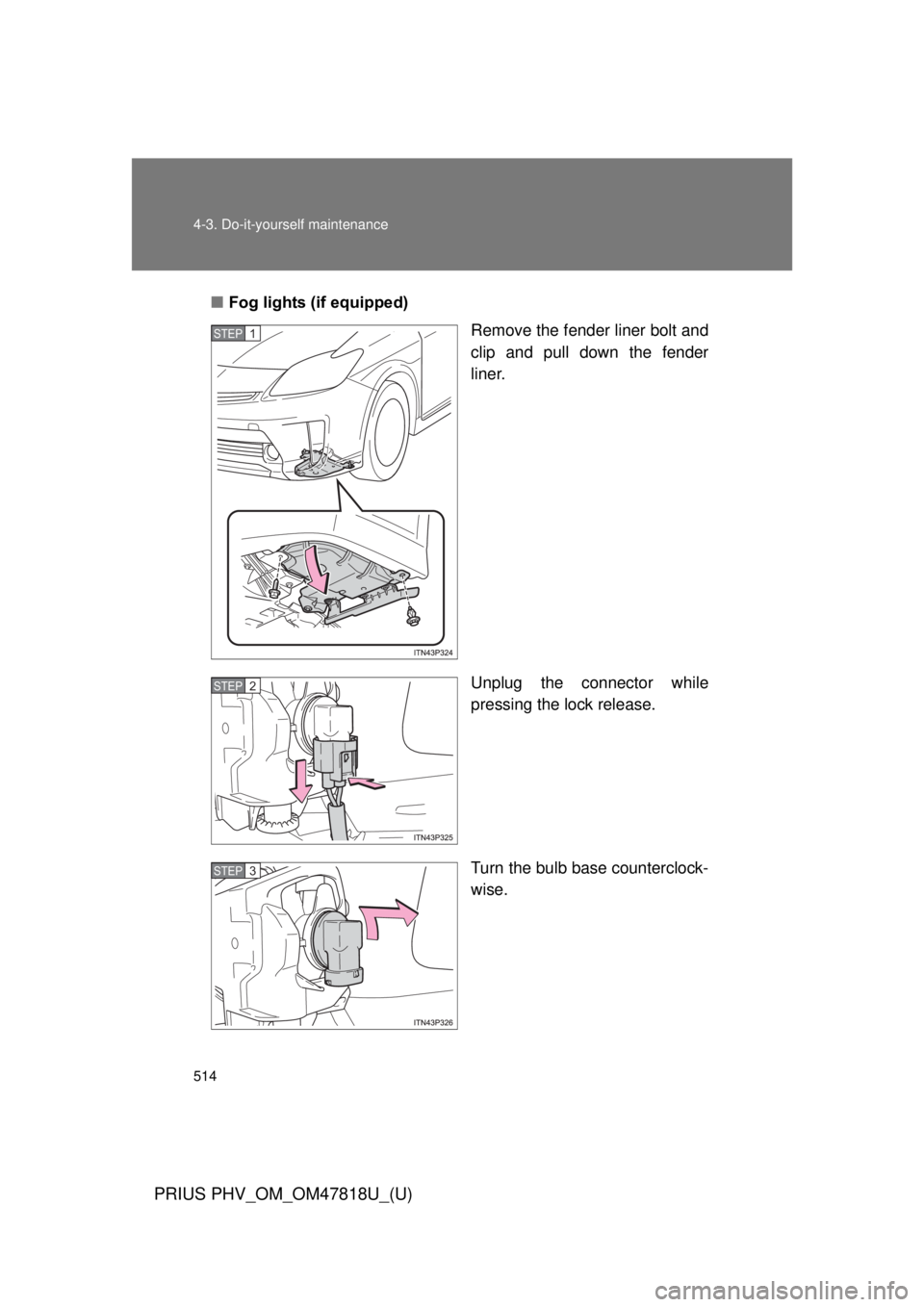

■Fog lights (if equipped)
Remove the fender liner bolt and
clip and pull down the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counterclock-
wise.
STEP 1
STEP 2
STEP 3
Page 515 of 684
515
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
4
Maintenance and care
When installing, reverse the steps listed.
After installing the bulb base, shake the bulb base gently to check
that it is not loose.

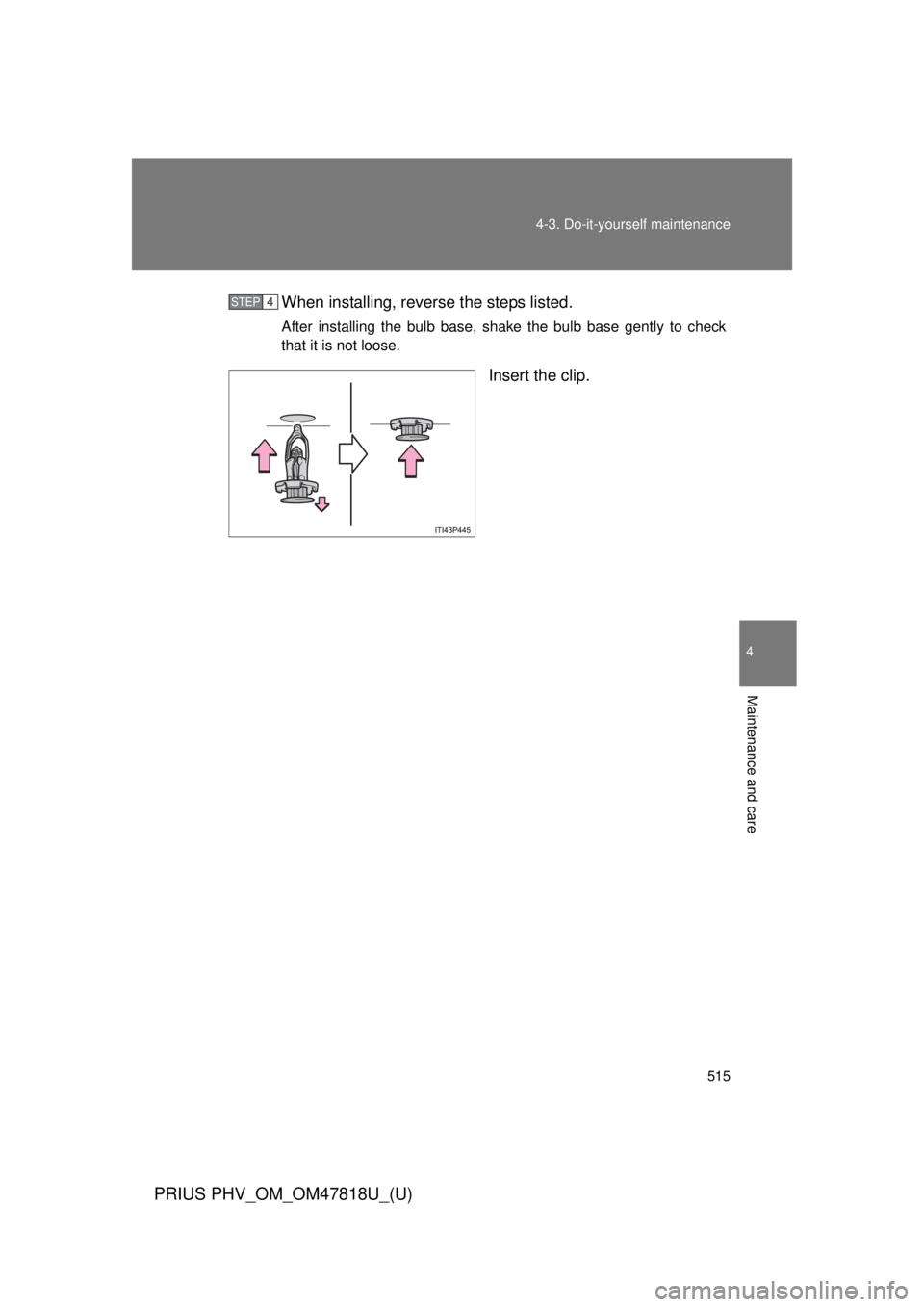

Insert the clip.
STEP 4
Page 516 of 684
516 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)

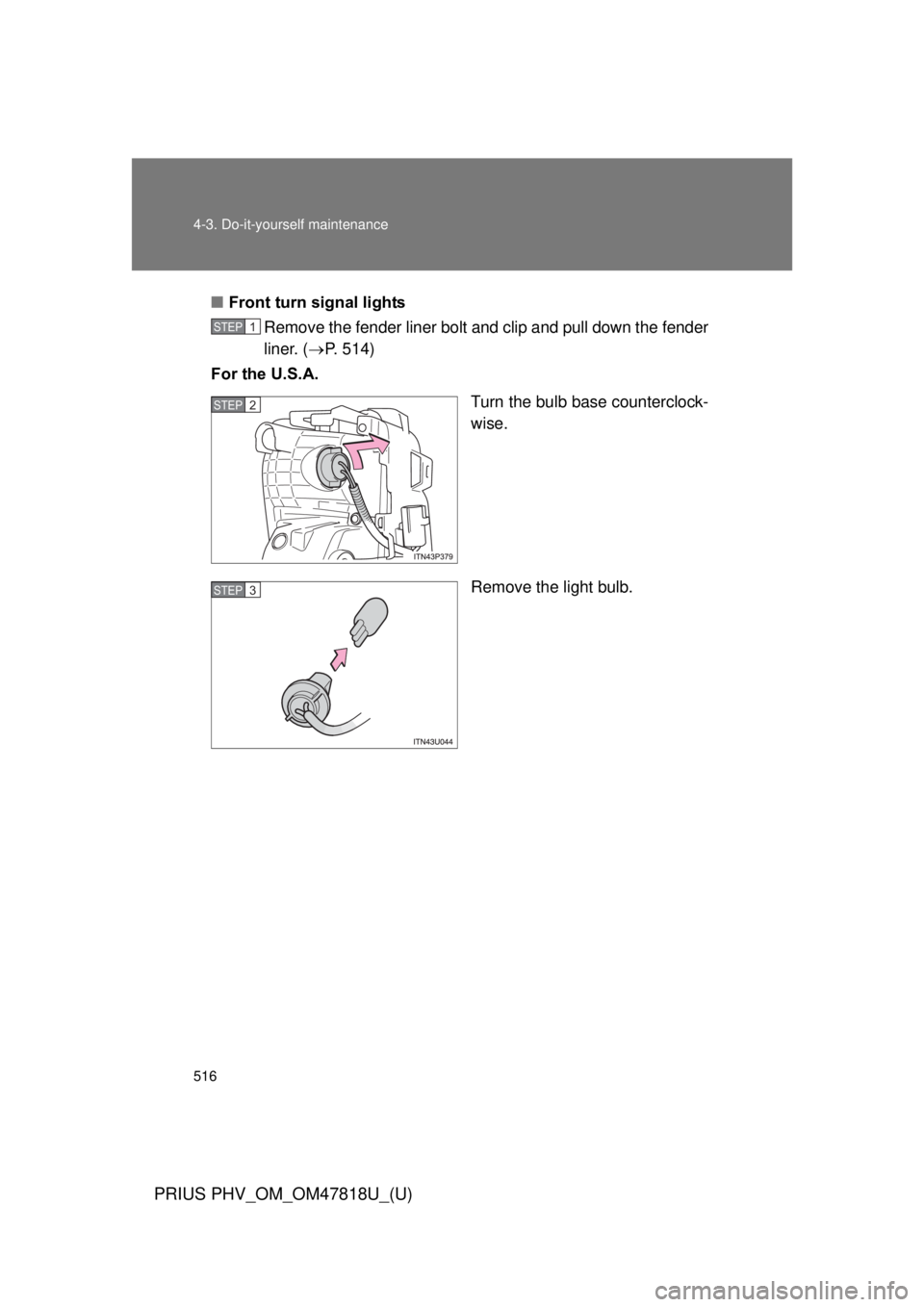

■Front turn signal lights
Remove the fender liner bolt and clip and pull down the fender
liner. ( P. 514)
For the U.S.A.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3
Page 517 of 684
517
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
4
Maintenance and care
For CanadasTurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed. Insert the clip.STEP 2
ITO43P144
STEP 3
STEP 4
Page 518 of 684
518 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)

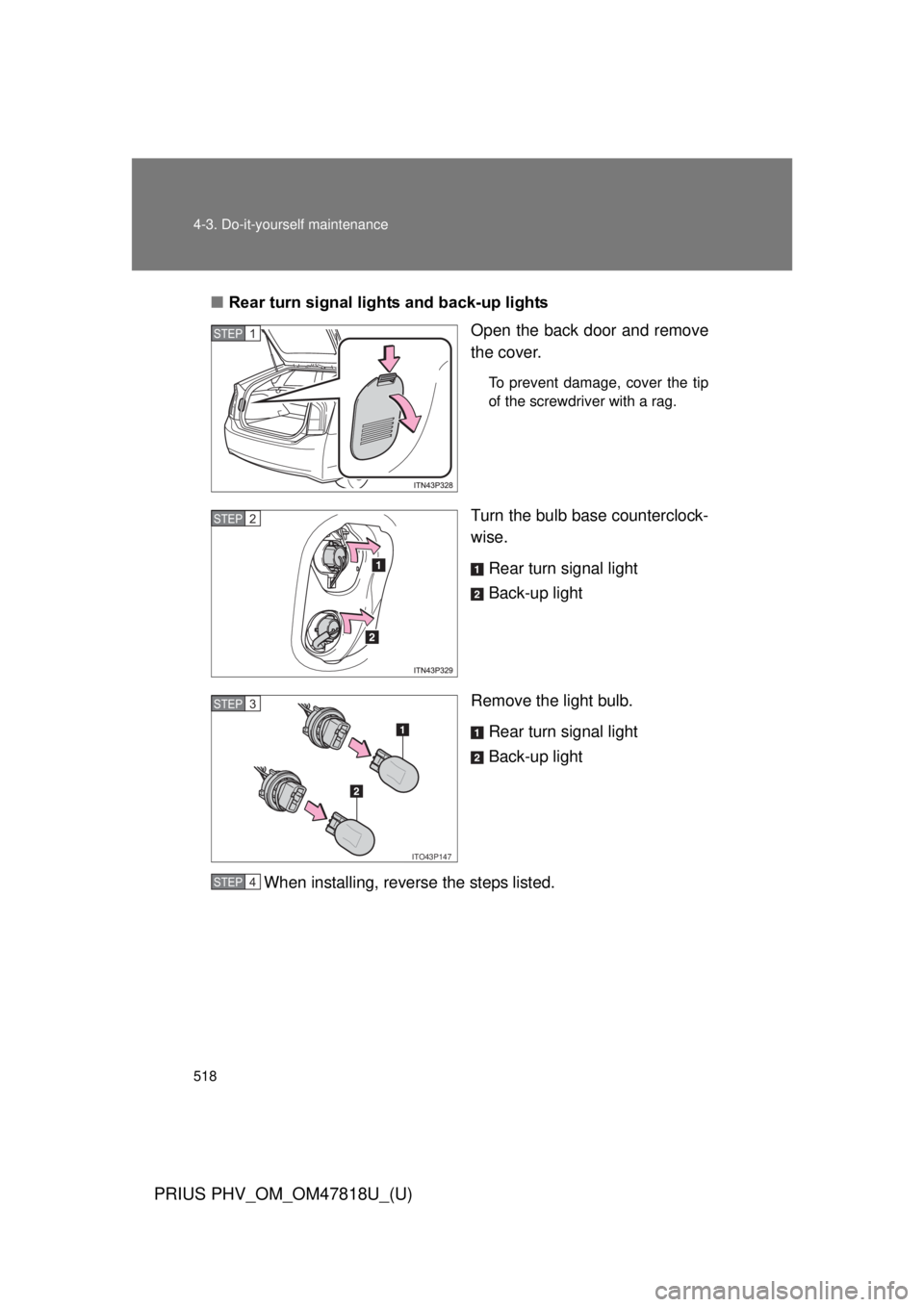

■Rear turn signal lights and back-up lights
Open the back door and remove
the cover.
To prevent damage, cover the tip
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Remove the light bulb. Rear turn signal light
Back-up light
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P147
STEP 3
STEP 4
Page 519 of 684
519
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
4
Maintenance and care
■

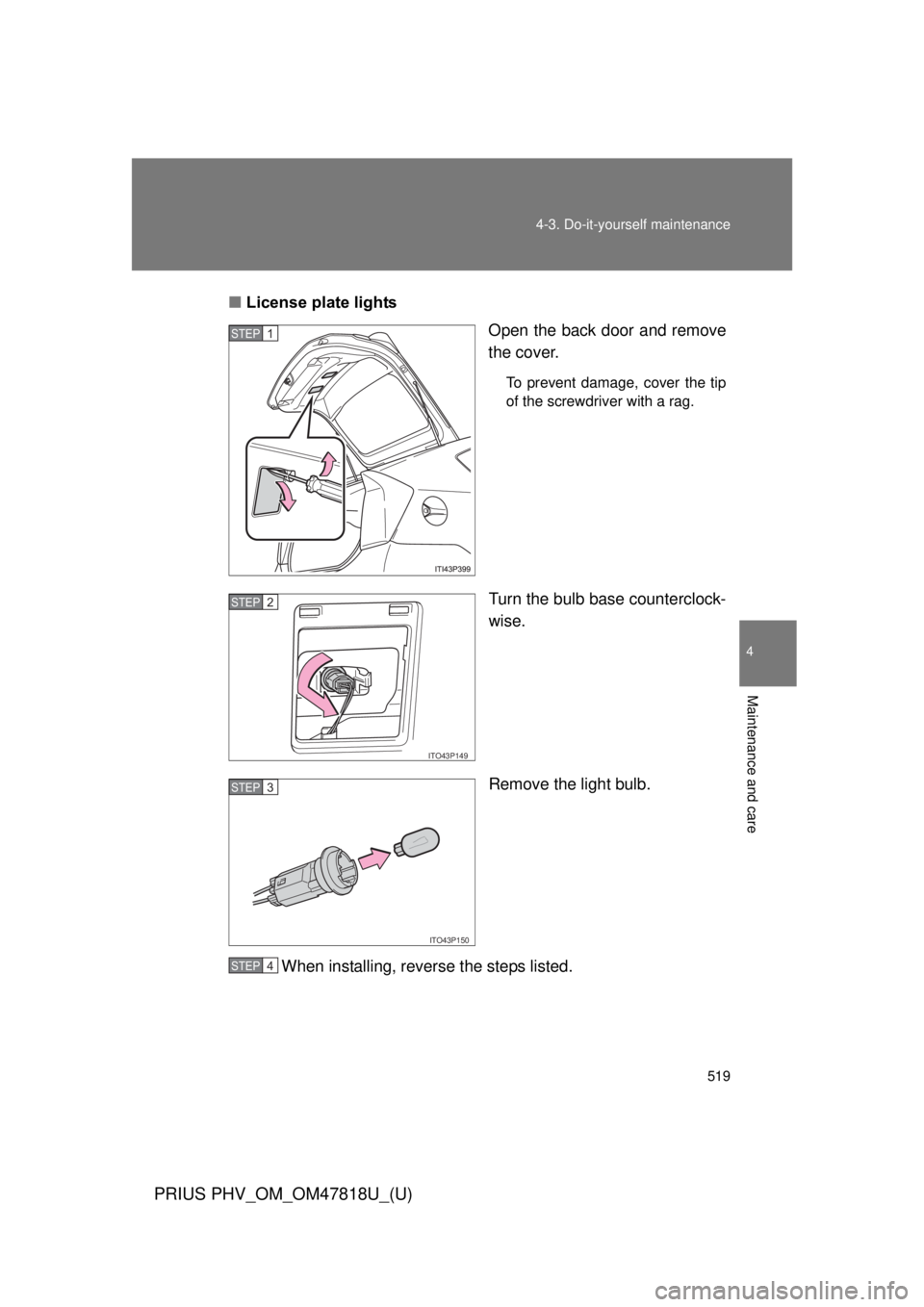

License plate lights
Open the back door and remove
the cover.
To prevent damage, cover the tip
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P149
STEP 2
ITO43P150
STEP 3
STEP 4
Page 520 of 684

520 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlight low beams (LED headlights)
● Parking lights (LED headlights)
● Stop lights
● Tail lights
● High mounted stoplight
● Daytime running lights (except for Canada)
■LED lights
The headlight low beams (LED headlights), parking lights (LED headlights),
stop lights, tail lights, high mounted stoplight and daytime running lights
(except for Canada) consist of a number of LEDs. If any of the LEDs burn
out, take your vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 505
