flat tire TOYOTA PRIUS PLUG-IN 2012 Owners Manual

TABLE OF CONTENTS
1
PRIUS PHV_OM_OM47818U_(U)
1Before driving
Information on the plug-in hybrid system and adjusting
and operating features such as door locks, mirrors, and
steering column
2When drivingDriving, stopping and safe-driving information
3Interior
features
Air conditioning and audio systems, as well as other in-
terior features for a comfortable driving experience
4Maintenance
and care
Cleaning and protecting your vehicle, performing do-it-
yourself maintenance, and maintenance information
5When trouble
arises
What to do if the vehicle needs to be towed, gets a flat
tire, or is involved in an accident
6Ve h i c l e
specificationsDetailed vehicle information
7For ownersReporting safety defects for U.S. owners, and seat belt
and SRS airbag instructions for Canadian owners
IndexAlphabetical listing of information contained in this
manual

9
PRIUS PHV_OM_OM47818U_(U)
Tires
●Rotation
●Replacement
●Inflation pressure
●Information
P. 476
P. 448
P. 619
P. 625
Rear side marker lights P. 292
Side doors P. 134
Tail lights P. 292
∗:If equipped
*:Refer to “Display Audio System Owner’s Manual” or “Navigation System Owner’s Manual”.
Rear turn signal lights P. 254
License plate lights P. 292
Camera*
Back door P. 140
Rear window wiper∗ P. 304
Rear window defoggers P. 375
Charging port P. 73

69
1-1. Plug-in hybrid system
1
Before driving
PRIUS PHV_OM_OM47818U_(U)

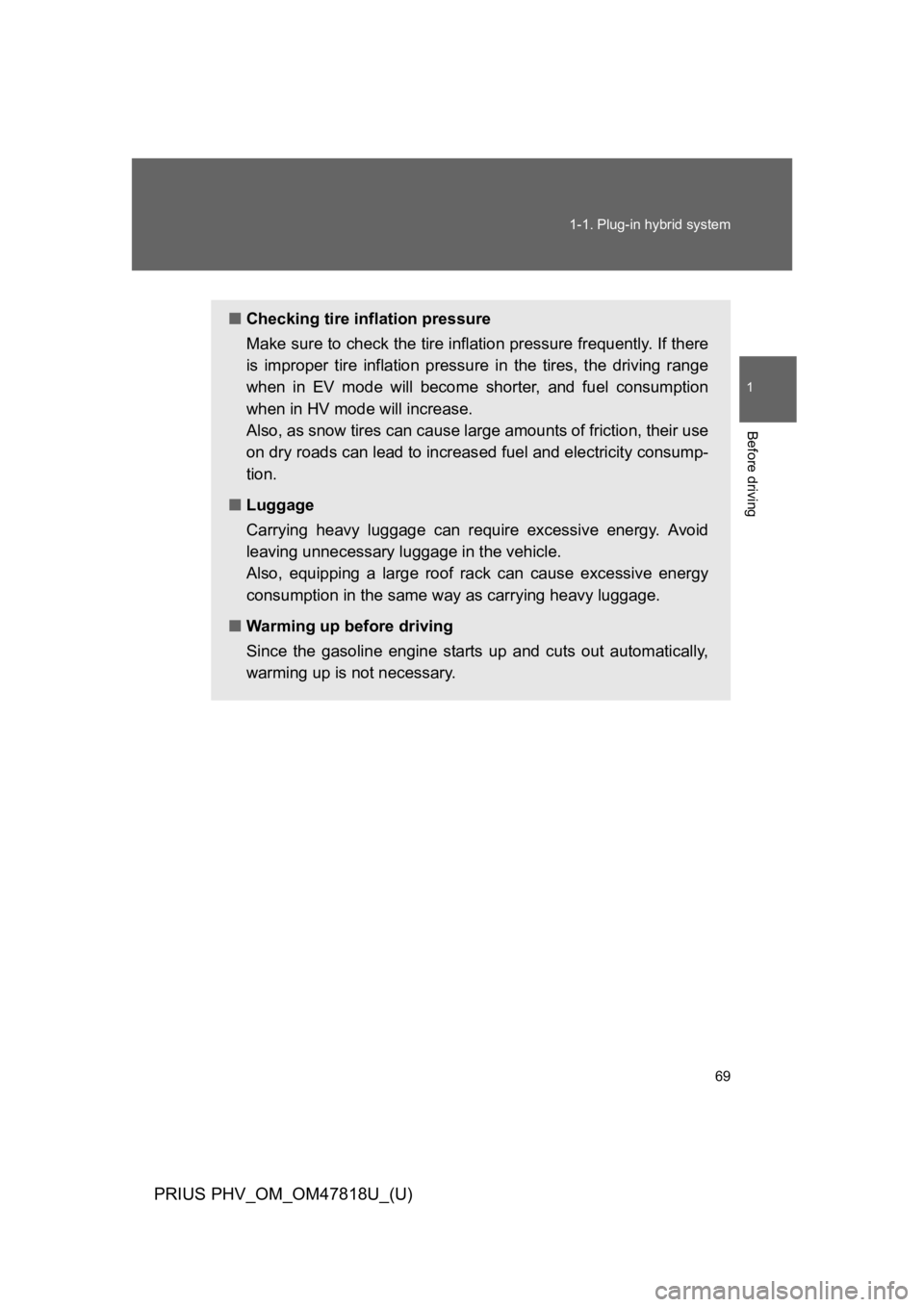

■Checking tire inflation pressure
Make sure to check the tire inflation pressure frequently. If there
is improper tire inflation pressure in the tires, the driving range
when in EV mode will become shorter, and fuel consumption
when in HV mode will increase.
Also, as snow tires can cause large amounts of friction, their use
on dry roads can lead to increased fuel and electricity consump-
tion.
■Luggage
Carrying heavy luggage can require excessive energy. Avoid
leaving unnecessary luggage in the vehicle.
Also, equipping a large roof rack can cause excessive energy
consumption in the same way as carrying heavy luggage.
■Warming up before driving
Since the gasoline engine starts up and cuts out automatically,
warming up is not necessary.

236
2-1. Driving procedures
PRIUS PHV_OM_OM47818U_(U)
NOTICE
■When driving the vehicle
●Do not depress the accelerator and brake pedals at the same time during
driving, as this may restrain driving torque.
●Do not use the accelerator pedal or depress the accelerator and brake
pedals at the same time to hold the vehicle on a hill.
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering motor.
●When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually depress the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds or vibrations.
●The vehicle will lean abnormally.
Information on what to do in case of a flat tire. (→P. 4 4 8 )

332
2-4. Using other driving systems
PRIUS PHV_OM_OM47818U_(U)
CAUTION
■Replacing tires
Make sure that all tires are of the specified size and of the same brand, tread
pattern and total load capacity. In addition, make sure that the tires are
inflated to the recommended tire inflation pressure level.
The ABS and VSC systems will not function correctly if different tires are
installed on the vehicle.
Contact your Toyota dealer for further information when replacing tires or
wheels.
■Handling of tires and the suspension
Using tires with any kind of problem or modifying the suspension will affect
the driving assist systems, and may cause a system to malfunction.

419
3-5. Other interior features
PRIUS PHV_OM_OM47818U_(U)
3
Interior features
■Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After fil-
ing a police report, call the Safety Connect response center at 1-
800-25-TOYOTA (1-800-255-3987) and follow the prompts for
Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain circumstances, be shared with third parties to locate your
vehicle. Further information is available at Toyota.com.
■Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button
to reach the Safety Connect response center. The answering
agent will determine your vehicle’s location, assess the emer-
gency, and dispatch the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center agent
that you are not experiencing an emergency.
■Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Roadside Assistance services and their limitations, please see the
Safety Connect Terms and Conditions, which are available at
To y o t a . c o m .

437
4-2. Maintenance
PRIUS PHV_OM_OM47818U_(U)
4
Maintenance and care
Ve h i c l e e x t e r i o r
Charging equipment
ItemsCheck points
Doors • Do the doors operate smoothly?
Engine hood•Does the engine hood lock sys-
tem work properly?
Fluid leaks
•There should not be any signs of
fluid leakage after the vehicle has
been parked.
Tires
•Is the tire inflation pressure cor-
rect?
•The tires should not be dam-
aged or excessively worn.
•Have the tires been rotated
according to the maintenance
schedule?
•The wheel nuts should not be
loose.
ItemsCheck points
Charging cable
•Check that the electrical leakage
detection function operates prop-
erly. (→P. 1 0 3 )
CAUTION
■If the hybrid system is operating
Turn the hybrid system off and ensure that there is adequate ventilation
before performing maintenance checks.

440
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
ItemsParts and tools
Engine oil level (→P. 4 6 0 )
•“Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
•Funnel (used only for adding
engine oil)
Fuses (→P. 4 9 5 )•Fuse with same amperage rating
as original
Light bulbs (→P. 5 0 7 )
•Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Radiator and condenser
(→P. 4 6 6 )⎯
Tire inflation pressure (→P. 4 8 6 )•Tire pressure gauge
•Compressed air source
Washer fluid (→P. 4 6 9 )
•Water or washer fluid containing
antifreeze (for winter use)
•Funnel (used only for adding
water or washer fluid)

448
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)

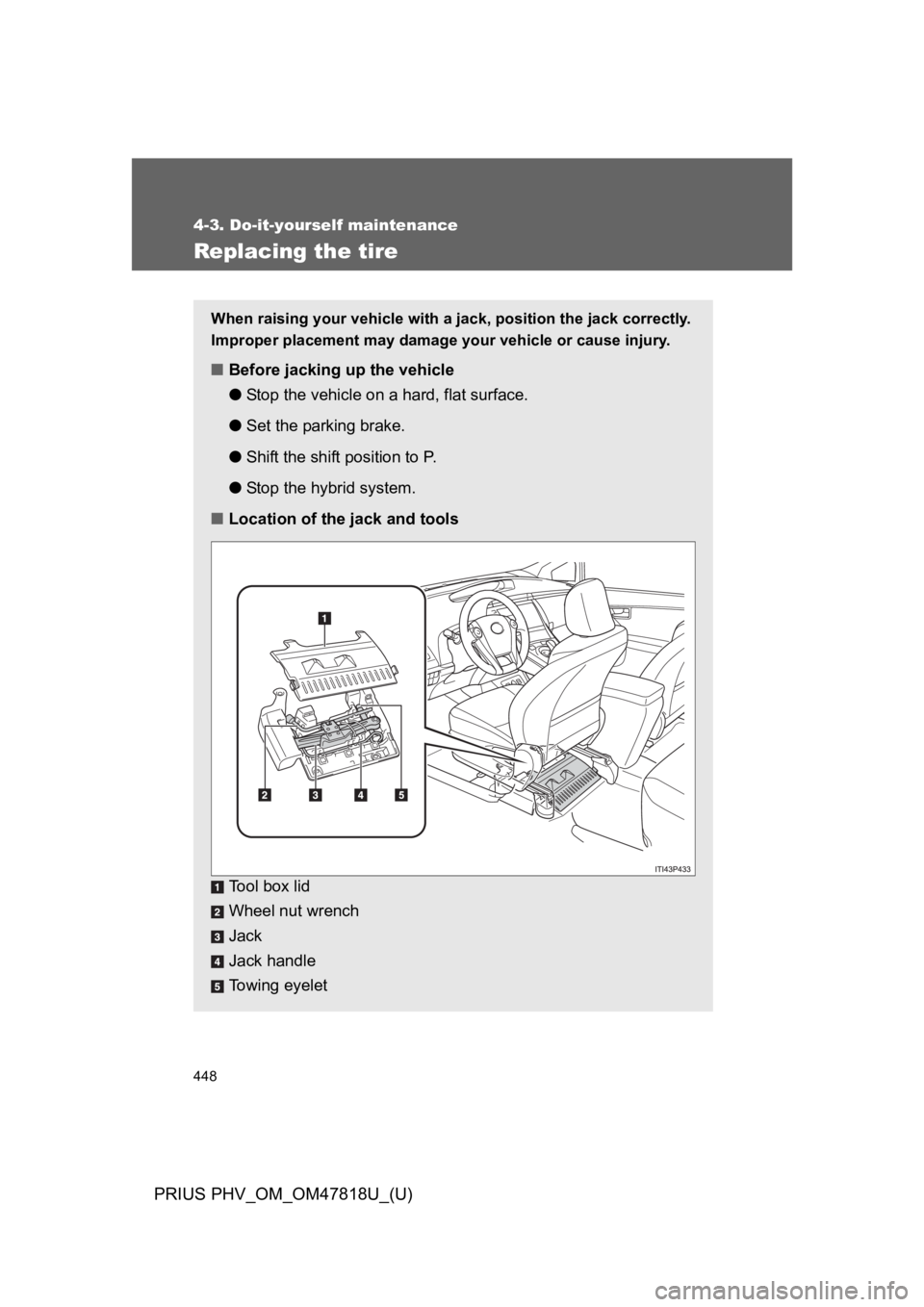

Replacing the tire
When raising your vehicle with a jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
■Before jacking up the vehicle
●St op the veh i cle on a ha rd, flat sur face.
●Set the parking brake.
●Shift the shift position to P.
●St op the hyb rid system.
■Location of the jack and tools
To o l b o x l i d
Wheel nut wrench
Jack
Jack handle
To w i n g e y e l e t

456
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47818U_(U)
CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
Observe the following precautions:
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the hybrid system while your vehicle is supported by
the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Ta k e p a r t i c u l a r c a r e w h e n l o w e r i n g t h e v e h i c l e t o e n s u r e t h a t n o o n e
working on or near the vehicle may be injured.
