6-1. Specifications
PRIUS PHV_OM_OM47818U_(U)

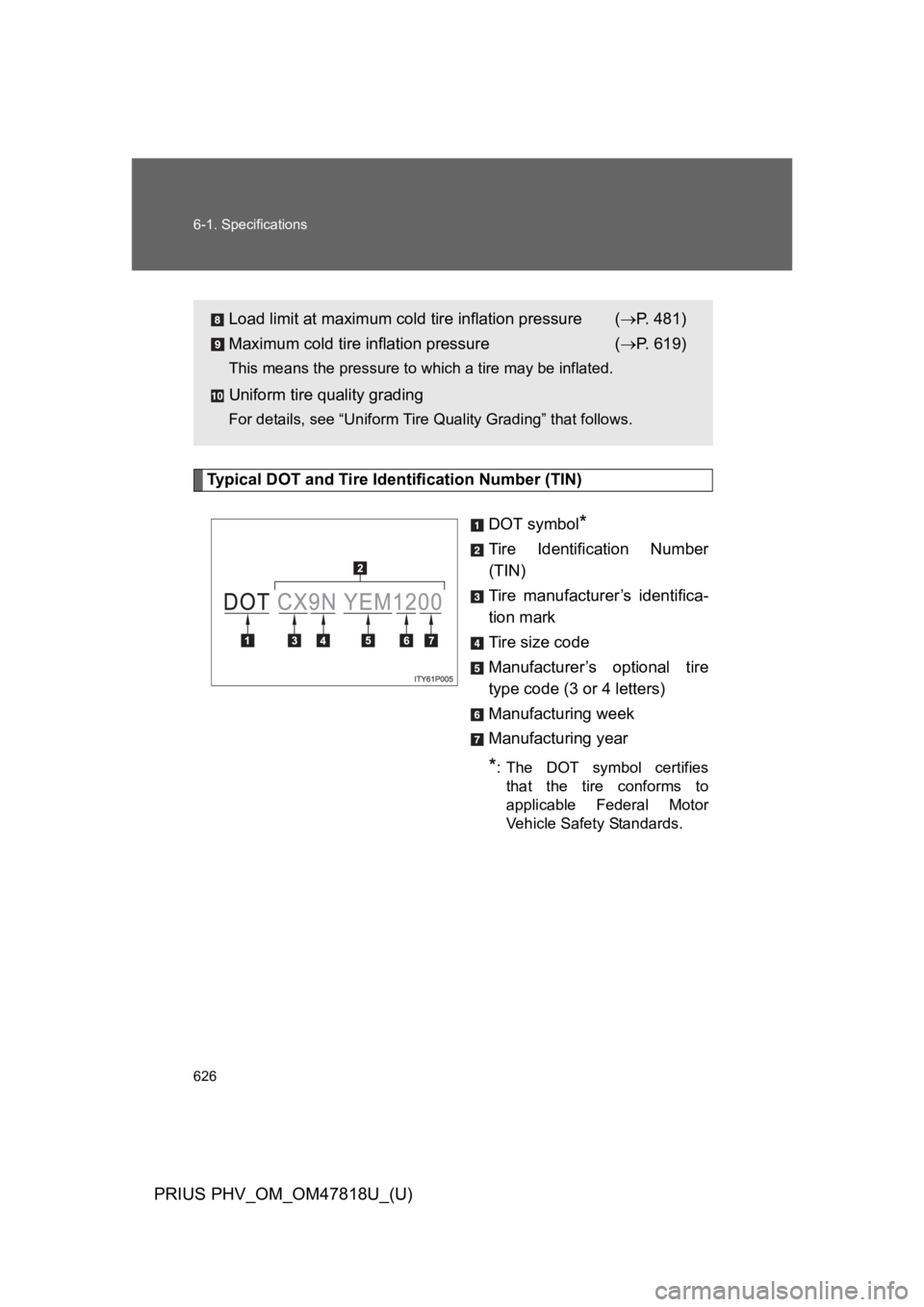

Ty p i c a l D O T a n d T i r e I d e n t i f i c a t i o n N u m b e r ( T I N )
DOT symbol*
Tire Identification Number
(TIN)
Tire manufacturer ’s identifica-
tion mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*:The DOT symbol certifies
that the tire conforms to
applicable Federal Motor
Ve h i c l e S a f e t y Sta n d a r d s .
Load limit at maximum cold tire inflation pressure (→P. 4 8 1 )
Maximum cold tire inflation pressure (→P. 6 1 9 )
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.

630
6-1. Specifications
PRIUS PHV_OM_OM47818U_(U)
■Tr a c t i o n A A , A , B , C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government
test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.
■Te m p e r a t u r e A , B , C
The temperature grades are A (the highest), B, and C, represent-
ing the tire’s resistance to the generation of heat and its ability to
dissipate heat when tested under controlled conditions on a speci-
fied indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.
Grade C corresponds to a level of performance which all passenger
car tires must meet under the Federal Motor Vehicle Safety Standard
No. 109.
Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire fail-
ure.

631
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47818U_(U)
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure
The maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire
Recommended infla-
tion pressure
Cold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

633
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47818U_(U)
Tire related termMeaning
Ve h i c l e m a x i m u m l o a d
on the tire
The load on an individual tire that is determined
by distributing to each axle its share of the
maximum loaded vehicle weight, and dividing
by two
Ve h i c l e n o r m a l l o a d
on the tire
The load on an individual tire that is determined
by distributing to each axle its share of curb
weight, accessory weight, and normal occu-
pant weight (distributed in accordance with
Ta b l e 1* below), and dividing by two
Weather sideThe surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separationA breakdown of the bond between components
in the bead
Bias ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate angles
substantially less than 90 degrees to the cen-
terline of the tread
CarcassThe tire structure, except tread and sidewall
rubber which, when inflated, bears the load
ChunkingThe breaking away of pieces of the tread or
sidewall

634
6-1. Specifications
PRIUS PHV_OM_OM47818U_(U)
Tire related termMeaning
Cord The strands forming the plies in the tire
Cord separationThe parting of cords from adjacent rubber com-
pounds
CrackingAny parting within the tread, sidewall, or inner-
liner of the tire extending to cord material
CT
A pneumatic tire with an inverted flange tire
and rim system in which the rim is designed
with rim flanges pointed radially inward and the
tire is designed to fit on the underside of the
rim in a manner that encloses the rim flanges
inside the air cavity of the tire
Extra load tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Groove The space between two adjacent tread ribs
Innerliner
The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire
Innerliner separationThe parting of the innerliner from cord material
in the carcass

635
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47818U_(U)
Tire related termMeaning
Intended outboard
sidewall
(a) The sidewall that contains a whitewall,
bears white lettering, or bears manufac-
turer, brand, and/or model name molding
that is higher or deeper than the same
molding on the other sidewall of the tire, or
(b) The outward facing sidewall of an asym-
metrical tire that has a particular side that
must always face outward when mounted
on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as prima-
rily intended for use on lightweight trucks or
multipurpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressure
The maximum cold inflation pressure to which
a tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameter The overall diameter of an inflated new tire

636
6-1. Specifications
PRIUS PHV_OM_OM47818U_(U)
Tire related termMeaning
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including eleva-
tions due to labeling, decorations, or protective
bands or ribs
Passenger car tire
A tire intended for use on passenger cars, mul-
tipurpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of
10,000 lb. or less.
Ply A layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adja-
cent plies
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire

637
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47818U_(U)
Tire related termMeaning
Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
SidewallThat portion of a tire between the tread and
bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
11 3 6 St a n d a r d R e f e r e n c e Te s t Ti r e , w h e n
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight Line
on Snow-and Ice-Covered Surfaces, and which
is marked with an Alpine Symbol ( ) on at
least one sidewall
Te s t r i m
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire

671
Alphabetical index
PRIUS PHV_OM_OM47818U_(U)
Daytime running light
system ................................... 295
Deck board............................... 403
Defogger
Rear window......................... 375
Side mirrors .......................... 375
Dimensions .............................. 610
Dinghy towing ......................... 355
Display
Dynamic radar cruise
control ................................ 312
Multi-information ................... 266
Warning messages............... 546
Do-it-yourself maintenance .... 439
Door lock
Back door ............................. 140
Side doors ............................ 134
Smart key system ................. 108
Wireless remote control........ 132
Doors
Back door ............................. 140
Door glasses ........................ 171
Door lock .............. 108, 132, 134
Rear door child-protector...... 135
Side doors ............................ 134
Driver’s seat belt reminder
light ........................................ 537
Driving
Break-in tips ......................... 226
Correct posture..................... 182
Procedures ........................... 224
Winter driving tips ................. 349
Eco drive mode switch ............247
Electric power steering ...........328
Electronic key
If the electronic key does not
operate properly..................591
Replacing battery ..................493
Emergency, in case of
If a warning buzzer
sounds ................................533
If a warning light turns on ......533
If the electronic key does not
operate properly..................591
If the hybrid system will not
start .....................................588
If the 12-volt battery is
discharged ..........................594
If you have a flat tire .............566
If you lose your keys .............590
If you think something is
wrong ..................................532
If your vehicle becomes
stuck ...................................605
If your vehicle has to be
stopped in an
emergency ..........................607
If your vehicle needs to be
towed ..................................525
If your vehicle overheats .......600
Emergency flashers
Switch....................................524
DE
*: Refer to “Display Audio System Owner’s Manual”
or “Navigation System Owner’s Manual”.

677
Alphabetical index
PRIUS PHV_OM_OM47818U_(U)
Switch
Audio remote control switches*
Cruise control switch ............ 308
Driving mode select
switch ................................. 247
Eco drive mode switch ......... 247
Emergency flasher switch .... 524
EV/HV mode selection
switch ................................... 37
Fog light switch..................... 298
Fuel filler door opener
switch ................................. 174
Hazard light switch ............... 524
Headlight cleaner switch ...... 307
Ignition switch ....................... 238
Light switches ....................... 292
Power door lock switch......... 134
“POWER” switch .................. 238
Power window switch ........... 171
Pre-collision braking off
switch ................................. 336
Talk switch*
Telephone switch*
Window lock switch .............. 171
Wipers and washer switch.... 300
Tail lights
Switch....................................292
Talk switch*
Telephone switch*
Theft deterrent system
Immobilizer system ...............179
Theft prevention labels............181
Tire inflation pressure .............486
Tire information
Glossary ................................631
Size .......................................627
Tire identification number ......626
Uniform Tire Quality
Grading ...............................629
Tires
Chains ...................................351
Checking ...............................476
If you have a flat tire ..............566
Inflation pressure...................486
Inflation pressure sensor .......477
Information ............................625
Replacing ..............................448
Rotating tires .........................476
Size .......................................619
Snow tires .............................349
Tire pressure warning
system ........................476, 538
T
*: Refer to “Display Audio System Owner’s Manual”
or “Navigation System Owner’s Manual”.
