CAUTION
■Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the 12-volt battery:
●Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near
the 12-volt battery.
■12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte,
while related parts contain lead and lead compounds. Observe the following
precautions when handling the 12-volt battery:
●When working with the 12-volt battery, always wear safety glasses and
take care not to allow any battery fluids (acid) to come into contact with
skin, clothing or the vehicle body.
●Do not lean over the 12-volt battery.
●In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
●Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
●Do not allow children near the 12-volt battery.

5
When trouble arises
599
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47818U_(U)
CAUTION
■After charging the 12-volt battery
Have the 12-volt battery inspected at your Toyota dealer as soon as possi-
ble.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt
battery to emit a malodorous gas, which may be detrimental to the health of
passengers.
■When replacing the 12-volt battery
→P. 4 7 5
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fans, etc.
■Exclusive jump starting terminal
The exclusive jump starting terminal is to be used when charging the 12-volt
battery from another vehicle in an emergency. It cannot be used to jump start
another vehicle.

600
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47818U_(U)
If your vehicle overheats
Correction procedures
■If the high coolant temperature warning light comes on or
flashes
St op the vehicle in a safe place and turn off the air condition-
ing system, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has
cooled down sufficiently, inspect
the hoses and radiator core
(radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Toyota
dealer.
The following may indicate that your vehicle is overheating.
●The high coolant temperature warning light (→P. 5 3 4 ) c o m e s o n
or flashes, or a loss of hybrid system power is experienced. (For
example, the vehicle speed does not increase.)
●“HYBRID SYSTEM OVERHEAT” (→P. 5 5 2 ) i s s h o w n o n t h e
multi-information display.
●St eam comes out fro m un der the ho od.
1 ÉTAPE
2 ÉTAPE
STEP 3

5
When trouble arises
601
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47818U_(U)
The coolant level is satisfactory if
it is between the “FULL” and
“LOW ” lines on the reservoir.
Reservoir
“FULL”
“LOW ”
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Sta rt the hyb rid system an d turn the air co nditioning system
on to check that the radiator cooling fans operate and to
check for coolant leaks from the radiator or hoses.
The fans operate when the air conditioning system is turned on
immediately after a cold start. Confirm that the fans are operating by
checking the fan sound and air flow. If it is difficult to check these,
turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
St op the hybrid system immediately and contact your
To y o t a d e a l e r .
If the fans are operating:
Have the vehicle inspected at the nearest Toyota dealer.
ITO43P111
STEP 4
ITO52P130
STEP 5
6 ÉTAPE
STEP7

602
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47818U_(U)
■If “HYBRID SYSTEM OVERHEAT” is shown on the multi-infor-
mation display
St op the ve hicle in a sa fe pla ce.
St op the hybrid system and care fu lly lift the h ood .
After the hybrid system has
cooled down, inspect the hoses
and radiator core (radiator) for
any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

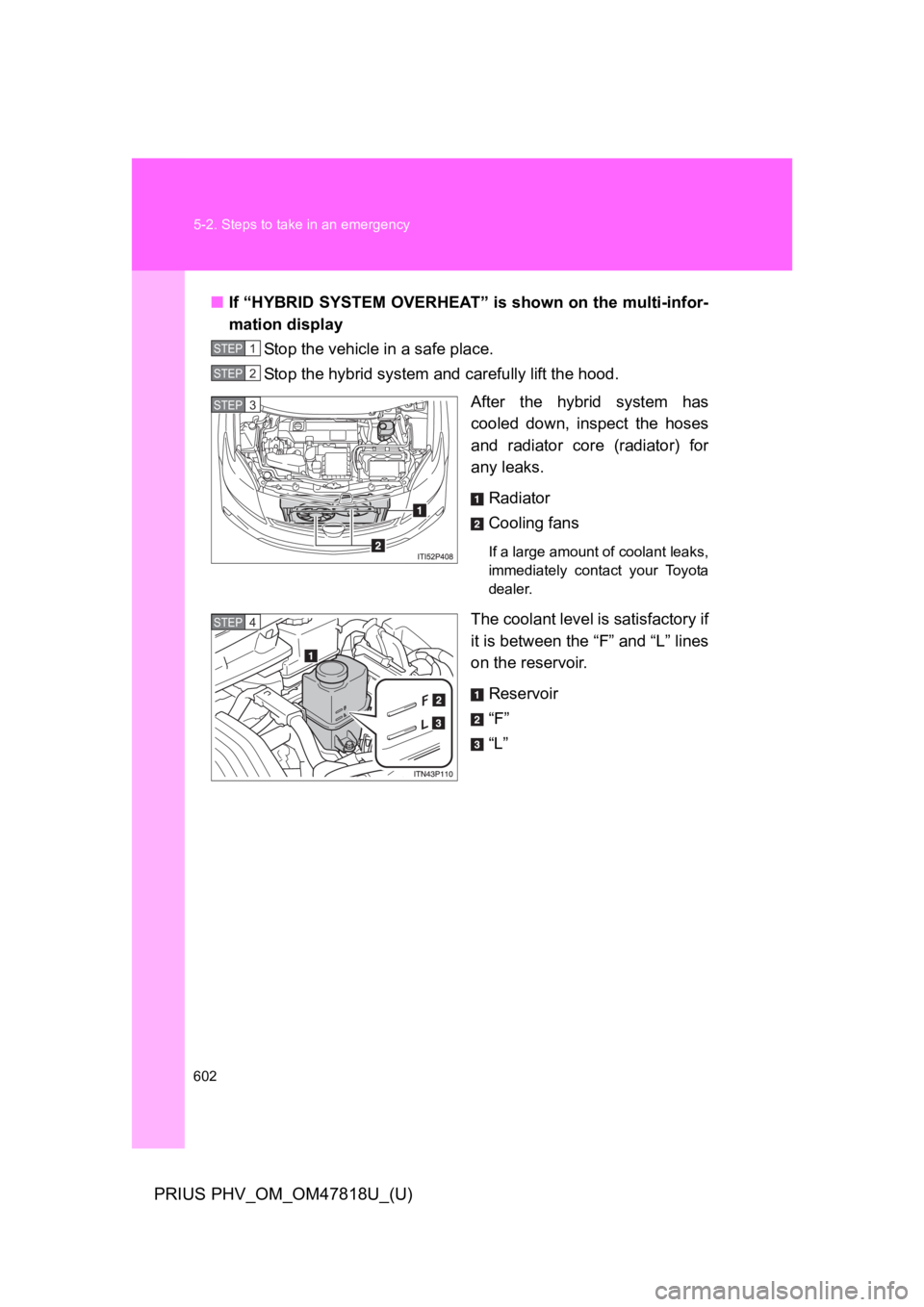

The coolant level is satisfactory if
it is between the “F” and “L” lines
on the reservoir.
Reservoir
“F”
“L”
STEP 1
STEP 2
STEP 3
STEP 4

5
When trouble arises
603
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47818U_(U)

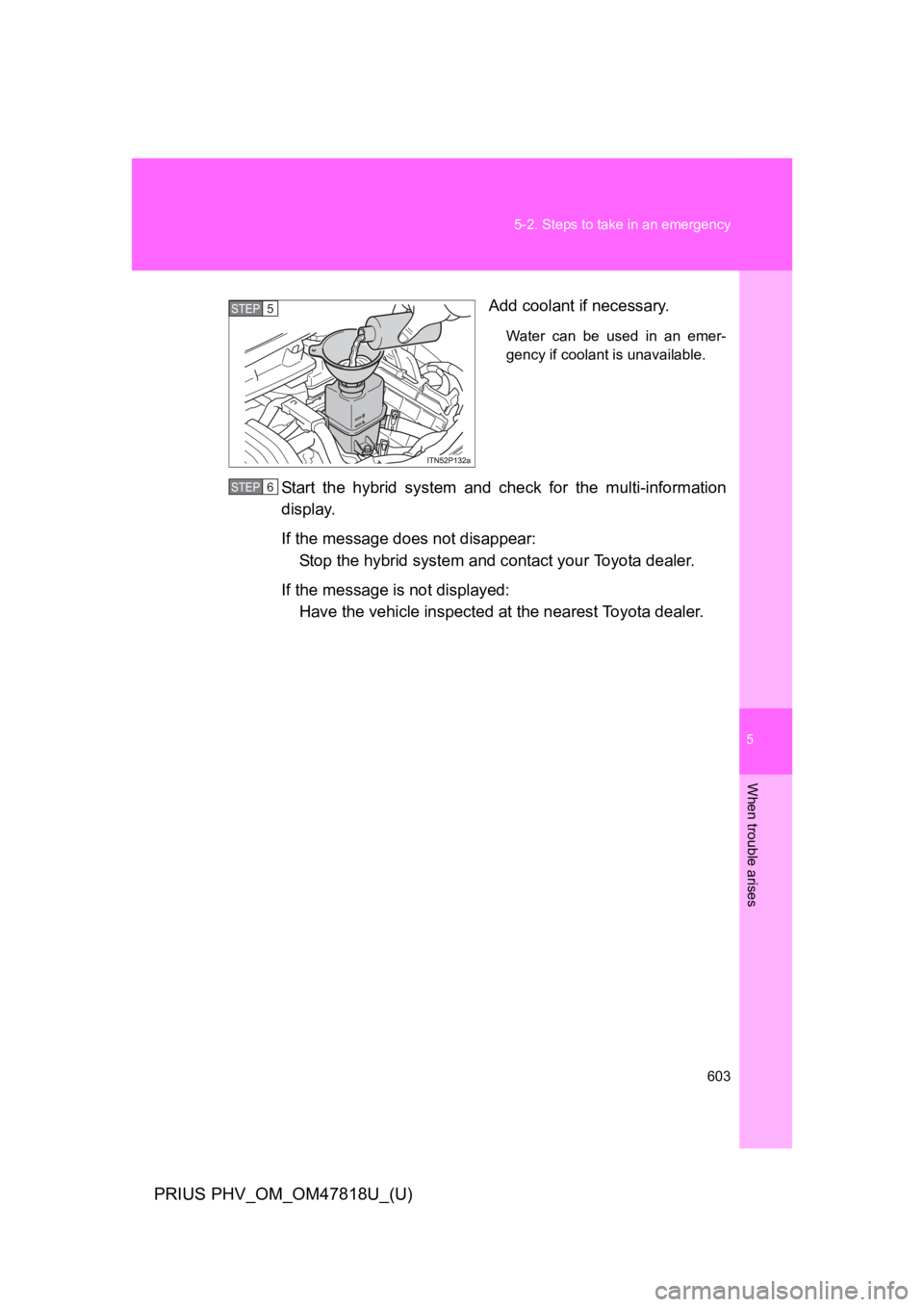

Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Sta rt th e h ybr id system a nd che ck fo r the mu lti-infor ma tion
display.
If the message does not disappear:
St op the hybrid system and contact your Toyota dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Toyota dealer.
STEP 5
STEP 6

604
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47818U_(U)
CAUTION
■To p r e v e n t a n a c c i d e n t o r i n j u r y when inspecting under the hood of
your vehicle
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
●Check that the indicator on the “POWER” switch and the “READY” indica-
tor are off.
●On hybrid vehicles, the gasoline engine may automatically start, or the
cooling fans may suddenly operate even if the gasoline engine stops. Do
not touch or approach rotating parts such as the fans, which may lead to
fingers or clothing (especially a tie, a scarf or a muffler) getting caught,
resulting in serious injury.
●Do not loosen the coolant reservoir cap while the hybrid system and radia-
tor are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power
control unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid sys-
tem too quickly can cause damage to the hybrid system.
■To p r e v e n t d a m a g e t o t h e c o o l i n g s y s t e m
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.)
●Do not use commercially available coolant additives

5
When trouble arises
605
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47818U_(U)
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
■When changing the shift position
Be careful not to change the shift position with the accelerator pedal
depressed.
Changing the shift position to any positions other than P or N may cause the
vehicle to accelerate abruptly, causing an accident and resulting in death or
serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Set the parking brake and shift the shift position to P. Stop
the hybrid system.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires
to help provide traction.
Restart the hybrid system.
Shift the shift position to D or R, release the parking brake
and carefully apply the accelerator to free the vehicle.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

606
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47818U_(U)
NOTICE
■To a v o i d d a m a g e t o t h e h y b r i d transmission and other components
●Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
●If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

5
When trouble arises
607
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47818U_(U)

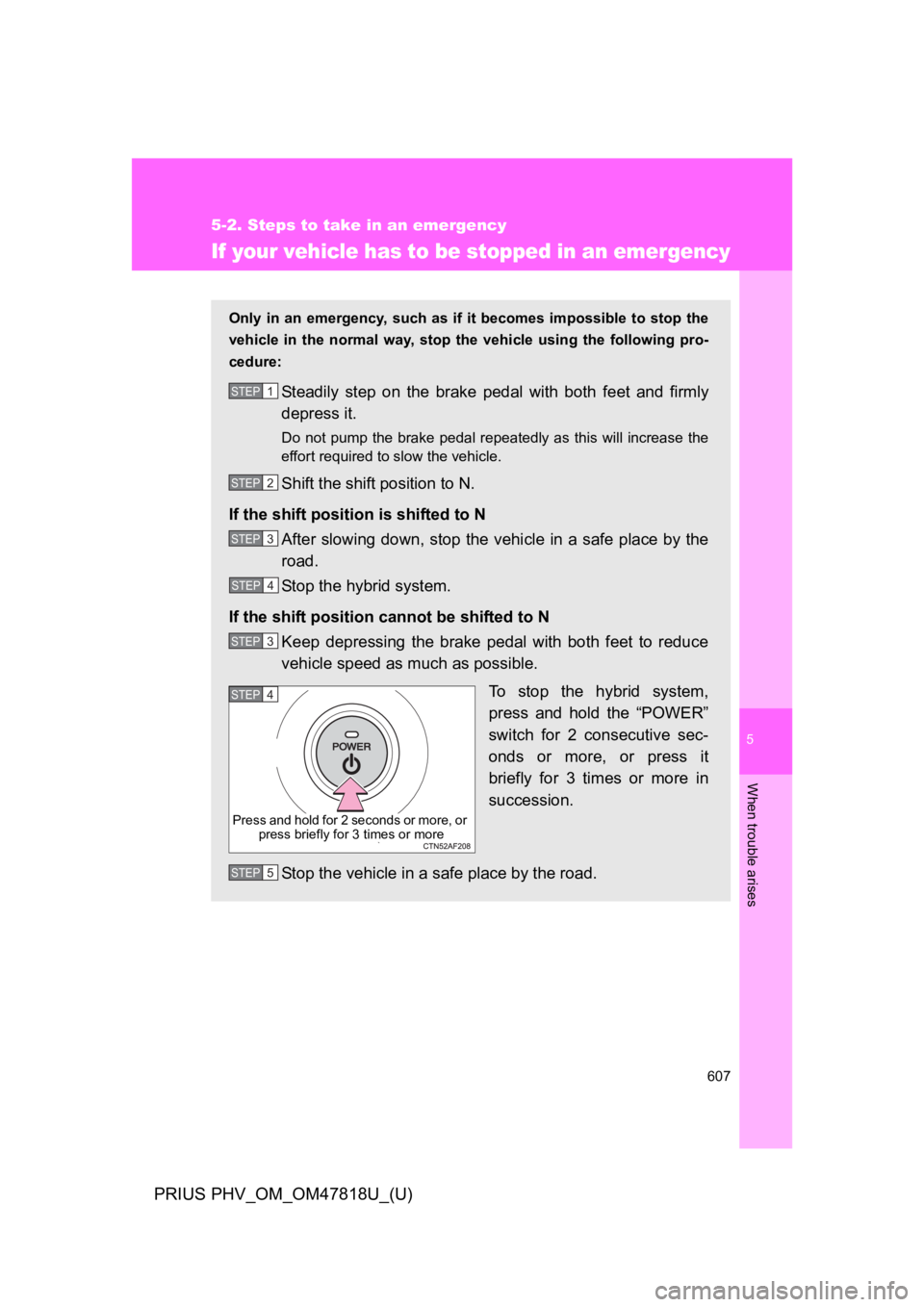

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
St eadily step on the bra ke peda l with bo th fe et and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift position to N.
If the shift position is shifted to N
After slowing down, stop the vehicle in a safe place by the
road.
St op th e hyb rid system.
If the shift position cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
To s t o p t h e h y b r i d s y s t e m ,
press and hold the “POWER”
switch for 2 consecutive sec-
onds or more, or press it
briefly for 3 times or more in
succession.
St op th e veh i cle in a safe place by the ro ad.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 3
STEP 4
Press and hold for 2 seconds or more, or press briefly for 3 times or more
STEP 5
