TOYOTA PRIUS PLUG-IN 2013 Owners Manual

134
1-4. Opening, closing and locking the doors
PRIUS PHV_OM_OM47787U_(U)
Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control or door lock switch.
■Entry function (if equipped)
→P. 1 0 8
■Wireless remote control
→P. 1 3 2
■Door lock switch
Locks all the doors
Unlocks all the doors
■Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.

135
1-4. Opening, closing and locking the doors
1
Before driving
PRIUS PHV_OM_OM47787U_(U)
Locking the front doors from the outside without a key
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “POWER” switch is in ACCESSORY
or ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock
is set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP 1
STEP 2

136
1-4. Opening, closing and locking the doors
PRIUS PHV_OM_OM47787U_(U)
Automatic door locking and unlocking systems
The following functions can be set or canceled:
■Setting and canceling the functions
To s w i t c h b e t w e e n s e t t i n g a n d c a n c e l i n g , f o l l o w t h e p r o c e d u r e
below:
Close all the doors and switch the “POWER” switch to ON
mode. (Perform within 20 seconds.)
FunctionOperation
Shift position linked
door locking function
Shifting the shift position out of P locks all
doors.
Shift position linked
door unlocking function
Shifting the shift position to P unlocks all
doors.
Sp ee d l i n k ed d oo r l oc k -
ing function
All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function
All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
“POWER” switch off.
STEP 1
STEP 2

137
1-4. Opening, closing and locking the doors
1
Before driving
PRIUS PHV_OM_OM47787U_(U)
Shift the shift position to P or N,
and press and hold the door lock
switch ( or ) for about 5
seconds then release.
The shift position corresponding
to the desired function to be set
are shown as follows.
Use the same procedure to can-
cel the function.
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
STEP 2
FunctionShift positionDoor lock switch
position
Shift position linked door lock-
ing functionPShift position linked door
unlocking function
Sp ee d l i n k ed d oo r l oc k i n g f un c -
tionNDriver’s door linked door unlock-
ing function

138
1-4. Opening, closing and locking the doors
PRIUS PHV_OM_OM47787U_(U)
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key.
(→P. 5 9 1 )
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features →P. 6 3 9 )

139
1-4. Opening, closing and locking the doors
1
Before driving
PRIUS PHV_OM_OM47787U_(U)
CAUTION
■To p r e v e n t a n a c c i d e n t
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
●Always lock all the doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear
seats.
■When opening or closing a door
Check the surroundings of the vehicle such as whether the vehicle is on an
incline, whether there is enough space for a door to open and whether a
strong wind is blowing. When opening or closing the door, hold the door han-
dle tightly to prepare for any unpredictable movement.

140
1-4. Opening, closing and locking the doors
PRIUS PHV_OM_OM47787U_(U)

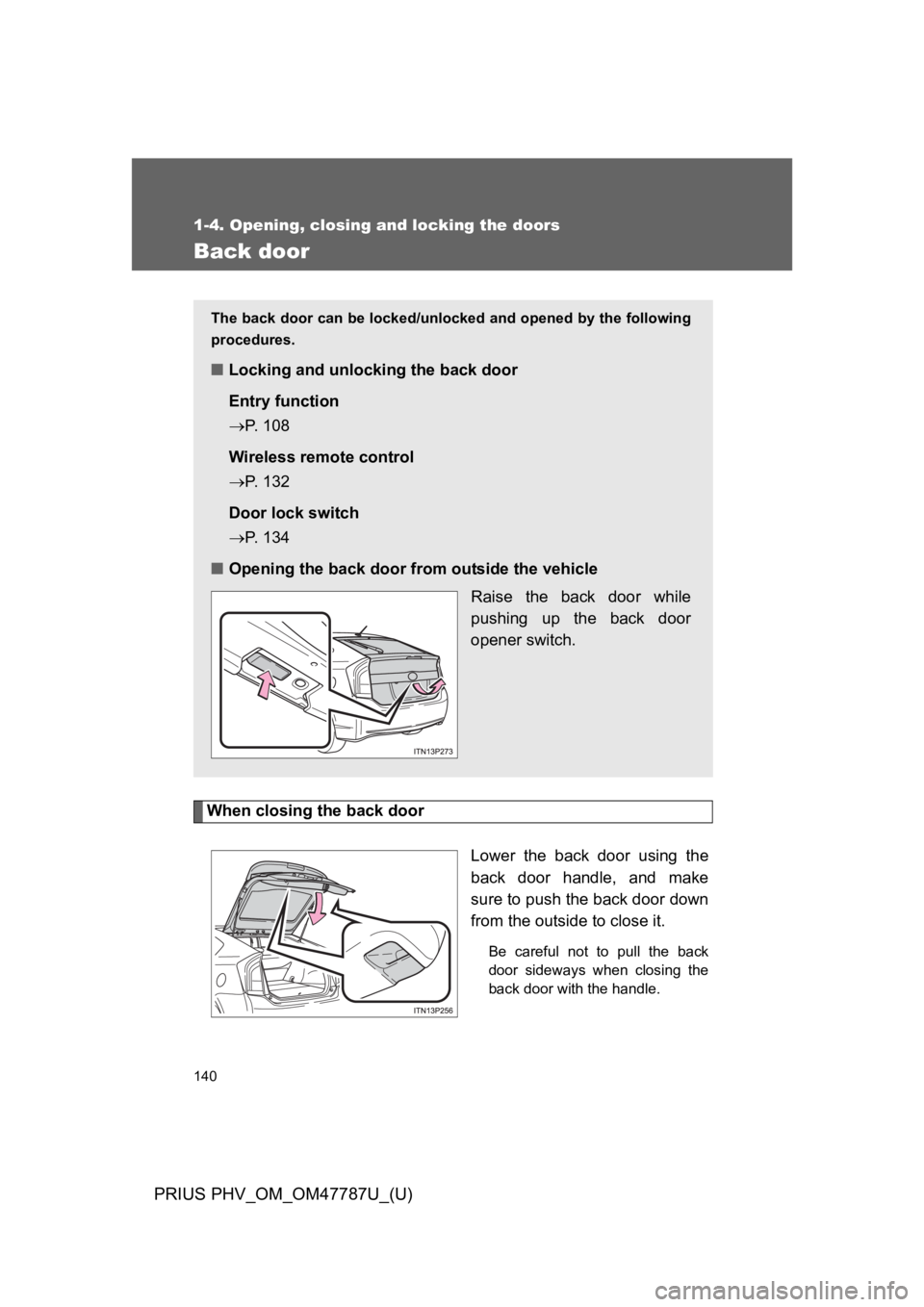

Back door
When closing the back door
Lower the back door using the
back door handle, and make
sure to push the back door down
from the outside to close it.
Be careful not to pull the back
door sideways when closing the
back door with the handle.
The back door can be locked/unlocked and opened by the following
procedures.
■Locking and unlocking the back door
Entry function
→P. 1 0 8
Wireless remote control
→P. 1 3 2
Door lock switch
→P. 1 3 4
■Opening the back door from outside the vehicle
Raise the back door while
pushing up the back door
opener switch.

141
1-4. Opening, closing and locking the doors
1
Before driving
PRIUS PHV_OM_OM47787U_(U)
■Luggage compartment light
The luggage compartment light turns on when the back door is opened with
the luggage compartment light switch on.
■If the back door opener is inoperative
The back door can be unlocked from the inside.
Open the center deck board. (→P. 4 0 3 )
On
Off
STEP 1
Remove the cover.
Move the lever.
STEP 2
STEP 3

142
1-4. Opening, closing and locking the doors
PRIUS PHV_OM_OM47787U_(U)
CAUTION
■Caution while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
●Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
●Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible to death or
serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion.
●Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

143
1-4. Opening, closing and locking the doors
1
Before driving
PRIUS PHV_OM_OM47787U_(U)
CAUTION
■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
●When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
●Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
●The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
