3-1. Using the air conditioning system and defogger

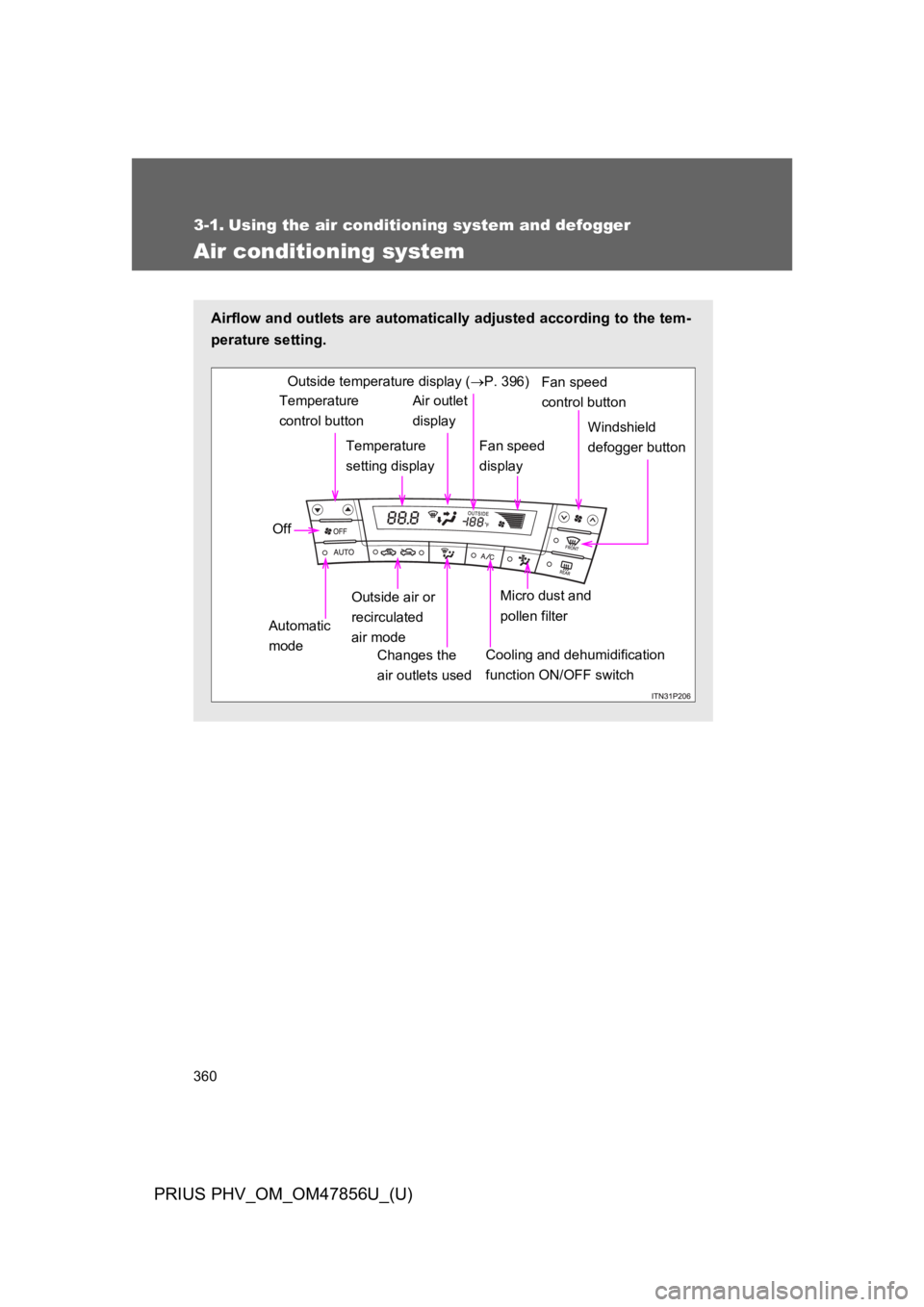

Air conditioning system
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Temperature
control button
Temperature
setting display
Air outlet
display
Fan speed
display
Windshield
defogger button
Off
Automatic
mode
Outside air or
recirculated
air mode
Changes the
air outlets used
Fan speed
control button
Outside temperature display (→P. 396)
Micro dust and
pollen filter
Cooling and dehumidification
function ON/OFF switch

361
3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47856U_(U)
3
Interior features
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “▲” to increase the temperature and “▼” to decrease
the temperature on the .
Adjusting the settings
■Changing the cooling and dehumidification function
Press .
The cooling and dehumidification function switches between on and off
each time the button is pressed.
■Adjusting the temperature setting
Press “▲” to increases the temperature and “▼” to decreases the
temperature on the .
■Adjusting the fan speed
Press ∧ (increase) or ∨ (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
STEP 1
STEP 2

362
3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47856U_(U)

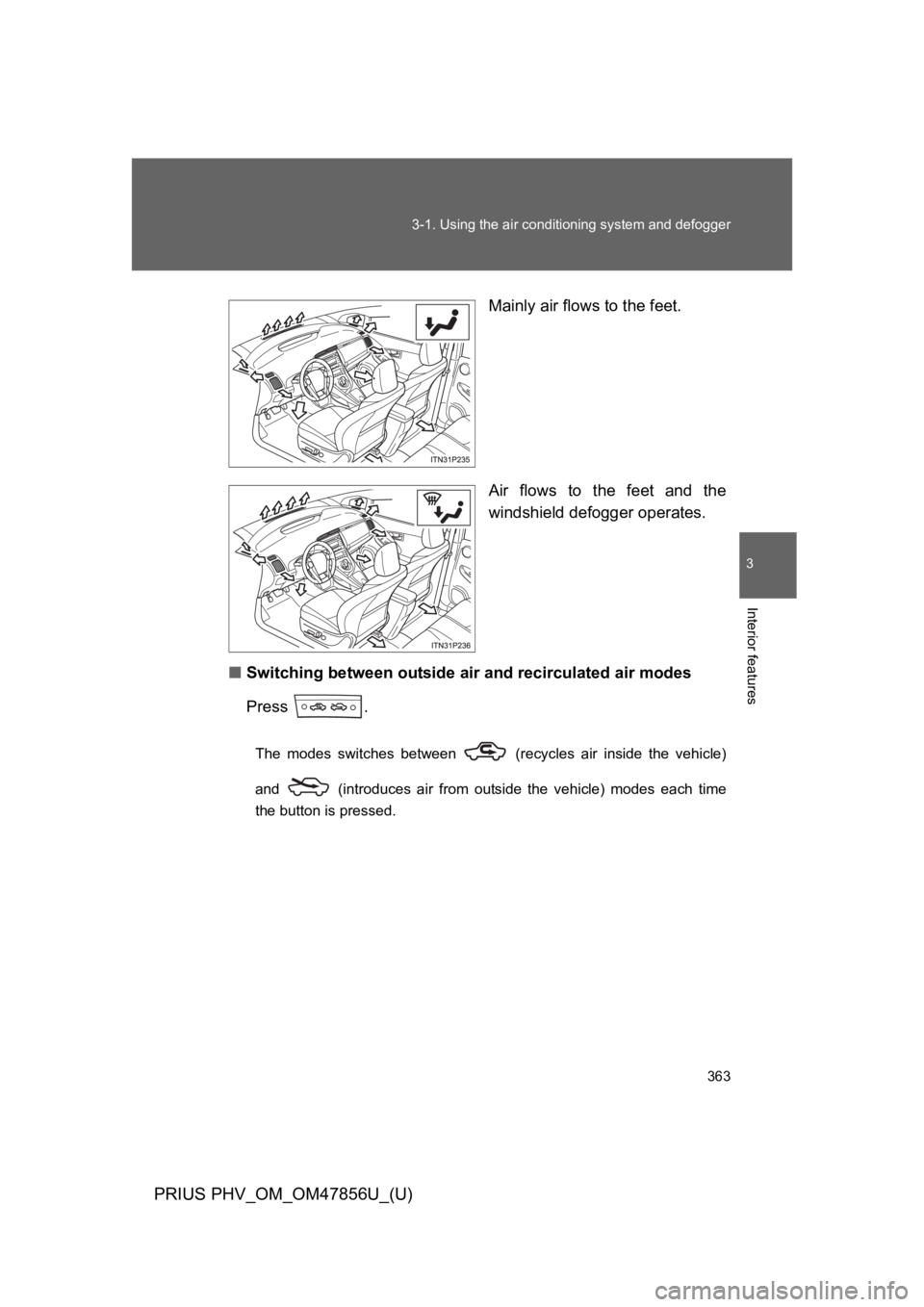

■Changing the air outlets
Press .
The air outlets switch each time
the button is pressed.
Air flows to the upper body.
Air flows to the upper body and
feet.
ITO31P105

363
3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47856U_(U)
3
Interior features
Mainly air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
■Switching between outside air and recirculated air modes
Press .
The modes switches between (recycles air inside the vehicle)
and (introduces air from outside the vehicle) modes each time
the button is pressed.

364

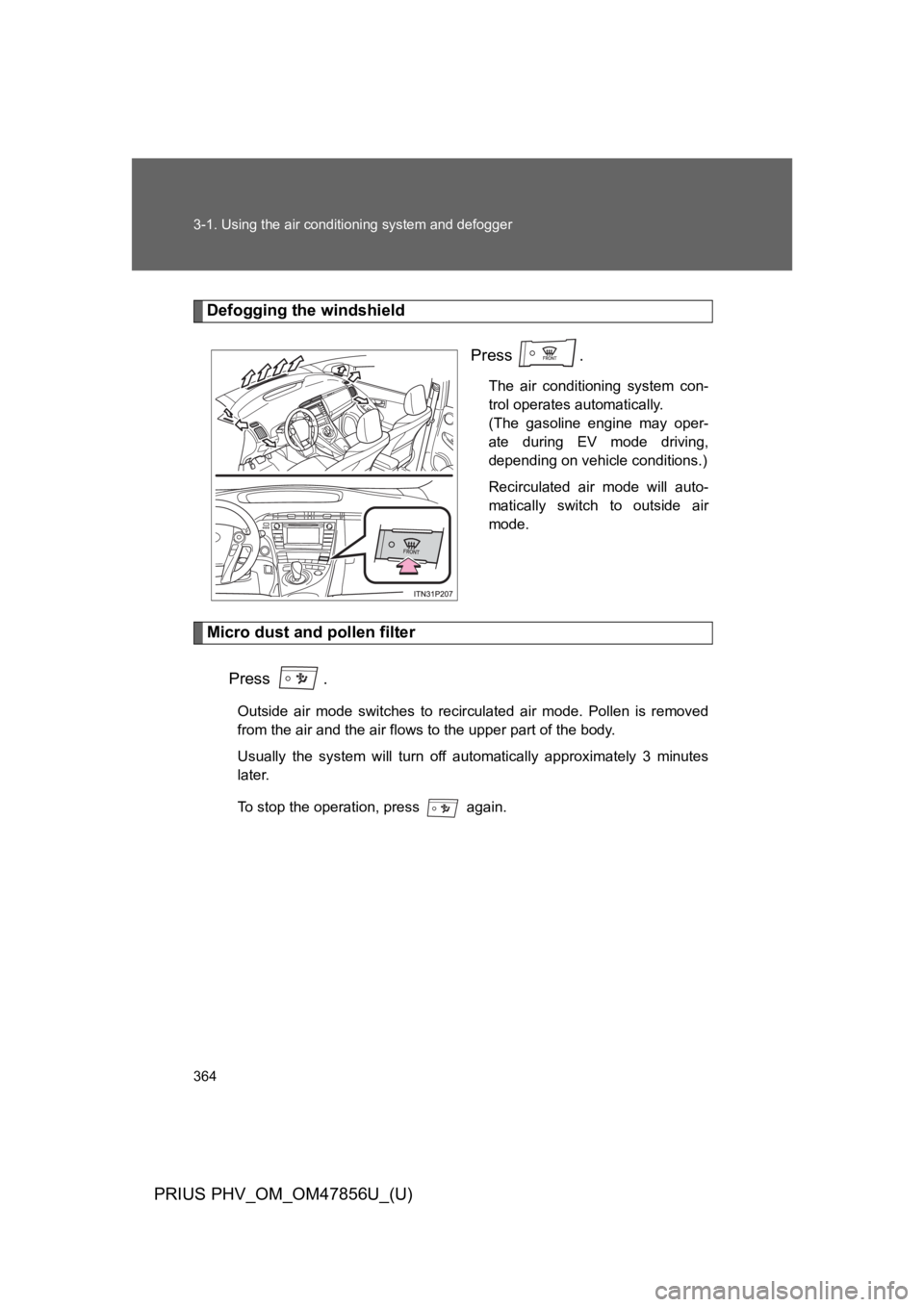

3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47856U_(U)
Defogging the windshield
Press .
The air conditioning system con-
trol operates automatically.
(The gasoline engine may oper-
ate during EV mode driving,
depending on vehicle conditions.)
Recirculated air mode will auto-
matically switch to outside air
mode.
Micro dust and pollen filter
Press .
Outside air mode switches to recirculated air mode. Pollen is removed
from the air and the air flows to the upper part of the body.
Usually the system will turn off automatically approximately 3 minutes
later.
To s t o p t h e o p e r a t i o n , p r e s s a g a i n .

365
3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47856U_(U)
3
Interior features

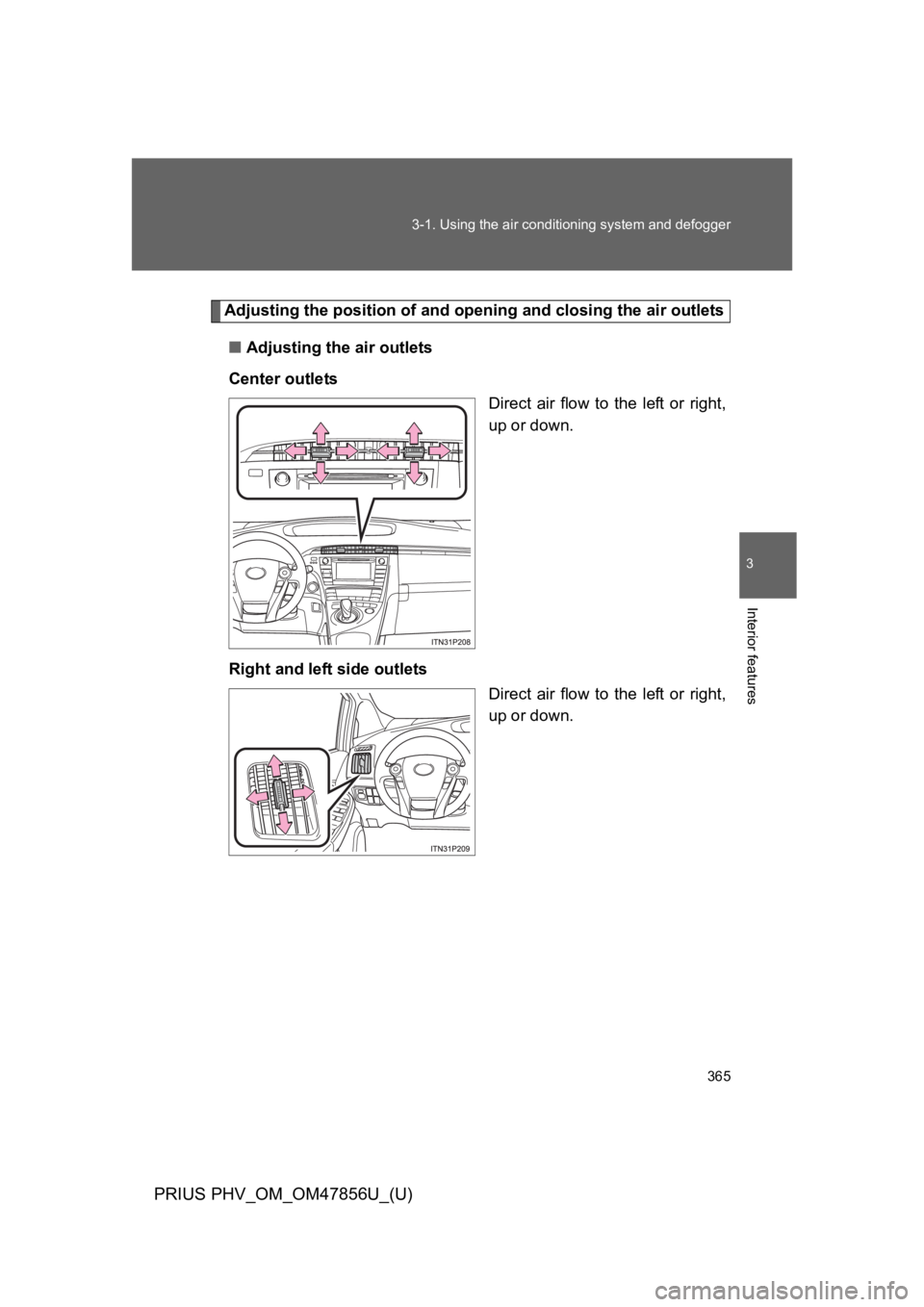

Adjusting the position of and opening and closing the air outlets
■Adjusting the air outlets
Center outlets
Direct air flow to the left or right,
up or down.
Right and left side outlets
Direct air flow to the left or right,
up or down.

366
3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47856U_(U)

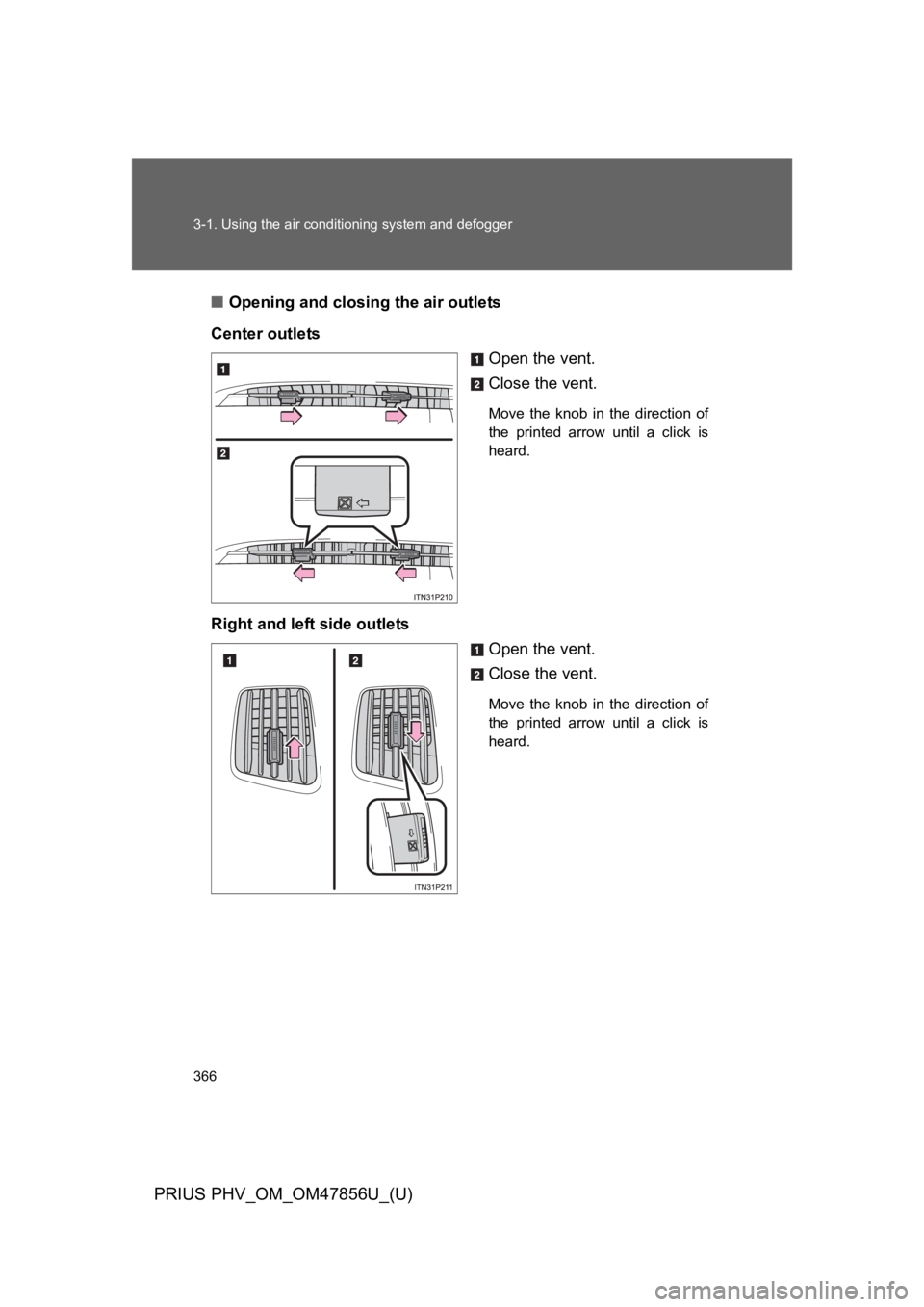

■Opening and closing the air outlets
Center outlets
Open the vent.
Close the vent.
Move the knob in the direction of
the printed arrow until a click is
heard.
Right and left side outlets
Open the vent.
Close the vent.
Move the knob in the direction of
the printed arrow until a click is
heard.

367
3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47856U_(U)
3
Interior features
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions, etc. As a result, the following may occur.
●Immediately after is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is
on.
■Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched in
accordance with under these condition, such as temperature setting and
inside temperature.
Also, outside air mode may be automatically switched to when the outside
temperature is low.
■When the outside temperature exceeds 75 °F (24 °C) and the air condi-
tioning system is on
●In order to reduce the air conditioning power consumption, the air condi-
tioning system may switch to recirculated air mode automatically. This
may also reduce fuel consumption.
●Recirculated air mode is selected as a default mode when the “POWER”
switch is turned to ON mode.
●It is possible to switch to outside air mode at any time by pressing
.
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used.

368
3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47856U_(U)
■Window defogger feature
●Recirculated air mode may automatically switch to outside air mode in
situations where the windows need to be defogged.
●When the outside air temperature is low, it may take a while for the con-
densation to clear from the windshield.
●When is turned ON, the gasoline engine may operate depending
on driving conditions. After that, even if is turned OFF, the fan
does not stop and a state in which it is easy for the gasoline engine to
operate continues. After defogging the windows, press as neces-
sary to turn off the fan.
■When is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the temperature setting.
■Micro dust and pollen filter
●In order to prevent the windows from fogging up when the outside air is
cold, the following may occur.
•Outside air mode does not switch to recirculated air mode.
•The air conditioning system operates automatically.
•The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .
●Condensation may appear on the windows if this mode is used in abnor-
mally high levels of humidity.
●Pollen will be collected by the filter even when micro dust and pollen filter
mode is OFF.
■Maintenance of the air conditioning filter
The air conditioning filter must be cleaned or changed regularly to maintain
air conditioning efficiency according to the maintenance schedule. In dusty
areas or areas with heavy traffic flow, early replacement may be required.
(For scheduled maintenance information, refer to the “Owner’s Manual Sup-
plement/ Scheduled Maintenance Guide”.)
When inspecting, cleaning and replacing the air conditioning filter, contact
your Toyota dealer.

369
3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47856U_(U)
3
Interior features
■If air flow from the vents decreases dramatically
The filter may be clogged. Contact your Toyota dealer.
■Operation of the air conditioning system in Eco drive mode
In the Eco drive mode, the air conditioning system is controlled as follows to
prioritize fuel efficiency:
●Engine speed and compressor operation controlled to restrict heating/
cooling capacity
●Fan speed restricted when automatic mode is selected
To i m p r o v e a i r c o n d i t i o n i n g p e r f o r m a n c e , p e r f o r m t h e f o l l o w i n g o p e r a t i o n s :
●Adjust the fan speed
●Turn off Eco drive mode (→P. 2 4 9 )
●Customize the air conditioning control of Eco drive mode. (→P. 6 4 3 )
■When outside air temperature is below 32 °F (0 °C)
The cooling and dehumidification function may not operate even when
is pressed.
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
●To r e d u c e p o t e n t i a l o d o r s f r o m o c c u r r i n g :
•It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
•The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.
■Customization
Settings (e.g. enable/disable automatic operation of the air conditioning
compressor when the “AUTO” switch ON) can be changed.
(Customizable features →P. 6 4 3 )
