TOYOTA PRIUS PLUG-IN 2014 Owners Manual

390
3-4. Using the storage features
PRIUS PHV_OM_OM47856U_(U)
Cup holders
Front (type A)
Lift the lid.
Front (type B)
Rear (if equipped)
Pull down the armrest.
ITO35P113
Cup holders

391
3-4. Using the storage features
PRIUS PHV_OM_OM47856U_(U)
3
Interior features
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of sudden braking,
sudden swerving or an accident and cause injury. If possible, cover hot
drinks to prevent burns.
■When not in use
Keep the cup holders closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Cup holders

392
3-4. Using the storage features
PRIUS PHV_OM_OM47856U_(U)
Bottle holders
ITO35P121
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than pet bottles in the bottle holders.
Other items may be thrown out of the holders in the event of sudden braking,
sudden swerving or an accident and cause injury.
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

393
3-4. Using the storage features
PRIUS PHV_OM_OM47856U_(U)
3
Interior features
Auxiliary boxes
Ty p e A
Ty p e B
Push the lid.
The overhead console is useful
for temporarily storing small
items.
CAUTION
■While driving
Do not leave the overhead console open.
Items may fall out and cause injury.
■Maximum storage weight
Do not place any object heavier than 0.4 lb. (200 g) in it. The console may
be opened and cause injury.
Auxiliary boxes

394
PRIUS PHV_OM_OM47856U_(U)
3-5. Other interior features

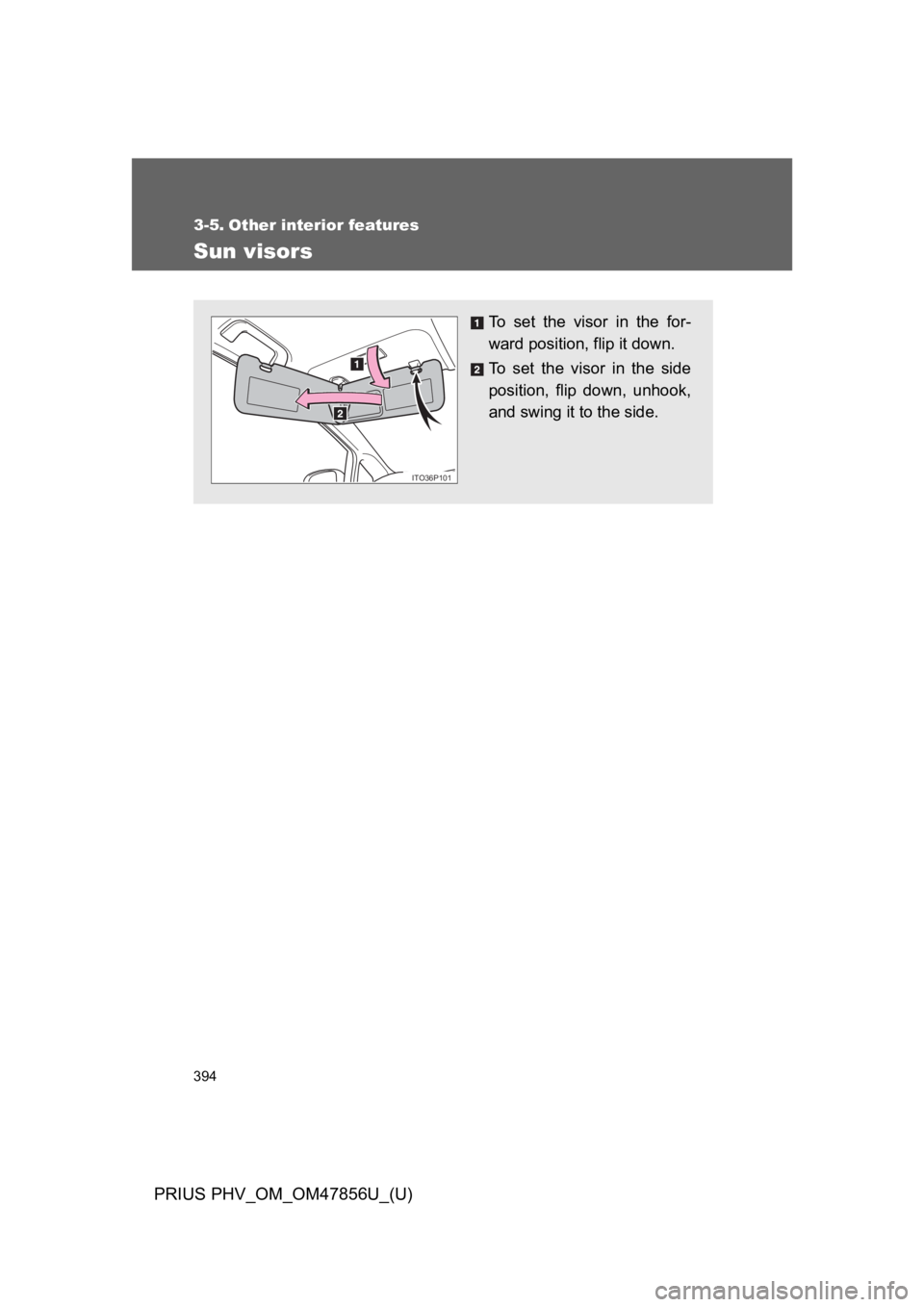

Sun visors
To s e t t h e v i s o r i n t h e f o r -
ward position, flip it down.
To s e t t h e v i s o r i n t h e s i d e
position, flip down, unhook,
and swing it to the side.
ITO36P101

395
3-5. Other interior features
PRIUS PHV_OM_OM47856U_(U)
3
Interior features
Vanity mir r or s
NOTICE
■To p r e v e n t 1 2 - v o l t b a t t e r y d i s c h a r g e
Do not leave the vanity lights on for extended periods while the hybrid sys-
tem is off.
Slide the cover to open.
The light turns on when the
cover is opened.
ITO36P103

396
3-5. Other interior features
PRIUS PHV_OM_OM47856U_(U)
Outside temperature display
■Operating conditions
The “POWER” switch is in ON mode.
■Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 16 mph [25 km/h])
●When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
■When -- is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
The displayed temperature ranges from -40 °F (-40 °C) up to 122 °F
(50 °C).

397
3-5. Other interior features
PRIUS PHV_OM_OM47856U_(U)
3
Interior features

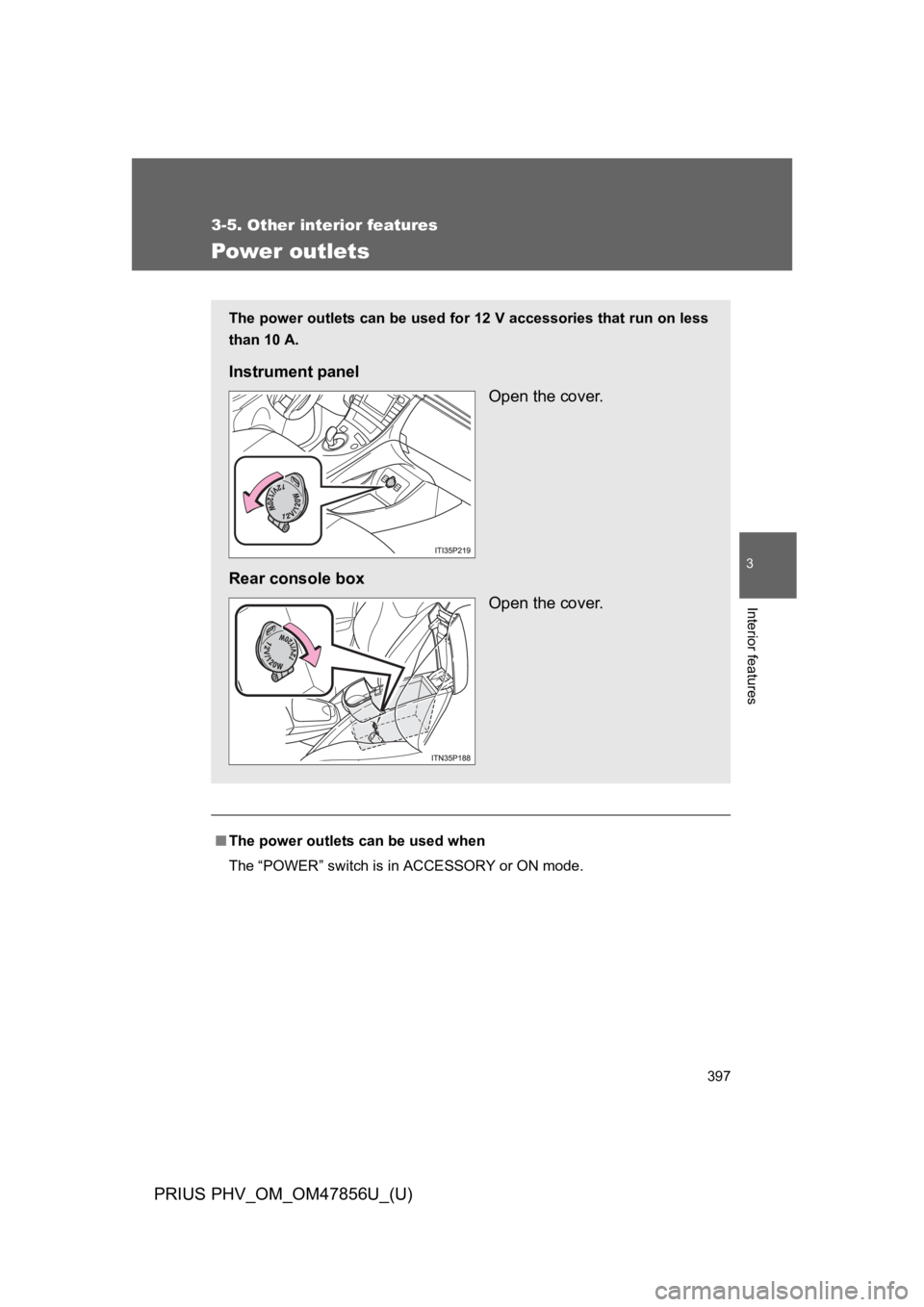

Power outlets
■The power outlets can be used when
The “POWER” switch is in ACCESSORY or ON mode.
The power outlets can be used for 12 V accessories that run on less
than 10 A.
Instrument panel
Open the cover.
Rear console box
Open the cover.

398
3-5. Other interior features
PRIUS PHV_OM_OM47856U_(U)
NOTICE
■To a v o i d d a m a g i n g t h e p o w e r o u t l e ts
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■To p r e v e n t b l o w n f u s e
Do not use an accessory that uses more than 12 V 10 A.
■To p r e v e n t 1 2 - v o l t b a t t e r y d i s c h a r g e
Do not use the power outlets longer than necessary when the hybrid system
is off.

399
3-5. Other interior features
PRIUS PHV_OM_OM47856U_(U)
3
Interior features

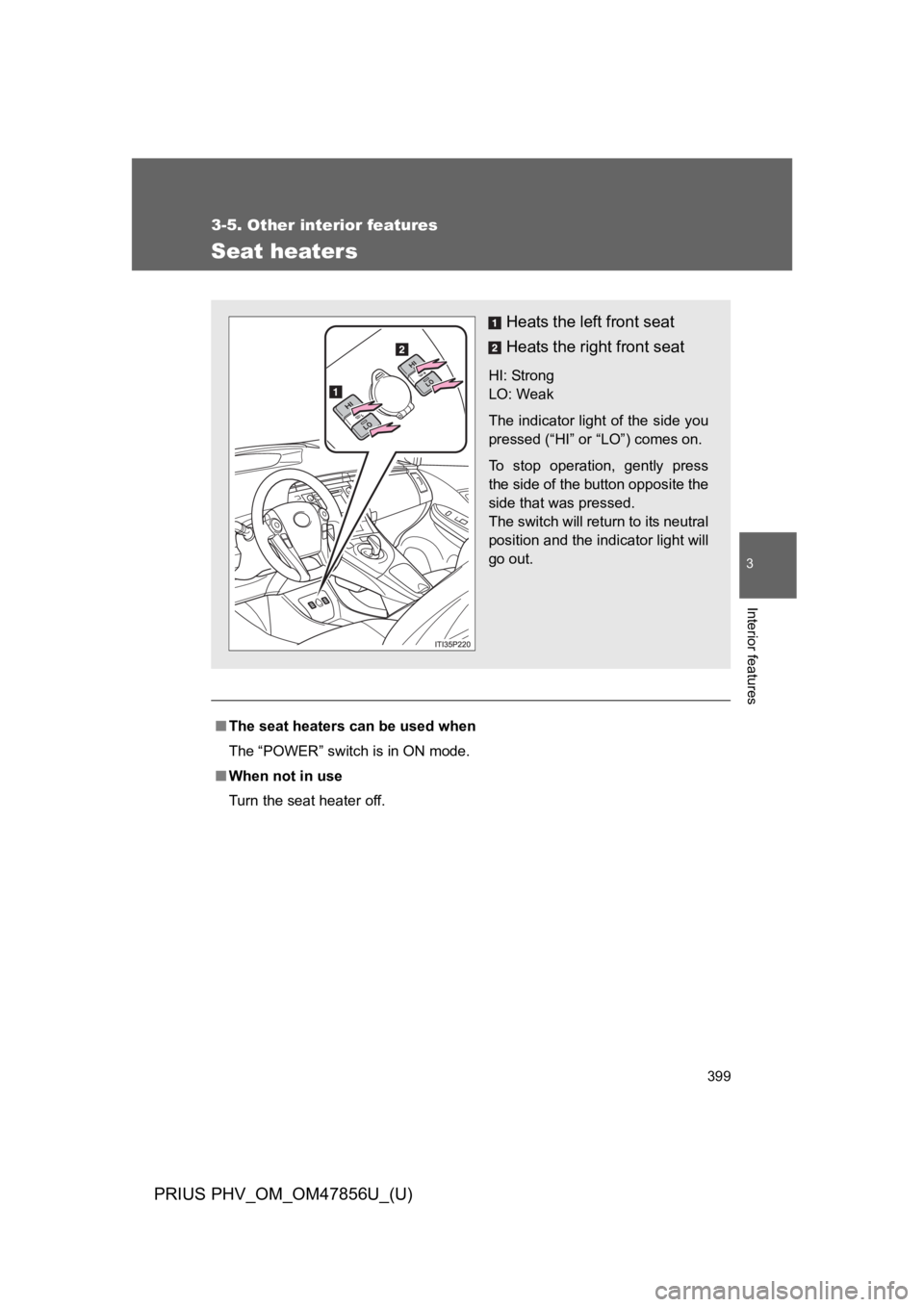

Seat heaters
■The seat heaters can be used when
The “POWER” switch is in ON mode.
■When not in use
Turn the seat heater off.
Heats the left front seat
Heats the right front seat
HI: Strong
LO: Weak
The indicator light of the side you
pressed (“HI” or “LO”) comes on.
To s t o p o p e r a t i o n , g e n t l y p r e s s
the side of the button opposite the
side that was pressed.
The switch will return to its neutral
position and the indicator light will
go out.
