TOYOTA PRIUS PLUG-IN 2014 Owners Manual

431
4-1. Maintenance and care
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care
■Caring for leather areas
To y o t a r e c o m m e n d s c l e a n i n g t h e i n t e r i o r o f t h e v e h i c l e a t l e a s t t w i c e a y e a r
to maintain the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a
sponge or brush to apply the foam. Rub in overlapping circles. Do not use
water. Wipe dirty surfaces and let them dry. Excellent results are obtained by
keeping the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
CAUTION
■Water in the vehicle
●Do not splash or spill liquid in the vehicle, such as on the floor, in the
hybrid battery (traction battery) air vents, and in the luggage compartment.
Doing so may cause the hybrid battery (traction battery), electrical compo-
nents, etc. to malfunction or catch fire.
●Do not get any of the SRS components or wiring in the vehicle interior wet.
(→P. 1 8 9 )
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
■Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off
the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.

432
4-1. Maintenance and care
PRIUS PHV_OM_OM47856U_(U)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
•Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
•Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Ve h i c l e s y s t e m s s uc h a s t h e a u d i o s y s t e m m a y b e d a m a g e d i f w a t e r c om e s
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
●Be careful not to scratch or damage the heater wires.

433
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care
4-2. Maintenance

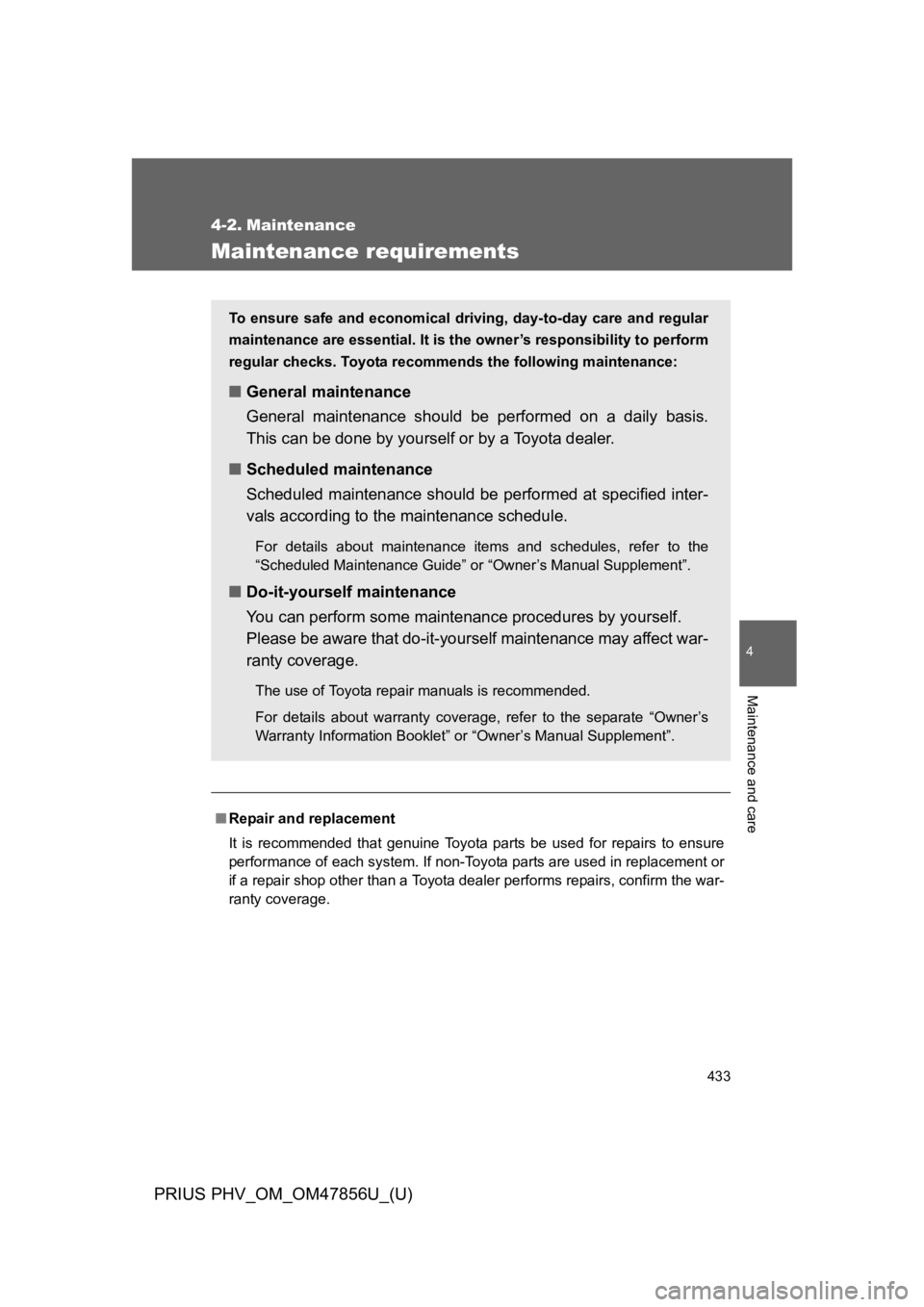

Maintenance requirements
■Repair and replacement
It is recommended that genuine Toyota parts be used for repairs to ensure
performance of each system. If non-Toyota parts are used in replacement or
if a repair shop other than a Toyota dealer performs repairs, confirm the war-
ranty coverage.
To e n s u r e s a f e a n d e c o n o m i c a l d r i ving, day-to-day care and regular
maintenance are essential. It is the owner’s responsibility to perform
regular checks. Toyota recommends the following maintenance:
■General maintenance
General maintenance should be performed on a daily basis.
This can be done by yourself or by a Toyota dealer.
■Scheduled maintenance
Scheduled maintenance should be performed at specified inter-
vals according to the maintenance schedule.
For details about maintenance items and schedules, refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.
■Do-it-yourself maintenance
Yo u c a n p e r f o r m s o m e m a i n t e n a n c e p r o c e d u r e s b y y o u r s e l f .
Please be aware that do-it-yourself maintenance may affect war-
ranty coverage.
The use of Toyota repair manuals is recommended.
For details about warranty coverage, refer to the separate “Owner’s
Warranty Information Booklet” or “Owner’s Manual Supplement”.

434
4-2. Maintenance
PRIUS PHV_OM_OM47856U_(U)
■Reset the maintenance data (U.S.A. only)
After the required maintenance is performed according to the maintenance
schedule, please reset the maintenance data.
To r e s e t t h e d a t a , f o l l o w t h e p r o c e d u r e s d e s c r i b e d b e l o w :
Turn the “POWER” switch off with the trip meter A shown.
Turn the “POWER” switch to ON mode with the MPH or km/h button
(→P. 2 6 1 ) h e l d d o w n .
Keep pressing the button until the trip meter indicates “000000” and
the multi-information display indicates that the reset is complete.
■Allow inspection and repairs to be performed by a Toyota dealer
●Toyota technicians are well-trained specialists and are kept up to date
with the latest service information. They are well informed about the
operation of all systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly
take care of it.
STEP 1
STEP 2
STEP 3

435
4-2. Maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care
CAUTION
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.
■Handling of the 12-volt battery
●Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor-
nia to cause cancer and birth defects or other reproductive harm. Avoid
exposure and wash any affected area immediately.
●12-volt battery posts, terminals and related accessories contain lead and
lead compounds which are known to cause brain damage. Wash your
hands after handling. (→P. 4 7 4 )

436
4-2. Maintenance
PRIUS PHV_OM_OM47856U_(U)
General maintenance
Engine compartment
ItemsCheck points
Brake fluidIs the brake fluid at the correct
level? (→P. 4 7 0 )
Engine/power control unit coolant
Is the engine/power control unit
coolant at the correct level?
(→P. 4 6 7 )
Engine oilIs the engine oil at the correct
level? (→P. 4 6 3 )
Exhaust systemThere should not be any fumes or
strange sounds.
Radiator/condenser
The radiator and condenser
should be free from foreign
objects. (→P. 4 6 9 )
Washer fluidIs there sufficient washer fluid?
(→P. 4 7 2 )
Listed below are the general maintenance items that should be per-
formed at the intervals specified in the “Owner’s Warranty Informa-
tion Booklet” or “Owner’s Manual Supplement/Scheduled
Maintenance Guide”. It is recommended that any problem you notice
should be brought to the attention of your Toyota dealer or qualified
service shop for advice.

437
4-2. Maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care
Luggage compartment
Ve h i c l e i n t e r i o r
ItemsCheck points
12-volt battery Check the connections. (→P. 4 7 4 )
ItemsCheck points
Accelerator pedal
•The accelerator pedal should
move smoothly (without uneven
pedal effort or catching).
Hybrid transmission “Park” mech-
anism
•When parked on a slope and the
shift position is in P, is the vehicle
securely stopped?
Brake pedal
•Does the brake pedal move
smoothly?
•Does the brake pedal have appro-
priate clearance from the floor?
(→P. 6 2 3 )
•Does the brake pedal have the
correct amount of free play?
(→P. 6 2 3 )
Brakes
•The vehicle should not pull to one
side when the brakes are applied.
•The brakes should work effec-
tively.
•The brake pedal should not feel
spongy.
•The brake pedal should not get
too close to the floor when the
brakes are applied.

438
4-2. Maintenance
PRIUS PHV_OM_OM47856U_(U)
Head restraints•Do the head restraints move
smoothly and lock securely?
Indicators/buzzers•Do the indicators and buzzers
function properly?
Lights • Do all the lights come on?
Parking brake
•Does the parking brake pedal
move smoothly?
•When parked on a slope and the
parking brake is on, is the vehicle
securely stopped?
Seat belts
• Do the seat belts operate
smoothly?
•The seat belts should not be dam-
aged.
Seats•Do the seat controls operate
properly?
Steering wheel
•Does the steering wheel rotate
smoothly?
•Does the steering wheel have the
correct amount of free play?
•There should not be any strange
sounds coming from the steering
wheel.
ItemsCheck points

439
4-2. Maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care
Ve h i c l e e x t e r i o r
ItemsCheck points
Doors • Do the doors operate smoothly?
Engine hood•Does the engine hood lock sys-
tem work properly?
Fluid leaks
•There should not be any signs of
fluid leakage after the vehicle has
been parked.
Tires
•Is the tire inflation pressure cor-
rect?
•The tires should not be dam-
aged or excessively worn.
•Have the tires been rotated
according to the maintenance
schedule?
•The wheel nuts should not be
loose.
Windshield wipers/rear window
wiper
•The wiper blades should not show
any signs of cracking, splitting,
wear, contamination or deforma-
tion.
•The wiper blades should clear the
windshield/rear window without
streaking or skipping.

440
4-2. Maintenance
PRIUS PHV_OM_OM47856U_(U)
Charging equipment
ItemsCheck points
Charging cable
•Check that the electrical leakage
detection function operates prop-
erly. (→P. 1 0 7 )
CAUTION
■If the hybrid system is operating
Turn the hybrid system off and ensure that there is adequate ventilation
before performing maintenance checks.
