TOYOTA PRIUS PLUG-IN 2014 Owners Manual

511
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care
Replacing light bulbs
■Headlight low beams (halogen headlights)
Turn the bulb base counterclock-
wise.
■Rear bulb locations
Rear turn signal light
Back-up lightLicense plate lights
STEP 1

512
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

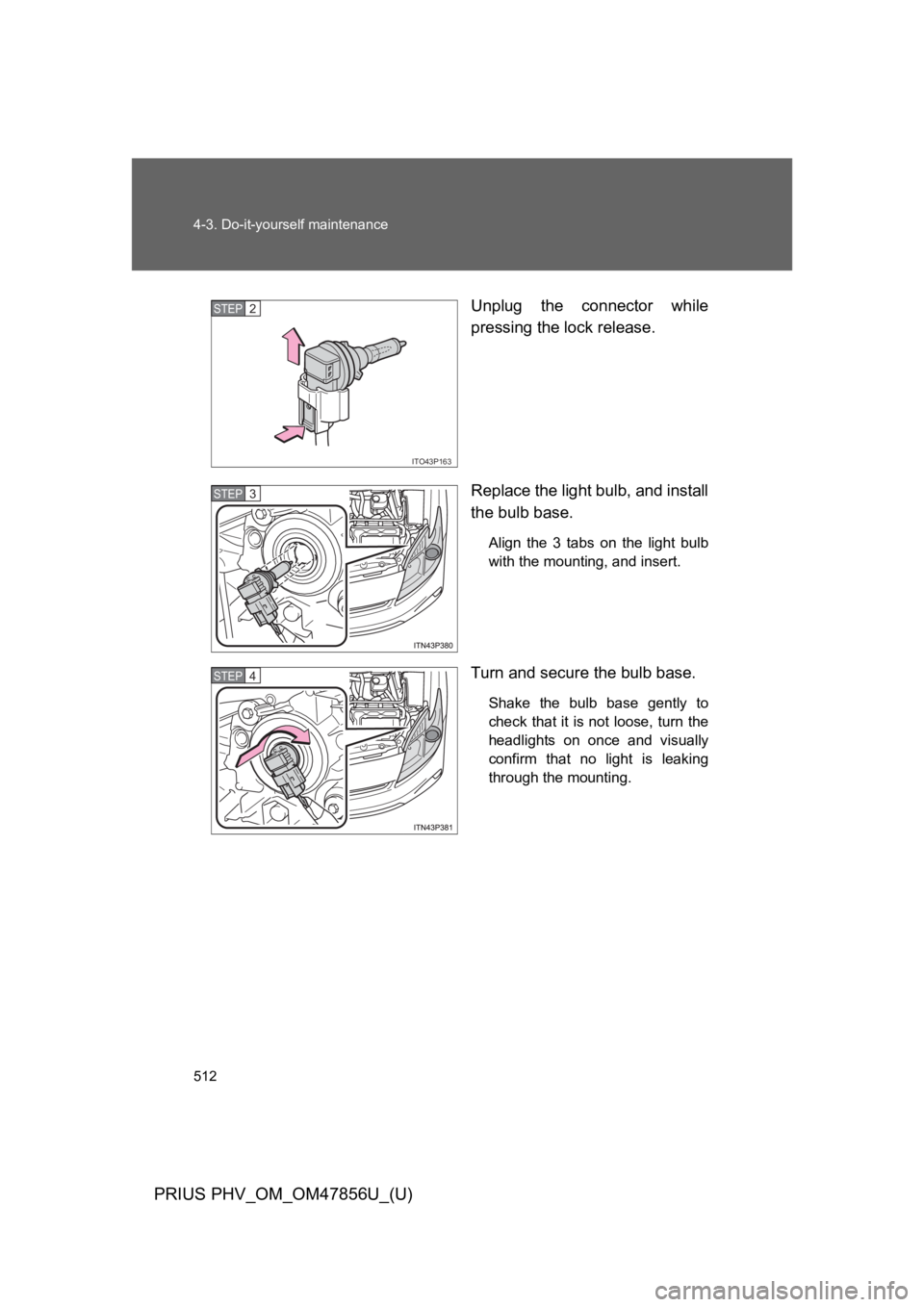

Unplug the connector while
pressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
ITO43P163
STEP 2
STEP 3
STEP 4

513
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care

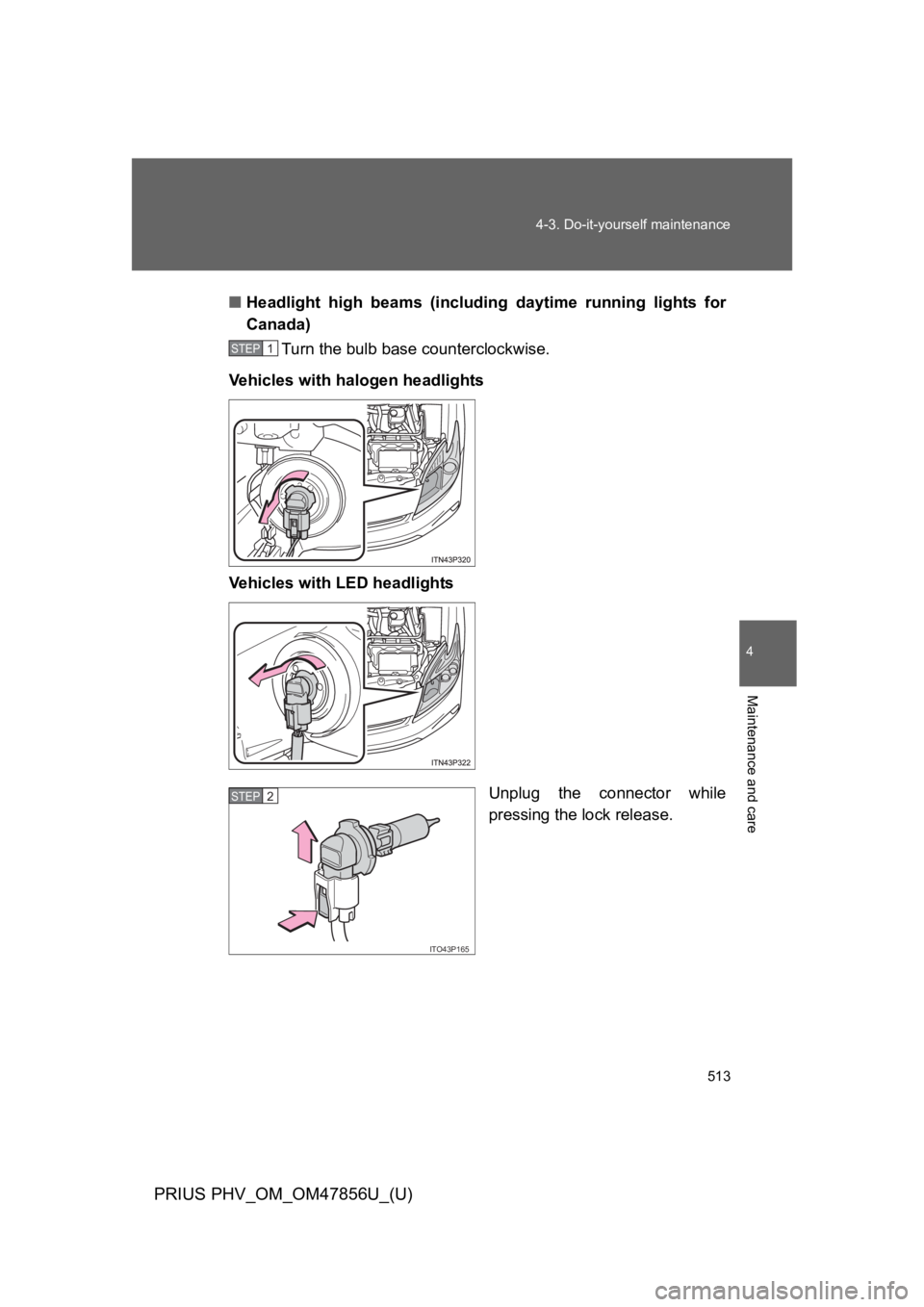

■Headlight high beams (including daytime running lights for
Canada)
Turn the bulb base counterclockwise.
Ve h i c l e s w i t h h a l o g e n h e a d l i g h ts
Ve h i c l e s w i t h L E D h e a d l i g h ts
Unplug the connector while
pressing the lock release.
STEP 1
ITO43P165
STEP 2

514
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

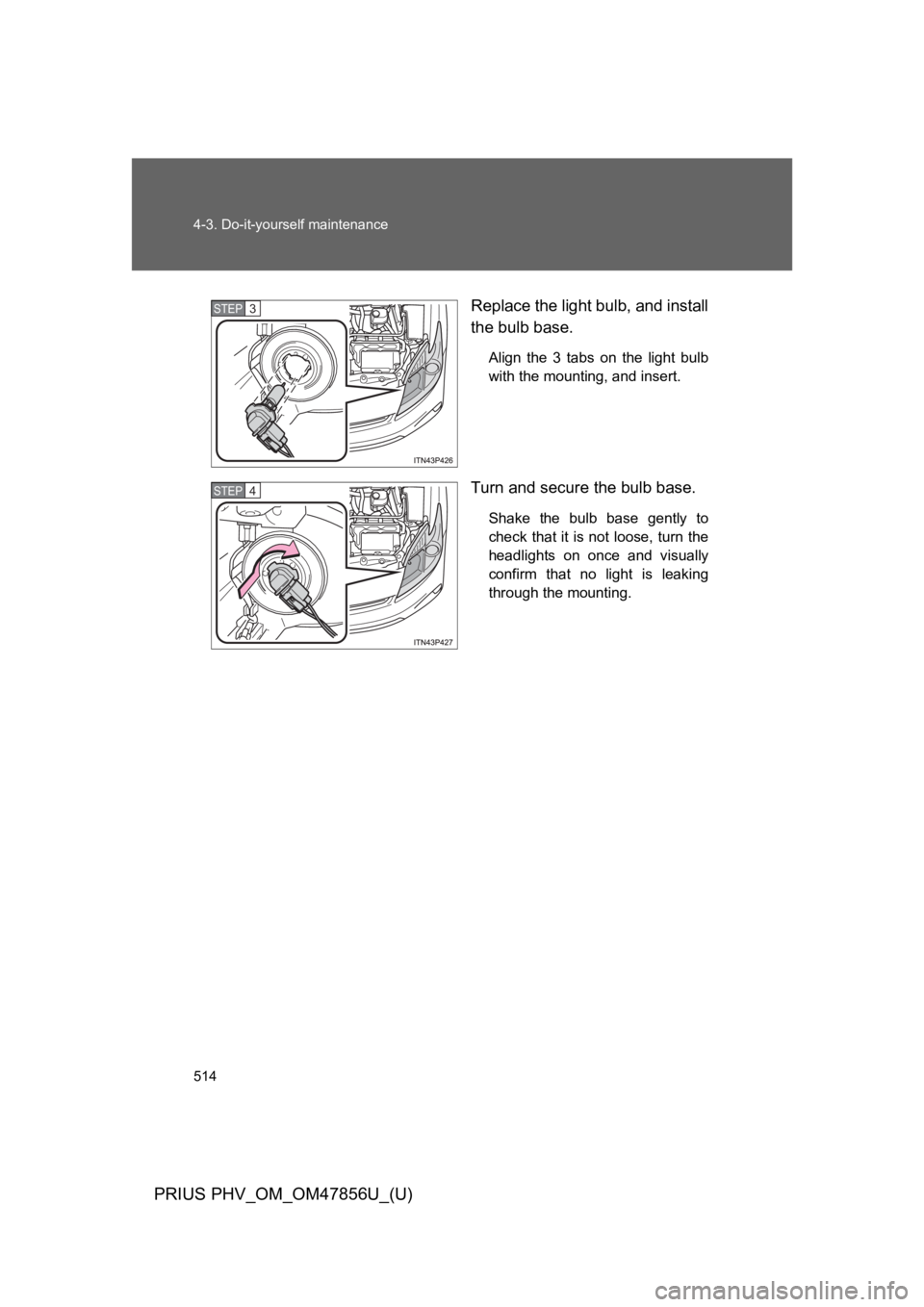

Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
STEP 3
STEP 4

515
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care

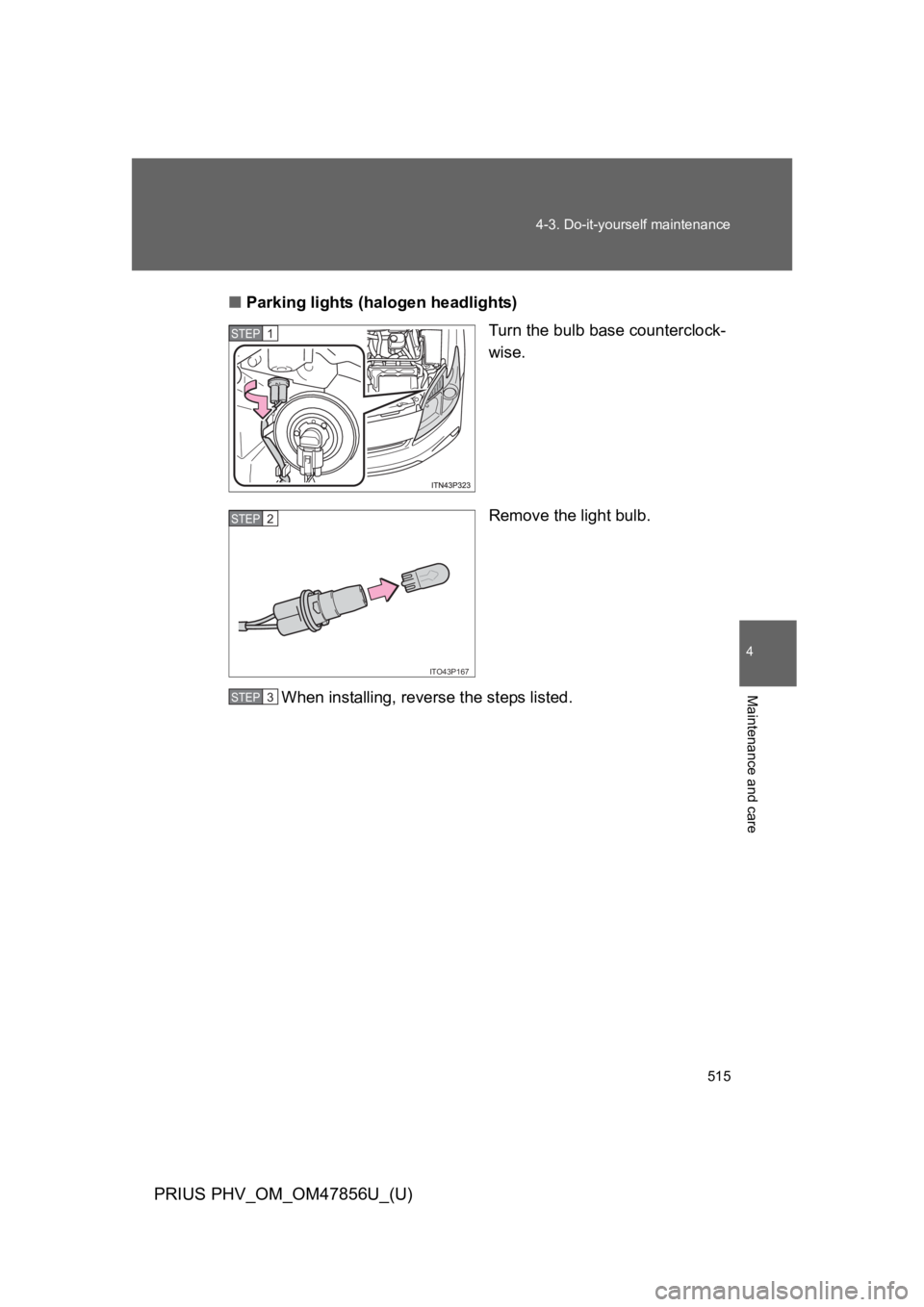

■Parking lights (halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P167
STEP 2
STEP 3

516
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

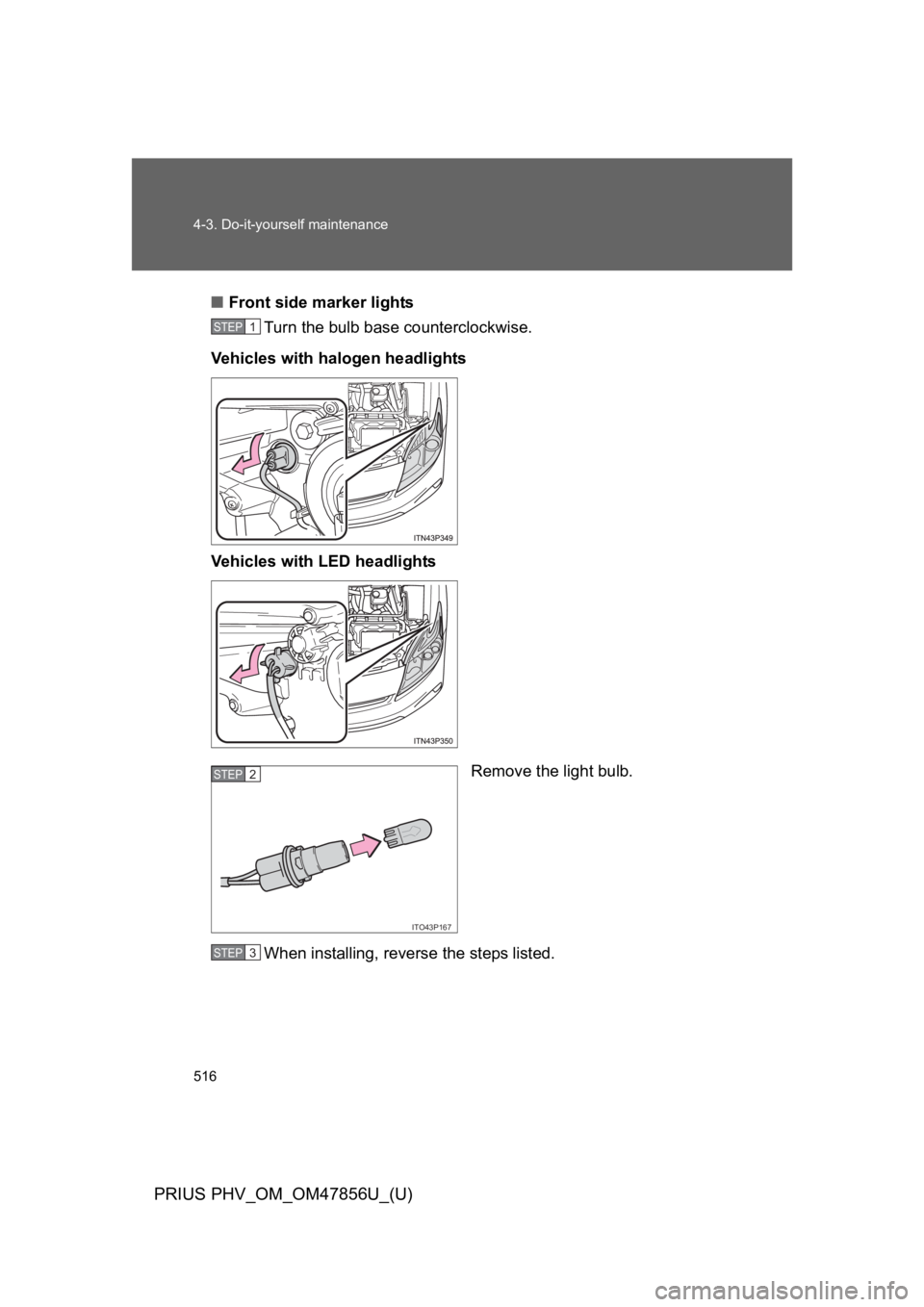

■Front side marker lights
Turn the bulb base counterclockwise.
Ve h i c l e s w i t h h a l o g e n h e a d l i g h ts
Ve h i c l e s w i t h L E D h e a d l i g h ts
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P167
STEP 2
STEP 3

517
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care

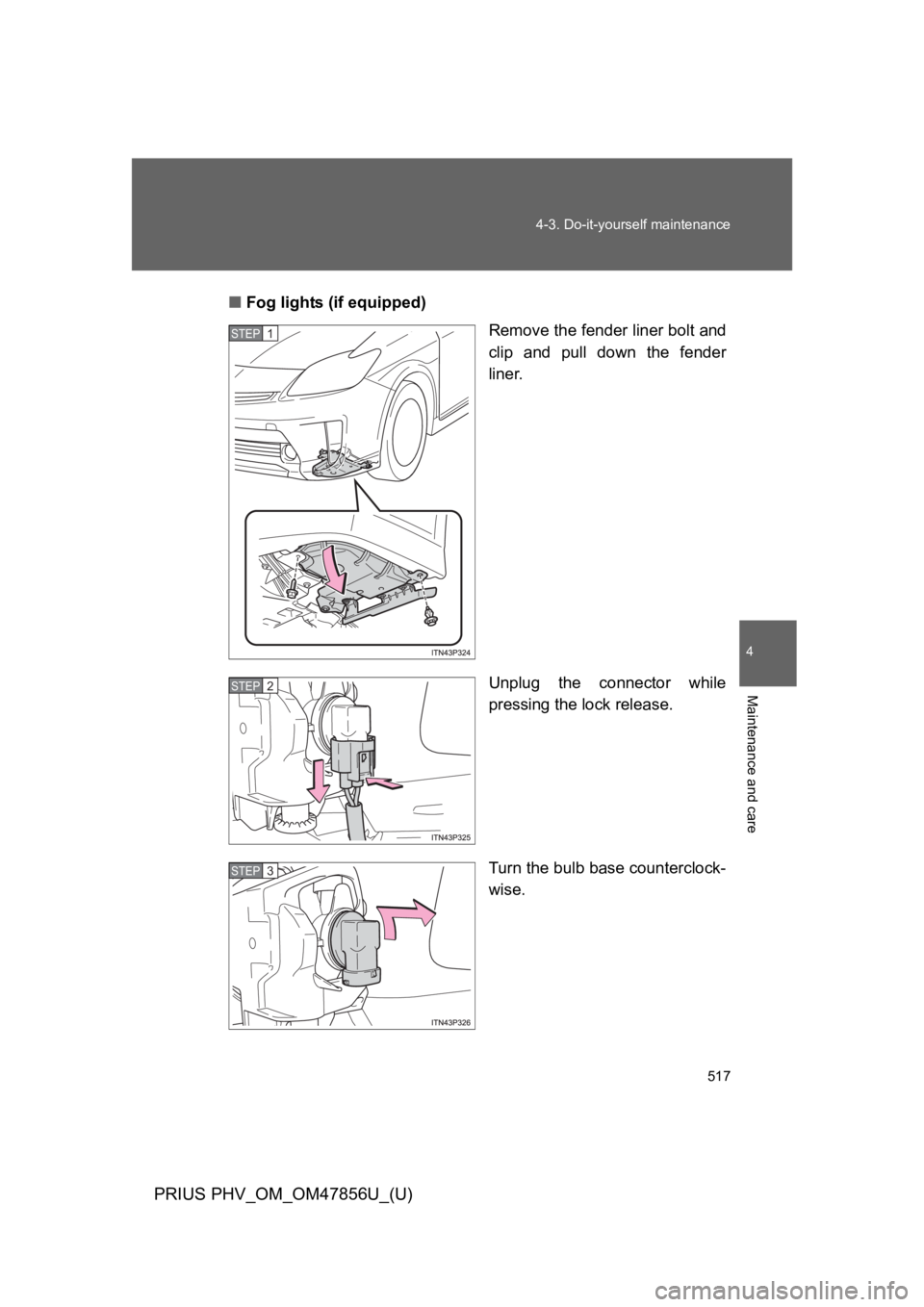

■Fog lights (if equipped)
Remove the fender liner bolt and
clip and pull down the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counterclock-
wise.
STEP 1
STEP 2
STEP 3

518
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

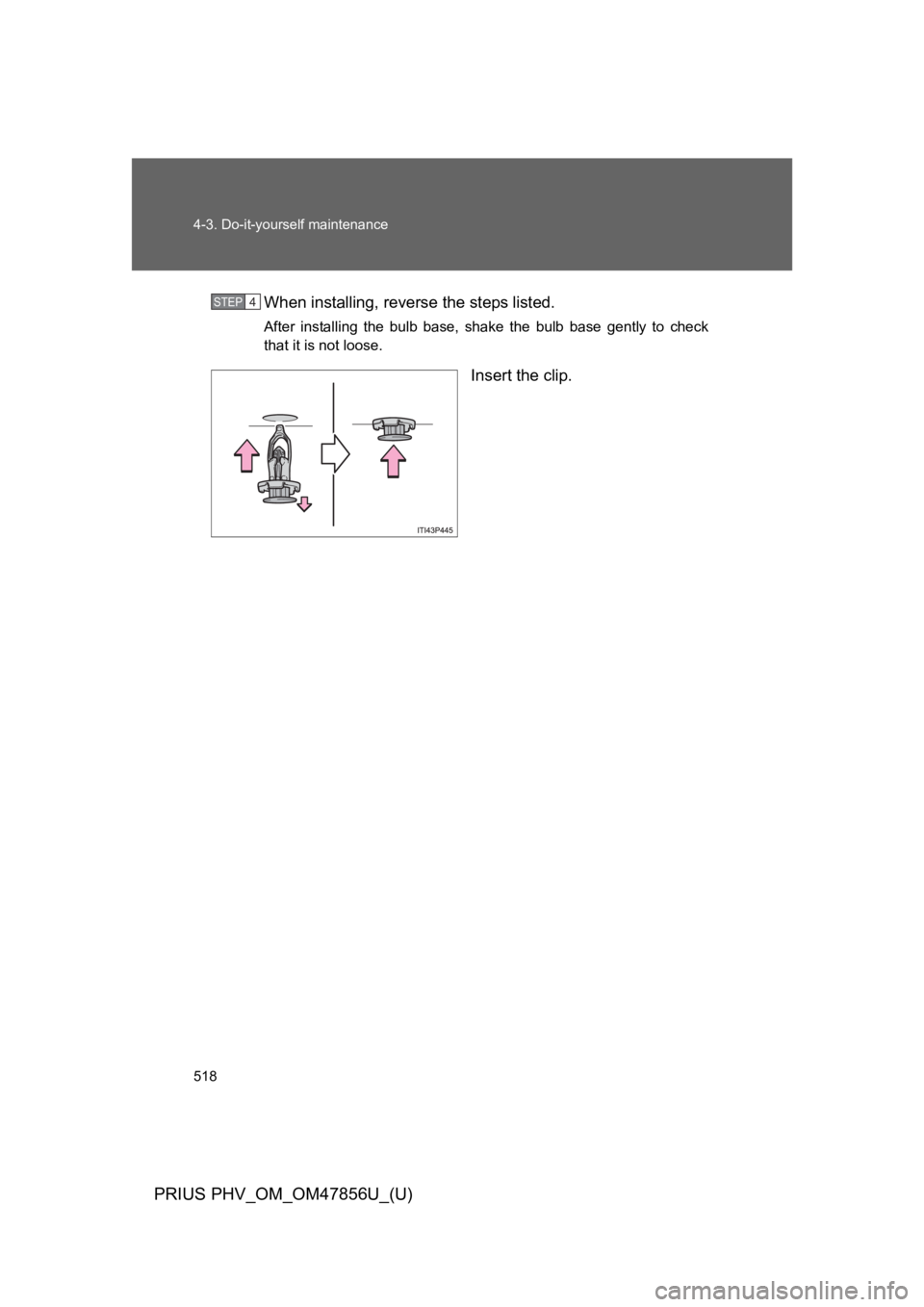

When installing, reverse the steps listed.
After installing the bulb base, shake the bulb base gently to check
that it is not loose.
Insert the clip.
STEP 4

519
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care

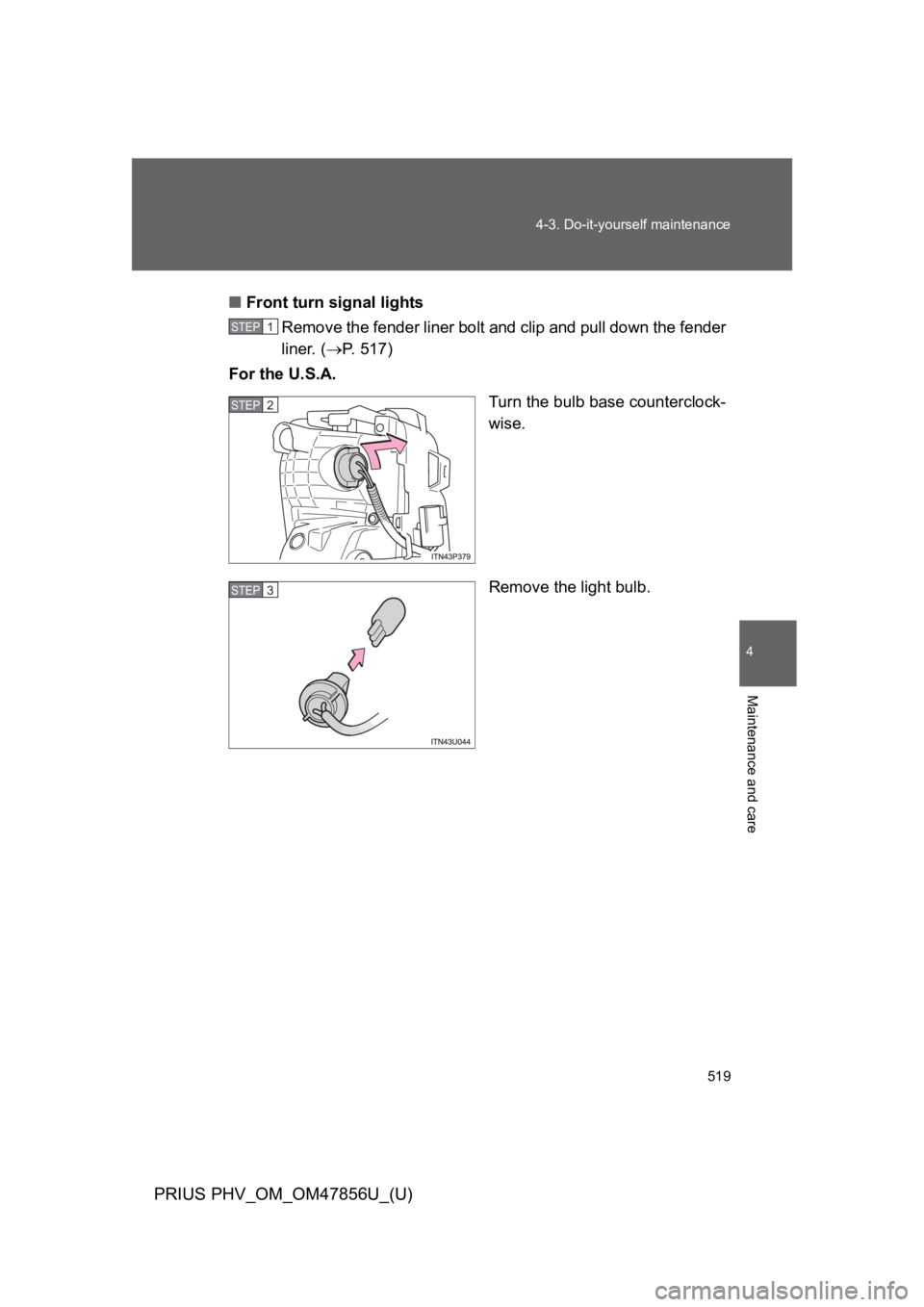

■Front turn signal lights
Remove the fender liner bolt and clip and pull down the fender
liner. (→P. 5 1 7 )
For the U.S.A.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3

520
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

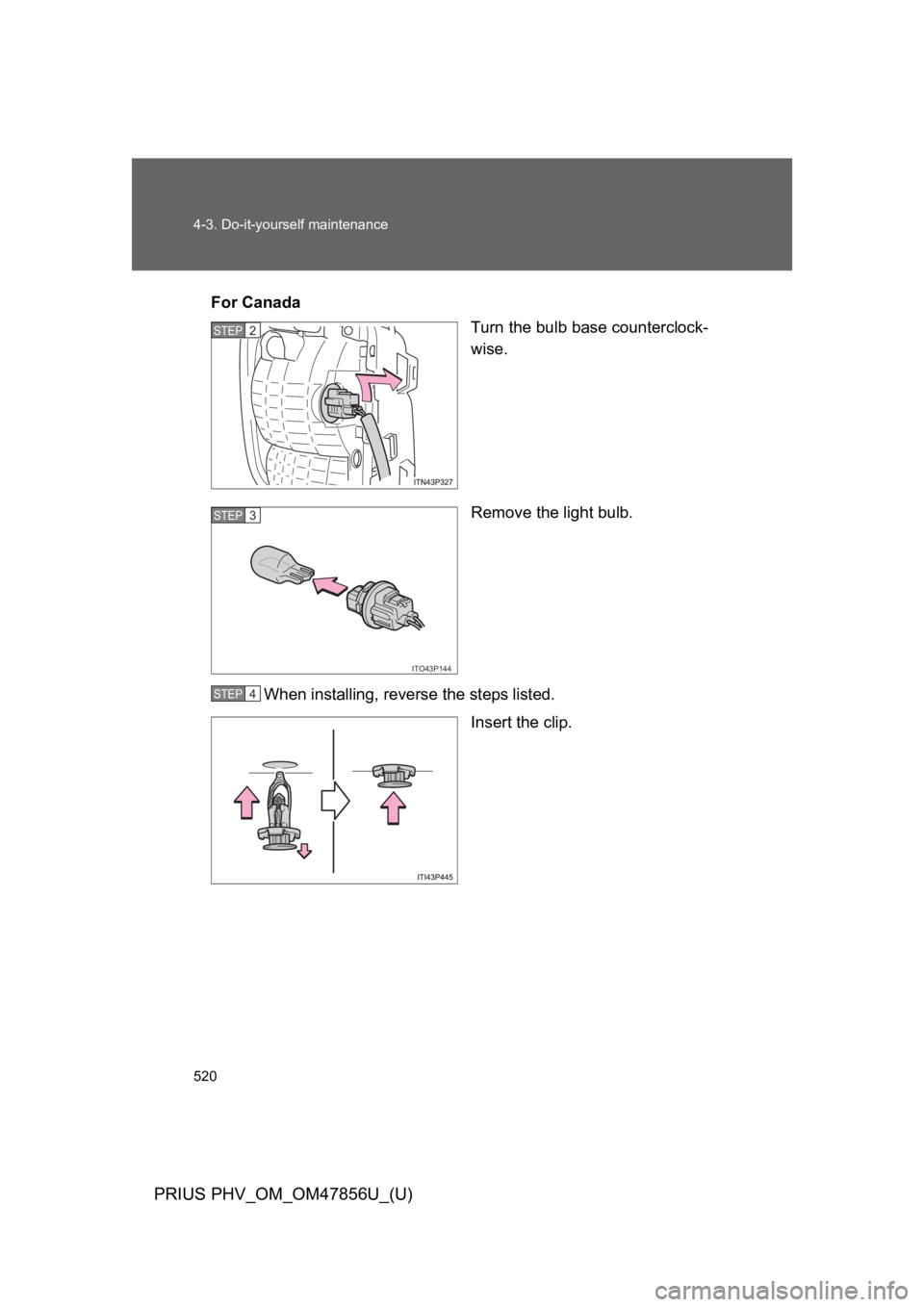

For CanadasTurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
Insert the clip.
STEP 2
ITO43P144
STEP 3
STEP 4
