TOYOTA PRIUS PLUG-IN 2014 Owners Manual

612
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

614
PRIUS PHV_OM_OM47856U_(U)
6-1. Specifications

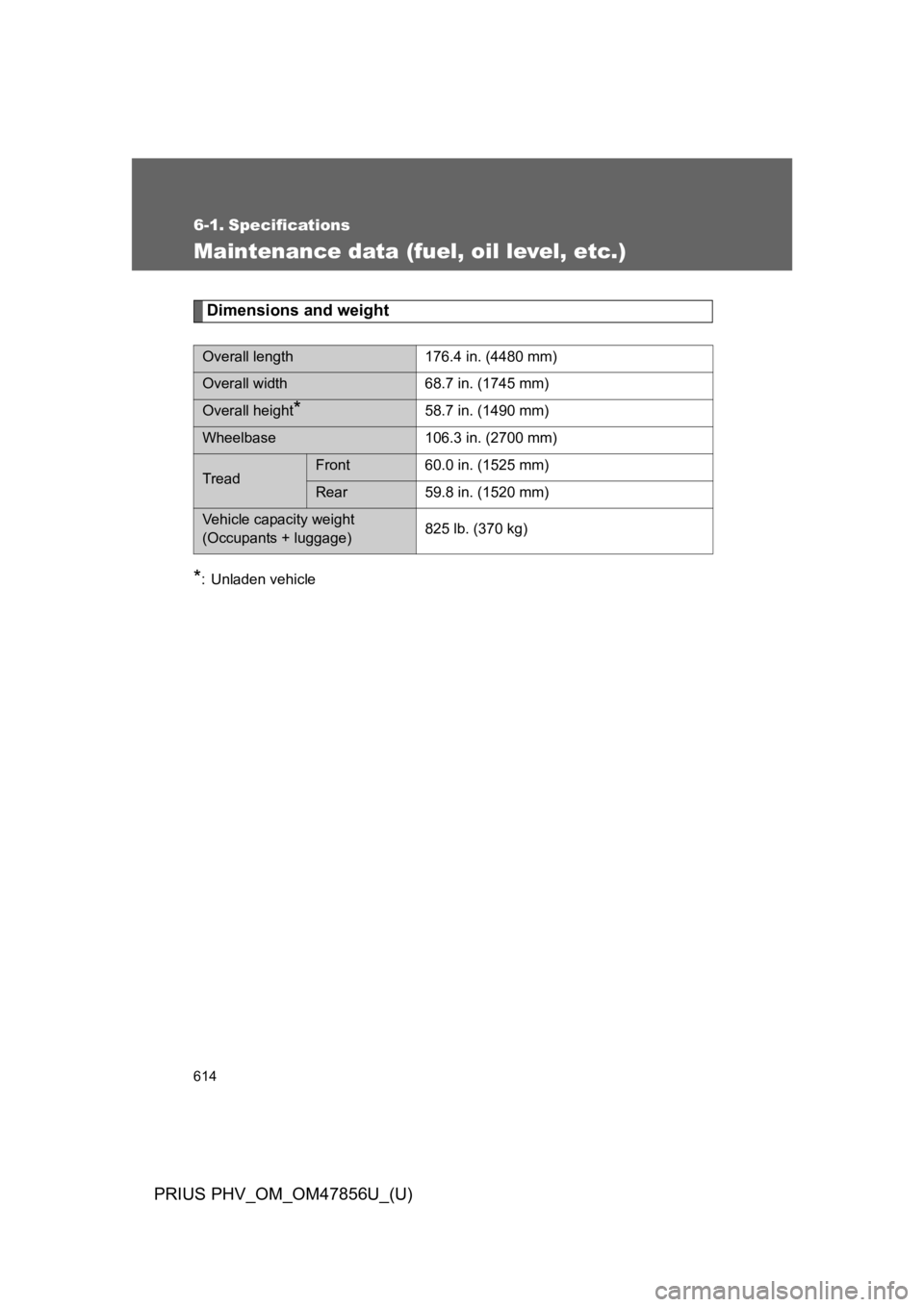

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*:Unladen vehicle
Overall length176.4 in. (4480 mm)
Overall width 68.7 in. (1745 mm)
Overall height*58.7 in. (1490 mm)
Wheelbase 106.3 in. (2700 mm)
TreadFront 60.0 in. (1525 mm)
Rear 59.8 in. (1520 mm)
Ve h i c l e c apa c i t y w e i g h t
(Occupants + luggage)825 lb. (370 kg)

615
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47856U_(U)
Ve h i c l e i d e n t i f i c a t i o n
■Ve h i c l e i d e n t i f i c a t i o n n u m b e r
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
To y o t a . I t i s u s e d i n r e g i s t e r i n g t h e o w n e r s h i p o f y o u r v e h i c l e .
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
This number is also stamped
under the right-hand front seat.
ITO61P101

616
6-1. Specifications
PRIUS PHV_OM_OM47856U_(U)

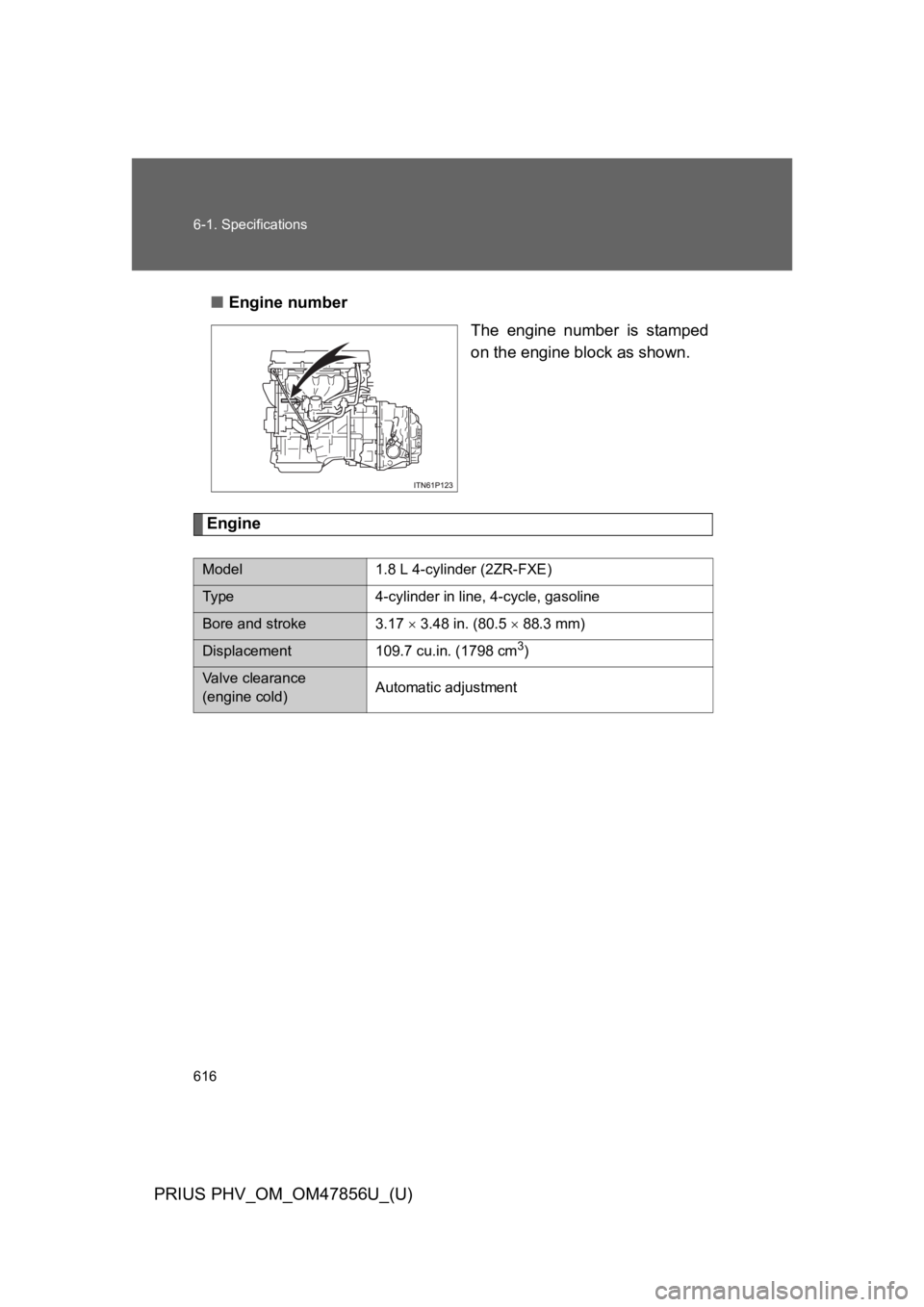

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.17 × 3.48 in. (80.5 × 88.3 mm)
Displacement 109.7 cu.in. (1798 cm3)
Va l v e c l e a r a n c e
(engine cold)Automatic adjustment

617
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47856U_(U)
Fuel
Fuel typeUnleaded gasoline only
Octane Rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)10.6 gal. (40 L, 8.8 Imp.gal.)
NOTICE
■Notice about fuel
For plug-in hybrid vehicles, fuel may remain in the tank for a long time and
undergo changes in quality depending on the how the vehicle is used.
Refuel at least 5.3 gal.(20 L, 4.4 Imp.gal.) of fuel every 6 months (refuel a
total of at least 5.3 gal. [20 L, 4.4 Imp.gal.] over a 6-month period), as this
may affect components of the fuel system or the gasoline engine.

618
6-1. Specifications
PRIUS PHV_OM_OM47856U_(U)

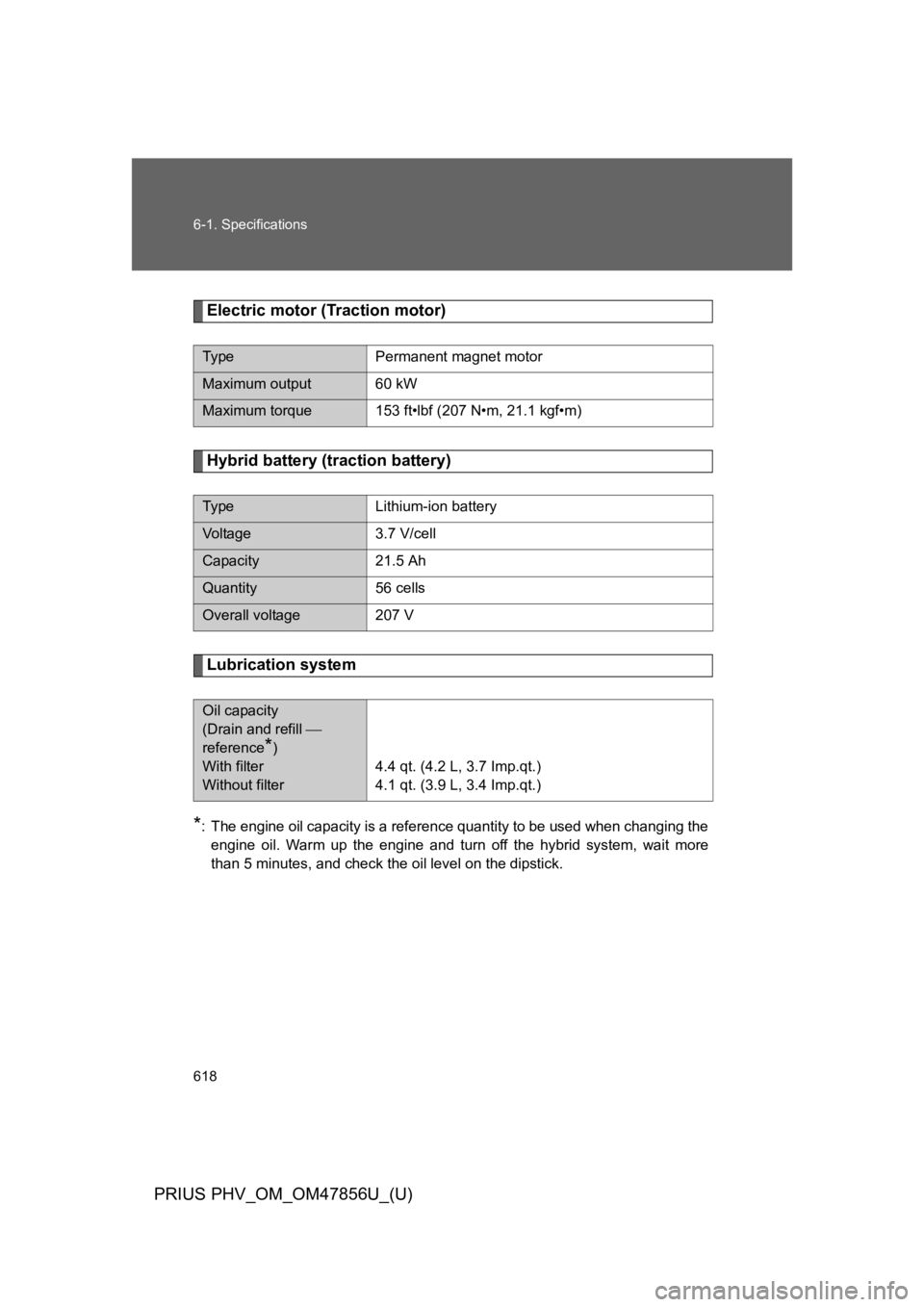

Electric motor (Traction motor)
Hybrid battery (traction battery)
Lubrication system
*:The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more
than 5 minutes, and check the oil level on the dipstick.
TypePermanent magnet motor
Maximum output 60 kW
Maximum torque 153 ft•lbf (207 N•m, 21.1 kgf•m)
TypeLithium-ion battery
Vo l ta g e 3 . 7 V / c e l l
Capacity 21.5 Ah
Quantity 56 cells
Overall voltage 207 V
Oil capacity
(Drain and refill ⎯
reference*)
With filter
Without filter
4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)

619
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47856U_(U)
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
To y o t a a p p r o v e d “ To y o t a G e n u i n e M o t o r O i l ” o r e q u i v a l e n t t o s a t i s f y
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

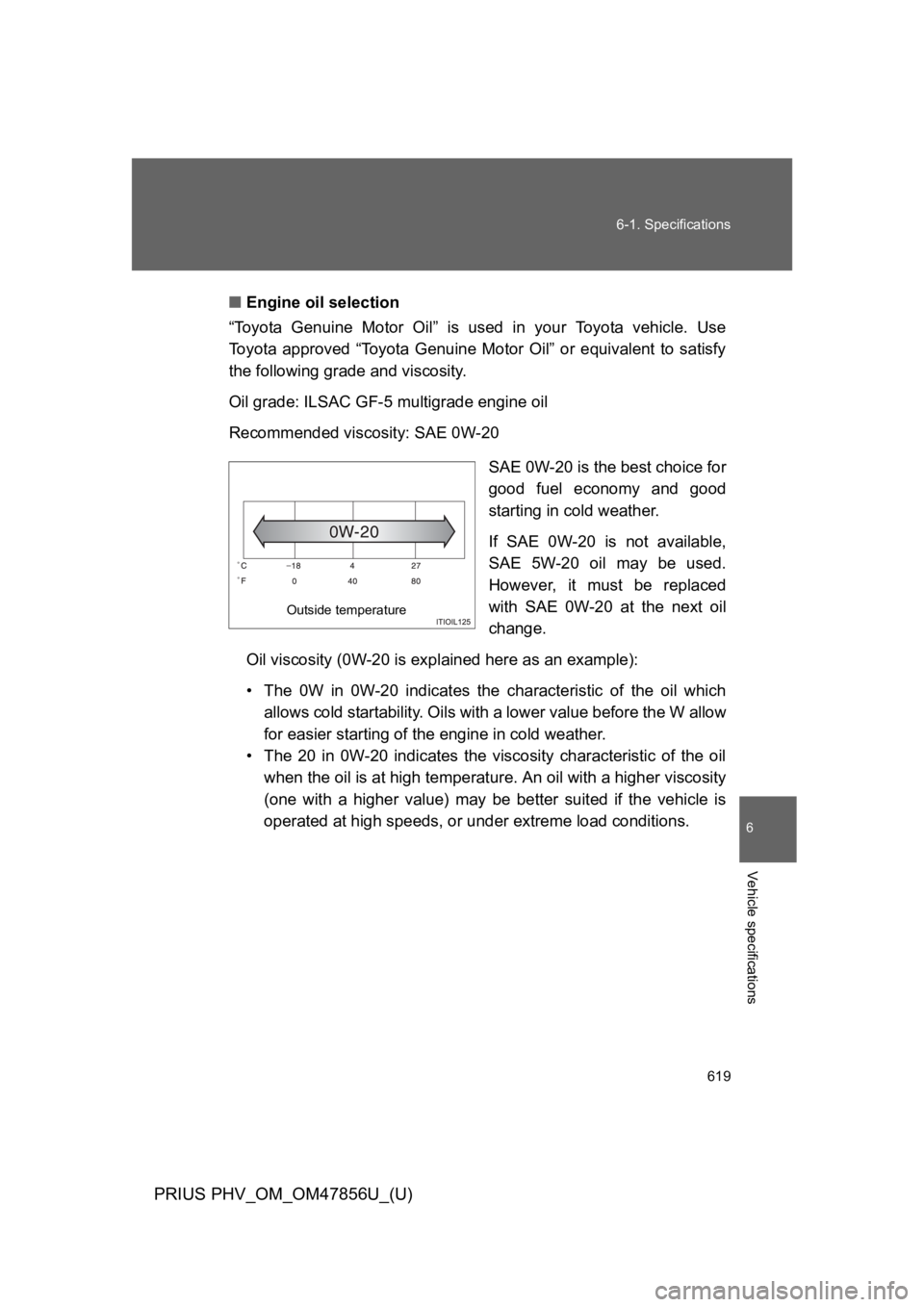

Oil viscosity (0W-20 is explained here as an example):
•The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
•The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Outside temperature

620
6-1. Specifications
PRIUS PHV_OM_OM47856U_(U)

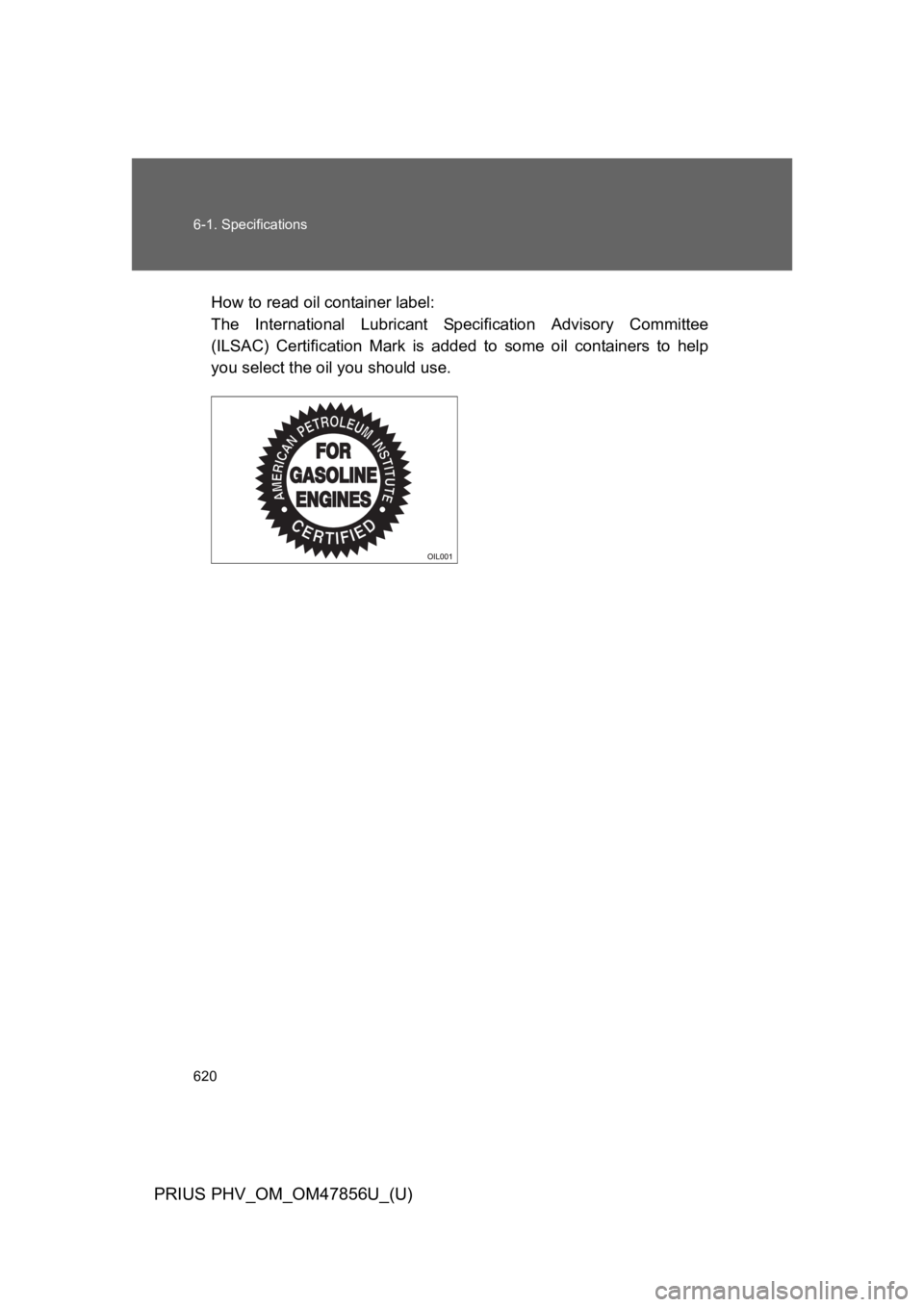

How to read oil container label:
The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oil you should use.

621
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47856U_(U)

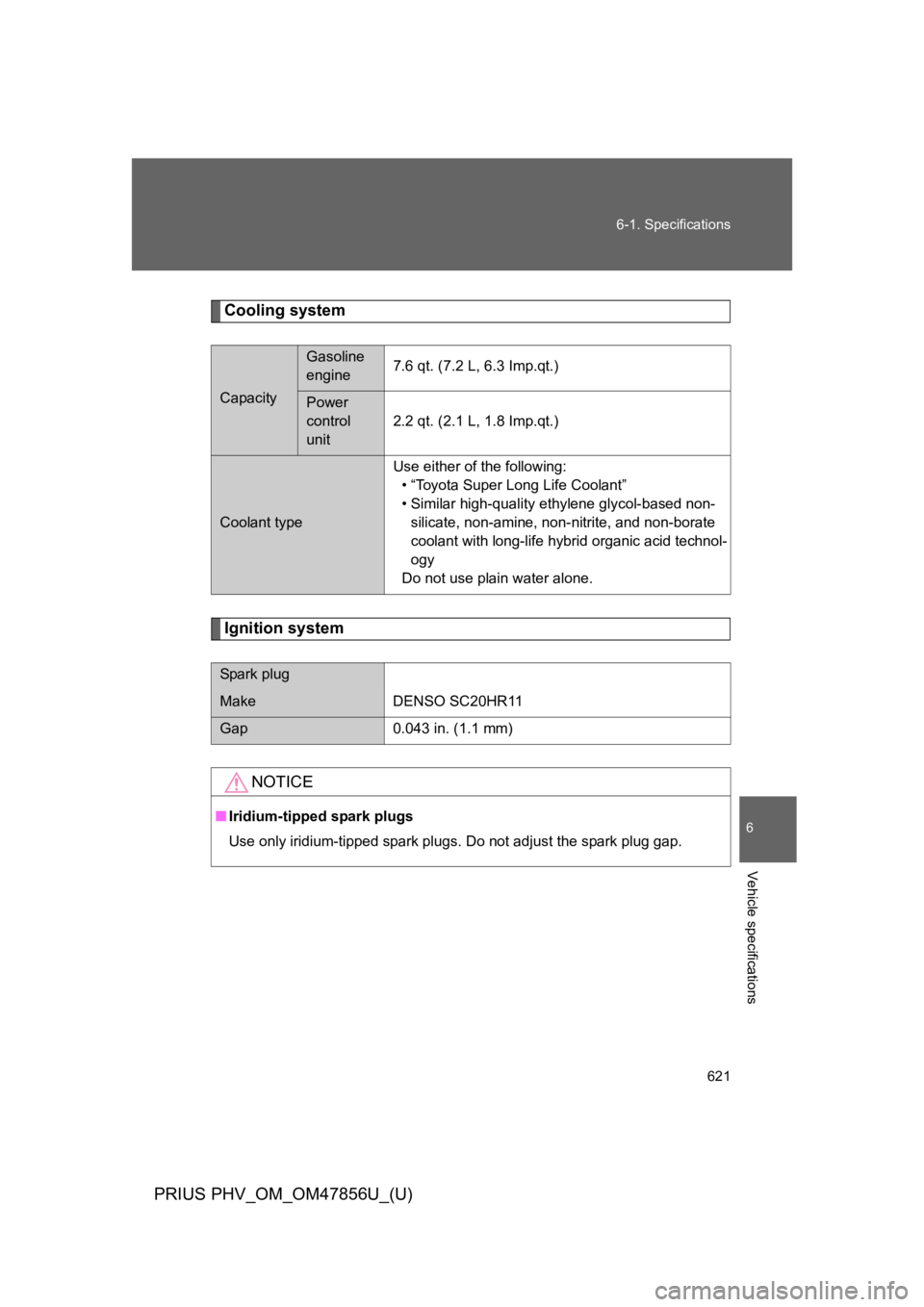

Cooling system
Ignition system
Capacity
Gasoline
engine7.6 qt. (7.2 L, 6.3 Imp.qt.)
Power
control
unit
2.2 qt. (2.1 L, 1.8 Imp.qt.)
Coolant type
Use either of the following:
•“Toyota Super Long Life Coolant”
•Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make DENSO SC20HR11
Gap 0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

622
6-1. Specifications
PRIUS PHV_OM_OM47856U_(U)

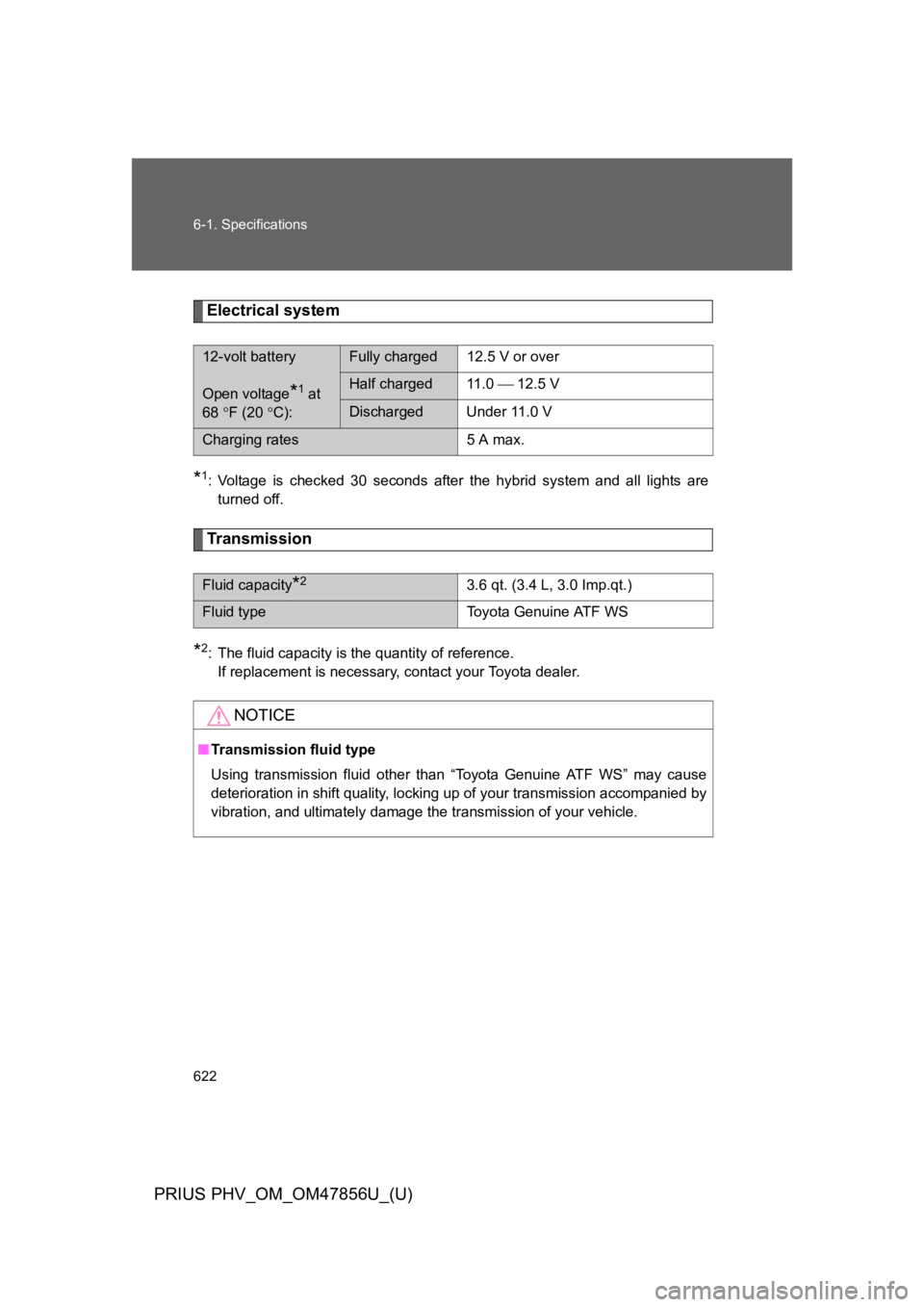

Electrical system
*1: Voltage is checked 30 seconds after the hybrid system and all lights are
turned off.
Tr a n s m i s s i o n
*2:The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Toyota dealer.
12-volt battery
Open voltage*1 at
68°F (20°C):
Fully charged12.5 V or over
Half charged 11.0 ⎯ 12.5 V
Discharged Under 11.0 V
Charging rates 5 A max.
Fluid capacity*23.6 qt. (3.4 L, 3.0 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Tr a n s m i s s io n fl u i d ty p e
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.
