TOYOTA PRIUS PLUG-IN 2015 Owners Manual

441
4-2. Maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
Head restraints• Do the head restraints move
smoothly and lock securely?
Indicators/buzzers•Do the indicators and buzzers
function properly?
Lights • Do all the lights come on?
Parking brake
•Does the parking brake pedal
move smoothly?
•When parked on a slope and the
parking brake is on, is the vehicle
securely stopped?
Seat belts
• Do the seat belts operate
smoothly?
•The seat belts should not be dam-
aged.
Seats•Do the seat controls operate
properly?
Steering wheel
•Does the steering wheel rotate
smoothly?
•Does the steering wheel have the
correct amount of free play?
•There should not be any strange
sounds coming from the steering
wheel.
ItemsCheck points

442
4-2. Maintenance
PRIUS PHV_OM_OM47A11U_(U)
Ve h i c l e e x t e r i o r
ItemsCheck points
Doors • Do the doors operate smoothly?
Engine hood•Does the engine hood lock sys-
tem work properly?
Fluid leaks
•There should not be any signs of
fluid leakage after the vehicle has
been parked.
Tires
•Is the tire inflation pressure cor-
rect?
•The tires should not be dam-
aged or excessively worn.
•Have the tires been rotated
according to the maintenance
schedule?
•The wheel nuts should not be
loose.
Windshield wipers/rear window
wiper
•The wiper blades should not show
any signs of cracking, splitting,
wear, contamination or deforma-
tion.
•The wiper blades should clear the
windshield/rear window without
streaking or skipping.

443
4-2. Maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
Charging equipment
ItemsCheck points
Charging cable
•Check that the electrical leakage
detection function operates prop-
erly. (oP. 1 0 8 )
CAUTION
■If the hybrid system is operating
Turn the hybrid system off and ensure that there is adequate ventilation
before performing maintenance checks.

444
4-2. Maintenance
PRIUS PHV_OM_OM47A11U_(U)

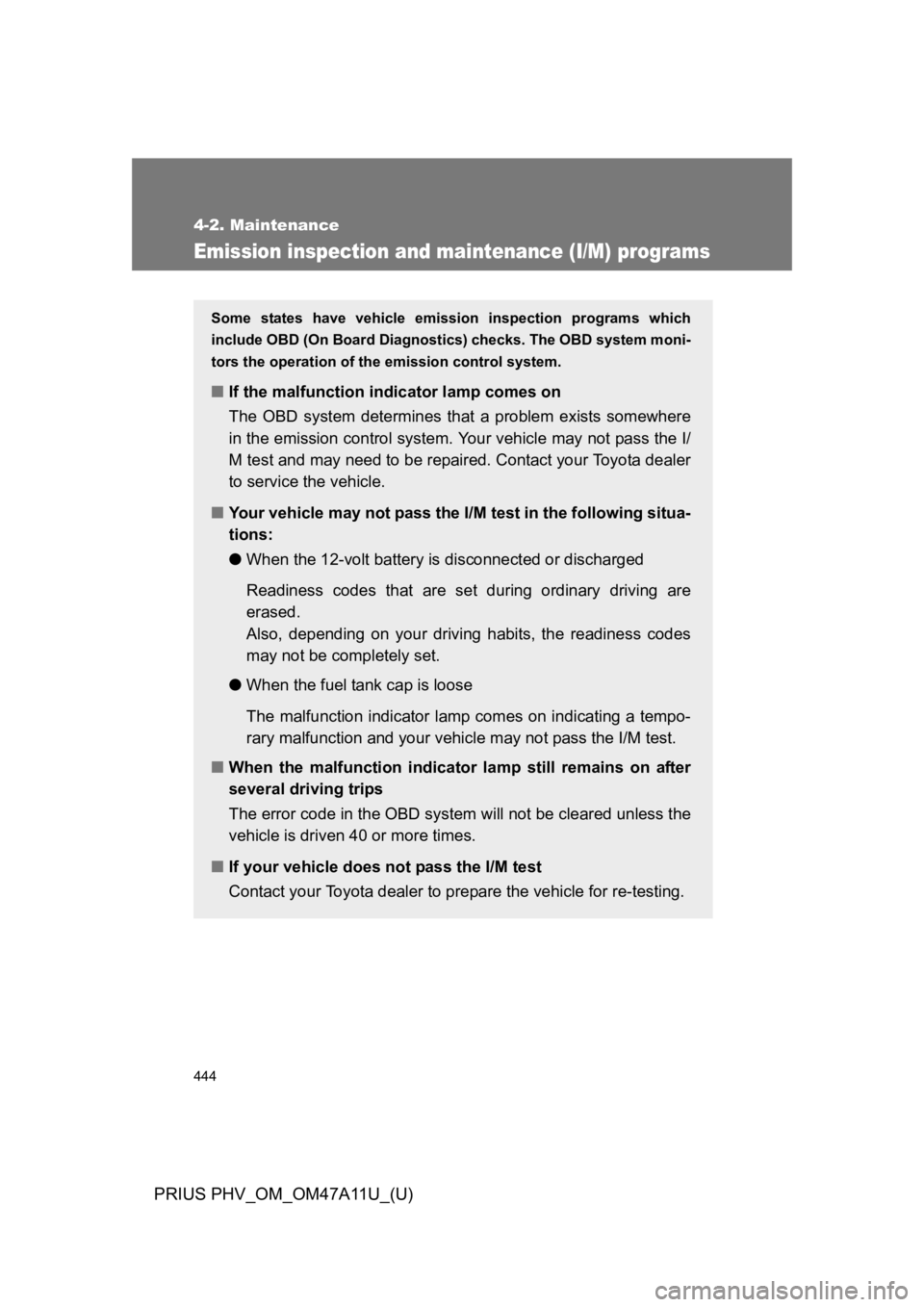

Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni-
tors the operation of the emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Yo u r v e h i c l e m a y n o t p a s s t h e I /
M test and may need to be repaired. Contact your Toyota dealer
to service the vehicle.
■Yo u r v e h i c l e m a y n o t pa s s t h e I / M t e s t i n t h e f o l l o w i n g s i t u a -
tions:
●When the 12-volt battery is disconnected or discharged
Readiness codes that are set during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
●When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a tempo-
rary malfunction and your vehicle may not pass the I/M test.
■When the malfunction indicator lamp still remains on after
several driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■If your vehicle does not pass the I/M test
Contact your Toyota dealer to prepare the vehicle for re-testing.

445
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
4-3. Do-it-yourself maintenance

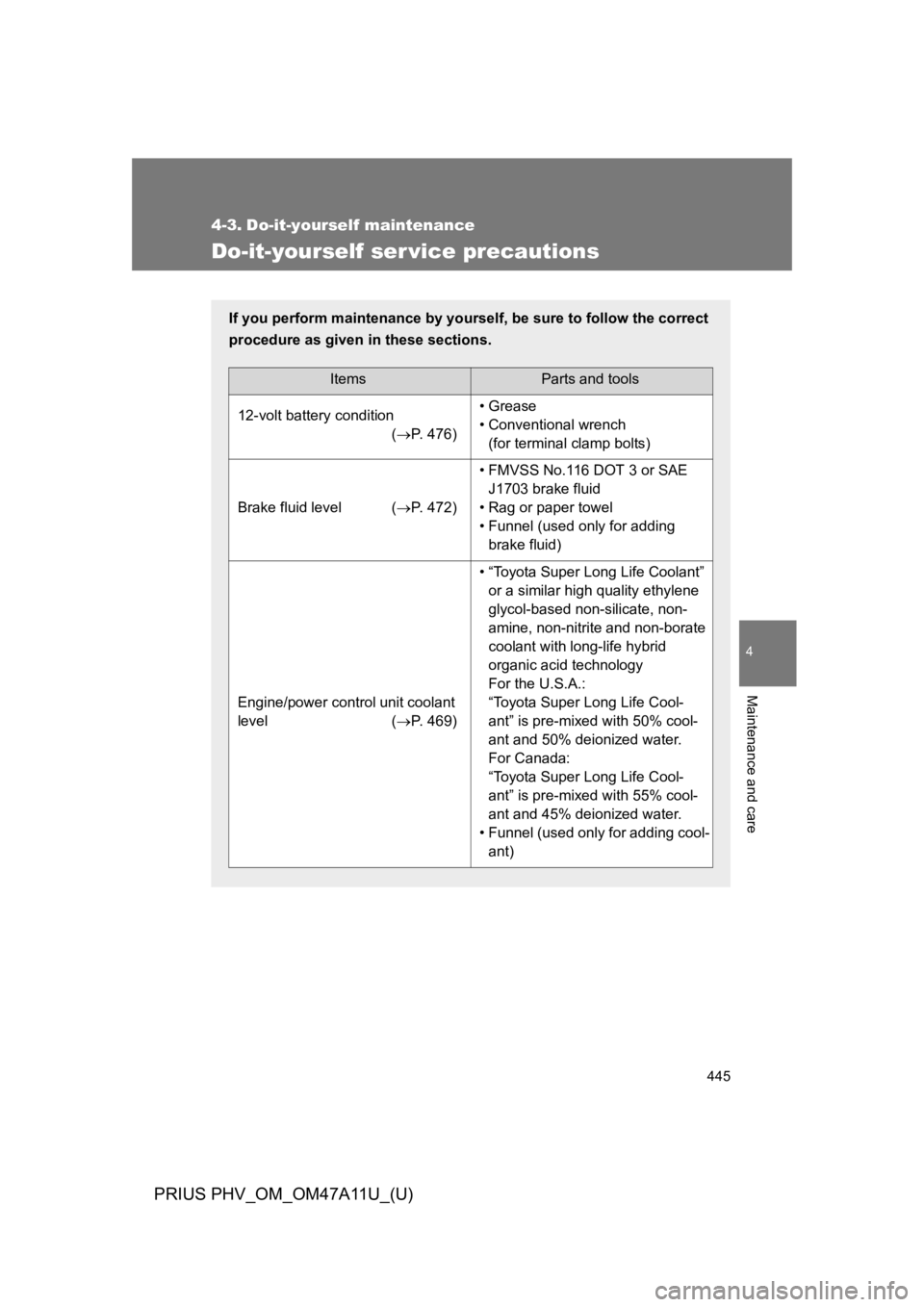

Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
12-volt battery condition
(oP. 4 7 6 )
•Grease
•Conventional wrench
(for terminal clamp bolts)
Brake fluid level (oP. 4 7 2 )
•FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
•Rag or paper towel
•Funnel (used only for adding
brake fluid)
Engine/power control unit coolant
level (oP. 4 6 9 )
•“Toyota Super Long Life Coolant”
or a similar high quality ethylene
glycol-based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology
For the U.S.A.:
“Toyota Super Long Life Cool-
ant” is pre-mixed with 50% cool-
ant and 50% deionized water.
For Canada:
“Toyota Super Long Life Cool-
ant” is pre-mixed with 55% cool-
ant and 45% deionized water.
•Funnel (used only for adding cool-
ant)

446
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)

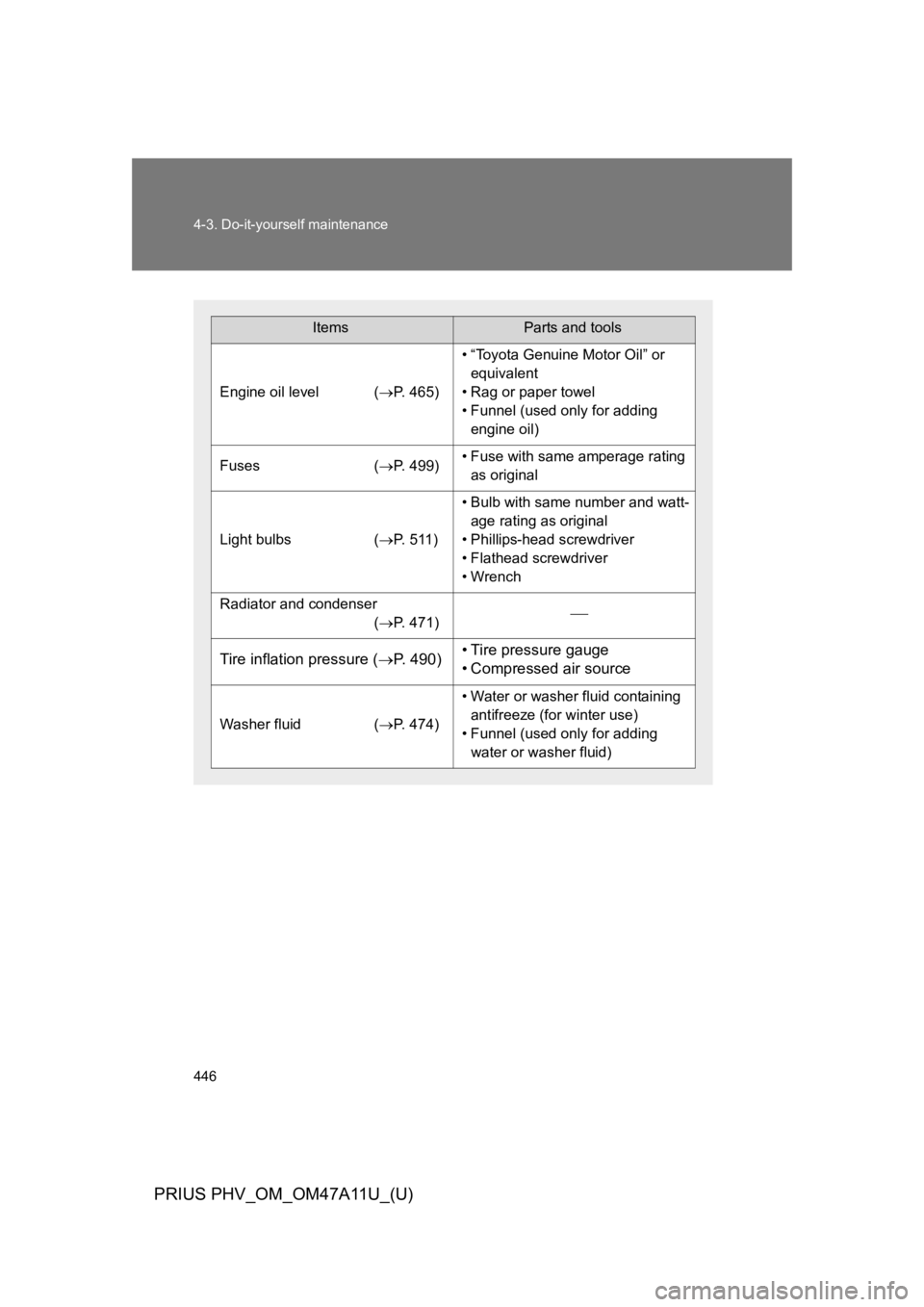

ItemsParts and tools
Engine oil level (oP. 4 6 5 )
•“Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
•Funnel (used only for adding
engine oil)
Fuses (oP. 4 9 9 )•Fuse with same amperage rating
as original
Light bulbs (oP. 5 1 1 )
•Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Radiator and condenser
(oP. 4 7 1 )
Tire inflation pressure (oP. 4 9 0 )•Tire pressure gauge
•Compressed air source
Washer fluid (oP. 4 7 4 )
•Water or washer fluid containing
antifreeze (for winter use)
•Funnel (used only for adding
water or washer fluid)

447
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
■When working on the engine compartment
●Make sure that the indicator on the “POWER” switch and the “READY”
indicator are both off.
●Keep hands, clothing and tools away from the moving fan.
●Be careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc. right after driving as they may be hot. Oil and other fluids
may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
●Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes
are flammable.
■When working near the electric cooling fans or radiator grille
Be sure the “POWER” switch is off.
With the “POWER” switch in ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. (oP. 4 7 1 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

448
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)

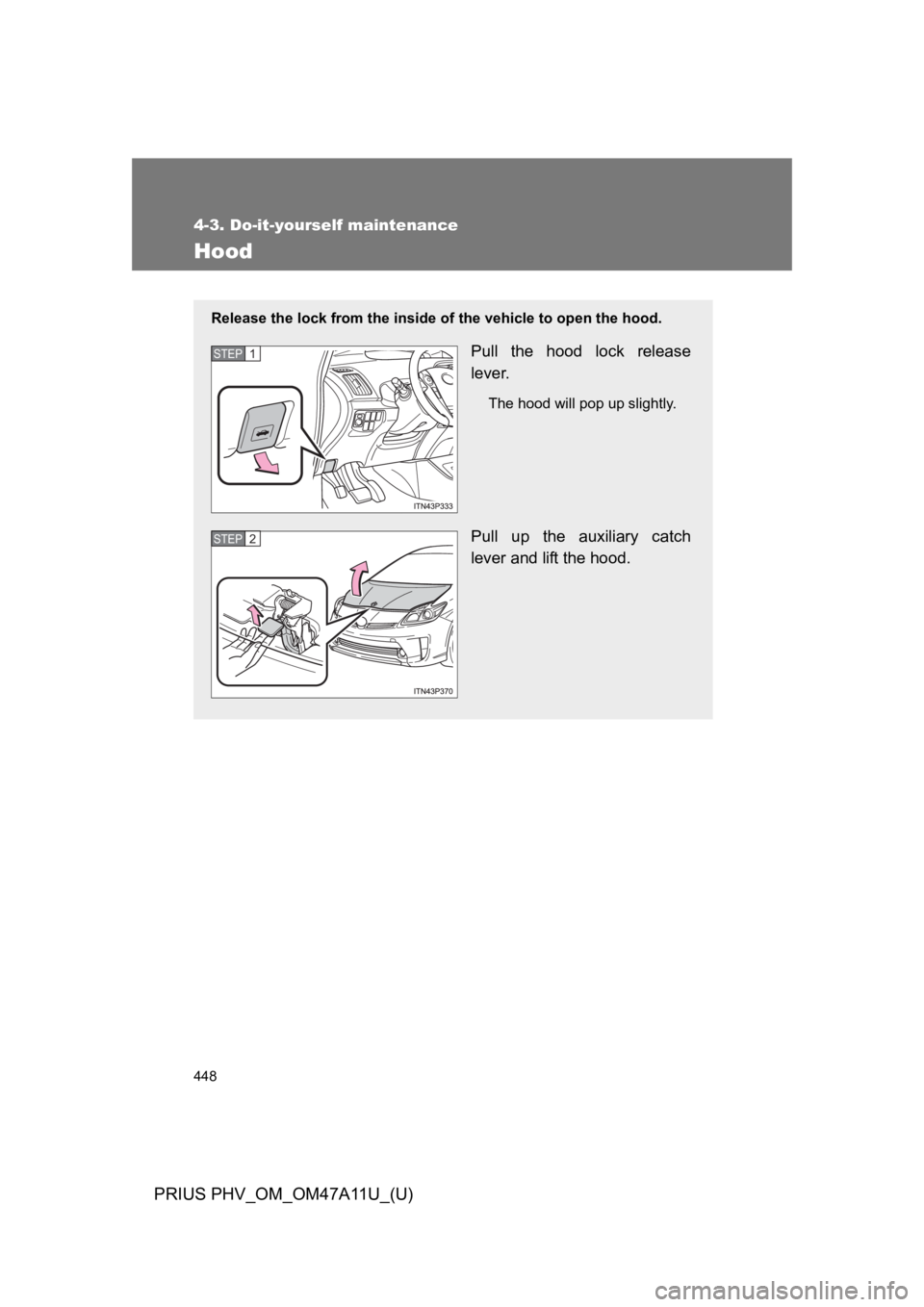

Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release
lever.
The hood will pop up slightly.
Pull up the auxiliary catch
lever and lift the hood.
STEP 1
STEP 2

449
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.

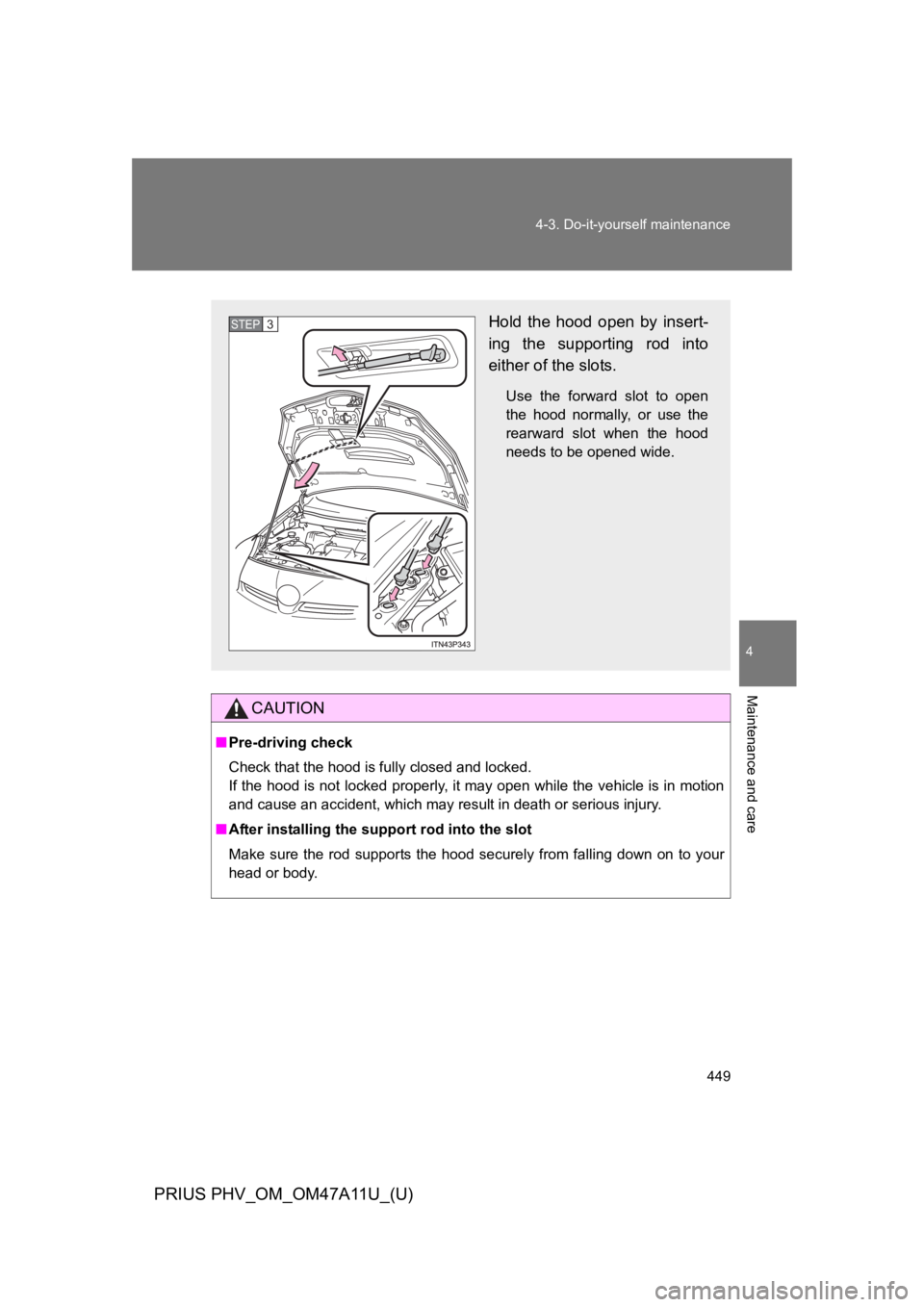

Hold the hood open by insert-
ing the supporting rod into
either of the slots.
Use the forward slot to open
the hood normally, or use the
rearward slot when the hood
needs to be opened wide.
STEP 3

450
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.
