TOYOTA PRIUS PLUG-IN HYBRID 2015 1.G Owners Manual

221
1-9. Safety information
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
Non-foldable type outside seats
Remove the head restraint.
Center seat Adjust the head restraint to the
upmost position.

222 1-9. Safety information
PRIUS PHV_OM_OM47A11U_(U)
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
Outside only: Do the following.
Foldable type Adjust the head restraint to the
downmost position.
Non-foldable type Install the head restraint.
STEP 2
STEP 3

223
1-9. Safety information
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
■
Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (P. 162)
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.

224 1-9. Safety information
PRIUS PHV_OM_OM47A11U_(U)
CAUTION
■When installing a child restraint system
●When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible even if the “AIR BAG OFF” indica-
tor light is illuminated. Failure to do so
may result in death or serious injury if
the airbags deploy (inflate).

225
1-9. Safety information
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
CAUTION
■
Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.
■ To correctly attach a child r estraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in the
event of a sudden braking, sudden swerve or accident.

226 1-9. Safety information
PRIUS PHV_OM_OM47A11U_(U)

When driving2
227
PRIUS PHV_OM_OM47A11U_(U)
2-1. Driving proceduresDriving the vehicle............ 228
Power (ignition) switch ..... 242
Hybrid transmission ......... 249
Turn signal lever .............. 259
Parking brake ................... 260
Horn ................................. 261
2-2. Instrument cluster Gauges and meters ......... 262
Indicators and warning lights .............................. 267
Multi-information display............................ 271
Head-up display ............... 290 2-3. Operating the lights and
windshield wipers
Headlight switch ............... 297
Fog light switch ................ 303
Windshield wipers and washer ........................... 305
Rear window wiper and washer ........................... 309
Headlight cleaner switch ............................. 312
2-4. Using other driving systems
Cruise control ................... 313
Dynamic radar cruise control ............................ 317
Driving assist systems ..... 333
Hill-start assist control ...... 338
PCS (Pre-Collision System).......................... 340
2-5. Driving information Cargo and luggage .......... 349
Vehicle load limits ............ 354
Winter driving tips ............ 355
Trailer towing ................... 360
Dinghy towing .................. 361

228
PRIUS PHV_OM_OM47A11U_(U)
2-1. Driving procedures

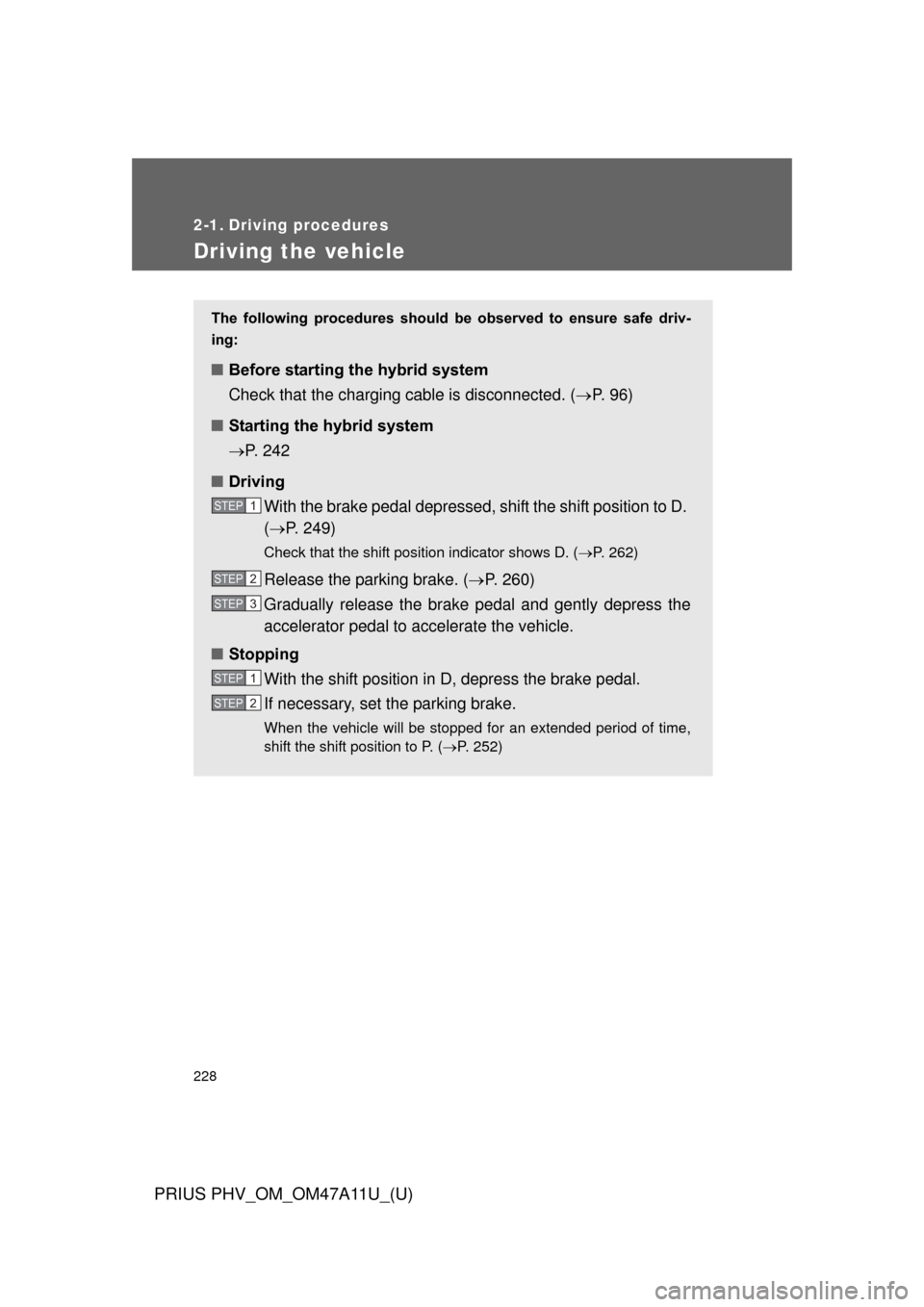

Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing:
■ Before starting the hybrid system
Check that the charging cable is disconnected. (P. 96)
■ Starting the hybrid system
P. 242
■ Driving
With the brake pedal depressed, shift the shift position to D.
( P. 249)
Check that the shift position indicator shows D. ( P. 262)
Release the parking brake. (P. 260)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
■ Stopping
With the shift position in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle will be stopped for an extended period of time,
shift the shift position to P. ( P. 252)
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2

229
2-1. Driving procedures
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
■

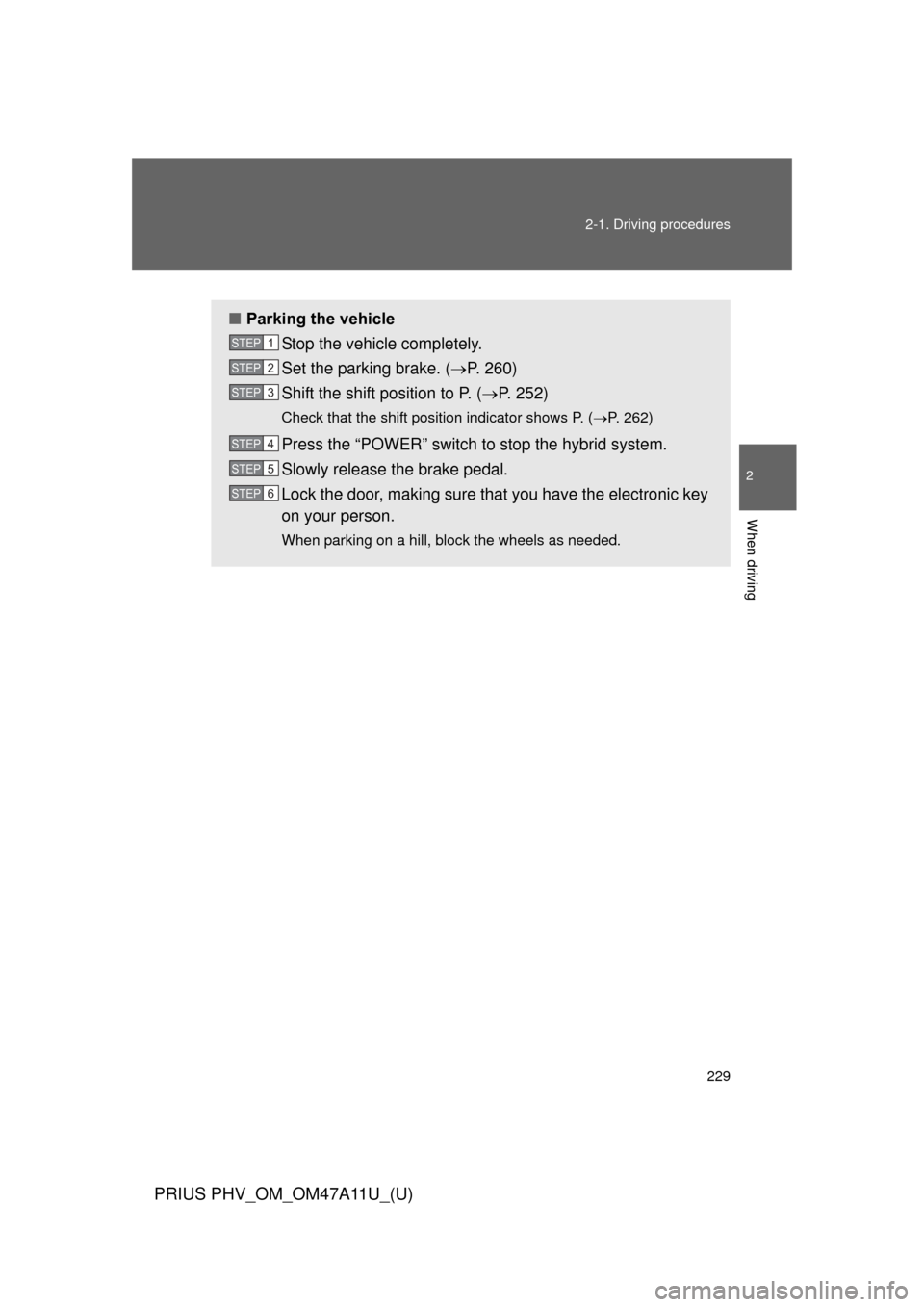

Parking the vehicle
Stop the vehicle completely.
Set the parking brake. ( P. 260)
Shift the shift position to P. ( P. 252)
Check that the shift position indicator shows P. ( P. 262)
Press the “POWER” switch to stop the hybrid system.
Slowly release the brake pedal.
Lock the door, making sure that you have the electronic key
on your person.
When parking on a hill, block the wheels as needed.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6

230 2-1. Driving procedures
PRIUS PHV_OM_OM47A11U_(U)
Starting off on a uphillFirmly set the parking brake with the brake pedal depressed,
and then shift the shift position to D.
Release the brake pedal and gently depress the accelerator
pedal.
Release the parking brake.
■When starting off on a uphill
The hill-start assist control is available. ( P. 338)
■ Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be
especially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
■ Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is rec-
ommended:
●For the first 200 miles (300 km):
Avoid sudden stops.
● For the first 600 miles (1000 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive at a constant speed for extended periods.
STEP 1
STEP 2
STEP 3
