2-1. Driving procedures
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 169)

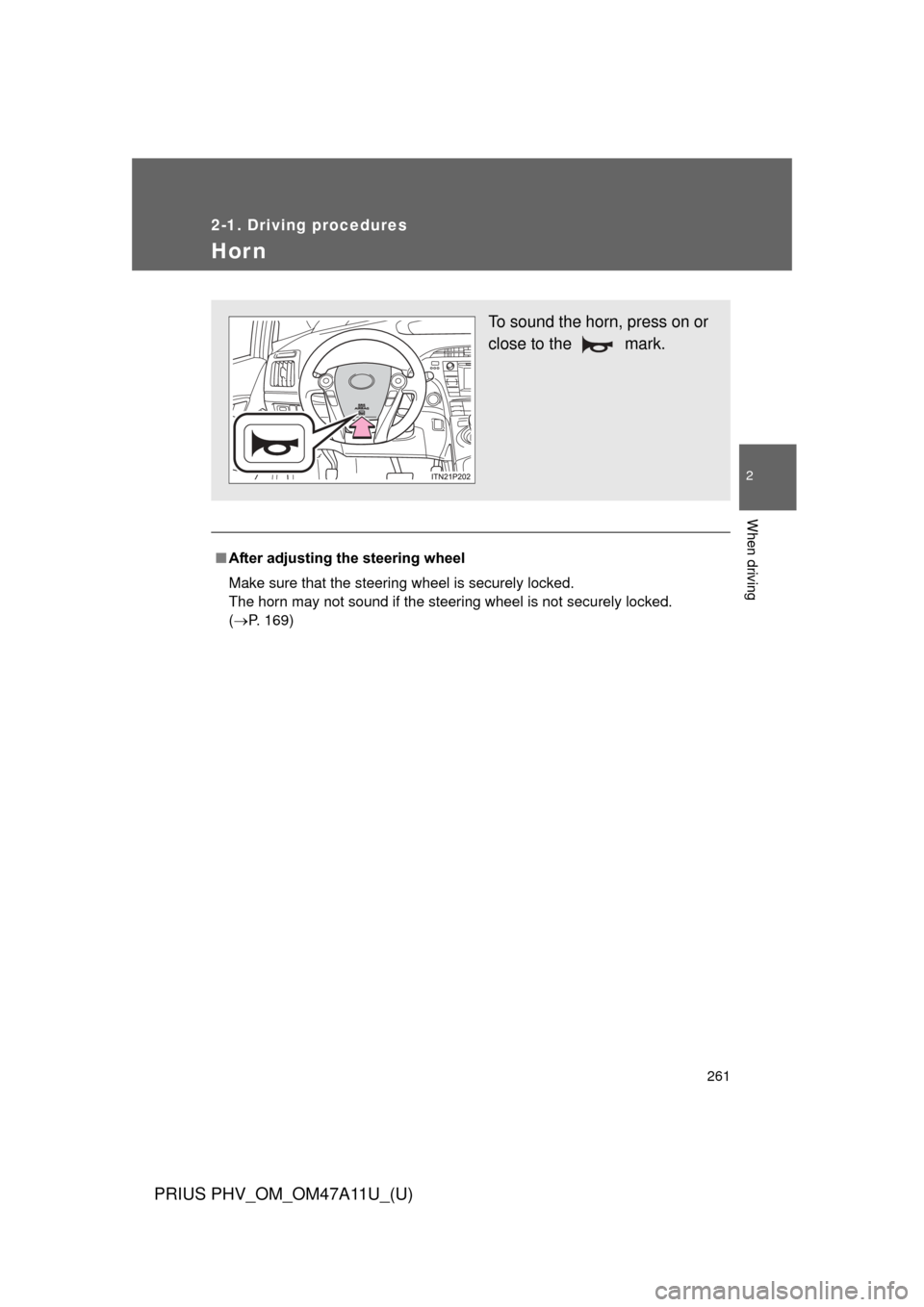

To sound the horn, press on or
close to the mark.

262
PRIUS PHV_OM_OM47A11U_(U)
2-2. Instrument cluster
Gauges and meters
The units used on the display may differ depending on the target
region.
The following gauges and meters and display illuminate when the
“POWER” switch is in ON mode:
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Speedometer
Displays the vehicle speed.
Instantaneous fuel consumption
Displays the current rate of fuel consumption.
Shift position indicators
Displays the shift position.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 271)

263
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
Touch tracer display (if equipped)
When the audio control switches,
climate control switches, “DISP”
button or “TRIP” button of the
steering wheel are touched, the
touch tracer display will appear
in front of the gauges, with the
touched button highlighted to
allow the driver to identify the
button that is being operated.
The button can then be operated
by further presses.
If an audio/navigation system is
used that is not compatible with
the steering switches in this vehi-
cle, the audio switch display may
not operate correctly.

264 2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)

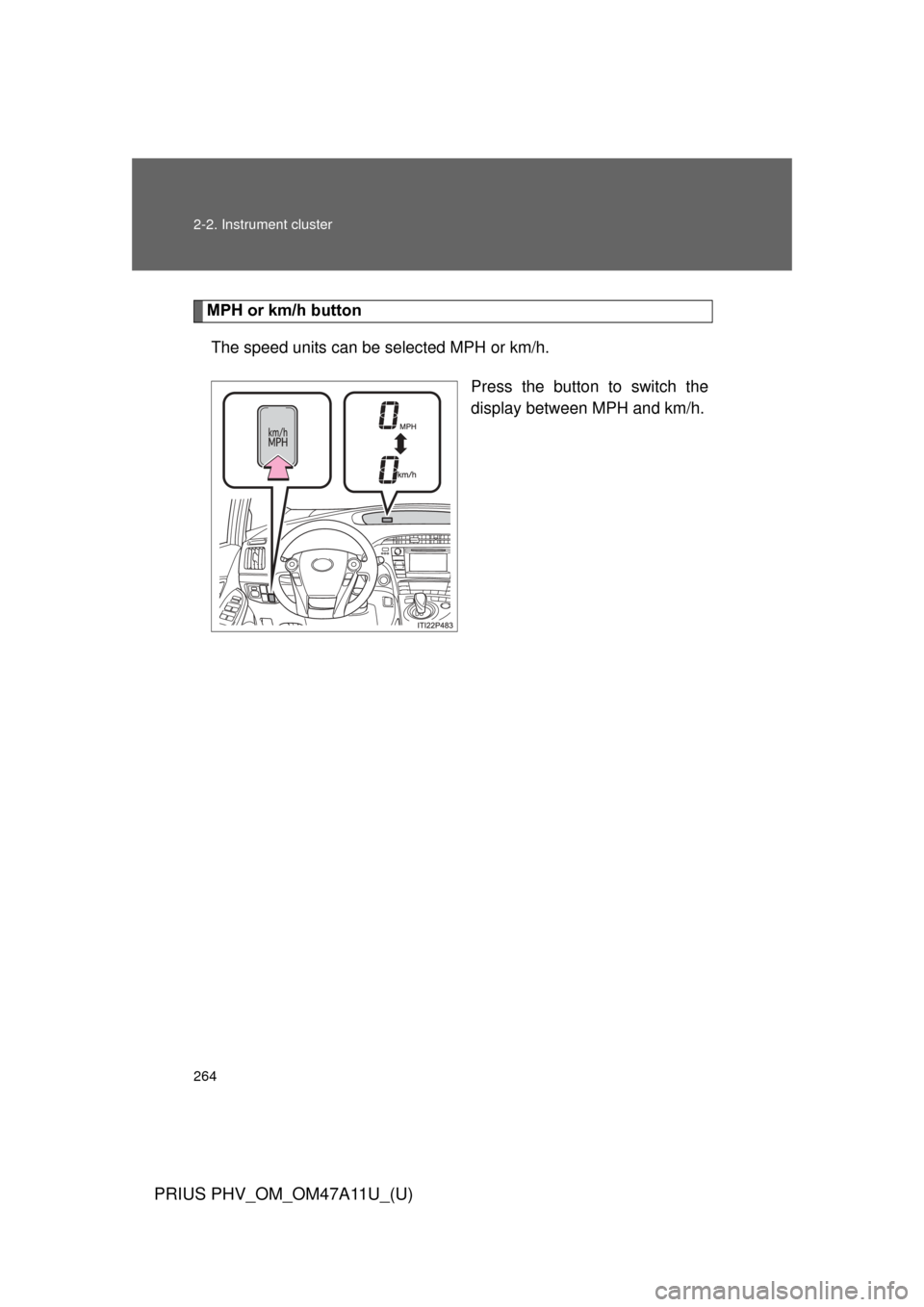

MPH or km/h buttonThe speed units can be selected MPH or km/h.
Press the button to switch the
display between MPH and km/h.

265
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving

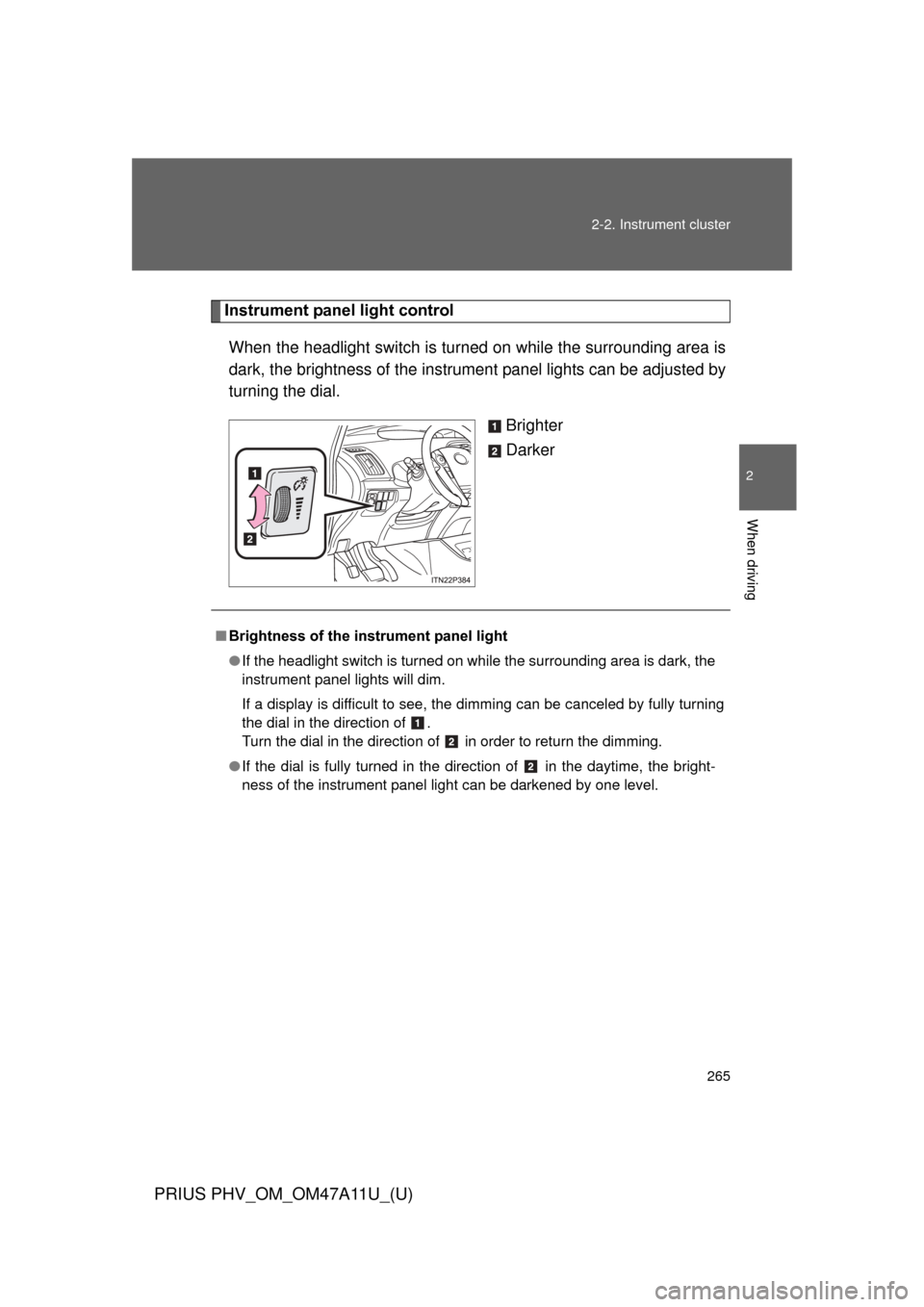

Instrument panel light control
When the headlight switch is turned on while the surrounding area is
dark, the brightness of the instru ment panel lights can be adjusted by
turning the dial.
Brighter
Darker
■Brightness of the in strument panel light
● If the headlight switch is turned on while the surrounding area is dark, the
instrument panel lights will dim.
If a display is difficult to see, the dimming can be canceled by fully turning
the dial in the direction of .
Turn the dial in the direction of in order to return the dimming.
● If the dial is fully turned in the direction of in the daytime, the bright-
ness of the instrument panel light can be darkened by one level.

266 2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
CAUTION
■To prevent an accident
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning light
comes on or flashes. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 607)
Do not place anything or attach a sticker
in front of the instrument cluster. The item
may obscure or obstruct the display, or
could reflect off the display, possibly
causing an accident.Instrument cluster

267
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving

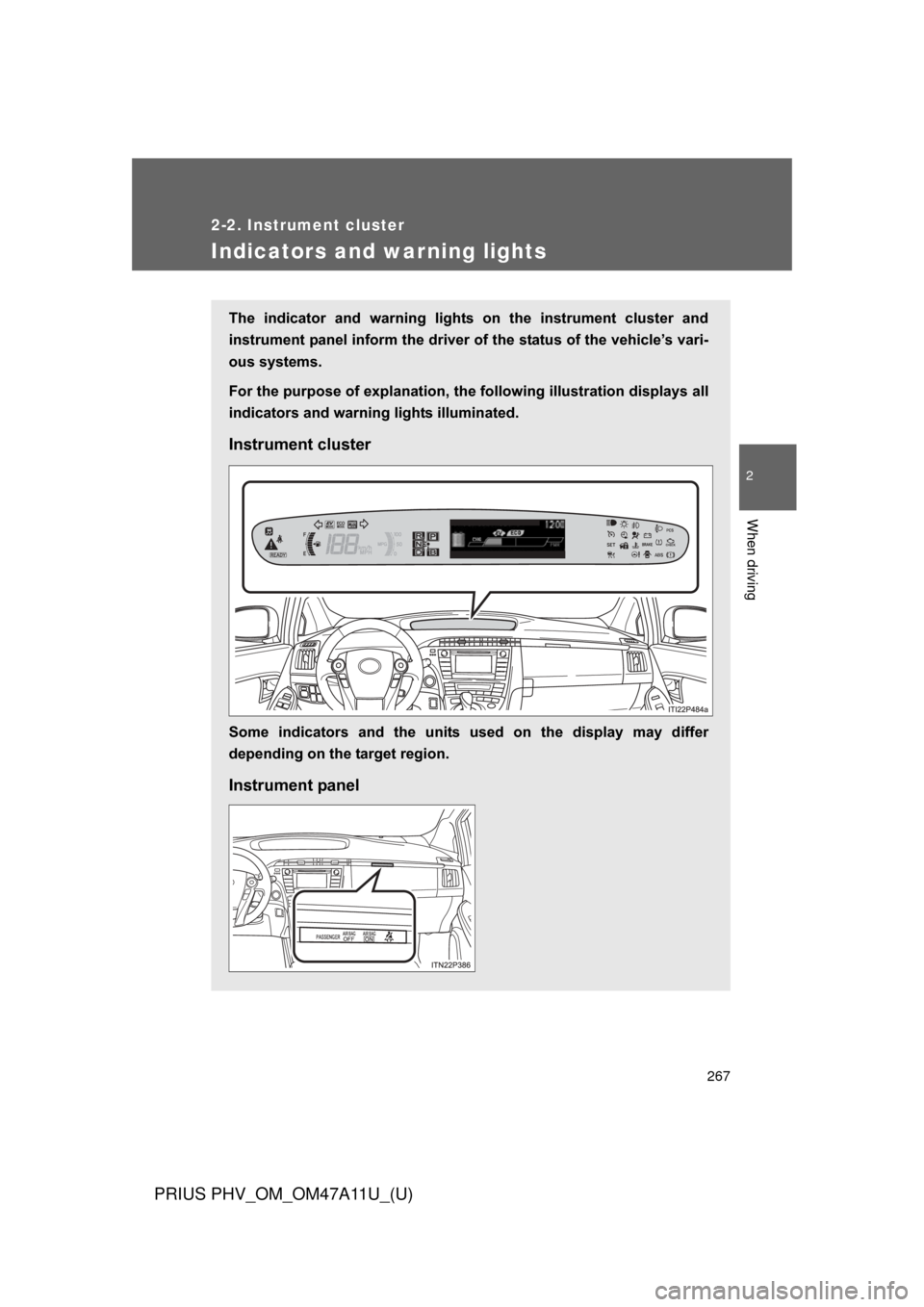

Indicators and warning lights
The indicator and warning lights on the instrument cluster and
instrument panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster
Some indicators and the units used on the display may differ
depending on the target region.
Instrument panel

268 2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)

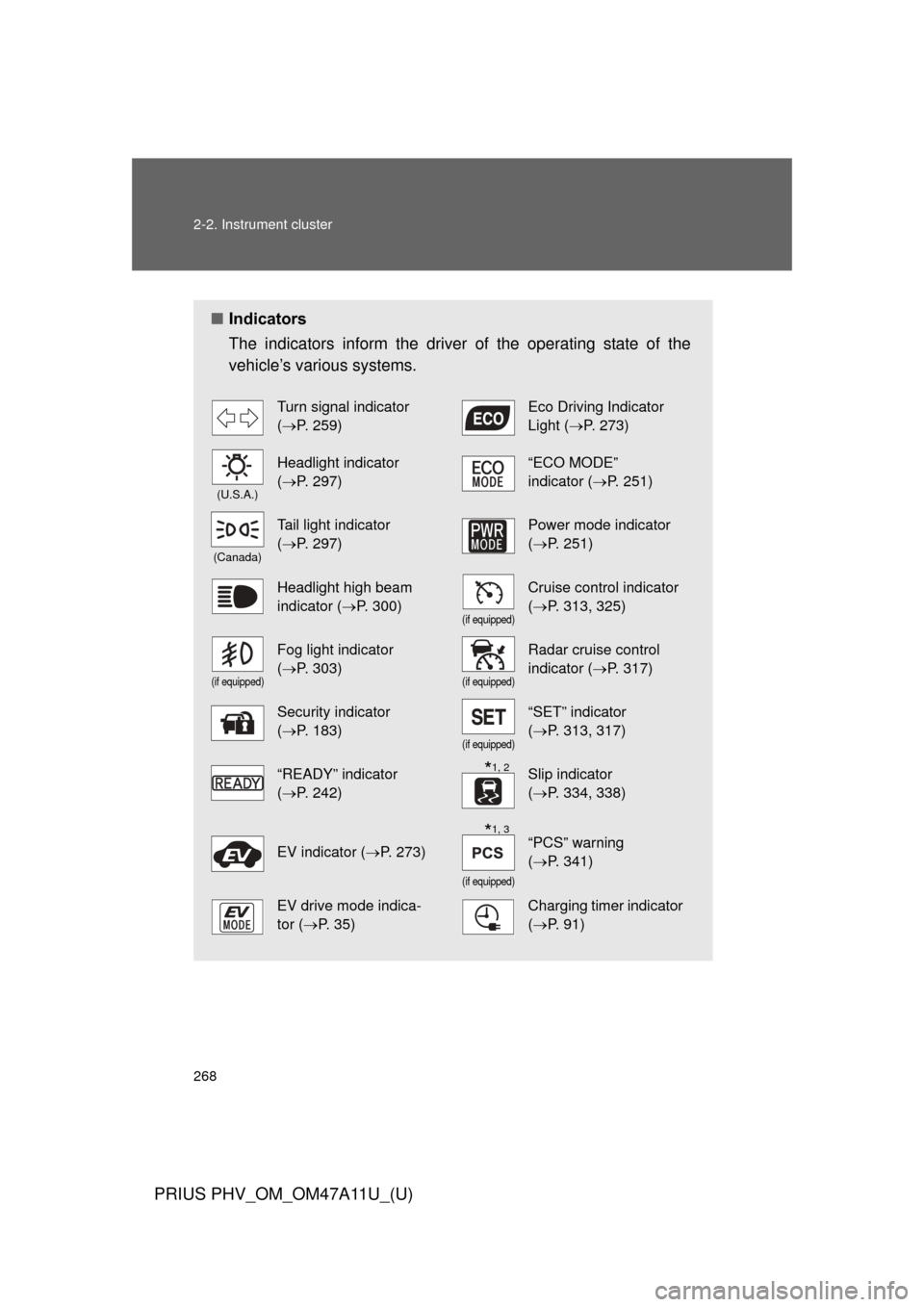

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 259)Eco Driving Indicator
Light ( P. 273)
(U.S.A.)
Headlight indicator
(P. 297)“ECO MODE”
indicator (P. 251)
(Canada)
Tail light indicator
(P. 297)Power mode indicator
(P. 251)
Headlight high beam
indicator ( P. 300)
(if equipped)
Cruise control indicator
(P. 313, 325)
(if equipped)
Fog light indicator
(P. 303)
(if equipped)
Radar cruise control
indicator (P. 317)
Security indicator
(P. 183)
(if equipped)
“SET” indicator
(P. 313, 317)
“READY” indicator
(P. 242)Slip indicator
(P. 334, 338)
EV indicator ( P. 273)
(if equipped)
“PCS” warning
(P. 341)
EV drive mode indica-
tor ( P. 35)Charging timer indicator
(P. 91)
*1, 2
*1, 3

269
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
*1: These lights turn on when the “POWER” switch is turned to the ON
mode to indicate that a system check is being performed. They will
turn off after the hybrid system is on, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if the
lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashesfaster than usual to indicate that the system is operating.

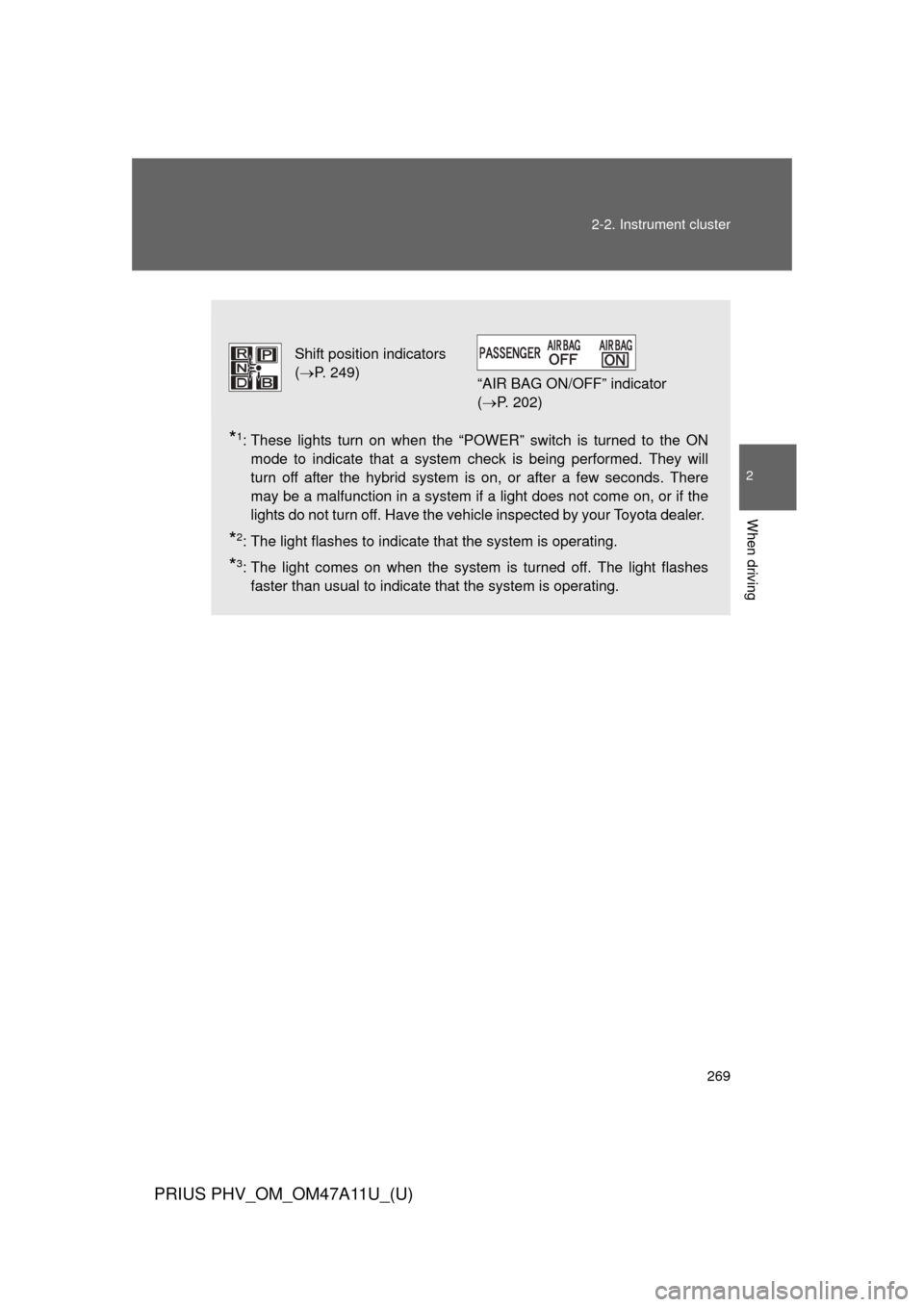

Shift position indicators
(P. 249)
“AIR BAG ON/OFF” indicator
( P. 202)

270 2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS airbag warning light
not come on when you start the hybrid system, this could mean that these
systems are not available to help protect you in an accident, which could
result in death or serious injury. Have the vehicle inspected by your Toyota
dealer immediately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( P. 537)
*1: These lights turn on when the “POWER” switch is turned to ON
mode to indicate that a system check is being performed. They will
turn off after the hybrid system is on, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota
dealer.
*2: The light flashes to indicate a malfunction.
(U.S.A.)(Canada)(U.S.A.)(Canada) (red)(yellow)(if equipped)
(U.S.A.)(Canada)(if equipped)(if equipped)
(if equipped)
*1*1*1*1*1*1*1*1
*1*1*1*1*1, 2*1*2
*2*1*1
