TOYOTA PRIUS PLUG-IN HYBRID 2015 1.G Owners Manual

651
6-2. Customization
6
Vehicle specifications
PRIUS PHV_OM_OM47A11U_(U)
ItemFunctionDefault set-
tingCustom-ized
setting
Power
windows
( P. 175) The one-touch
closing operation
except for
driver’s seat
ON OFF – – O
Illumination
( P. 388) Time elapsed
before lights turn
off
15 secondsOFF
–OO
7.5
seconds
30 seconds
Operation when
the doors are
unlocked ON OFF – – O
Operation after
the “POWER”
switch turned
OFF ON OFF – – O
Operation when
you approach
the vehicle with
the electric key
on your person
(When the per-
sonal/interior
light main switch
is door position) ON OFF – – O
Foot lights ON OFF – – O
Foot lights oper-
ation when the
vehicle is run-
ning ON OFF – – O

652 6-2. Customization
PRIUS PHV_OM_OM47A11U_(U)
ItemFunctionDefault set-tingCustom-ized
setting
Meter and
instrument
panel
( P. 262) Sensor sensitiv-
ity for darkening
the brightness of
the meter, navi-
gation system
and instrument
panel depend-
ing on the out-
side brightness
0 -2 to +2 – – O
Sensor sensitiv-
ity for returning
the brightness of
the meter, navi-
gation system
and instrument
panel to the orig-
inal level
depending on
the outside
brightness 0 -2 to +2 – – O
Automatic
air
conditioning
system
( P. 364) Enable/disable
automatic
operation of the
air conditioning
compressor
when the
“AUTO” switch
ON
ON OFF – O O
Heating/cooling
operation mini-
mized in Eco
drive mode ON OFF – – O

653
6-2. Customization
6
Vehicle specifications
PRIUS PHV_OM_OM47A11U_(U)
ItemFunctionDefault set-
tingCustom-ized
setting
Remote Air
Condition-
ing System
( P. 377) Operation using
the “A/C” button
on the wireless
remote control
Push and
hold for 0.8 seconds Push once
––O
Push twice
Push and
hold for 2.4 seconds
OFF
Stopping the
operation using
the “A/C” button
on the wireless
remote control Push twicePush once
––O
Push and
hold for 0.8 seconds
Push and
hold for 2.4 seconds
OFF

654 6-2. Customization
PRIUS PHV_OM_OM47A11U_(U)
Multi-information display (P. 271)
ItemFunctionDefault set-
tingCustom-ized
setting
Reverse
warning
buzzer
( P. 255) Operation sig-
nals (Buzzer)
when shifting
into R
Beeps
repeatedly Beeps
once ––O
Seat belt
reminder
( P. 543) Vehicle speed
linked seat belt
reminder buzzer
ON OFF – – O
Available languagesEnglish, French and Spanish

655
6
Vehicle specifications
PRIUS PHV_OM_OM47A11U_(U)
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Message indicating
maintenance is
required After the maintenance is performed P. 437
Tire pressure warning
system • When rotating the tires on vehicles
with differing front and rear tire infla-
tion pressures
• When changing the tire size P. 482
The following items must be init
ialized for normal system operation
after such cases as the 12-volt batt ery being reconnected, or mainte-
nance being performed on the vehicle.

656 6-3. Initialization
PRIUS PHV_OM_OM47A11U_(U)

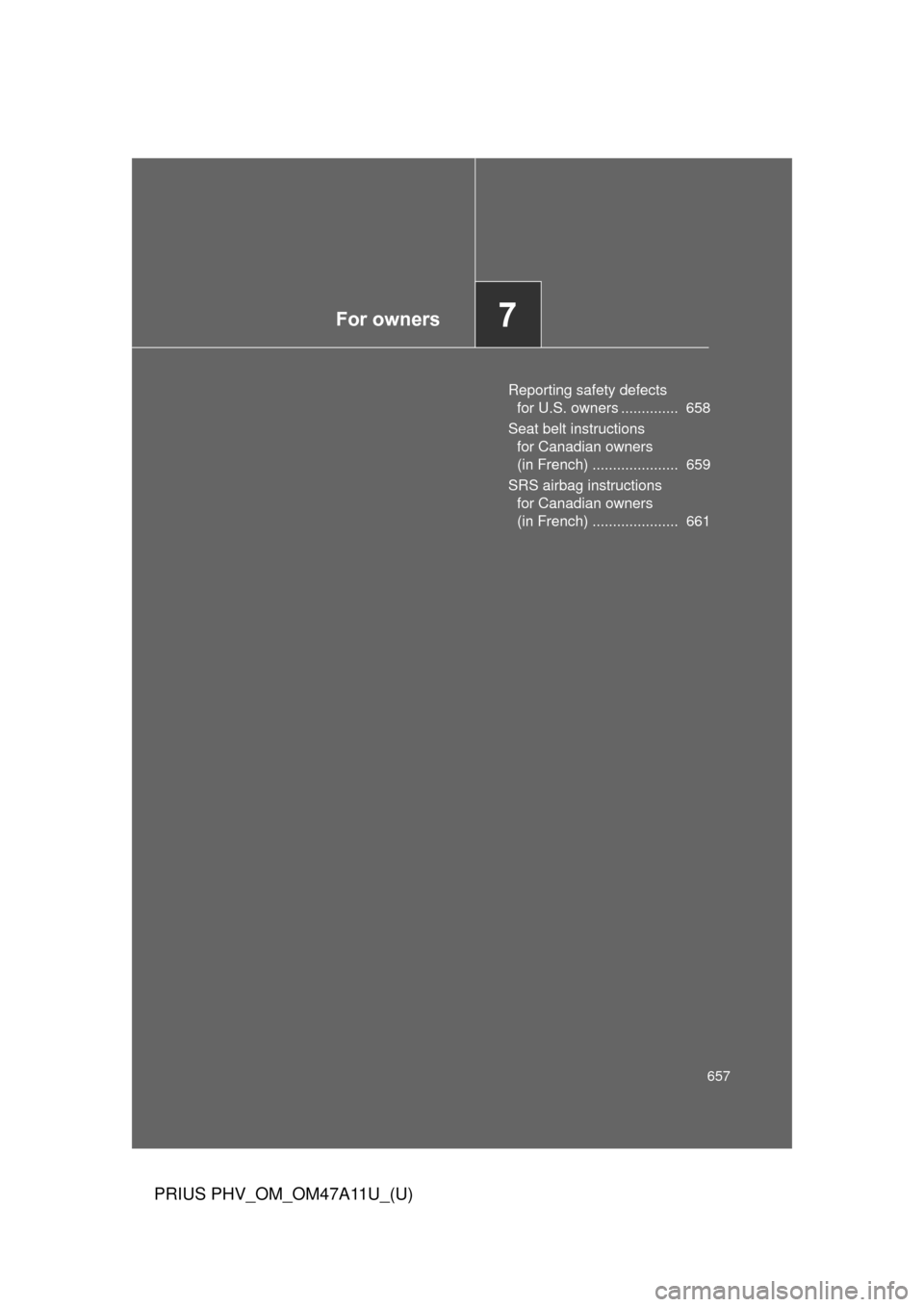

For owners7
657
PRIUS PHV_OM_OM47A11U_(U)
Reporting safety defects for U.S. owners .............. 658
Seat belt instructions for Canadian owners
(in French) ..................... 659
SRS airbag instructions for Canadian owners
(in French) ..................... 661

658
PRIUS PHV_OM_OM47A11U_(U)

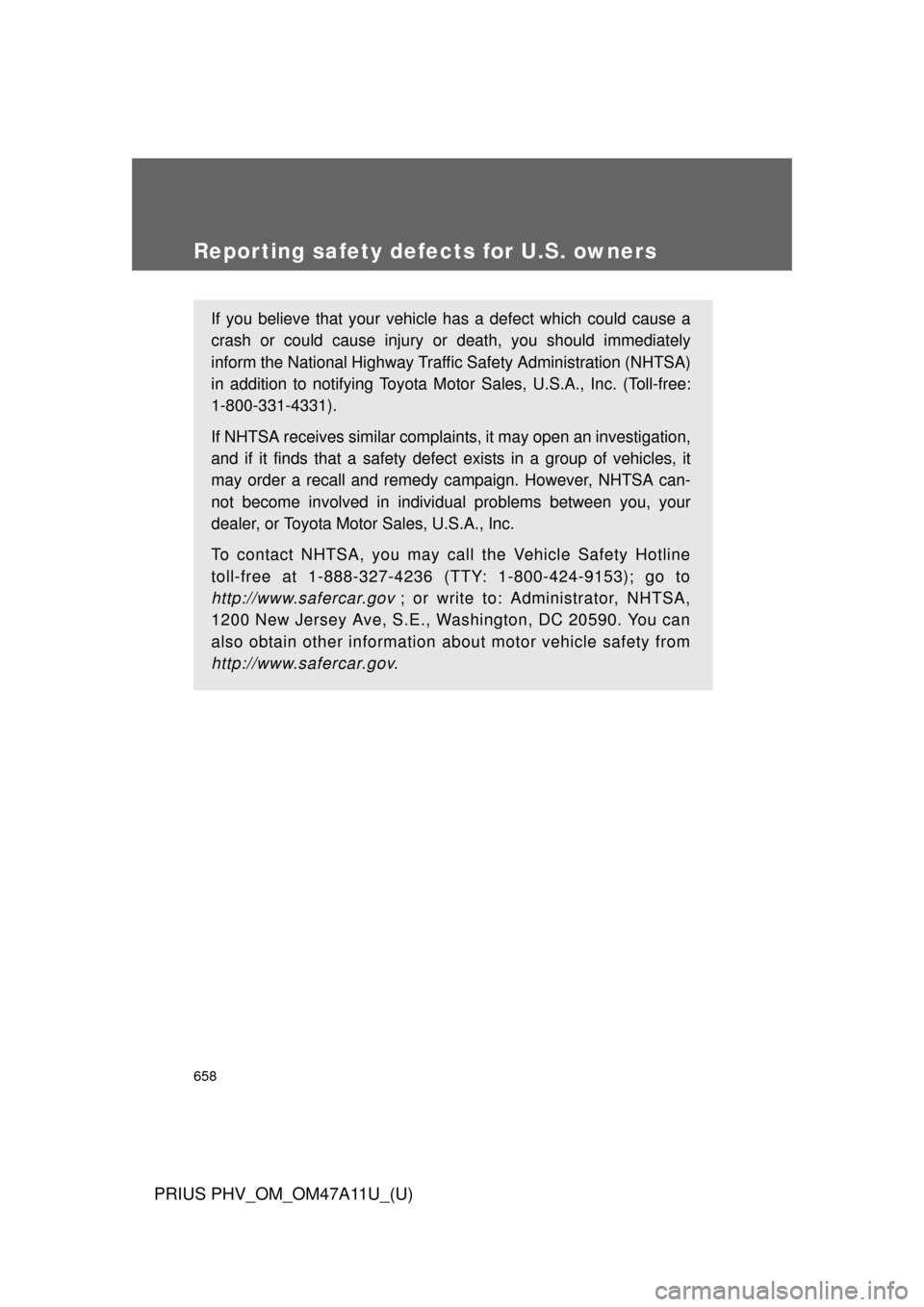

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov
; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .

659
7
For owners
PRIUS PHV_OM_OM47A11U_(U)

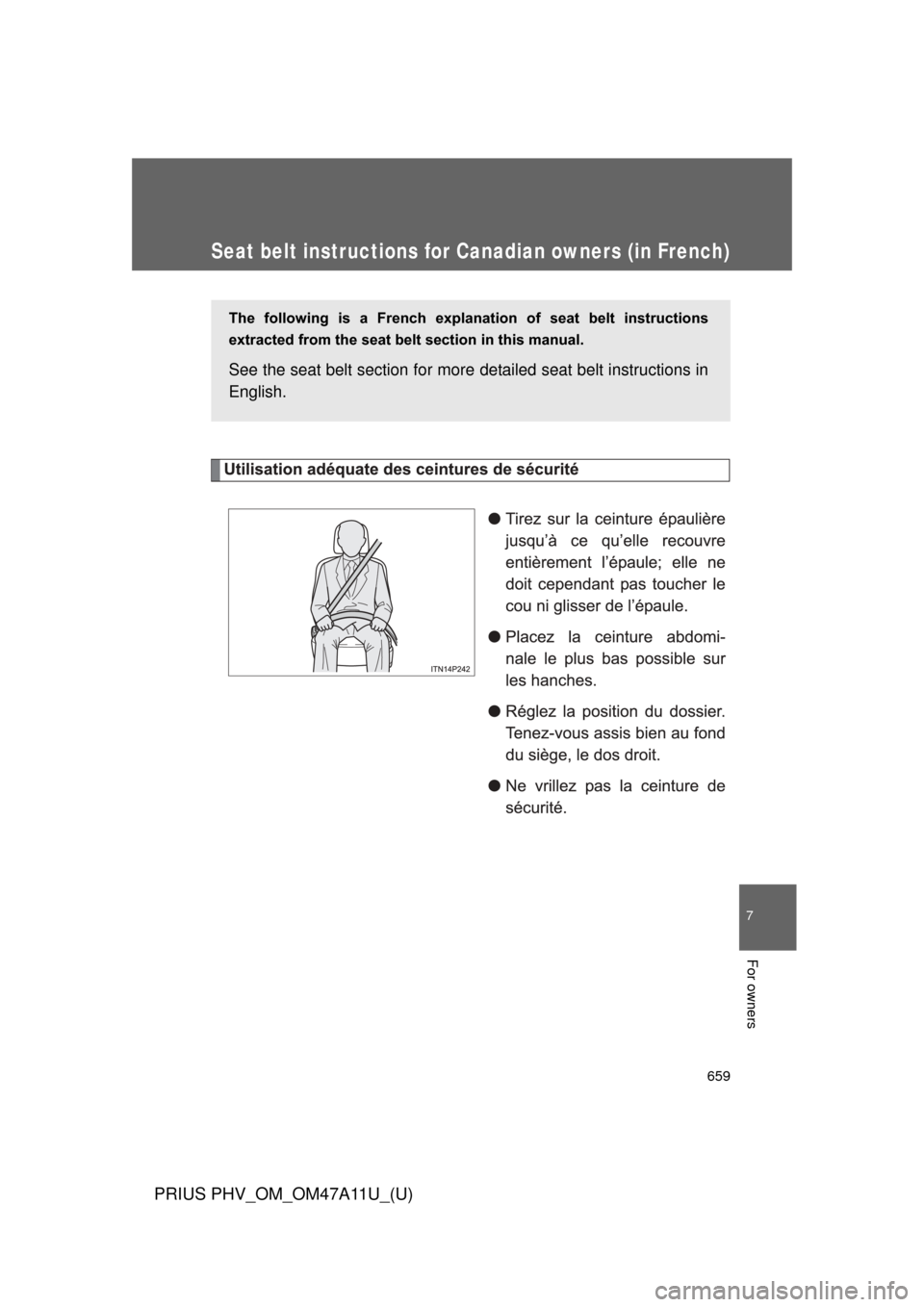

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
