1-3. Theft deterrent system
PRIUS PHV_OM_OM47A89E_(EE)
For safety and security
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or back door is unlocked or opened in any way other
than using the entry function or wireless remote control. (The doors
will lock again automatically.)
● The hood is opened.
● If equipped, the intrusion sensor detects something moving inside
the vehicle. (An intruder gets in the vehicle.)
Close the doors and hood, and
lock all the doors using the entry
function or wireless remote con-
trol. The system will be set auto-
matically after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to deactivate or stop the alarm.
● Unlock the doors using the entry function or wireless remote con-
trol.
● Start the hybrid system. (The alarm will be deactivated or stopped
after a few seconds.)
: If equipped
The alarm
Setting the alarm system
Deactivating or stopping the alarm

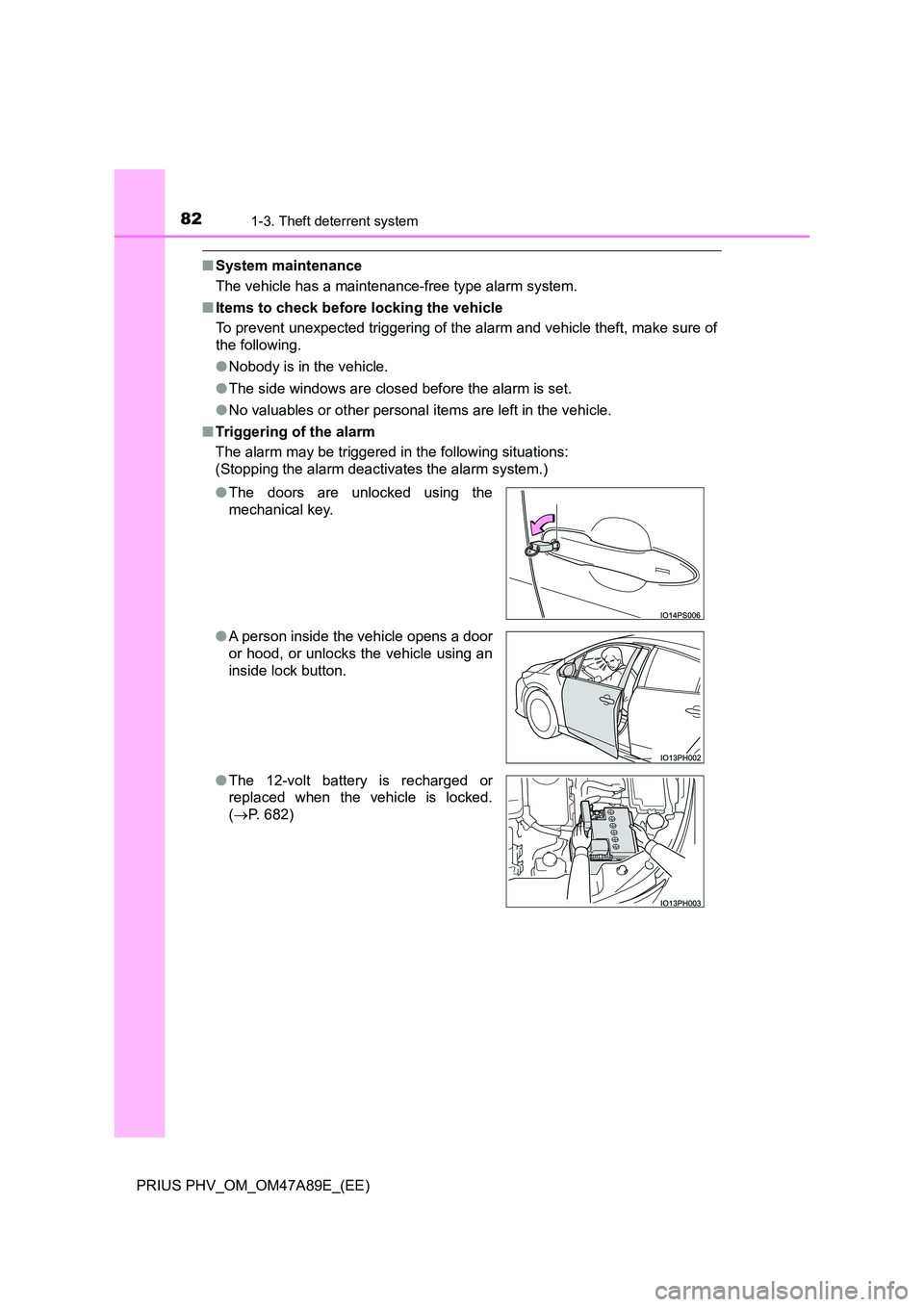

821-3. Theft deterrent system
PRIUS PHV_OM_OM47A89E_(EE)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following.
● Nobody is in the vehicle.
● The side windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● The doors are unlocked using the
mechanical key.
● A person inside the vehicle opens a door
or hood, or unlocks the vehicle using an
inside lock button.
● The 12-volt battery is recharged or
replaced when the vehicle is locked.
( P. 682)

831-3. Theft deterrent system
1
PRIUS PHV_OM_OM47A89E_(EE)
For safety and security

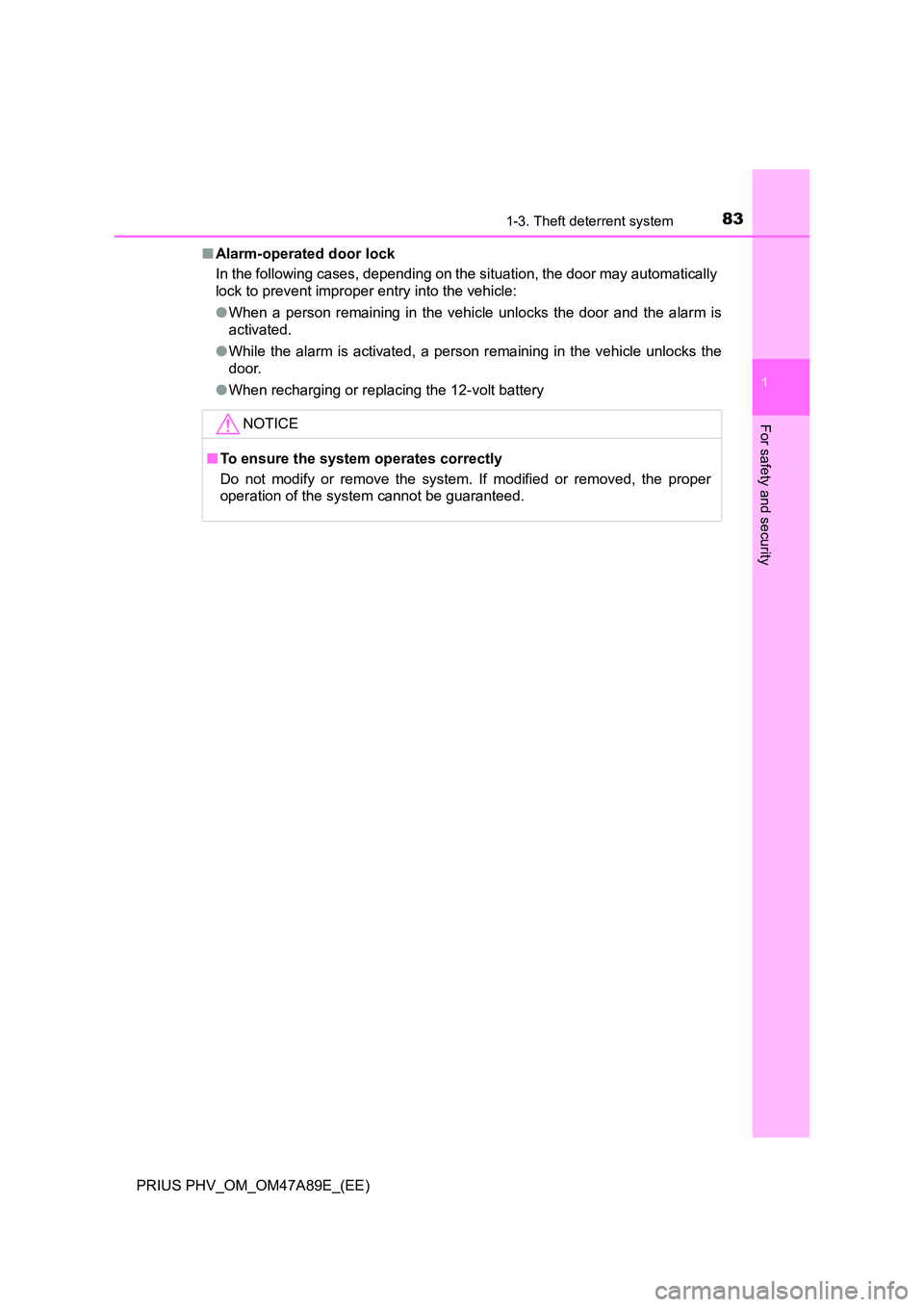

■Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the 12-volt battery
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

841-3. Theft deterrent system
PRIUS PHV_OM_OM47A89E_(EE)
The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
( P. 8 1 )
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to disable the intrusion sensor before setting the alarm,
as they will respond to movement inside the vehicle.
Turn the power switch off.
A message is displayed on the multi-information display for approxi-
mately 4 seconds asking if you wish to cancel the intrusion sensor.
Press or of the
meter control switch on the
steering wheel, select “Yes”
and then press .
If an operation is not performed
for approximately 5 seconds,
the message will be automati-
cally extinguished and the intru-
sion sensor will not be canceled.
The intrusion sensor will revert to on each time the power switch is
turned to ON mode.
Intrusion sensor (if equipped)
1
2

851-3. Theft deterrent system
1
PRIUS PHV_OM_OM47A89E_(EE)
For safety and security
■When the message asking if you wish to cancel the intrusion sensor is
not displayed
The message may not be displayed if other message is displayed. In this
case, turn the power switch to ON mode, follow the instructions on the display
and turn the power switch off again.
■ Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function or wireless remote control will re-
enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
• The movement of people outside the vehicle
● People or pets are in the vehicle.
● A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
IO13PH005
● Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.
IO13PH007

861-3. Theft deterrent system
PRIUS PHV_OM_OM47A89E_(EE)
● The vehicle is inside an automatic or high-pressure car wash.
● The vehicle experiences impacts, such as hail, lightning strikes, and other
kinds of repeated impacts or vibrations.
● The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
● Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.
NOTICE
■ To ensure the intrusion sensor functions correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
IO13PH008
IO13PH009
● To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.

87
2Plug-in hybrid system

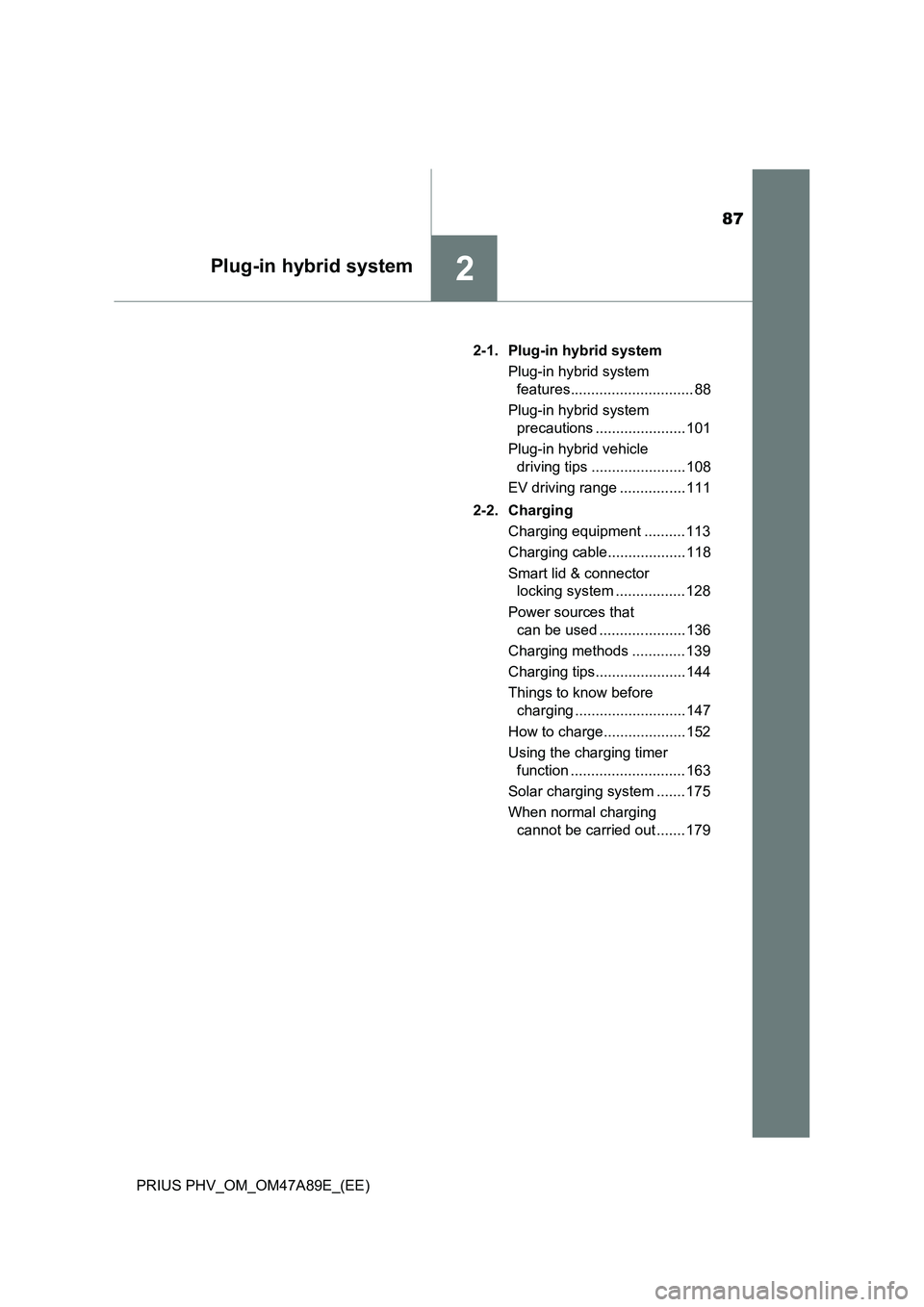

PRIUS PHV_OM_OM47A89E_(EE)2-1. Plug-in hybrid system
Plug-in hybrid system
features.............................. 88
Plug-in hybrid system
precautions ...................... 101
Plug-in hybrid vehicle
driving tips ....................... 108
EV driving range ................ 111
2-2. Charging
Charging equipment .......... 113
Charging cable................... 118
Smart lid & connector
locking system ................. 128
Power sources that
can be used ..................... 136
Charging methods ............. 139
Charging tips...................... 144
Things to know before
charging ........................... 147
How to charge.................... 152
Using the charging timer
function ............................ 163
Solar charging system ....... 175
When normal charging
cannot be carried out ....... 179

882-1. Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)

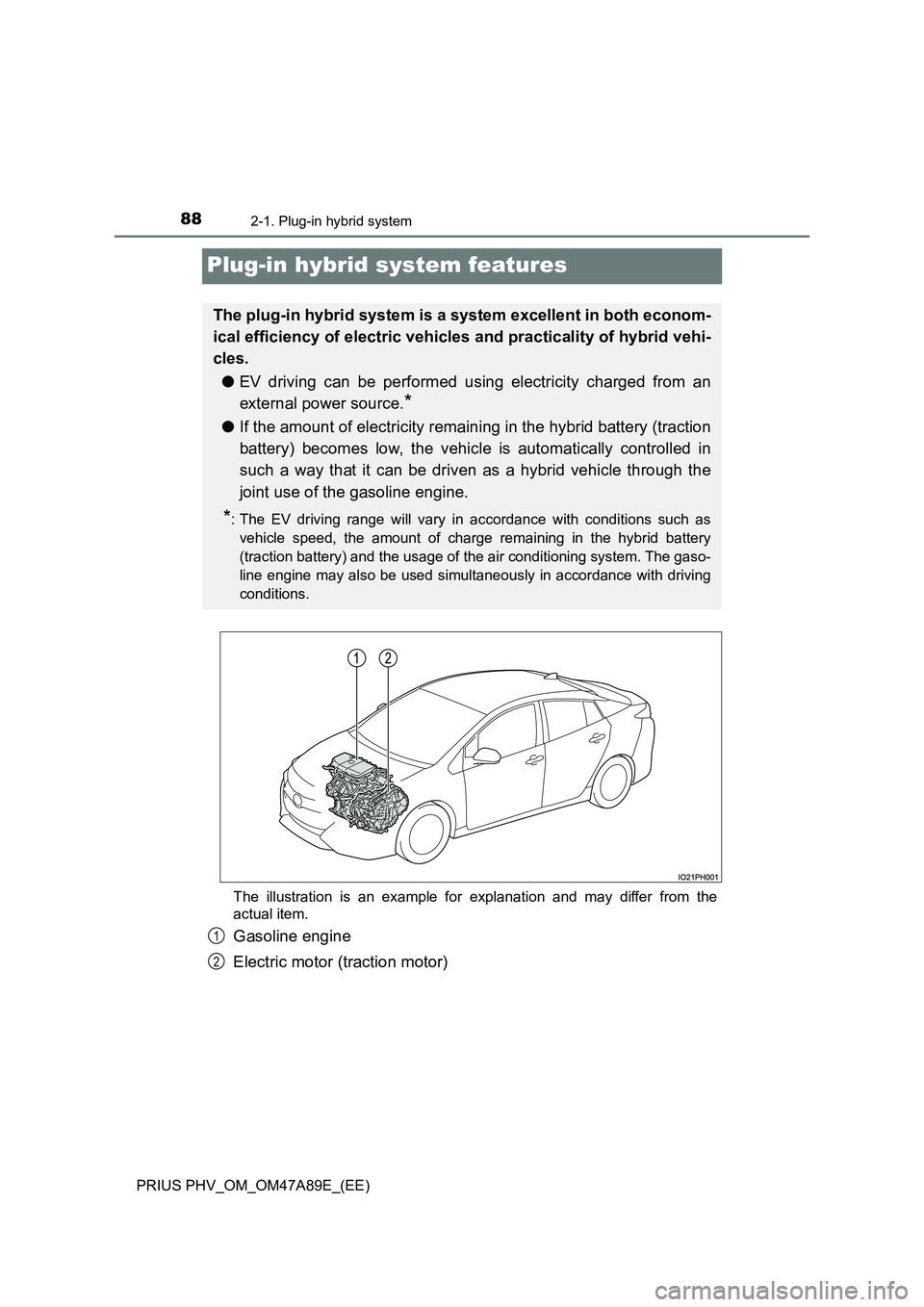

Plug-in hybrid system features
The illustration is an example for explanation and may differ from the
actual item.
Gasoline engine
Electric motor (traction motor)
The plug-in hybrid system is a system excellent in both econom-
ical efficiency of electric vehicles and practicality of hybrid vehi-
cles.
● EV driving can be performed using electricity charged from an
external power source.*
● If the amount of electricity remaining in the hybrid battery (traction
battery) becomes low, the vehicle is automatically controlled in
such a way that it can be driven as a hybrid vehicle through the
joint use of the gasoline engine.
*: The EV driving range will vary in accordance with conditions such as
vehicle speed, the amount of charge remaining in the hybrid battery
(traction battery) and the usage of the air conditioning system. The gaso-
line engine may also be used simultaneously in accordance with driving
conditions.
1
2

892-1. Plug-in hybrid system
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)

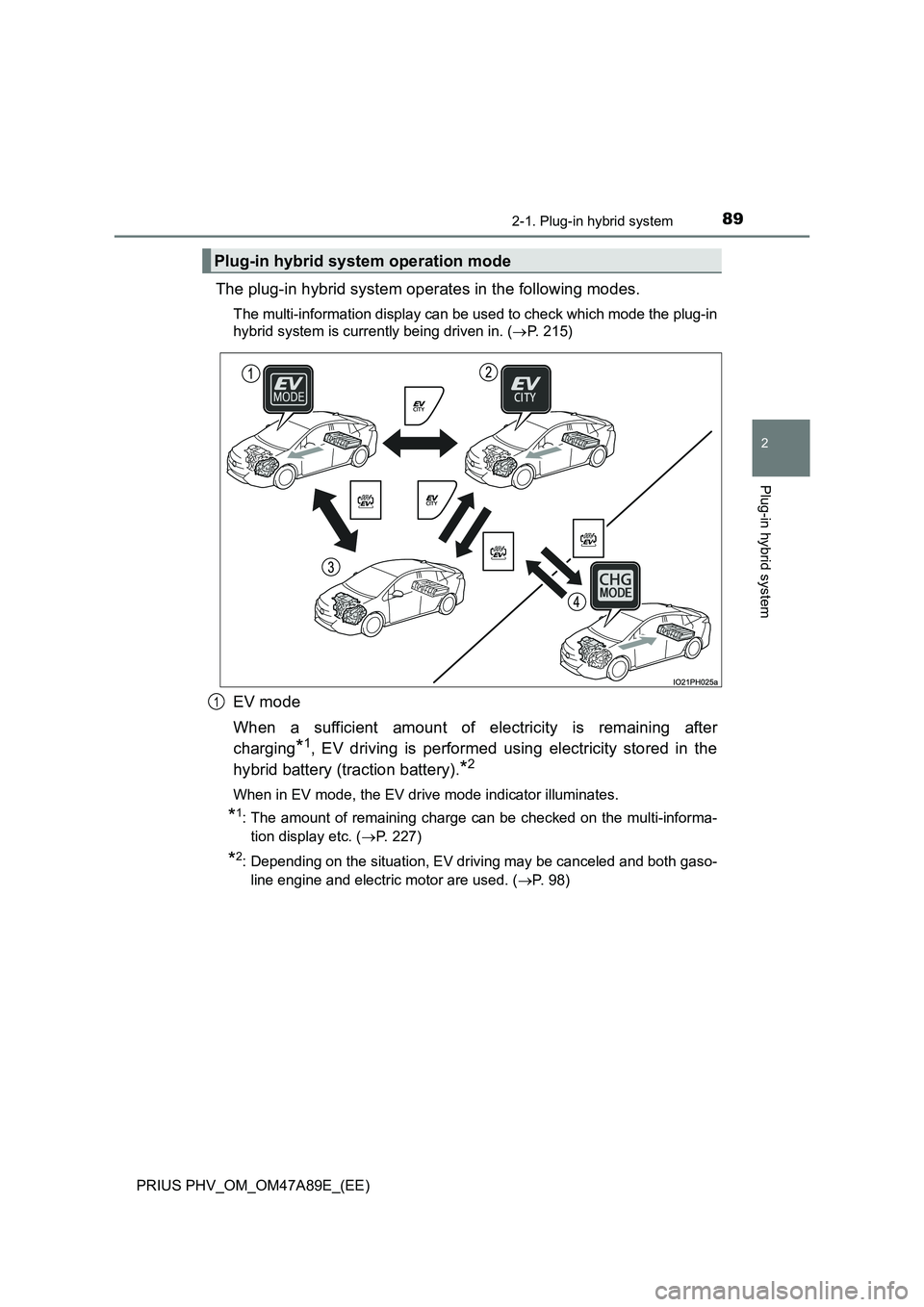

The plug-in hybrid system operates in the following modes.
The multi-information display can be used to check which mode the plug-in
hybrid system is currently being driven in. (P. 215)
EV mode
When a sufficient amount of electricity is remaining after
charging
*1, EV driving is performed using electricity stored in the
hybrid battery (traction battery).
*2
When in EV mode, the EV drive mode indicator illuminates.
*1: The amount of remaining charge can be checked on the multi-informa-
tion display etc. (P. 227)
*2: Depending on the situation, EV driving may be canceled and both gaso-
line engine and electric motor are used. (P. 98)
Plug-in hybrid system operation mode
1

902-1. Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)

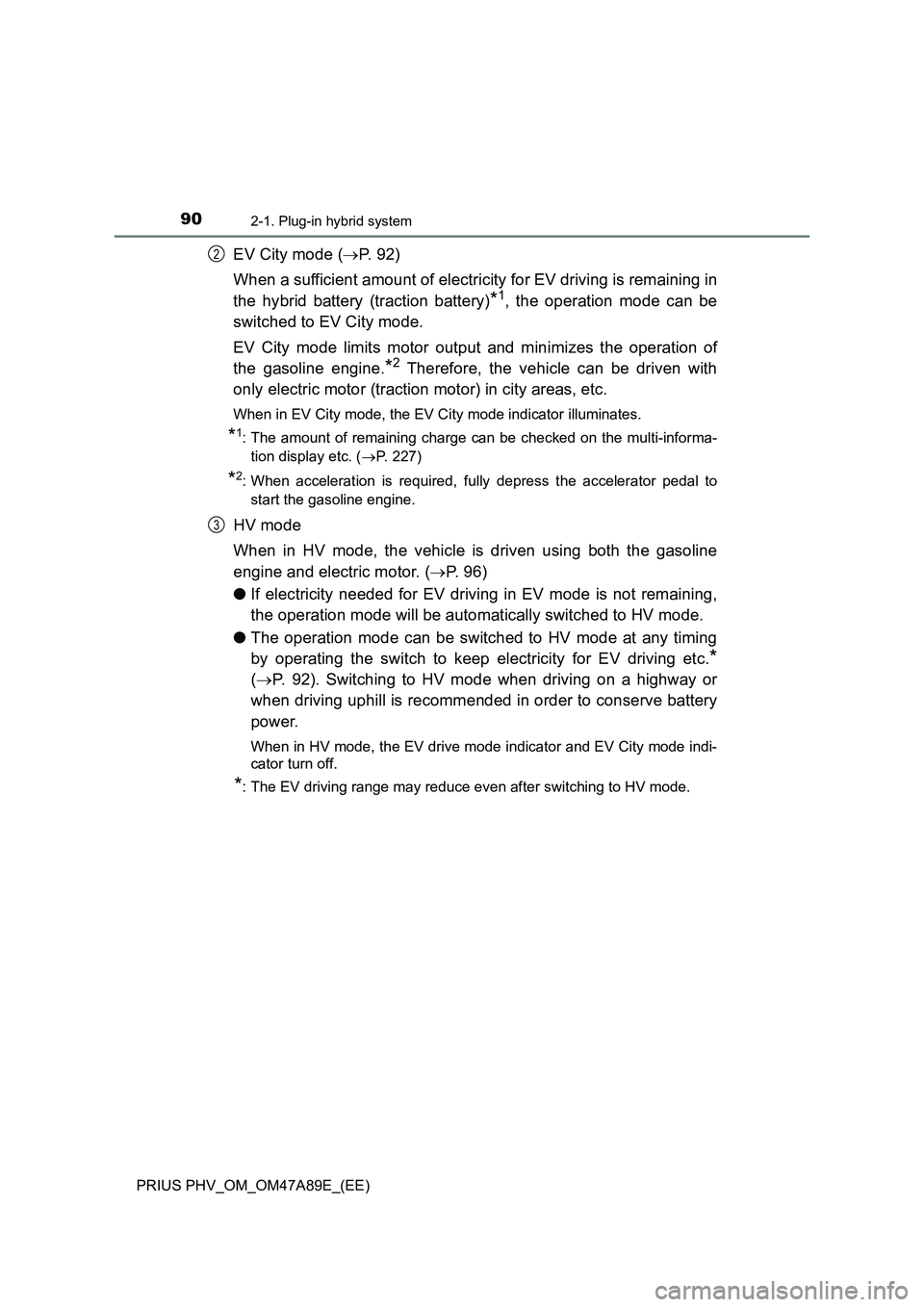

EV City mode (P. 9 2 )
When a sufficient amount of electricity for EV driving is remaining in
the hybrid battery (traction battery)
*1, the operation mode can be
switched to EV City mode.
EV City mode limits motor output and minimizes the operation of
the gasoline engine.
*2 Therefore, the vehicle can be driven with
only electric motor (traction motor) in city areas, etc.
When in EV City mode, the EV City mode indicator illuminates.
*1: The amount of remaining charge can be checked on the multi-informa-
tion display etc. (P. 227)
*2: When acceleration is required, fully depress the accelerator pedal to
start the gasoline engine.
HV mode
When in HV mode, the vehicle is driven using both the gasoline
engine and electric motor. (P. 9 6 )
●If electricity needed for EV driving in EV mode is not remaining,
the operation mode will be automatically switched to HV mode.
●The operation mode can be switched to HV mode at any timing
by operating the switch to keep electricity for EV driving etc.
*
(P. 92). Switching to HV mode when driving on a highway or
when driving uphill is recommended in order to conserve battery
power.
When in HV mode, the EV drive mode indicator and EV City mode indi-
cator turn off.
*: The EV driving range may reduce even after switching to HV mode.
2
