TOYOTA PRIUS PLUG-IN HYBRID 2018 Owners Manual

1312-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47C99E_(EE)

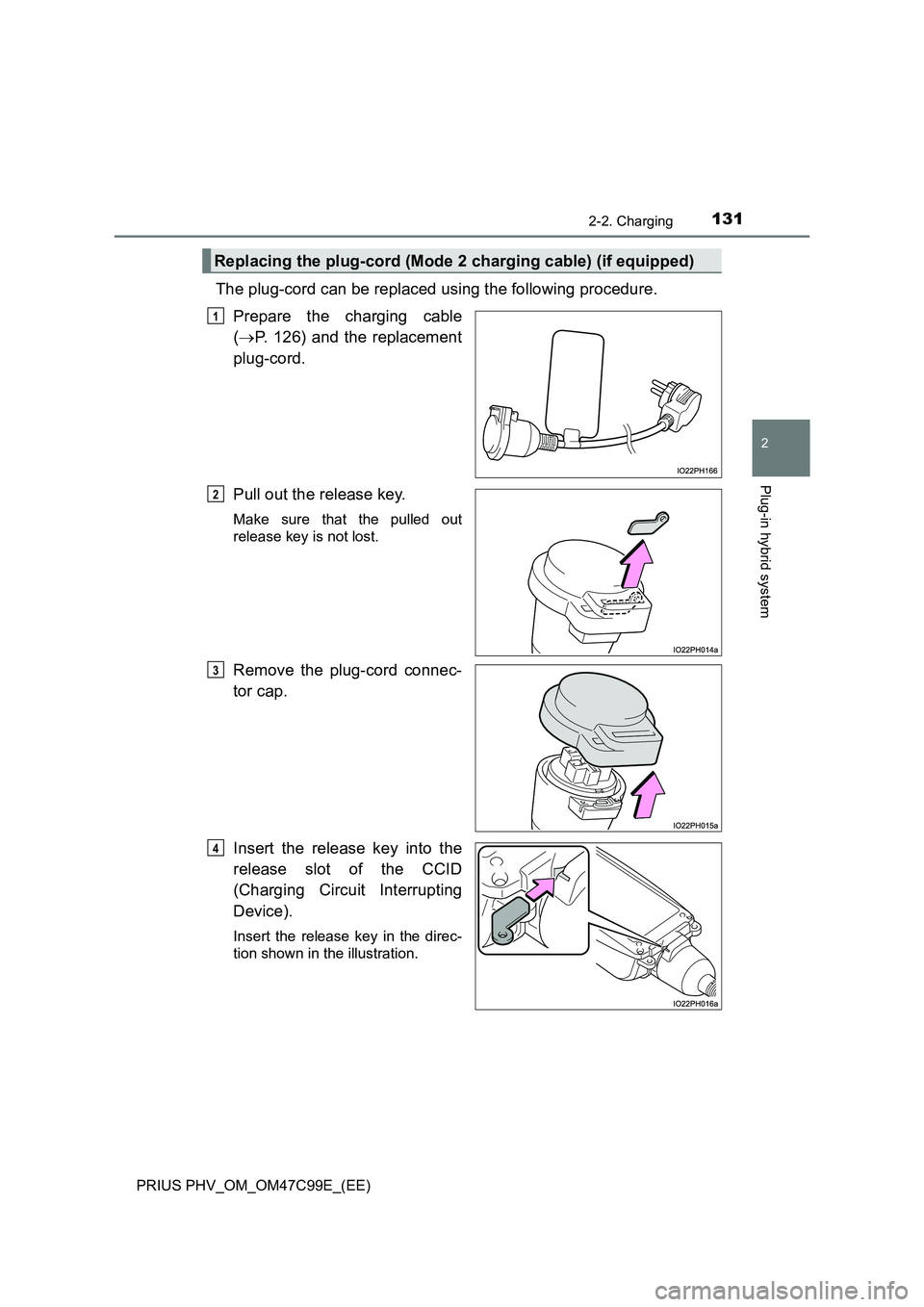

The plug-cord can be replaced using the following procedure.
Prepare the charging cable
( P. 126) and the replacement
plug-cord.
Pull out the release key.
Make sure that the pulled out
release key is not lost.
Remove the plug-cord connec-
tor cap.
Insert the release key into the
release slot of the CCID
(Charging Circuit Interrupting
Device).
Insert the release key in the direc-
tion shown in the illustration.
Replacing the plug-cord (Mode 2 charging cable) (if equipped)
1
2
3
4

1322-2. Charging
PRIUS PHV_OM_OM47C99E_(EE)

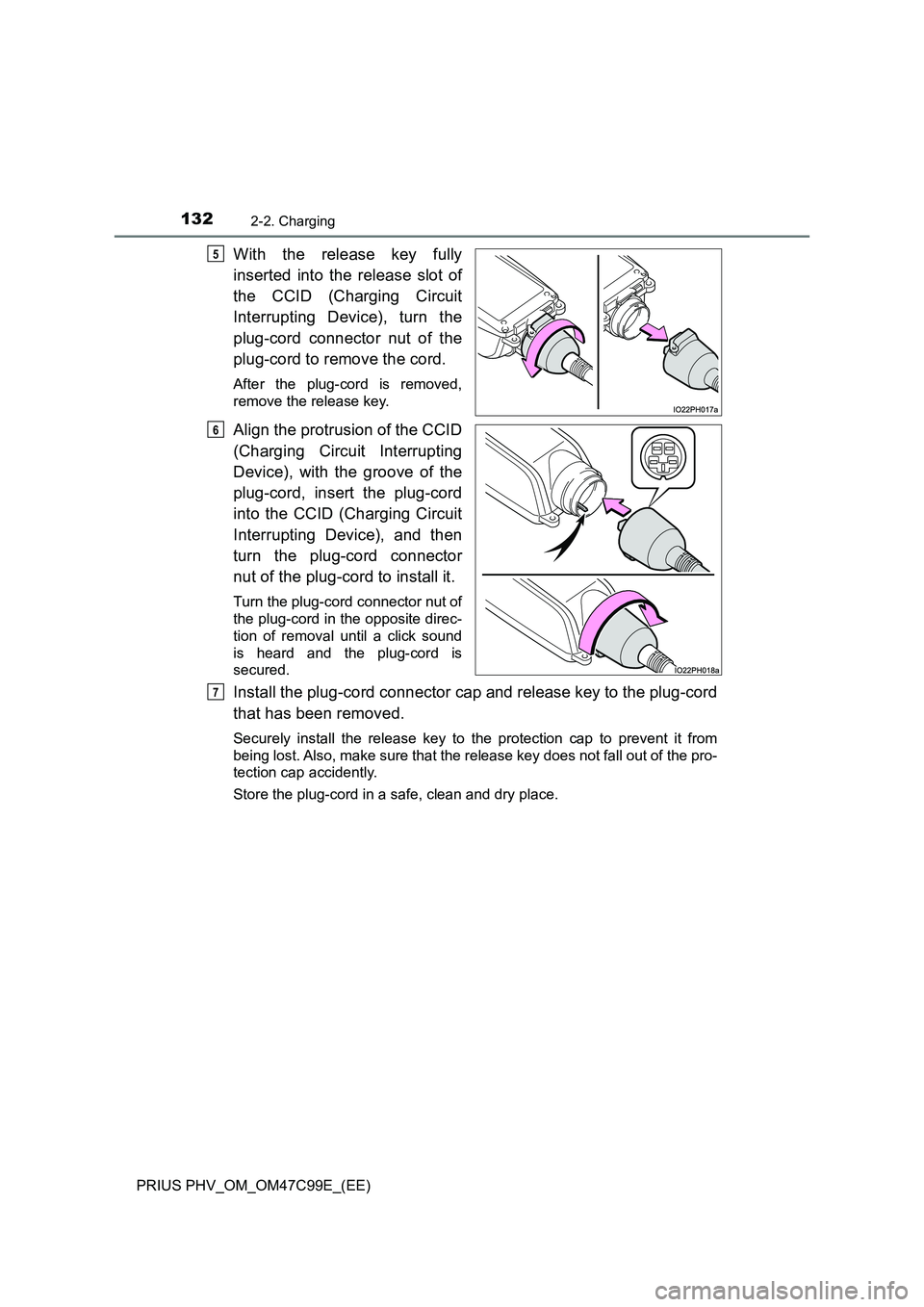

With the release key fully
inserted into the release slot of
the CCID (Charging Circuit
Interrupting Device), turn the
plug-cord connector nut of the
plug-cord to remove the cord.
After the plug-cord is removed,
remove the release key.
Align the protrusion of the CCID
(Charging Circuit Interrupting
Device), with the groove of the
plug-cord, insert the plug-cord
into the CCID (Charging Circuit
Interrupting Device), and then
turn the plug-cord connector
nut of the plug-cord to install it.
Turn the plug-cord connector nut of
the plug-cord in the opposite direc-
tion of removal until a click sound
is heard and the plug-cord is
secured.
Install the plug-cord connector cap and release key to the plug-cord
that has been removed.
Securely install the release key to the protection cap to prevent it from
being lost. Also, make sure that the release key does not fall out of the pro-
tection cap accidently.
Store the plug-cord in a safe, clean and dry place.
5
6
7

1332-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47C99E_(EE)
WARNING
■When using the charging cable and CCID (Charging Circuit Interrupt-
ing Device)
Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
● Do not attempt to disassemble or repair the charging cable, charging con-
nector, plug or CCID (Charging Circuit Interrupting Device).
If a problem arises with the chargi ng cable or the CCID (Charging Circuit
Interrupting Device), stop charging immediately and contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
● Do not subject the charging cable, charging connector, plug or CCID
(Charging Circuit Interrupting Device) to strong force or impact.
● Do not apply excessive force to the charging cable by forcefully folding,
twisting, pulling or dragging the charging cable.
● Do not damage the charging cable with sharp objects.
● Do not fold the charging connector or plug or insert foreign objects into
them.
● Do not put the charging connector and plug into water.
If they are dropped into water, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
● Do not replace the plug-cord with wet hands. (if equipped)
Also, do not replace in a place that is rainy or wet.
● Do not replace the plug-cord when the plug and/or charging connector are
connected. (if equipped)
● Check whether there are any local EV-charging regulations in place, and
adhere to them.
● Mode 2 charging cable: When replacing the plug-cord, firmly turn the nut
of the plug-cord until a “click” sound can be heard. (if equipped)
● Do not bring the charging cable to a high-temperature item such as a heat-
ing device.
● Do not wrap the charging cable around the CCID (Charging Circuit Inter-
rupting Device).

1342-2. Charging
PRIUS PHV_OM_OM47C99E_(EE)

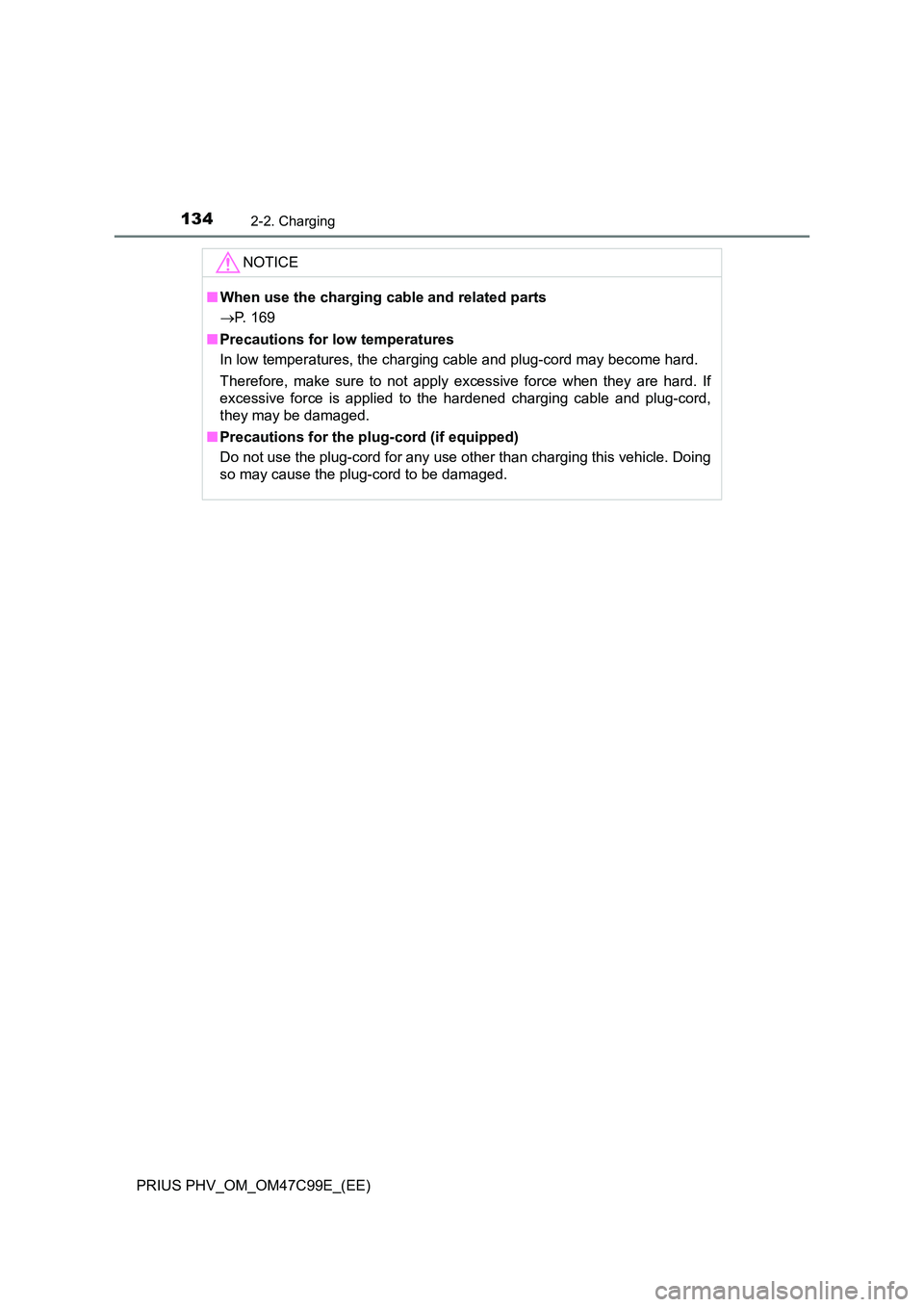

NOTICE
■When use the charging cable and related parts
 P. 169
■ Precautions for low temperatures
In low temperatures, the charging cable and plug-cord may become hard.
Therefore, make sure to not apply excessive force when they are hard. If
excessive force is applied to the hardened charging cable and plug-cord,
they may be damaged.
■ Precautions for the plug-cord (if equipped)
Do not use the plug-cord for any use other than charging this vehicle. Doing
so may cause the plug-cord to be damaged.

1352-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47C99E_(EE)
For safety, inspect the charging cable on a routine basis.
Inspecting and maintaining the charging cable
WARNING
■Routine inspection
Check the following points regularly.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
● The charging cable, plug, charging connector, CCID (Charging Circuit
Interrupting Device) etc. have not been damaged
● The socket has not been damaged
● The plug can be securely inserted into the socket
● The plug does not get extremely hot during use
● The tip of the plug has not been deformed
● The plug is not dirtied by dust etc.
Remove the plug from the socket before inspecting it. If any abnormalities
are found in the charging cable as a result of the inspection, immediately
stop use and consult any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
■ Maintaining the charging cable
When the charging cable is dirty, first remove the dirt with a hard, wringed
cloth, and then wipe the cable with a dry cloth.
However, never wash it with water. If the charging cable is washed with
water, fire or electric shock may oc cur during charging, possibly resulting in
death or serious injury.
■ When not using the charging cable for a long time
Remove the plug from the socket. Dust could accumulate on the plug or in
the socket, possibly causing overheating which could lead to a fire.
Also, keep the cable in a place free from moisture.

1362-2. Charging
PRIUS PHV_OM_OM47C99E_(EE)

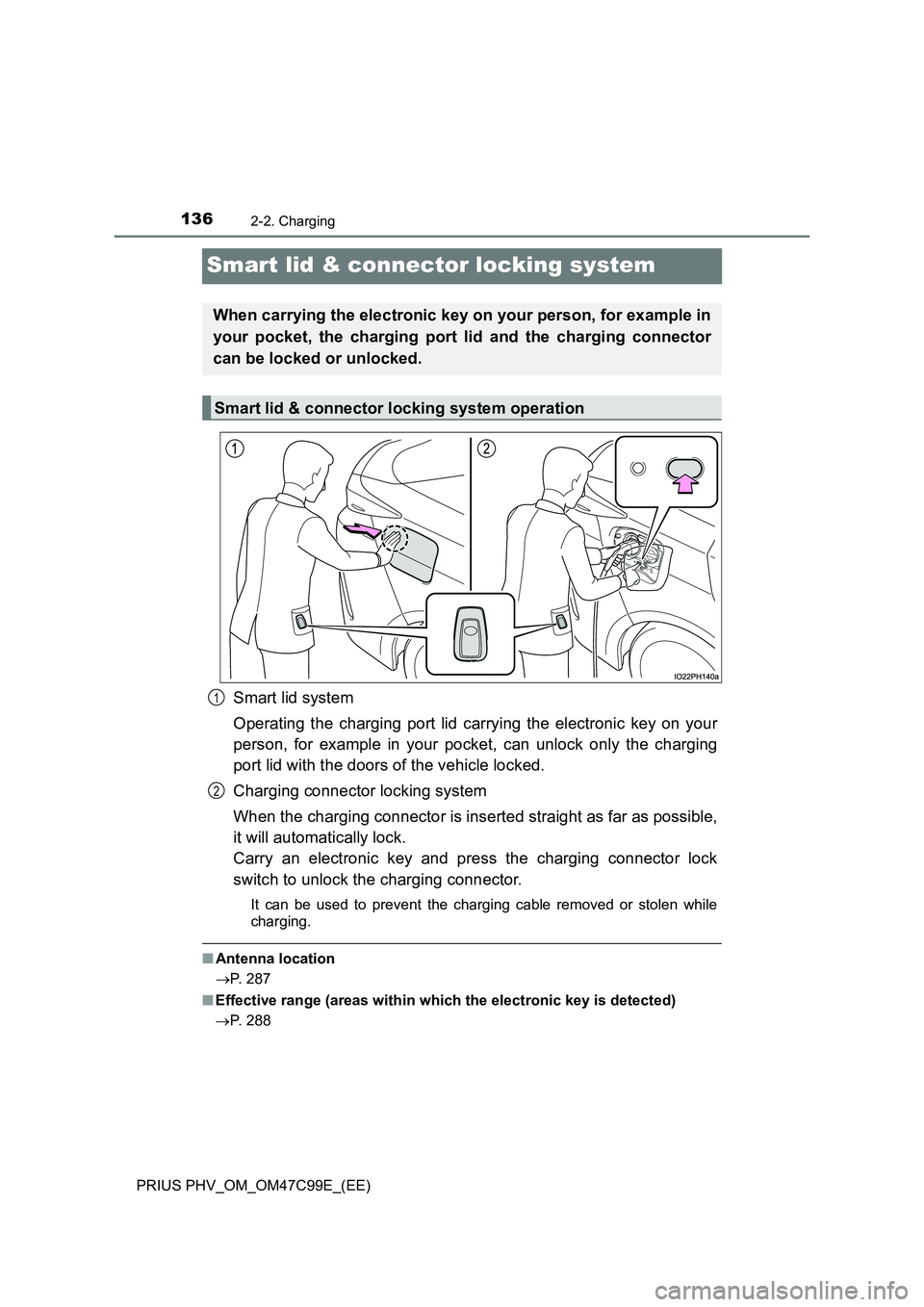

Smart lid & connector locking system
Smart lid system
Operating the charging port lid carrying the electronic key on your
person, for example in your pocket, can unlock only the charging
port lid with the doors of the vehicle locked.
Charging connector locking system
When the charging connector is inserted straight as far as possible,
it will automatically lock.
Carry an electronic key and press the charging connector lock
switch to unlock the charging connector.
It can be used to prevent the charging cable removed or stolen while
charging.
■ Antenna location
 P. 287
■ Effective range (areas within which the electronic key is detected)
 P. 288
When carrying the electronic key on your person, for example in
your pocket, the charging port lid and the charging connector
can be locked or unlocked.
Smart lid & connector locking system operation
1
2

1372-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47C99E_(EE)

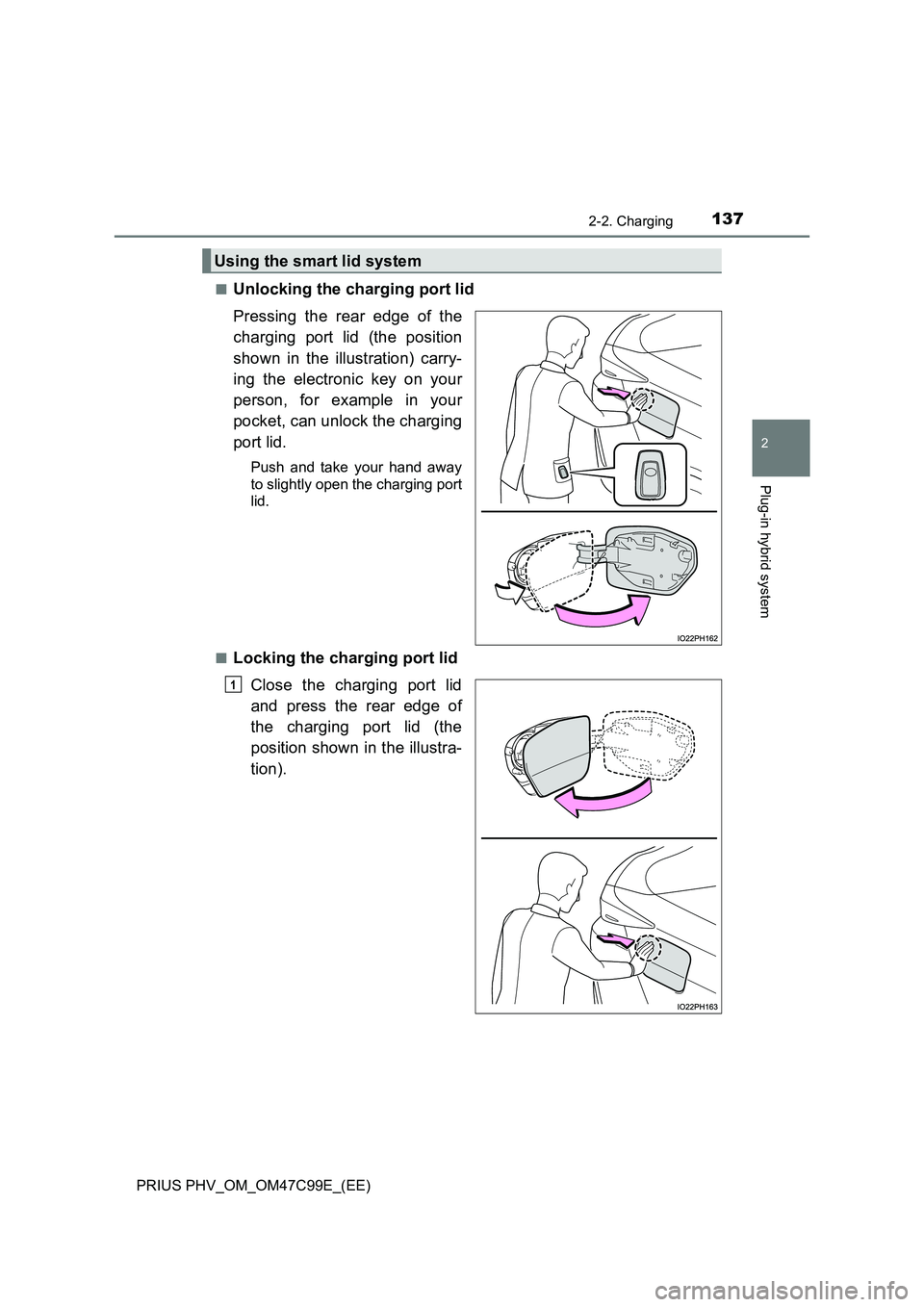

■Unlocking the charging port lid
Pressing the rear edge of the
charging port lid (the position
shown in the illustration) carry-
ing the electronic key on your
person, for example in your
pocket, can unlock the charging
port lid.
Push and take your hand away
to slightly open the charging port
lid.
■Locking the charging port lid
Close the charging port lid
and press the rear edge of
the charging port lid (the
position shown in the illustra-
tion).
Using the smart lid system
1

1382-2. Charging
PRIUS PHV_OM_OM47C99E_(EE)

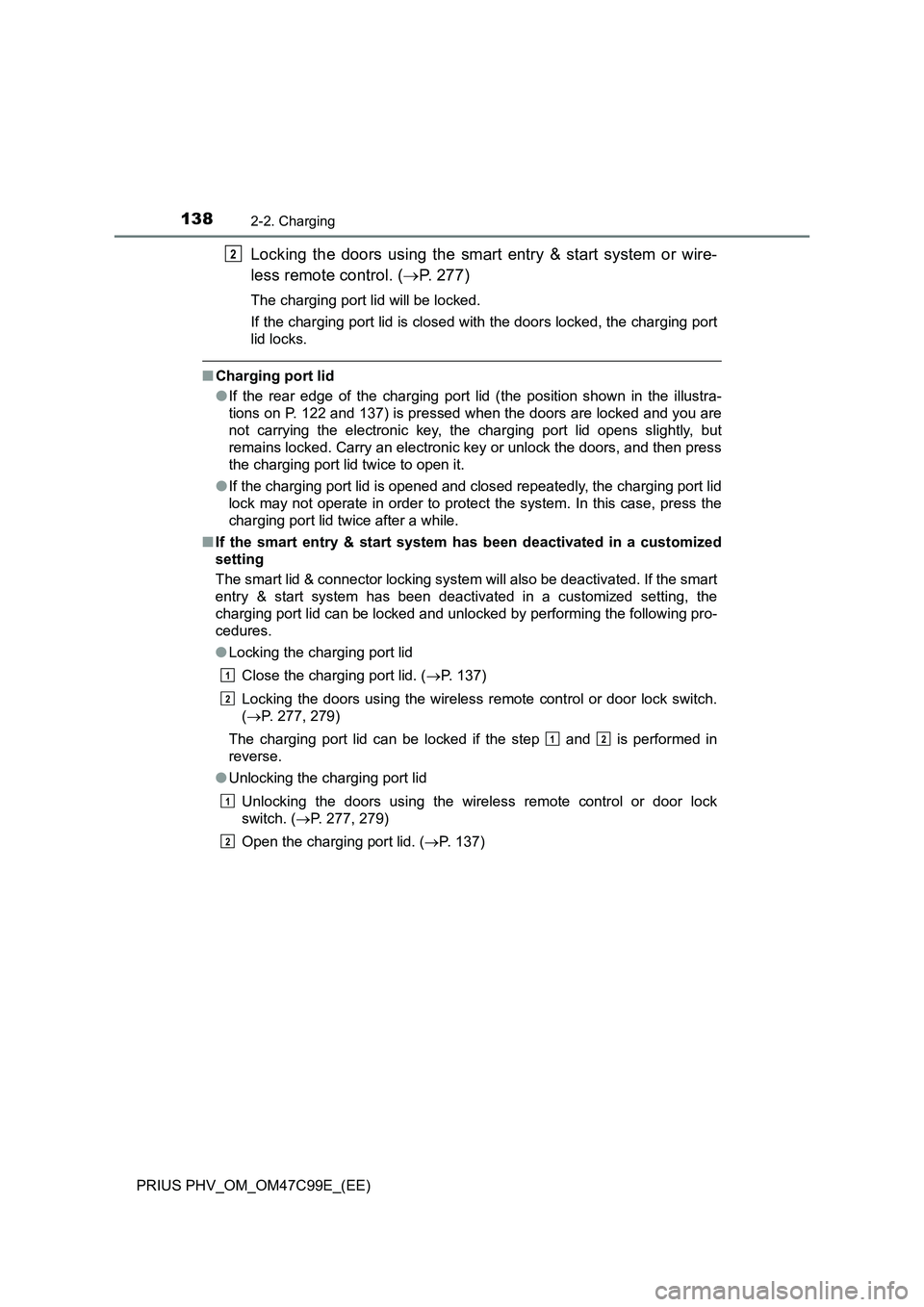

Locking the doors using the smart entry & start system or wire-
less remote control. (P. 277)
The charging port lid will be locked.
If the charging port lid is closed with the doors locked, the charging port
lid locks.
■Charging port lid
●If the rear edge of the charging port lid (the position shown in the illustra-
tions on P. 122 and 137) is pressed when the doors are locked and you are
not carrying the electronic key, the charging port lid opens slightly, but
remains locked. Carry an electronic key or unlock the doors, and then press
the charging port lid twice to open it.
●If the charging port lid is opened and closed repeatedly, the charging port lid
lock may not operate in order to protect the system. In this case, press the
charging port lid twice after a while.
■If the smart entry & start system has been deactivated in a customized
setting
The smart lid & connector locking system will also be deactivated. If the smart
entry & start system has been deactivated in a customized setting, the
charging port lid can be locked and unlocked by performing the following pro-
cedures.
●Locking the charging port lid
Close the charging port lid. (P. 137)
Locking the doors using the wireless remote control or door lock switch.
(P. 277, 279)
The charging port lid can be locked if the step and is performed in
reverse.
●Unlocking the charging port lid
Unlocking the doors using the wireless remote control or door lock
switch. (P. 277, 279)
Open the charging port lid. (P. 137)
2
1
2
12
1
2

1392-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47C99E_(EE)

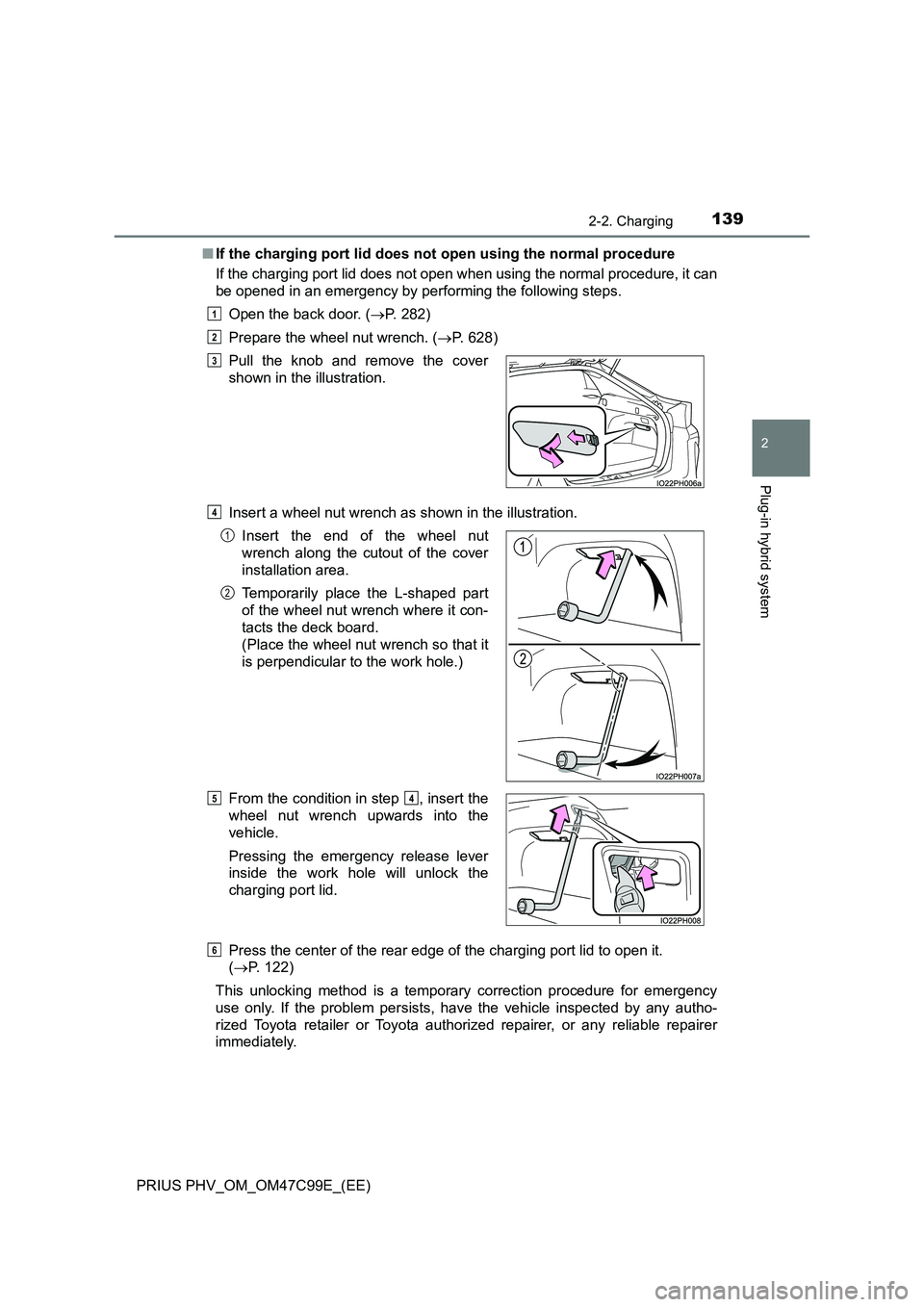

■ If the charging port lid does not open using the normal procedure
If the charging port lid does not open when using the normal procedure, it can
be opened in an emergency by performing the following steps.
Open the back door. ( P. 282)
Prepare the wheel nut wrench. ( P. 628)
Insert a wheel nut wrench as shown in the illustration.
Press the center of the rear edge of the charging port lid to open it.
( P. 122)
This unlocking method is a temporary correction procedure for emergency
use only. If the problem persists, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
Pull the knob and remove the cover
shown in the illustration.
Insert the end of the wheel nut
wrench along the cutout of the cover
installation area.
Temporarily place the L-shaped part
of the wheel nut wrench where it con-
tacts the deck board.
(Place the wheel nut wrench so that it
is perpendicular to the work hole.)
From the condition in step , insert the
wheel nut wrench upwards into the
vehicle.
Pressing the emergency release lever
inside the work hole will unlock the
charging port lid.
1
2
3
4
1
2
54
6

1402-2. Charging
PRIUS PHV_OM_OM47C99E_(EE)

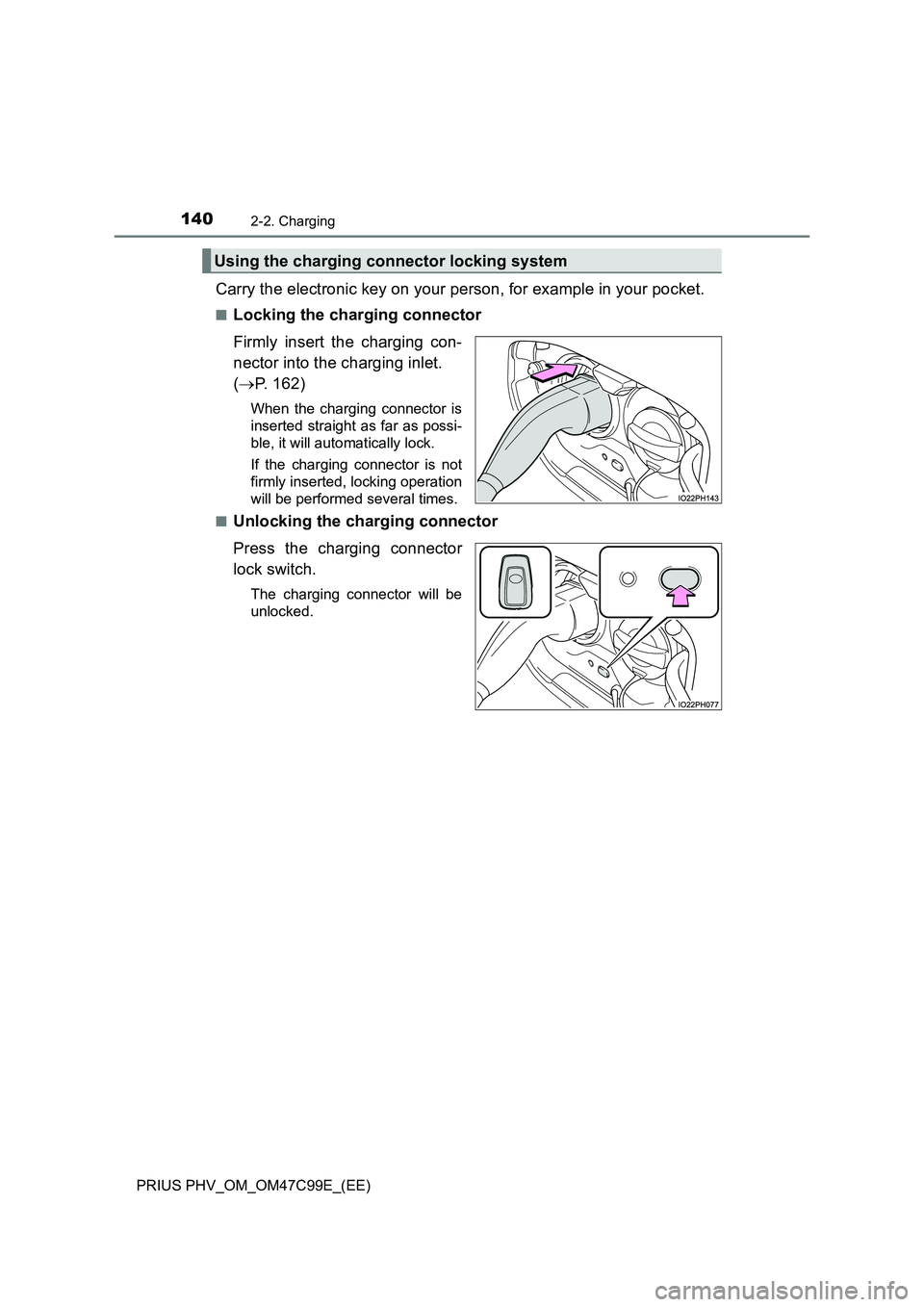

Carry the electronic key on your person, for example in your pocket.
■Locking the charging connector
Firmly insert the charging con-
nector into the charging inlet.
(P. 162)
When the charging connector is
inserted straight as far as possi-
ble, it will automatically lock.
If the charging connector is not
firmly inserted, locking operation
will be performed several times.
■
Unlocking the charging connector
Press the charging connector
lock switch.
The charging connector will be
unlocked.
Using the charging connector locking system
