1612-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47C99E_(EE)

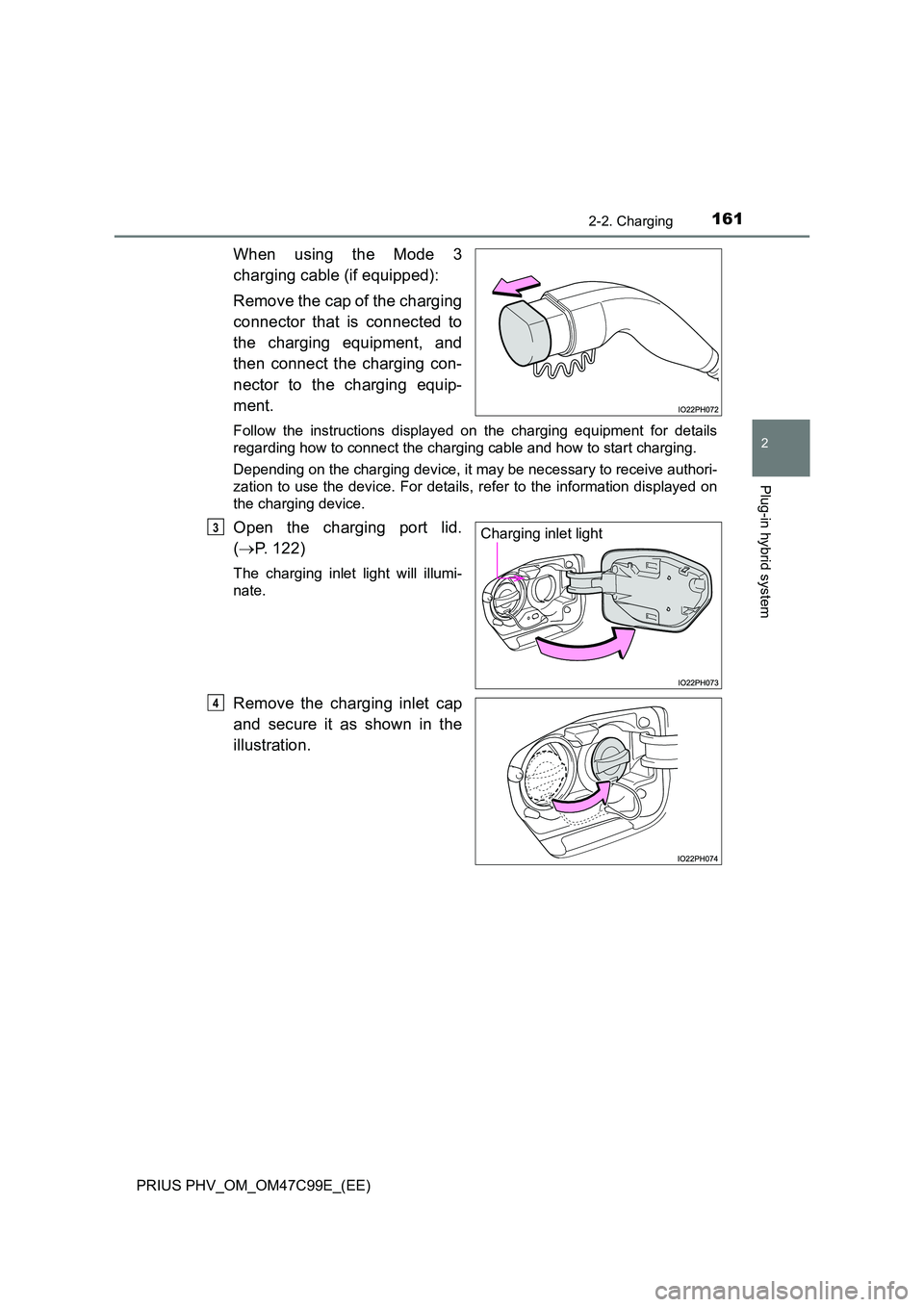

When using the Mode 3
charging cable (if equipped):
Remove the cap of the charging
connector that is connected to
the charging equipment, and
then connect the charging con-
nector to the charging equip-
ment.
Follow the instructions displayed on the charging equipment for details
regarding how to connect the charging cable and how to start charging.
Depending on the charging device, it may be necessary to receive authori-
zation to use the device. For details, refer to the information displayed on
the charging device.
Open the charging port lid.
( P. 122)
The charging inlet light will illumi-
nate.
Remove the charging inlet cap
and secure it as shown in the
illustration.
Charging inlet light3
4

1622-2. Charging
PRIUS PHV_OM_OM47C99E_(EE)

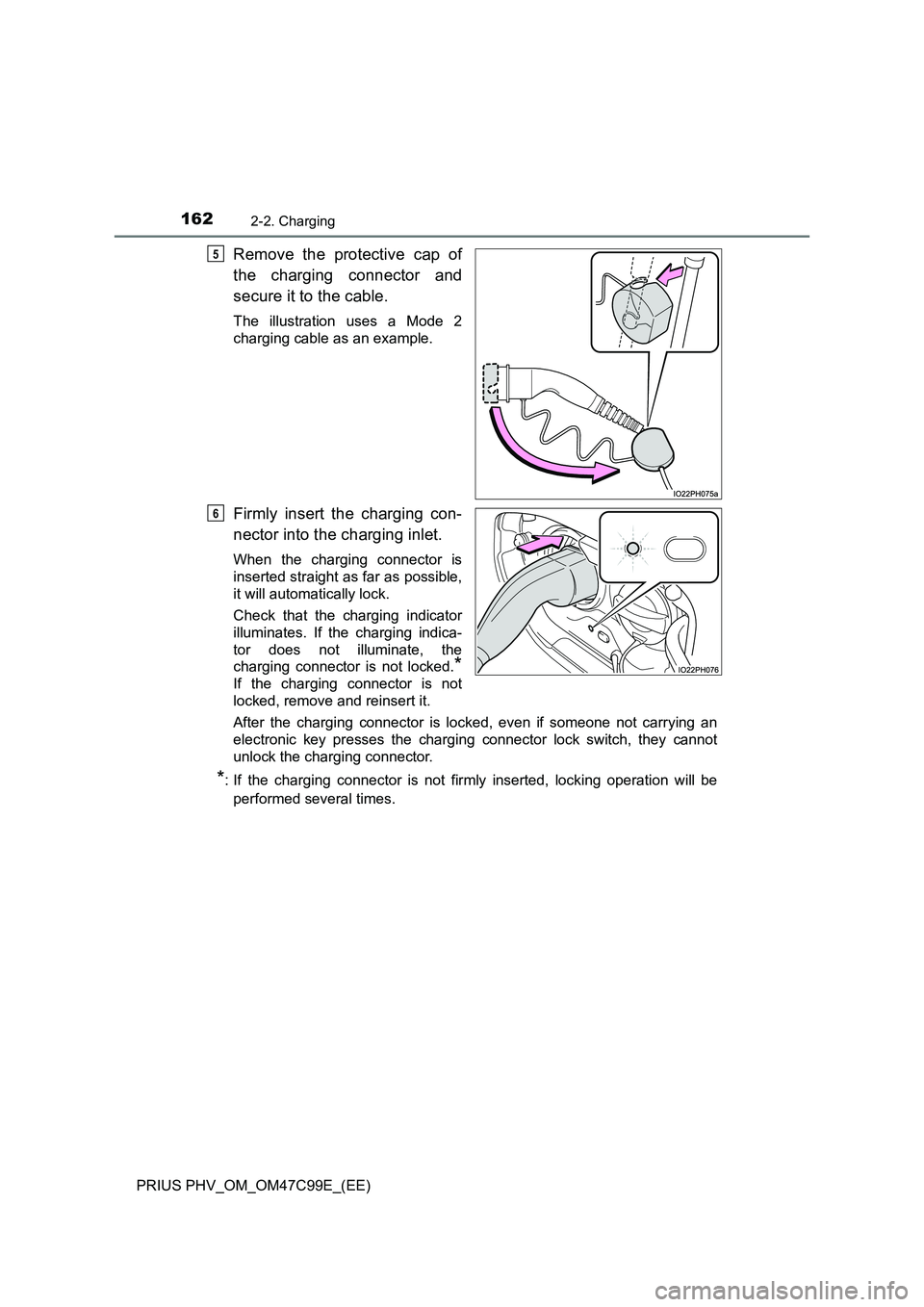

Remove the protective cap of
the charging connector and
secure it to the cable.
The illustration uses a Mode 2
charging cable as an example.
Firmly insert the charging con-
nector into the charging inlet.
When the charging connector is
inserted straight as far as possible,
it will automatically lock.
Check that the charging indicator
illuminates. If the charging indica-
tor does not illuminate, the
charging connector is not locked.
*
If the charging connector is not
locked, remove and reinsert it.
After the charging connector is locked, even if someone not carrying an
electronic key presses the charging connector lock switch, they cannot
unlock the charging connector.
*: If the charging connector is not firmly inserted, locking operation will be
performed several times.
5
6

1632-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47C99E_(EE)

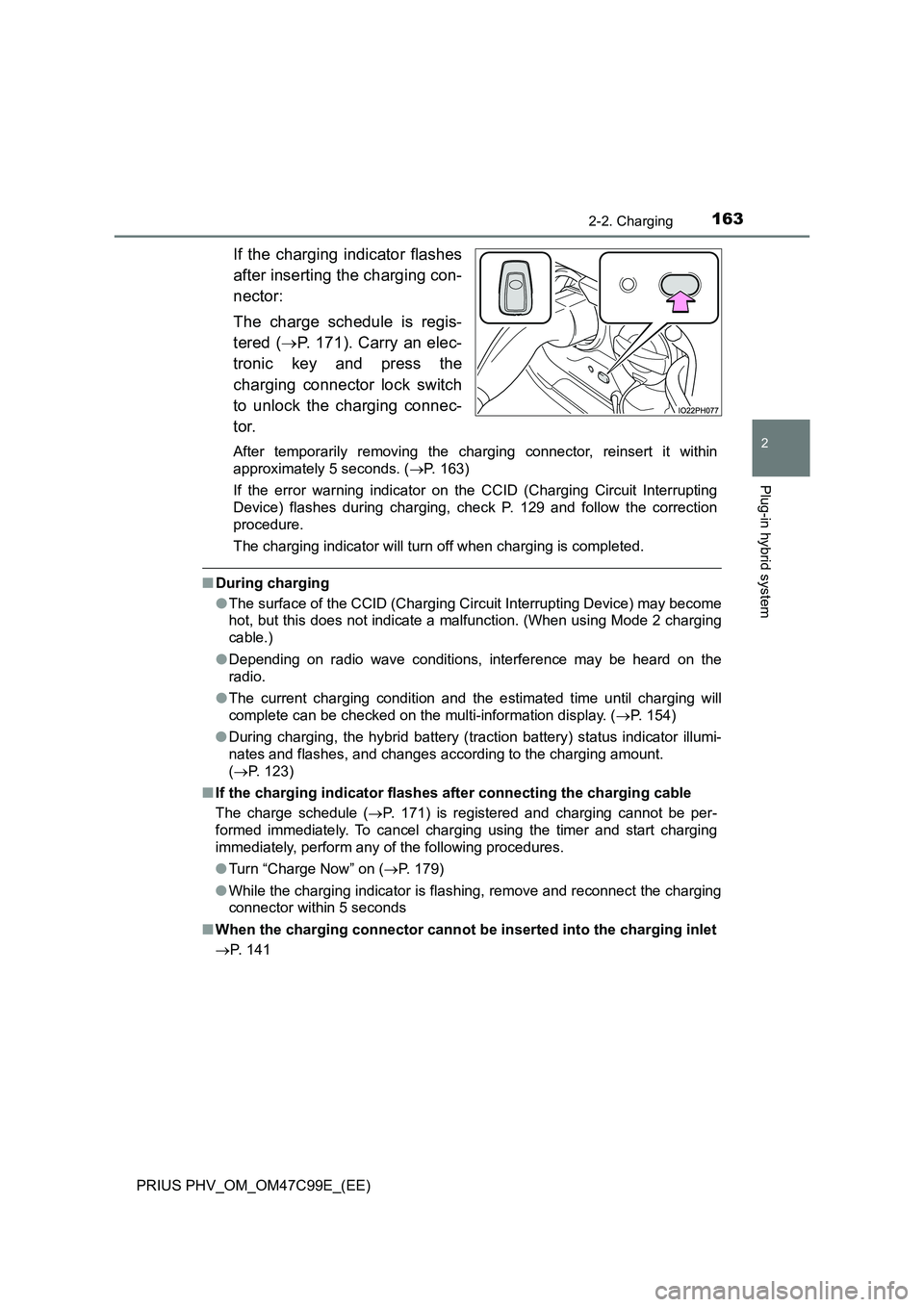

If the charging indicator flashes
after inserting the charging con-
nector:
The charge schedule is regis-
tered (P. 171). Carry an elec-
tronic key and press the
charging connector lock switch
to unlock the charging connec-
tor.
After temporarily removing the charging connector, reinsert it within
approximately 5 seconds. (P. 163)
If the error warning indicator on the CCID (Charging Circuit Interrupting
Device) flashes during charging, check P. 129 and follow the correction
procedure.
The charging indicator will turn off when charging is completed.
■During charging
●The surface of the CCID (Charging Circuit Interrupting Device) may become
hot, but this does not indicate a malfunction. (When using Mode 2 charging
cable.)
●Depending on radio wave conditions, interference may be heard on the
radio.
●The current charging condition and the estimated time until charging will
complete can be checked on the multi-information display. (P. 154)
●During charging, the hybrid battery (traction battery) status indicator illumi-
nates and flashes, and changes according to the charging amount.
(P. 123)
■If the charging indicator flashes after connecting the charging cable
The charge schedule (P. 171) is registered and charging cannot be per-
formed immediately. To cancel charging using the timer and start charging
immediately, perform any of the following procedures.
●Turn “Charge Now” on (P. 179)
●While the charging indicator is flashing, remove and reconnect the charging
connector within 5 seconds
■When the charging connector cannot be inserted into the charging inlet
P. 141

1642-2. Charging
PRIUS PHV_OM_OM47C99E_(EE)

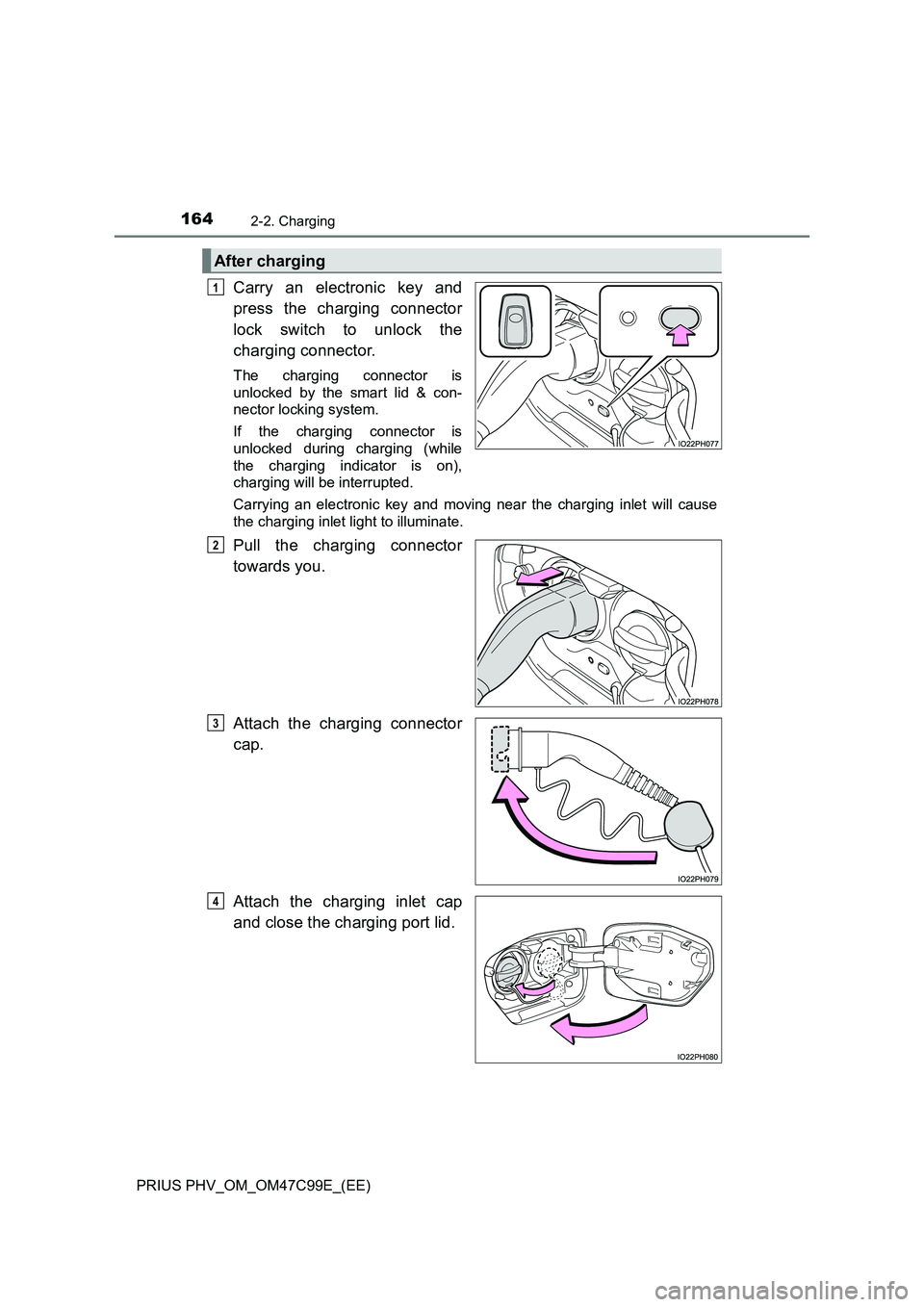

Carry an electronic key and
press the charging connector
lock switch to unlock the
charging connector.
The charging connector is
unlocked by the smart lid & con-
nector locking system.
If the charging connector is
unlocked during charging (while
the charging indicator is on),
charging will be interrupted.
Carrying an electronic key and moving near the charging inlet will cause
the charging inlet light to illuminate.
Pull the charging connector
towards you.
Attach the charging connector
cap.
Attach the charging inlet cap
and close the charging port lid.
After charging
1
2
3
4

1652-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47C99E_(EE)

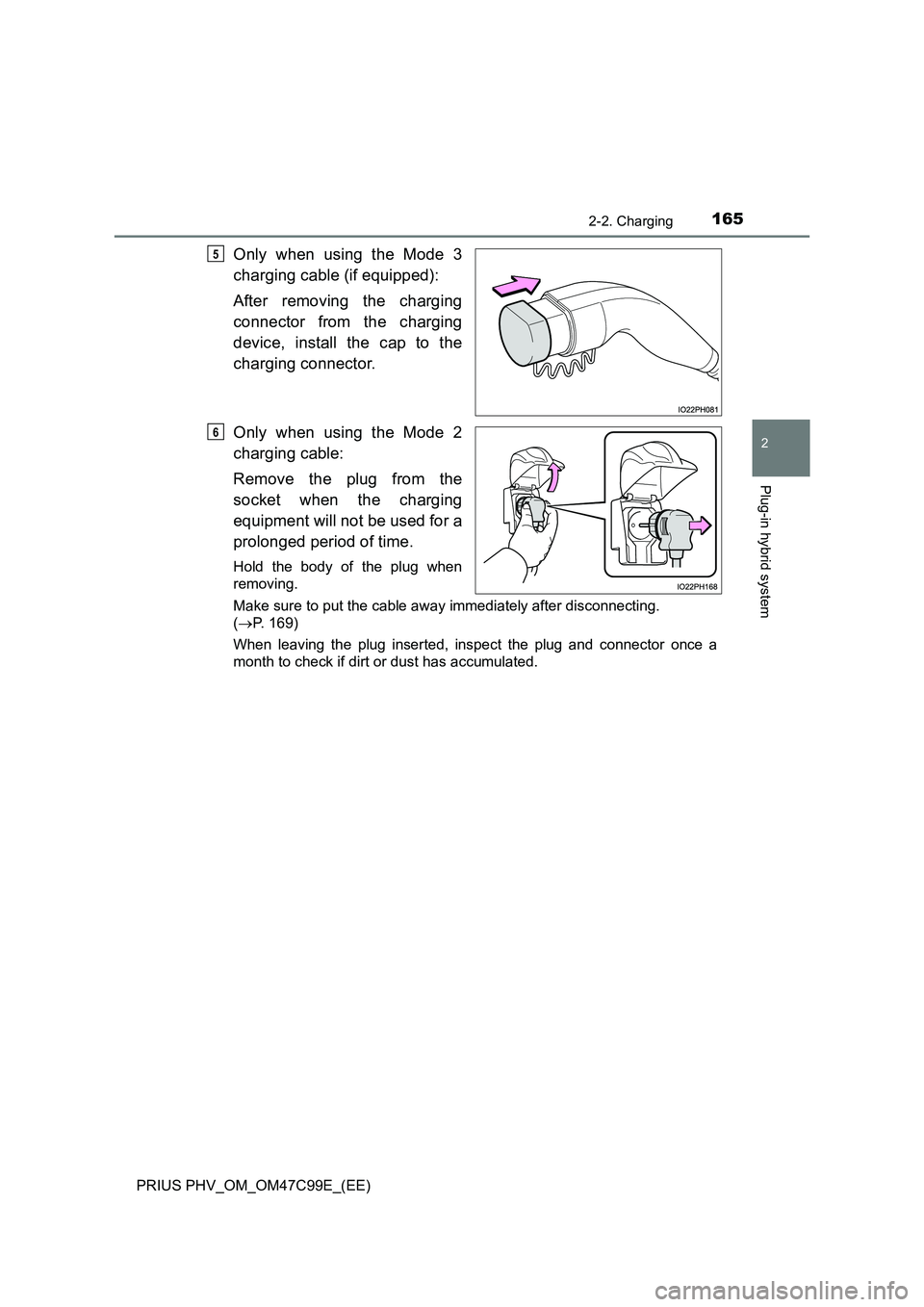

Only when using the Mode 3
charging cable (if equipped):
After removing the charging
connector from the charging
device, install the cap to the
charging connector.
Only when using the Mode 2
charging cable:
Remove the plug from the
socket when the charging
equipment will not be used for a
prolonged period of time.
Hold the body of the plug when
removing.
Make sure to put the cable away immediately after disconnecting.
( P. 169)
When leaving the plug inserted, inspect the plug and connector once a
month to check if dirt or dust has accumulated.
5
6

1662-2. Charging
PRIUS PHV_OM_OM47C99E_(EE)

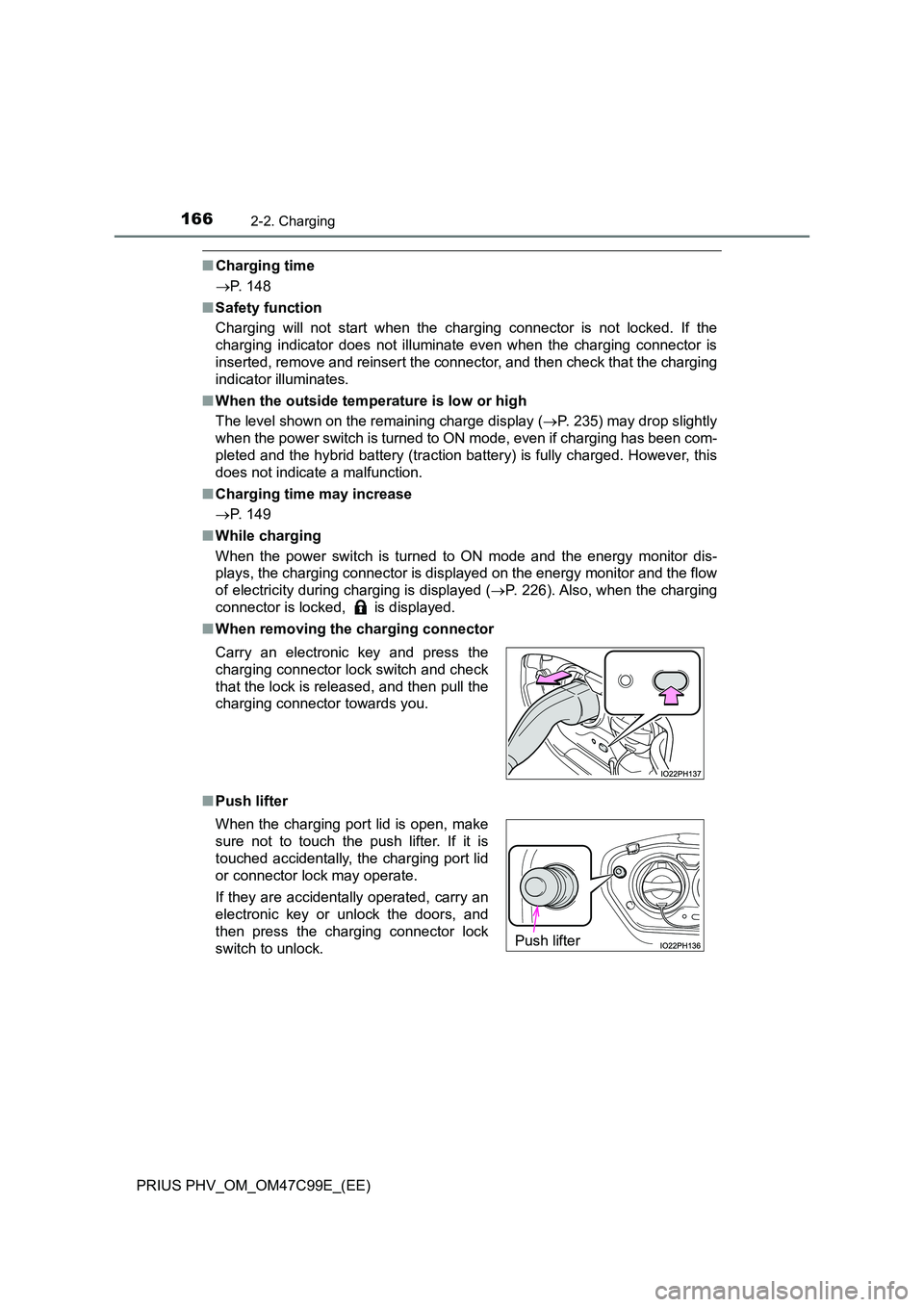

■Charging time
 P. 148
■ Safety function
Charging will not start when the charging connector is not locked. If the
charging indicator does not illuminate even when the charging connector is
inserted, remove and reinsert the connector, and then check that the charging
indicator illuminates.
■ When the outside temperature is low or high
The level shown on the remaining charge display ( P. 235) may drop slightly
when the power switch is turned to ON mode, even if charging has been com-
pleted and the hybrid battery (traction battery) is fully charged. However, this
does not indicate a malfunction.
■ Charging time may increase
 P. 149
■ While charging
When the power switch is turned to ON mode and the energy monitor dis-
plays, the charging connector is displayed on the energy monitor and the flow
of electricity during charging is displayed ( P. 226). Also, when the charging
connector is locked, is displayed.
■ When removing the charging connector
■ Push lifter
Carry an electronic key and press the
charging connector lock switch and check
that the lock is released, and then pull the
charging connector towards you.
When the charging port lid is open, make
sure not to touch the push lifter. If it is
touched accidentally, the charging port lid
or connector lock may operate.
If they are accidentally operated, carry an
electronic key or unlock the doors, and
then press the charging connector lock
switch to unlock.Push lifter

1672-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47C99E_(EE)

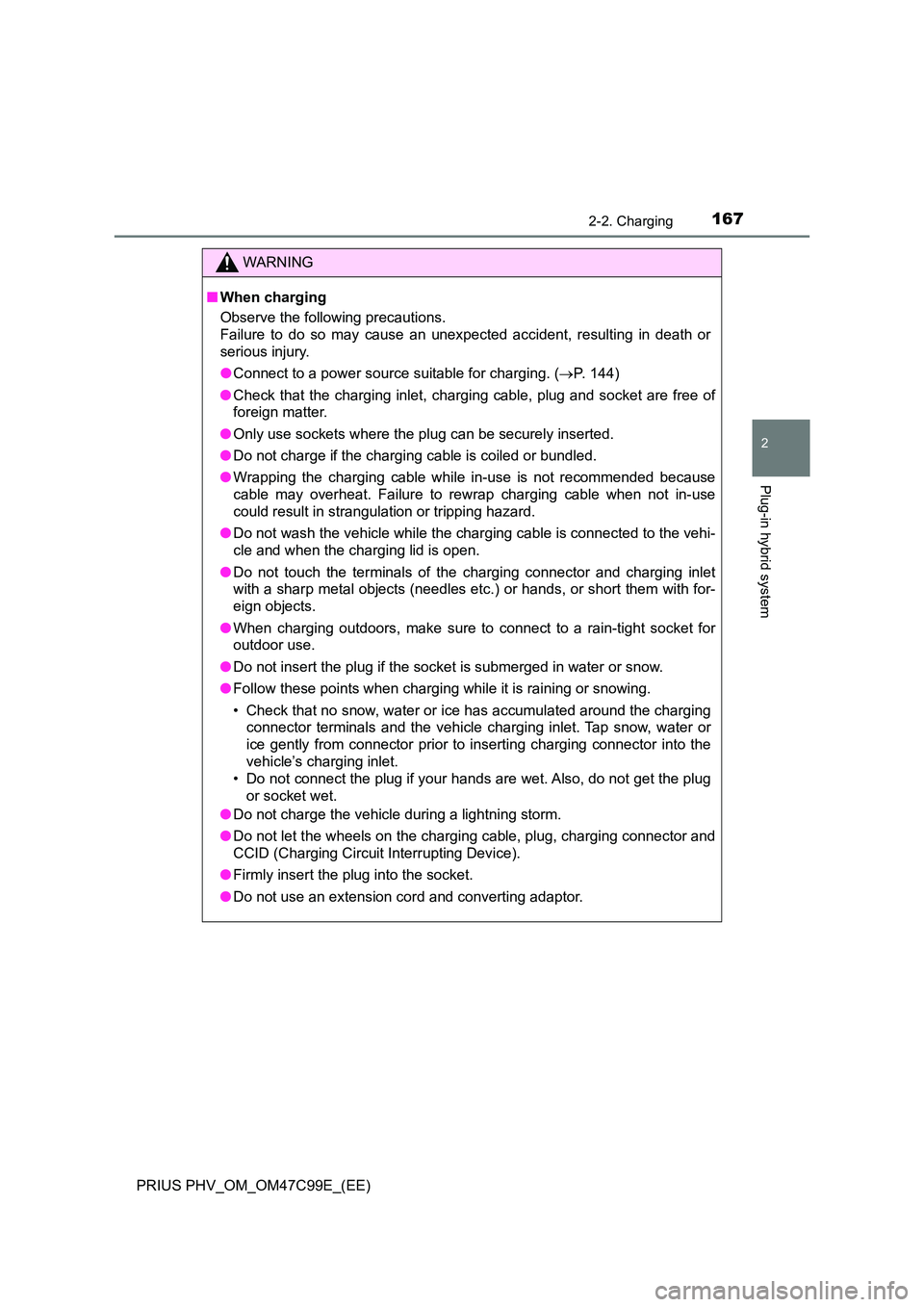

WARNING
■When charging
Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
● Connect to a power source suitable for charging. (P. 144)
● Check that the charging inlet, charging cable, plug and socket are free of
foreign matter.
● Only use sockets where the plug can be securely inserted.
● Do not charge if the charging cable is coiled or bundled.
● Wrapping the charging cable while in-use is not recommended because
cable may overheat. Failure to rewrap charging cable when not in-use
could result in strangulation or tripping hazard.
● Do not wash the vehicle while the charging cable is connected to the vehi-
cle and when the charging lid is open.
● Do not touch the terminals of the charging connector and charging inlet
with a sharp metal objects (needles etc.) or hands, or short them with for-
eign objects.
● When charging outdoors, make sure to connect to a rain-tight socket for
outdoor use.
● Do not insert the plug if the socket is submerged in water or snow.
● Follow these points when charging while it is raining or snowing.
• Check that no snow, water or ice has accumulated around the charging
connector terminals and the vehicle charging inlet. Tap snow, water or
ice gently from connector prior to inserting charging connector into the
vehicle’s charging inlet.
• Do not connect the plug if your hands are wet. Also, do not get the plug
or socket wet.
● Do not charge the vehicle during a lightning storm.
● Do not let the wheels on the charging cable, plug, charging connector and
CCID (Charging Circuit Interrupting Device).
● Firmly insert the plug into the socket.
● Do not use an extension cord and converting adaptor.

1682-2. Charging
PRIUS PHV_OM_OM47C99E_(EE)

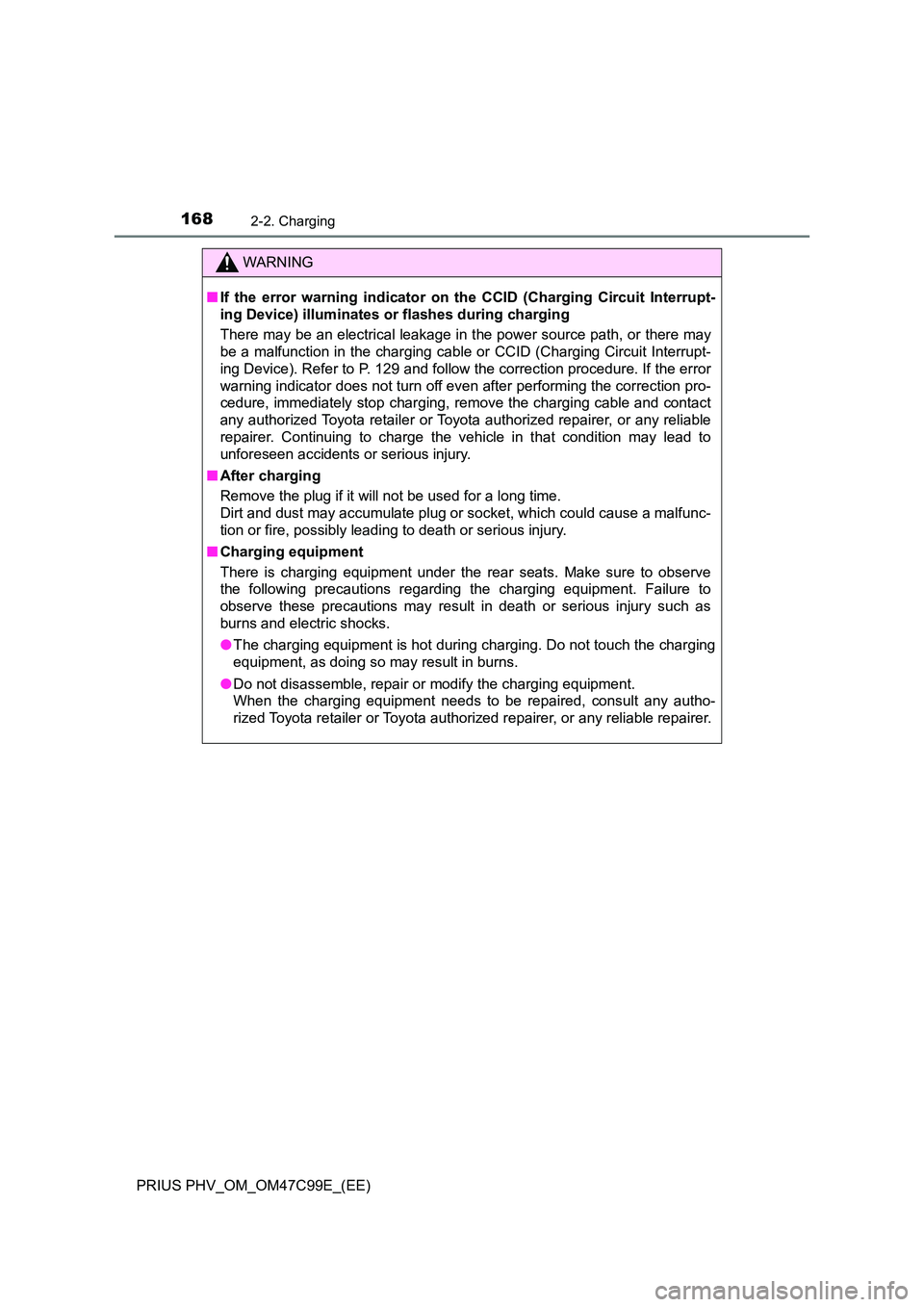

WARNING
■If the error warning indicator on the CCID (Charging Circuit Interrupt-
ing Device) illuminates or flashes during charging
There may be an electrical leakage in t he power source path, or there may
be a malfunction in the charging cable or CCID (Charging Circuit Interrupt-
ing Device). Refer to P. 129 and follow the correction procedure. If the error
warning indicator does not turn off even after performing the correction pro-
cedure, immediately stop charging, remove the charging cable and contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer. Continuing to charge the vehicle in that condition may lead to
unforeseen accidents or serious injury.
■ After charging
Remove the plug if it will not be used for a long time.
Dirt and dust may accumulate plug or socket, which could cause a malfunc-
tion or fire, possibly leading to death or serious injury.
■ Charging equipment
There is charging equipment under the r ear seats. Make sure to observe
the following precautions regarding the charging equipment. Failure to
observe these precautions may result in death or serious injury such as
burns and electric shocks.
● The charging equipment is hot during charging. Do not touch the charging
equipment, as doing so may result in burns.
● Do not disassemble, repair or modify the charging equipment.
When the charging equipment needs to be repaired, consult any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

1692-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47C99E_(EE)

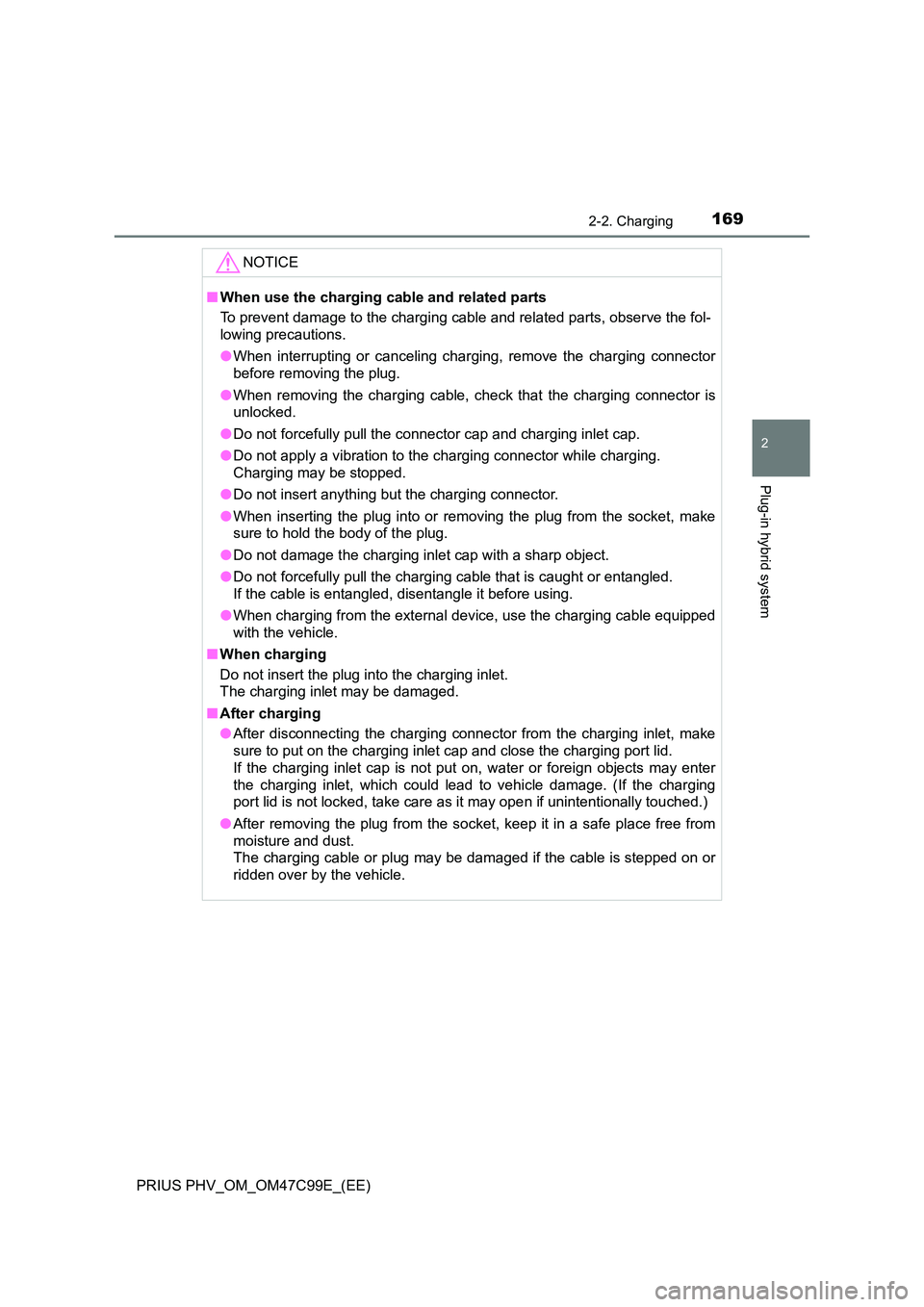

NOTICE
■When use the charging cable and related parts
To prevent damage to the charging cable and related parts, observe the fol-
lowing precautions.
● When interrupting or canceling charging, remove the charging connector
before removing the plug.
● When removing the charging cable, check that the charging connector is
unlocked.
● Do not forcefully pull the connector cap and charging inlet cap.
● Do not apply a vibration to the charging connector while charging.
Charging may be stopped.
● Do not insert anything but the charging connector.
● When inserting the plug into or removing the plug from the socket, make
sure to hold the body of the plug.
● Do not damage the charging inlet cap with a sharp object.
● Do not forcefully pull the charging cable that is caught or entangled.
If the cable is entangled, disentangle it before using.
● When charging from the external device, use the charging cable equipped
with the vehicle.
■ When charging
Do not insert the plug into the charging inlet.
The charging inlet may be damaged.
■ After charging
● After disconnecting the charging connector from the charging inlet, make
sure to put on the charging inlet cap and close the charging port lid.
If the charging inlet cap is not put on, water or foreign objects may enter
the charging inlet, which could lead to vehicle damage. (If the charging
port lid is not locked, take care as it may open if unintentionally touched.)
● After removing the plug from the socket, keep it in a safe place free from
moisture and dust.
The charging cable or plug may be damaged if the cable is stepped on or
ridden over by the vehicle.

1702-2. Charging
PRIUS PHV_OM_OM47C99E_(EE)
NOTICE

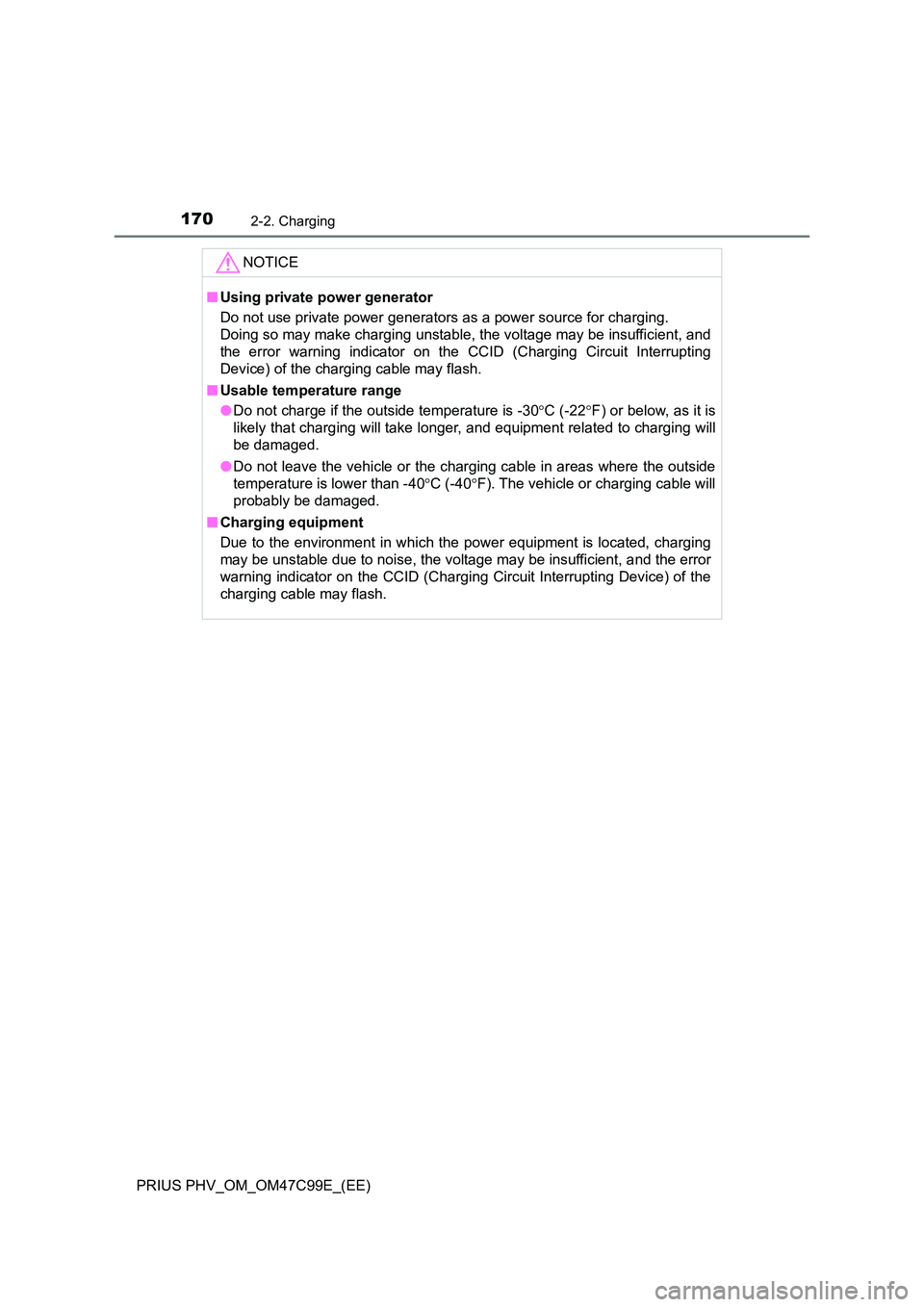

■Using private power generator
Do not use private power generators as a power source for charging.
Doing so may make charging unstable, the voltage may be insufficient, and
the error warning indicator on the CCID (Charging Circuit Interrupting
Device) of the charging cable may flash.
■ Usable temperature range
● Do not charge if the outside temperature is -30C (-22F) or below, as it is
likely that charging will take longer , and equipment related to charging will
be damaged.
● Do not leave the vehicle or the charging cable in areas where the outside
temperature is lower than -40 C (-40F). The vehicle or charging cable will
probably be damaged.
■ Charging equipment
Due to the environment in which the power equipment is located, charging
may be unstable due to noise, the voltage may be insufficient, and the error
warning indicator on the CCID (Charging Circuit Interrupting Device) of the
charging cable may flash.
