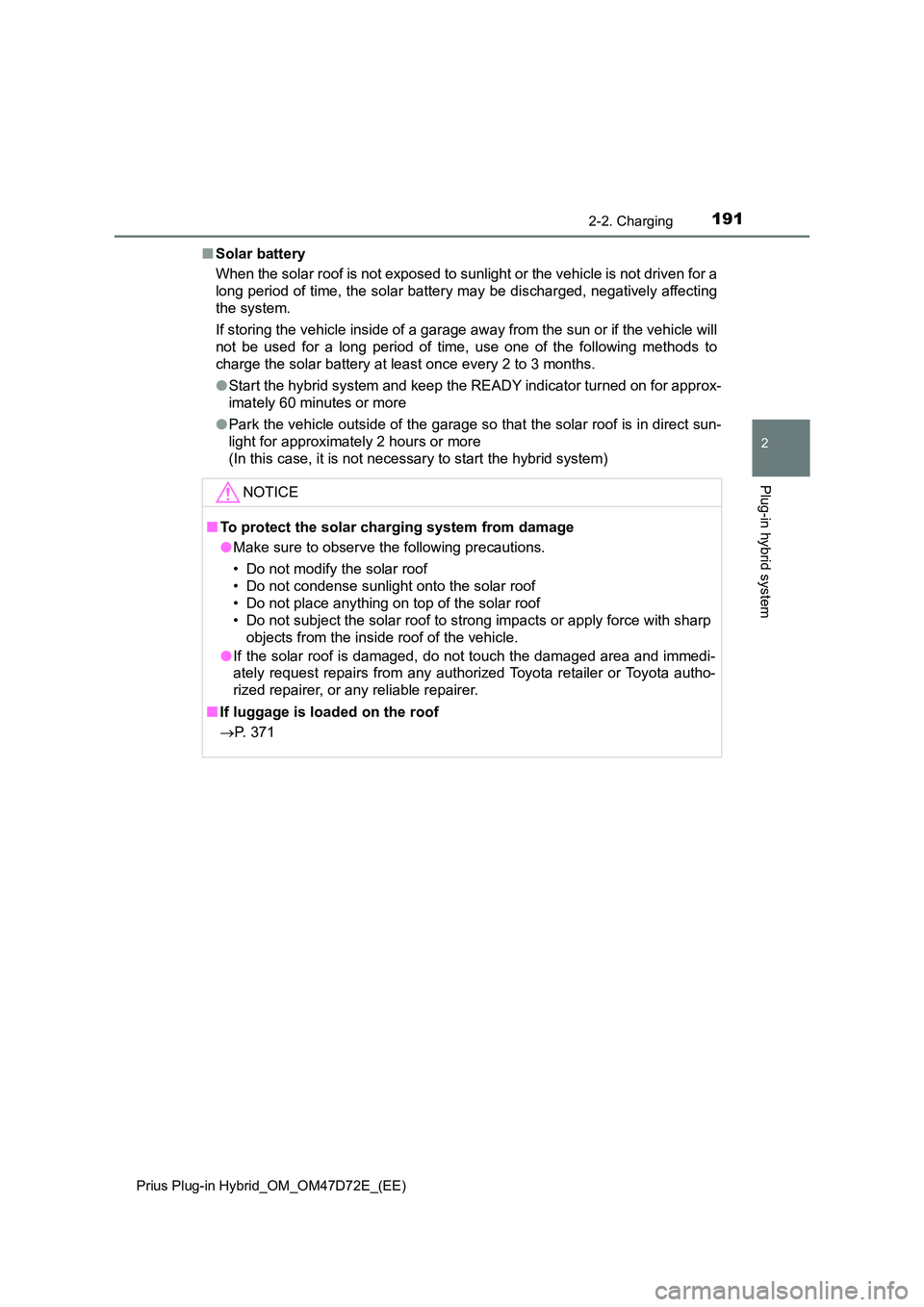

TOYOTA PRIUS PLUG-IN HYBRID 2021 Owners Manual

1912-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
■Solar battery
When the solar roof is not exposed to sunlight or the vehicle is not driven for a
long period of time, the solar battery may be discharged, negatively affecting
the system.
If storing the vehicle inside of a garage away from the sun or if the vehicle will
not be used for a long period of time, use one of the following methods to
charge the solar battery at least once every 2 to 3 months.
● Start the hybrid system and keep the READY indicator turned on for approx-
imately 60 minutes or more
● Park the vehicle outside of the garage so that the solar roof is in direct sun-
light for approximately 2 hours or more
(In this case, it is not necessary to start the hybrid system)
NOTICE
■ To protect the solar charging system from damage
● Make sure to observe the following precautions.
• Do not modify the solar roof
• Do not condense sunlight onto the solar roof
• Do not place anything on top of the solar roof
• Do not subject the solar roof to strong impacts or apply force with sharp
objects from the inside roof of the vehicle.
● If the solar roof is damaged, do not touch the damaged area and immedi-
ately request repairs from any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
■ If luggage is loaded on the roof
 P. 371

1922-2. Charging
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
When normal charging cannot be carried
out
Refer to the following table and carry out the appropriate correction
procedure.
When charging does not start, even though the normal proce-
dure is followed, check each of the following items.
If a message is shown on the multi-information display, also refer to
P. 197.
When normal charging cannot be carried out
Likely causeCorrection procedure
The power source indicator on the CCID (Charging Circuit Interrupting
Device) does not illuminate, even though the plug is connected to an
external power source.
Plug is not properly con-
nected to socketCheck that the plug is properly connected to
the socket.
Power is outAfter power is restored, carry out the
charging procedure again.
Remote switch is offIf the remote switch is equipped, turn the
switch on.
Building breaker is tripped
and power is cut off
Check that the breaker is connected and if
there is no malfunction, check if the vehicle
can be charged through another socket.
If charging is possible, the first socket may
have a malfunction. Contact the building or
facility manager, or an electrician.
Short circuit between CCID
(Charging Circuit Interrupting
Device) and plugImmediately stop charging and contact any
authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.

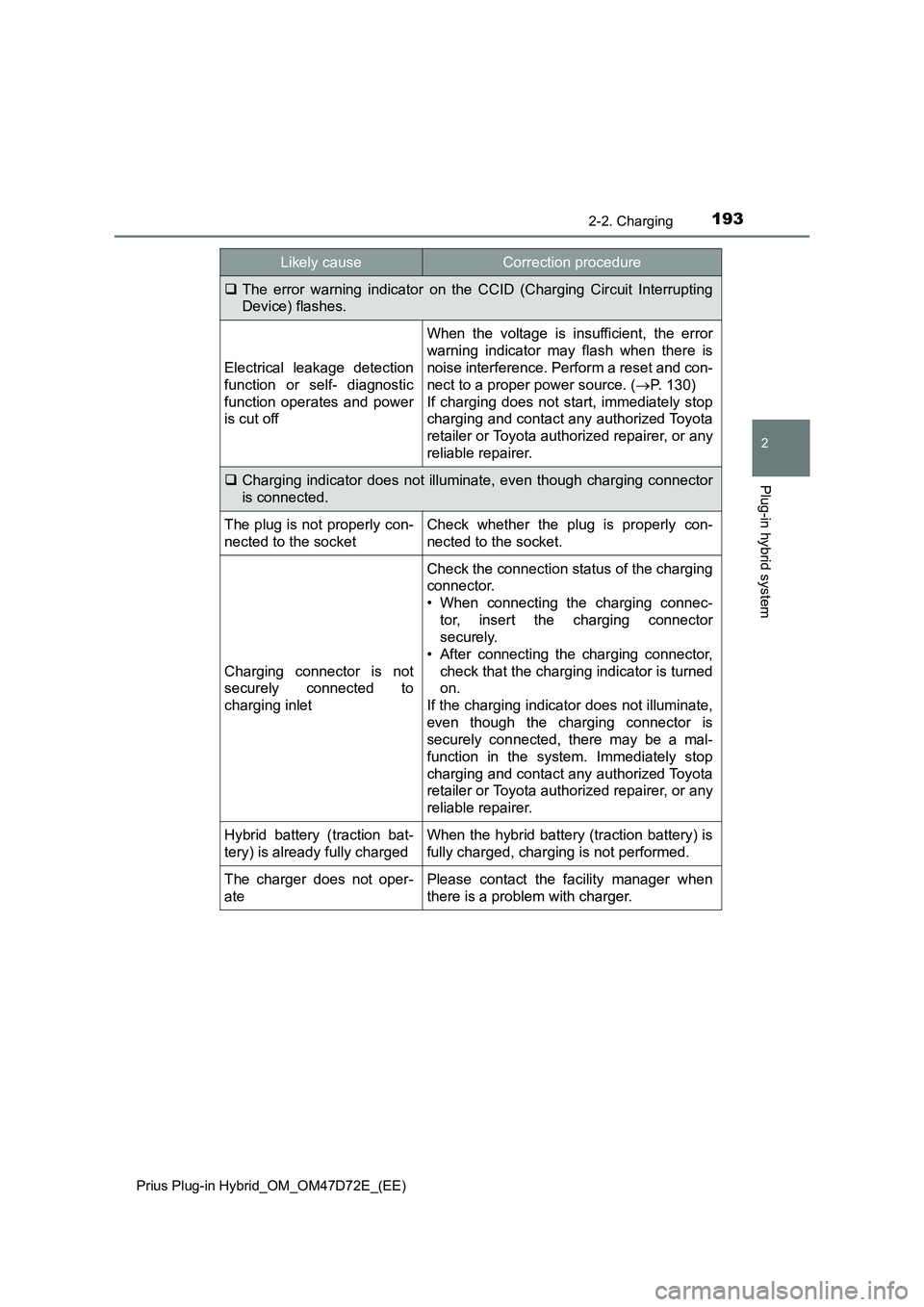

1932-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
The error warning indicator on the CCID (Charging Circuit Interrupting
Device) flashes.
Electrical leakage detection
function or self- diagnostic
function operates and power
is cut off
When the voltage is insufficient, the error
warning indicator may flash when there is
noise interference. Perform a reset and con-
nect to a proper power source. (P. 130)
If charging does not start, immediately stop
charging and contact any authorized Toyota
retailer or Toyota authorized repairer, or any
reliable repairer.
Charging indicator does not illuminate, even though charging connector
is connected.
The plug is not properly con-
nected to the socketCheck whether the plug is properly con-
nected to the socket.
Charging connector is not
securely connected to
charging inlet
Check the connection status of the charging
connector.
• When connecting the charging connec-
tor, insert the charging connector
securely.
• After connecting the charging connector,
check that the charging indicator is turned
on.
If the charging indicator does not illuminate,
even though the charging connector is
securely connected, there may be a mal-
function in the system. Immediately stop
charging and contact any authorized Toyota
retailer or Toyota authorized repairer, or any
reliable repairer.
Hybrid battery (traction bat-
tery) is already fully chargedWhen the hybrid battery (traction battery) is
fully charged, charging is not performed.
The charger does not oper-
atePlease contact the facility manager when
there is a problem with charger.
Likely causeCorrection procedure

1942-2. Charging
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
*: Refer to P. 125 for details regarding charging indicator illumination and
flashing.
Refer to the following table and carry out the appropriate correction
procedure.
Charging indicator flashes and charging cannot be carried out.
When charging indicator
flashes
*:
Charge schedule is regis-
tered
When you wish to charge according to the
charging schedule, wait until the set time.
To start charging, set “Charge Now” to “On”.
(P. 184)
When charging indicator rap-
idly flashes
*:
Malfunction occurred in an
external power source or the
vehicleStart the hybrid system and follow the
instructions displayed by the message on
the multi-information display. (P. 197)
When charging schedule function does not operate normally
Likely causeCorrection procedure
Cannot charge at desired time
Vehicle clock is not properly
adjustedCheck the clock settings and adjust it to the
proper time. (P. 210)
The vehicle calendar is not
set correctly.Check the calendar setting and set it to the
correct date. (P. 212)
Charging cable is not con-
nected to vehicleBefore using the charging schedule, con-
nect the charging cable.
Incorrect charging mode
selected
Check the charging mode setting. (P. 1 7 6 )
When the charging mode is “Start”, charging
starts at the set time, but when it is “Depar-
ture”, charging is completed by the set time.
(The charging start time is automatically
controlled by the system.)
Likely causeCorrection procedure

1952-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Charging starts, even though charge schedule is registered
“Charge Now” is set to “On”
When charging according to the charging
schedule, set “Charge Now” to “Off”.
(P. 184)
Charge schedule is set to
“Off”Check that charge schedule is not set to
“Off”. (P. 1 8 2 )
Charging mode is set to
“Departure” and schedule
departure time is close to
current timeWhen the system determines that there is
no time to finish charging by the set sched-
uled departure time, it starts charging.
Check the charge schedules.
Charging cable was
removed and reinserted
while charging indicator was
flashingIf the charging cable is removed and rein-
serted while the charging indicator is flash-
ing, the charging schedule is canceled
(P. 168). Temporarily remove the charging
cable, and then reconnect it.
The Remote Air Conditioning
System was operated
When the Remote Air Conditioning System
is operated, the system will start charging,
even if the charge schedule is registered. To
carry out charging using the charging
schedule, stop the Remote Air Conditioning
System, and then reconnect the charging
cable.
“Traction Battery Heater”
(P. 154) operated
When the charging mode is set to “Depar-
ture”, “Traction Battery Heater” may operate
before charging starts. Check the status of
the charging indicator. (P. 125)
Charging ends earlier than time set in “Departure”
Charging end time does not
match estimated end time
due to condition of power
source or outside tempera-
tureIf sudden changes in temperature or
changes in the condition of the power
source occur while charging, charging may
end earlier than the time estimated by the
system.
Likely causeCorrection procedure

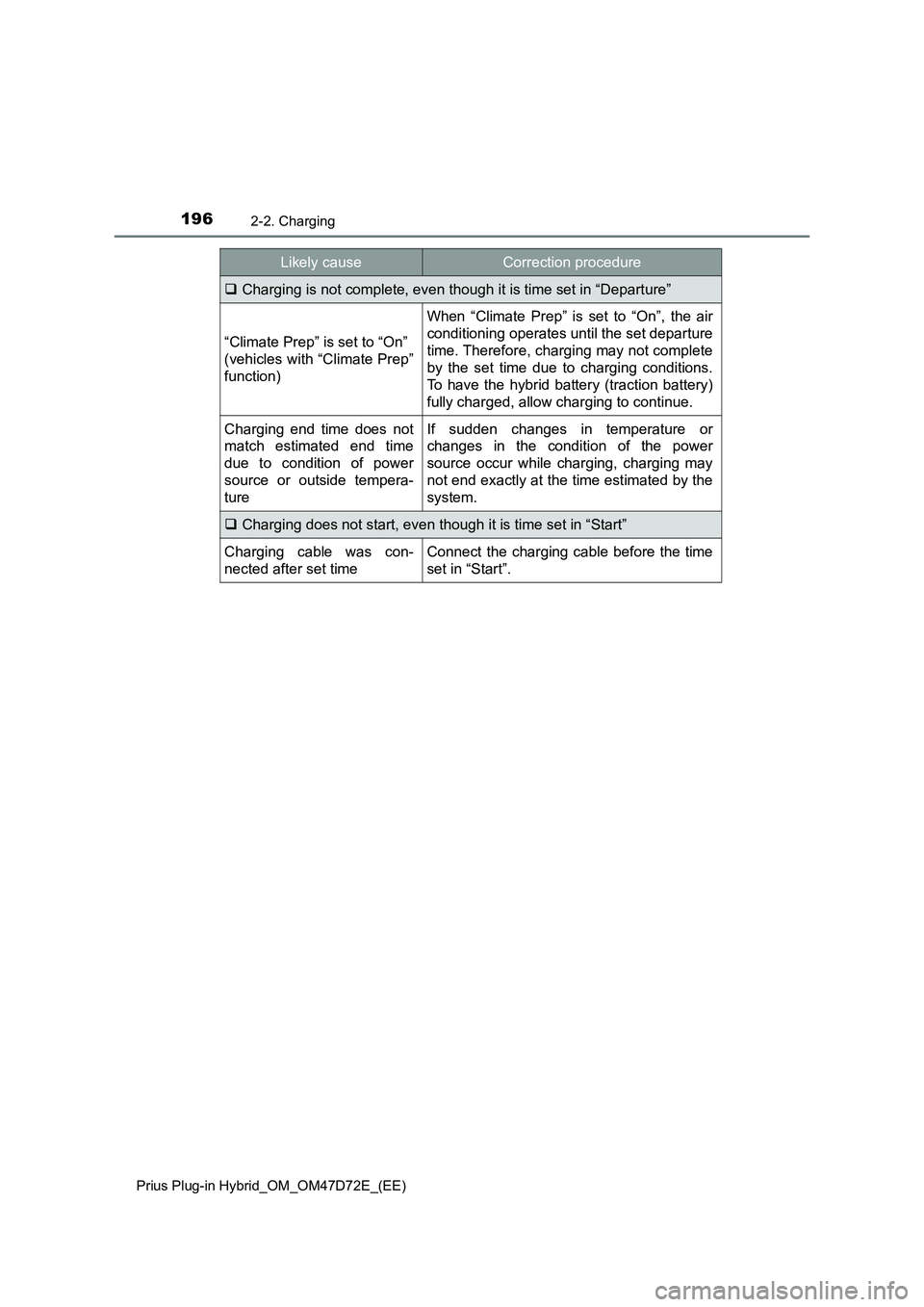

1962-2. Charging
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Charging is not complete, even though it is time set in “Departure”
“Climate Prep” is set to “On”
(vehicles with “Climate Prep”
function)
When “Climate Prep” is set to “On”, the air
conditioning operates until the set departure
time. Therefore, charging may not complete
by the set time due to charging conditions.
To have the hybrid battery (traction battery)
fully charged, allow charging to continue.
Charging end time does not
match estimated end time
due to condition of power
source or outside tempera-
tureIf sudden changes in temperature or
changes in the condition of the power
source occur while charging, charging may
not end exactly at the time estimated by the
system.
Charging does not start, even though it is time set in “Start”
Charging cable was con-
nected after set timeConnect the charging cable before the time
set in “Start”.
Likely causeCorrection procedure

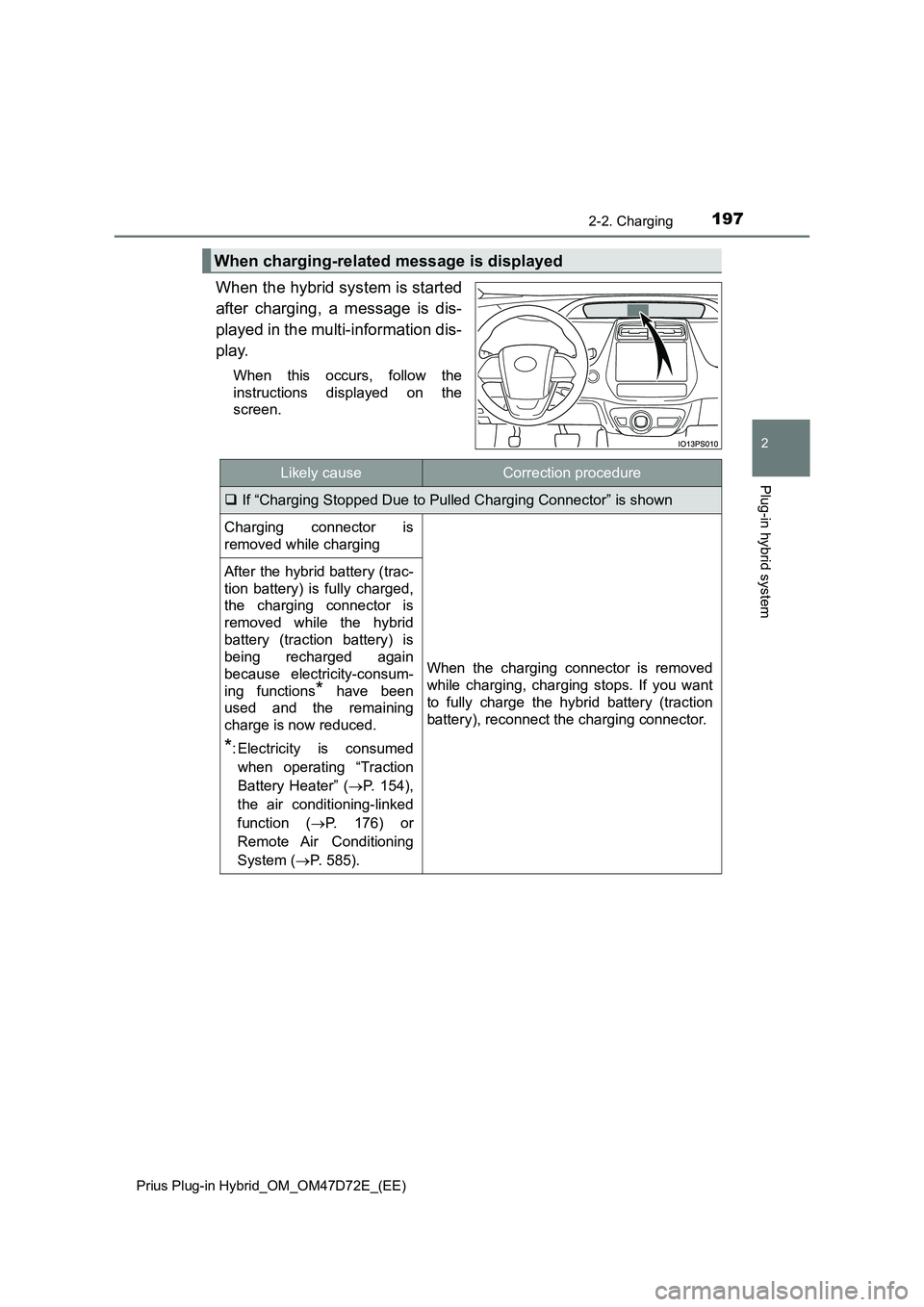

1972-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
When the hybrid system is started
after charging, a message is dis-
played in the multi-information dis-
play.
When this occurs, follow the
instructions displayed on the
screen.
When charging-related message is displayed
Likely causeCorrection procedure
If “Charging Stopped Due to Pulled Charging Connector” is shown
Charging connector is
removed while charging
When the charging connector is removed
while charging, charging stops. If you want
to fully charge the hybrid battery (traction
battery), reconnect the charging connector.
After the hybrid battery (trac-
tion battery) is fully charged,
the charging connector is
removed while the hybrid
battery (traction battery) is
being recharged again
because electricity-consum-
ing functions
* have been
used and the remaining
charge is now reduced.
*: Electricity is consumed
when operating “Traction
Battery Heater” (P. 154),
the air conditioning-linked
function (P. 176) or
Remote Air Conditioning
System (P. 585).

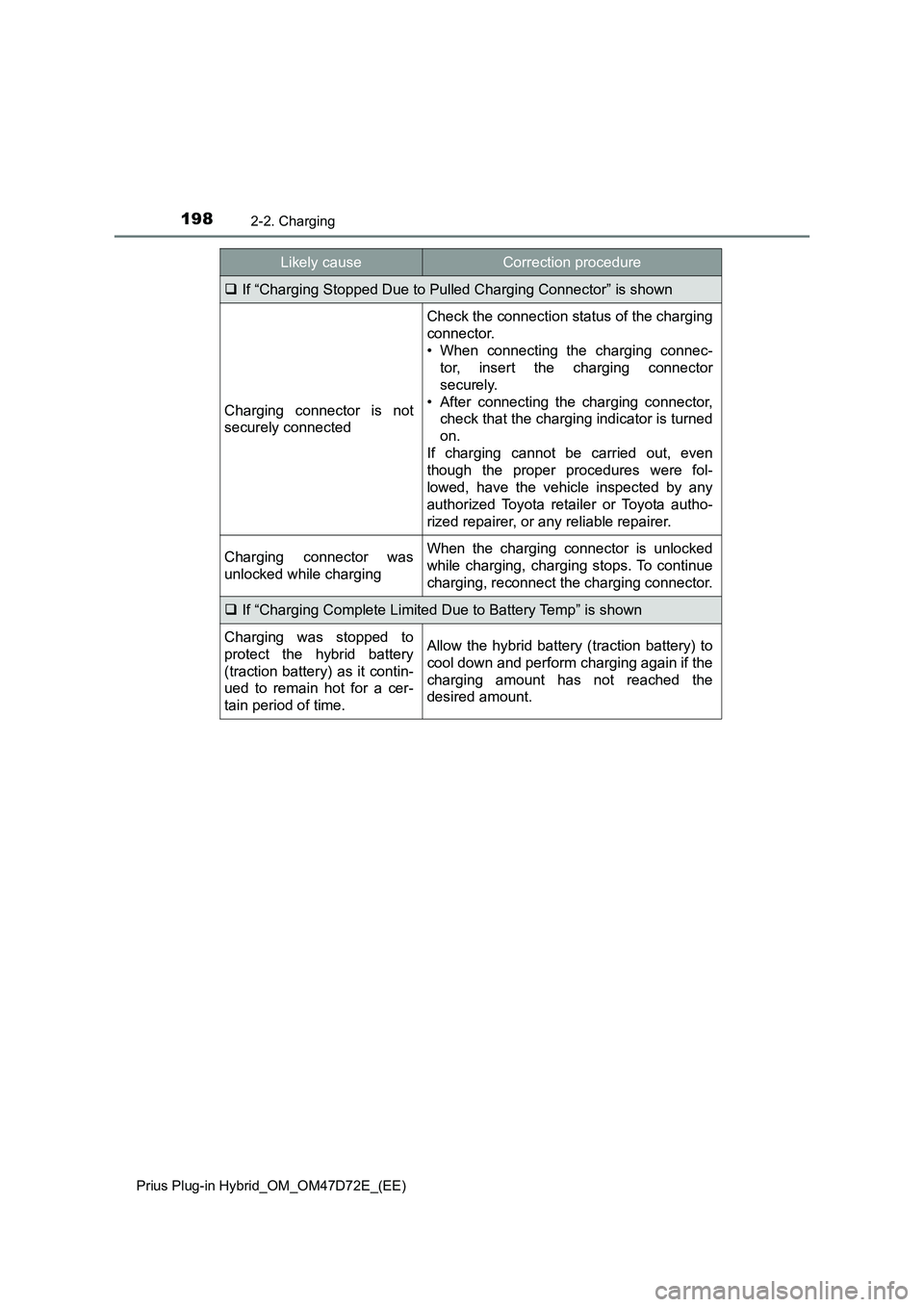

1982-2. Charging
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
If “Charging Stopped Due to Pulled Charging Connector” is shown
Charging connector is not
securely connected
Check the connection status of the charging
connector.
• When connecting the charging connec-
tor, insert the charging connector
securely.
• After connecting the charging connector,
check that the charging indicator is turned
on.
If charging cannot be carried out, even
though the proper procedures were fol-
lowed, have the vehicle inspected by any
authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
Charging connector was
unlocked while chargingWhen the charging connector is unlocked
while charging, charging stops. To continue
charging, reconnect the charging connector.
If “Charging Complete Limited Due to Battery Temp” is shown
Charging was stopped to
protect the hybrid battery
(traction battery) as it contin-
ued to remain hot for a cer-
tain period of time.Allow the hybrid battery (traction battery) to
cool down and perform charging again if the
charging amount has not reached the
desired amount.
Likely causeCorrection procedure

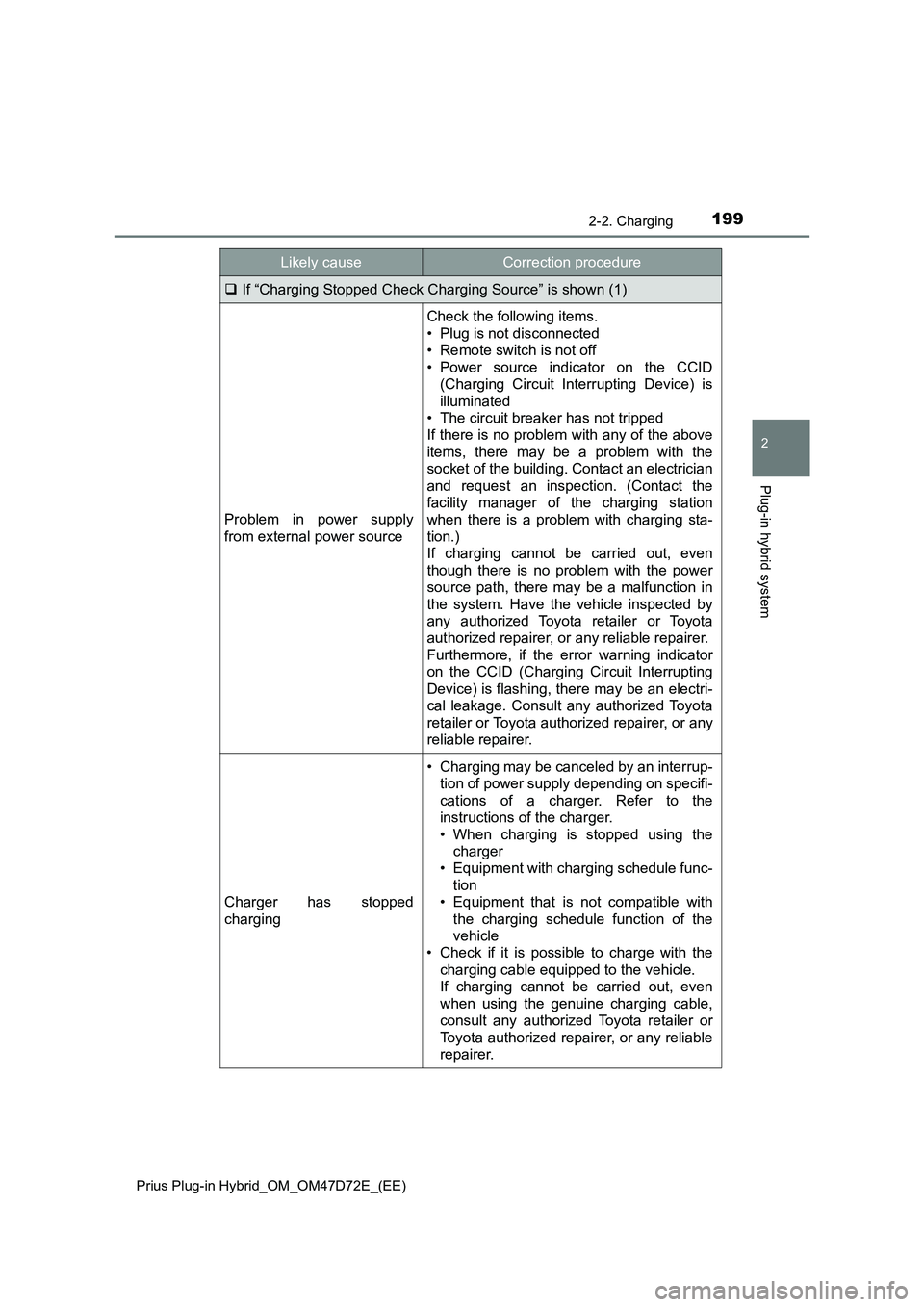

1992-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
If “Charging Stopped Check Charging Source” is shown (1)
Problem in power supply
from external power source
Check the following items.
• Plug is not disconnected
• Remote switch is not off
• Power source indicator on the CCID
(Charging Circuit Interrupting Device) is
illuminated
• The circuit breaker has not tripped
If there is no problem with any of the above
items, there may be a problem with the
socket of the building. Contact an electrician
and request an inspection. (Contact the
facility manager of the charging station
when there is a problem with charging sta-
tion.)
If charging cannot be carried out, even
though there is no problem with the power
source path, there may be a malfunction in
the system. Have the vehicle inspected by
any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Furthermore, if the error warning indicator
on the CCID (Charging Circuit Interrupting
Device) is flashing, there may be an electri-
cal leakage. Consult any authorized Toyota
retailer or Toyota authorized repairer, or any
reliable repairer.
Charger has stopped
charging
• Charging may be canceled by an interrup-
tion of power supply depending on specifi-
cations of a charger. Refer to the
instructions of the charger.
• When charging is stopped using the
charger
• Equipment with charging schedule func-
tion
• Equipment that is not compatible with
the charging schedule function of the
vehicle
• Check if it is possible to charge with the
charging cable equipped to the vehicle.
If charging cannot be carried out, even
when using the genuine charging cable,
consult any authorized Toyota retailer or
Toyota authorized repairer, or any reliable
repairer.
Likely causeCorrection procedure

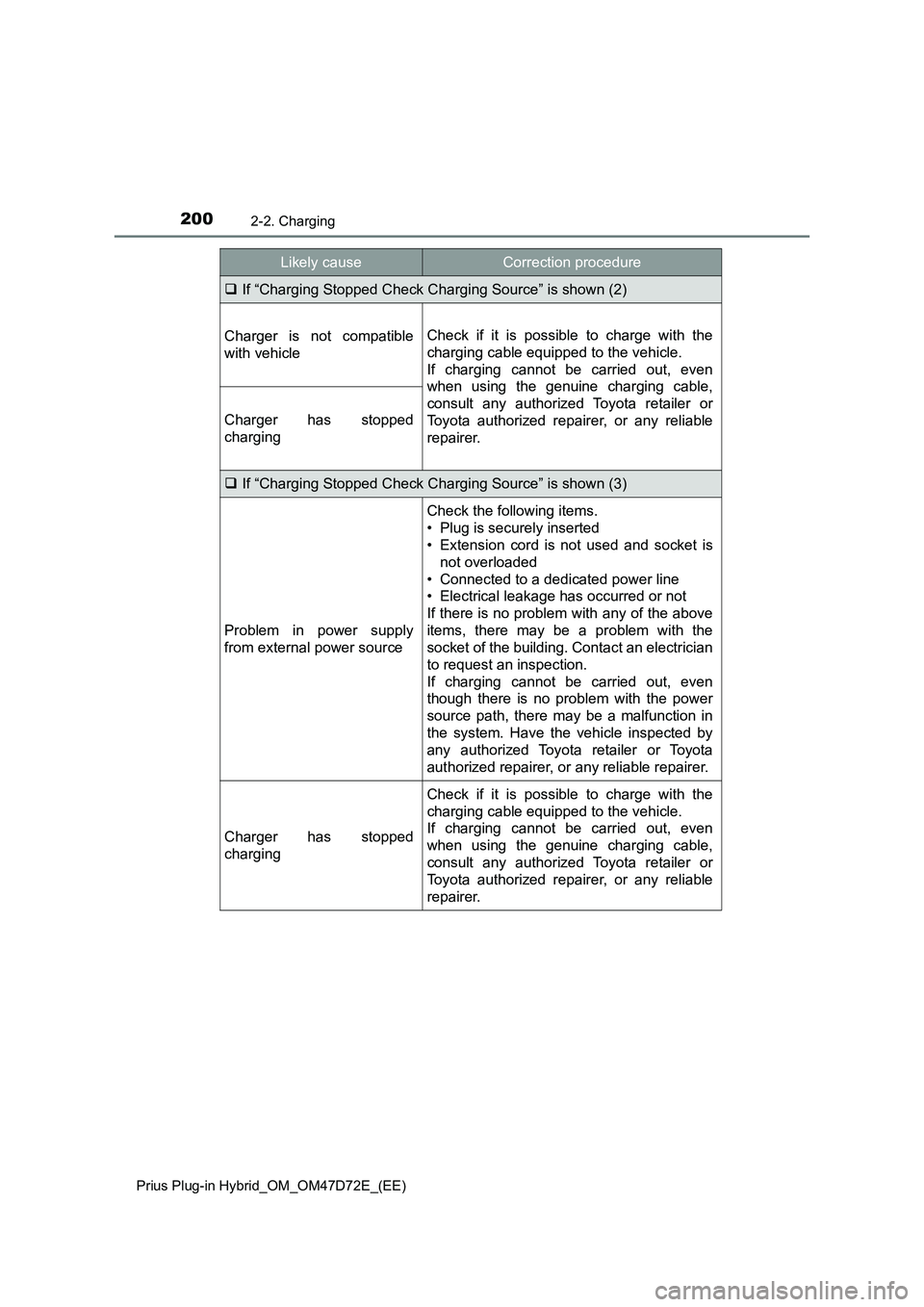

2002-2. Charging
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
If “Charging Stopped Check Charging Source” is shown (2)
Charger is not compatible
with vehicleCheck if it is possible to charge with the
charging cable equipped to the vehicle.
If charging cannot be carried out, even
when using the genuine charging cable,
consult any authorized Toyota retailer or
Toyota authorized repairer, or any reliable
repairer.
Charger has stopped
charging
If “Charging Stopped Check Charging Source” is shown (3)
Problem in power supply
from external power source
Check the following items.
• Plug is securely inserted
• Extension cord is not used and socket is
not overloaded
• Connected to a dedicated power line
• Electrical leakage has occurred or not
If there is no problem with any of the above
items, there may be a problem with the
socket of the building. Contact an electrician
to request an inspection.
If charging cannot be carried out, even
though there is no problem with the power
source path, there may be a malfunction in
the system. Have the vehicle inspected by
any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Charger has stopped
charging
Check if it is possible to charge with the
charging cable equipped to the vehicle.
If charging cannot be carried out, even
when using the genuine charging cable,
consult any authorized Toyota retailer or
Toyota authorized repairer, or any reliable
repairer.
Likely causeCorrection procedure
