7098-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

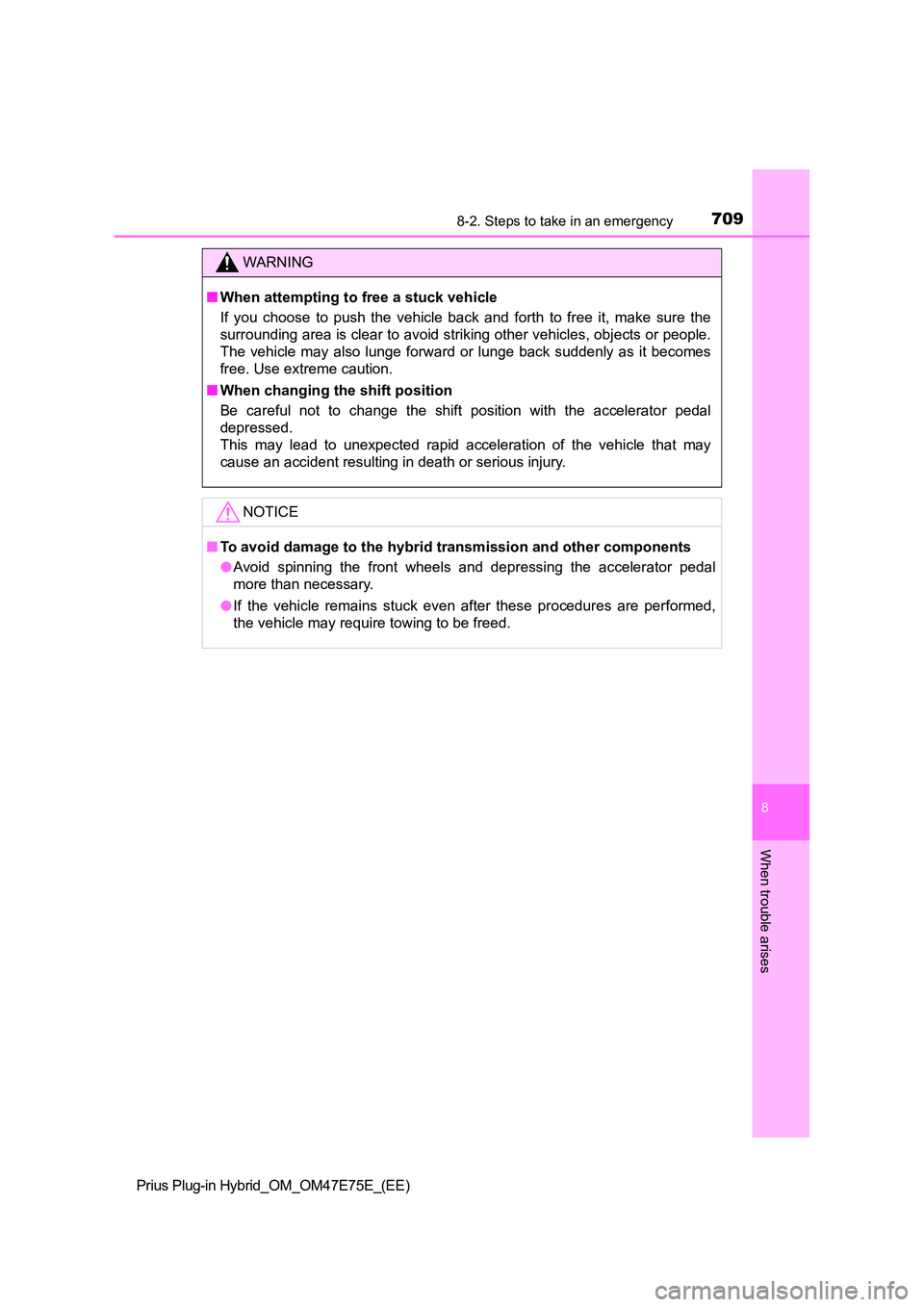

WARNING
QWhen attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, ma ke sure the
surrounding area is clear to avoid striking other vehicles, obj ects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
Q When changing the shift position
Be careful not to change the shift position with the accelerato r pedal
depressed.
This may lead to unexpected rapid acceleration of the vehicle t hat may
cause an accident resulting in death or serious injury.
NOTICE
Q To avoid damage to the hybrid transmission and other components
O Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
O If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

7108-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

711
9Vehicle specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 712
Fuel information ................. 722
9-2. Customization
Customizable features ....... 724
9-3. Initialization
Items to initialize ................ 734

7129-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Overall height may differ depending on the target region.
*3: Vehicles with 195/65R15 tires
*4: Vehicles with 215/45R17 tires
Dimensions and weights
Overall length4645 mm (182.9 in.)
Overall width1760 mm (69.3 in.)
Overall height*11470 mm (57.9 in.)*2
1490 mm (58.7 in.)*2
Wheelbase2700 mm (106.3 in.)
Tread*1
Front1530 mm (60.2 in.)*3
1510 mm (59.4 in.)*4
Rear1540 mm (60.6 in.)*3
1520 mm (59.8 in.)*4
Gross vehicle mass1930 kg (4255 lb.)
Maximum permissi-
ble axle capacityFront1060 kg (2337 lb.)
Rear1020 kg (2249 lb.)

7139-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications

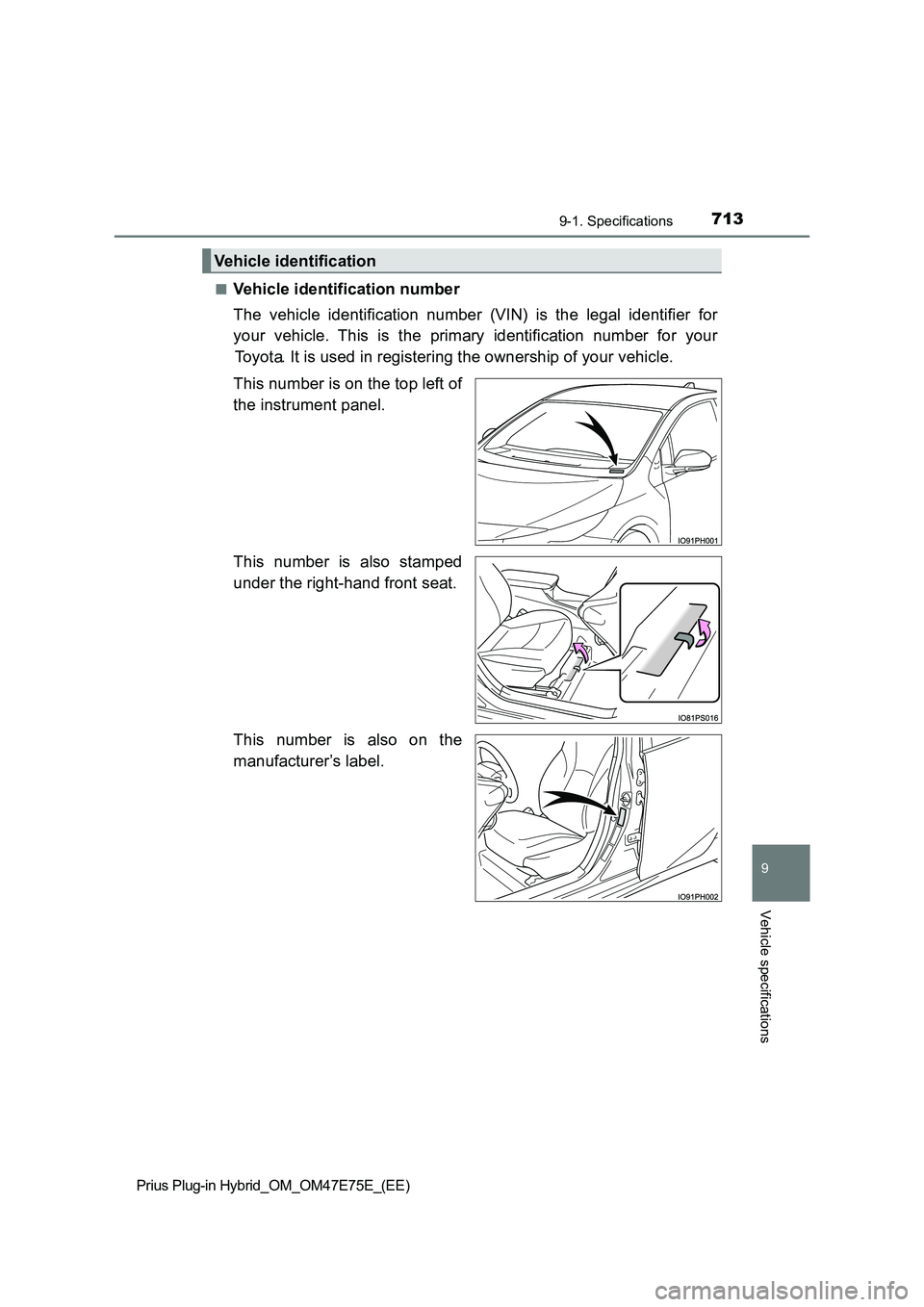

QVehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for you r
Toyota. It is used in registering the ownership of your vehicle .
This number is on the top left of
the instrument panel.
This number is also stamped
under the right-hand front seat.
This number is also on the
manufacturer’s label.
Vehicle identification

7149-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QEngine number
The engine number is stamped
on the engine block as shown.
Engine
Model2ZR-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5  88.3 mm (3.17  3.48 in.)
Displacement1798 cm3 (109.7 cu.in.)
Valve clearanceAutomatic adjustment
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one of
the following labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)43 L (11.4 gal., 9.5 lmp.gal.)

7159-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications
Generation/traction motor
Traction motor
QOil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
Electric motor (generation motor/traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output22.5 kW
Maximum torque40 N•m (4.1 kgf•m, 29.5 ft•lbf)
Ty p ePermanent magnet synchronous motor
Maximum output53 kW
Maximum torque163 N•m (16.6 kgf•m, 120.2 ft•lbf)
Hybrid battery (traction battery)
Ty p eLithium-ion battery
Voltage3.7 V/cell
Capacity25 Ah
Quantity95 cells
Nominal voltage351.5 V
Lubrication system
With filter4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter3.9 L (4.1 qt., 3.4 Imp.qt.)

7169-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserving”, SN PLUS “Resource-Con-
serving” or SP “Resource-Conserving”; or ILSAC GF-6B multigrade
engine oil
0W-20 and 5W-30:
API grade SM “Energy-Conserving”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving” or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-16 oil is not avail-
able, SAE 0W-20 oil may be
used. However, it should be
replaced with SAE 0W-16 at the
next oil change.
Temperature range anticipated
before next oil changePreferred

7179-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications
Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

7189-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or
Toyota authorized repairer, or any reliable repairer.
Cooling system
Capacity*
Gasoline
engine6.2 L (6.6 qt., 5.5 Imp.qt.)
Power
control unit1.5 L (1.6 qt., 1.3 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-CY9
Gap0.9 mm (0.035 in.)
NOTICE
Q Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.
