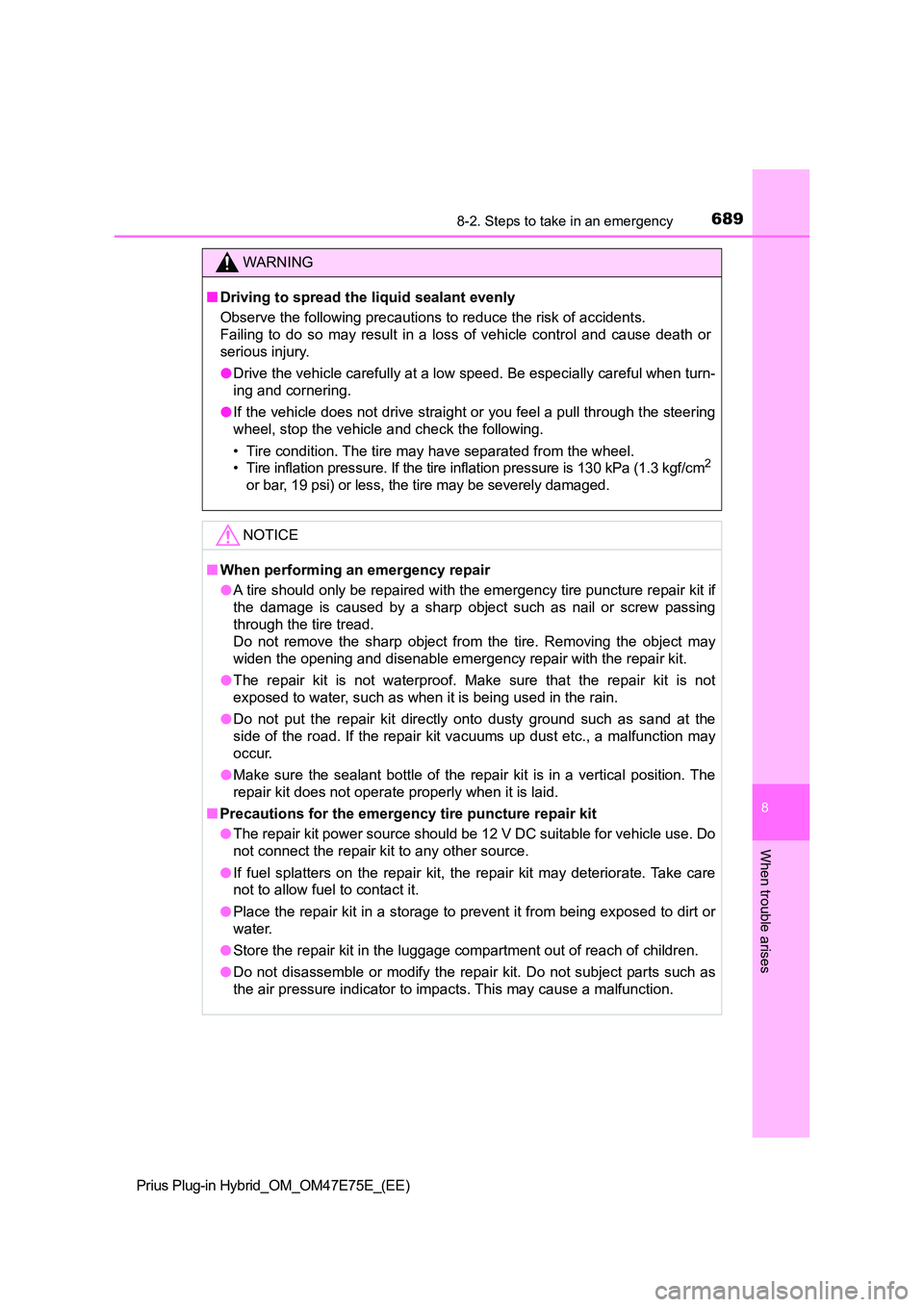

6898-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
WARNING
QDriving to spread the liquid sealant evenly
Observe the following precautions to reduce the risk of acciden ts.
Failing to do so may result in a loss of vehicle control and ca use death or
serious injury.
O Drive the vehicle carefully at a low speed. Be especially careful when turn-
ing and cornering.
O If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following.
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If the tire inflation pressure is 130 kPa (1.3 kgf/cm2
or bar, 19 psi) or less, the tire may be severely damaged.
NOTICE
QWhen performing an emergency repair
O A tire should only be repaired with the emergency tire puncture repair kit if
the damage is caused by a sharp object such as nail or screw pa ssing
through the tire tread.
Do not remove the sharp object from the tire. Removing the obje ct may
widen the opening and disenable em ergency repair with the repair kit.
O The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
O Do not put the repair kit directly onto dusty ground such as sand at the
side of the road. If the repair kit vacuums up dust etc., a mal function may
occur.
O Make sure the sealant bottle of the repair kit is in a vertical position. The
repair kit does not operate properly when it is laid.
Q Precautions for the emergency tire puncture repair kit
O The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.
O If fuel splatters on the repair kit, the repair kit may deteriorate. Take care
not to allow fuel to contact it.
O Place the repair kit in a storage to prevent it from being exposed to dirt or
water.
O Store the repair kit in the luggage compartment out of reach of children.
O Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunc tion.

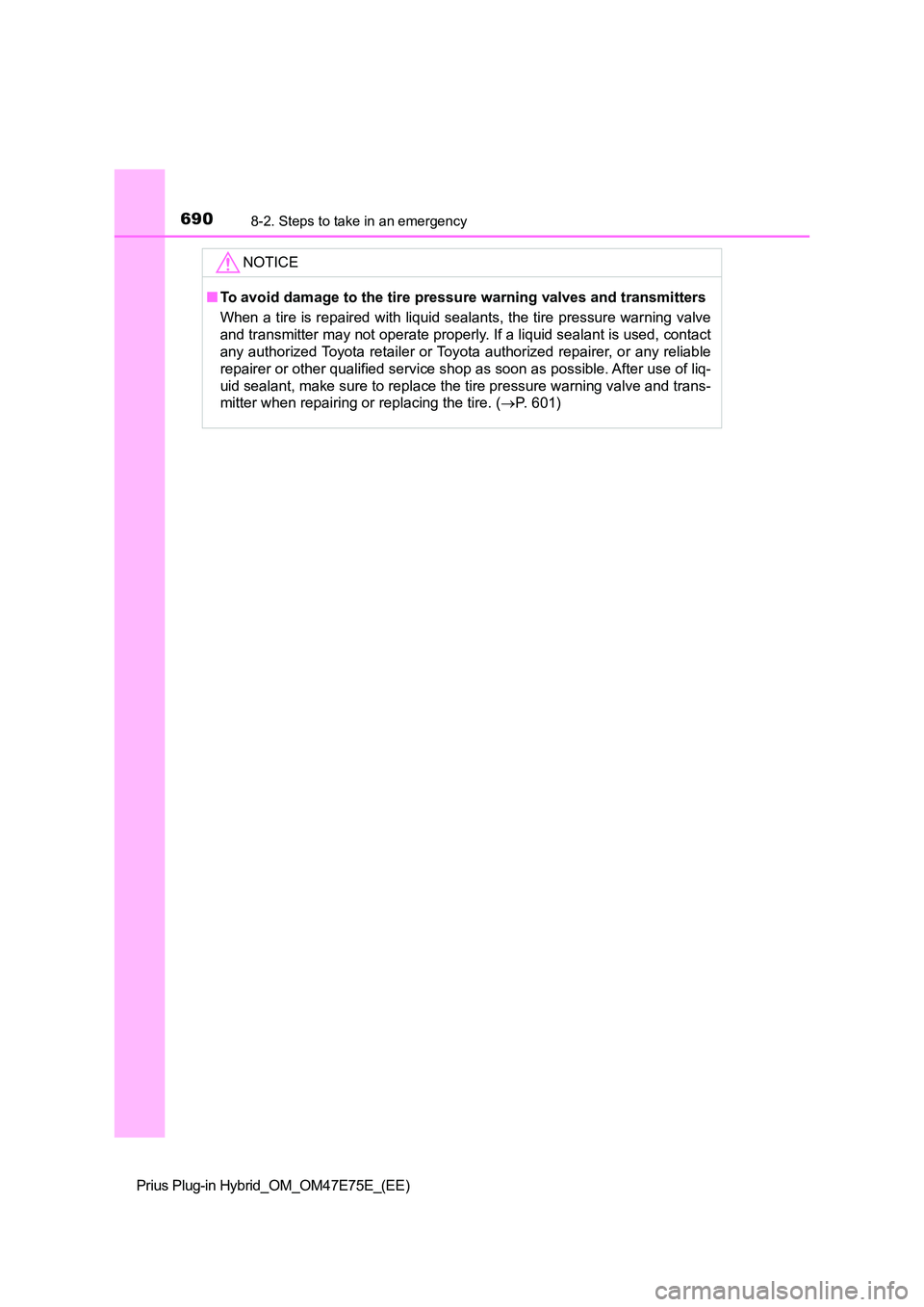

6908-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
NOTICE
QTo avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant i s used, contact
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer or other qualified service shop as soon as possible. A fter use of liq-
uid sealant, make sure to replace the tire pressure warning val ve and trans-
mitter when repairing or replacing the tire. ( P. 601)

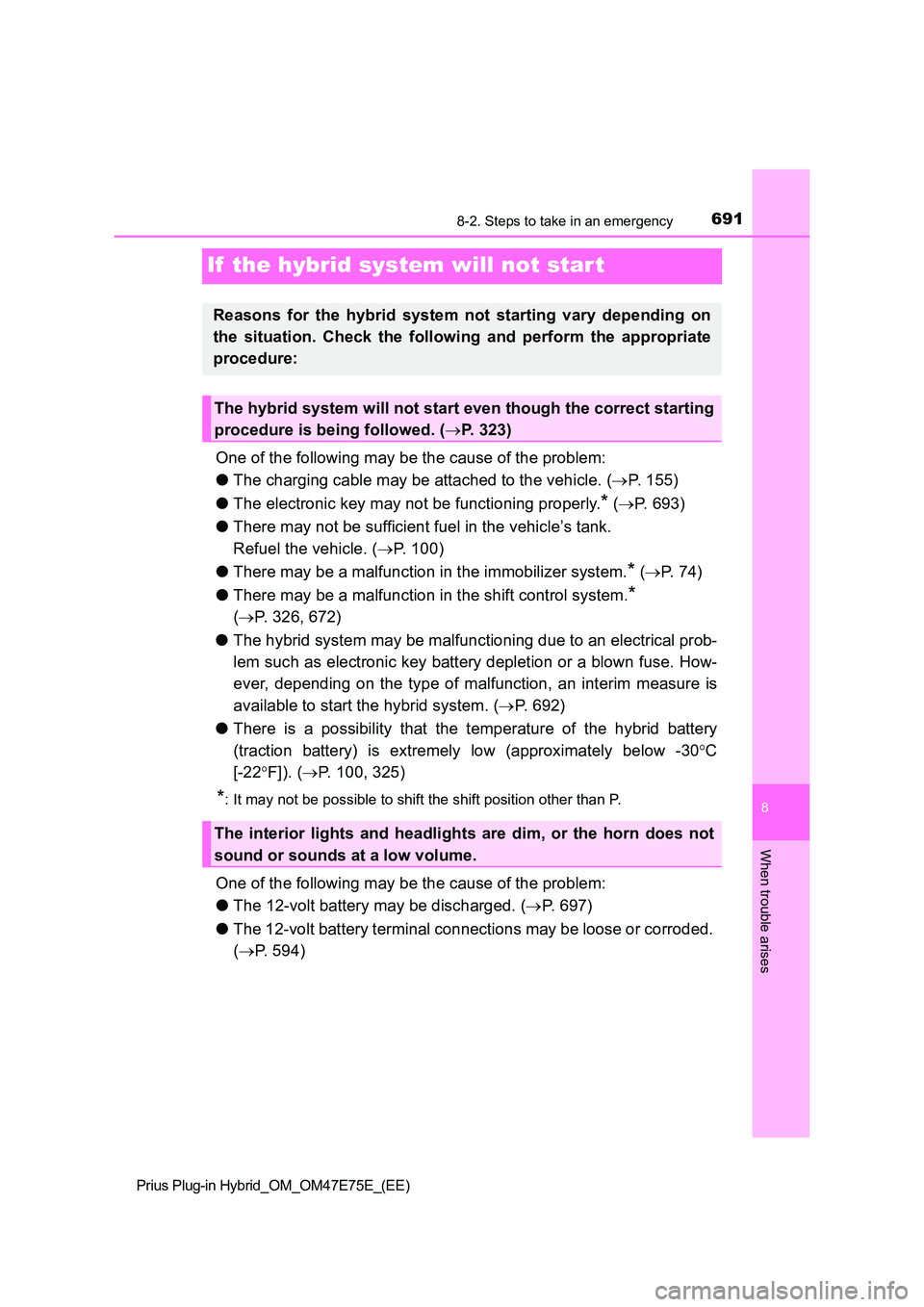

6918-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
If the hybrid system will not star t
One of the following may be the cause of the problem:
O The charging cable may be attached to the vehicle. (P. 155)
O The electronic key may not be functioning properly.* (P. 693)
O There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( P. 100)
O There may be a malfunction in the immobilizer system.* (P. 7 4 )
O There may be a malfunction in the shift control system.*
( P. 326, 672)
O The hybrid system may be malfunctioning due to an electrical prob-
lem such as electronic key battery depletion or a blown fuse. H ow-
ever, depending on the type of malfunction, an interim measure is
available to start the hybrid system. ( P. 692)
O There is a possibility that the temperature of the hybrid battery
(traction battery) is extremely low (approximately below -30 C
[-22 F]). (P. 100, 325)
*: It may not be possible to shift the shift position other than P.
One of the following may be the cause of the problem:
O The 12-volt battery may be discharged. (P. 697)
O The 12-volt battery terminal connections may be loose or corroded.
( P. 594)
Reasons for the hybrid system not starting vary depending on
the situation. Check the following and perform the appropriate
procedure:
The hybrid system will not start even though the correct starti ng
procedure is being followed. ( P. 323)
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.

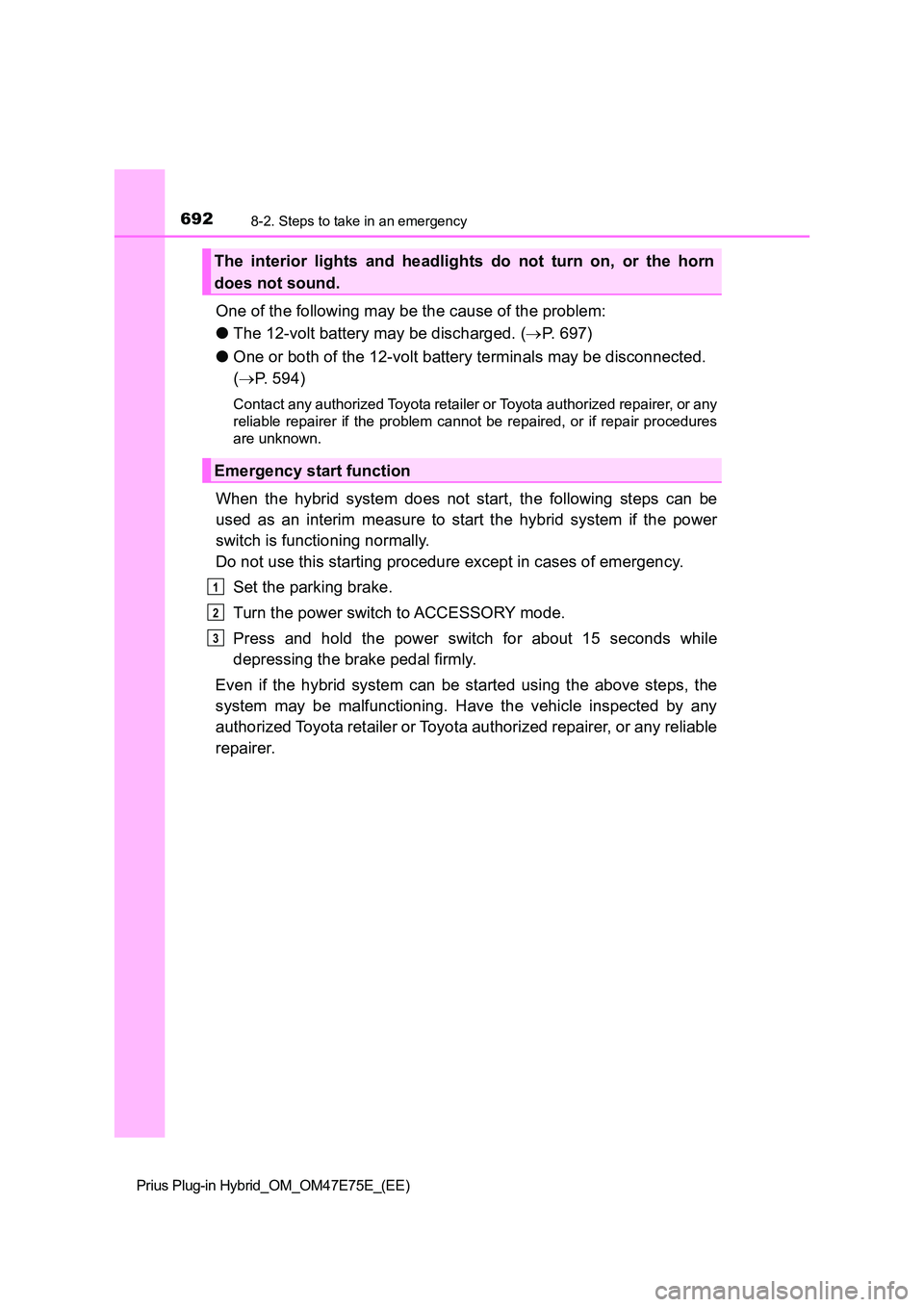

6928-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
One of the following may be the cause of the problem:
O The 12-volt battery may be discharged. (P. 697)
O One or both of the 12-volt battery terminals may be disconnected.
( P. 594)
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer if the problem cannot be repaired, or if repa ir procedures
are unknown.
When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the po wer
switch is functioning normally.
Do not use this starting procedure except in cases of emergency .
Set the parking brake.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch for about 15 seconds while
depressing the brake pedal firmly.
Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or an y reliable
repairer.
The interior lights and headlights do not turn on, or the horn
does not sound.
Emergency start function
1
2
3

6938-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
If the electronic key does not operate
properly
Use the mechanical key ( P. 269) in order to perform the following
operations:
Locks all the doors
Closes the windows (turn and
hold)*
Unlocks all the doors
Opens the windows (turn and
hold)*
*: This setting must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer. ( P. 724)
If communication between the electronic key and vehicle is inter-
rupted ( P. 286) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireles s
remote control cannot be used. In such cases, the doors can be
opened and the hybrid system can be started by following the pr o-
cedure below.
Locking and unlocking the doors
1
2
3
4

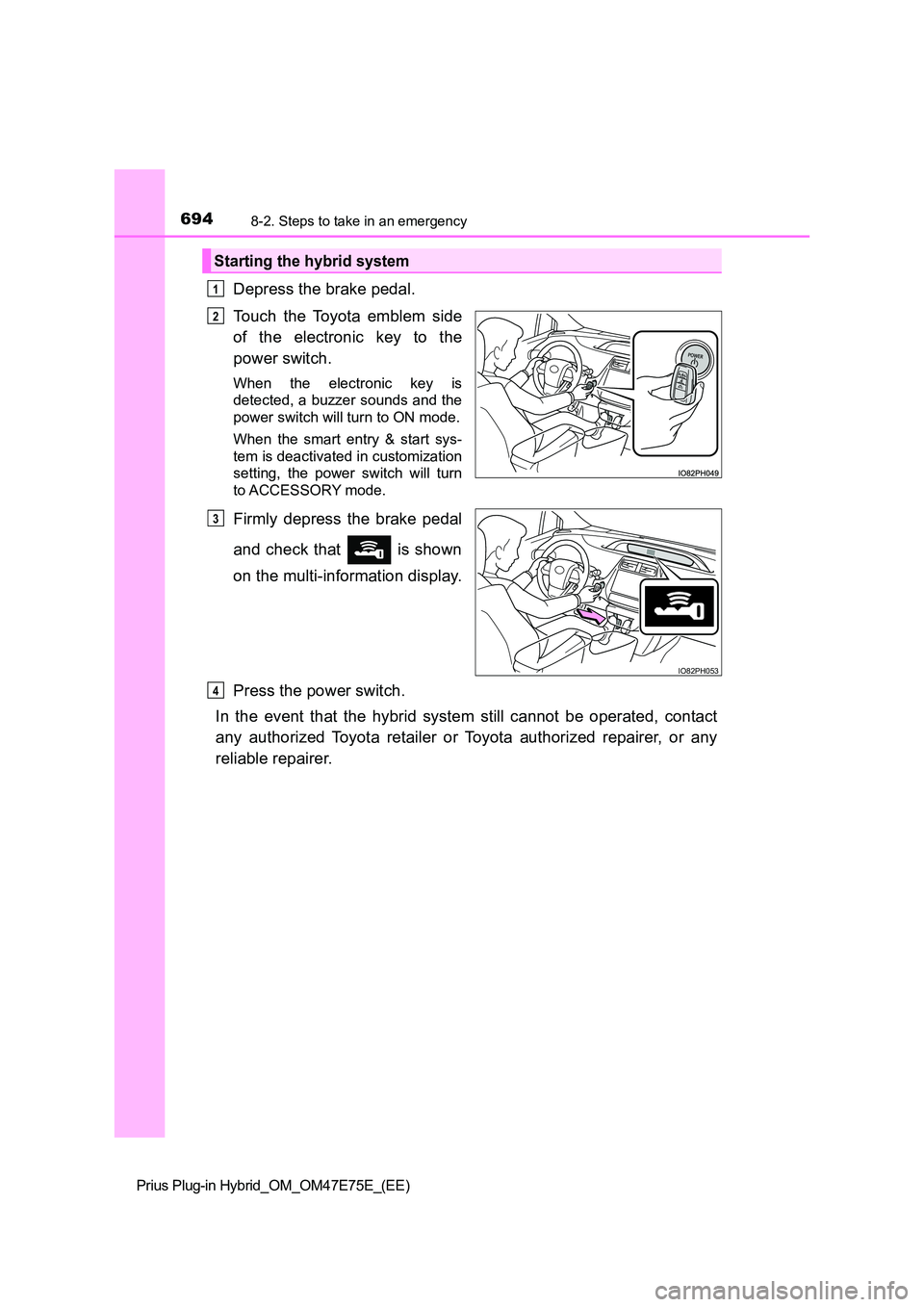

6948-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Depress the brake pedal.
Touch the Toyota emblem side
of the electronic key to the
power switch.
When the electronic key is
detected, a buzzer sounds and the
power switch will turn to ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the power switch will turn
to ACCESSORY mode.
Firmly depress the brake pedal
and check that is shown
on the multi-information display.
Press the power switch.
In the event that the hybrid system still cannot be operated, c ontact
any authorized Toyota retailer or Toyota authorized repairer, o r any
reliable repairer.
Starting the hybrid system
1
2
IO82PH053
3
4

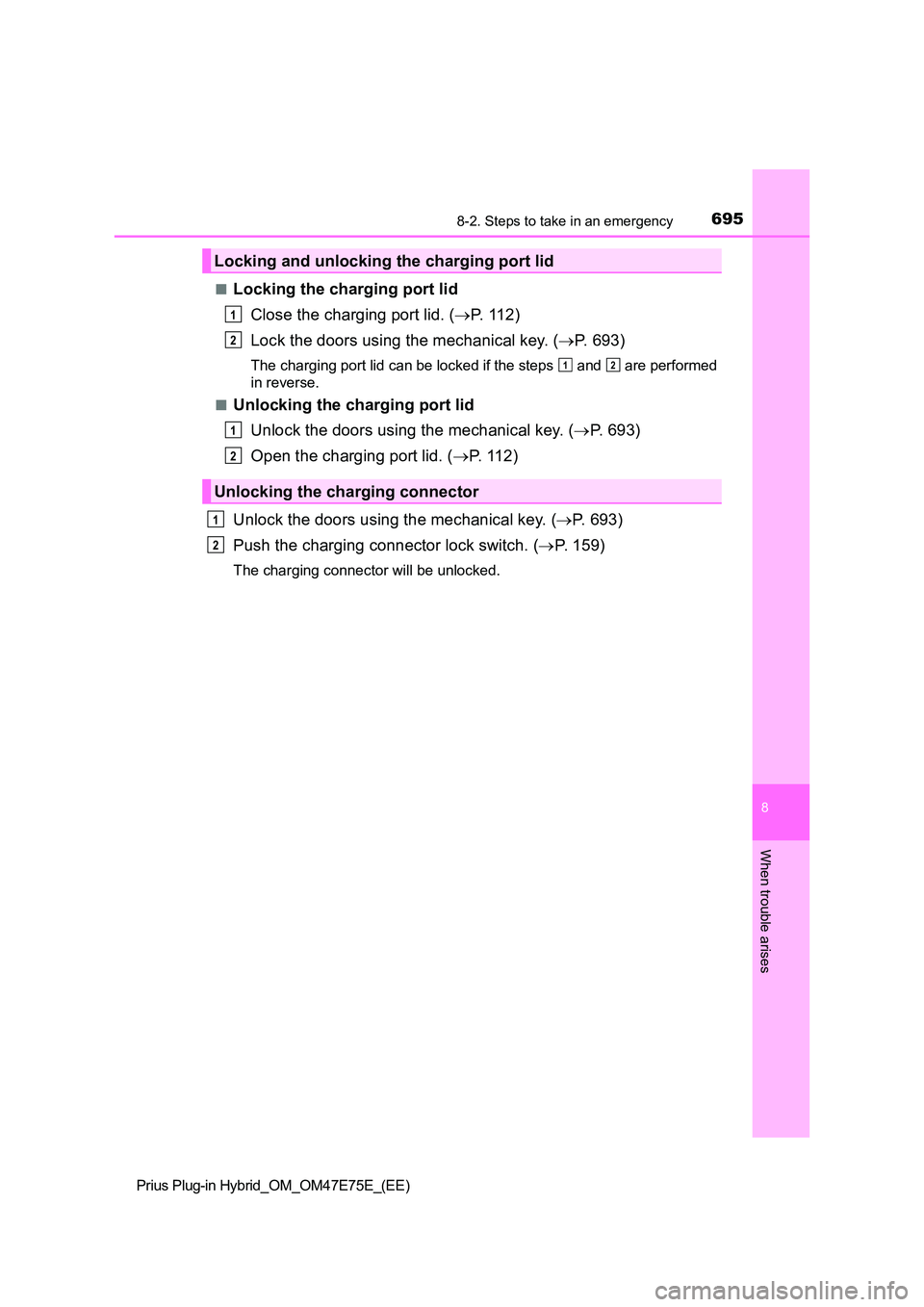

6958-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
QLocking the charging port lid
Close the charging port lid. ( P. 112)
Lock the doors using the mechanical key. ( P. 693)
The charging port lid can be locked if the steps and are performed
in reverse.
QUnlocking the charging port lid
Unlock the doors using the mechanical key. ( P. 693)
Open the charging port lid. ( P. 112)
Unlock the doors using the mechanical key. ( P. 693)
Push the charging connector lock switch. ( P. 159)
The charging connector will be unlocked.
Locking and unlocking the charging port lid
Unlocking the charging connector
1
2
12
1
2
1
2

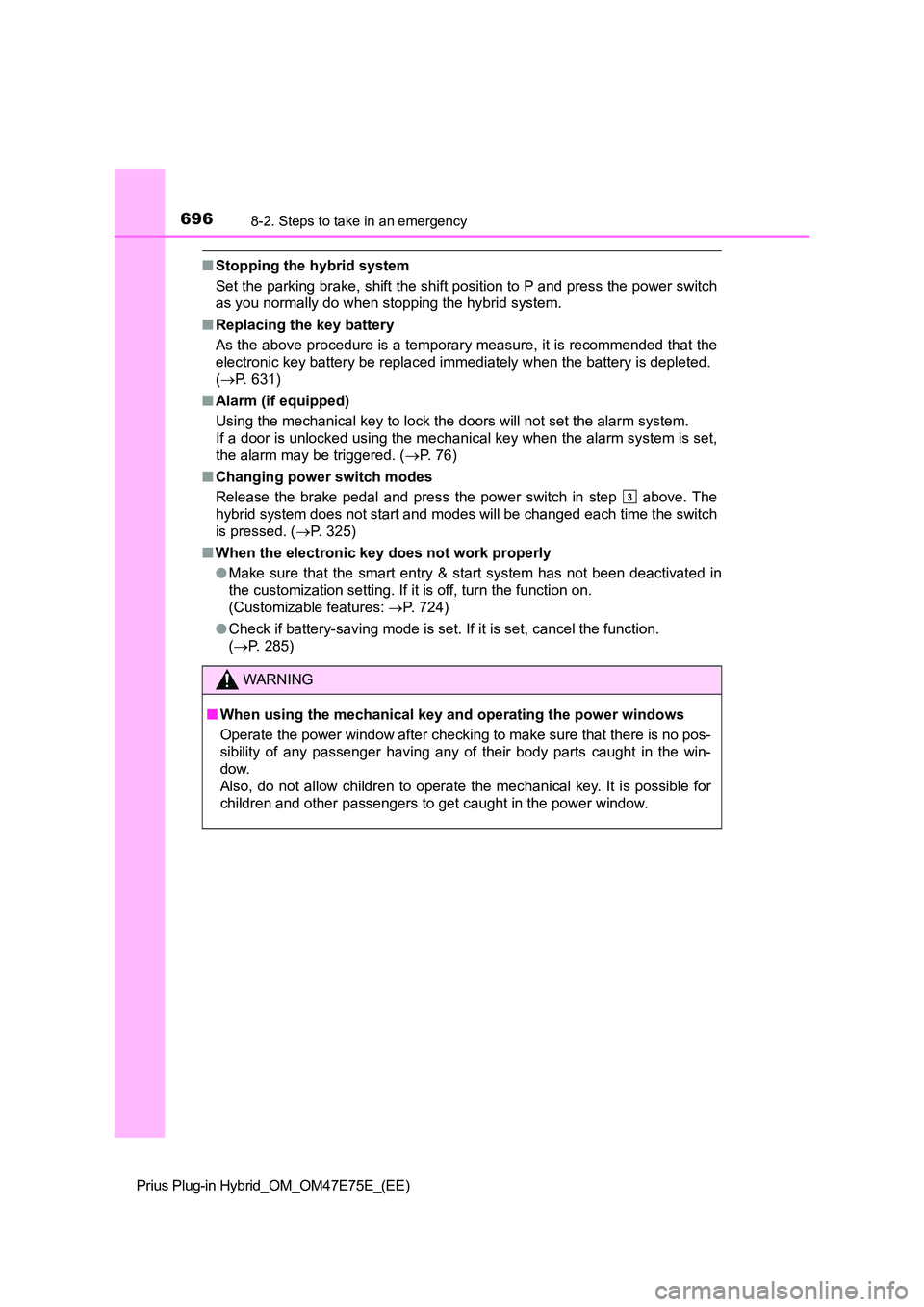

6968-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QStopping the hybrid system
Set the parking brake, shift the shift position to P and press the power switch
as you normally do when stopping the hybrid system.
Q Replacing the key battery
As the above procedure is a temporary measure, it is recommende d that the
electronic key battery be replaced immediately when the battery is depleted.
( P. 631)
Q Alarm (if equipped)
Using the mechanical key to lock the doors will not set the ala rm system.
If a door is unlocked using the mechanical key when the alarm s ystem is set,
the alarm may be triggered. ( P. 7 6 )
Q Changing power switch modes
Release the brake pedal and press the power switch in step abo ve. The
hybrid system does not start and modes will be changed each tim e the switch
is pressed. ( P. 325)
Q When the electronic key does not work properly
O Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features: P. 724)
O Check if battery-saving mode is set. If it is set, cancel the function.
( P. 285)
WARNING
QWhen using the mechanical key and operating the power windows
Operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the win-
dow.
Also, do not allow children to operate the mechanical key. It i s possible for
children and other passengers to get caught in the power window .
3

6978-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
If the 12-volt batter y is discharged
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by foll owing the
steps below.
Vehicles with an alarm
( P. 7 6 ) :
Confirm that the electronic key
is being carried.
When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and doors locked. ( P. 78)
Open the hood. (P. 584)
Remove the engine cover.
Pull up the both ends of the cover
vertically.
The following procedures may be used to start the hybrid sys-
tem if the vehicle’s 12-volt battery is discharged.
You can also call any authorized Toyota retailer or Toyota auth o-
rized repairer, or any reliable repairer.
1
2
3

6988-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Connect the jumper cables according to the following procedure:
Connect a positive jumper cable clamp to the positive (+) batte ry
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery term i-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the 12-vo lt
battery and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine spe ed
slightly and maintain at that level for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.
Maintain the engine speed of the second vehicle and start the
hybrid system of your vehicle by turning the power switch to ON
mode.
Make sure the “READY” indicator comes on. If the indicator ligh t
does not come on, contact any authorized Toyota retailer or Toy ota
authorized repairer, or any reliable repairer.
4
1
2
3
4
5
6
7
