Eco score
P. 2 3 0
EV driving range
P. 2 5 5
●By keeping the indicator within Eco area, more Eco-friendly driv-
ing can be achieved.
●Charge area indicates regeneration
*4 status. Regenerated
energy will be used to charge the hybrid battery (traction battery).
*1: Not displayed on the sub-screen or head-up display.
*2: Not displayed on the sub-screen.
*3: The EV indicator function can be turned off in the “Meter Customize”
settings. (P. 250)
*4: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■

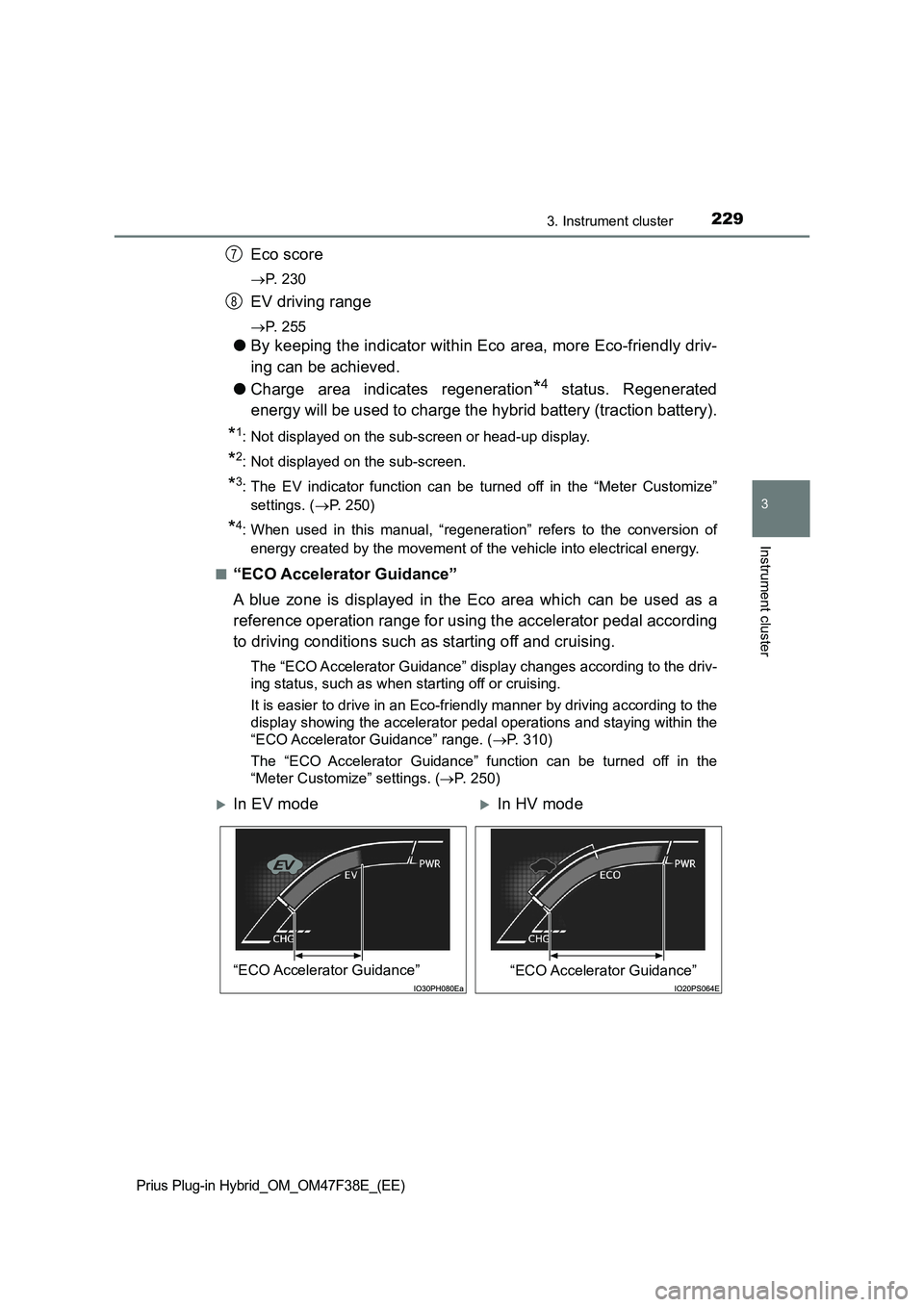

“ECO Accelerator Guidance”
A blue zone is displayed in the Eco area which can be used as a
reference operation range for using the accelerator pedal according
to driving conditions such as starting off and cruising.
The “ECO Accelerator Guidance” display changes according to the driv-
ing status, such as when starting off or cruising.
It is easier to drive in an Eco-friendly manner by driving according to the
display showing the accelerator pedal operations and staying within the
“ECO Accelerator Guidance” range. (P. 310)
The “ECO Accelerator Guidance” function can be turned off in the
“Meter Customize” settings. (P. 250)
7
8
In EV modeIn HV mode
“ECO Accelerator Guidance”“ECO Accelerator Guidance”

2303. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Eco score
The driving status for the following 3 situations are evaluated in 5
levels: Smooth start-off acceleration (“Eco-Start”), driving without
sudden acceleration (“Eco-Cruise”) and smooth stopping (“Eco-
Stop”). Each time the vehicle is stopped, a score result is displayed
out of a perfect score of 100 points.
Score result
“Eco-Start” status
“Eco-Cruise” status
“Eco-Stop” status
How to read the bar display:
*: For items not currently evaluated, the display reads 0.
●The Eco score is reset each time the vehicle starts off to start a new
evaluation.
●When the shift position is P, only the Eco score display area is
enlarged and displayed. When the shift position is shifted from P,
the display returns to normal.
●When the hybrid system stops, the current total score result and
advice on how to increase the score are displayed. (P. 198)
1
2
3
4
ScoreLow*High
Bar display

2313. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

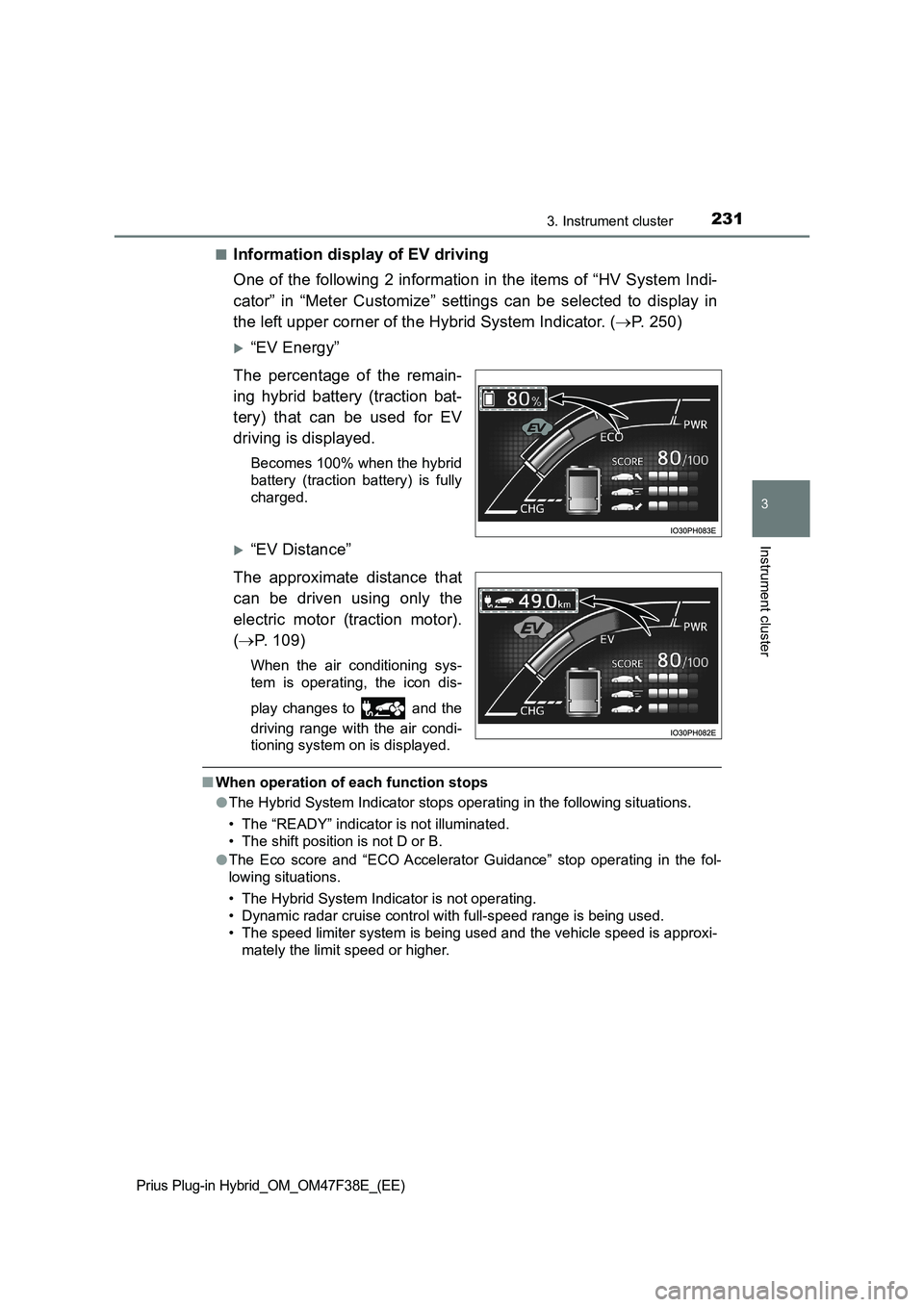

■Information display of EV driving
One of the following 2 information in the items of “HV System Indi-
cator” in “Meter Customize” settings can be selected to display in
the left upper corner of the Hybrid System Indicator. (P. 250)
“EV Energy”
The percentage of the remain-
ing hybrid battery (traction bat-
tery) that can be used for EV
driving is displayed.
Becomes 100% when the hybrid
battery (traction battery) is fully
charged.
“EV Distance”
The approximate distance that
can be driven using only the
electric motor (traction motor).
(P. 109)
When the air conditioning sys-
tem is operating, the icon dis-
play changes to and the
driving range with the air condi-
tioning system on is displayed.
■When operation of each function stops
●The Hybrid System Indicator stops operating in the following situations.
• The “READY” indicator is not illuminated.
• The shift position is not D or B.
●The Eco score and “ECO Accelerator Guidance” stop operating in the fol-
lowing situations.
• The Hybrid System Indicator is not operating.
• Dynamic radar cruise control with full-speed range is being used.
• The speed limiter system is being used and the vehicle speed is approxi-
mately the limit speed or higher.

2323. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

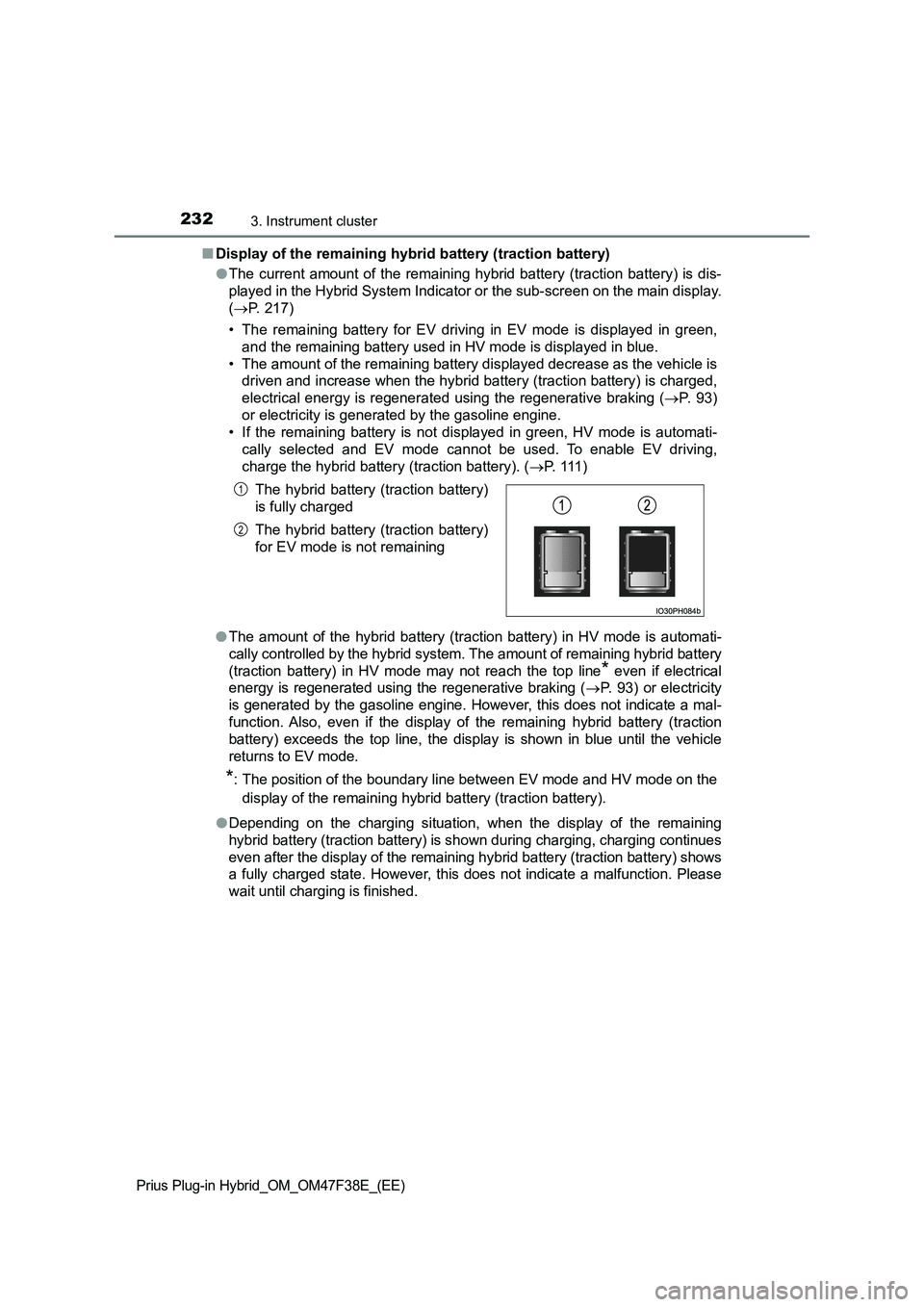

■Display of the remaining hybrid battery (traction battery)
●The current amount of the remaining hybrid battery (traction battery) is dis-
played in the Hybrid System Indicator or the sub-screen on the main display.
(P. 217)
• The remaining battery for EV driving in EV mode is displayed in green,
and the remaining battery used in HV mode is displayed in blue.
• The amount of the remaining battery displayed decrease as the vehicle is
driven and increase when the hybrid battery (traction battery) is charged,
electrical energy is regenerated using the regenerative braking (P. 93)
or electricity is generated by the gasoline engine.
• If the remaining battery is not displayed in green, HV mode is automati-
cally selected and EV mode cannot be used. To enable EV driving,
charge the hybrid battery (traction battery). (P. 1 1 1 )
●The amount of the hybrid battery (traction battery) in HV mode is automati-
cally controlled by the hybrid system. The amount of remaining hybrid battery
(traction battery) in HV mode may not reach the top line
* even if electrical
energy is regenerated using the regenerative braking (P. 93) or electricity
is generated by the gasoline engine. However, this does not indicate a mal-
function. Also, even if the display of the remaining hybrid battery (traction
battery) exceeds the top line, the display is shown in blue until the vehicle
returns to EV mode.
*: The position of the boundary line between EV mode and HV mode on the
display of the remaining hybrid battery (traction battery).
●Depending on the charging situation, when the display of the remaining
hybrid battery (traction battery) is shown during charging, charging continues
even after the display of the remaining hybrid battery (traction battery) shows
a fully charged state. However, this does not indicate a malfunction. Please
wait until charging is finished.The hybrid battery (traction battery)
is fully charged
The hybrid battery (traction battery)
for EV mode is not remaining
1
2

2333. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Remaining charge amount warning of hybrid battery (traction battery)
●The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift position is in N, or the remaining
charge amount drops below a certain level.
If the remaining charge amount drops further, the buzzer sounds continu-
ously.
●When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.
■About the Eco score
●After starting off, Eco score display does not start until the vehicle speed
exceeds approximately 30 km/h (19 mph).
●In addition to the vehicle driving status, the Eco score also evaluates the air
conditioning system usage condition (P. 244). The score displayed when
the hybrid system stops is the total result of the driving status after the
hybrid system starts and the air conditioning usage condition.
■“EV Energy” and “EV Distance” display
The rate at which the “EV Energy” and “EV Distance” remaining amount
decreases depends on the driving conditions of the vehicle. Also, the “EV
Energy” and “EV Distance” remaining amount may decrease due to system
power consumption even though the vehicle is not being driven.

2343. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

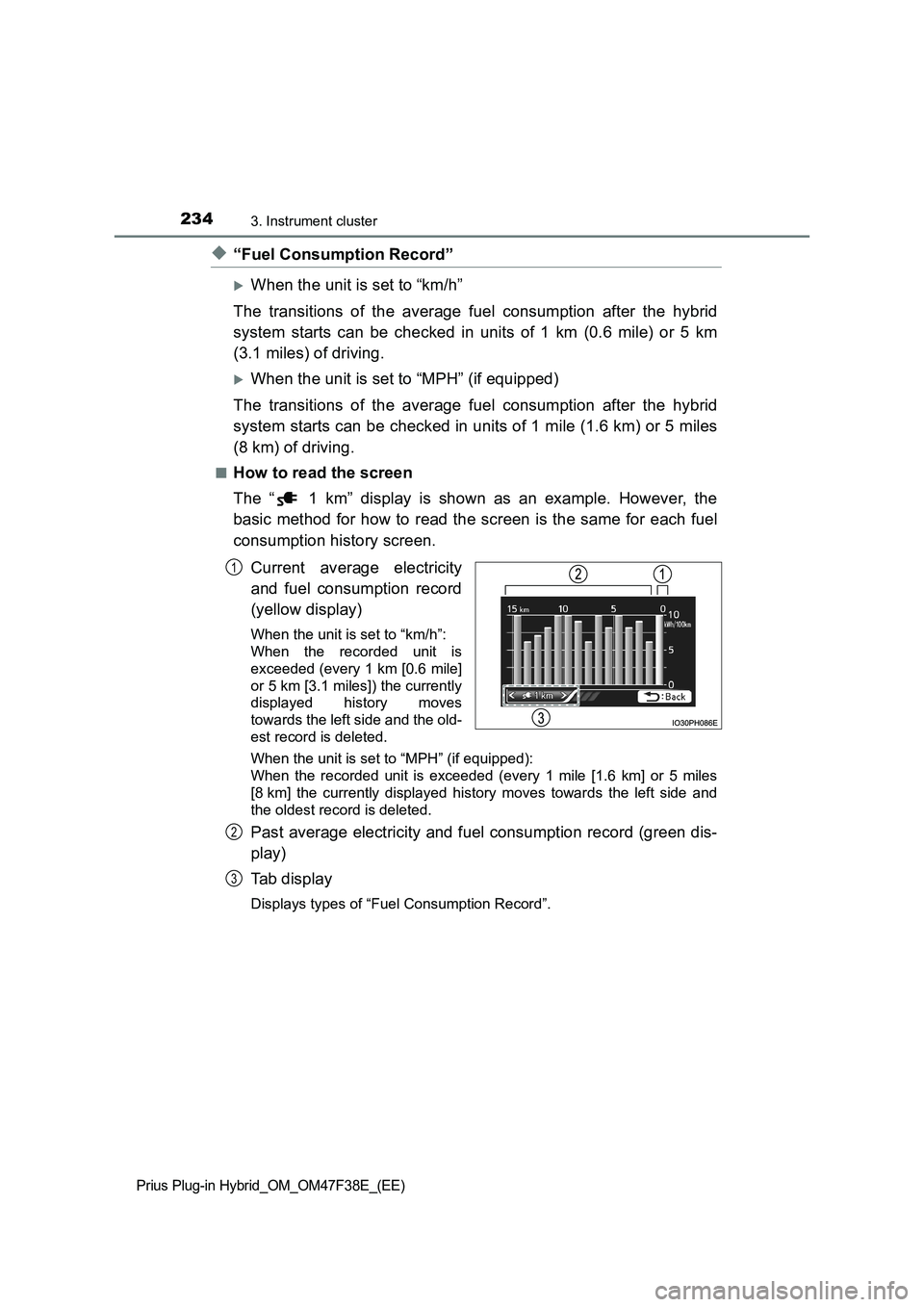

◆“Fuel Consumption Record”
When the unit is set to “km/h”
The transitions of the average fuel consumption after the hybrid
system starts can be checked in units of 1 km (0.6 mile) or 5 km
(3.1 miles) of driving.
When the unit is set to “MPH” (if equipped)
The transitions of the average fuel consumption after the hybrid
system starts can be checked in units of 1 mile (1.6 km) or 5 miles
(8 km) of driving.
■How to read the screen
The “ 1 km” display is shown as an example. However, the
basic method for how to read the screen is the same for each fuel
consumption history screen.
Current average electricity
and fuel consumption record
(yellow display)
When the unit is set to “km/h”:
When the recorded unit is
exceeded (every 1 km [0.6 mile]
or 5 km [3.1 miles]) the currently
displayed history moves
towards the left side and the old-
est record is deleted.
When the unit is set to “MPH” (if equipped):
When the recorded unit is exceeded (every 1 mile [1.6 km] or 5 miles
[8 km] the currently displayed history moves towards the left side and
the oldest record is deleted.
Past average electricity and fuel consumption record (green dis-
play)
Tab display
Displays types of “Fuel Consumption Record”.
1
2
3

2353. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

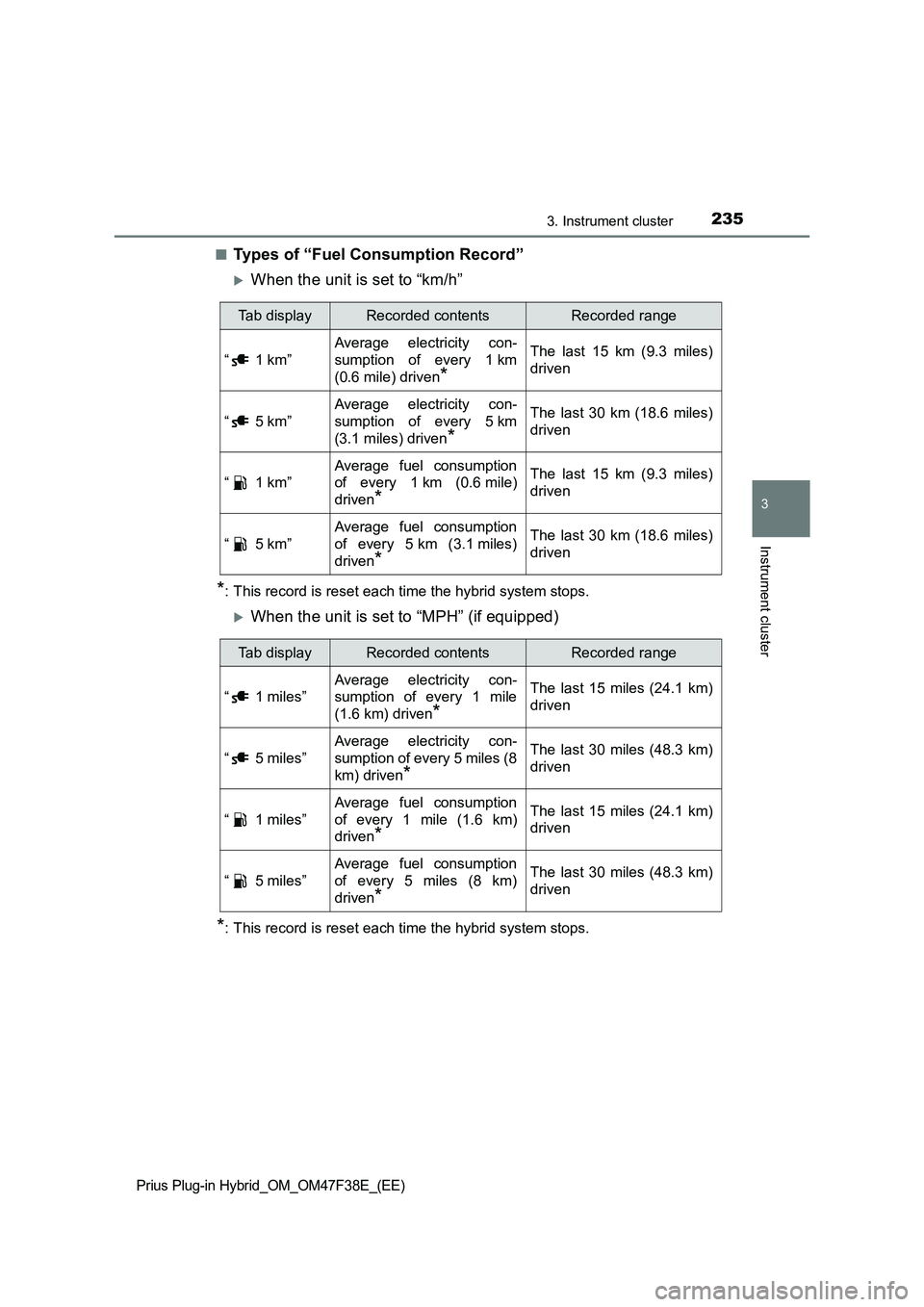

■Types of “Fuel Consumption Record”
When the unit is set to “km/h”
*: This record is reset each time the hybrid system stops.
When the unit is set to “MPH” (if equipped)
*: This record is reset each time the hybrid system stops.
Tab displayRecorded contentsRecorded range
“ 1 km”
Average electricity con-
sumption of every 1 km
(0.6 mile) driven
*
The last 15 km (9.3 miles)
driven
“ 5 km”
Average electricity con-
sumption of every 5 km
(3.1 miles) driven
*
The last 30 km (18.6 miles)
driven
“ 1 km”
Average fuel consumption
of every 1 km (0.6 mile)
driven
*
The last 15 km (9.3 miles)
driven
“ 5 km”
Average fuel consumption
of every 5 km (3.1 miles)
driven
*
The last 30 km (18.6 miles)
driven
Tab displayRecorded contentsRecorded range
“ 1 miles”
Average electricity con-
sumption of every 1 mile
(1.6 km) driven
*
The last 15 miles (24.1 km)
driven
“ 5 miles”
Average electricity con-
sumption of every 5 miles (8
km) driven
*
The last 30 miles (48.3 km)
driven
“ 1 miles”
Average fuel consumption
of every 1 mile (1.6 km)
driven
*
The last 15 miles (24.1 km)
driven
“ 5 miles”
Average fuel consumption
of every 5 miles (8 km)
driven
*
The last 30 miles (48.3 km)
driven

2363. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

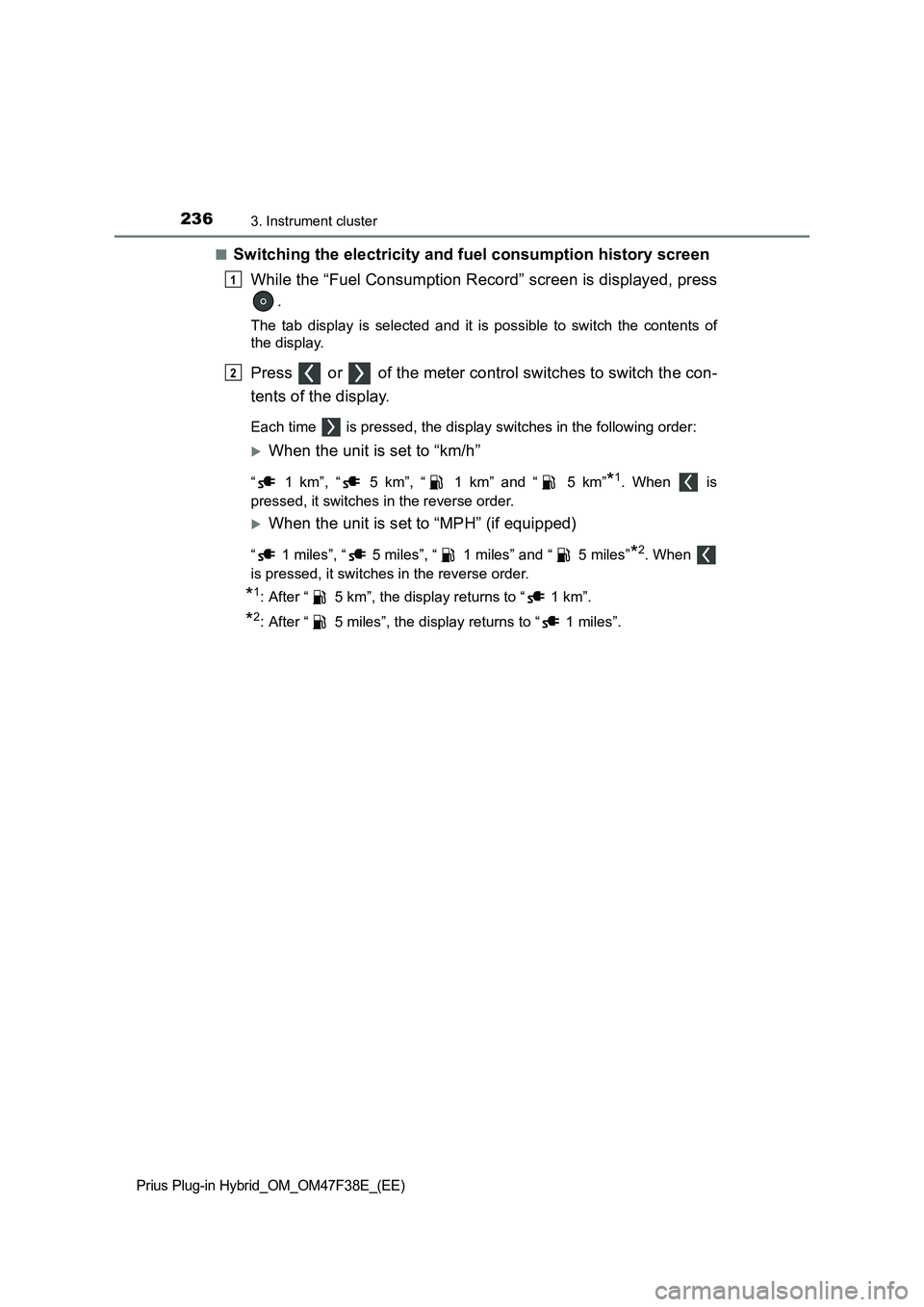

■Switching the electricity and fuel consumption history screen
While the “Fuel Consumption Record” screen is displayed, press
.
The tab display is selected and it is possible to switch the contents of
the display.
Press or of the meter control switches to switch the con-
tents of the display.
Each time is pressed, the display switches in the following order:
When the unit is set to “km/h”
“ 1 km”, “ 5 km”, “ 1 km” and “ 5 km”*1. When is
pressed, it switches in the reverse order.
When the unit is set to “MPH” (if equipped)
“ 1 miles”, “ 5 miles”, “ 1 miles” and “ 5 miles”*2. When
is pressed, it switches in the reverse order.
*1: After “ 5 km”, the display returns to “ 1 km”.
*2: After “ 5 miles”, the display returns to “ 1 miles”.
1
2

2373. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
◆“Drive Monitor”
Displays information such as the driving time and average vehicle
speed, which are linked with the current mileage display. (P. 214)
Current contents of the dis-
play
Displayed information shows
which driving record the cur-
rently displayed contents are
based on.
“Elapsed Time”
“Average Speed”
“EV Driving Ratio”
For the displayed distance of the mileage display, the percent traveled
using only electric motor power is displayed.
Each time is pressed, the mileage display (P. 214) switches
and the contents of the “Drive monitor” change as follows.
*1: When the average fuel consumption is reset (P. 215), the “Drive monitor”
display is also reset.
*2: When the trip meter is reset (P. 215), the “Drive monitor” display is also
reset.
*3: This item is reset each time the hybrid system starts.
1
2
3
4
Mileage displayContents of the “Drive monitor”
ODOAfter ResetInformation since last reset*1
TRIP ATRIP AInformation based on driving record of
TRIP A
*2
TRIP BTRIP BInformation based on driving record of
TRIP B
*2
After StartInformation since hybrid system was
started
*3
Blank screen
1

2383. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

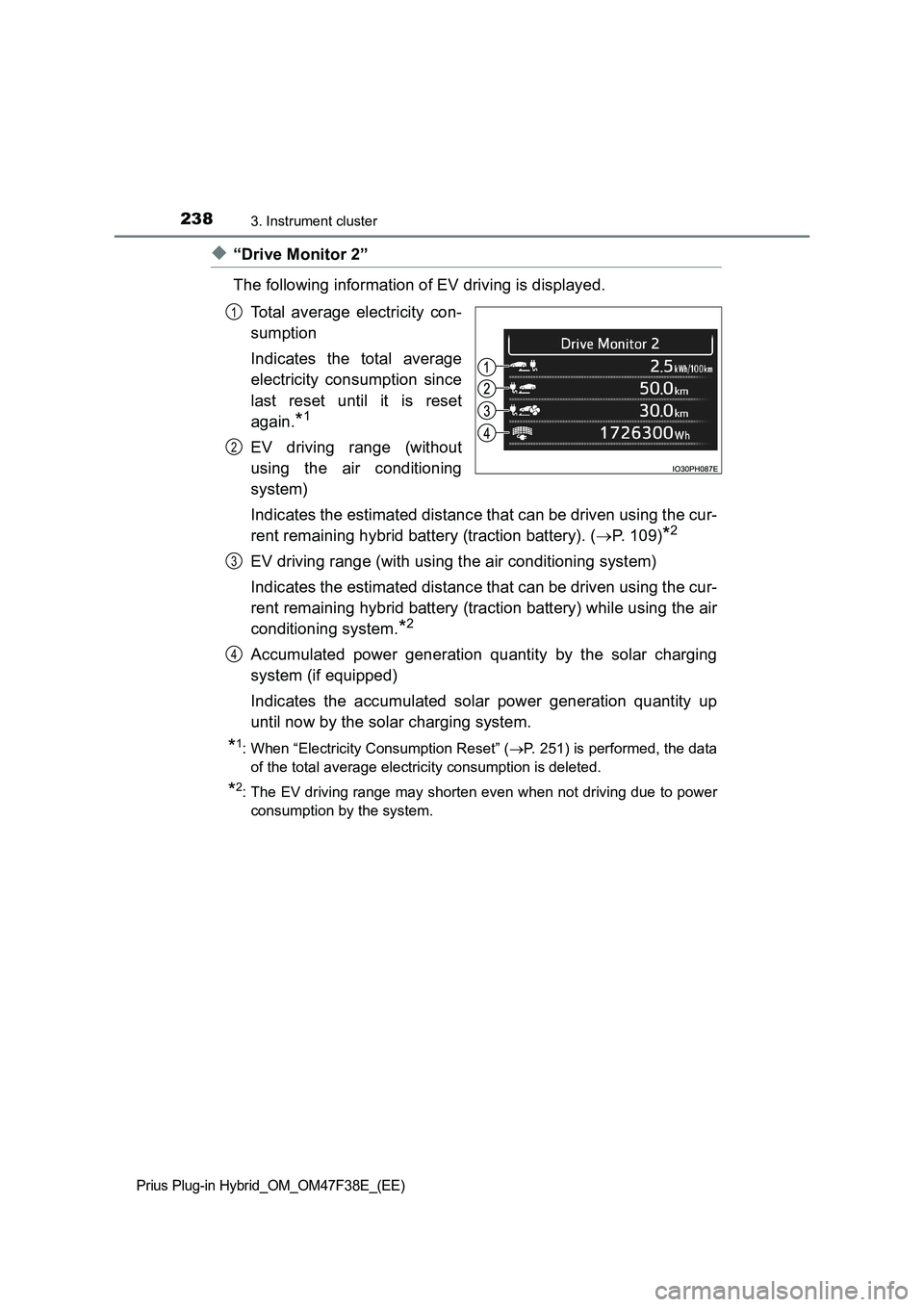

◆“Drive Monitor 2”
The following information of EV driving is displayed.
Total average electricity con-
sumption
Indicates the total average
electricity consumption since
last reset until it is reset
again.
*1
EV driving range (without
using the air conditioning
system)
Indicates the estimated distance that can be driven using the cur-
rent remaining hybrid battery (traction battery). (P. 109)
*2
EV driving range (with using the air conditioning system)
Indicates the estimated distance that can be driven using the cur-
rent remaining hybrid battery (traction battery) while using the air
conditioning system.
*2
Accumulated power generation quantity by the solar charging
system (if equipped)
Indicates the accumulated solar power generation quantity up
until now by the solar charging system.
*1: When “Electricity Consumption Reset” (P. 251) is performed, the data
of the total average electricity consumption is deleted.
*2: The EV driving range may shorten even when not driving due to power
consumption by the system.
1
2
3
4
