Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
*1: If equipped
*2: Right-hand drive vehicles only

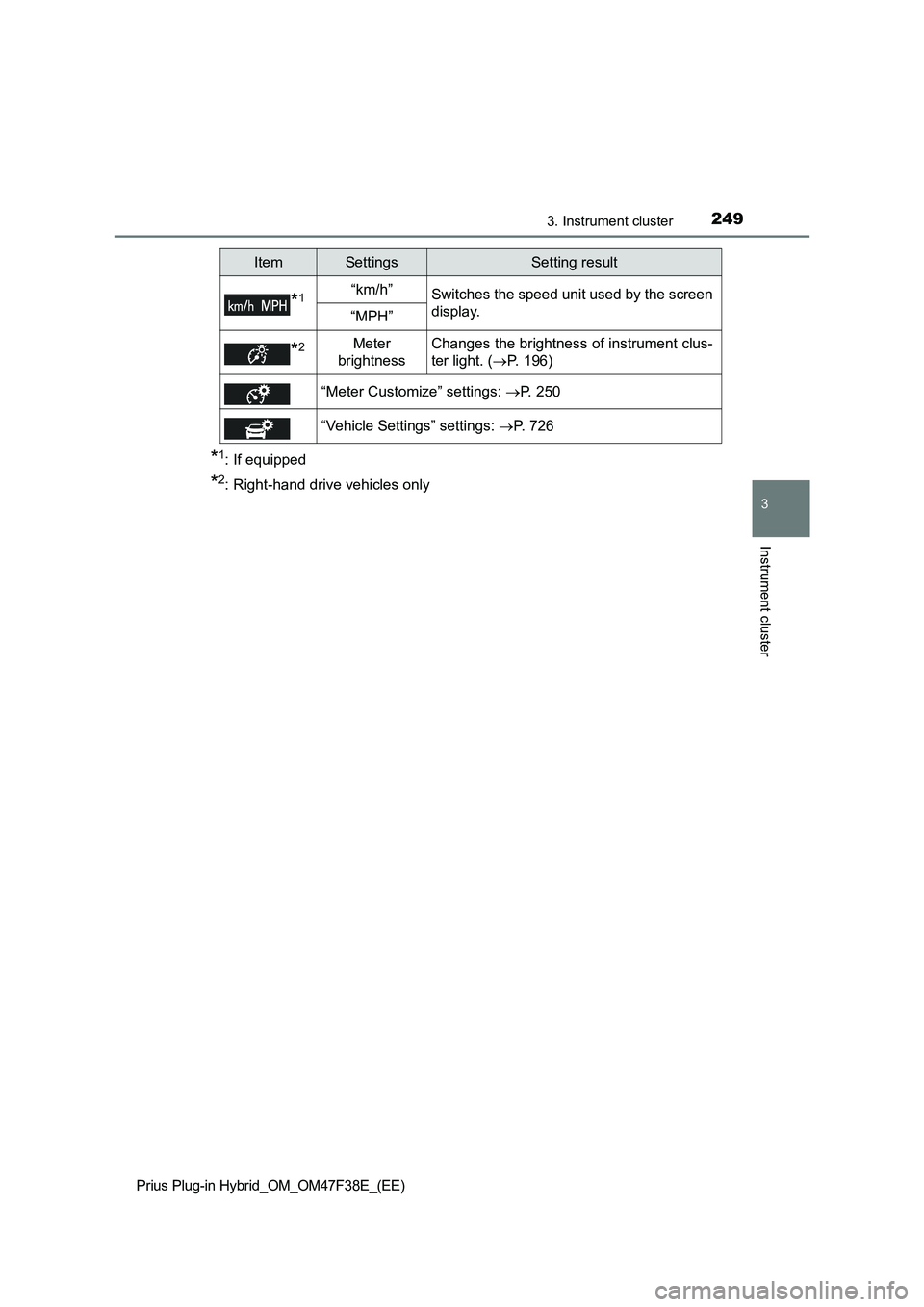

*1“km/h”Switches the speed unit used by the screen
display.
“MPH”
*2Meter
brightnessChanges the brightness of instrument clus-
ter light. (P. 196)
“Meter Customize” settings: P. 250
“Vehicle Settings” settings: P. 726
ItemSettingsSetting result

2503. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

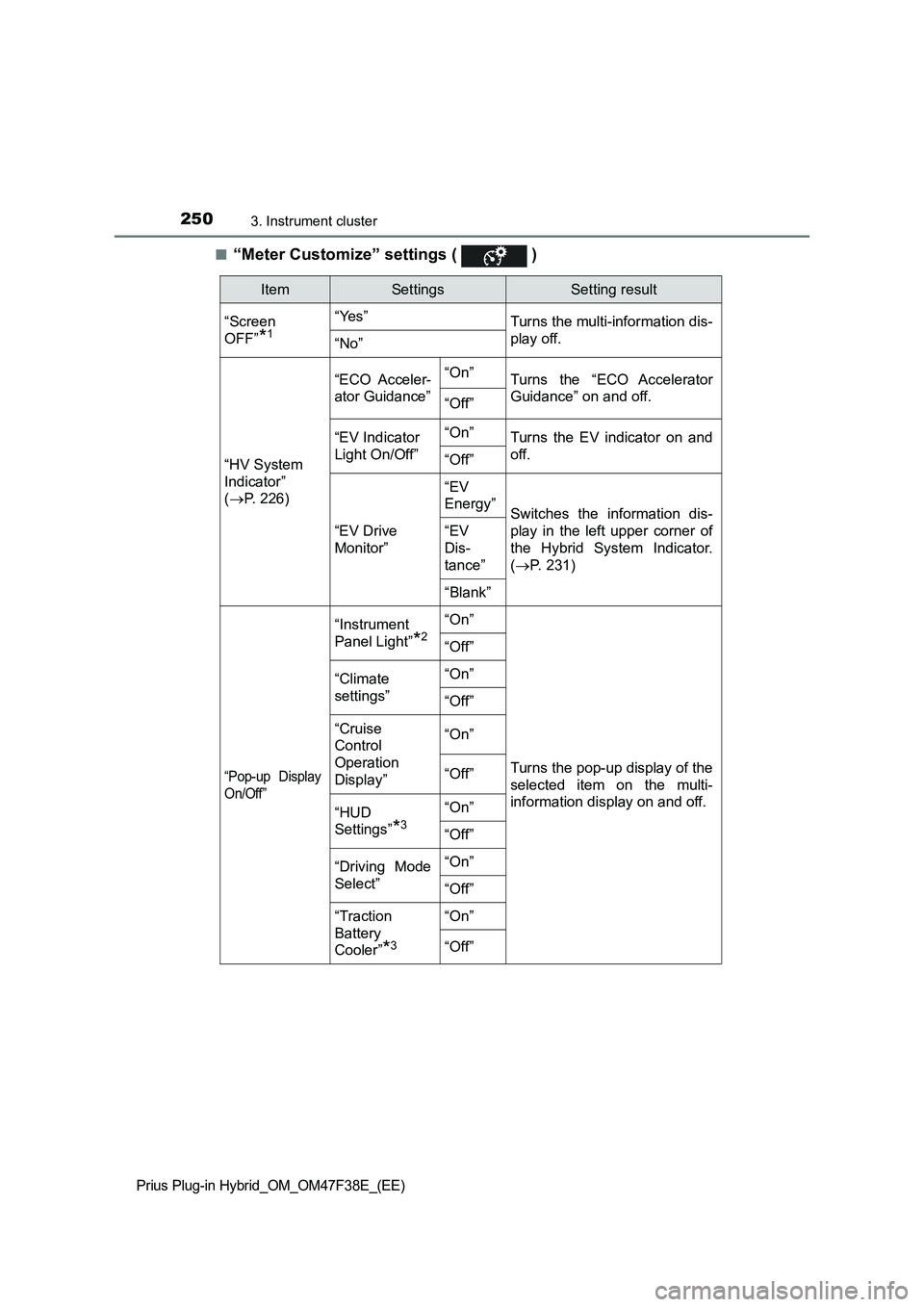

■“Meter Customize” settings ( )
ItemSettingsSetting result
“Screen
OFF”
*1
“Yes”
Turns the multi-information dis-
play off.
“No”
“HV System
Indicator”
(P. 226)“ECO Acceler-
ator Guidance”“On”
Turns the “ECO Accelerator
Guidance” on and off.
“Off”
“EV Indicator
Light On/Off”“On”Turns the EV indicator on and
off.
“Off”
“EV Drive
Monitor”
“EV
Energy”
Switches the information dis-
play in the left upper corner of
the Hybrid System Indicator.
(P. 231)
“EV
Dis-
tance”
“Blank”
“Pop-up Display
On/Off”
“Instrument
Panel Light”
*2
“On”
Turns the pop-up display of the
selected item on the multi-
information display on and off.
“Off”
“Climate
settings”“On”
“Off”
“Cruise
Control
Operation
Display”“On”
“Off”
“HUD
Settings”
*3
“On”
“Off”
“Driving Mode
Select”“On”
“Off”
“Traction
Battery
Cooler”
*3
“On”
“Off”

2513. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
*1: When the screen is turned off, pressing displays the setting screen
again.
*2: Left-hand drive vehicles only
*3: If equipped
*4: The possible displayed languages differ according to the target region.
“Language”*4
“English” (English)
Switches the language dis-
played on the screen.
“Français” (French)
“Español” (Spanish)
“Deutsch” (German)
“Italiano” (Italian)
“ ” (Russian)
“Calendar”
Day/Month/Year
Changes the date used for the
electricity and fuel consump-
tion record and the charging
schedule function.
“History
Reset”
“Eco-Diary
(Daily)”“Yes”Deletes data of “Eco-Diary
(Daily)”. (P. 239)
“No”
“Eco-Diary
(Monthly)”“Yes”Deletes data of “Eco-Diary
(Monthly)”. (P. 2 3 9 )
“No”
“Electricity
Consumption
Reset”“Yes”Deletes the data of the total
average electricity consump-
tion. (P. 217, 238)
“No”
“Initialization”“Yes”Returns the combination meter
settings to their initial settings.
“No”
ItemSettingsSetting result

2523. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

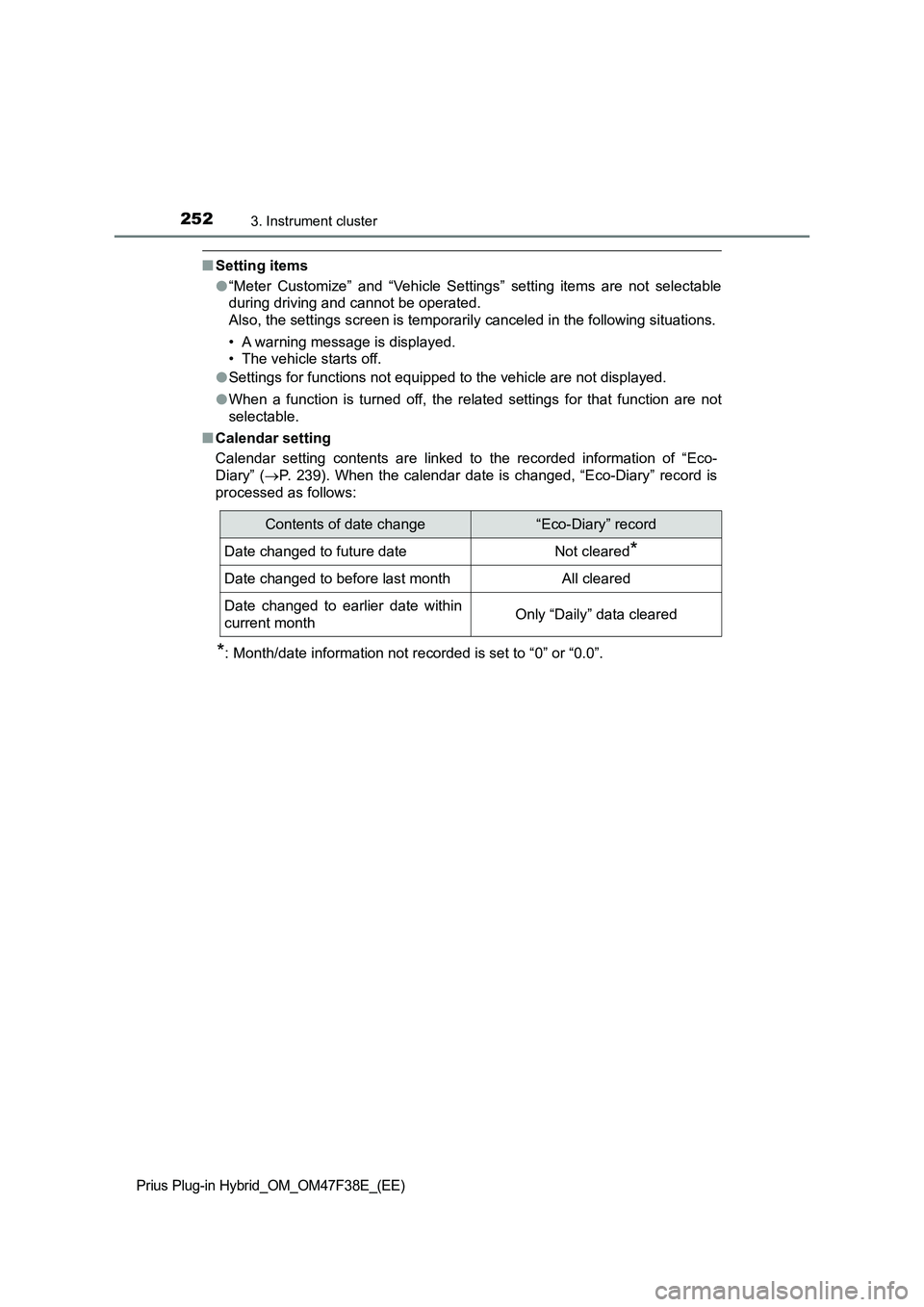

■Setting items
●“Meter Customize” and “Vehicle Settings” setting items are not selectable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the following situations.
• A warning message is displayed.
• The vehicle starts off.
●Settings for functions not equipped to the vehicle are not displayed.
●When a function is turned off, the related settings for that function are not
selectable.
■Calendar setting
Calendar setting contents are linked to the recorded information of “Eco-
Diary” (P. 239). When the calendar date is changed, “Eco-Diary” record is
processed as follows:
*: Month/date information not recorded is set to “0” or “0.0”.
Contents of date change“Eco-Diary” record
Date changed to future dateNot cleared*
Date changed to before last monthAll cleared
Date changed to earlier date within
current monthOnly “Daily” data cleared

2533. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

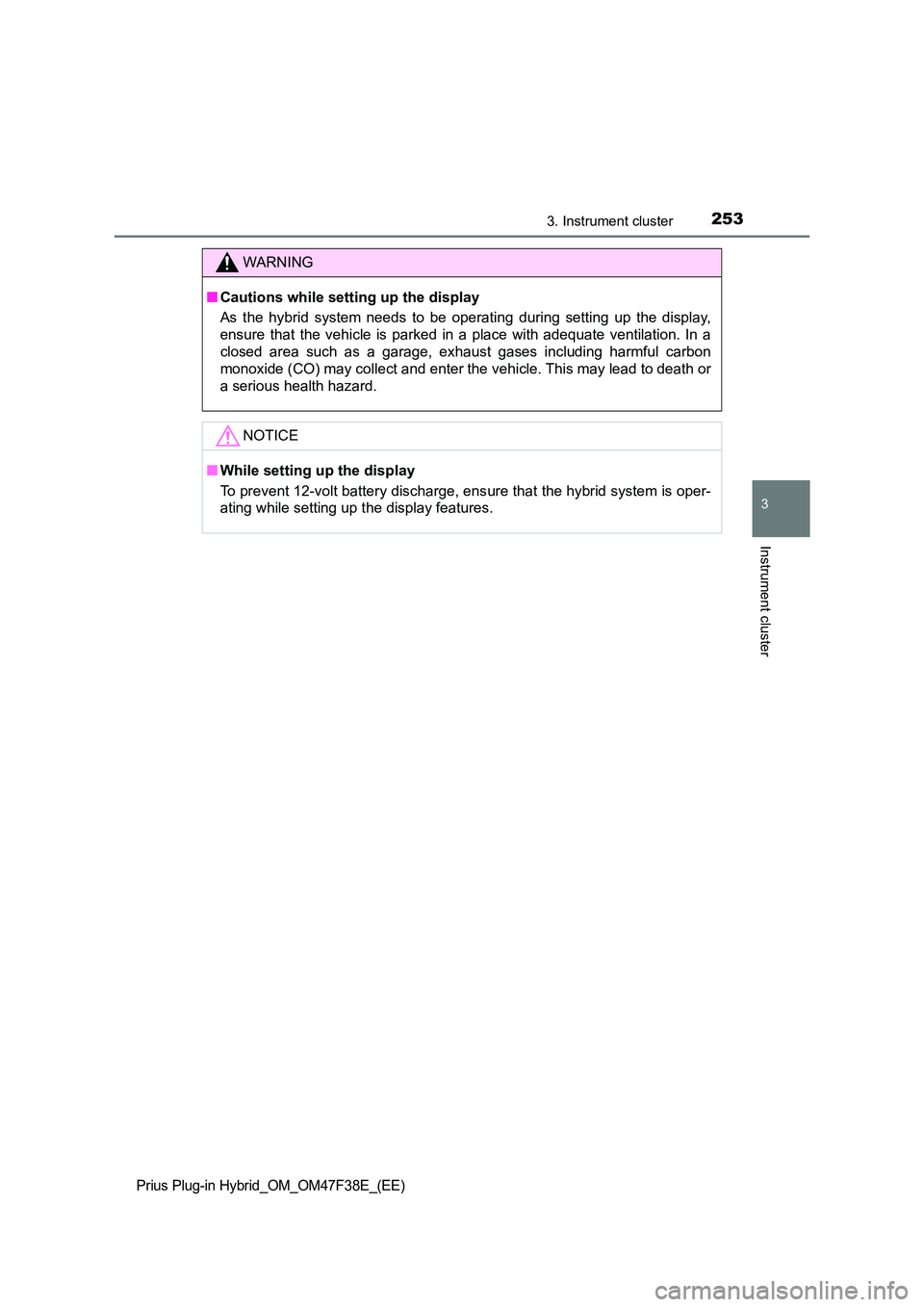

WARNING
■Cautions while setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■ While setting up the display
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while setting up the display features.

2543. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Head-up display

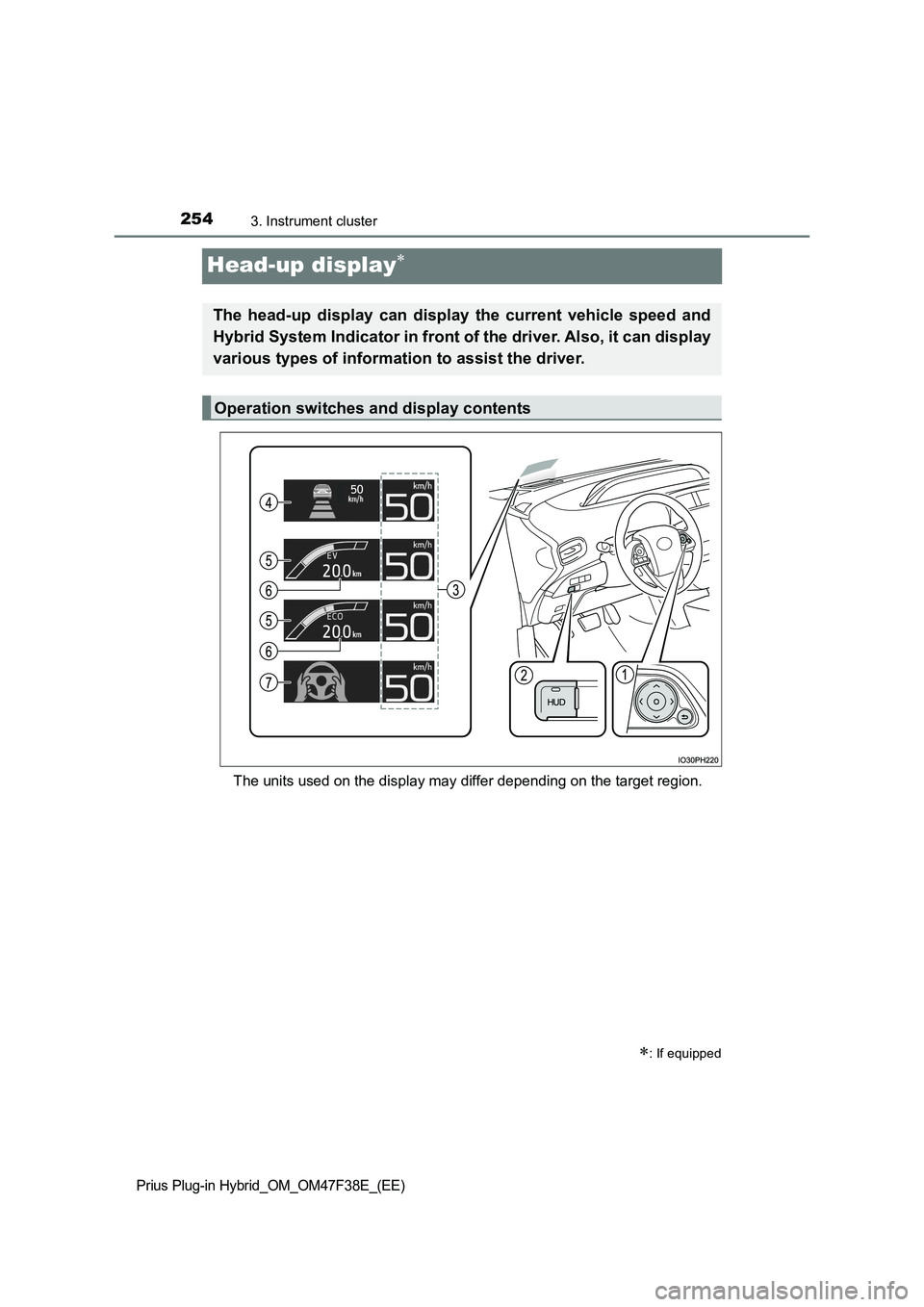

The units used on the display may differ depending on the target region.
: If equipped
The head-up display can display the current vehicle speed and
Hybrid System Indicator in front of the driver. Also, it can display
various types of information to assist the driver.
Operation switches and display contents

2553. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

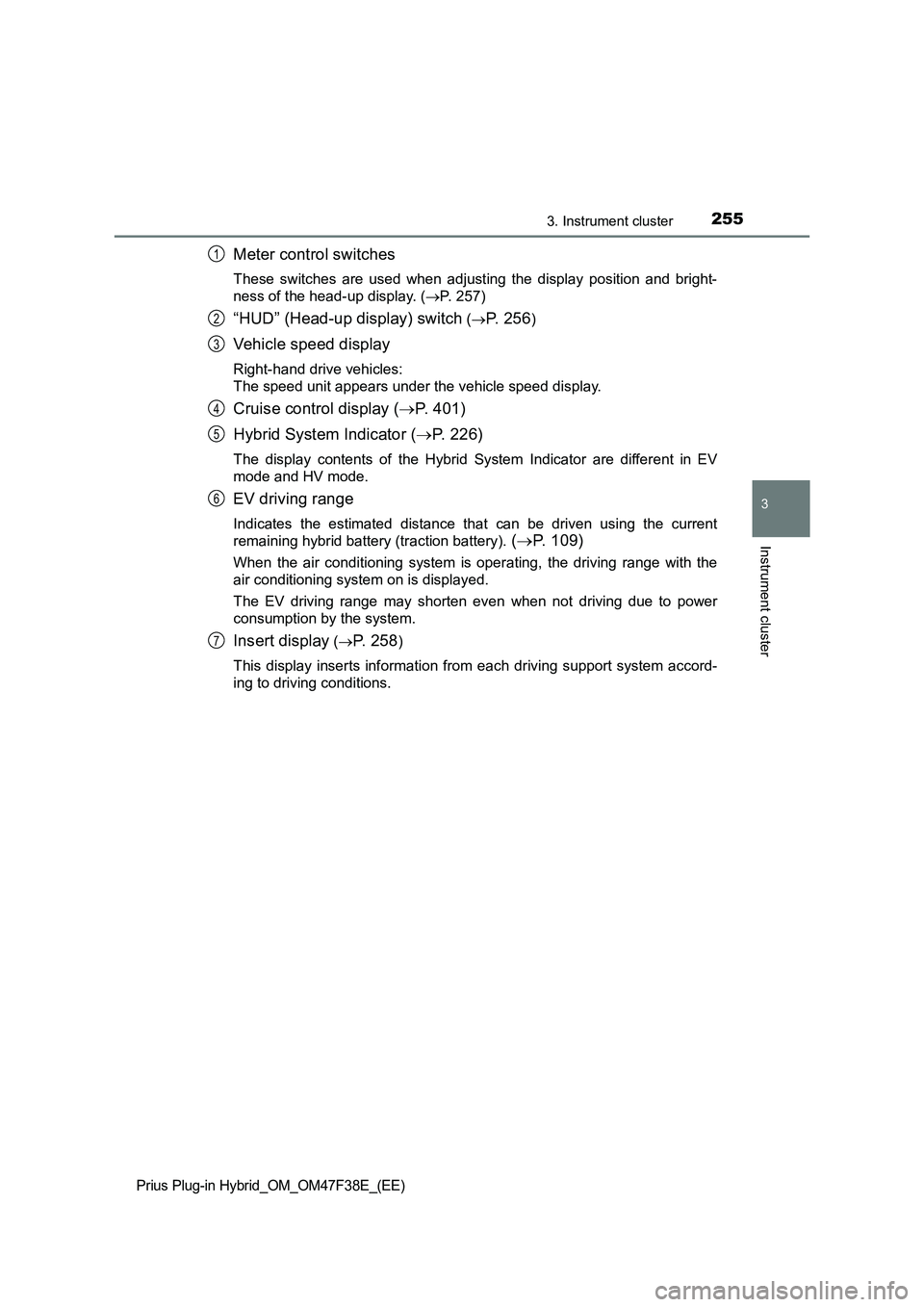

Meter control switches
These switches are used when adjusting the display position and bright-
ness of the head-up display. (P. 257)
“HUD” (Head-up display) switch (P. 256)
Vehicle speed display
Right-hand drive vehicles:
The speed unit appears under the vehicle speed display.
Cruise control display (P. 401)
Hybrid System Indicator (P. 226)
The display contents of the Hybrid System Indicator are different in EV
mode and HV mode.
EV driving range
Indicates the estimated distance that can be driven using the current
remaining hybrid battery (traction battery).
(P. 109)
When the air conditioning system is operating, the driving range with the
air conditioning system on is displayed.
The EV driving range may shorten even when not driving due to power
consumption by the system.
Insert display (P. 2 5 8)
This display inserts information from each driving support system accord-
ing to driving conditions.
1
2
3
4
5
6
7

2563. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

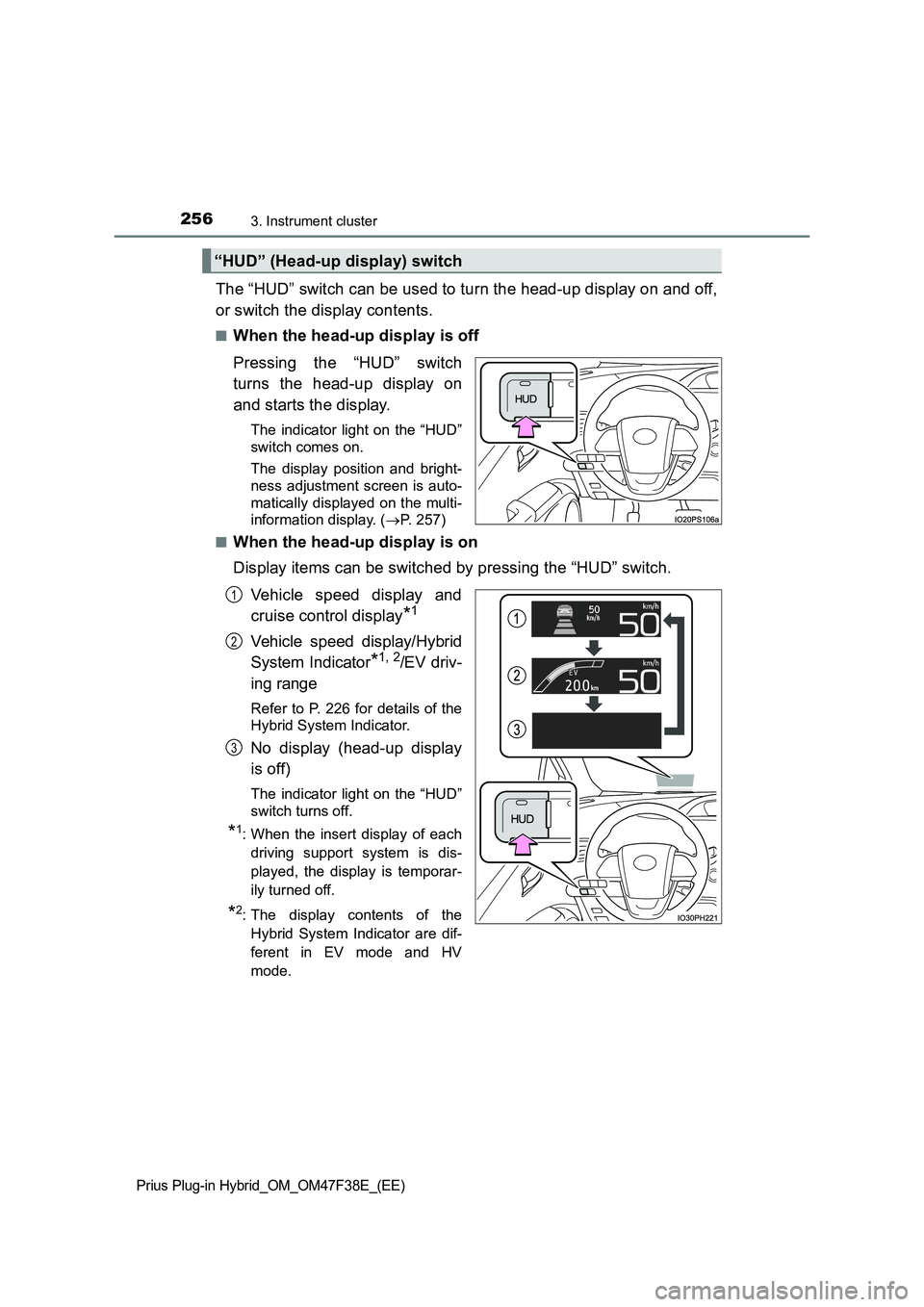

The “HUD” switch can be used to turn the head-up display on and off,
or switch the display contents.
■When the head-up display is off
Pressing the “HUD” switch
turns the head-up display on
and starts the display.
The indicator light on the “HUD”
switch comes on.
The display position and bright-
ness adjustment screen is auto-
matically displayed on the multi-
information display. (P. 257)
■
When the head-up display is on
Display items can be switched by pressing the “HUD” switch.
Vehicle speed display and
cruise control display
*1
Vehicle speed display/Hybrid
System Indicator
*1, 2/EV driv-
ing range
Refer to P. 226 for details of the
Hybrid System Indicator.
No display (head-up display
is off)
The indicator light on the “HUD”
switch turns off.
*1: When the insert display of each
driving support system is dis-
played, the display is temporar-
ily turned off.
*2: The display contents of the
Hybrid System Indicator are dif-
ferent in EV mode and HV
mode.
“HUD” (Head-up display) switch
1
2
3

2573. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

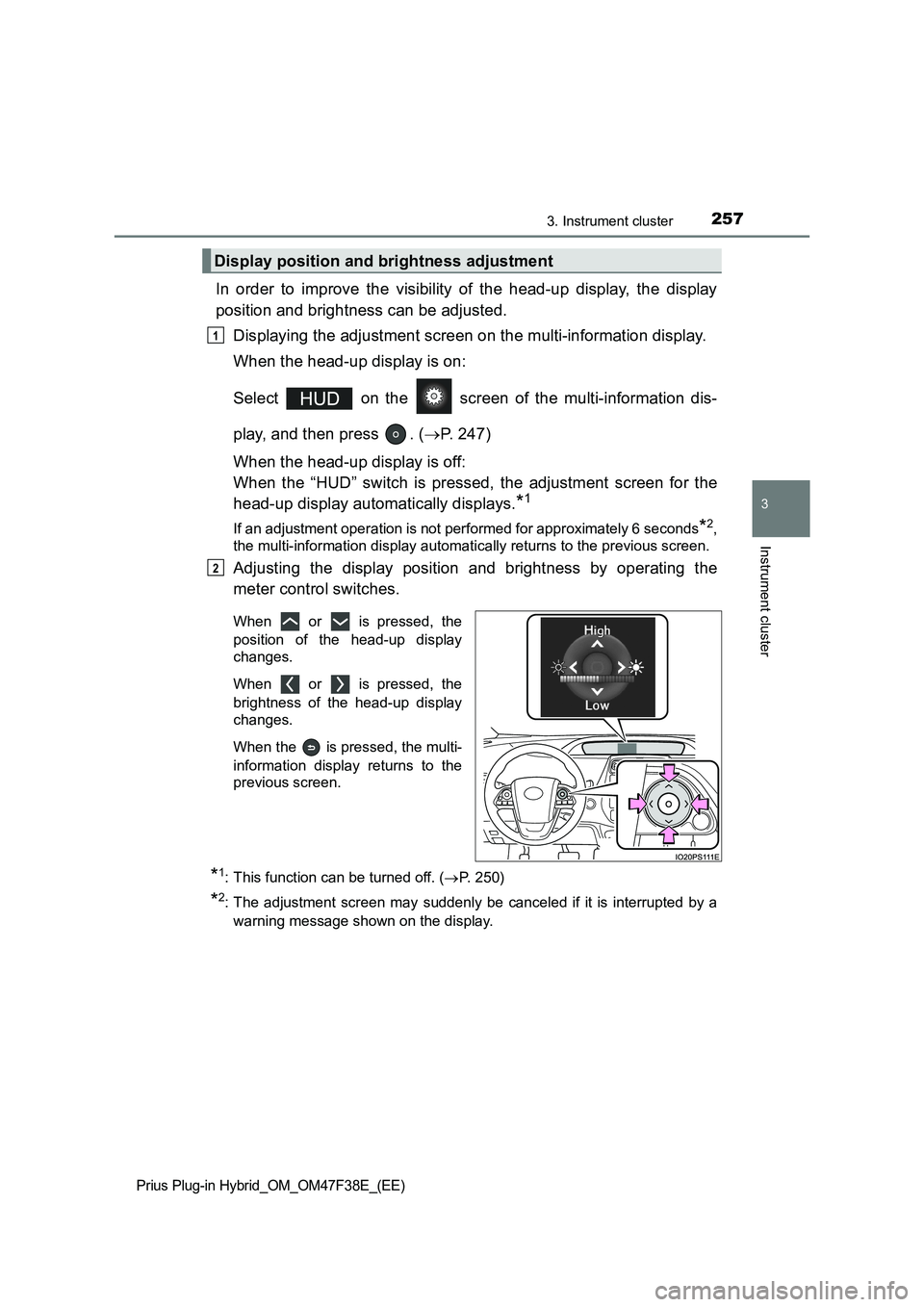

In order to improve the visibility of the head-up display, the display
position and brightness can be adjusted.
Displaying the adjustment screen on the multi-information display.
When the head-up display is on:
Select on the screen of the multi-information dis-
play, and then press . (P. 247)
When the head-up display is off:
When the “HUD” switch is pressed, the adjustment screen for the
head-up display automatically displays.
*1
If an adjustment operation is not performed for approximately 6 seconds*2,
the multi-information display automatically returns to the previous screen.
Adjusting the display position and brightness by operating the
meter control switches.
When or is pressed, the
position of the head-up display
changes.
When or is pressed, the
brightness of the head-up display
changes.
When the is pressed, the multi-
information display returns to the
previous screen.
*1: This function can be turned off. (P. 250)
*2: The adjustment screen may suddenly be canceled if it is interrupted by a
warning message shown on the display.
Display position and brightness adjustment
1
2

2583. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

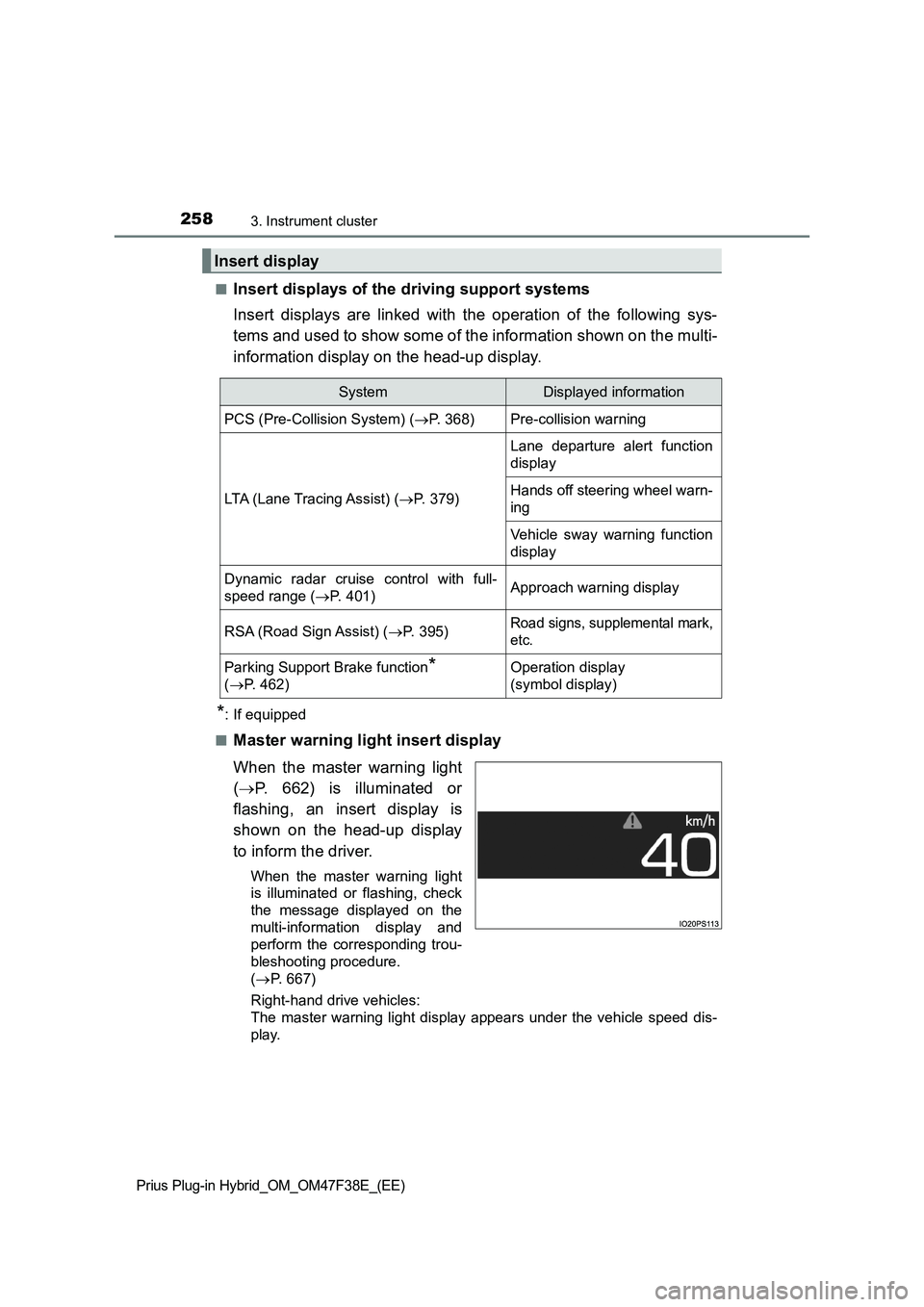

■Insert displays of the driving support systems
Insert displays are linked with the operation of the following sys-
tems and used to show some of the information shown on the multi-
information display on the head-up display.
*: If equipped
■
Master warning light insert display
When the master warning light
(P. 662) is illuminated or
flashing, an insert display is
shown on the head-up display
to inform the driver.
When the master warning light
is illuminated or flashing, check
the message displayed on the
multi-information display and
perform the corresponding trou-
bleshooting procedure.
(P. 667)
Right-hand drive vehicles:
The master warning light display appears under the vehicle speed dis-
play.
Insert display
SystemDisplayed information
PCS (Pre-Collision System) (P. 368)Pre-collision warning
LTA (Lane Tracing Assist) (P. 379)
Lane departure alert function
display
Hands off steering wheel warn-
ing
Vehicle sway warning function
display
Dynamic radar cruise control with full-
speed range (P. 401)Approach warning display
RSA (Road Sign Assist) (P. 395)Road signs, supplemental mark,
etc.
Parking Support Brake function*
(P. 462)Operation display
(symbol display)
