2093. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Main display and multi-information display
*1: The displayed indicator changes according to the current plug-in hybrid
system operation mode.
*2: The displayed indicator changes according to the current driving mode.

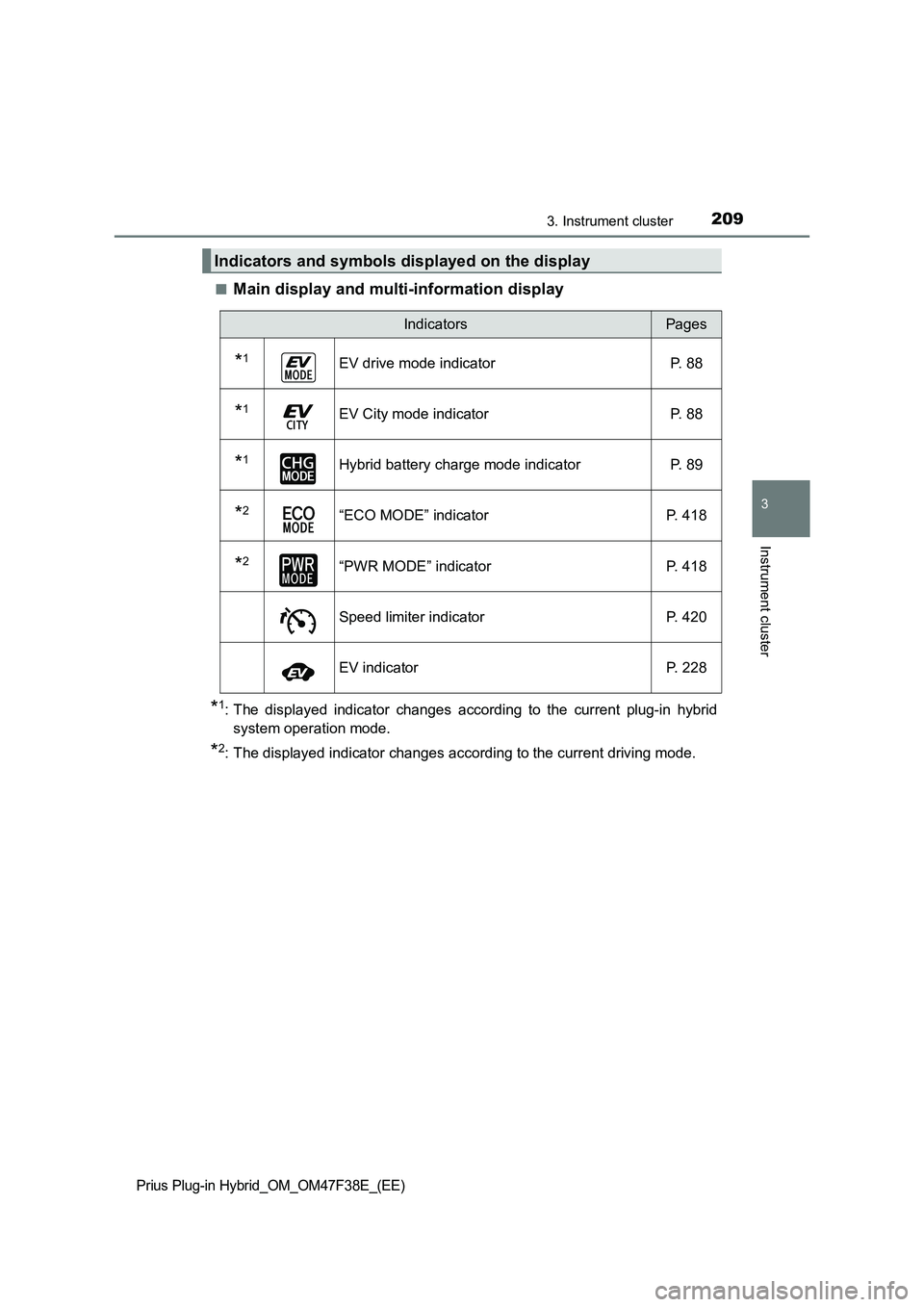

Indicators and symbols displayed on the display
IndicatorsPages
*1EV drive mode indicator P. 88
*1EV City mode indicator P. 88
*1Hybrid battery charge mode indicator P. 89
*2“ECO MODE” indicator P. 418
*2“PWR MODE” indicator P. 418
Speed limiter indicator P. 420
EV indicator P. 228

2103. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

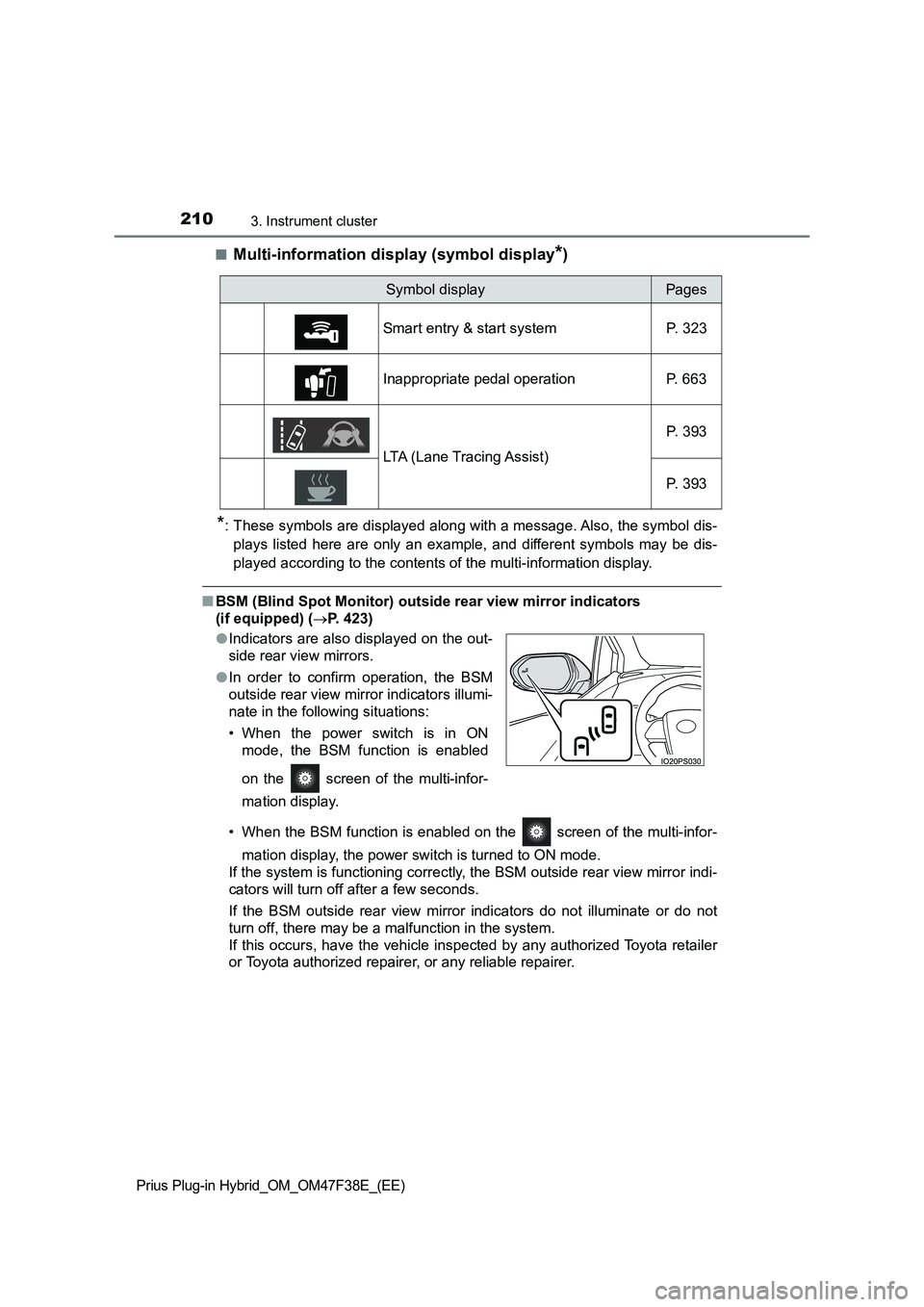

■Multi-information display (symbol display*)
*: These symbols are displayed along with a message. Also, the symbol dis-
plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.
■BSM (Blind Spot Monitor) outside rear view mirror indicators
(if equipped) (P. 423)
• When the BSM function is enabled on the screen of the multi-infor-
mation display, the power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
Symbol displayPages
Smart entry & start system P. 323
Inappropriate pedal operation P. 663
LTA (Lane Tracing Assist)P. 393
P. 393
●Indicators are also displayed on the out-
side rear view mirrors.
●In order to confirm operation, the BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is in ON
mode, the BSM function is enabled
on the screen of the multi-infor-
mation display.

2113. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer imme-
diately if this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. ( P. 705)

2123. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

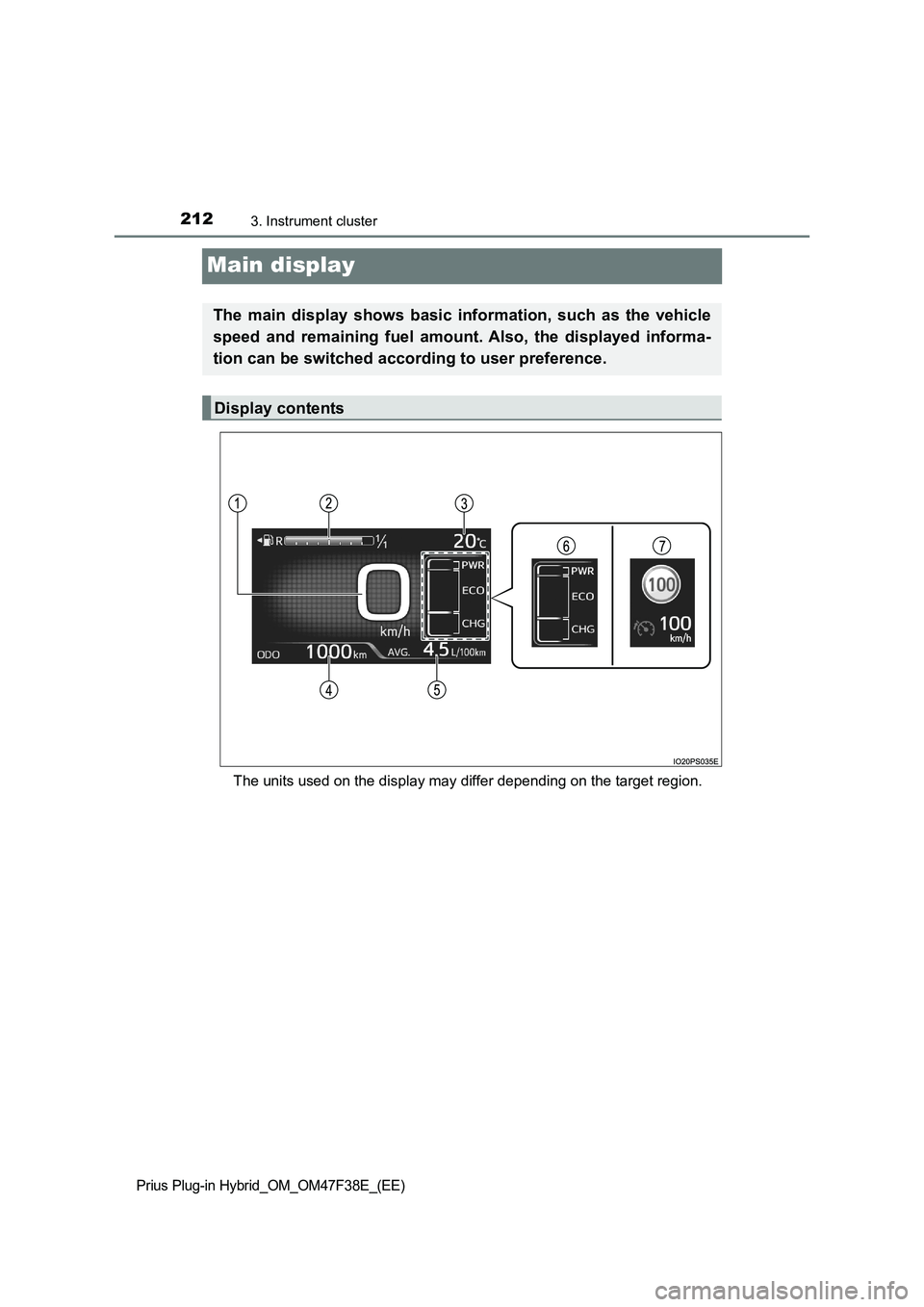

Main display
The units used on the display may differ depending on the target region.
The main display shows basic information, such as the vehicle
speed and remaining fuel amount. Also, the displayed informa-
tion can be switched according to user preference.
Display contents

2133. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

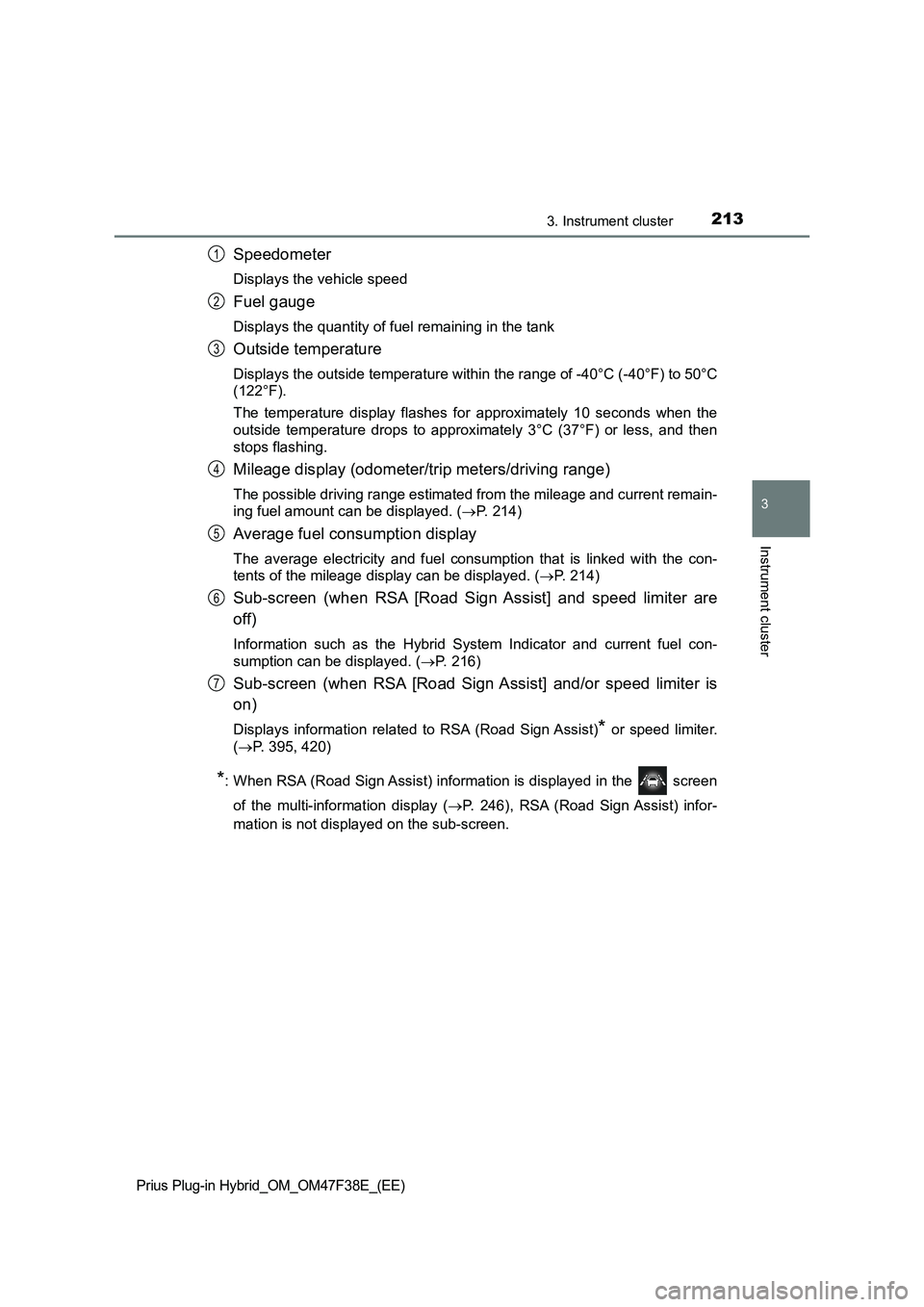

Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 3°C (37°F) or less, and then
stops flashing.
Mileage display (odometer/trip meters/driving range)
The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (P. 214)
Average fuel consumption display
The average electricity and fuel consumption that is linked with the con-
tents of the mileage display can be displayed. (P. 214)
Sub-screen (when RSA [Road Sign Assist] and speed limiter are
off)
Information such as the Hybrid System Indicator and current fuel con-
sumption can be displayed. (P. 216)
Sub-screen (when RSA [Road Sign Assist] and/or speed limiter is
on)
Displays information related to RSA (Road Sign Assist)* or speed limiter.
(P. 395, 420)
*: When RSA (Road Sign Assist) information is displayed in the screen
of the multi-information display (P. 246), RSA (Road Sign Assist) infor-
mation is not displayed on the sub-screen.
1
2
3
4
5
6
7

2143. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

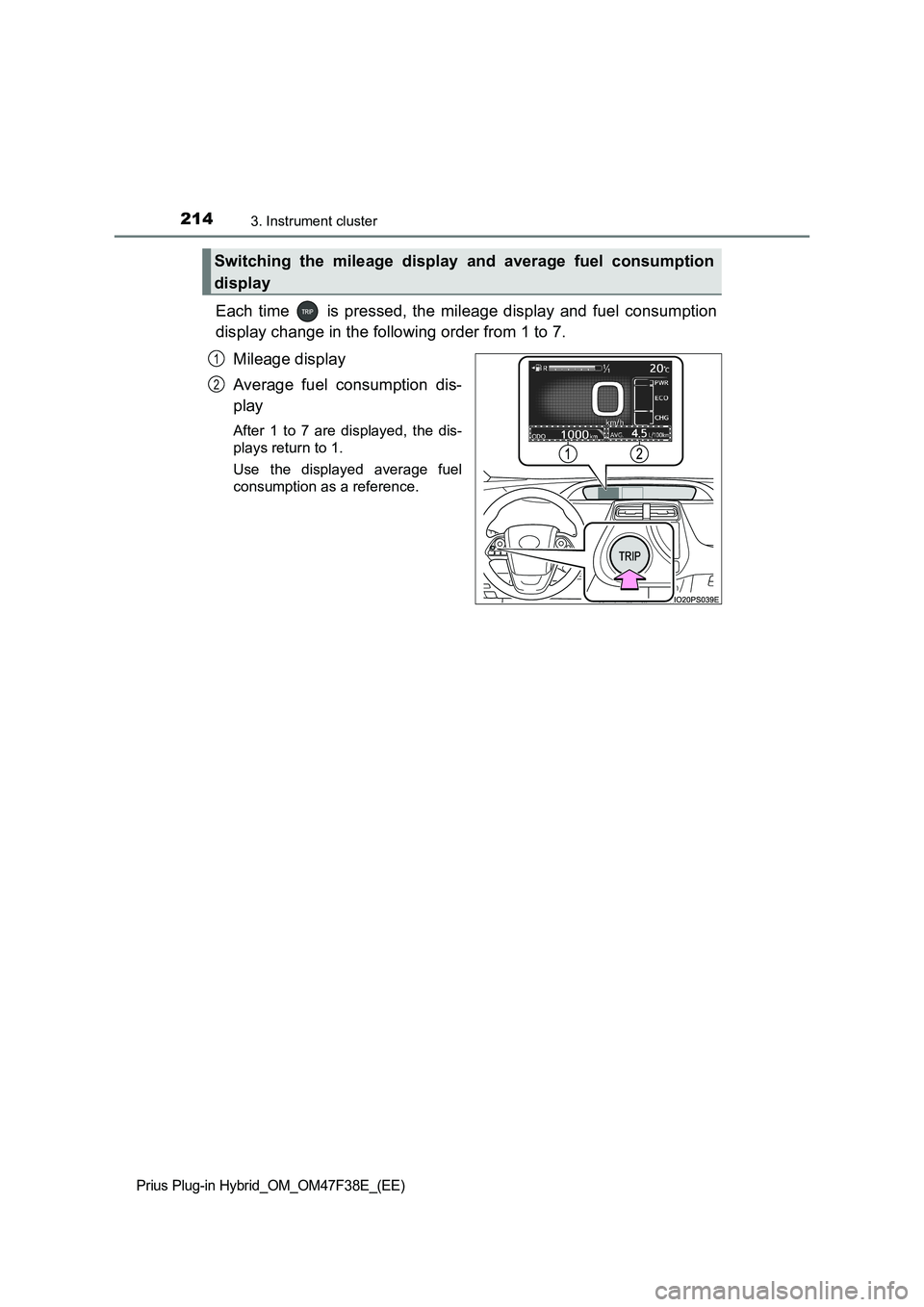

Each time is pressed, the mileage display and fuel consumption
display change in the following order from 1 to 7.
Mileage display
Average fuel consumption dis-
play
After 1 to 7 are displayed, the dis-
plays return to 1.
Use the displayed average fuel
consumption as a reference.
Switching the mileage display and average fuel consumption
display
1
2

2153. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
*1: If is pressed and held while this item is displayed, the information is
reset.
*2: This item is reset each time the hybrid system starts.
*3: This value is not displayed if electricity needed for EV driving is not remain-
ing.
*4: When the air conditioning system is operating, the icon display changes to
and the driving range with the air conditioning system on is dis-
played.
*5: The EV driving range may shorten even when not driving due to power
consumption by the system.

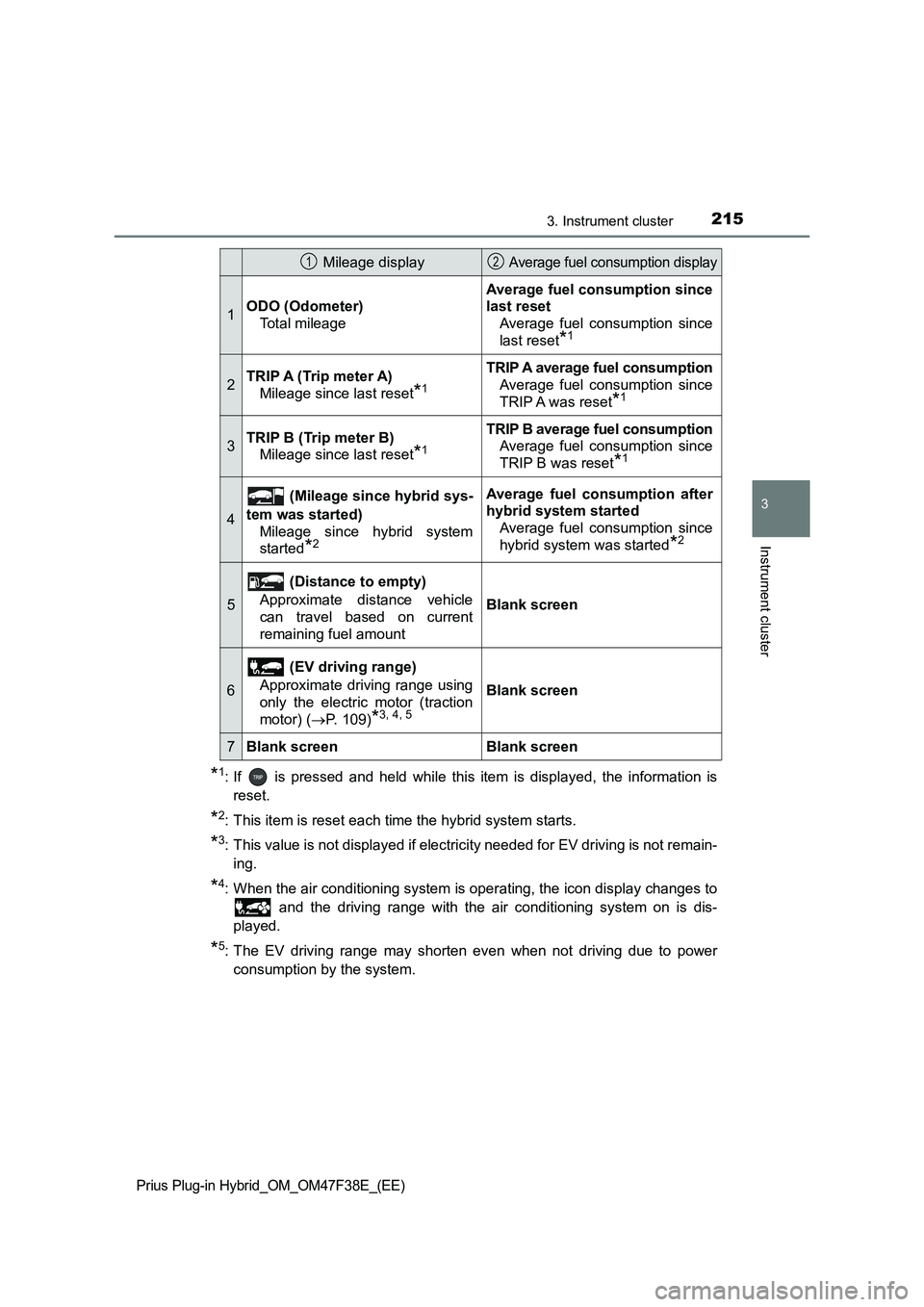

Mileage display Average fuel consumption display
1ODO (Odometer)
Total mileage
Average fuel consumption since
last reset
Average fuel consumption since
last reset
*1
2TRIP A (Trip meter A)
Mileage since last reset
*1
TRIP A average fuel consumption
Average fuel consumption since
TRIP A was reset
*1
3TRIP B (Trip meter B)
Mileage since last reset
*1
TRIP B average fuel consumption
Average fuel consumption since
TRIP B was reset
*1
4
(Mileage since hybrid sys-
tem was started)
Mileage since hybrid system
started
*2
Average fuel consumption after
hybrid system started
Average fuel consumption since
hybrid system was started
*2
5
(Distance to empty)
Approximate distance vehicle
can travel based on current
remaining fuel amount
Blank screen
6
(EV driving range)
Approximate driving range using
only the electric motor (traction
motor) (P. 109)
*3, 4, 5
Blank screen
7Blank screenBlank screen
12

2163. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

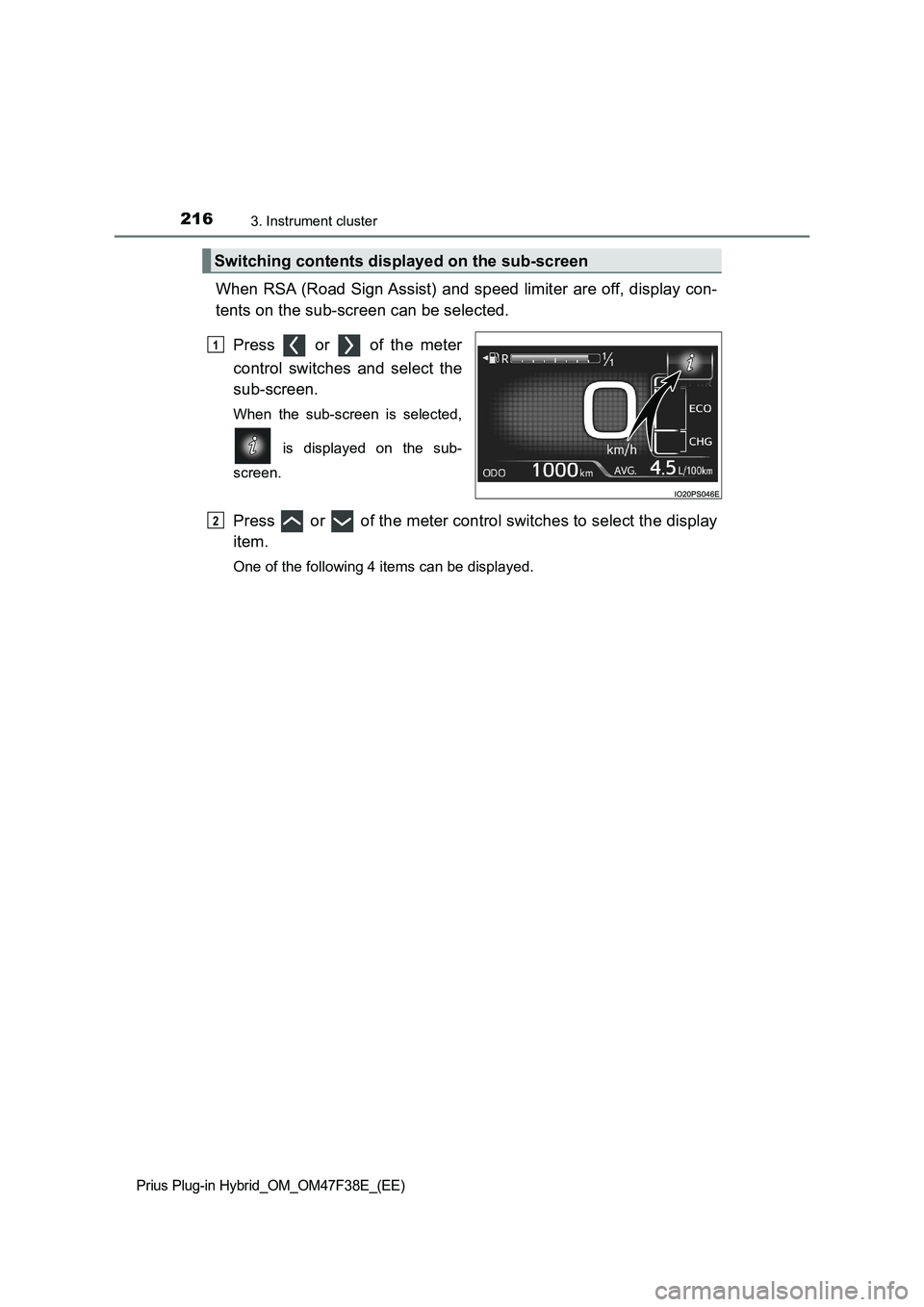

When RSA (Road Sign Assist) and speed limiter are off, display con-
tents on the sub-screen can be selected.
Press or of the meter
control switches and select the
sub-screen.
When the sub-screen is selected,
is displayed on the sub-
screen.
Press or of the meter control switches to select the display
item.
One of the following 4 items can be displayed.
Switching contents displayed on the sub-screen
1
2

2173. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

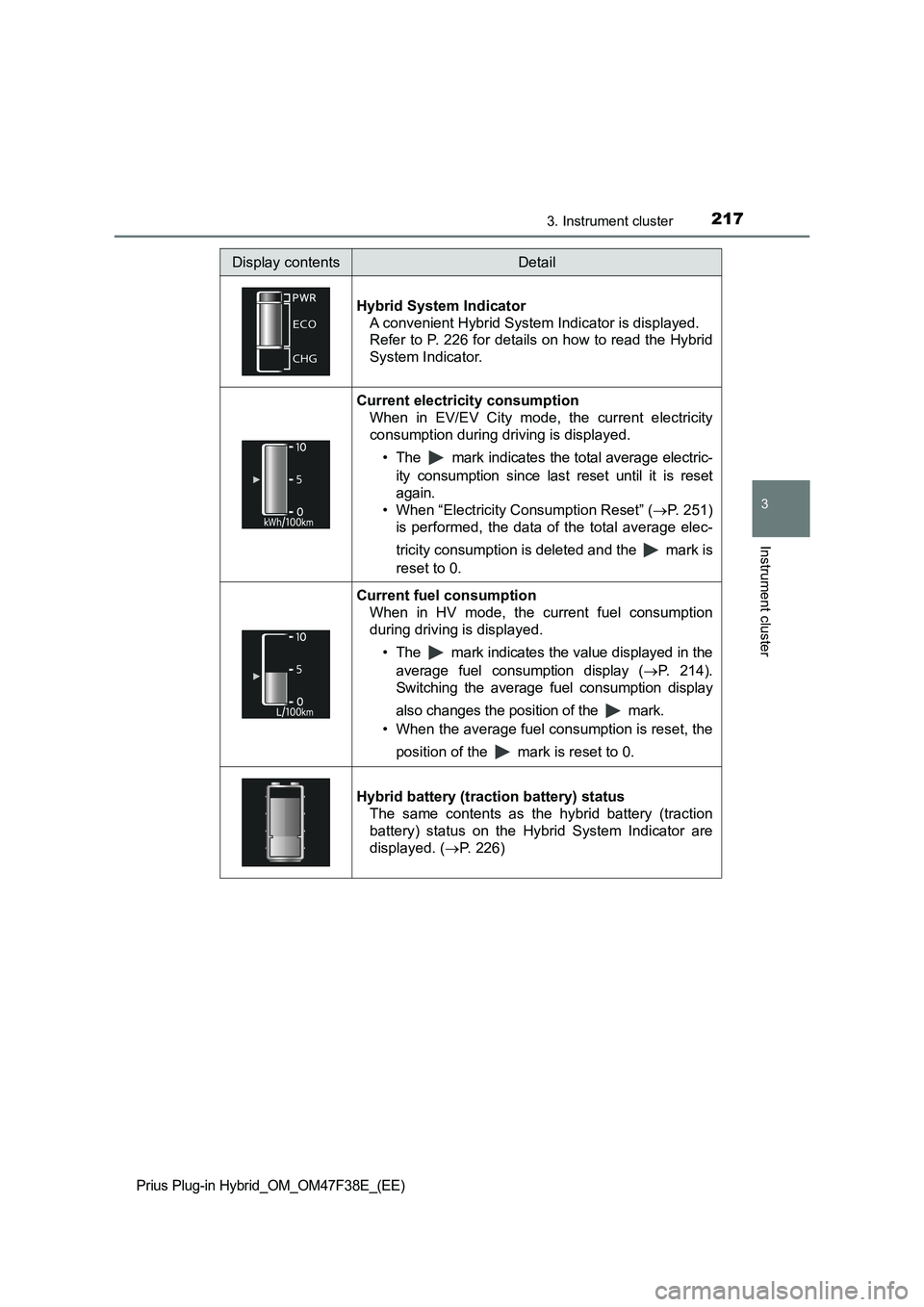

Display contentsDetail
Hybrid System Indicator
A convenient Hybrid System Indicator is displayed.
Refer to P. 226 for details on how to read the Hybrid
System Indicator.
Current electricity consumption
When in EV/EV City mode, the current electricity
consumption during driving is displayed.
• The mark indicates the total average electric-
ity consumption since last reset until it is reset
again.
• When “Electricity Consumption Reset” (P. 251)
is performed, the data of the total average elec-
tricity consumption is deleted and the mark is
reset to 0.
Current fuel consumption
When in HV mode, the current fuel consumption
during driving is displayed.
• The mark indicates the value displayed in the
average fuel consumption display (P. 214).
Switching the average fuel consumption display
also changes the position of the mark.
• When the average fuel consumption is reset, the
position of the mark is reset to 0.
Hybrid battery (traction battery) status
The same contents as the hybrid battery (traction
battery) status on the Hybrid System Indicator are
displayed. (P. 226)

2183. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

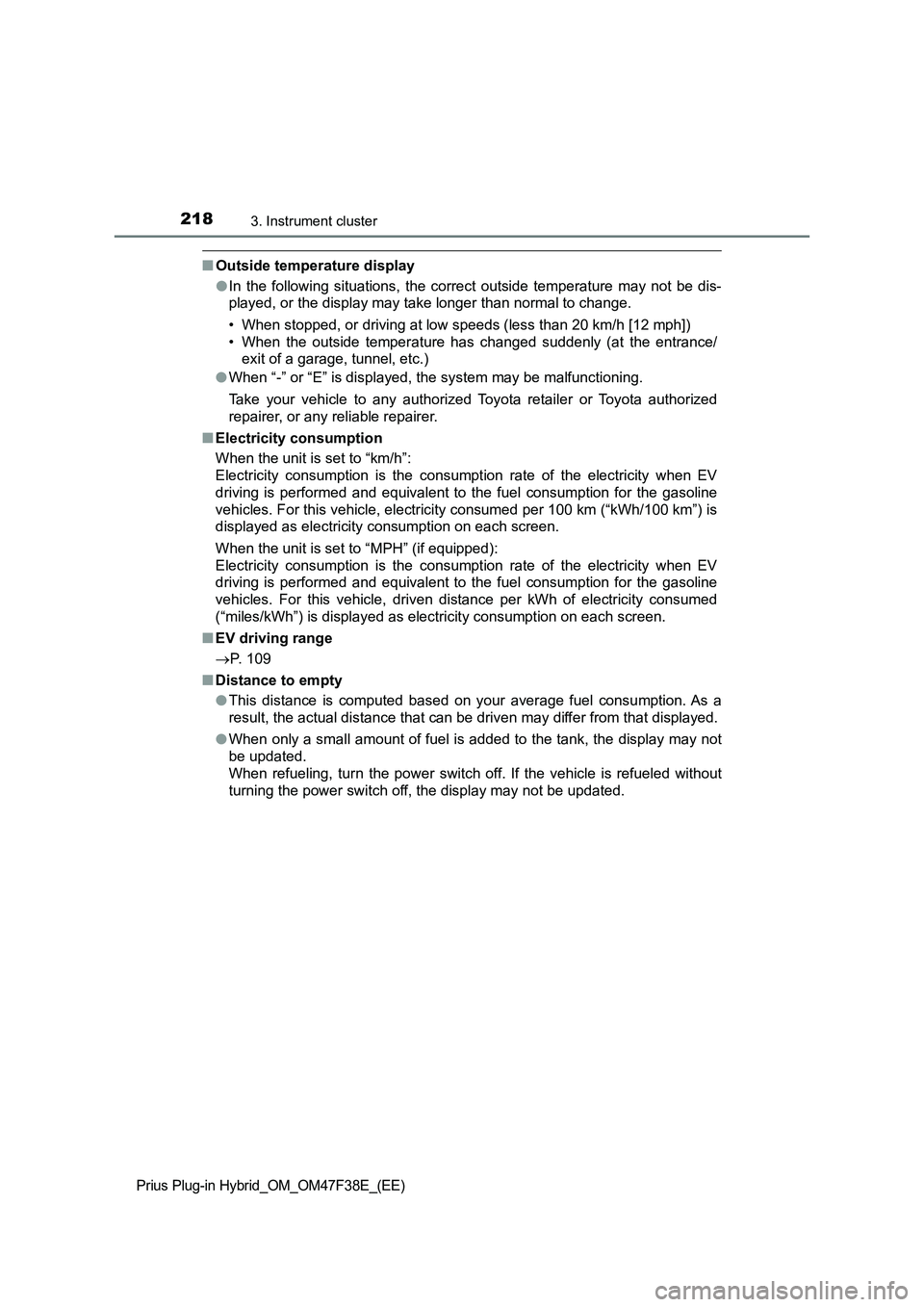

■Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
●When “-” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
■Electricity consumption
When the unit is set to “km/h”:
Electricity consumption is the consumption rate of the electricity when EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, electricity consumed per 100 km (“kWh/100 km”) is
displayed as electricity consumption on each screen.
When the unit is set to “MPH” (if equipped):
Electricity consumption is the consumption rate of the electricity when EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, driven distance per kWh of electricity consumed
(“miles/kWh”) is displayed as electricity consumption on each screen.
■EV driving range
P. 109
■Distance to empty
●This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
●When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled without
turning the power switch off, the display may not be updated.
