TOYOTA PRIUS PLUS 2019 Owners Manual

1212. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

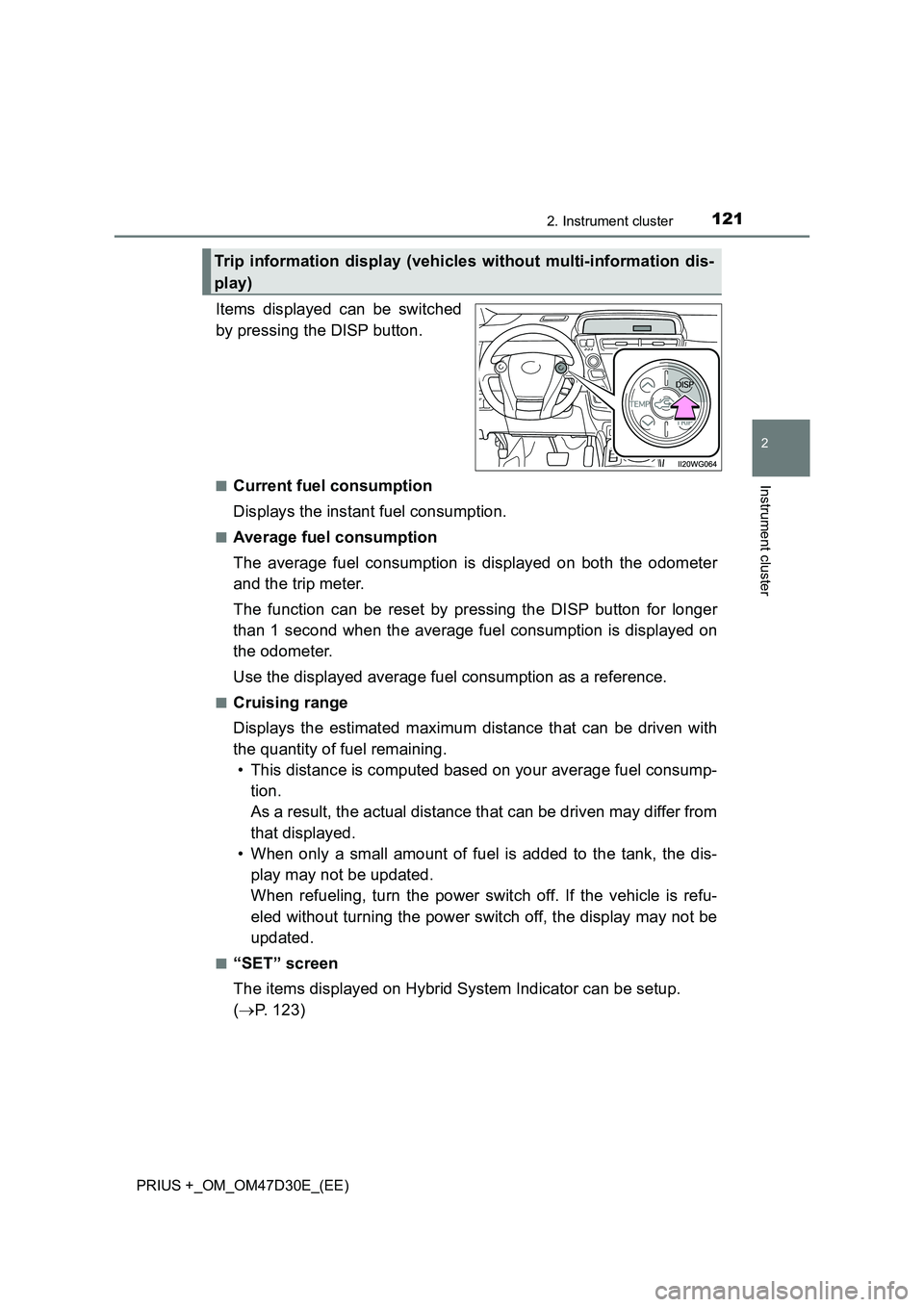

Items displayed can be switched
by pressing the DISP button.
■Current fuel consumption
Displays the instant fuel consumption.
■Average fuel consumption
The average fuel consumption is displayed on both the odometer
and the trip meter.
The function can be reset by pressing the DISP button for longer
than 1 second when the average fuel consumption is displayed on
the odometer.
Use the displayed average fuel consumption as a reference.
■Cruising range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consump-
tion.
As a result, the actual distance that can be driven may differ from
that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the power switch off. If the vehicle is refu-
eled without turning the power switch off, the display may not be
updated.
■“SET” screen
The items displayed on Hybrid System Indicator can be setup.
(P. 123)
Trip information display (vehicles without multi-information dis-
play)

1222. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

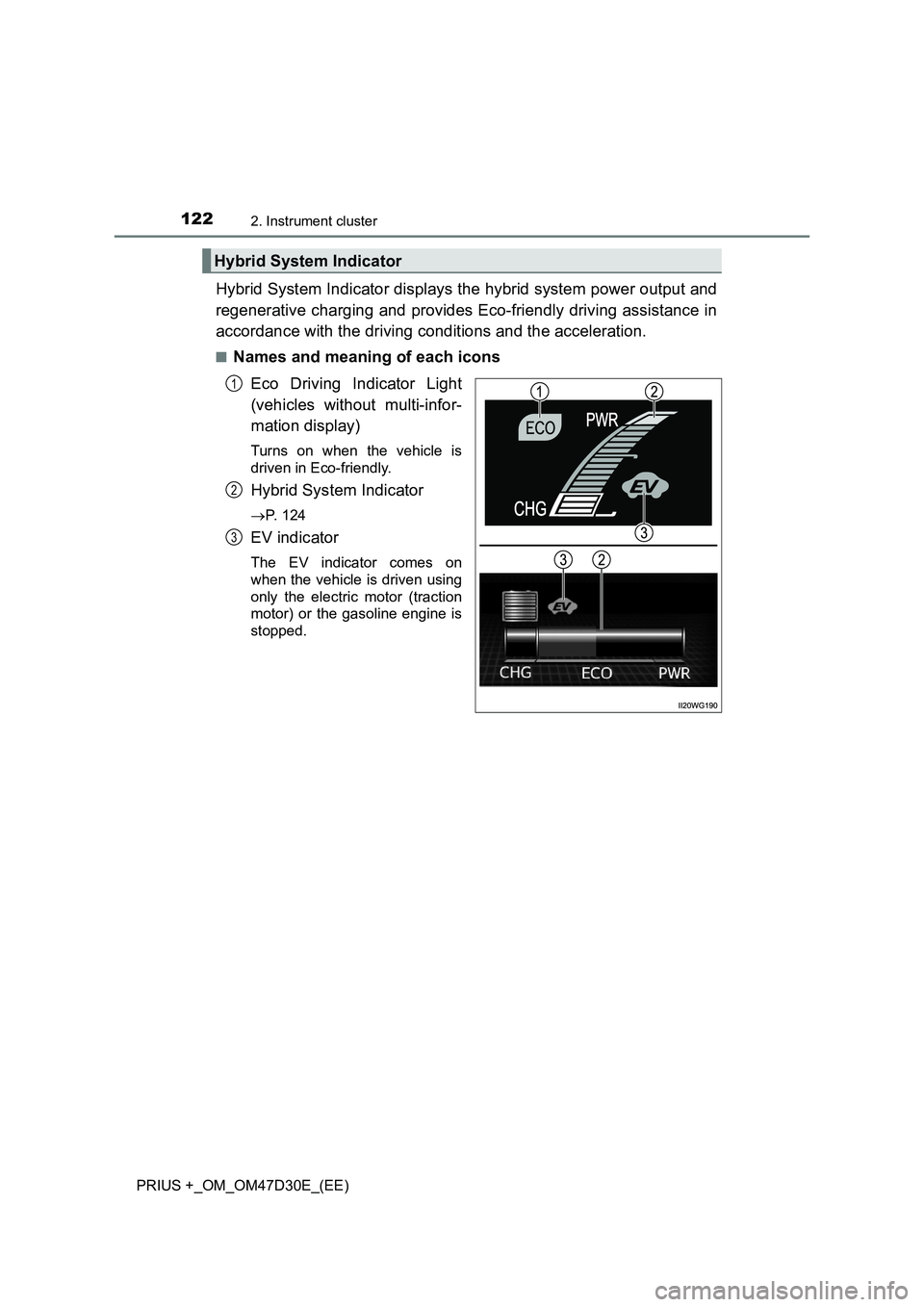

Hybrid System Indicator displays the hybrid system power output and
regenerative charging and provides Eco-friendly driving assistance in
accordance with the driving conditions and the acceleration.
■Names and meaning of each icons
Eco Driving Indicator Light
(vehicles without multi-infor-
mation display)
Turns on when the vehicle is
driven in Eco-friendly.
Hybrid System Indicator
P. 1 2 4
EV indicator
The EV indicator comes on
when the vehicle is driven using
only the electric motor (traction
motor) or the gasoline engine is
stopped.
Hybrid System Indicator
1
2
3

1232. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
The items displayed on Hybrid System Indicator can be changed by
operating the DISP button. Fully stop the vehicle and set the parking
brake, and then press the P position switch.
After pressing the DISP button
to display the “SET” screen on
the trip information display,
press and hold the DISP button
for 1 second or more.
The “SET” display and Hybrid
System Indicator will flash.
Press the DISP button while the
display is flashing to select the
items to be displayed.
The display items will flash.
Display all
Display Hybrid System Indi-
cator and EV indicator
Display Hybrid System Indi-
cator only
Display none
Display Eco Driving Indicator
Light only
Press and hold the DISP button for 1 second or more to com-
plete the setup.
If setup is not completed by pressing and holding the DISP button for 1
second or more, or if nothing is operated within approximately 10 sec-
onds, the screen will return and the settings will be lost.

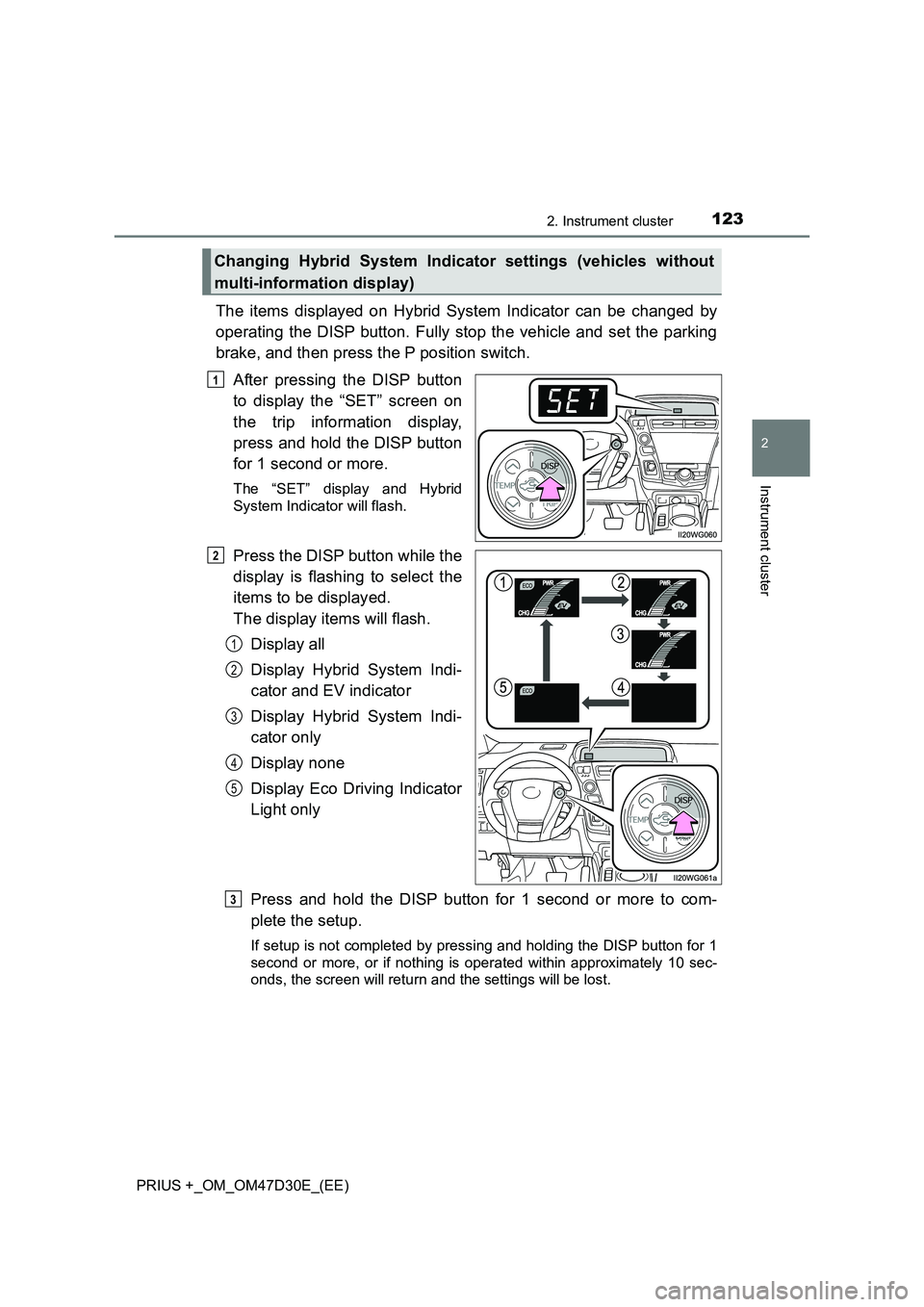

Changing Hybrid System Indicator settings (vehicles without
multi-information display)
1
2
1
2
3
4
5
3

1242. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

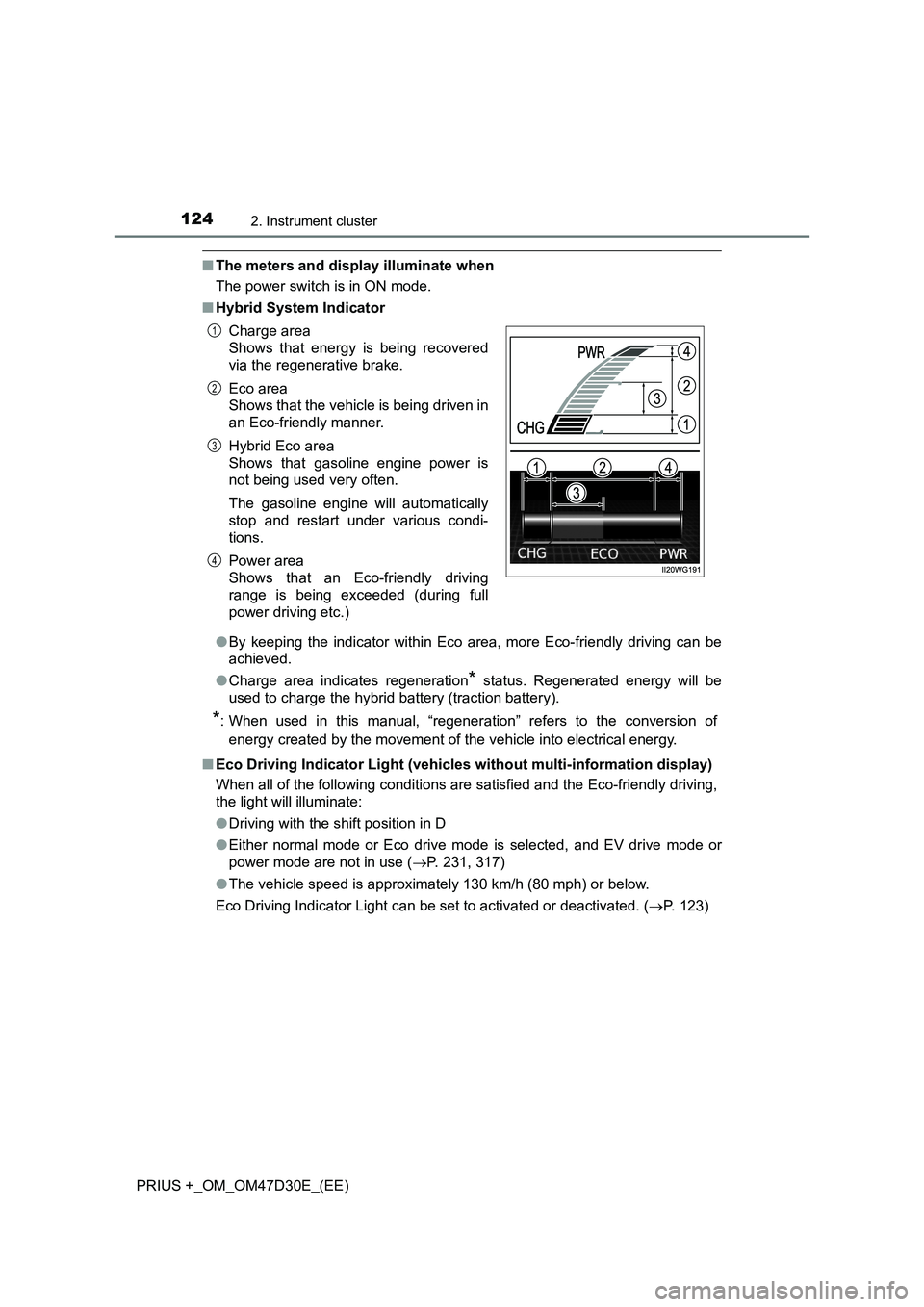

■The meters and display illuminate when
The power switch is in ON mode.
■Hybrid System Indicator
●By keeping the indicator within Eco area, more Eco-friendly driving can be
achieved.
●Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■Eco Driving Indicator Light (vehicles without multi-information display)
When all of the following conditions are satisfied and the Eco-friendly driving,
the light will illuminate:
●Driving with the shift position in D
●Either normal mode or Eco drive mode is selected, and EV drive mode or
power mode are not in use (P. 231, 317)
●The vehicle speed is approximately 130 km/h (80 mph) or below.
Eco Driving Indicator Light can be set to activated or deactivated. (P. 123) Charge area
Shows that energy is being recovered
via the regenerative brake.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4

1252. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

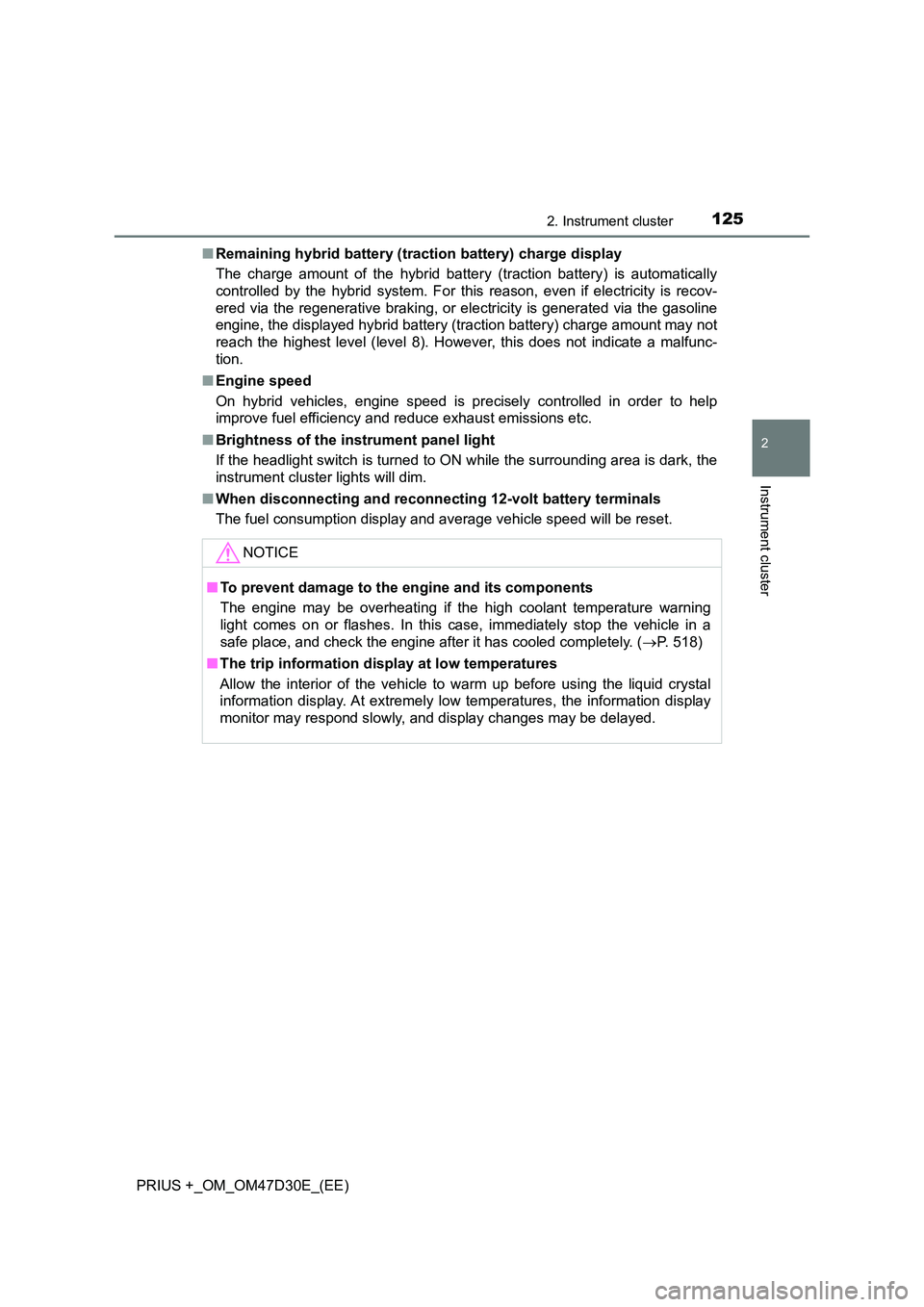

■ Remaining hybrid battery (traction battery) charge display
The charge amount of the hybrid battery (traction battery) is automatically
controlled by the hybrid system. For this reason, even if electricity is recov-
ered via the regenerative braking, or el ectricity is generated via the gasoline
engine, the displayed hybrid battery (traction battery) charge amount may not
reach the highest level (level 8). However, this does not indicate a malfunc-
tion.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
■ Brightness of the instrument panel light
If the headlight switch is turned to ON while the surrounding area is dark, the
instrument cluster lights will dim.
■ When disconnecting and reconnecting 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. ( P. 518)
■ The trip information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

1262. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

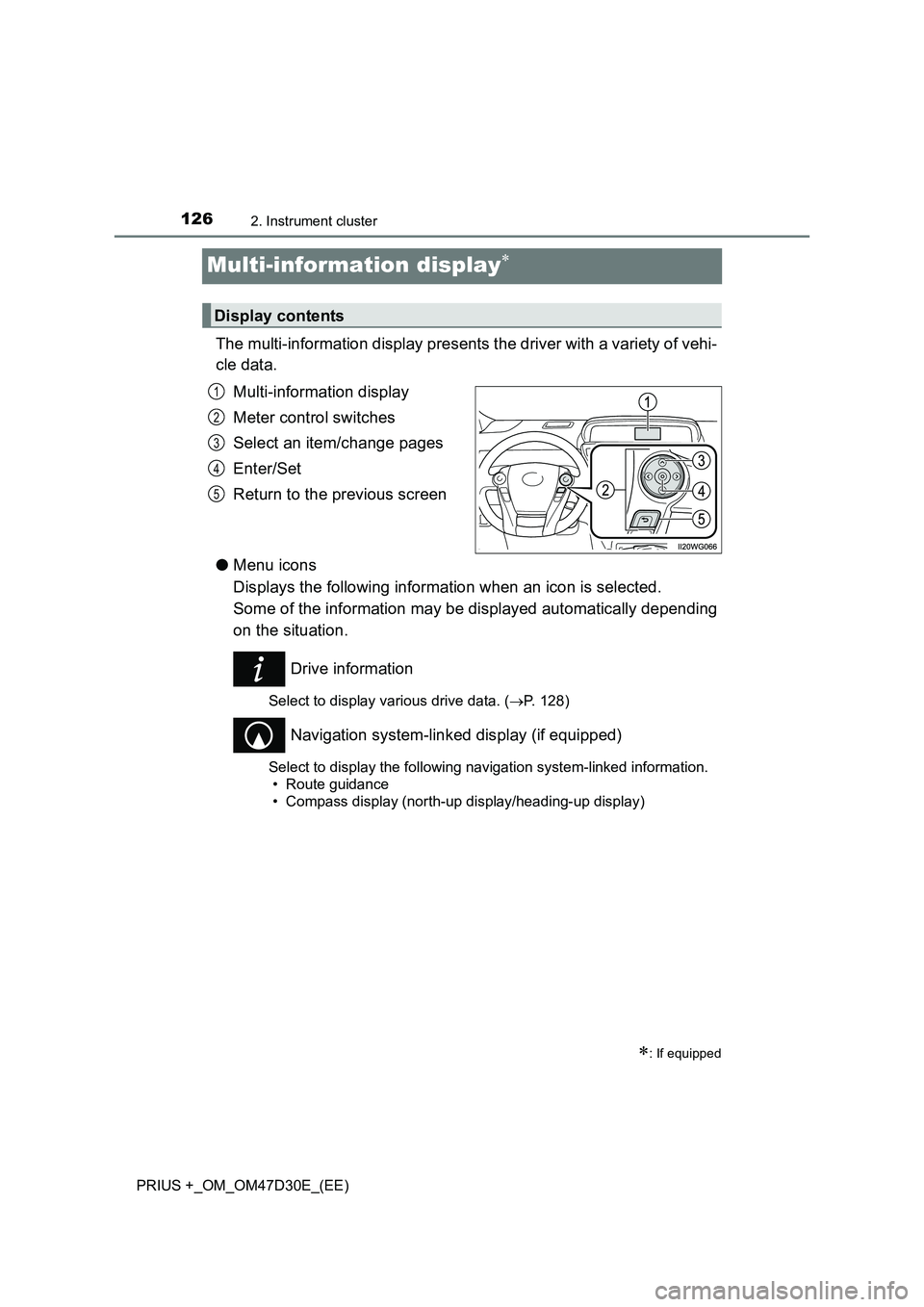

Multi-information display
The multi-information display presents the driver with a variety of vehi-
cle data.
Multi-information display
Meter control switches
Select an item/change pages
Enter/Set
Return to the previous screen
●Menu icons
Displays the following information when an icon is selected.
Some of the information may be displayed automatically depending
on the situation.
Drive information
Select to display various drive data. (P. 128)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
: If equipped
Display contents
1
2
3
4
5

1272. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the display
using the meter control switches.
Clock
Show the current time on the display.
Driving assist system information (if equipped)
The information related to driving assist systems such as the LDA
(Lane Departure Alert with steering control), cruise control and
dynamic radar cruise control is displayed. (P. 284, 299)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 458)
Settings display
Select to change the meter display settings. (P. 539)

1282. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Items displayed can be switched by pressing or of the meter
control switches to select and pressing or .
■Energy monitor
The current vehicle hybrid system condition is displayed. (P. 129)
■Hybrid System Indicator
The hybrid system power output and regenerative charging condi-
tions are displayed. (P. 122)
■Eco score/Hybrid System Indicator
The eco-driving total count is displayed. (P. 131)
■Fuel consumption and instantaneous fuel consumption per
minute
The fuel consumption and instantaneous fuel consumption per min-
ute is displayed. (P. 131)
■Distance to empty/Average vehicle speed after hybrid system
started/Average fuel consumption after hybrid system started
The possible driving range estimated from the remaining fuel
amount, average vehicle speed after the hybrid system is started,
and average fuel consumption are displayed. (P. 132)
■LDA (Lane Departure Alert with steering control) vehicle sway
warning (if equipped)
Detects the sway of the vehicle within a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with steering
control) system. The display is enabled when the operating conditions
of the vehicle sway warning function are met. (P. 284)
■
OFF display
The OFF display is displayed.

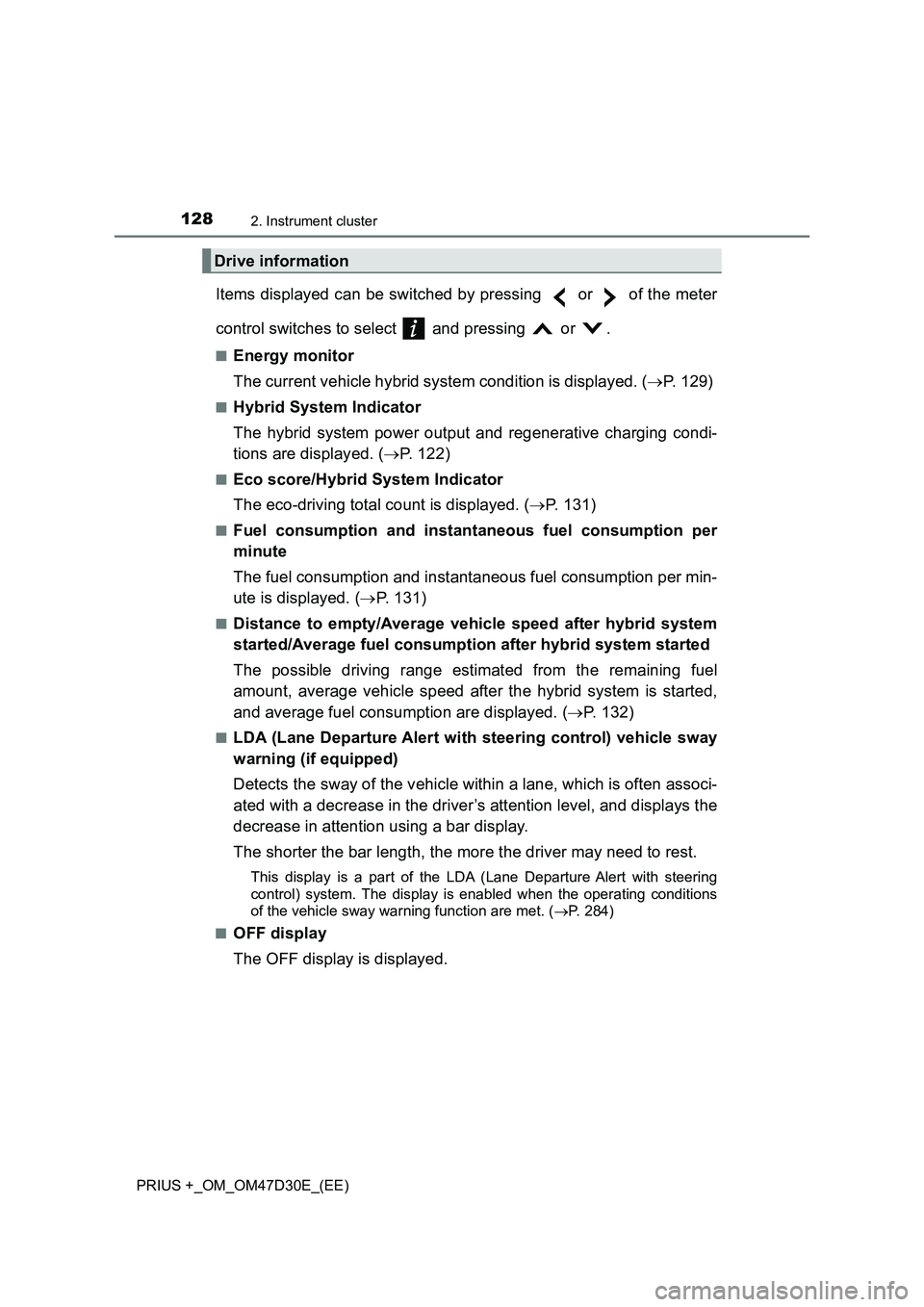

Drive information

1292. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

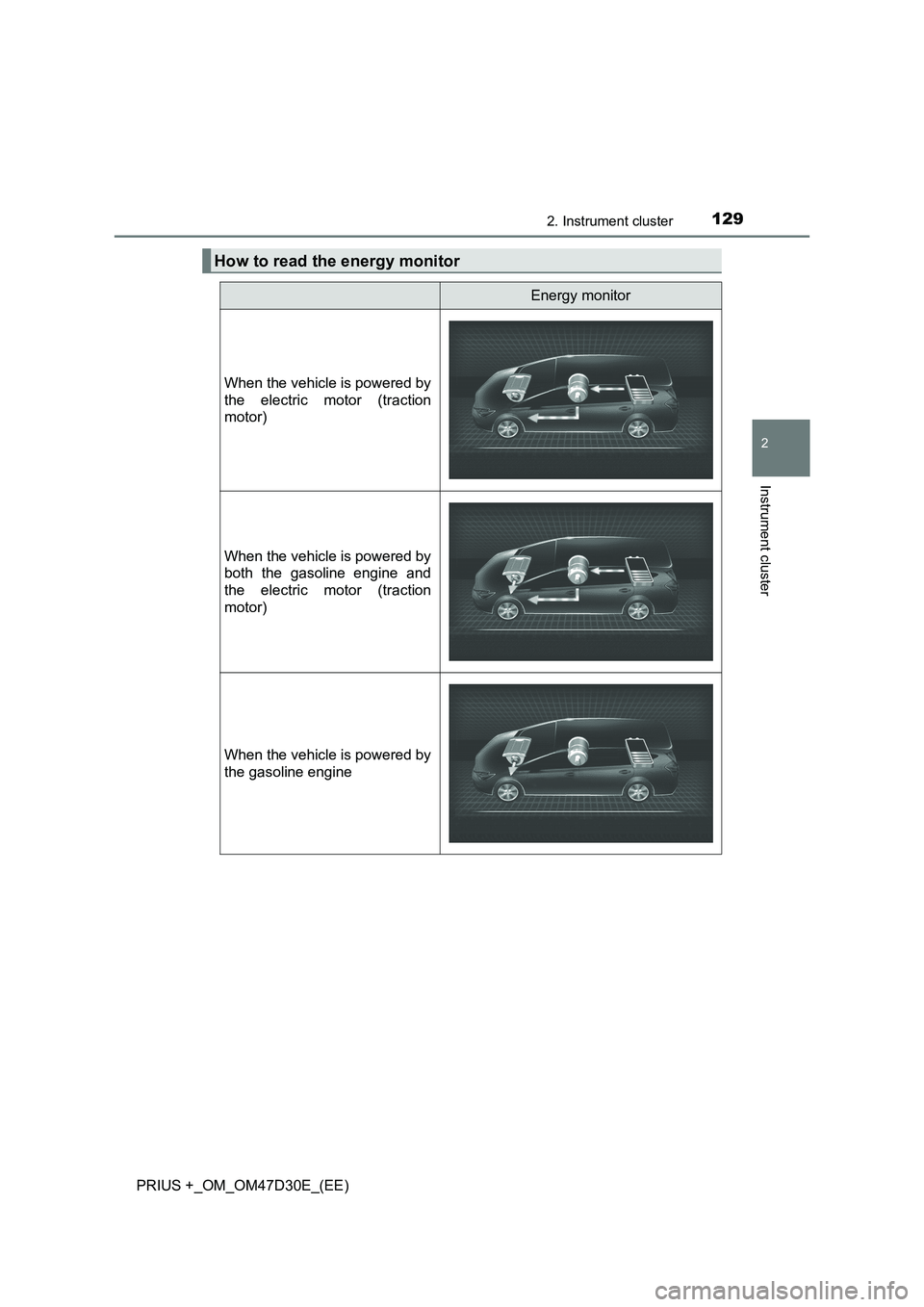

How to read the energy monitor
Energy monitor
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine

1302. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
These images are examples only, and may vary slightly from actual
conditions.
When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Hybrid battery (traction battery)
status
Energy monitor
Low Full
