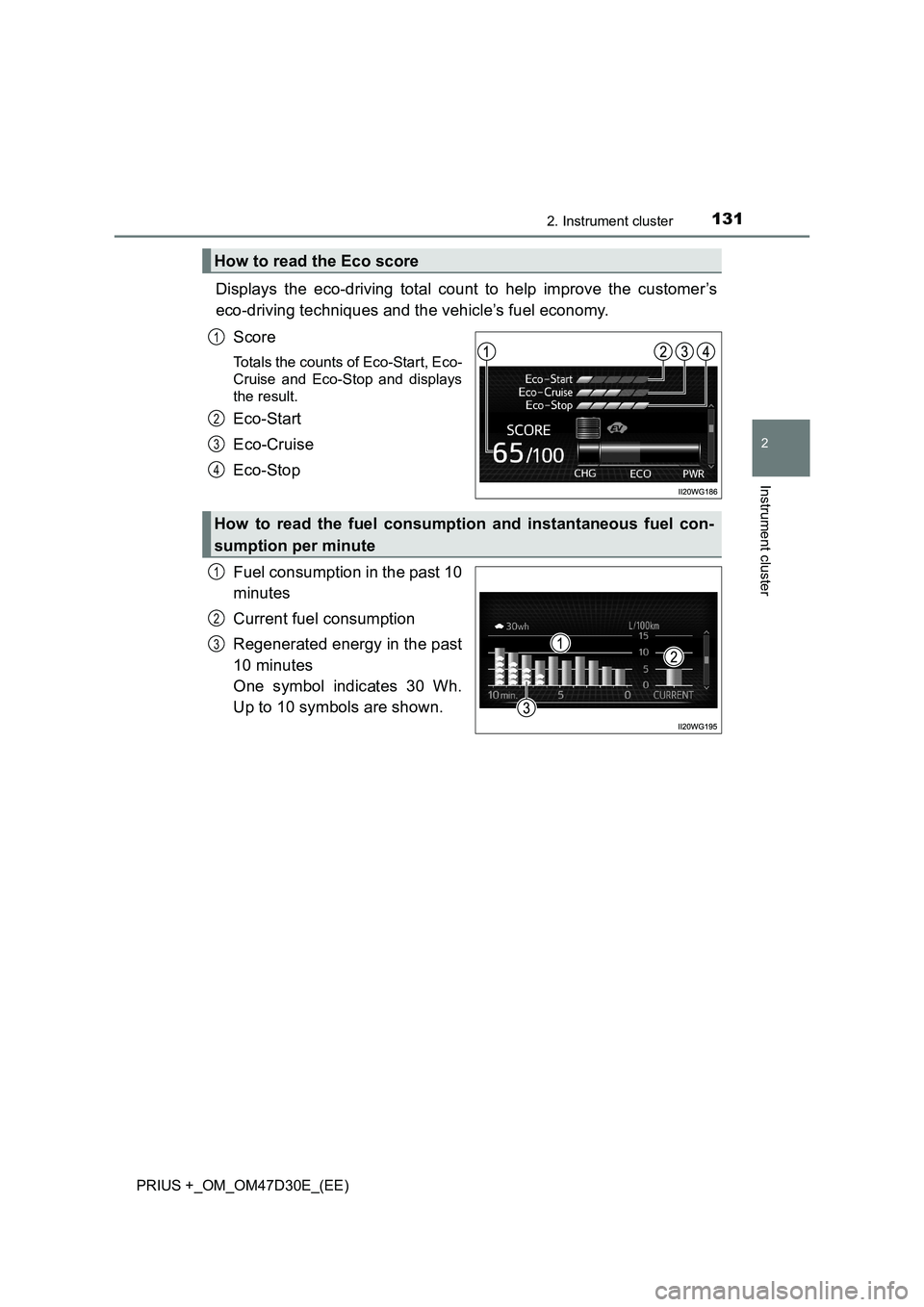

TOYOTA PRIUS PLUS 2019 Owners Manual

1312. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Displays the eco-driving total count to help improve the customer’s
eco-driving techniques and the vehicle’s fuel economy.
Score
Totals the counts of Eco-Start, Eco-
Cruise and Eco-Stop and displays
the result.
Eco-Start
Eco-Cruise
Eco-Stop
Fuel consumption in the past 10
minutes
Current fuel consumption
Regenerated energy in the past
10 minutes
One symbol indicates 30 Wh.
Up to 10 symbols are shown.
How to read the Eco score
1
2
3
4
How to read the fuel consumption and instantaneous fuel con-
sumption per minute
1
2
3

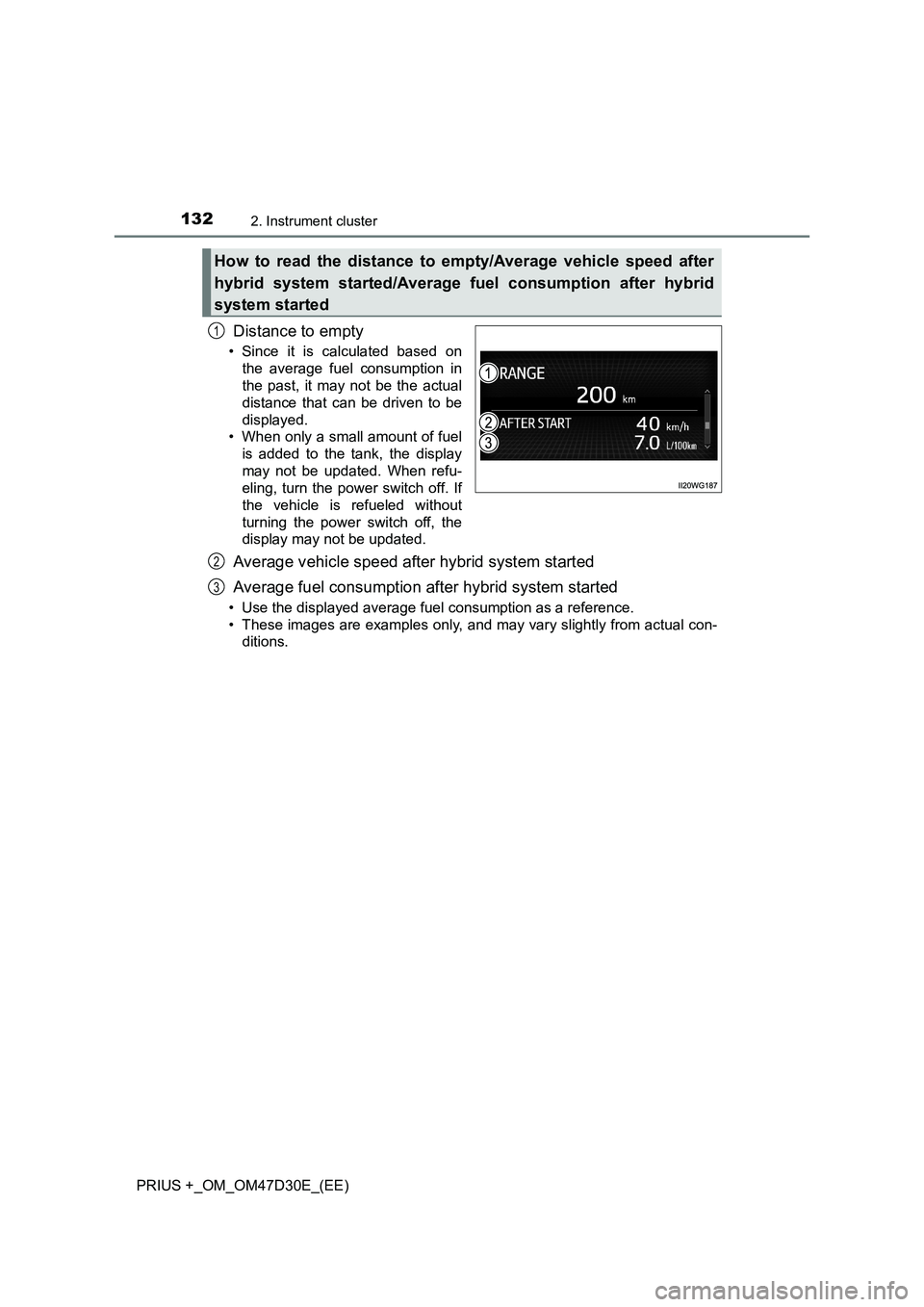

1322. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Distance to empty
• Since it is calculated based on
the average fuel consumption in
the past, it may not be the actual
distance that can be driven to be
displayed.
• When only a small amount of fuel
is added to the tank, the display
may not be updated. When refu-
eling, turn the power switch off. If
the vehicle is refueled without
turning the power switch off, the
display may not be updated.
Average vehicle speed after hybrid system started
Average fuel consumption after hybrid system started
• Use the displayed average fuel consumption as a reference.
• These images are examples only, and may vary slightly from actual con-
ditions.
How to read the distance to empty/Average vehicle speed after
hybrid system started/Average fuel consumption after hybrid
system started
1
2
3

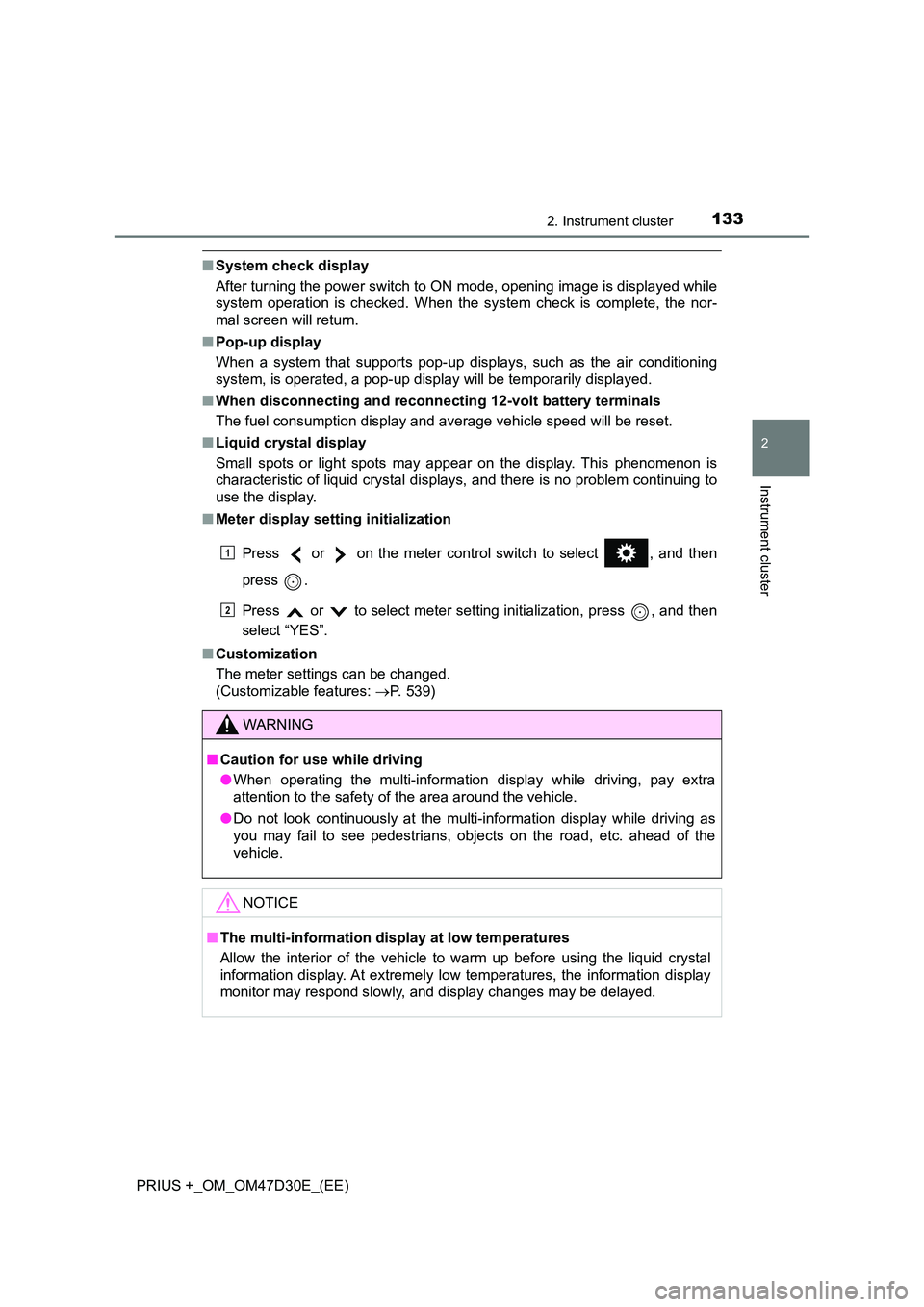

1332. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
■System check display
After turning the power switch to ON mode, opening image is displayed while
system operation is checked. When the system check is complete, the nor-
mal screen will return.
■ Pop-up display
When a system that supports pop-up displays, such as the air conditioning
system, is operated, a pop-up display will be temporarily displayed.
■ When disconnecting and reconnecting 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Meter display setting initialization
Press or on the meter control switch to select , and then
press .
Press or to select meter setting initialization, press , and then
select “YES”.
■ Customization
The meter settings can be changed.
(Customizable features: P. 539)
WARNING
■Caution for use while driving
● When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
NOTICE
■ The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
1
2

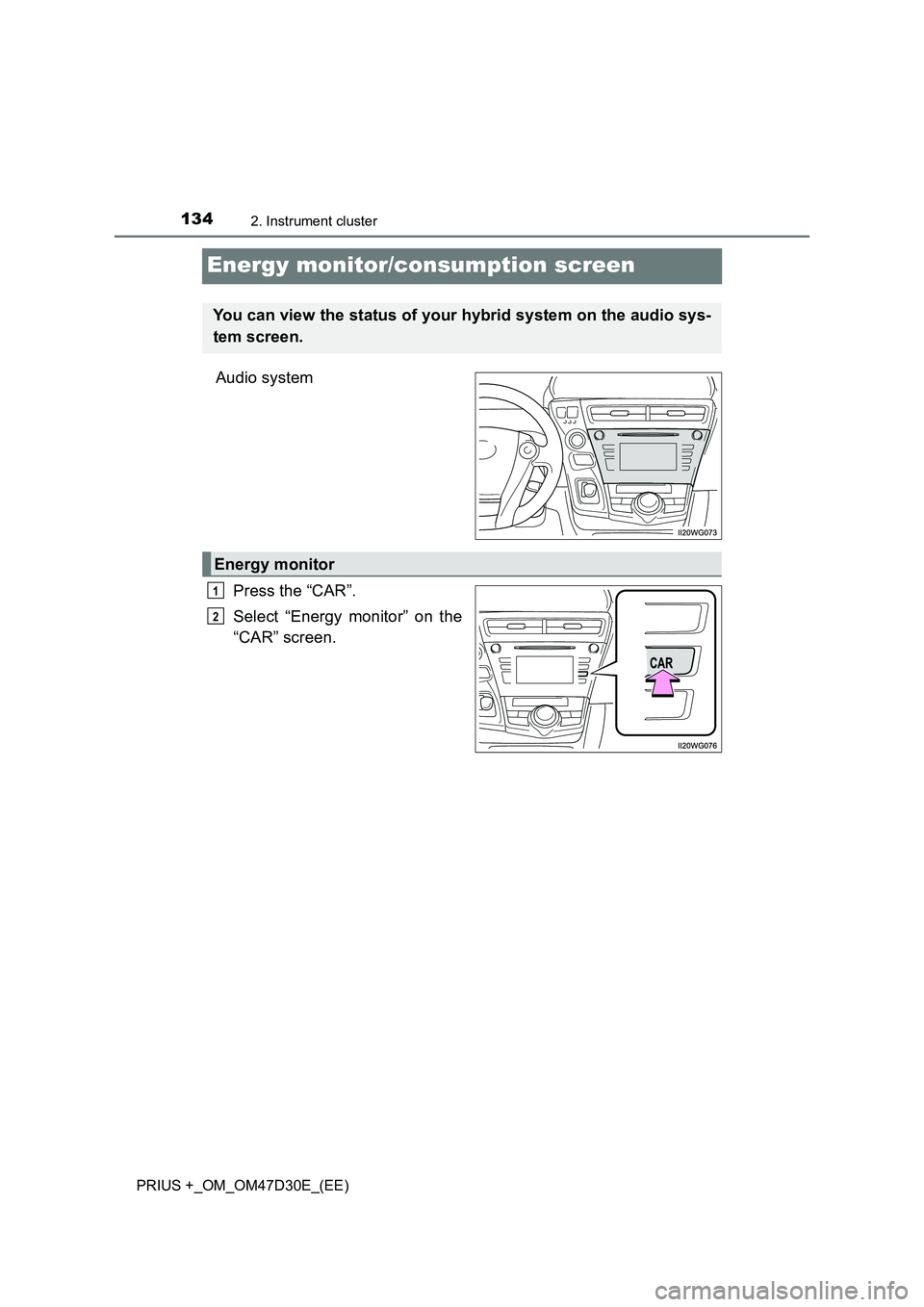

1342. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Energy monitor/consumption screen
Audio system
Press the “CAR”.
Select “Energy monitor” on the
“CAR” screen.
You can view the status of your hybrid system on the audio sys-
tem screen.
Energy monitor
1
2

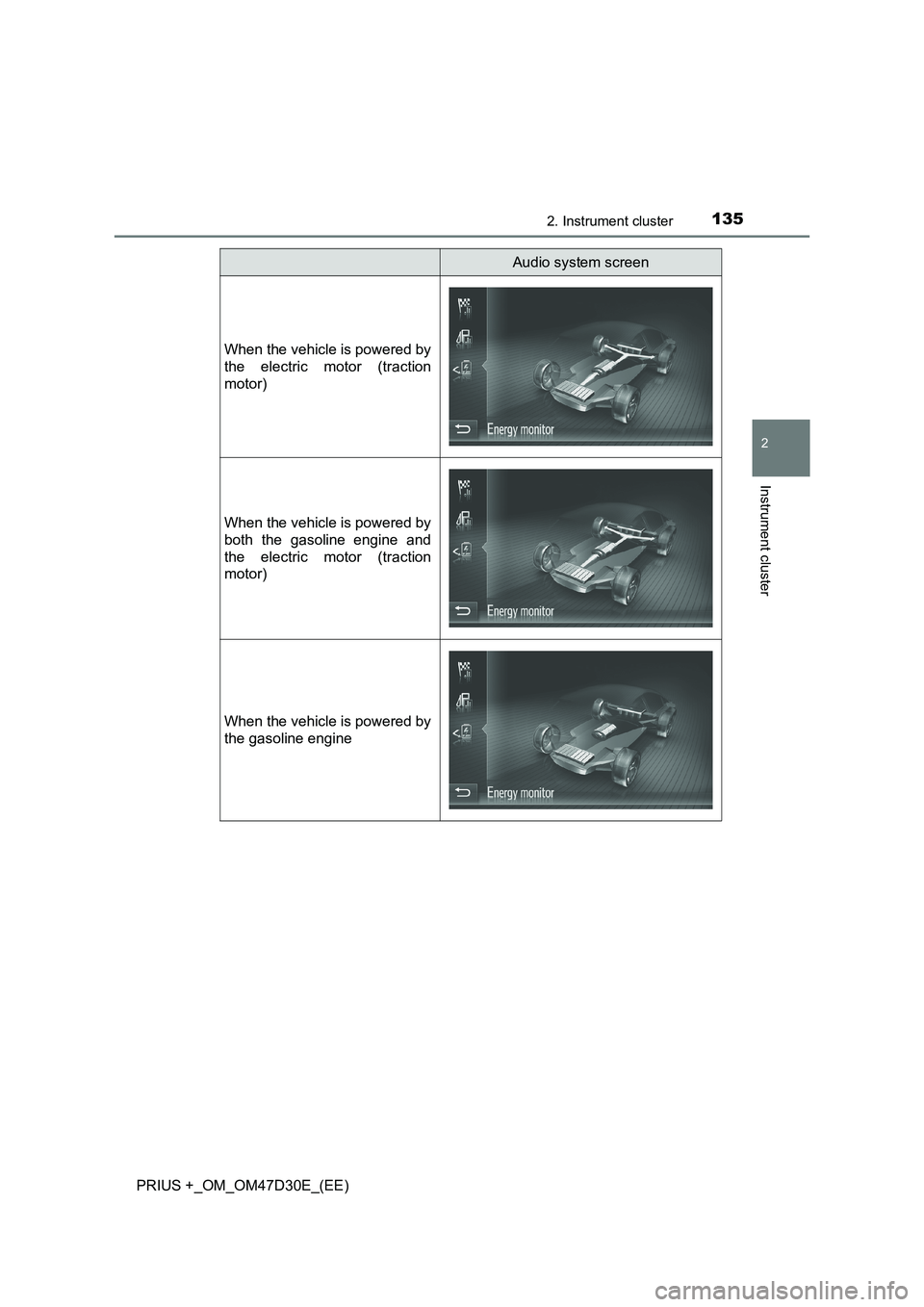

1352. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Audio system screen
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine

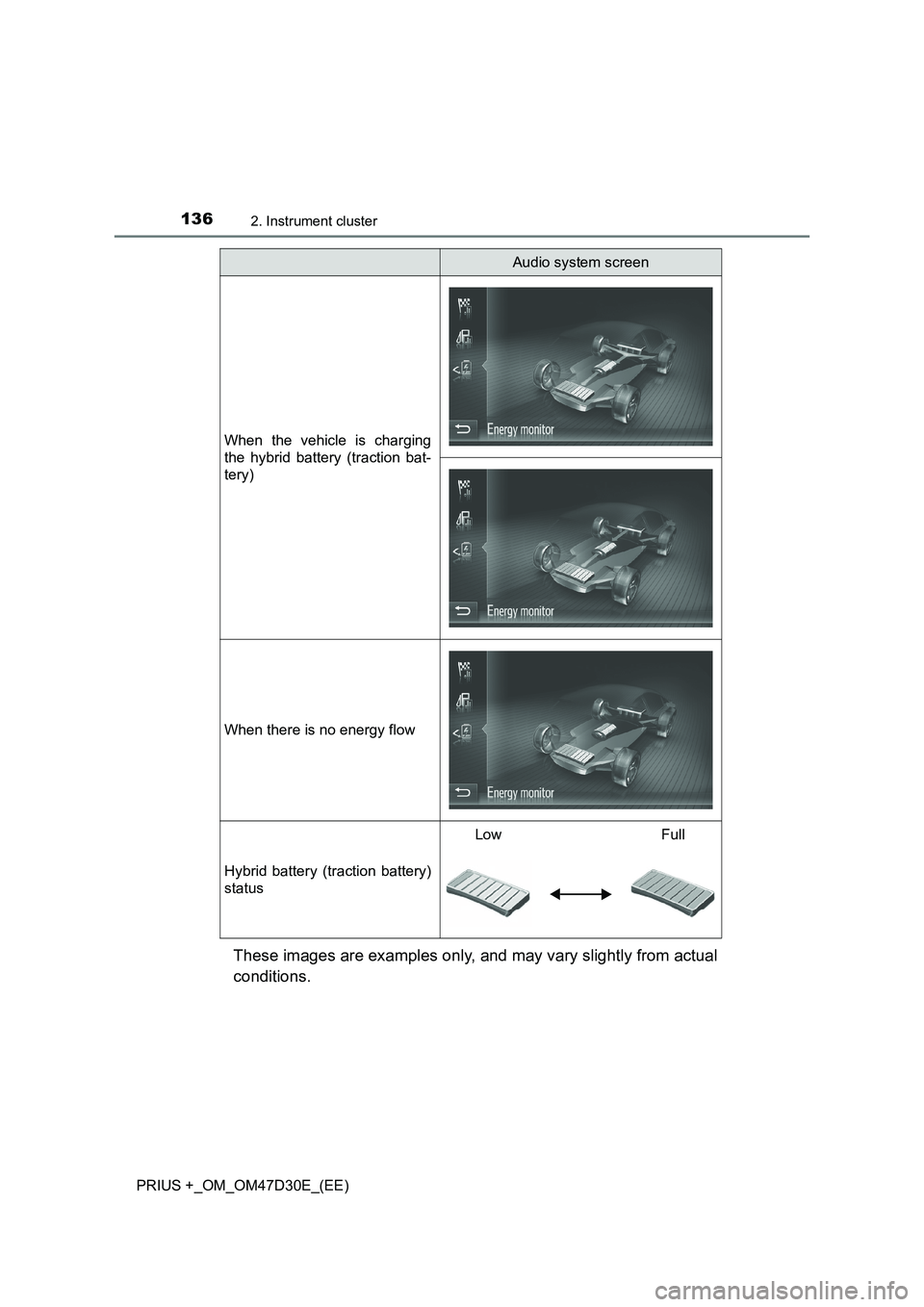

1362. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
These images are examples only, and may vary slightly from actual
conditions.
When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Hybrid battery (traction battery)
status
LowFull
Audio system screen

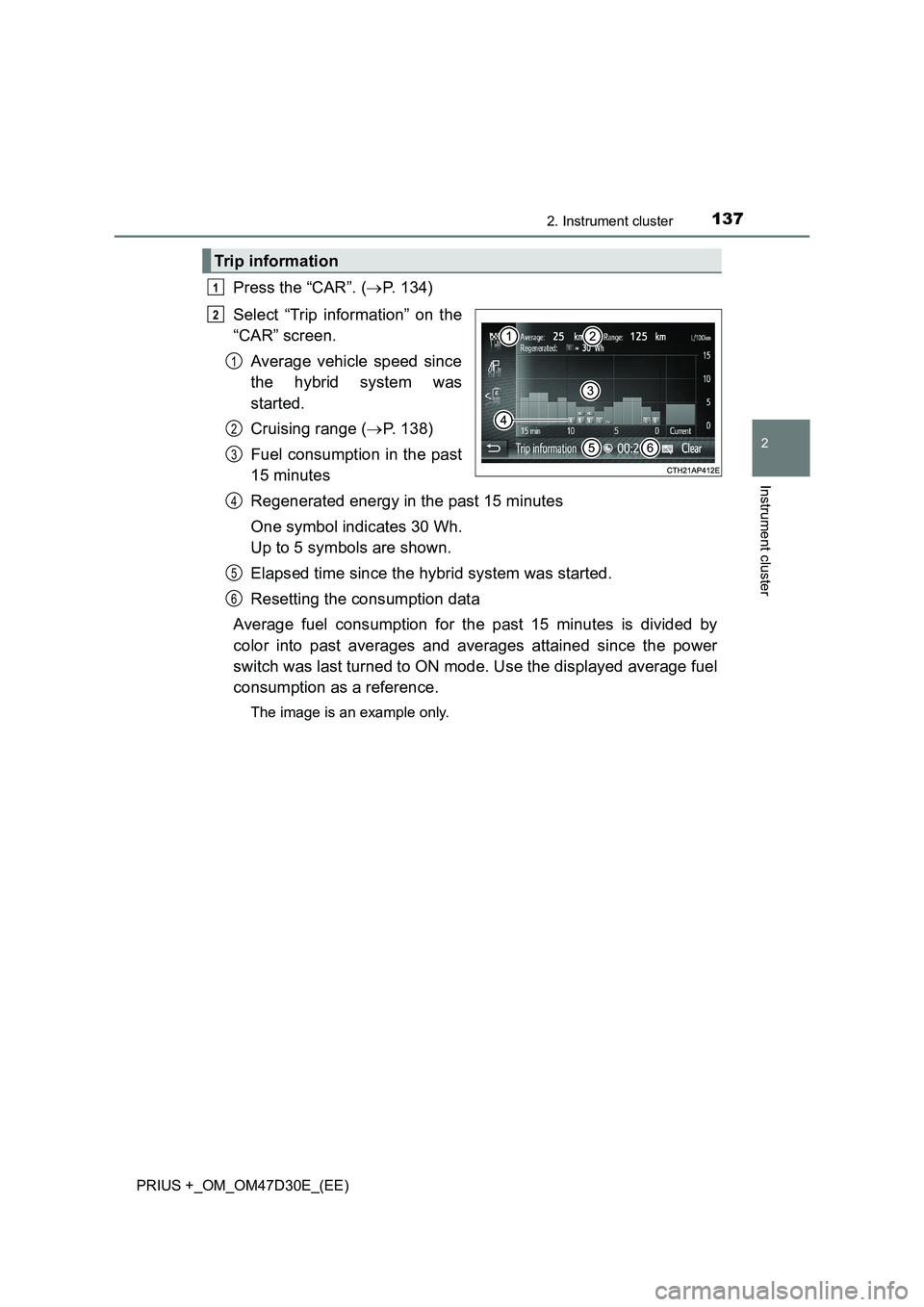

1372. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Press the “CAR”. (P. 134)
Select “Trip information” on the
“CAR” screen.
Average vehicle speed since
the hybrid system was
started.
Cruising range (P. 138)
Fuel consumption in the past
15 minutes
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Elapsed time since the hybrid system was started.
Resetting the consumption data
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only.
Trip information
1
2
1
2
3
4
5
6

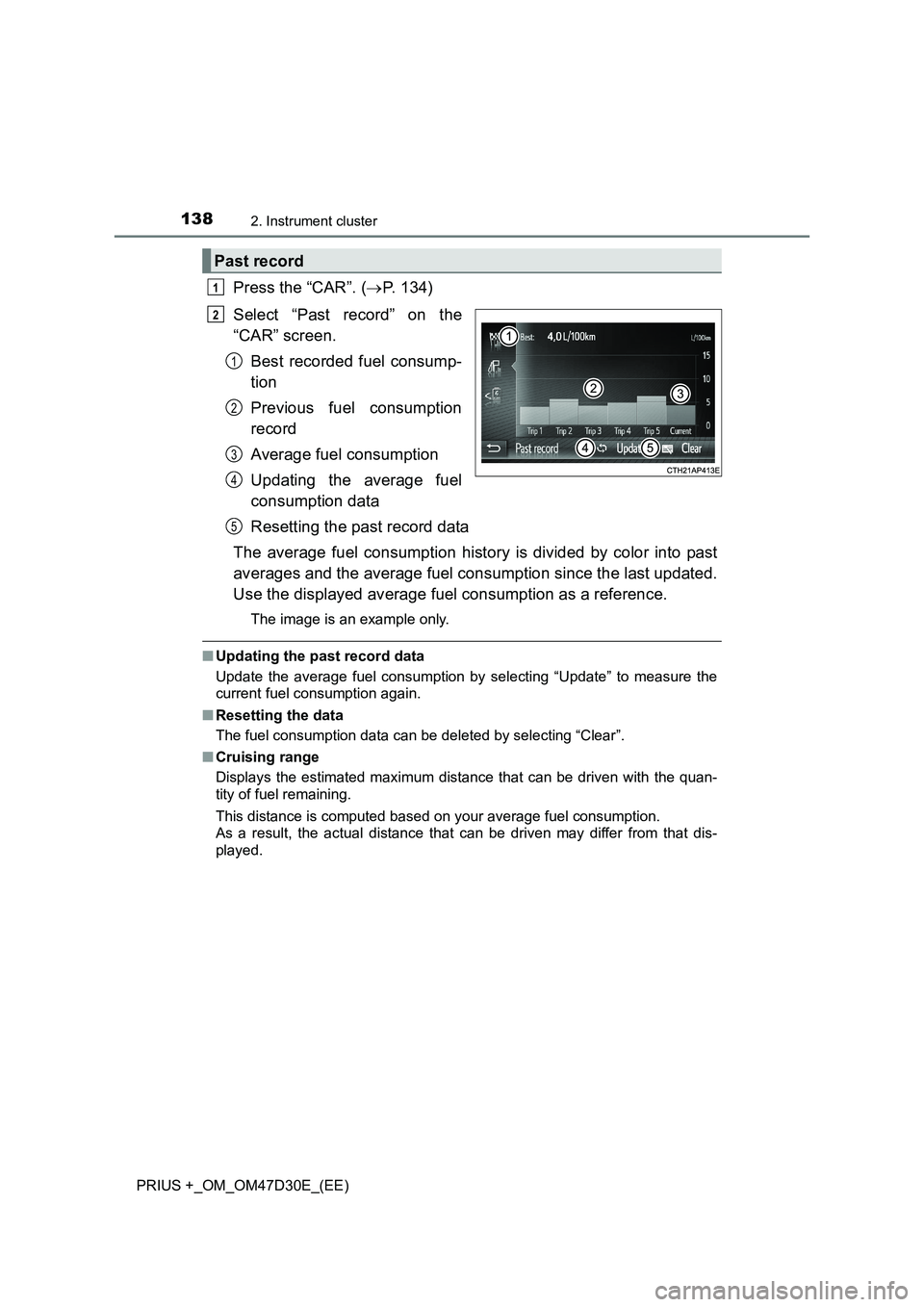

1382. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Press the “CAR”. (P. 134)
Select “Past record” on the
“CAR” screen.
Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
Past record
1
2
1
2
3
4
5

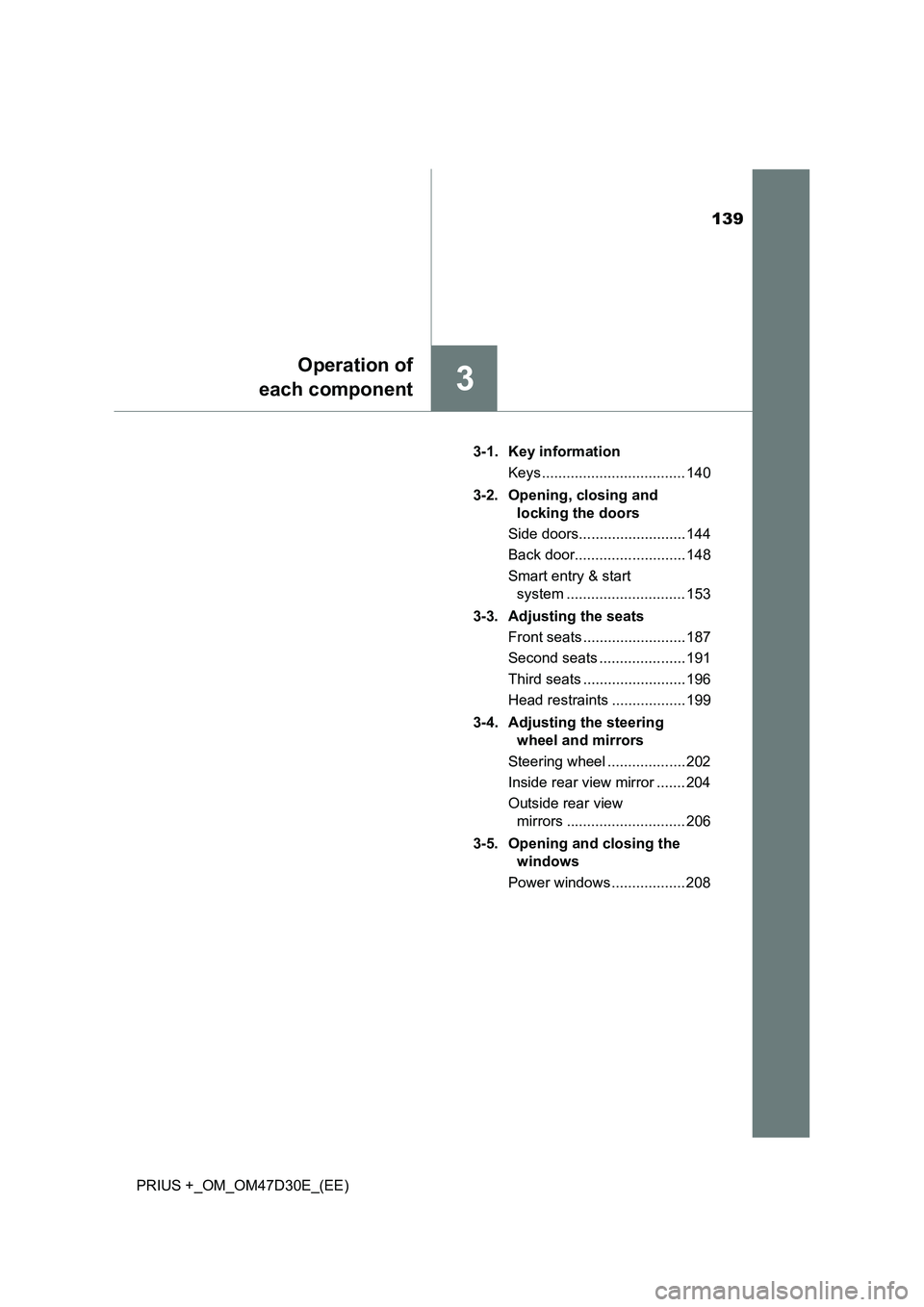

139
3
Operation of
each component
PRIUS +_OM_OM47D30E_(EE)3-1. Key information
Keys ................................... 140
3-2. Opening, closing and
locking the doors
Side doors.......................... 144
Back door........................... 148
Smart entry & start
system ............................. 153
3-3. Adjusting the seats
Front seats ......................... 187
Second seats ..................... 191
Third seats ......................... 196
Head restraints .................. 199
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 202
Inside rear view mirror ....... 204
Outside rear view
mirrors ............................. 206
3-5. Opening and closing the
windows
Power windows .................. 208

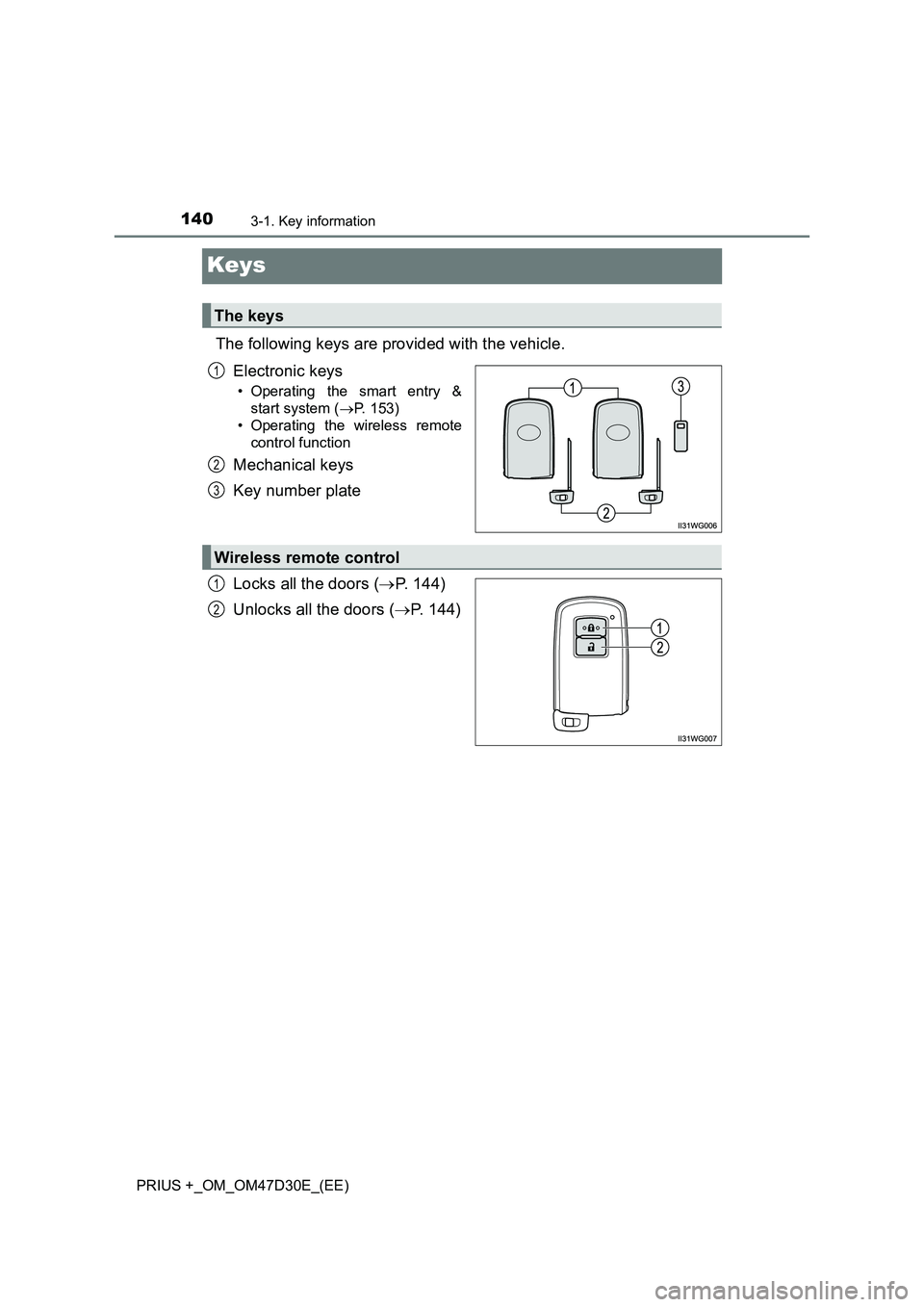

1403-1. Key information
PRIUS +_OM_OM47D30E_(EE)
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart entry &
start system (P. 153)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
Locks all the doors (P. 144)
Unlocks all the doors (P. 144)
The keys
1
2
3
Wireless remote control
1
2
