TOYOTA PRIUS PLUS 2019 Owners Manual

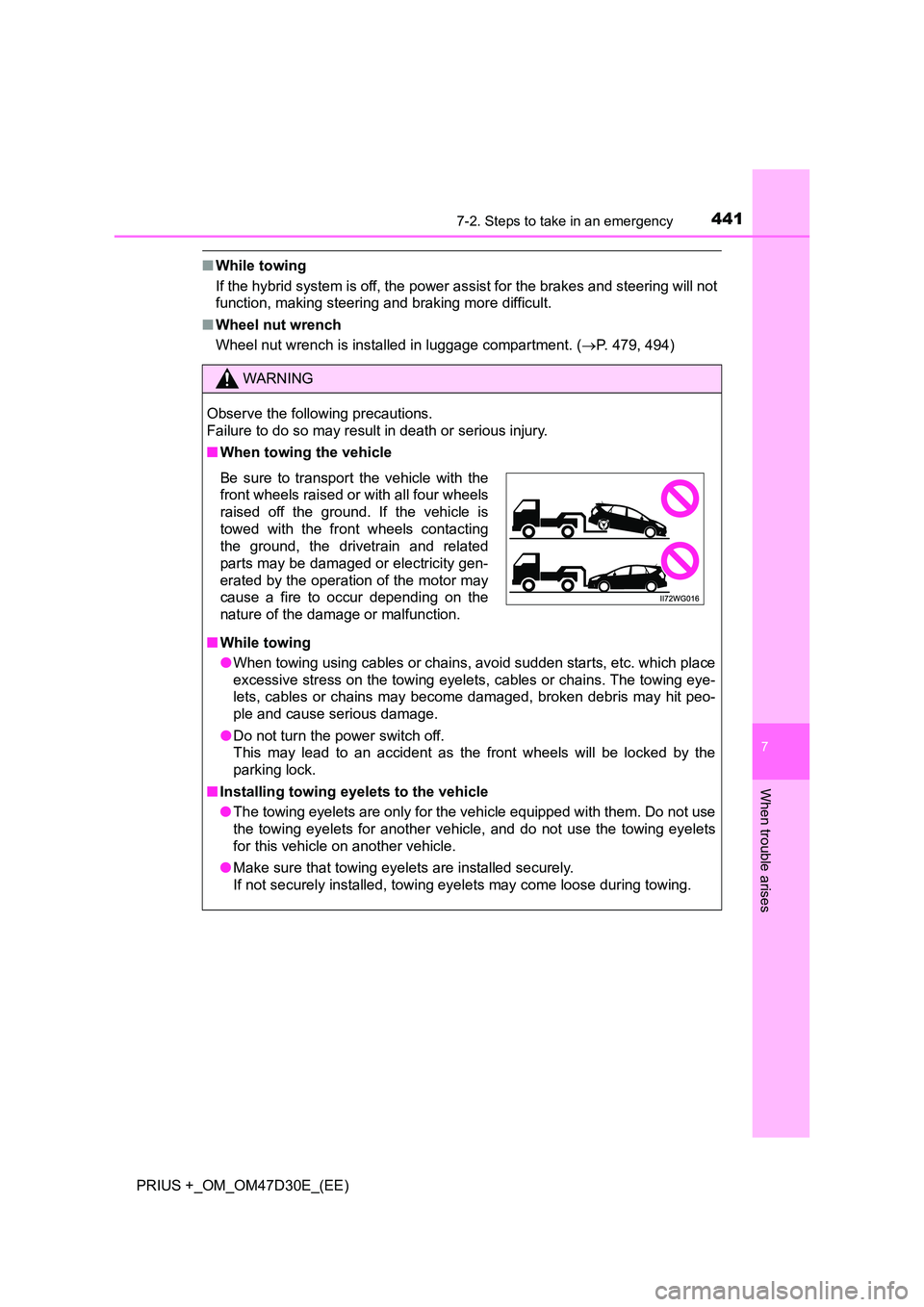

4417-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
■While towing
If the hybrid system is off, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
■ Wheel nut wrench
Wheel nut wrench is installed in luggage compartment. ( P. 479, 494)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When towing the vehicle
■ While towing
● When towing using cables or chains, avoid sudden starts, etc. which place
excessive stress on the towing eyelets, cables or chains. The towing eye-
lets, cables or chains may become damaged, broken debris may hit peo-
ple and cause serious damage.
● Do not turn the power switch off.
This may lead to an accident as the front wheels will be locked by the
parking lock.
■ Installing towing eyelets to the vehicle
● The towing eyelets are only for the vehicle equipped with them. Do not use
the towing eyelets for another vehicle, and do not use the towing eyelets
for this vehicle on another vehicle.
● Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting
the ground, the drivetrain and related
parts may be damaged or electricity gen-
erated by the operation of the motor may
cause a fire to occur depending on the
nature of the damage or malfunction.

4427-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type
truck
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■ To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.

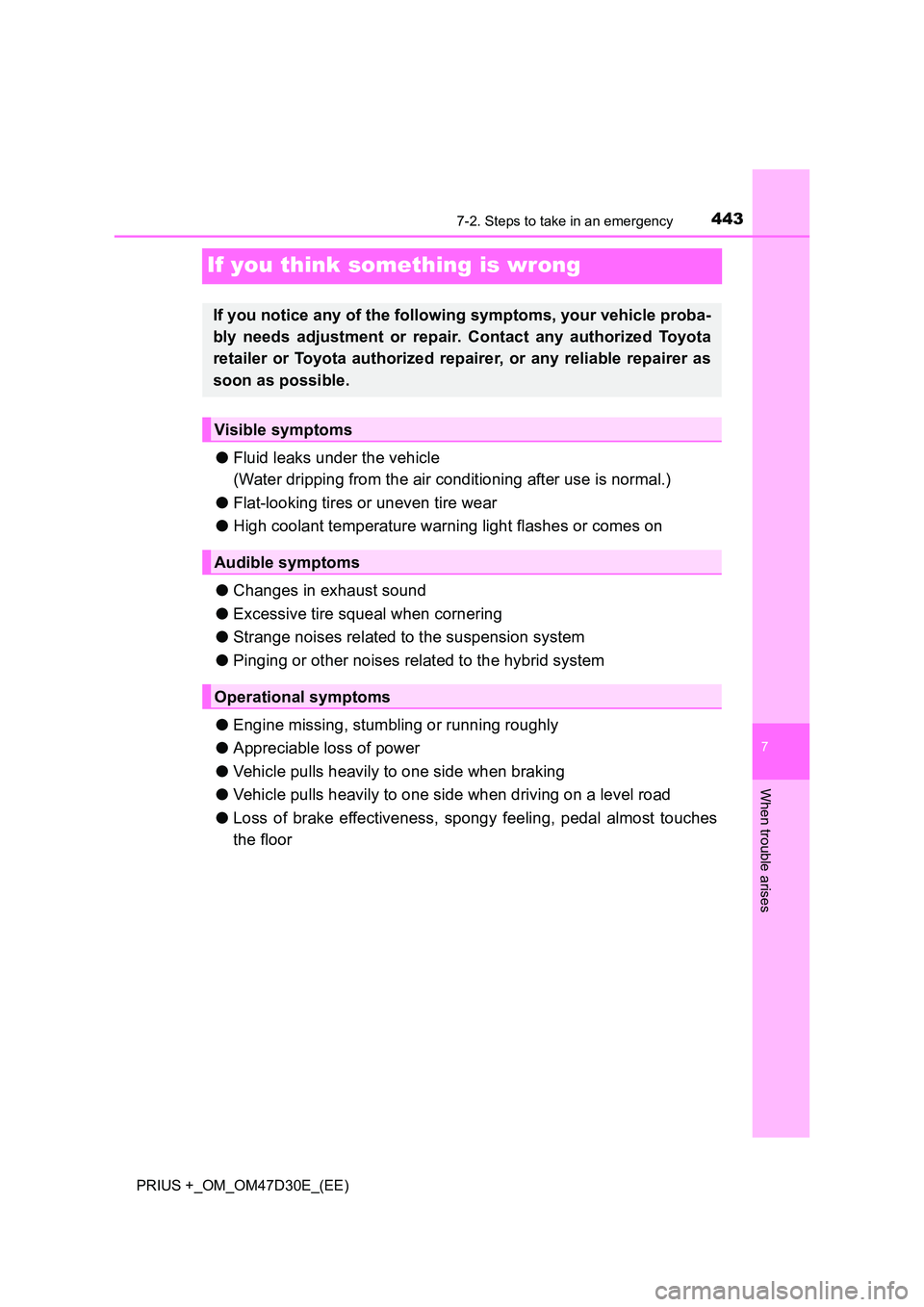

4437-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
If you think something is wrong
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● High coolant temperature warning light flashes or comes on
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
● Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

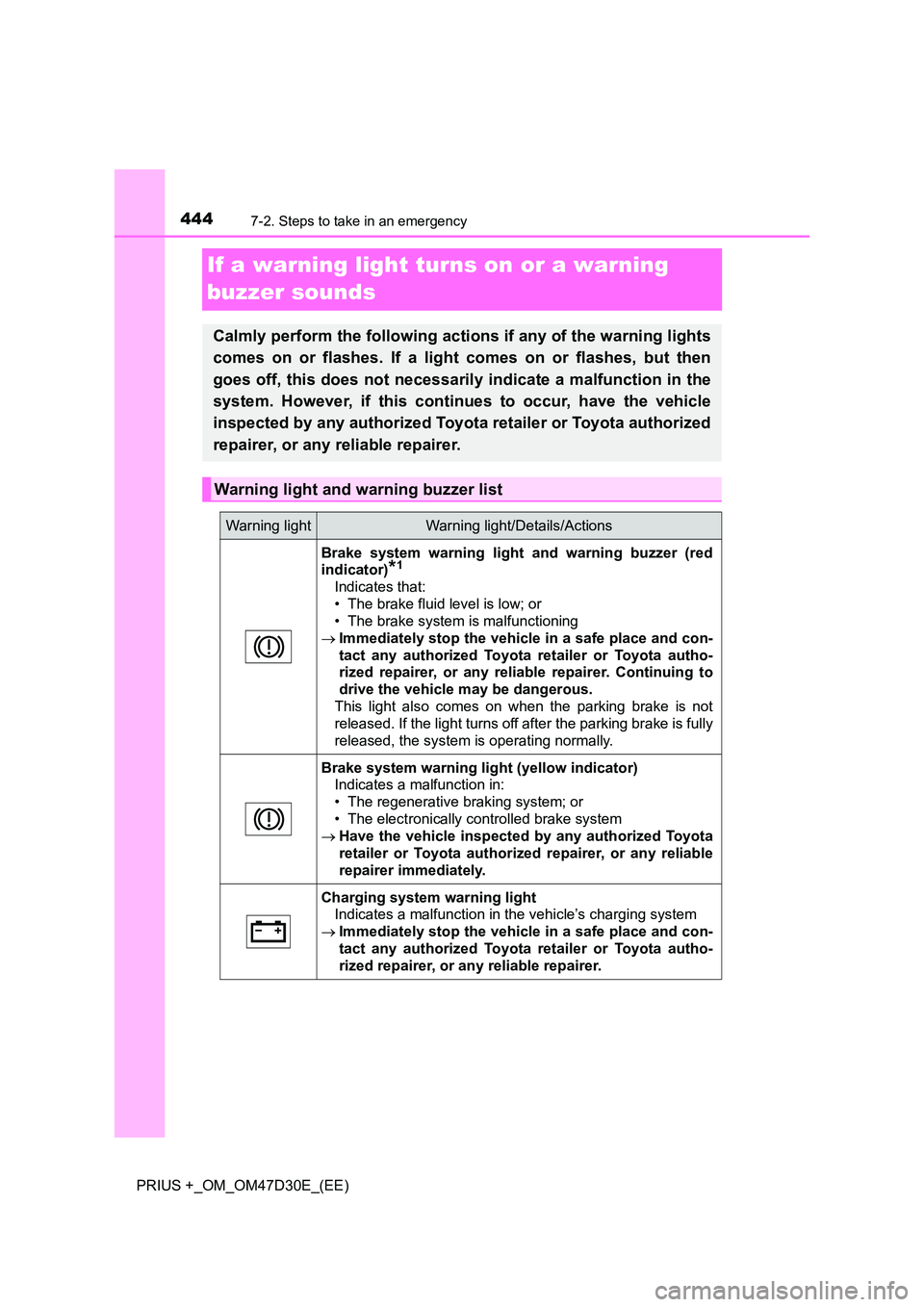

4447-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
If a warning light turns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light and warning buzzer (red
indicator)*1
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer. Continuing to
drive the vehicle may be dangerous.
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released, the system is operating normally.
Brake system warning light (yellow indicator)
Indicates a malfunction in:
• The regenerative braking system; or
• The electronically controlled brake system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.

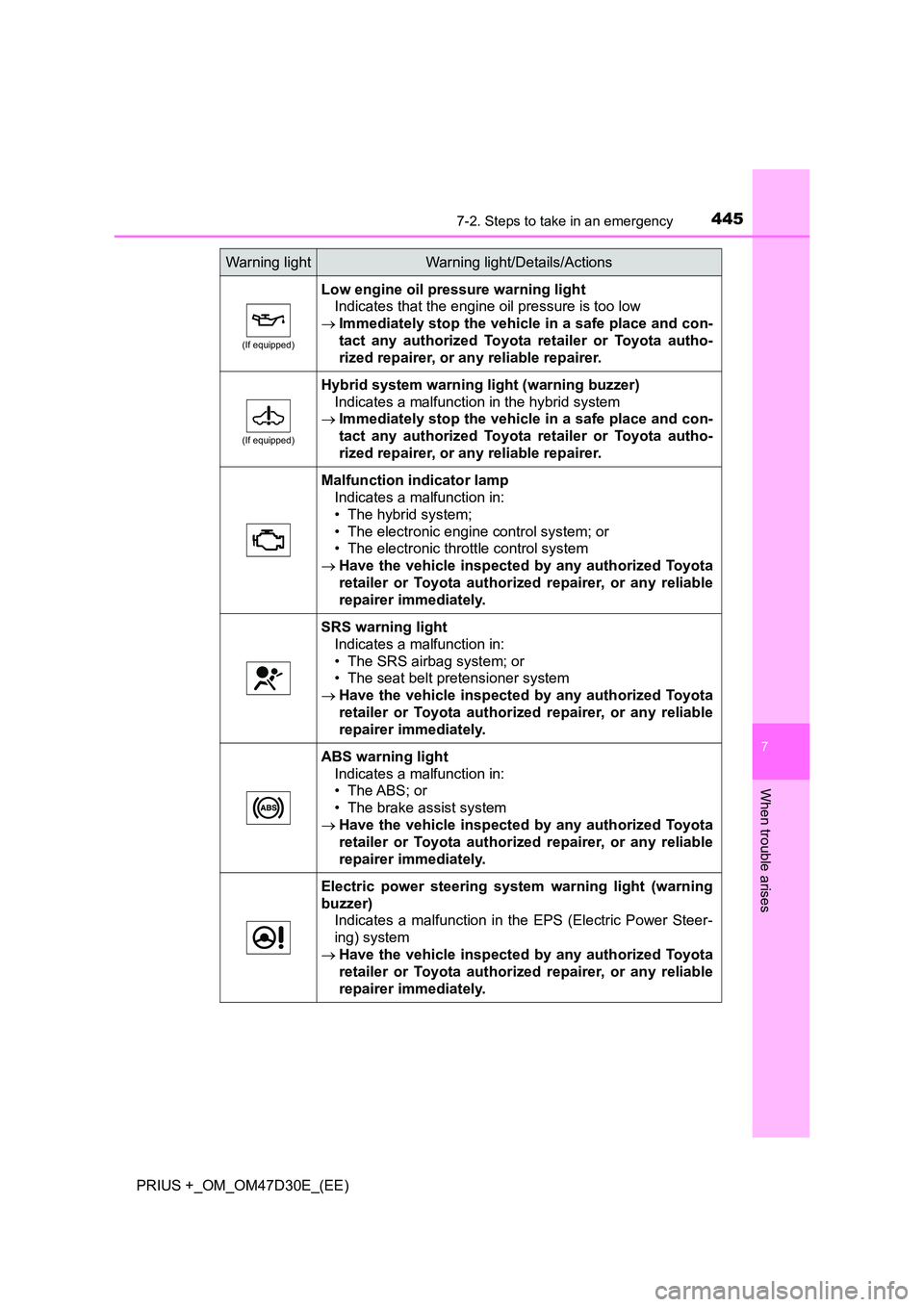

4457-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
(If equipped)
Low engine oil pressure warning light
Indicates that the engine oil pressure is too low
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
(If equipped)
Hybrid system warning light (warning buzzer)
Indicates a malfunction in the hybrid system
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system; or
• The electronic throttle control system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

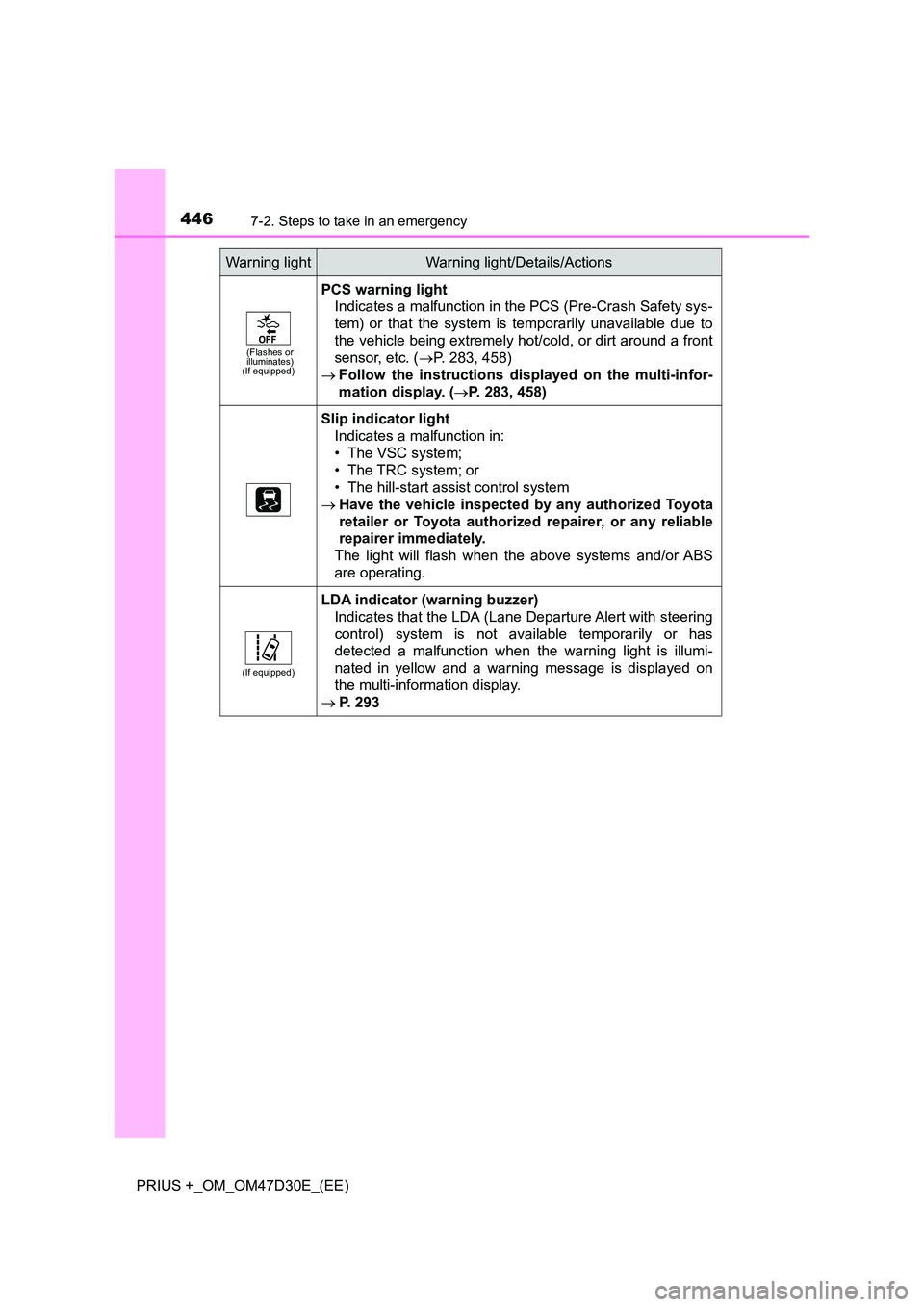

4467-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
(Flashes or illuminates)(If equipped)
PCS warning light
Indicates a malfunction in the PCS (Pre-Crash Safety sys-
tem) or that the system is temporarily unavailable due to
the vehicle being extremely hot/cold, or dirt around a front
sensor, etc. ( P. 283, 458)
 Follow the instructions displayed on the multi-infor-
mation display. ( P. 283, 458)
Slip indicator light
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
The light will flash when the above systems and/or ABS
are operating.
(If equipped)
LDA indicator (warning buzzer)
Indicates that the LDA (Lane Departure Alert with steering
control) system is not available temporarily or has
detected a malfunction when the warning light is illumi-
nated in yellow and a warning message is displayed on
the multi-information display.
 P. 293
Warning lightWarning light/Details/Actions

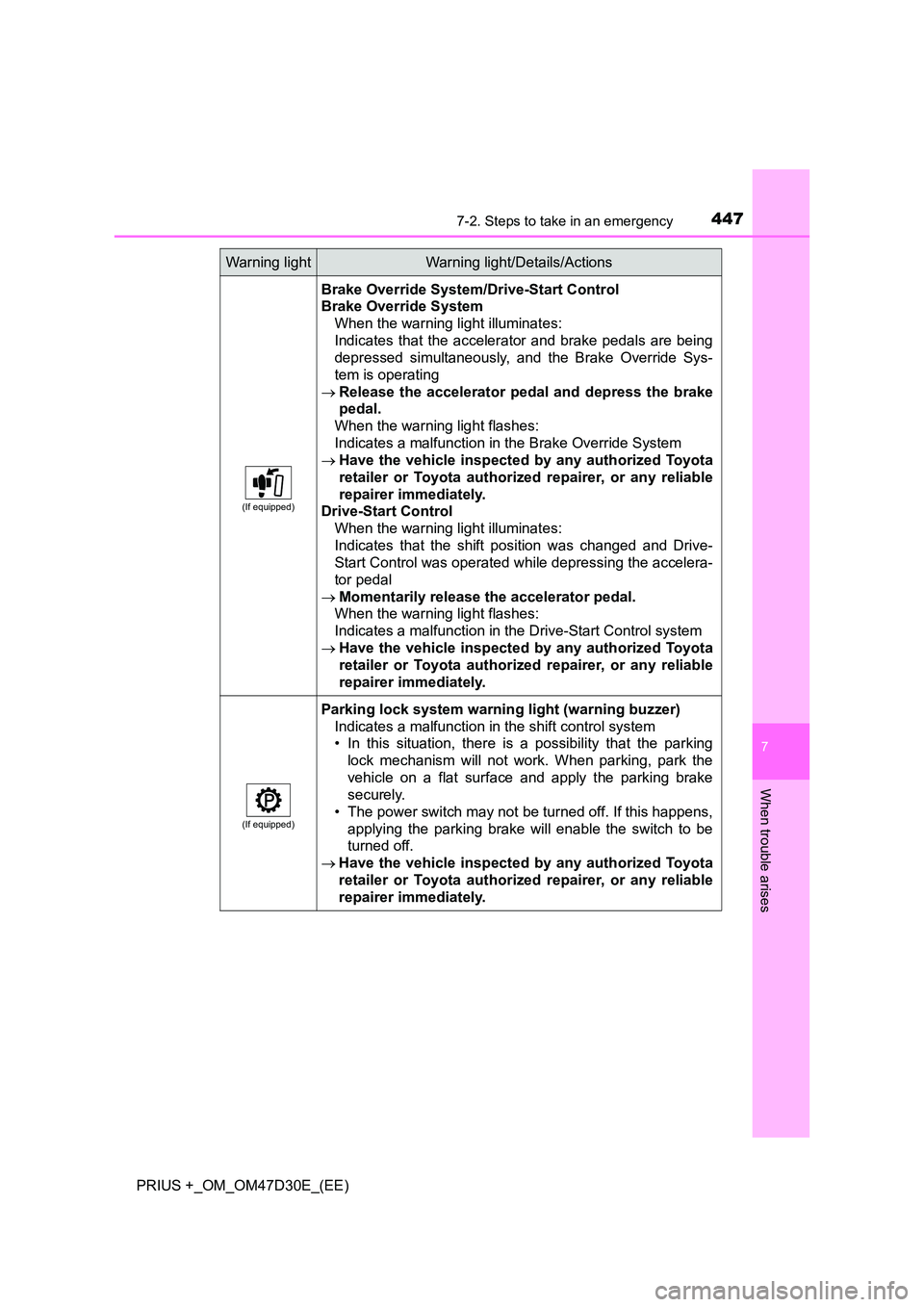

4477-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
(If equipped)
Brake Override System/Drive-Start Control
Brake Override System
When the warning light illuminates:
Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override Sys-
tem is operating
 Release the accelerator pedal and depress the brake
pedal.
When the warning light flashes:
Indicates a malfunction in the Brake Override System
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Drive-Start Control
When the warning light illuminates:
Indicates that the shift position was changed and Drive-
Start Control was operated while depressing the accelera-
tor pedal
 Momentarily release the accelerator pedal.
When the warning light flashes:
Indicates a malfunction in the Drive-Start Control system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
(If equipped)
Parking lock system warning light (warning buzzer)
Indicates a malfunction in the shift control system
• In this situation, there is a possibility that the parking
lock mechanism will not work. When parking, park the
vehicle on a flat surface and apply the parking brake
securely.
• The power switch may not be turned off. If this happens,
applying the parking brake will enable the switch to be
turned off.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

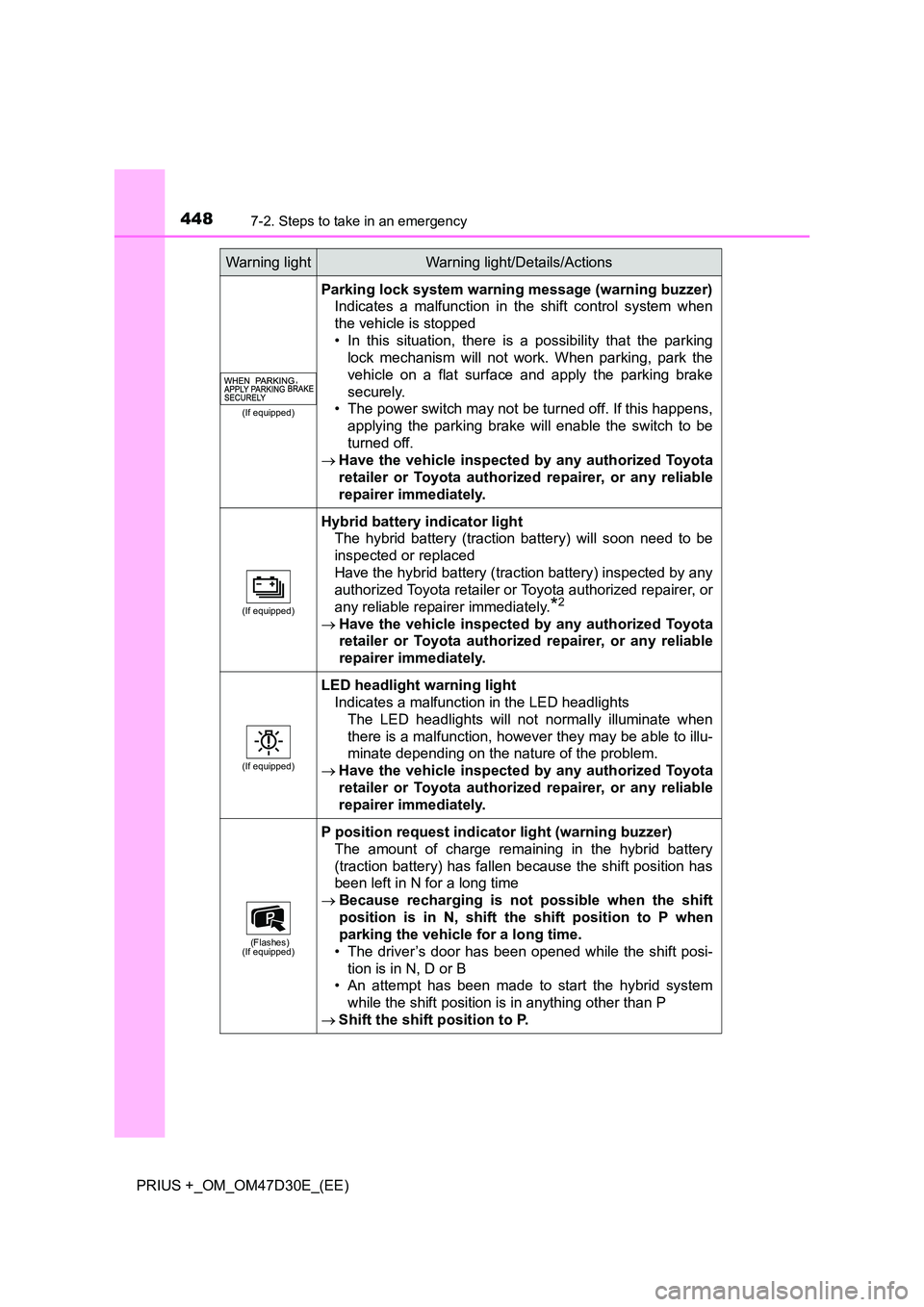

4487-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
(If equipped)
Parking lock system warning message (warning buzzer)
Indicates a malfunction in the shift control system when
the vehicle is stopped
• In this situation, there is a possibility that the parking
lock mechanism will not work. When parking, park the
vehicle on a flat surface and apply the parking brake
securely.
• The power switch may not be turned off. If this happens,
applying the parking brake will enable the switch to be
turned off.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
(If equipped)
Hybrid battery indicator light
The hybrid battery (traction battery) will soon need to be
inspected or replaced
Have the hybrid battery (traction battery) inspected by any
authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer immediately.*2
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
(If equipped)
LED headlight warning light
Indicates a malfunction in the LED headlights
The LED headlights will not normally illuminate when
there is a malfunction, however they may be able to illu-
minate depending on the nature of the problem.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
(Flashes) (If equipped)
P position request indicator light (warning buzzer)
The amount of charge remaining in the hybrid battery
(traction battery) has fallen because the shift position has
been left in N for a long time
 Because recharging is not possible when the shift
position is in N, shift the shift position to P when
parking the vehicle for a long time.
• The driver’s door has been opened while the shift posi-
tion is in N, D or B
• An attempt has been made to start the hybrid system
while the shift position is in anything other than P
 Shift the shift position to P.
Warning lightWarning light/Details/Actions

4497-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
(If equipped)

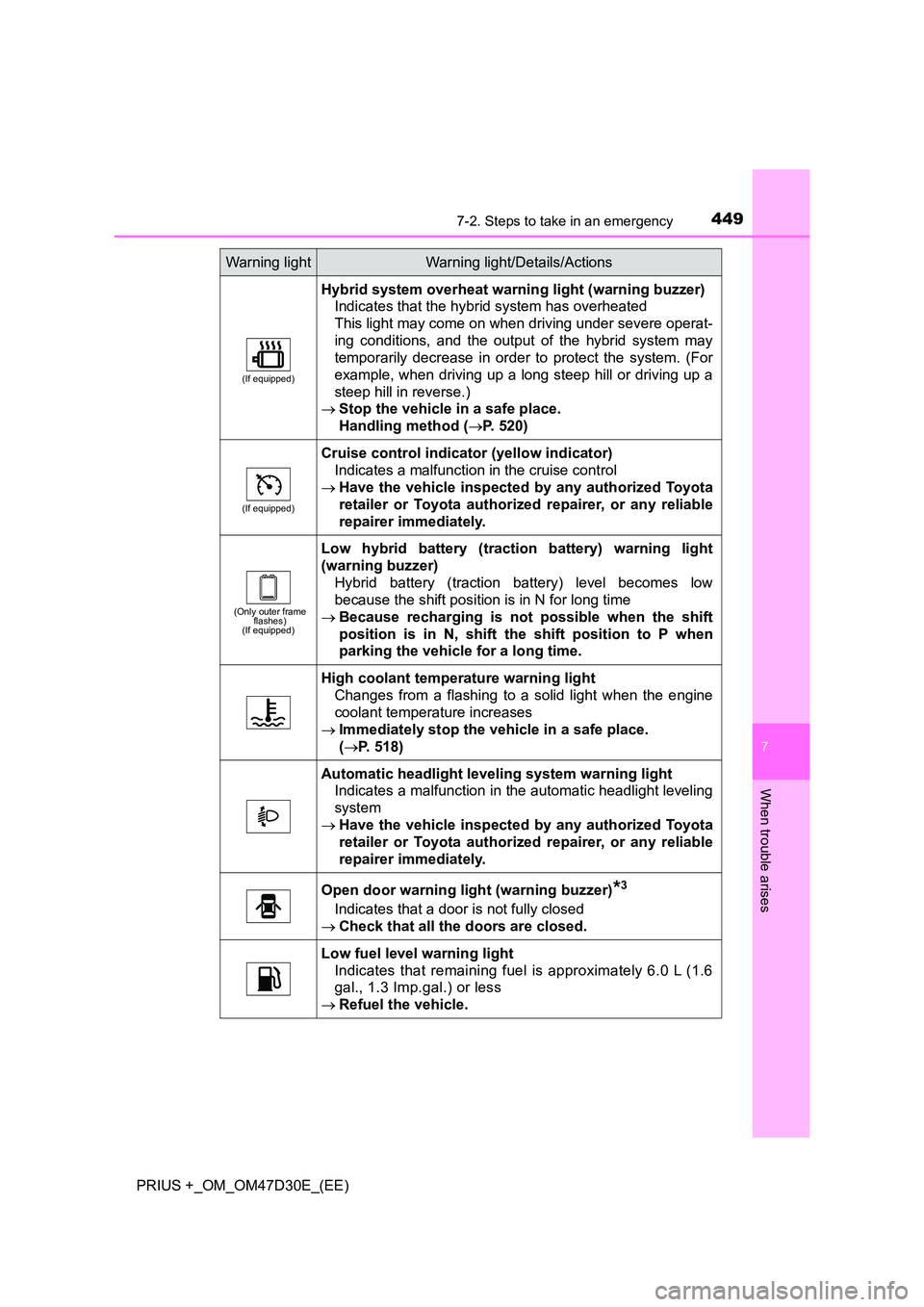

Hybrid system overheat warning light (warning buzzer)
Indicates that the hybrid system has overheated
This light may come on when driving under severe operat-
ing conditions, and the output of the hybrid system may
temporarily decrease in order to protect the system. (For
example, when driving up a long steep hill or driving up a
steep hill in reverse.)
 Stop the vehicle in a safe place.
Handling method ( P. 520)
(If equipped)
Cruise control indicator (yellow indicator)
Indicates a malfunction in the cruise control
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
(Only outer frame flashes)(If equipped)
Low hybrid battery (traction battery) warning light
(warning buzzer)
Hybrid battery (traction battery) level becomes low
because the shift position is in N for long time
 Because recharging is not possible when the shift
position is in N, shift the shift position to P when
parking the vehicle for a long time.
High coolant temperature warning light
Changes from a flashing to a solid light when the engine
coolant temperature increases
 Immediately stop the vehicle in a safe place.
( P. 518)
Automatic headlight leveling system warning light
Indicates a malfunction in the automatic headlight leveling
system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Open door warning light (warning buzzer)*3
Indicates that a door is not fully closed
 Check that all the doors are closed.
Low fuel level warning light
Indicates that remaining fuel is approximately 6.0 L (1.6
gal., 1.3 Imp.gal.) or less
 Refuel the vehicle.
Warning lightWarning light/Details/Actions

4507-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)

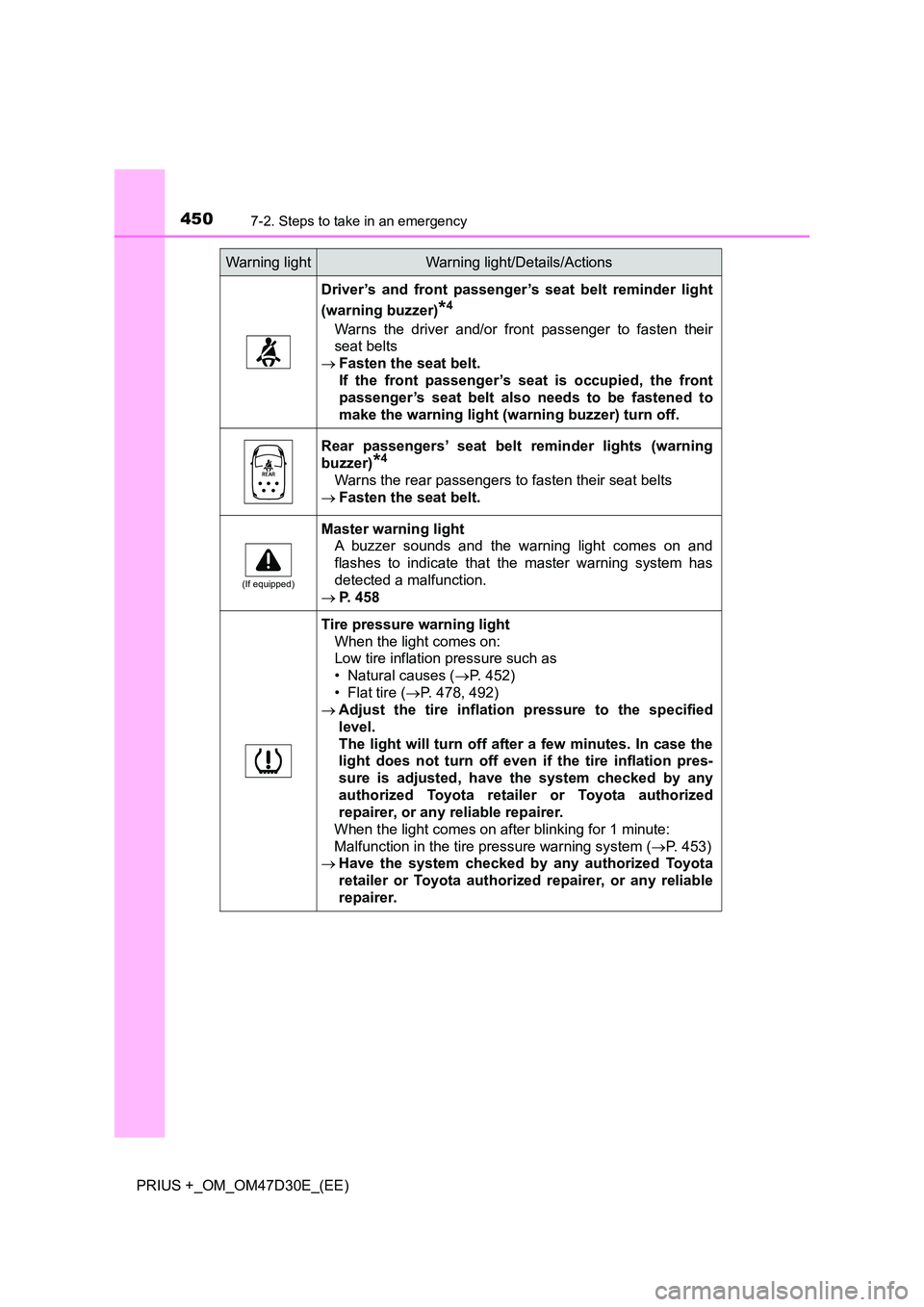

Driver’s and front passenger’s seat belt reminder light
(warning buzzer)*4
Warns the driver and/or front passenger to fasten their
seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
Rear passengers’ seat belt reminder lights (warning
buzzer)*4
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.
(If equipped)
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
 P. 458
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 452)
• Flat tire ( P. 478, 492)
 Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
sure is adjusted, have the system checked by any
authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system ( P. 453)
 Have the system checked by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer.
Warning lightWarning light/Details/Actions
