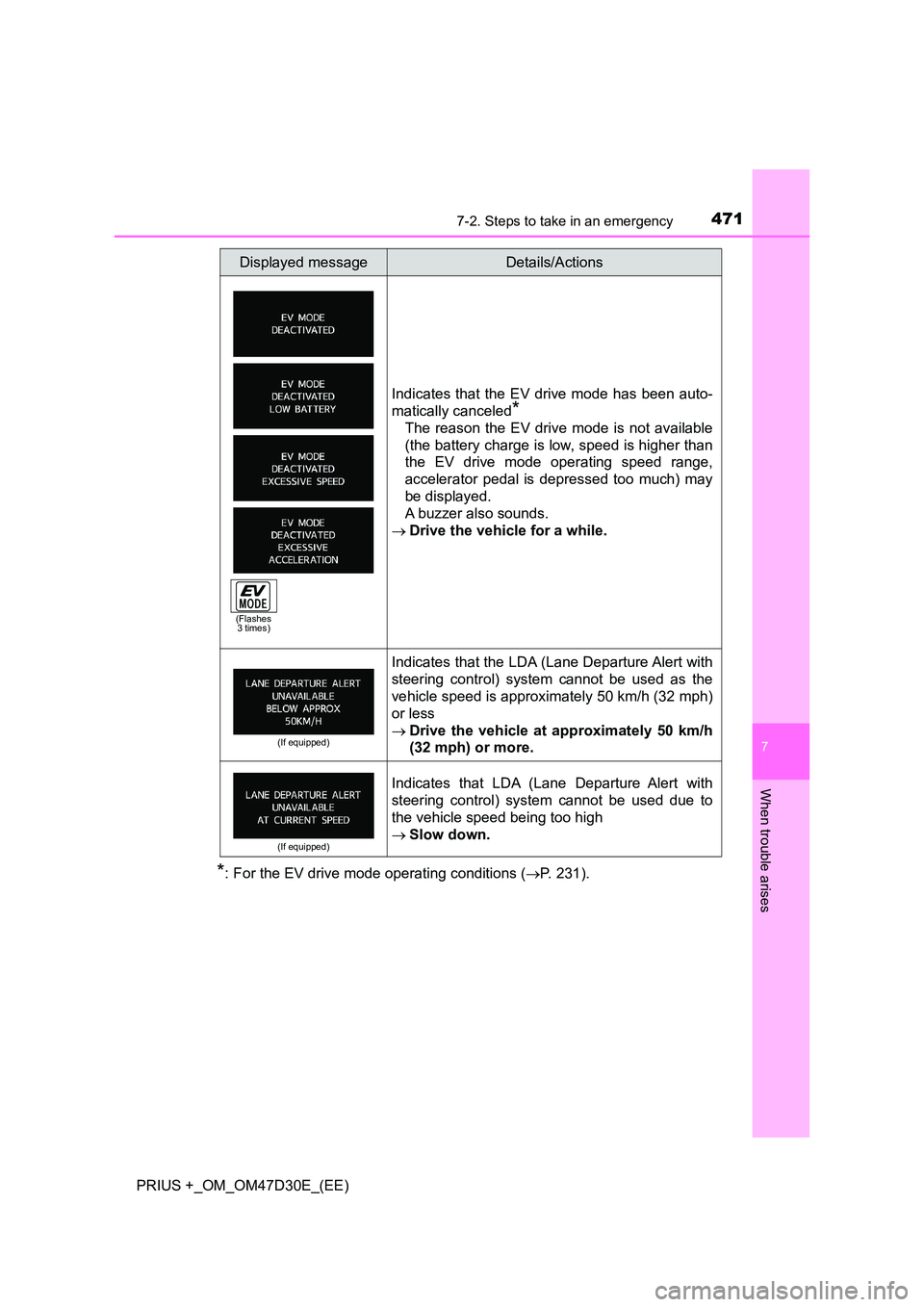

4717-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
*: For the EV drive mode operating conditions (P. 231).
Indicates that the EV drive mode has been auto-
matically canceled*
The reason the EV drive mode is not available
(the battery charge is low, speed is higher than
the EV drive mode operating speed range,
accelerator pedal is depressed too much) may
be displayed.
A buzzer also sounds.
 Drive the vehicle for a while.
(If equipped)
Indicates that the LDA (Lane Departure Alert with
steering control) system cannot be used as the
vehicle speed is approximately 50 km/h (32 mph)
or less
 Drive the vehicle at approximately 50 km/h
(32 mph) or more.
(If equipped)
Indicates that LDA (Lane Departure Alert with
steering control) system cannot be used due to
the vehicle speed being too high
 Slow down.
Displayed messageDetails/Actions
(Flashes 3 times)

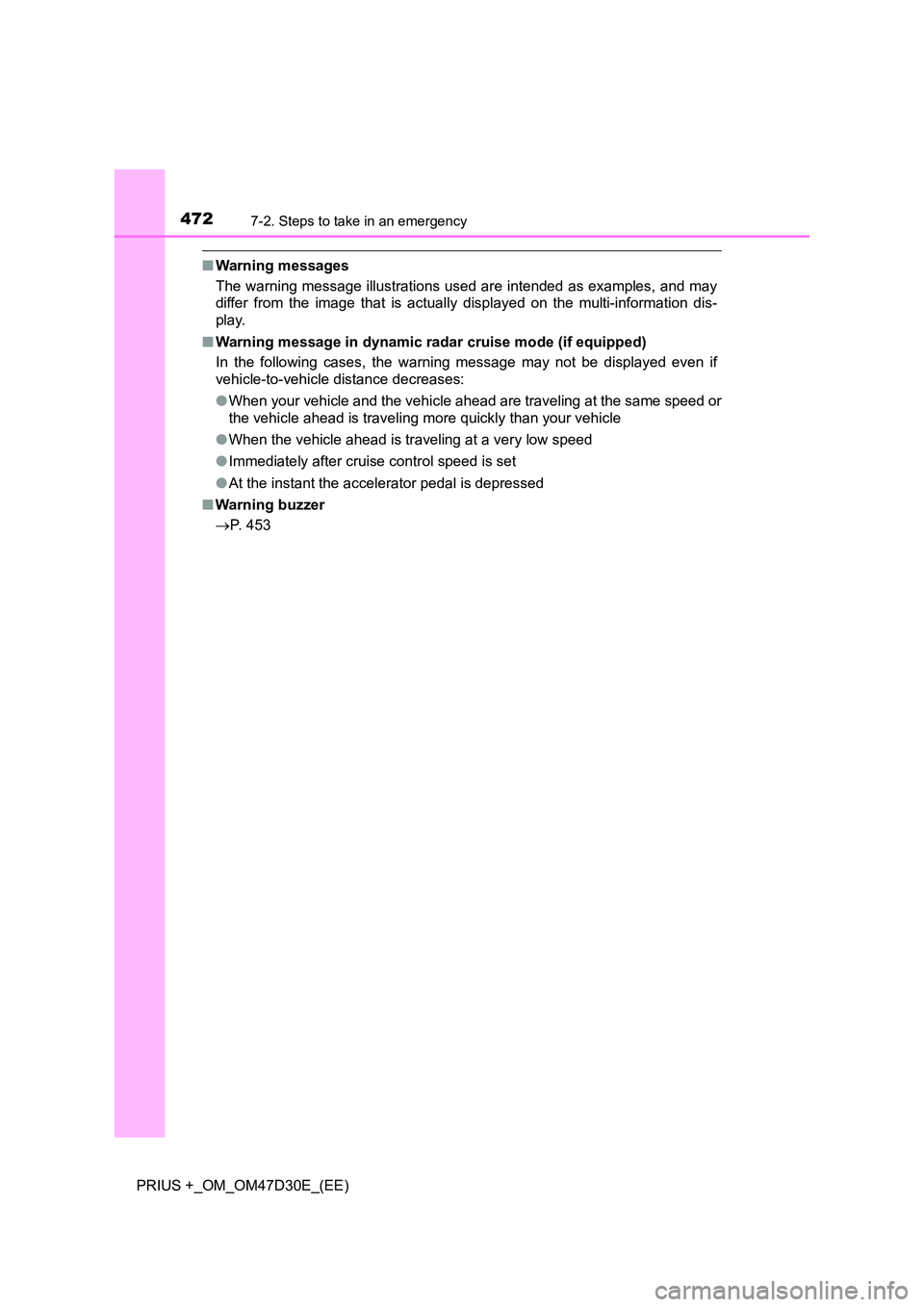

4727-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
■Warning messages
The warning message illustrations used are intended as examples, and may
differ from the image that is actually displayed on the multi-information dis-
play.
■ Warning message in dynamic radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
● When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
■ Warning buzzer
 P. 453

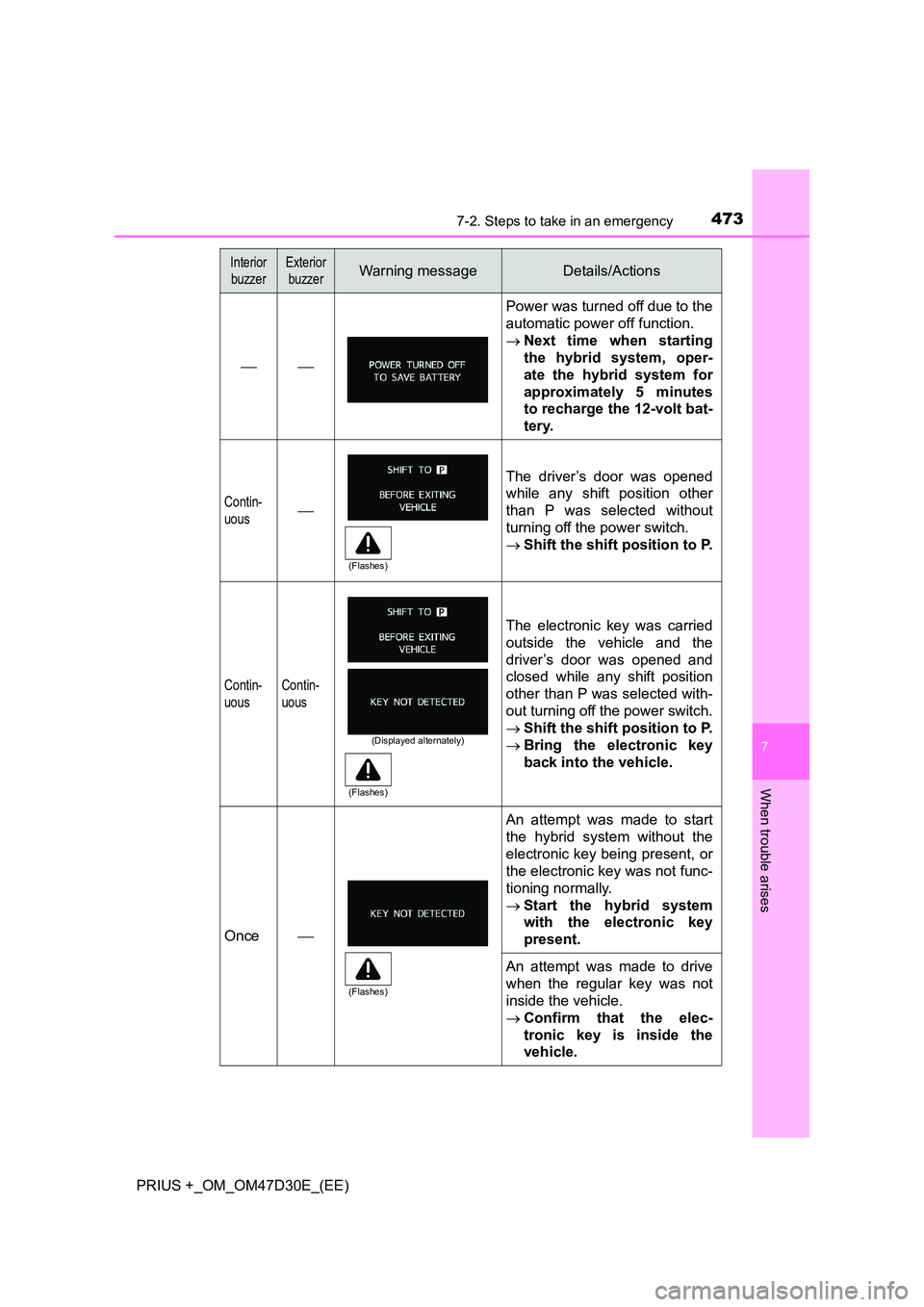

4737-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
Interior
buzzer
Exterior
buzzerWarning messageDetails/Actions

Power was turned off due to the
automatic power off function.
 Next time when starting
the hybrid system, oper-
ate the hybrid system for
approximately 5 minutes
to recharge the 12-volt bat-
tery.
Contin-
uous
The driver’s door was opened
while any shift position other
than P was selected without
turning off the power switch.
 Shift the shift position to P.
Contin-
uous
Contin-
uous
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while any shift position
other than P was selected with-
out turning off the power switch.
 Shift the shift position to P.
 Bring the electronic key
back into the vehicle.
Once
An attempt was made to start
the hybrid system without the
electronic key being present, or
the electronic key was not func-
tioning normally.
 Start the hybrid system
with the electronic key
present.
An attempt was made to drive
when the regular key was not
inside the vehicle.
 Confirm that the elec-
tronic key is inside the
vehicle.
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

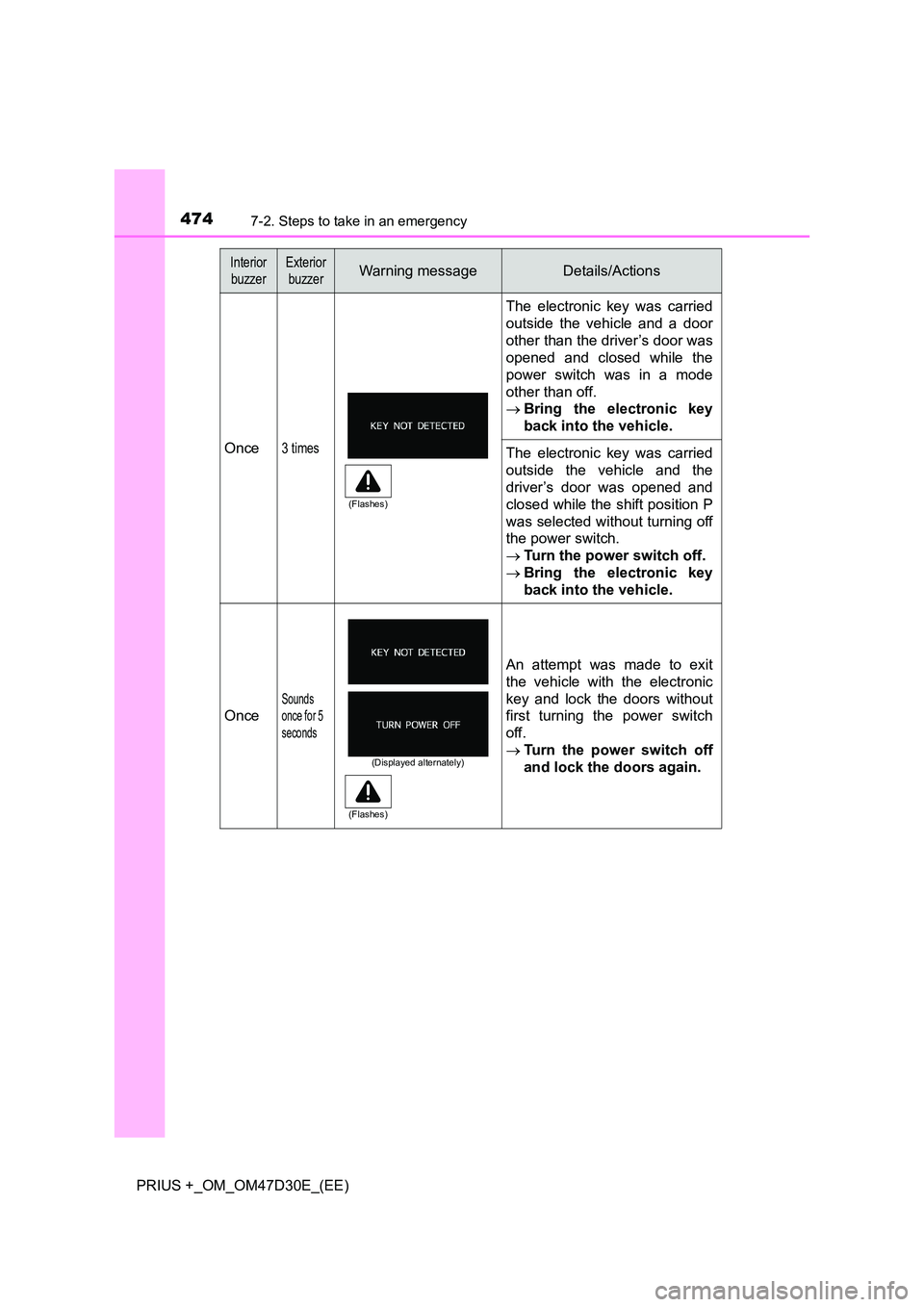

4747-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
Once3 times
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
power switch was in a mode
other than off.
 Bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while the shift position P
was selected without turning off
the power switch.
 Turn the power switch off.
 Bring the electronic key
back into the vehicle.
Once
Sounds
once for 5
seconds
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the power switch
off.
 Turn the power switch off
and lock the doors again.
Interior
buzzer
Exterior
buzzerWarning messageDetails/Actions
(Flashes)
(Displayed alternately)
(Flashes)

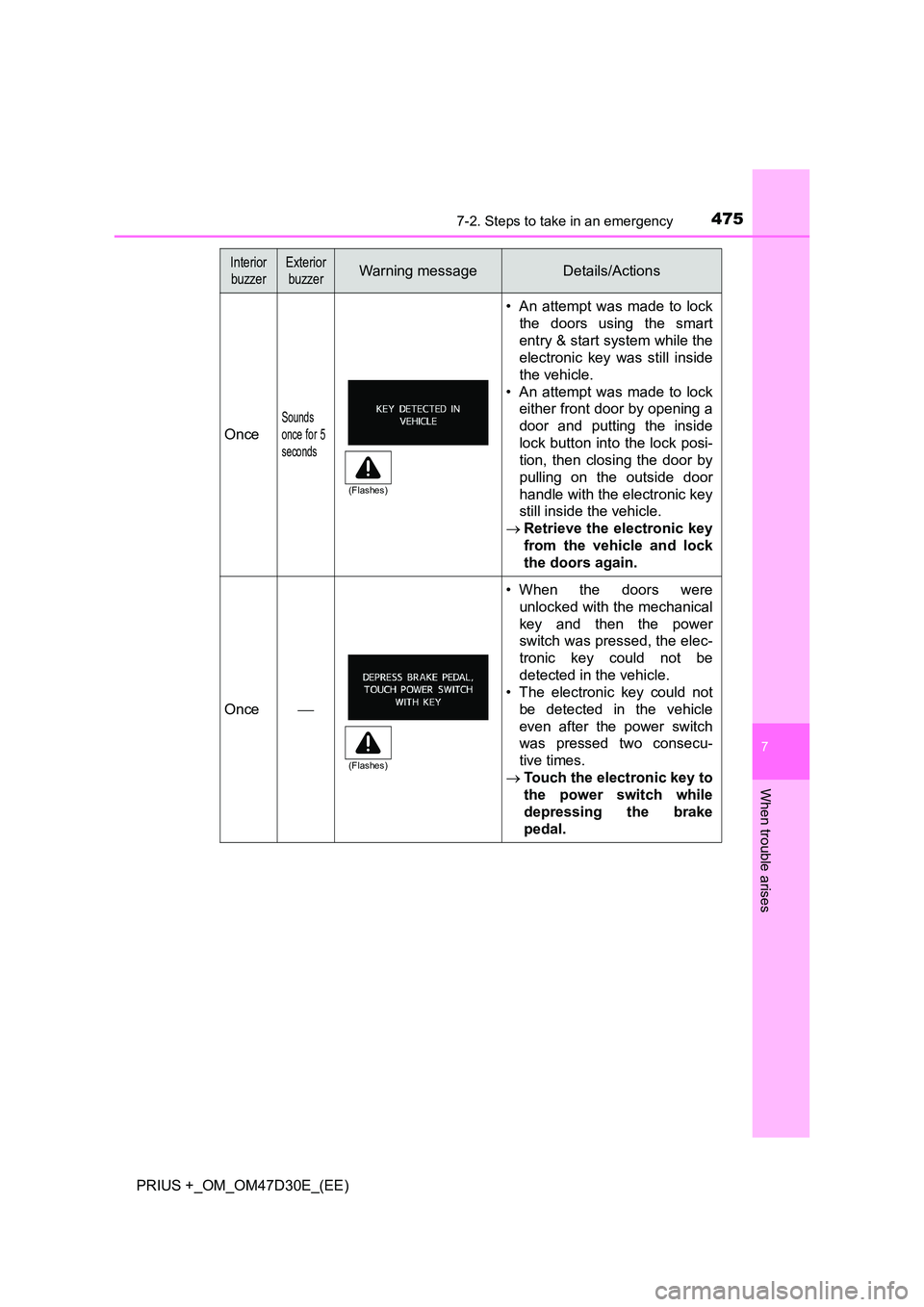

4757-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
Once
Sounds
once for 5
seconds
• An attempt was made to lock
the doors using the smart
entry & start system while the
electronic key was still inside
the vehicle.
• An attempt was made to lock
either front door by opening a
door and putting the inside
lock button into the lock posi-
tion, then closing the door by
pulling on the outside door
handle with the electronic key
still inside the vehicle.
 Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
• When the doors were
unlocked with the mechanical
key and then the power
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the power switch
was pressed two consecu-
tive times.
 Touch the electronic key to
the power switch while
depressing the brake
pedal.
Interior
buzzer
Exterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

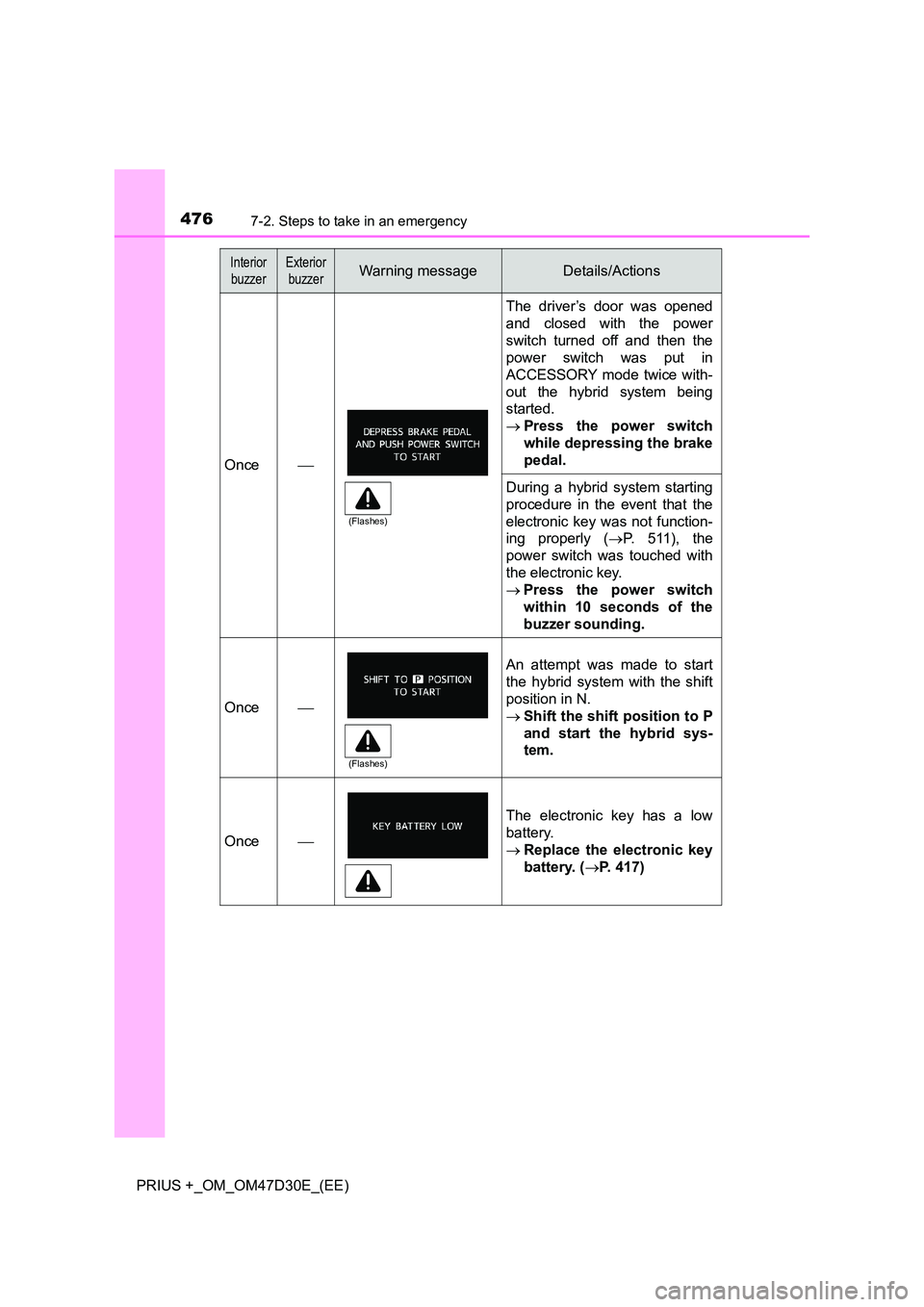

4767-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
Once
The driver’s door was opened
and closed with the power
switch turned off and then the
power switch was put in
ACCESSORY mode twice with-
out the hybrid system being
started.
 Press the power switch
while depressing the brake
pedal.
During a hybrid system starting
procedure in the event that the
electronic key was not function-
ing properly ( P. 5 1 1 ) , t h e
power switch was touched with
the electronic key.
 Press the power switch
within 10 seconds of the
buzzer sounding.
Once
An attempt was made to start
the hybrid system with the shift
position in N.
 Shift the shift position to P
and start the hybrid sys-
tem.
Once
The electronic key has a low
battery.
 Replace the electronic key
battery. ( P. 417)
Interior
buzzer
Exterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

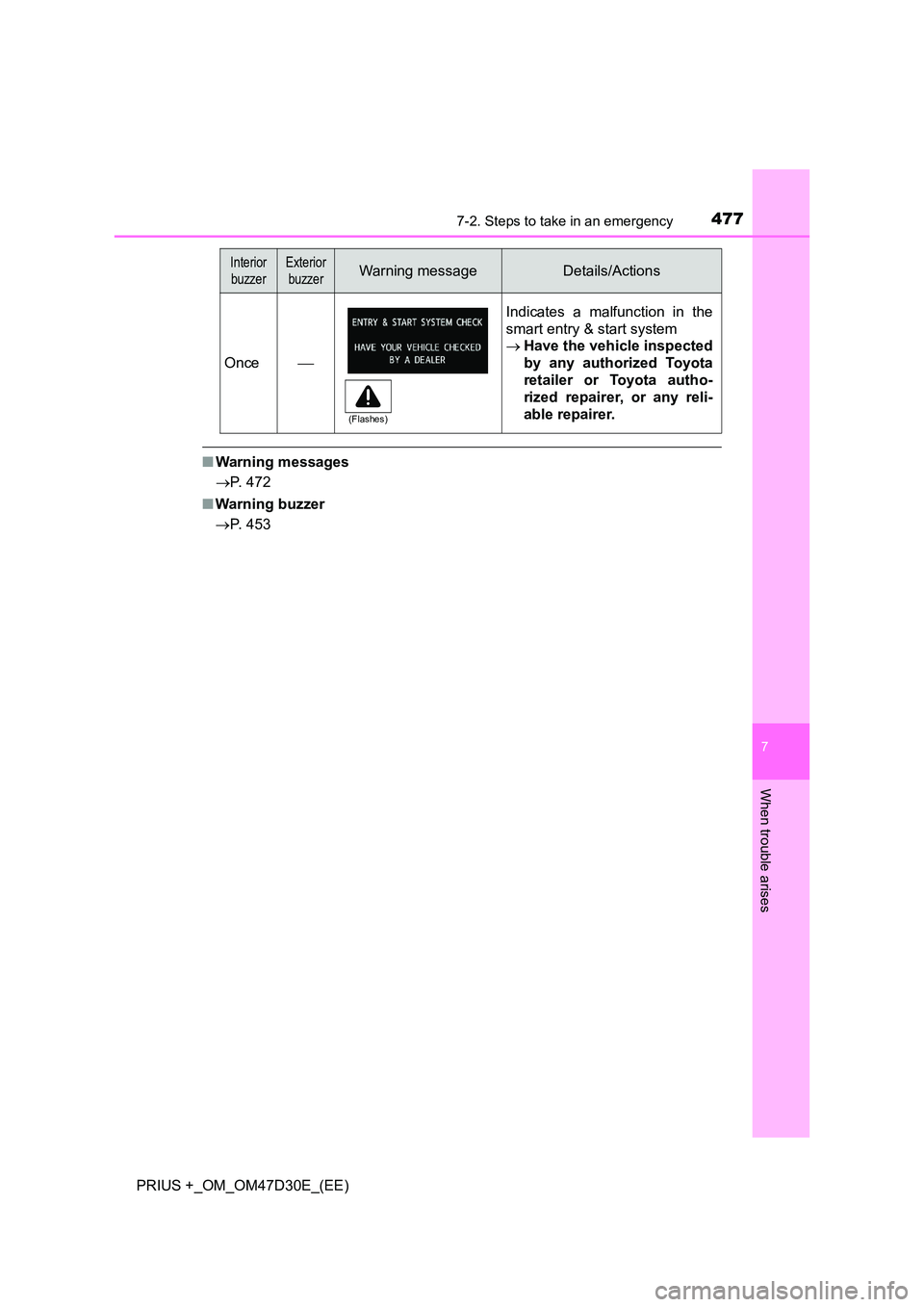

4777-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
■Warning messages
 P. 472
■ Warning buzzer
 P. 453
Once
Indicates a malfunction in the
smart entry & start system
 Have the vehicle inspected
by any authorized Toyota
retailer or Toyota autho-
rized repairer, or any reli-
able repairer.
Interior
buzzer
Exterior
buzzerWarning messageDetails/Actions
(Flashes)

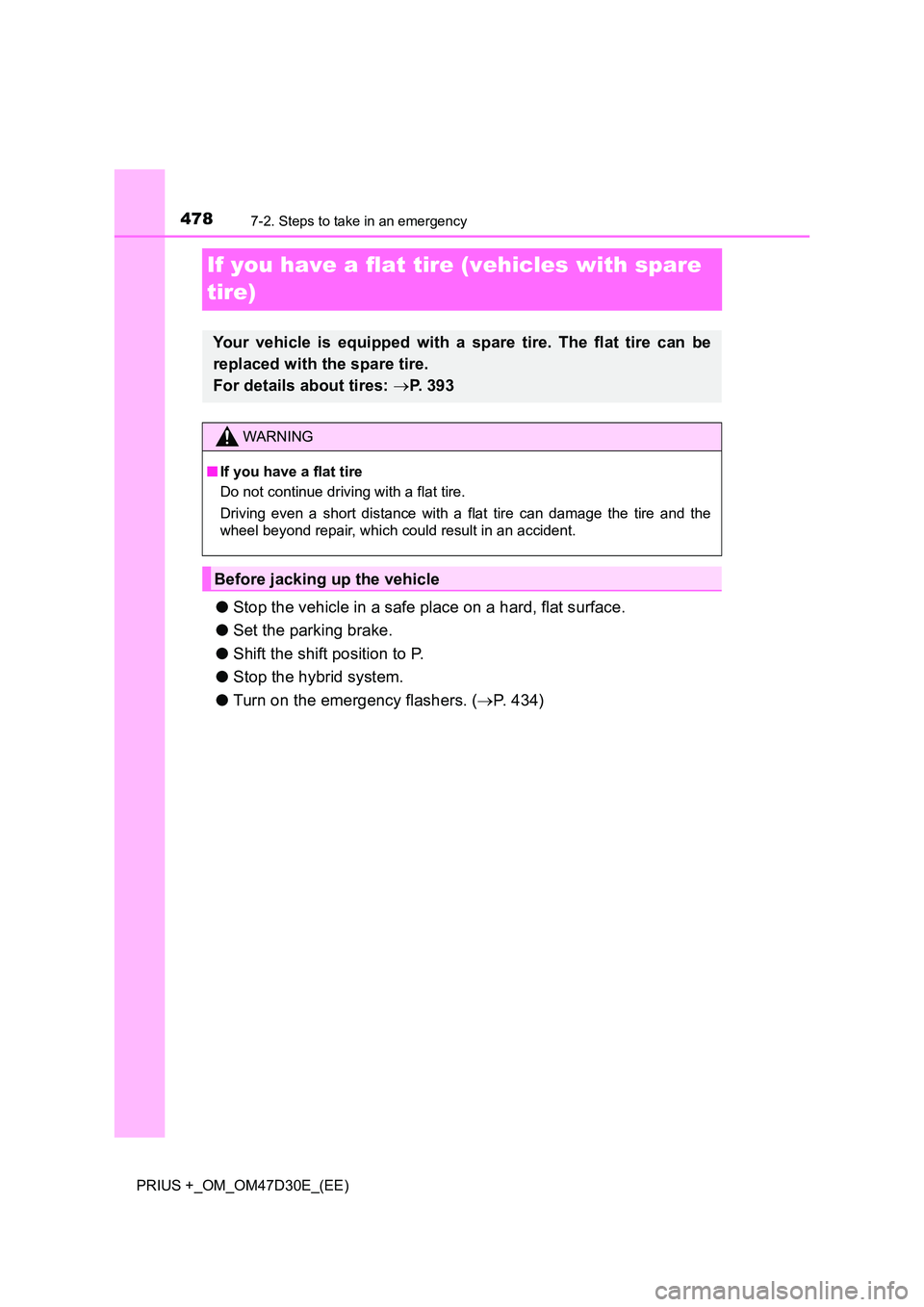

4787-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
If you have a flat tire (vehicles with spare
tire)
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 434)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 3 9 3
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle

4797-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises

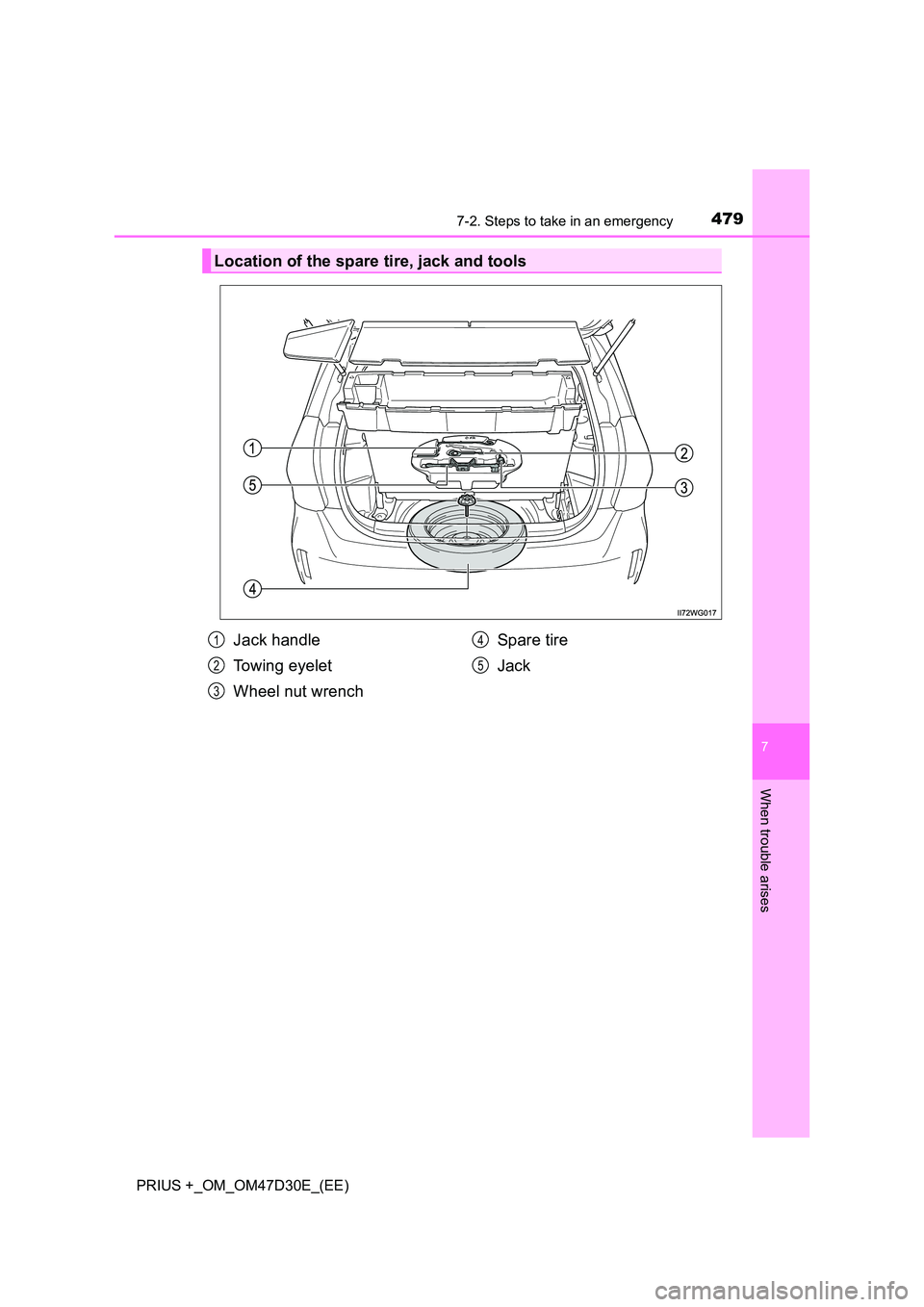

Location of the spare tire, jack and tools
Jack handle
Towing eyelet
Wheel nut wrench
Spare tire
Jack
1
2
3
4
5

4807-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Put the jack properly in its jack point.
● Do not put any part of your body under the vehicle while it is supported by
the jack.
● Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
● Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
