TOYOTA PRIUS PRIME 2017 2.G Owners Manual

PRIUS PRIME_OM_OM47A88U_(U)
2013. Instrument cluster
3
Instrument cluster
■Switching contents displayed on the sub-screenPress or of the
meter control switches and
select the sub-screen.
When the sub-screen is selected,
is displayed on the sub-
screen.
Press or of the meter control switches to select the dis-
play item.
One of the following 3 items can be displayed.
1
2

202
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster

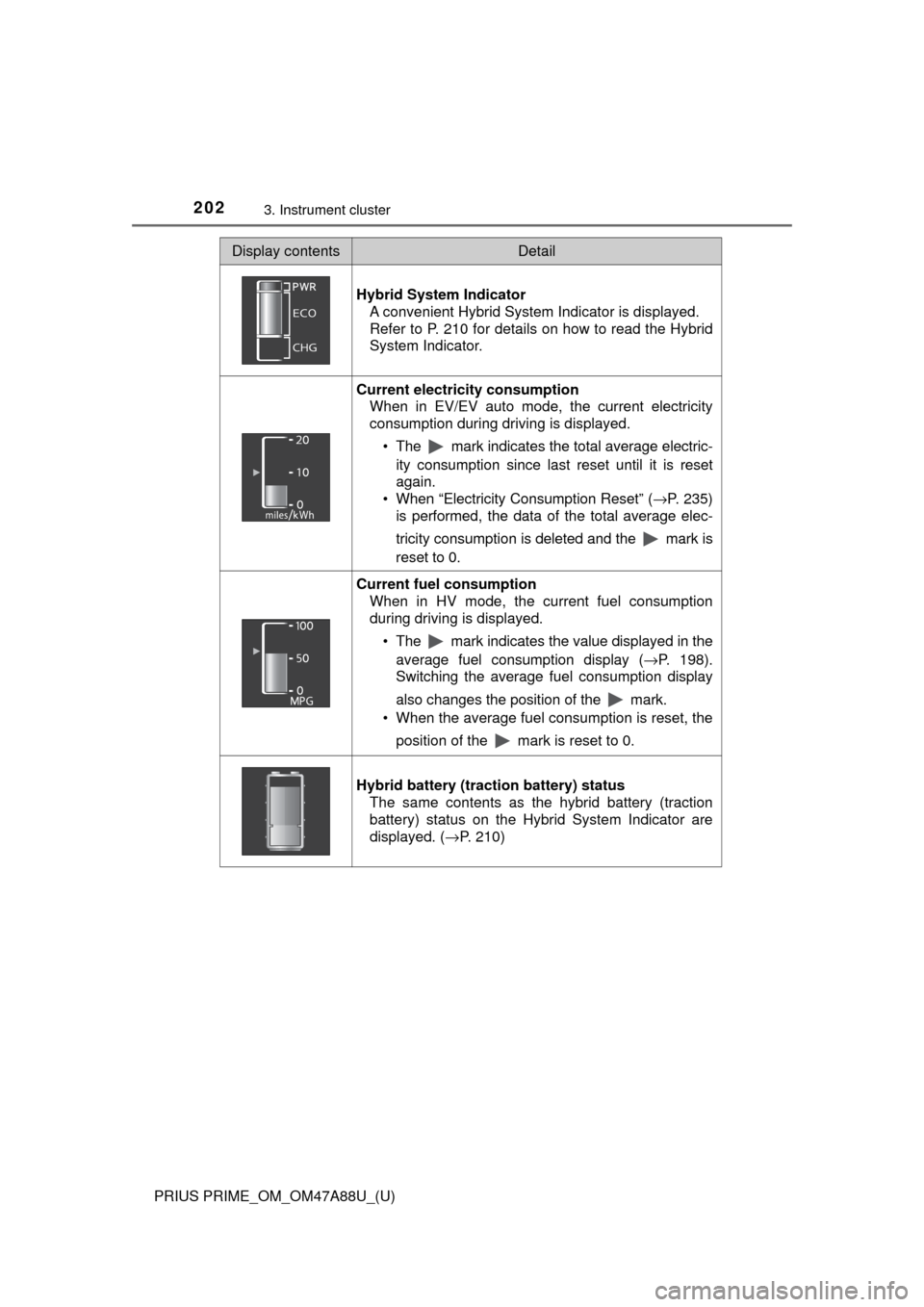

Display contentsDetail
Hybrid System Indicator A convenient Hybrid System Indicator is displayed.
Refer to P. 210 for details on how to read the Hybrid
System Indicator.
Current electricity consumption When in EV/EV auto mode, the current electricity
consumption during driving is displayed.
• The mark indicates the total average electric-ity consumption since last reset until it is reset
again.
• When “Electricity Consumption Reset” ( →P. 235)
is performed, the data of the total average elec-
tricity consumption is deleted and the mark is
reset to 0.
Current fuel consumption
When in HV mode, the current fuel consumption
during driving is displayed.
• The mark indicates the value displayed in theaverage fuel consumption display ( →P. 198).
Switching the average fuel consumption display
also changes the position of the mark.
• When the average fuel consumption is reset, the
position of the mark is reset to 0.
Hybrid battery (traction battery) status The same contents as the hybrid battery (traction
battery) status on the Hybrid System Indicator are
displayed. ( →P. 210)

PRIUS PRIME_OM_OM47A88U_(U)
2033. Instrument cluster
3
Instrument cluster
■Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● When “-” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.
■ Electricity consumption
When the unit is set to “MPH”:
Electricity consumption is the consumption rate of the electricity when EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, driven distance per kWh of electricity consumed
(“miles/kWh”) is displayed as elec tricity consumption on each screen.
When the unit is set to “km/h”:
Electricity consumption is the consumption rate of the electricity when EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, electricity consumed per 100 km (“kWh/100 km”) is
displayed as electricity consumption on each screen.
■ EV driving range
→P. 100
■ Distance to empty
●This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
● When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled without
turning the power switch off, the display may not be updated.

204
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster
■Switching the driving mode ( →P. 406)
*: The animation displayed when the driving mode is switched can be turned
off in the “Meter Customize” settings. ( →P. 233)
When the driving mode is switched, the
driving mode indicator changes and an
animation
* is displayed on the multi-infor-
mation display.
Also, the background color of the main
display, energy monitor ( →P. 208) and
Hybrid System Indicator ( →P. 210)
change as follows.
Driving modesBackground color
Normal mode Green
Power modeRed
Eco drive modeBlue

205
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster
3
Instrument cluster

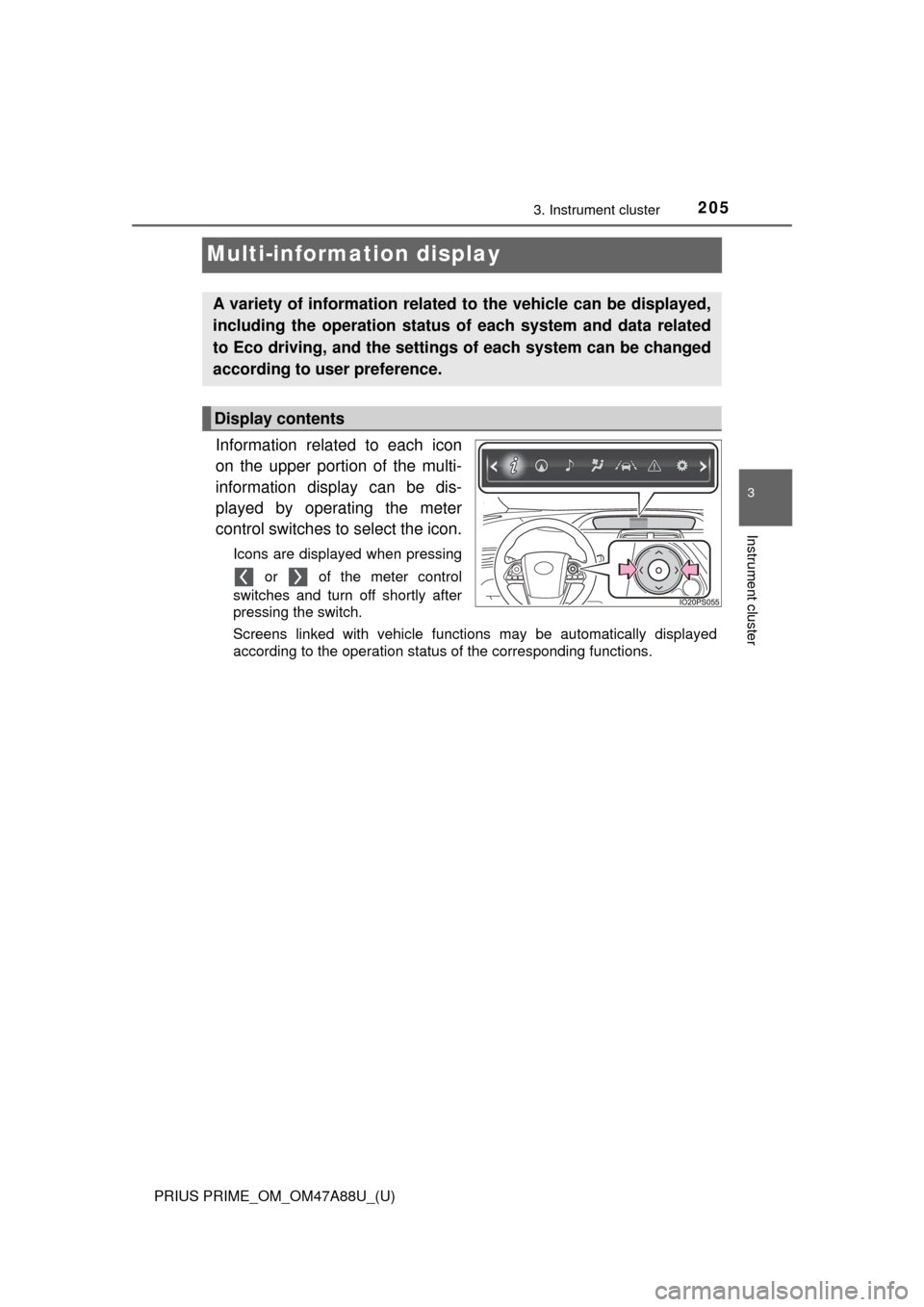

Multi-information display
Information related to each icon
on the upper portion of the multi-
information display can be dis-
played by operating the meter
control switches to select the icon.
Icons are displayed when pressing or of the meter control
switches and turn off shortly after
pressing the switch.
Screens linked with vehicle functions may be automatically displayed
according to the operation status of the corresponding functions.
A variety of information related to the vehicle can be displayed,
including the operation status of each system and data related
to Eco driving, and the settings of each system can be changed
according to user preference.
Display contents

206
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster
*: When there is a warning message that can be displayed, the color of changes to amber.

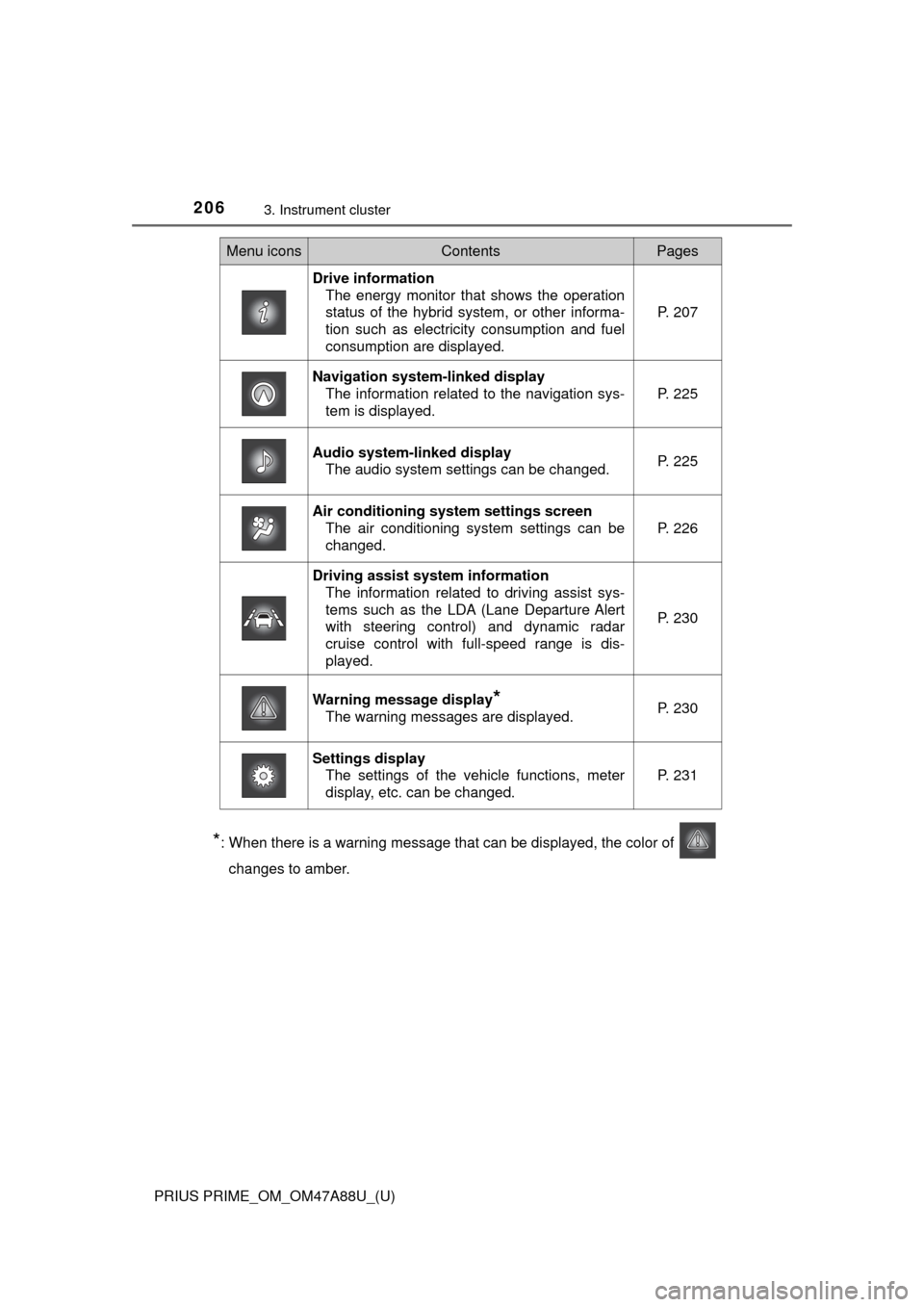

Menu iconsContentsPages
Drive information The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion such as electricity consumption and fuel
consumption are displayed. P. 207
Navigation system-linked display
The information related to the navigation sys-
tem is displayed.
P. 225
Audio system-linked displayThe audio system settings can be changed.P. 225
Air conditioning system settings screenThe air conditioning system settings can be
changed.
P. 226
Driving assist system informationThe information related to driving assist sys-
tems such as the LDA (Lane Departure Alert
with steering control) and dynamic radar
cruise control with full-speed range is dis-
played.
P. 230
Warning message display*
The warning messages are displayed.P. 230
Settings displayThe settings of the vehicle functions, meter
display, etc. can be changed.
P. 231

PRIUS PRIME_OM_OM47A88U_(U)
2073. Instrument cluster
3
Instrument cluster

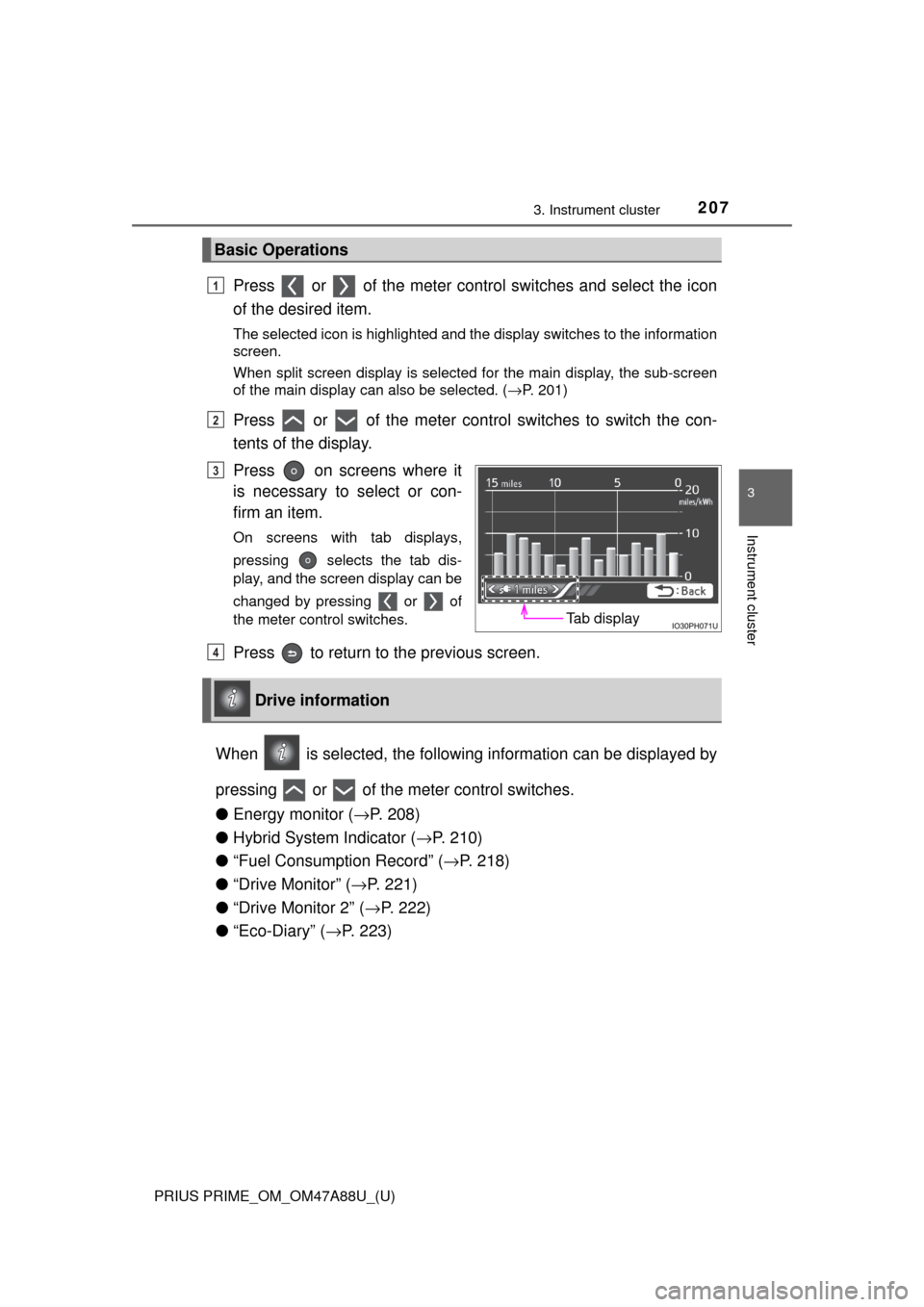

Press or of the meter control switches and select the icon
of the desired item.
The selected icon is highlighted and the display switches to the information
screen.
When split screen display is selected for the main display, the sub-screen
of the main display can also be selected. ( →P. 201)
Press or of the meter control switches to switch the con-
tents of the display.
Press on screens where it
is necessary to select or con-
firm an item.
On screens with tab displays,
pressing selects the tab dis-
play, and the screen display can be
changed by pressing or of
the meter control switches.
Press to return to the previous screen.
When is selected, the followi ng information can be displayed by
pressing or of the meter control switches.
● Energy monitor ( →P. 208)
● Hybrid System Indicator ( →P. 210)
● “Fuel Consumption Record” ( →P. 218)
● “Drive Monitor” ( →P. 221)
● “Drive Monitor 2” ( →P. 222)
● “Eco-Diary” ( →P. 223)
Basic Operations
1
2
Tab display
3
Drive information
4

208
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster

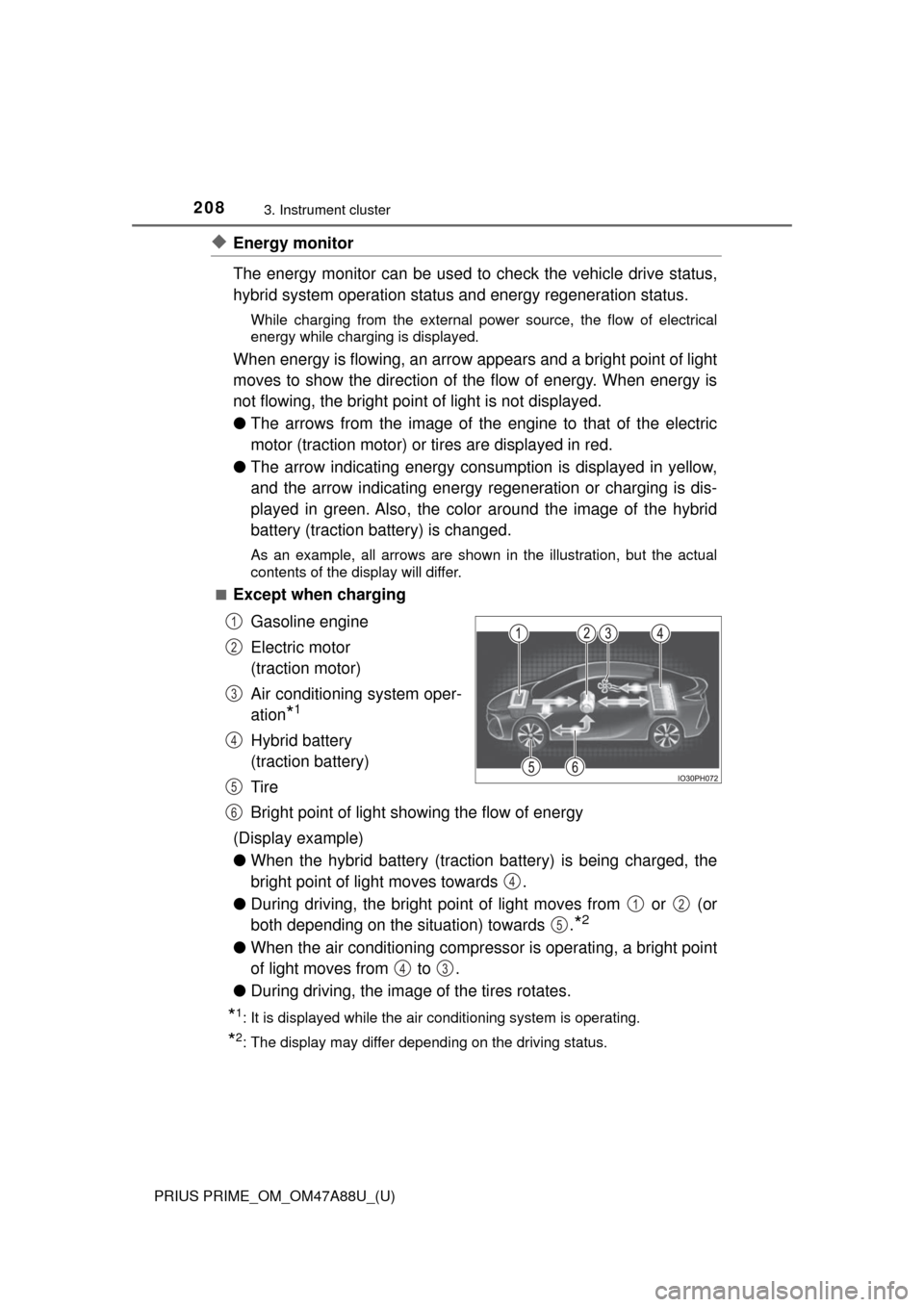

◆Energy monitor
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
While charging from the external pow er source, the flow of electrical
energy while charging is displayed.
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light is not displayed.
● The arrows from the image of the engine to that of the electric
motor (traction motor) or tires are displayed in red.
● The arrow indicating energy consumption is displayed in yellow,
and the arrow indicating energy regeneration or charging is dis-
played in green. Also, the colo r around the image of the hybrid
battery (traction battery) is changed.
As an example, all arrows are shown in the illustration, but the actual
contents of the display will differ.
■
Except when charging
Gasoline engine
Electric motor
(traction motor)
Air conditioning system oper-
ation
*1
Hybrid battery
(traction battery)
Tire
Bright point of light showing the flow of energy
(Display example)
● When the hybrid battery (traction battery) is being charged, the
bright point of light moves towards .
● During driving, the bright point of light moves from or (or
both depending on the situation) towards .
*2
●When the air conditioning compressor is operating, a bright point
of light moves from to .
● During driving, the image of the tires rotates.
*1: It is displayed while the air conditioning system is operating.
*2: The display may differ depending on the driving status.
1
2
3
4
5
6
4
12
5
43

PRIUS PRIME_OM_OM47A88U_(U)
2093. Instrument cluster
3
Instrument cluster

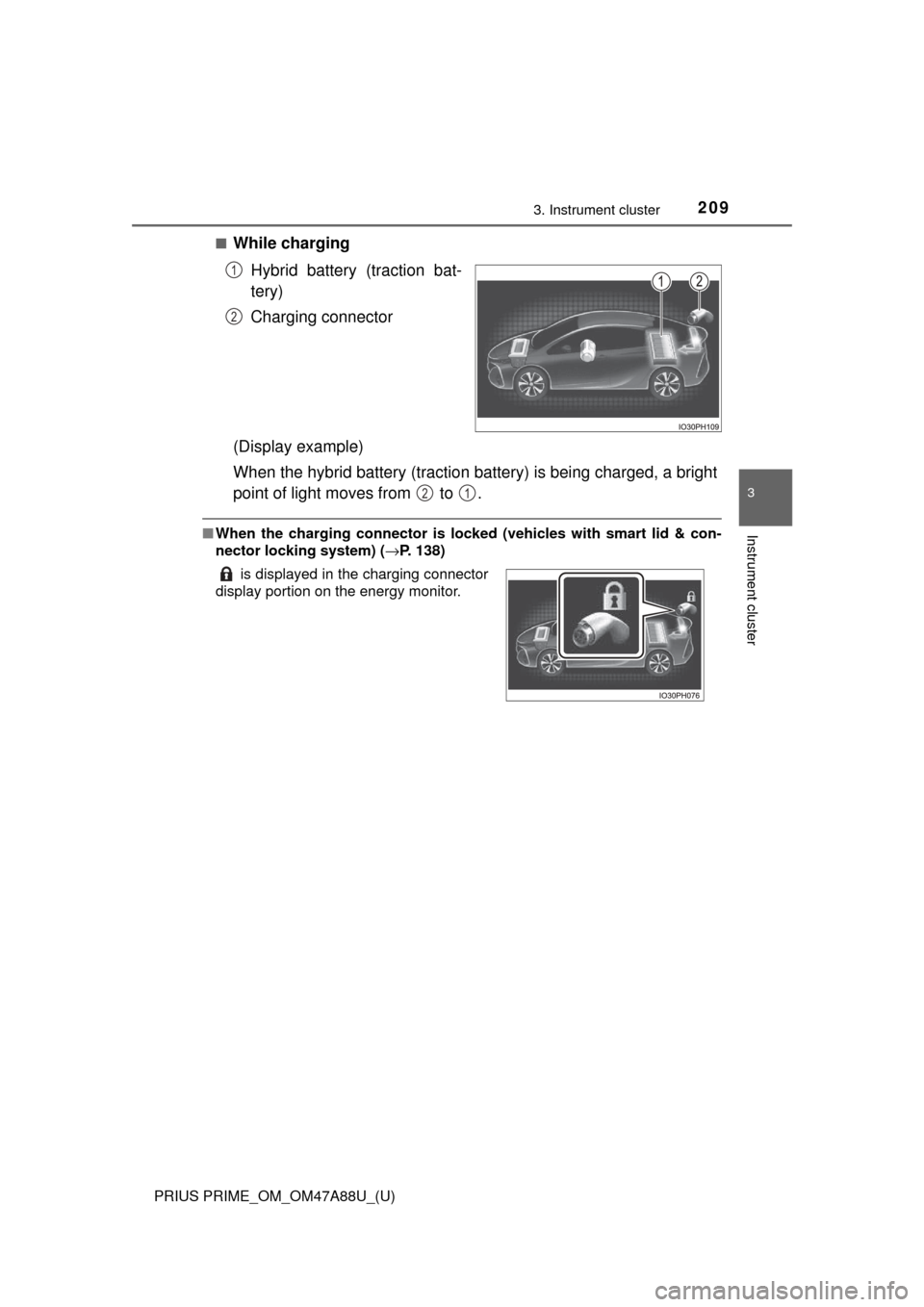

■While chargingHybrid battery (traction bat-
tery)
Charging connector
(Display example)
When the hybrid battery (traction battery) is being charged, a bright
point of light moves from to .
■ When the charging connector is lo cked (vehicles with smart lid & con-
nector locking system) ( →P. 138)
1
2
is displayed in the charging connector
display portion on the energy monitor.
21

210
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster

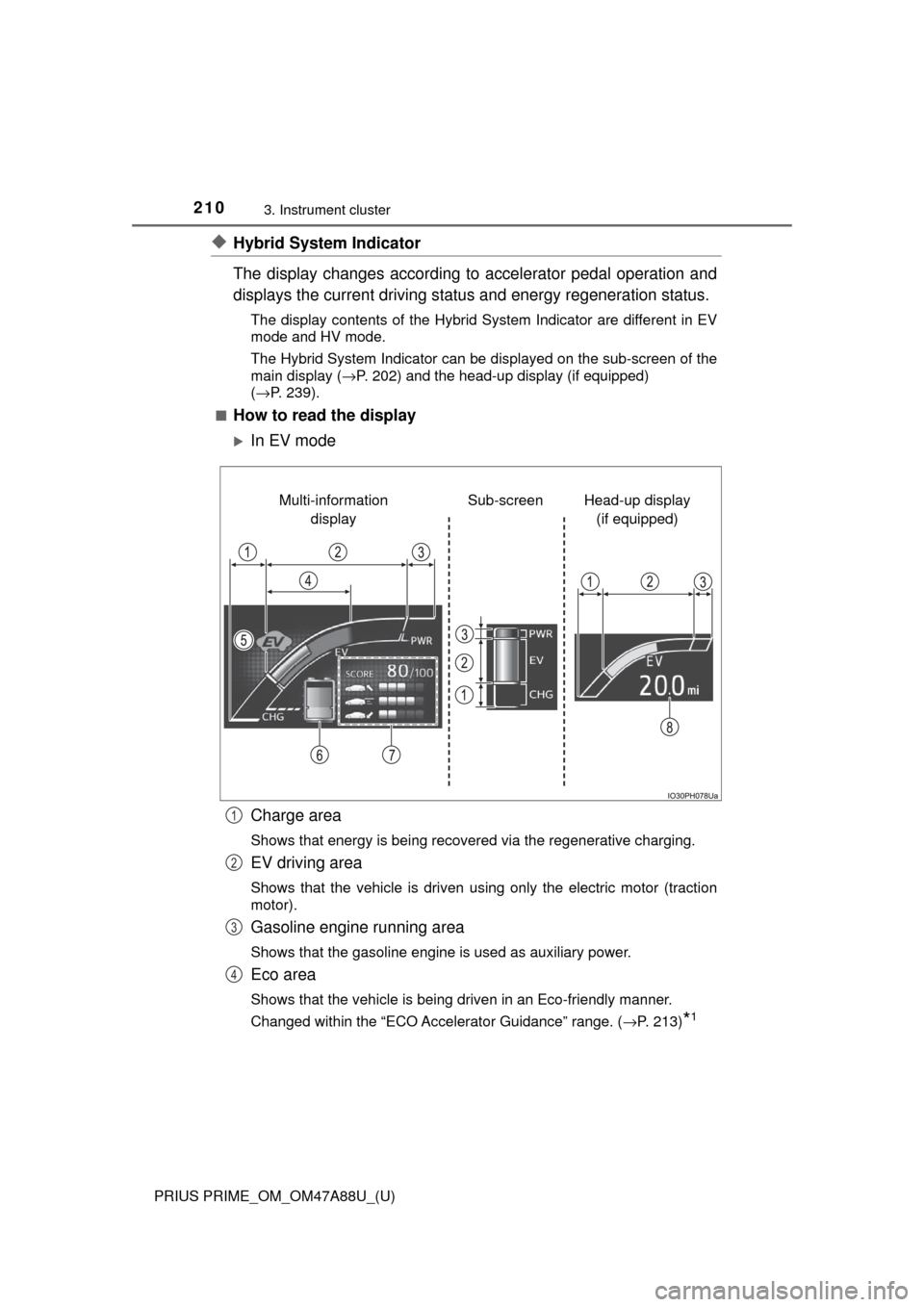

◆Hybrid System Indicator
The display changes according to accelerator pedal operation and
displays the current driving status and energy regeneration status.
The display contents of the Hybrid System Indicator are different in EV
mode and HV mode.
The Hybrid System Indicator can be displayed on the sub-screen of the
main display (→P. 202) and the head-up display (if equipped)
( →P. 239).
■
How to read the display
In EV mode
Charge area
Shows that energy is being recovered via the regenerative charging.
EV driving area
Shows that the vehicle is driven using only the electric motor (traction
motor).
Gasoline engine running area
Shows that the gasoline engine is used as auxiliary power.
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
Changed within the “ECO Accelerator Guidance” range. ( →P. 213)
*1
Head-up display
(if equipped)
Sub-screen
Multi-information
display
1
2
3
4
