TOYOTA PRIUS PRIME 2017 2.G Quick Reference Guide

PRIUS PRIME_QG_OM47B04U_(U)
1Charging operation
2Plug-in Hybrid Applications
3Basic operation
4Things you must know
The quick guide is not intended as a substitute for your “OWNER’S
MANUAL”. We strongly encourage you to review the “OWNER’S MANUAL”
and supplementary manuals so you will have a better understanding of your
vehicle’s capabilities and limitations.
Depending on specifications, the vehicle shown in the illustration may differ
from your vehicle in terms of equipment.

2
PRIUS PRIME_QG_OM47B04U_(U)
1. Charging operation

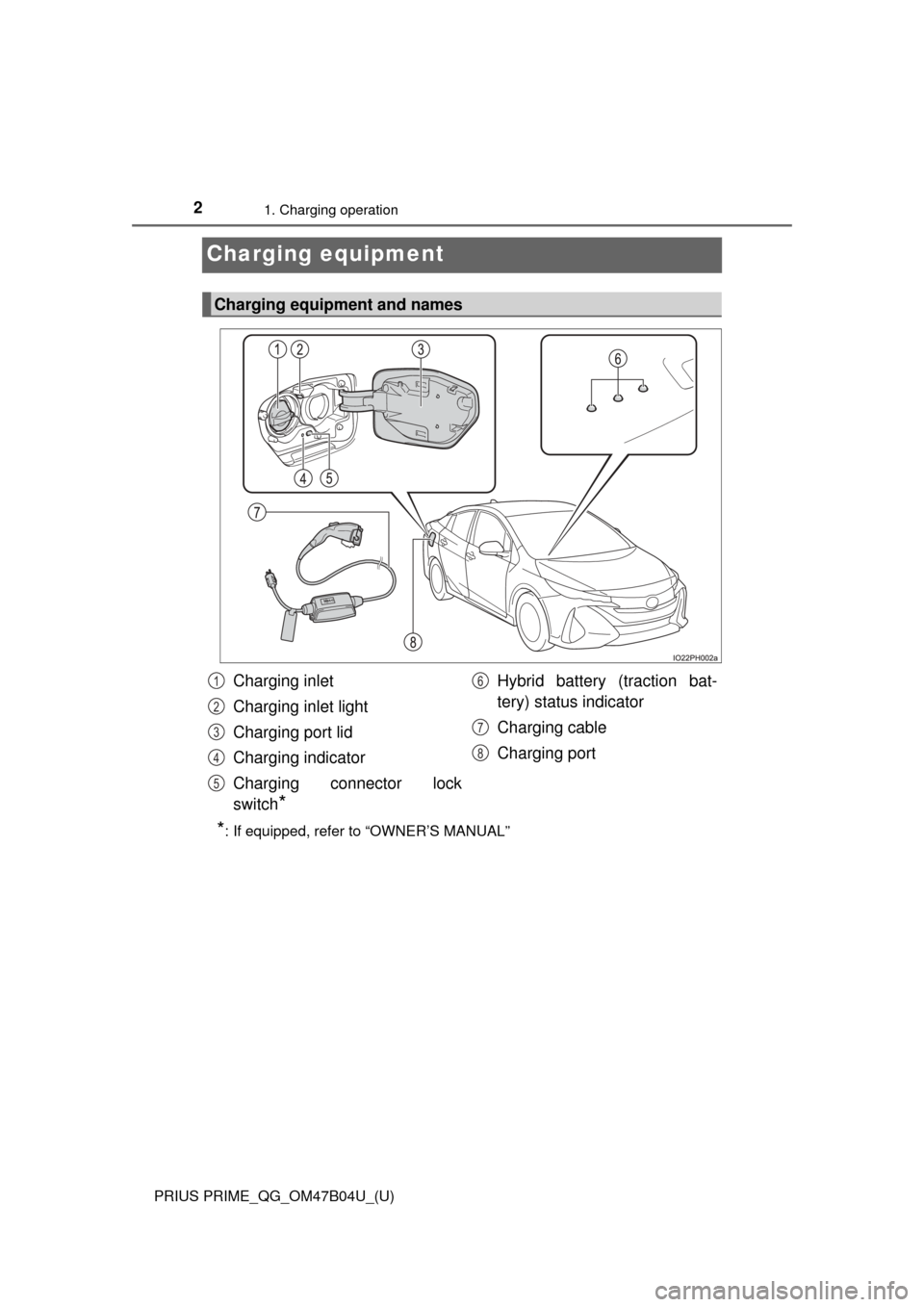

Charging equipment
*: If equipped, refer to “OWNER’S MANUAL”
Charging equipment and names
Charging inlet
Charging inlet light
Charging port lid
Charging indicator
Charging connector lock
switch
*
Hybrid battery (traction bat-
tery) status indicator
Charging cable
Charging port1
2
3
4
5
6
7
8

PRIUS PRIME_QG_OM47B04U_(U)
31. Charging operation
1
Charging operation

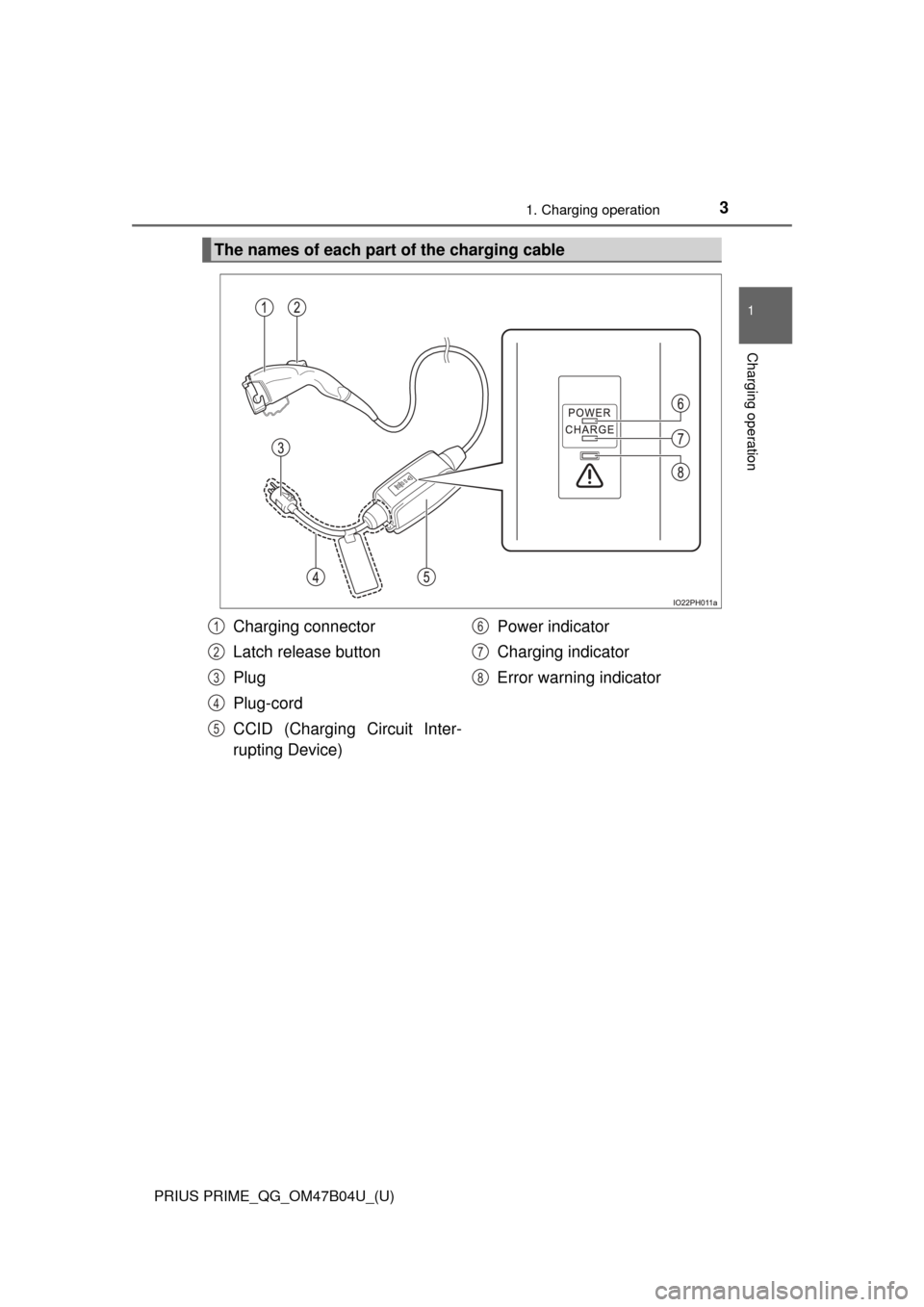

The names of each part of the charging cable
Charging connector
Latch release button
Plug
Plug-cord
CCID (Charging Circuit Inter-
rupting Device)Power indicator
Charging indicator
Error warning indicator1
2
3
4
5
6
7
8

4
PRIUS PRIME_QG_OM47B04U_(U)
1. Charging operation
■Safety functions
The CCID (Charging Circuit Interrupting Device) has the following
safety features.
●Electrical leakage detection function
If an electrical leakage is detected during charging, the power
source will be automatically interrupted, thus preventing fires or
electrical shocks caused by electrical leakage.
● Automatic check function
This is an automatic system chec k that is run before charging
begins to check for problems in the operation of the electrical
leakage detection function.
● Temperature detection function
A temperature detection function is equipped to the plug. While
charging, if heat is generated due to looseness on the outlet side
etc., this function suppresses he at by controlling the charging
current.
● Conditions for supplying current to the vehicle
The CCID (Charging Circuit Interrupting Device) is designed to
prevent electrical current from being supplied to the charging
connector when it is not connected to the vehicle, even if the plug
is inserted into the outlet.
●The hybrid system will not start while the charging cable is attached to the
vehicle, even if the power switch is operated.
● If the charging cable is connected while the “READY” indicator is illumi-
nated, the hybrid system will stop automatically and driving will not be possi-
ble.
● When the charging cable is connected to the vehicle, the shift position can-
not be changed from P to another position.

PRIUS PRIME_QG_OM47B04U_(U)
51. Charging operation
1
Charging operation

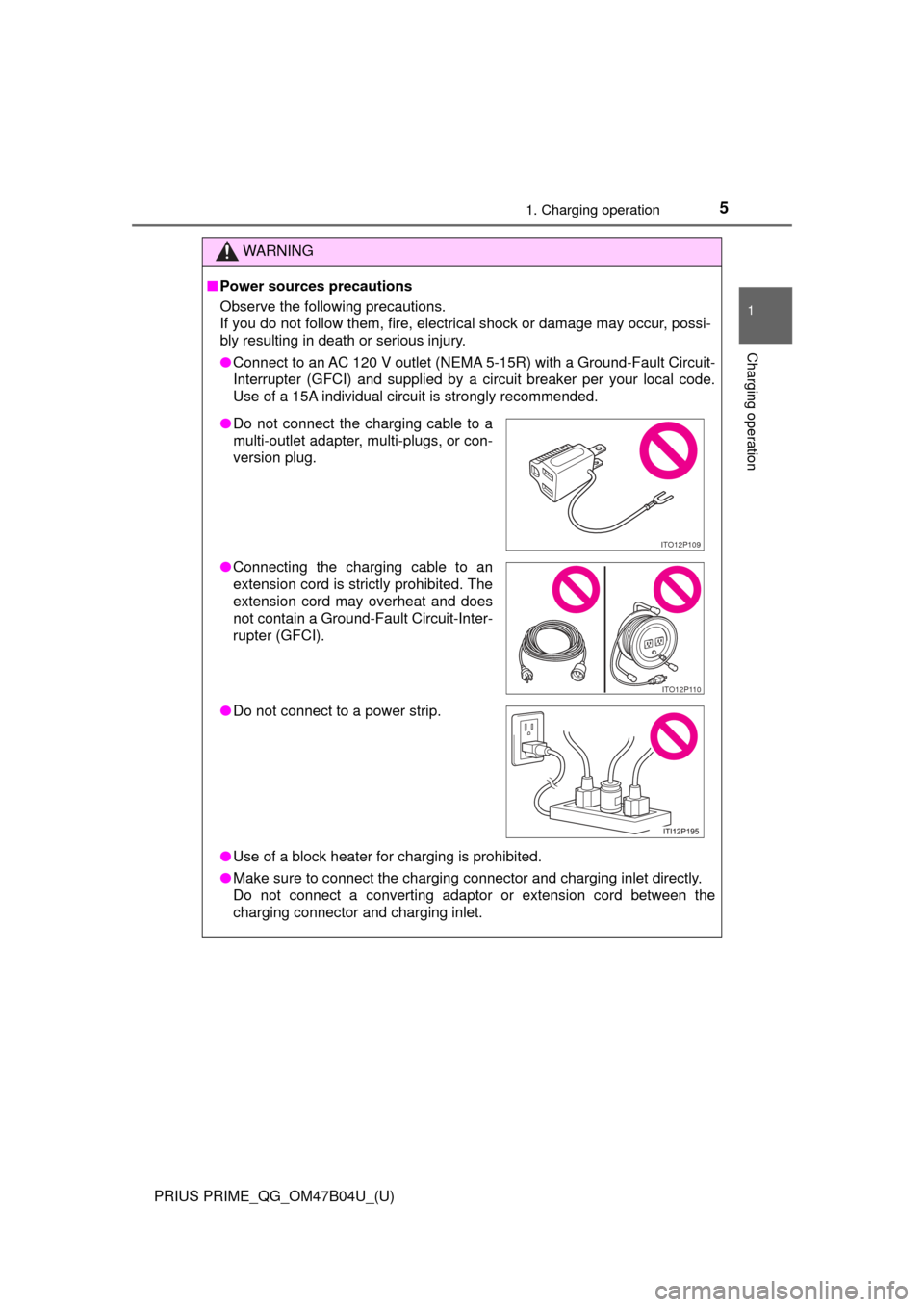

WARNING
■Power sources precautions
Observe the following precautions.
If you do not follow them, fire, electrical shock or damage may occur, possi-
bly resulting in death or serious injury.
● Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit-
Interrupter (GFCI) and supplied by a circuit breaker per your local code.
Use of a 15A individual circuit is strongly recommended.
● Use of a block heater for charging is prohibited.
● Make sure to connect the charging connector and charging inlet directly.
Do not connect a converting adaptor or extension cord between the
charging connector and charging inlet.
●Do not connect the charging cable to a
multi-outlet adapter, multi-plugs, or con-
version plug.
● Connecting the charging cable to an
extension cord is strictly prohibited. The
extension cord may overheat and does
not contain a Ground-Fault Circuit-Inter-
rupter (GFCI).
● Do not connect to a power strip.
ITO12P109
ITO12P110

6
PRIUS PRIME_QG_OM47B04U_(U)
1. Charging operation

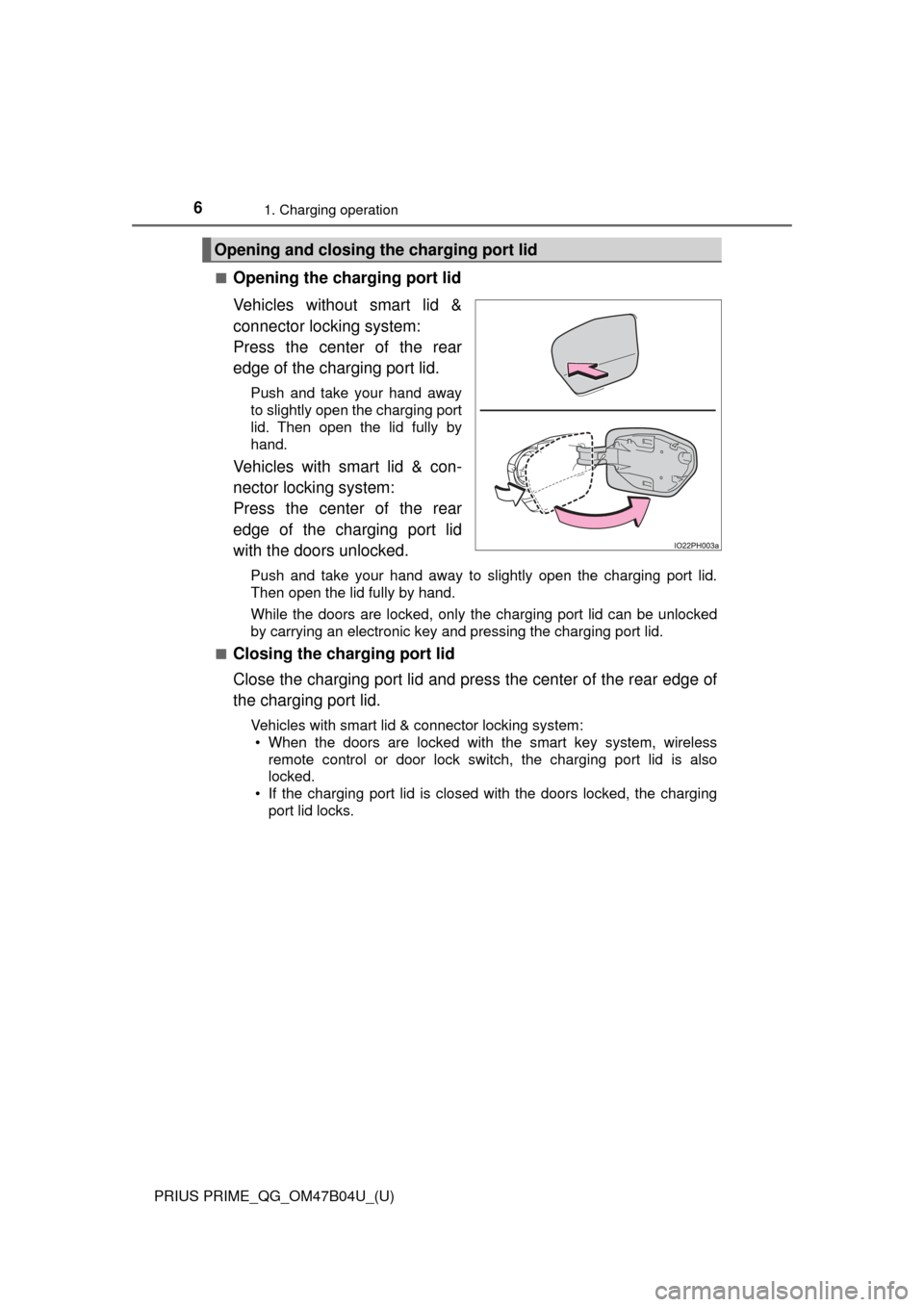

■Opening the charging port lid
Vehicles without smart lid &
connector locking system:
Press the center of the rear
edge of the charging port lid.
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
Vehicles with smart lid & con-
nector locking system:
Press the center of the rear
edge of the charging port lid
with the doors unlocked.
Push and take your hand away to slightly open the charging port lid.
Then open the lid fully by hand.
While the doors are locked, only the charging port lid can be unlocked
by carrying an electronic key and pressing the charging port lid.
■
Closing the charging port lid
Close the charging port lid and press the center of the rear edge of
the charging port lid.
Vehicles with smart lid & connector locking system: • When the doors are locked with the smart key system, wireless
remote control or door lock switch, the charging port lid is also
locked.
• If the charging port lid is closed with the doors locked, the charging
port lid locks.
Opening and closing the charging port lid

PRIUS PRIME_QG_OM47B04U_(U)
71. Charging operation
1
Charging operation

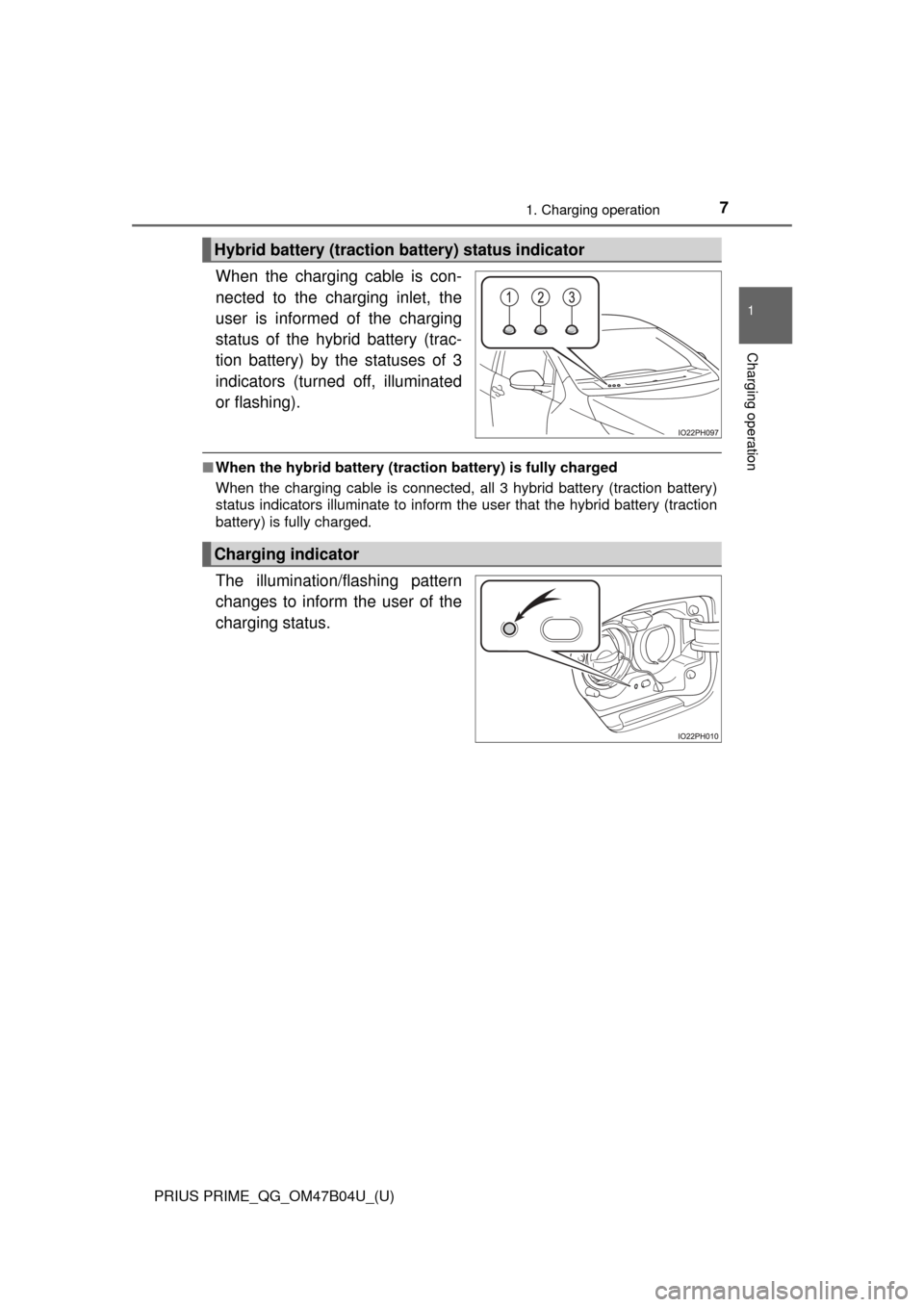

When the charging cable is con-
nected to the charging inlet, the
user is informed of the charging
status of the hybrid battery (trac-
tion battery) by the statuses of 3
indicators (turned off, illuminated
or flashing).
■ When the hybrid battery (tract ion battery) is fully charged
When the charging cable is connected, all 3 hybrid battery (traction battery)
status indicators illuminate to inform the user that the hybrid battery (traction
battery) is fully charged.
The illumination/flashing pattern
changes to inform the user of the
charging status.
Hybrid battery (traction battery) status indicator
Charging indicator

8
PRIUS PRIME_QG_OM47B04U_(U)
1. Charging operation
How to charge
This vehicle has been designed to allow charging from an external
power source using a charging cabl e for exclusive use with standard
household AC outlets.
However, the vehicle differs greatly from standard household electri-
cal goods in the following ways, and incorrect usage could cause fire
or electric shock, possibly lead ing to death or serious injury.
● The charging operation is designed to operate at 12A continuously
for the charge duration (up to 5 hours 10 minutes).
● Charging can be conducted outdoors.
To charge properly, follow the procedure after reading the explanation
below. Charging is intended to be carried out by licensed drivers only
who properly understand the charging procedure.
● Charging should not be carried out by children.
● When charging with a charging equipment, follow the procedures
for using each equipment.
● When charging using a pub lic charging facility, check the setting of
the charging timer function.
• When the charge schedule is registered, temporarily turn off the function or turn “Charge Now” on.
• When the charge schedul e is set to ON, charging will not start
even if the charging cable is connected. Also, charging fee may
occur due to connection of the charging cable.
Charging precautions

PRIUS PRIME_QG_OM47B04U_(U)
91. Charging operation
1
Charging operation

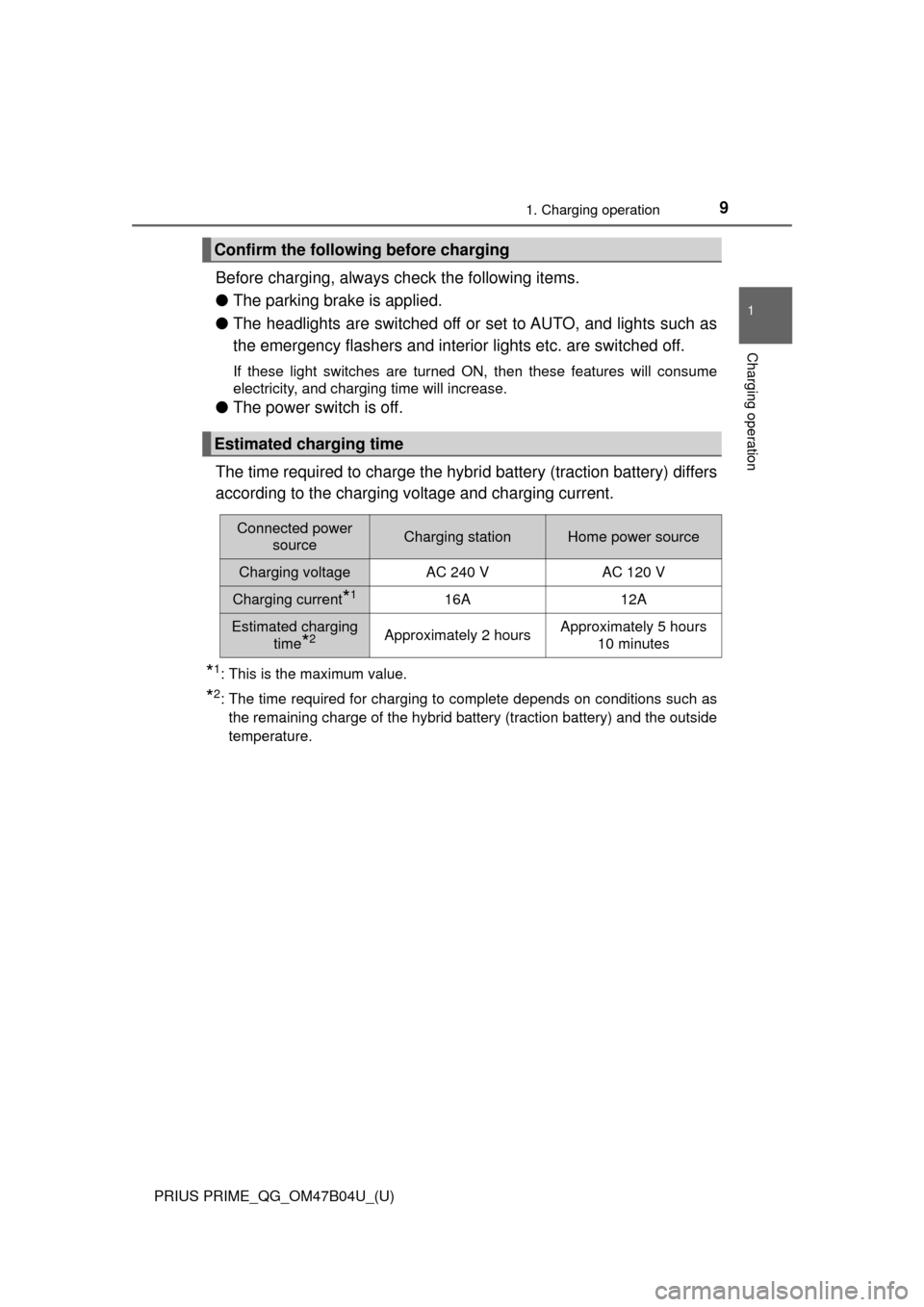

Before charging, always check the following items.
●The parking brake is applied.
● The headlights are switched off or set to AUTO, and lights such as
the emergency flashers and interior lights etc. are switched off.
If these light switches are turned ON, then these features will consume
electricity, and charging time will increase.
●The power switch is off.
The time required to charge the hybr id battery (traction battery) differs
according to the charging voltage and charging current.
*1: This is the maximum value.
*2: The time required for charging to complete depends on conditions such as the remaining charge of the hybrid battery (traction battery) and the outside
temperature.
Confirm the following before charging
Estimated charging time
Connected power sourceCharging stationHome power source
Charging voltageAC 240 VAC 120 V
Charging current*116A12A
Estimated charging
time
*2Approximately 2 hoursApproximately 5 hours 10 minutes

10
PRIUS PRIME_QG_OM47B04U_(U)
1. Charging operation

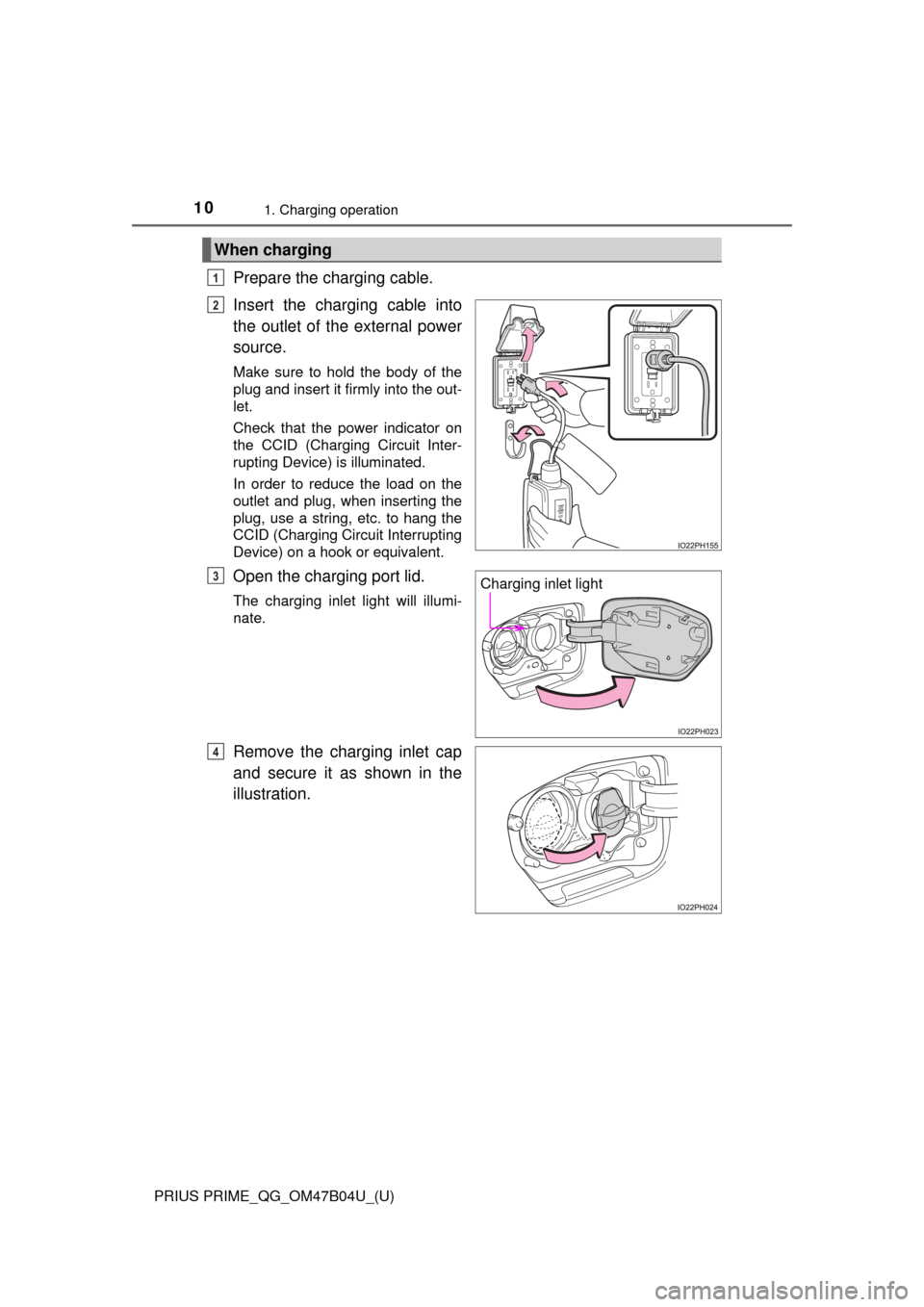

Prepare the charging cable.
Insert the charging cable into
the outlet of the external power
source.
Make sure to hold the body of the
plug and insert it firmly into the out-
let.
Check that the power indicator on
the CCID (Charging Circuit Inter-
rupting Device) is illuminated.
In order to reduce the load on the
outlet and plug, when inserting the
plug, use a string, etc. to hang the
CCID (Charging Circuit Interrupting
Device) on a hook or equivalent.
Open the charging port lid.
The charging inlet light will illumi-
nate.
Remove the charging inlet cap
and secure it as shown in the
illustration.
When charging
1
2
Charging inlet light3
4
