TOYOTA PRIUS PRIME 2018 Accessories, Audio & Navigation (in English)
Manufacturer: TOYOTA, Model Year: 2018, Model line: PRIUS PRIME, Model: TOYOTA PRIUS PRIME 2018Pages: 64, PDF Size: 5.08 MB
Page 1 of 64

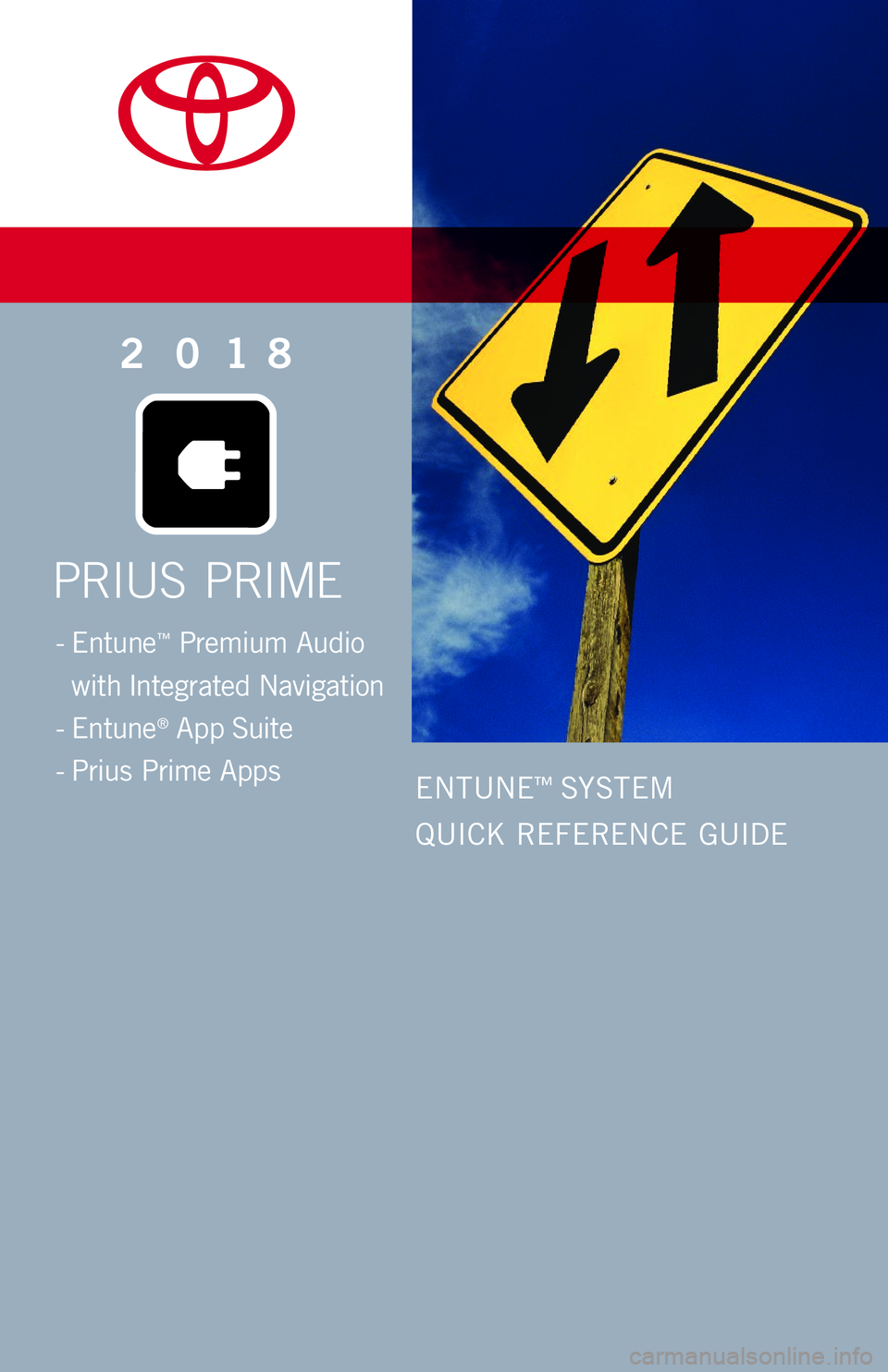

PRIUS PRIME
2018
ENTUNE™ SYSTEM
QUICK REFERENCE GUIDE
- Entune™ Premium Audio
with Integrated Navigation
- Entune® App Suite
- Prius Prime Apps
110820_17-MKG-11337_QRG_PrimePrius_EntuneSystem_2_0F_dh_R2.indd 212/14/17 1:25 PM
Page 2 of 64
1

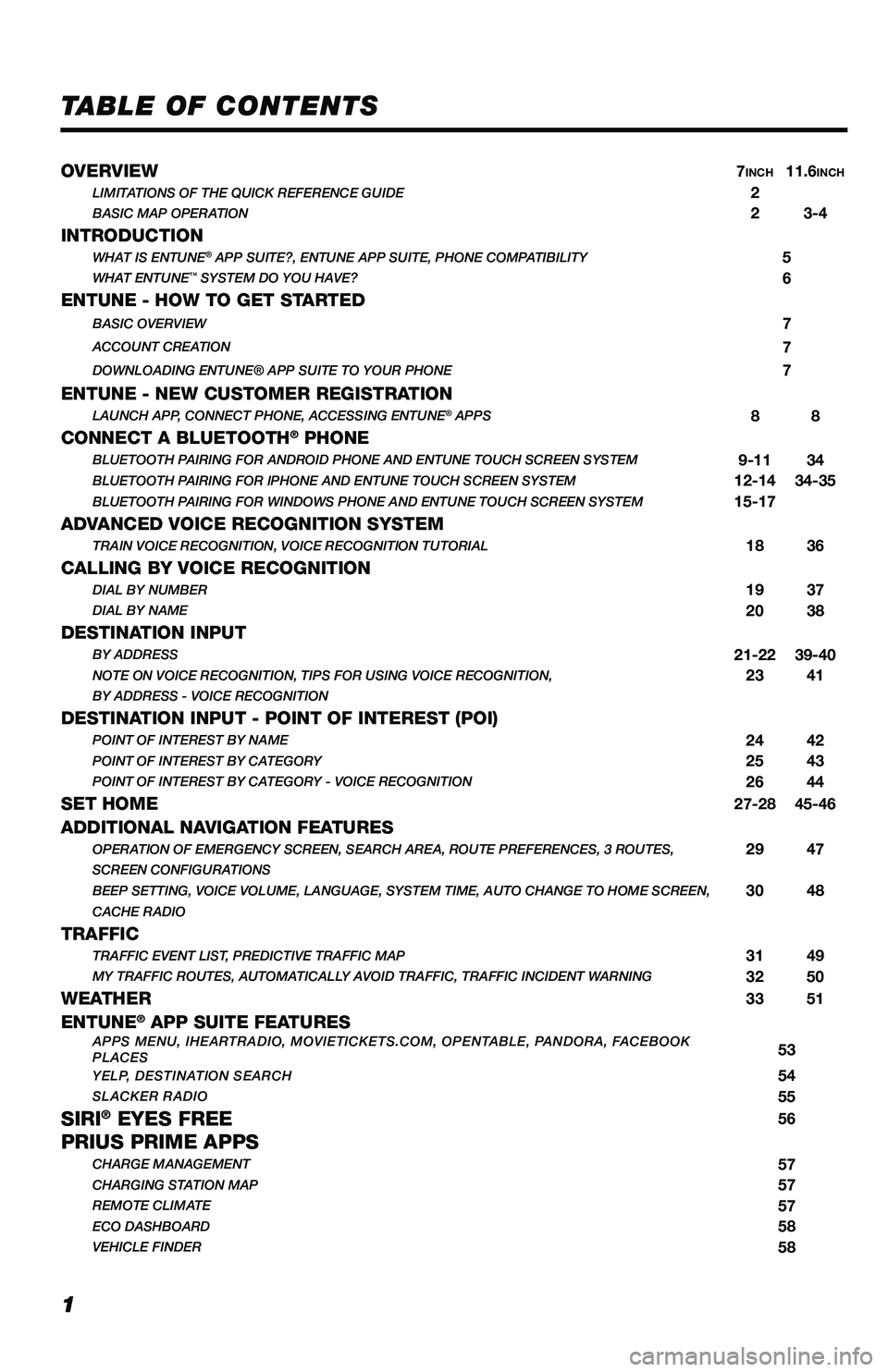

TABLE OF CONTENTS
OVERVIEW
7INCH11.6INCHLIMITATIONS OF THE QUICK REFERENCE GUIDE2BASIC MAP OPERATION23-4
INTRODUCTIONWHAT IS ENTUNE® APP SUITE?, ENTUNE APP SUITE, PHONE COMPATIBILITY5WHAT ENTUNE™ SYSTEM DO YOU HAVE?6
ENTUNE - HOW TO GET STARTEDBASIC OVERVIEW7
ACCOUNT CREATION7
DOWNLOADING ENTUNE® APP SUITE TO YOUR PHONE7
ENTUNE - NEW CUSTOMER REGISTRATIONLAUNCH APP, CONNECT PHONE, ACCESSING ENTUNE® APPS8 8
CONNECT A BLUETOOTH® PHONEBLUETOOTH PAIRING FOR ANDROID PHONE AND ENTUNE TOUCH SCREEN SYSTEM9-11 34BLUETOOTH PAIRING FOR IPHONE AND ENTUNE TOUCH SCREEN SYSTEM12-1434-35BLUETOOTH PAIRING FOR WINDOWS PHONE AND ENTUNE TOUCH SCREEN SYSTEM15-17
ADVANCED VOICE RECOGNITION SYSTEMTRAIN VOICE RECOGNITION, VOICE RECOGNITION TUTORIAL1836
CALLING BY VOICE RECOGNITIONDIAL BY NUMBER1937DIAL BY NAME2038
DESTINATION INPUTBY ADDRESS21-2239-40NOTE ON VOICE RECOGNITION, TIPS FOR USING VOICE RECOGNITION,2341BY ADDRESS - VOICE RECOGNITION
DESTINATION INPUT - POINT OF INTEREST (POI)POINT OF INTEREST BY NAME2442POINT OF INTEREST BY CATEGORY2543POINT OF INTEREST BY CATEGORY - VOICE RECOGNITION2644
SET HOME27-2845-46
ADDITIONAL NAVIGATION FEATURESOPERATION OF EMERGENCY SCREEN, SEARCH AREA, ROUTE PREFERENCES, 3 ROUTES,2947SCREEN CONFIGURATIONS
BEEP SETTING, VOICE VOLUME, LANGUAGE, SYSTEM TIME, AUTO CHANGE TO HOME S\
CREEN,3048CACHE RADIO
TRAFFICTRAFFIC EVENT LIST, PREDICTIVE TRAFFIC MAP3149MY TRAFFIC ROUTES, AUTOMATICALLY AVOID TRAFFIC, TRAFFIC INCIDENT WARNING3250
WEATHER3351
ENTUNE® APP SUITE FEATURESAPPS MENU, IHEARTRADIO, MOVIETICKETS.COM, OPENTABLE, PANDORA, FACEBOOK
PLACES53
YELP, DESTINATION SEARCH54SLACKER RADIO55
SIRI® EYES FREE56
PRIUS PRIME APPSCHARGE MANAGEMENT57CHARGING STATION MAP57REMOTE CLIMATE57ECO DASHBOARD58VEHICLE FINDER58
Page 3 of 64
2

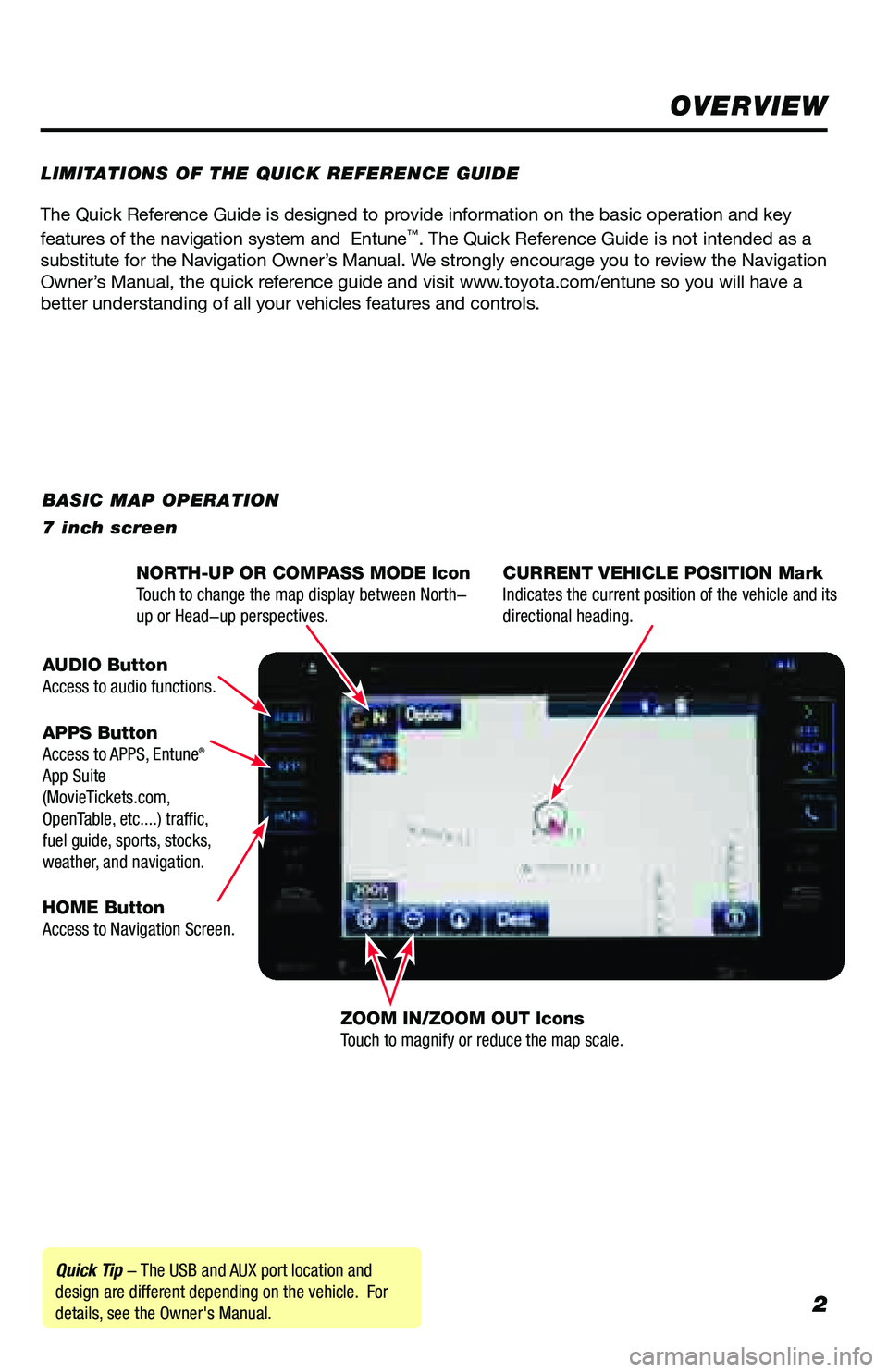

The Quick Reference Guide is designed to provide information on the basic operation and key
features of the navigation system and Entune™. The Quick Reference Guide is not intended as a
substitute for the Navigation Owner’s Manual. We strongly encourage you to review the Navigation
Owner’s Manual, the quick reference guide and visit www.toyota.com/entune so you will have a
better understanding of all your vehicles features and controls.
OVERVIEW
LIMITATIONS OF THE QUICK REFERENCE GUIDE
BASIC MAP OPERATION
7 inch screen
Quick Tip - The USB and AUX port location and
design are different depending on the vehicle. For
details, see the Owner's Manual. NORTH-UP OR COMPASS MODE Icon
Touch to change the map display between North-
up or Head-up perspectives.
CURRENT VEHICLE POSITION Mark
Indicates the current position of the vehicle and its
directional heading.
ZOOM IN/ZOOM OUT Icons
Touch to magnify or reduce the map scale.
HOME Button
Access to Navigation Screen. APPS Button
Access to APPS, Entune
®
App Suite
(MovieTickets.com,
OpenTable, etc....) traffic,
fuel guide, sports, stocks,
weather, and navigation. AUDIO Button
Access to audio functions.
Page 4 of 64
3

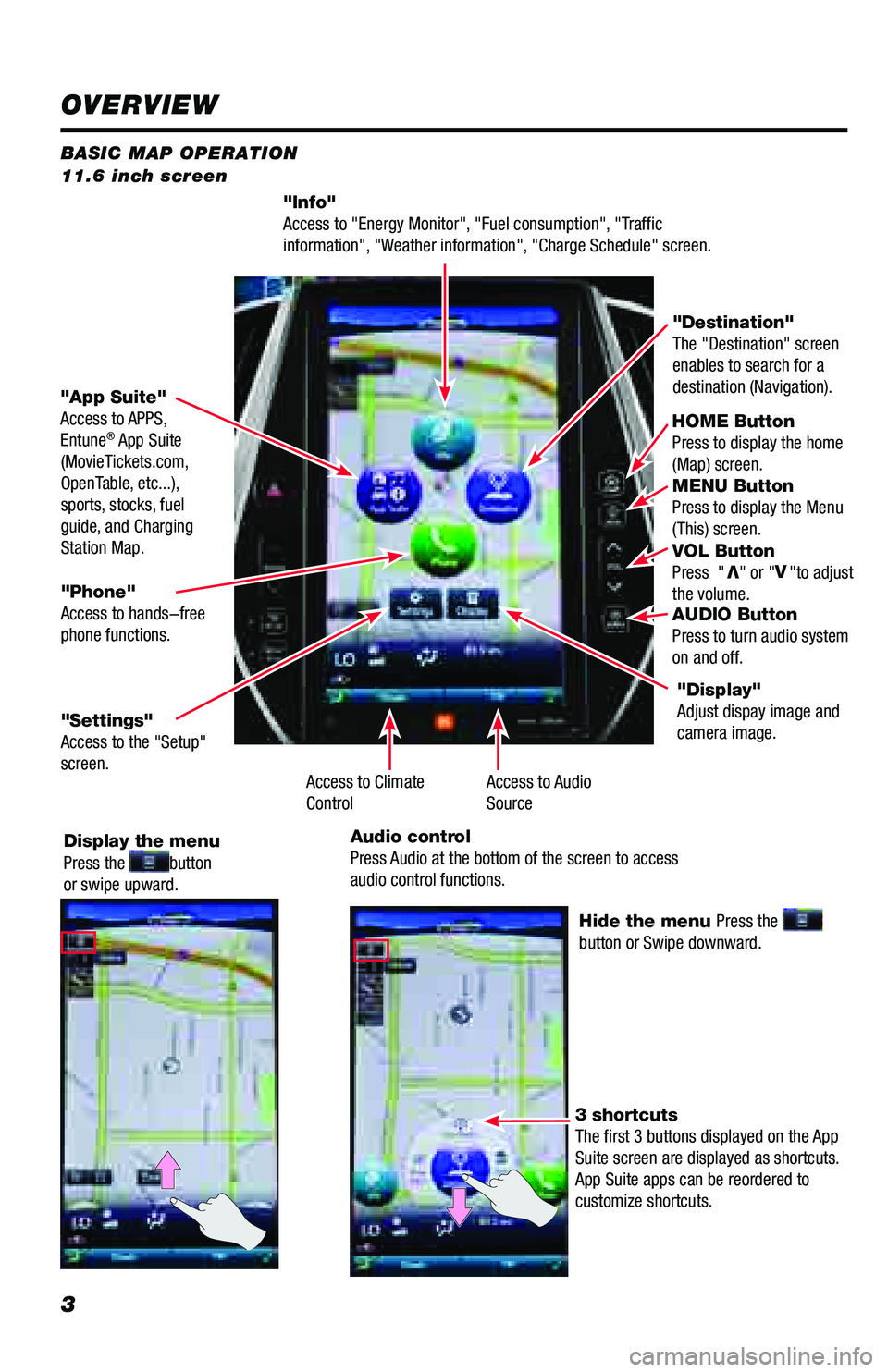

BASIC MAP OPERATION
11.6 inch screen
"Info"
Access to "Energy Monitor", "Fuel consumption", "Traffic
information", "Weather information", "Charge Schedule" screen.HOME Button
Press to display the home
(Map) screen.
MENU Button
Press to display the Menu
(This) screen.
VOL Button
Press "
V" or "V
"to adjust
the volume.
AUDIO Button
Press to turn audio system
on and off.
"App Suite"
Access to APPS,
Entune
® App Suite
(MovieTickets.com,
OpenTable, etc...),
sports, stocks, fuel
guide, and Charging
Station Map. "Destination"
The "Destination" screen
enables to search for a
destination (Navigation).
"Phone"
Access to hands-free
phone functions.
"Settings"
Access to the "Setup"
screen. Display the menu
Press the
button
or swipe upward.
Hide the menu Press the
button or Swipe downward.
3 shortcuts
The first 3 buttons displayed on the App
Suite screen are displayed as shortcuts.
App Suite apps can be reordered to
customize shortcuts. "Display"
Adjust dispay image and
camera image.
Access to Audio
Source
Access to Climate
Control
Audio control
Press Audio at the bottom of the screen to access
audio control functions.
OVERVIEW
Page 5 of 64
4

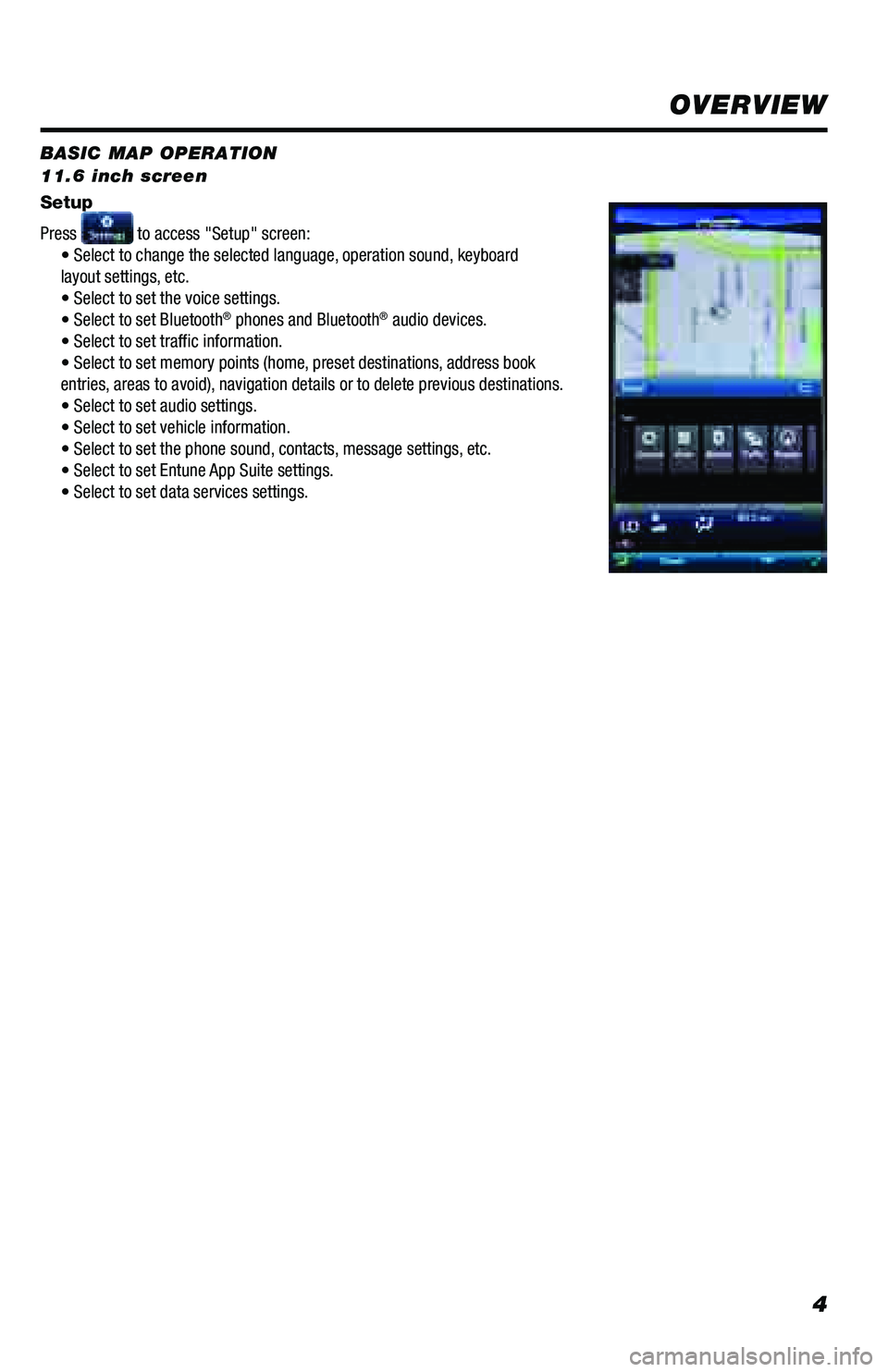

BASIC MAP OPERATION
11.6 inch screen
Setup
Press
to access "Setup" screen:
• Select to change the selected language, operation sound, keyboard
layout settings, etc.
• Select to set the voice settings.
• Select to set Bluetooth
® phones and Bluetooth® audio devices.
• Select to set traffic information.
• Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous destinations.
• Select to set audio settings.
• Select to set vehicle information.
• Select to set the phone sound, contacts, message settings, etc.
• Select to set Entune App Suite settings.
• Select to set data services settings.
OVERVIEW
Page 6 of 64
5

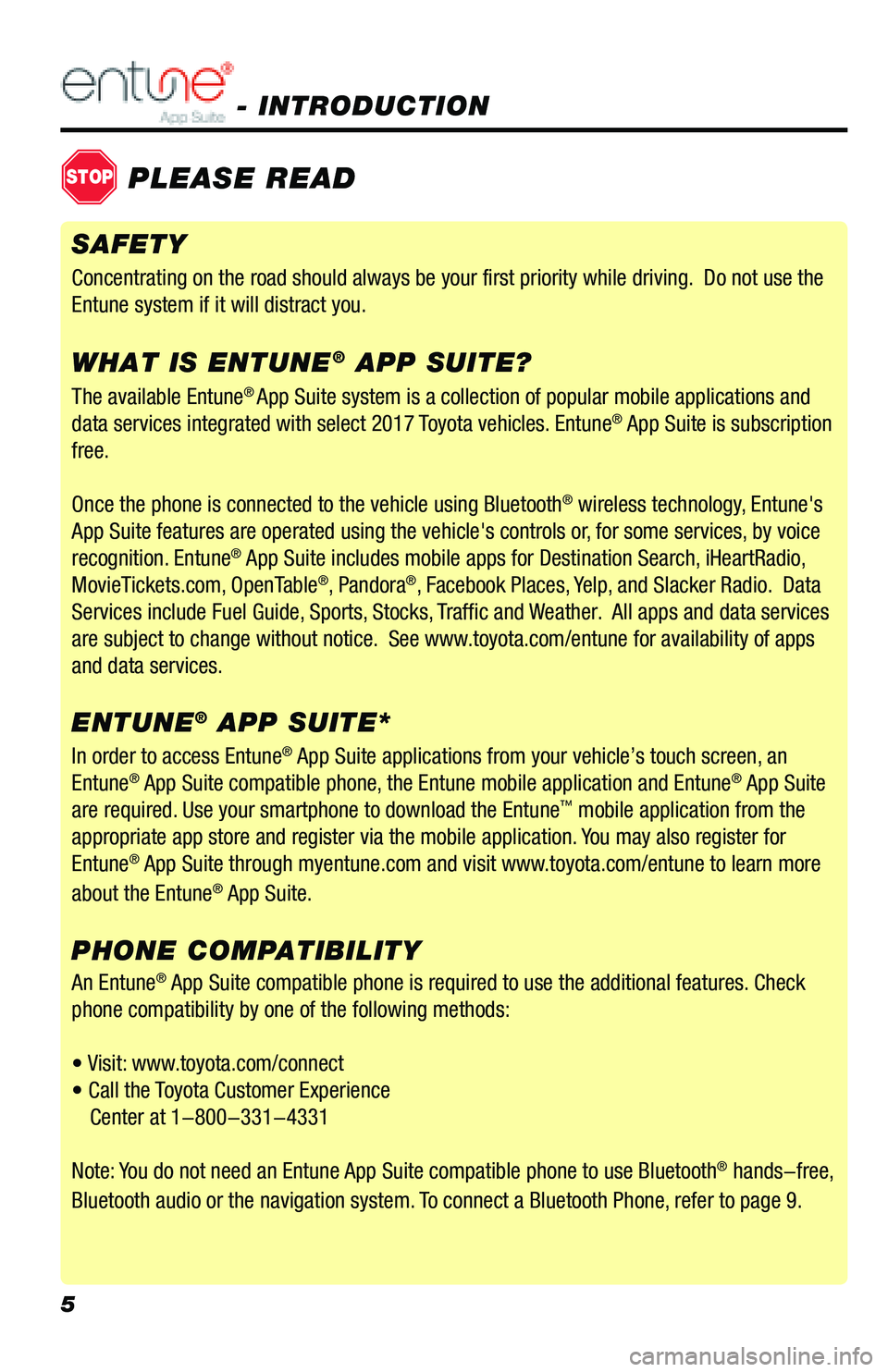

- INTRODUCTION
STOPPLEASE READ
The available Entune® App Suite system is a collection of popular mobile applications and
data services integrated with select 2017 Toyota vehicles. Entune® App Suite is subscription
free.
Once the phone is connected to the vehicle using Bluetooth
® wireless technology, Entune's
App Suite features are operated using the vehicle's controls or, for some services, by voice
recognition. Entune
® App Suite includes mobile apps for Destination Search, iHeartRadio,
MovieTickets.com, OpenTable®, Pandora®, Facebook Places, Yelp, and Slacker Radio. Data
Services include Fuel Guide, Sports, Stocks, Traffic and Weather. All apps and data services
are subject to change without notice. See www.toyota.com/entune for availability of apps
and data services.
In order to access Entune
® App Suite applications from your vehicle’s touch screen, an
Entune® App Suite compatible phone, the Entune mobile application and Entune® App Suite
are required. Use your smartphone to download the Entune™ mobile application from the
appropriate app store and register via the mobile application. You may also register for
Entune
® App Suite through myentune.com and visit www.toyota.com/entune to learn more
about the Entune® App Suite.
ENTUNE® APP SUITE*
WHAT IS ENTUNE
® APP SUITE?
An Entune® App Suite compatible phone is required to use the additional features. Check
phone compatibility by one of the following methods:
• Visit: www.toyota.com/connect
• Call the Toyota Customer Experience
Center at 1-800-331-4331
Note: You do not need an Entune App Suite compatible phone to use Bluetooth
® hands-free,
Bluetooth audio or the navigation system. To connect a Bluetooth Phone, refer to page 9.
PHONE COMPATIBILITY
SAFETY
Concentrating on the road should always be your first priority while driving. Do not use the
Entune system if it will distract you.
Page 7 of 64
6
*Be sure to obey traffic regulations and maintain awareness of road and traffic conditions. Select Entune® App Suite use a large
amount of data and you are responsible for all data charges. Apps and services vary by phone and carrier. Not all apps and data
services are available at all times and all locations. Apps identified by "™" or "®" are trademarks or registered trademar\
ks of
their respective companies and cannot be used without permission. See toyota.com/entune for the latest information regarding
apps and services.
- INTRODUCTION

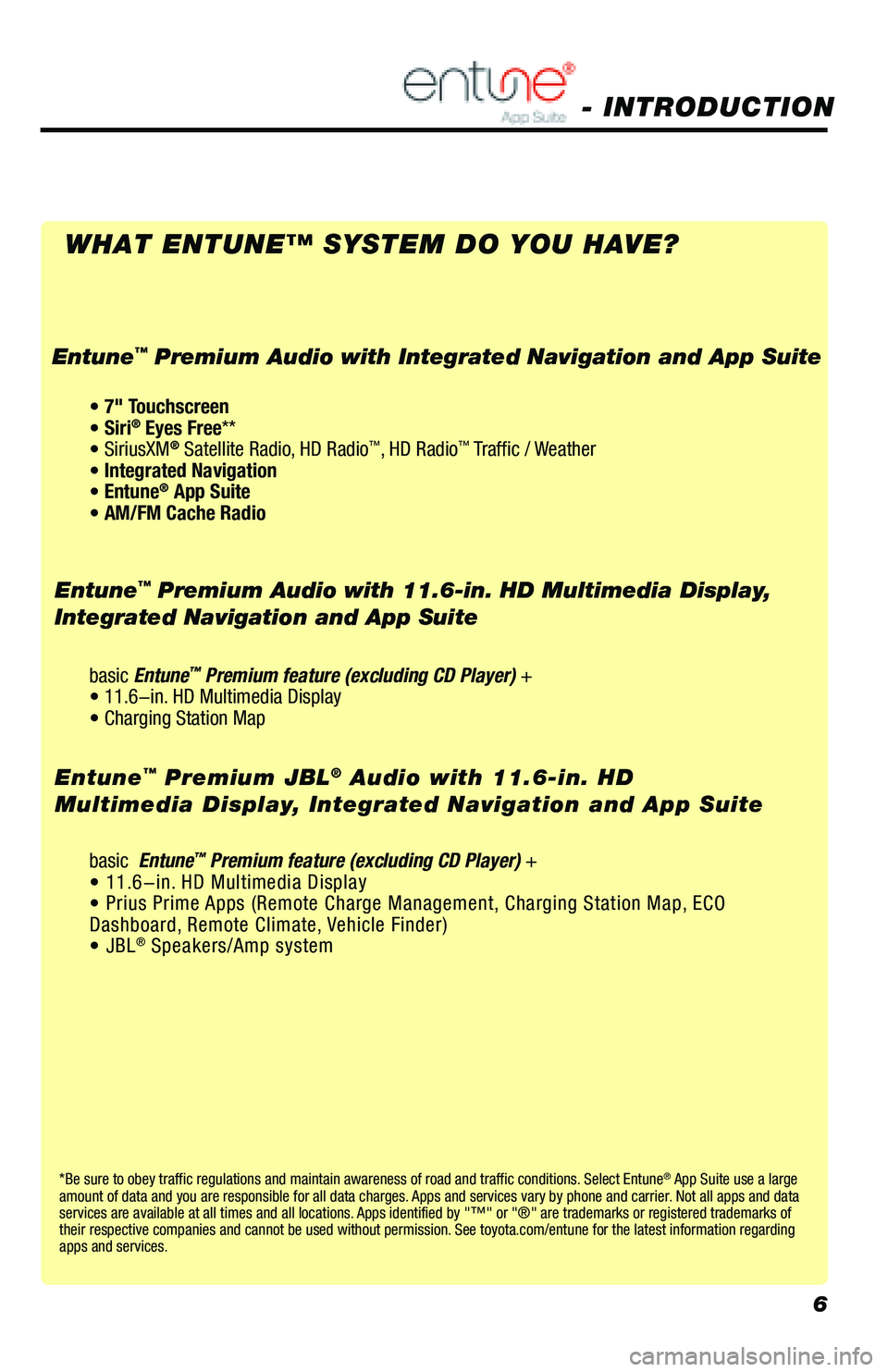

WHAT ENTUNE™ SYSTEM DO YOU HAVE?
Entune™ Premium Audio with 11.6-in. HD Multimedia Display,
Integrated Navigation and App Suite
basic Entune™ Premium feature (excluding CD Player) +
• 11.6-in. HD Multimedia Display
• Charging Station Map
basic Entune
™ Premium feature (excluding CD Player) +
• 11.6-in. HD Multimedia Display
• Prius Prime Apps (Remote Charge Management, Charging Station Map, ECO
Dashboard, Remote Climate, Vehicle Finder)
• JBL
® Speakers/Amp system
Entune™ Premium JBL® Audio with 11.6-in. HD
Multimedia Display, Integrated Navigation and App Suite
• 7" Touchscreen
• Siri® Eyes Free**
• SiriusXM® Satellite Radio, HD Radio™, HD Radio™ Traffic / Weather
• Integrated Navigation
• Entune
® App Suite
• AM/FM Cache Radio
Entune™ Premium Audio with Integrated Navigation and App Suite
Page 8 of 64
7

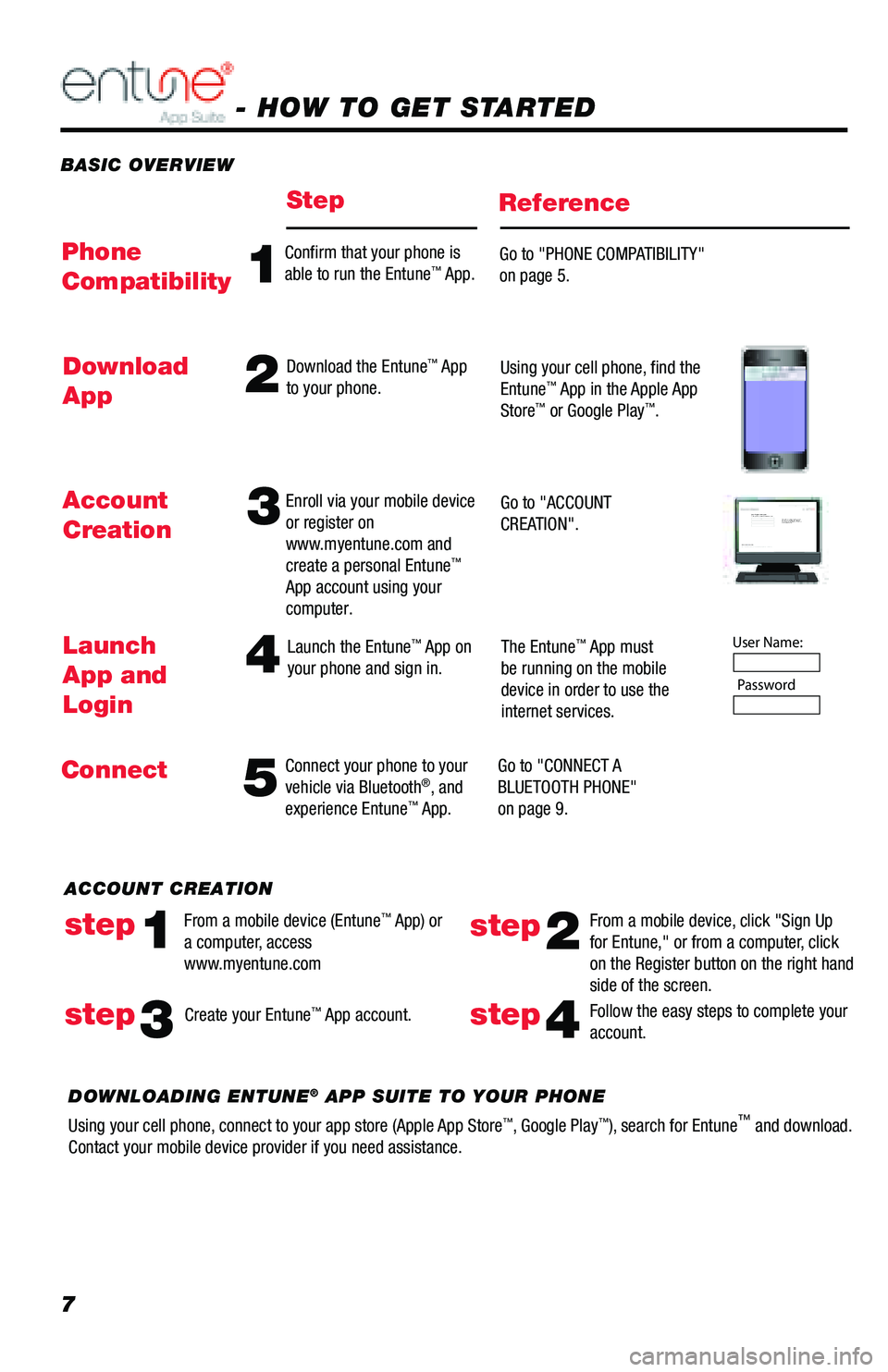

BASIC OVERVIEW
- HOW TO GET STARTED
StepReference
54
Connect your phone to your
vehicle via Bluetooth®, and
experience Entune™ App.
Launch the Entune
™ App on
your phone and sign in. The Entune™ App must
be running on the mobile
device in order to use the
internet services.
Go to "CONNECT A
BLUETOOTH PHONE"
on page 9.Launch
App and
Login
Connect Account
Creation
3Enroll via your mobile device
or register on
www.myentune.com and
create a personal Entune
™
App account using your
computer. Go to "ACCOUNT
CREATION".
Step 1: Register Your Account
Please provide all required information below
.Once you click "register," you will receive
an e-mail to verify your e-mail address.
Click on the link embedded in the email to
activate your account.
Terms of Service | Privacy Polic y
© 2011 Toyota Motor Sales, U.S.A., Inc. All information applies to U.\
S. vehicles only.
User Name: P assword
1
Confirm that your phone is
able to run the Entune™ App. Go to "PHONE COMPATIBILITY"
on page 5.Phone
Compatibility
2Download the Entune™ App
to your phone. Using your cell phone, find the
Entune™ App in the Apple App
Store™ or Google Play™.
Download
App
Follow the easy steps to complete your
account.step4
DOWNLOADING ENTUNE® APP SUITE TO YOUR PHONE
Using your cell phone, connect to your app store (Apple App Store
™, Google Play™), search for Entune™ and download.
Contact your mobile device provider if you need assistance.
ACCOUNT CREATION
From a mobile device (Entune
™ App) or
a computer, access
www.myentune.comstep1step2
From a mobile device, click "Sign Up
for Entune," or from a computer, click
on the Register button on the right hand
side of the screen.
step3Create your Entune™ App account.
Page 9 of 64
8

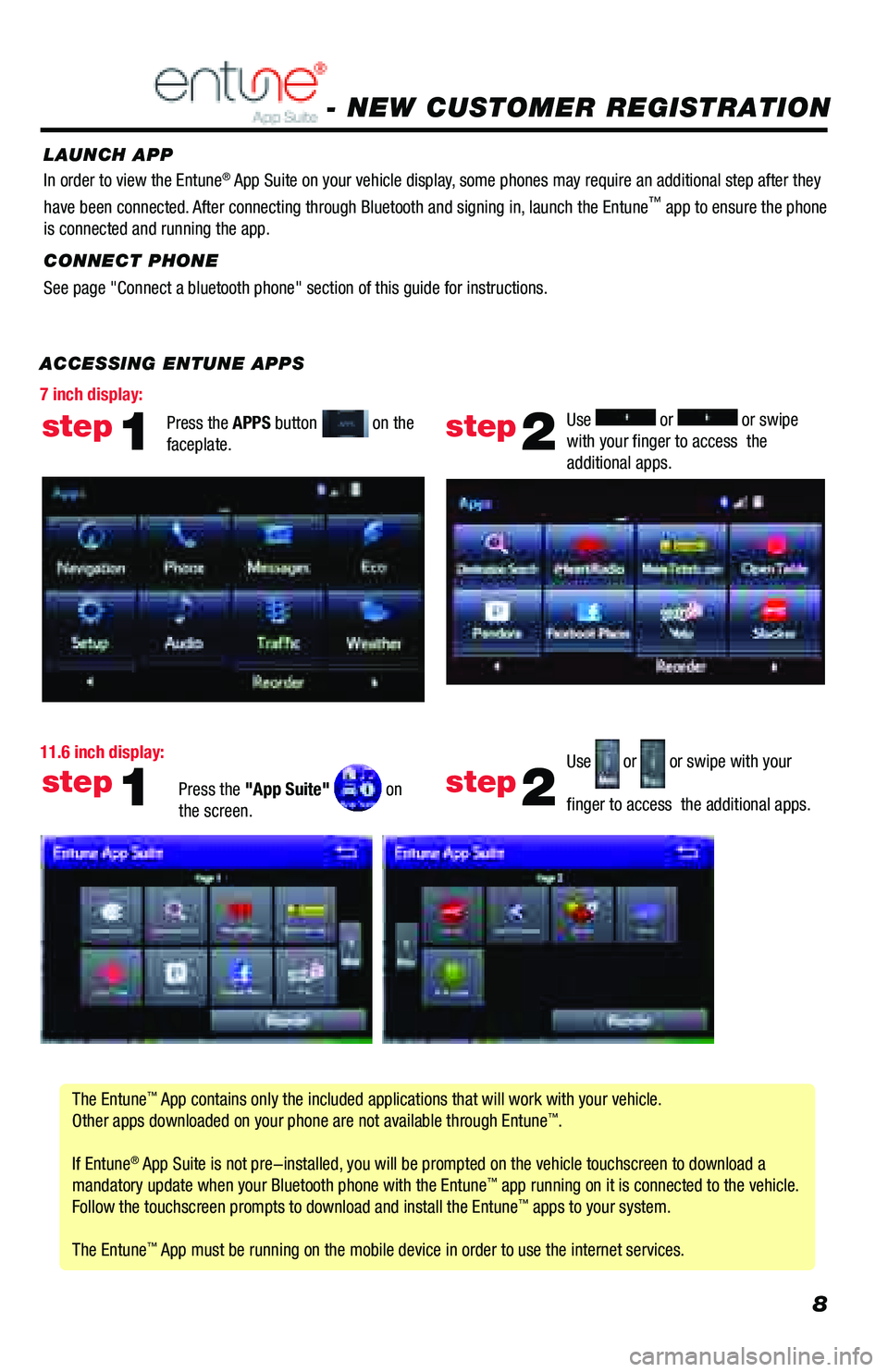

ACCESSING ENTUNE APPSThe Entune
™ App contains only the included applications that will work with your vehicle.
Other apps downloaded on your phone are not available through Entune™.
If Entune
® App Suite is not pre-installed, you will be prompted on the vehicle touchscreen to download a
mandatory update when your Bluetooth phone with the Entune™ app running on it is connected to the vehicle.
Follow the touchscreen prompts to download and install the Entune™ apps to your system.
The Entune
™ App must be running on the mobile device in order to use the internet ser\
vices. Use
or or swipe
with your finger to access the
additional apps.
Use
or or swipe with your
finger to access the additional apps.
step2
step2
Press the APPS button on the
faceplate.
Press the "App Suite"
on
the screen.
step1
step1
- NEW CUSTOMER REGISTRATION
CONNECT PHONE
See page "Connect a bluetooth phone" section of this guide for instructions. In order to view the Entune
® App Suite on your vehicle display, some phones may require an additional step after they
have been connected. After connecting through Bluetooth and signing in, launch the Entune™ app to ensure the phone
is connected and running the app.
LAUNCH APP
11.6 inch display: 7 inch display:
Page 10 of 64
9

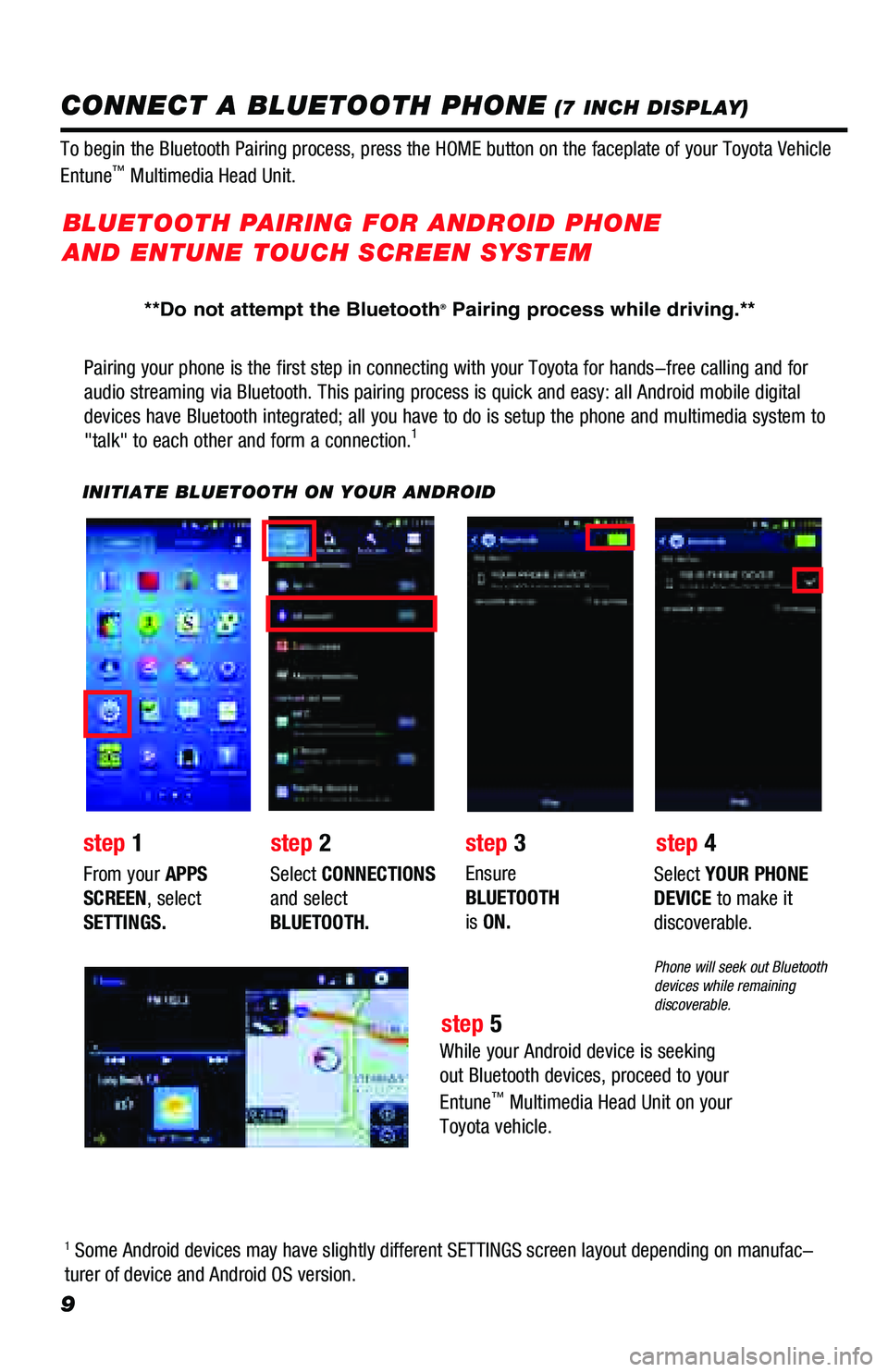

Pairing your phone is the first step in connecting with your Toyota for \
hands-free calling and for
audio streaming via Bluetooth. This pairing process is quick and easy: a\
ll Android mobile digital
devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to
"talk" to each other and form a connection.
1
INITIATE BLUETOOTH ON YOUR ANDROID
step 2
step 1 step 3
step 5 step 4
From your APPS
SCREEN, select
SETTINGS.
Select
CONNECTIONS
and select
BLUETOOTH. Ensure
BLUETOOTH
is
ON. Select
YOUR PHONE
DEVICE to make it
discoverable.
Phone will seek out Bluetooth
devices while remaining
discoverable.
While your Android device is seeking
out Bluetooth devices, proceed to your
Entune
™ Multimedia Head Unit on your
Toyota vehicle.
BLUETOOTH PAIRING FOR ANDROID PHONE
AND ENTUNE TOUCH SCREEN SYSTEM
1 Some Android devices may have slightly different SETTINGS screen layout\
depending on manufac-
turer of device and Android OS version.
To begin the Bluetooth Pairing process, press the HOME button on the fac\
eplate of your Toyota Vehicle
Entune
™ Multimedia Head Unit.
CONNECT A BLUETOOTH PHONE (7 INCH DISPLAY)
**Do not attempt the Bluetooth® Pairing process while driving.**
