PRIUS PRIME
2018
QUICK REFERENCE GUIDE
Page 2 of 68
PRIUS PRIME 2018

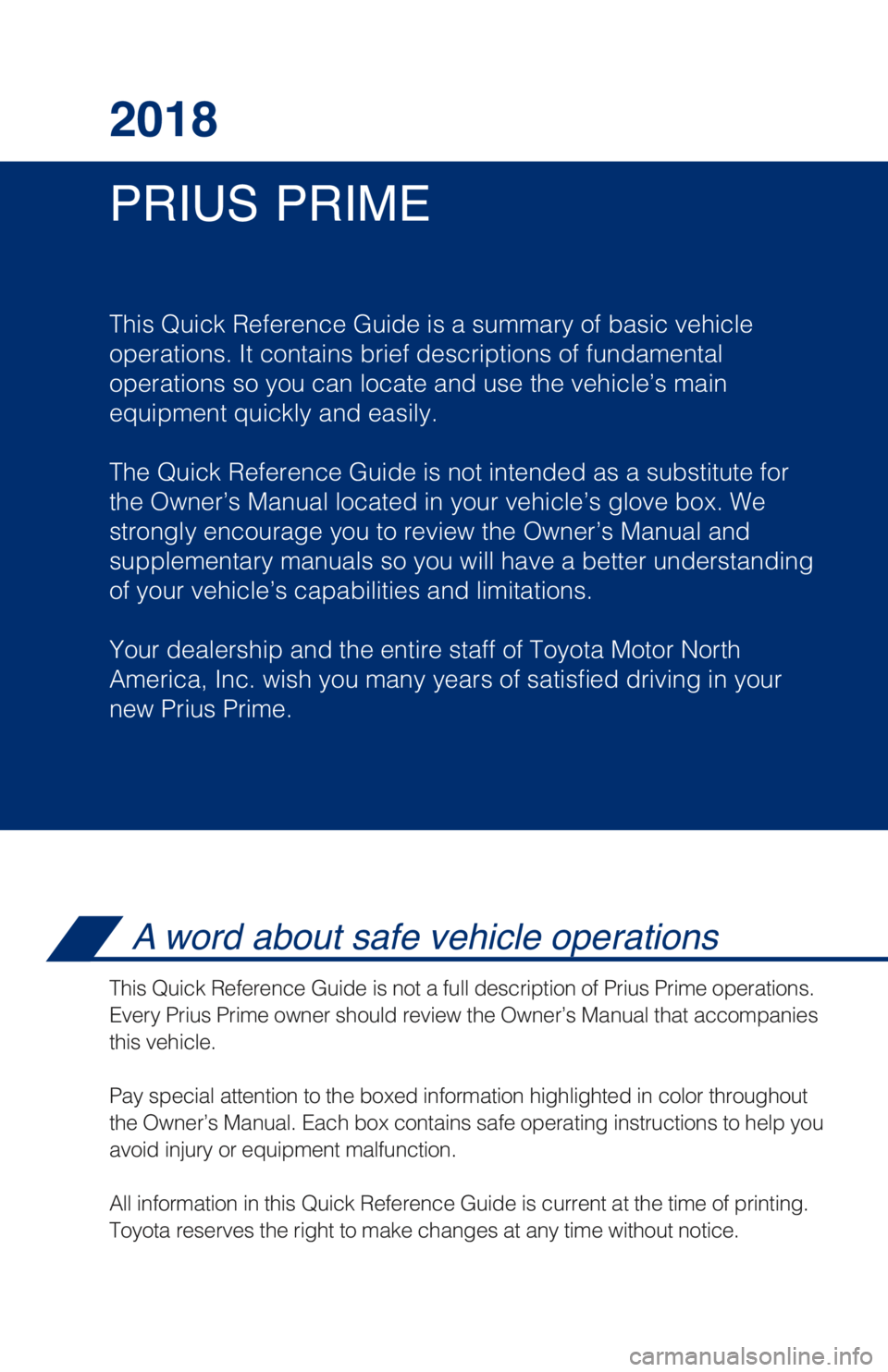

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
<0022004e00460053004a00440042000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a005700
4a004f00480003004a004f0003005a0050005600530003>
new Prius Prime.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius Prime operations.
Every Prius Prime owner should review the Owner’s Manual that accompanies
this vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
Page 3 of 68
1

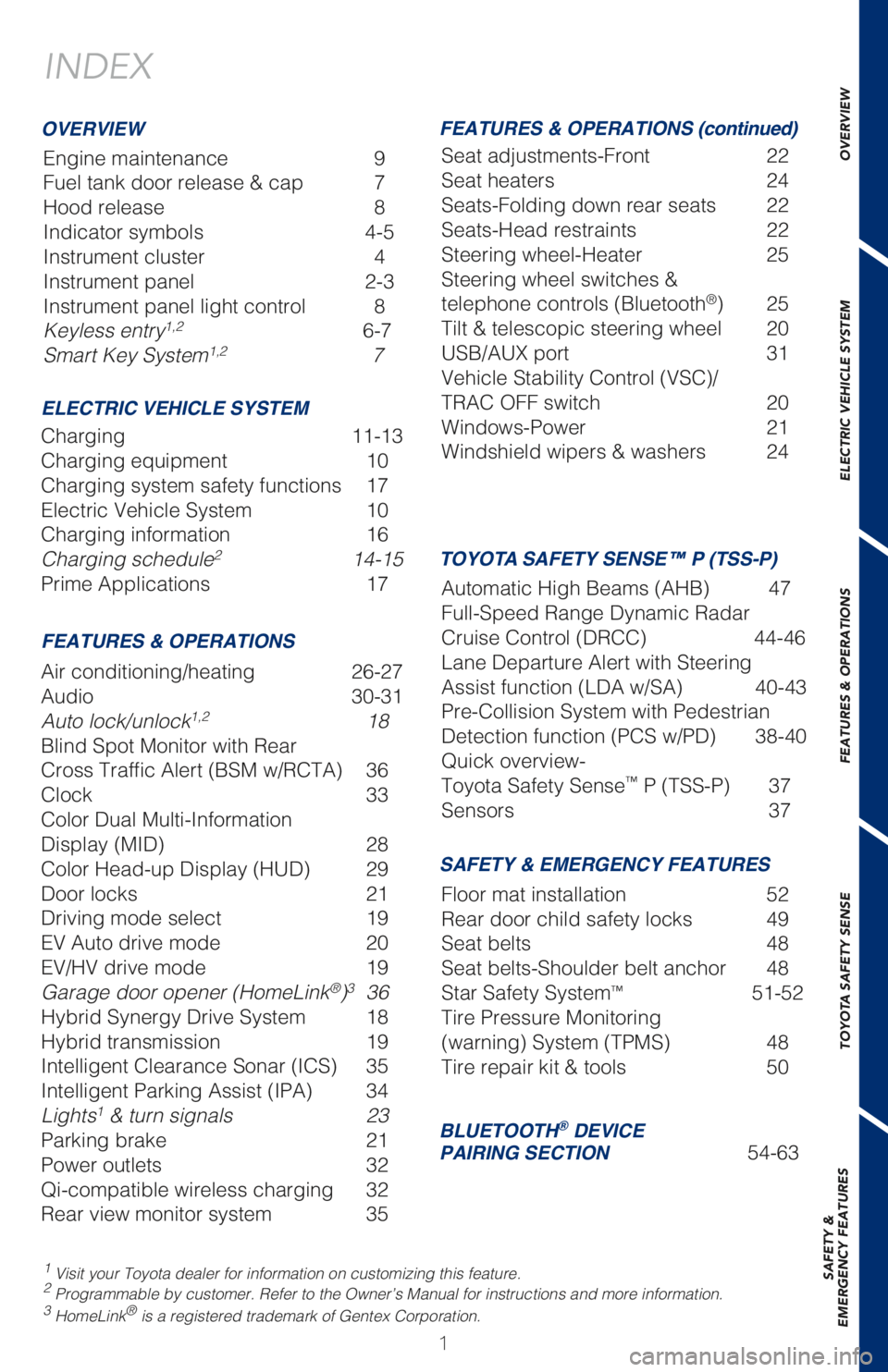

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6-7
Smart Key System1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
ELECTRIC VEHICLE SYSTEMFEATURES & OPERATIONS (continued)
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Charging 11-13
Charging equipment 10
Charging system safety functions 17
Electric Vehicle System 10
Charging information 16
Charging schedule
2 14-15
Prime Applications 17
Air conditioning/heating 26-27
Audio 30-31
Auto lock/unlock
1,2 18
Blind Spot Monitor with Rear
$ S P T T 5 S B G m D " M F S U # 4 . X 3 $ 5 "
Clock 33
Color Dual Multi-Information
% J T Q M B Z . * %
$ P M P S ) F B E V Q % J T Q M B Z ) 6 %
Door locks 21
Driving mode select 19
EV Auto drive mode 20
EV/HV drive mode 19
Garage door opener (HomeLink
®)3 36
Hybrid Synergy Drive System 18
Hybrid transmission 19
* O U F M M J H F O U $ M F B S B O D F 4 P O B S * $ 4
* O U F M M J H F O U 1 B S L J O H " T T J T U * 1 "
Lights
1 & turn signals 23
Parking brake 21
Power outlets 32
Qi-compatible wireless charging 32
Rear view monitor system 35Seat adjustments-Front 22
Seat heaters 24
Seats-Folding down rear seats 22
Seats-Head restraints 22
Steering wheel-Heater 25
Steering wheel switches &
U F M F Q I P O F D P O U S P M T # M V F U P P U I
®
Tilt & telescopic steering wheel 20
6 4 # " 6 9 Q P S U
7 F I J D M F 4 U B C J M J U Z $ P O U S P M 7 4 $
TRAC OFF switch 20
Windows-Power 21
Windshield wipers & washers 24
Floor mat installation 52
Rear door child safety locks 49
Seat belts 48
Seat belts-Shoulder belt anchor 48
Star Safety System
™ 51-52
Tire Pressure Monitoring
X B S O J O H
4 Z T U F N 5 1 . 4
Tire repair kit & tools 50
BLUETOOTH® DEVICE
PAIRING SECTION 54-63
TOYOTA SAFETY SENSE™ P (TSS-P)
" V U P N B U J D ) J H I # F B N T " ) #
Full-Speed Range Dynamic Radar
$ S V J T F $ P O U S P M % 3 $ $
Lane Departure Alert with Steering
" T T J T U G V O D U J P O - % " X 4 "
Pre-Collision System with Pedestrian
% F U F D U J P O G V O D U J P O 1 $ 4 X 1 %
Quick overview-
Toyota Safety Sense
™ 1 5 4 4 1
37
Sensors 37
Page 4 of 68
2
OVERVIEW

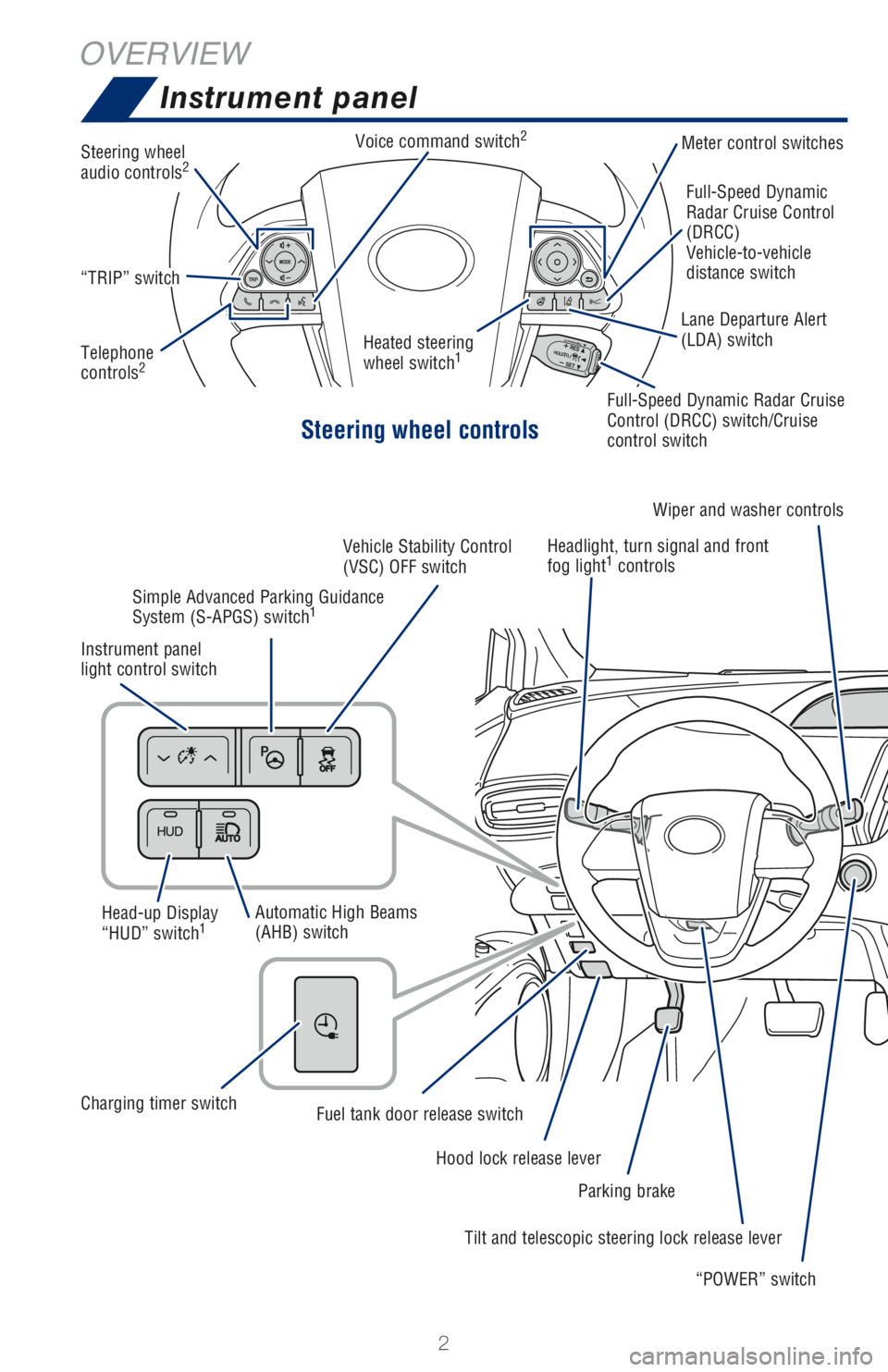

Instrument panel
Steering wheel controls
Heated steering
wheel switch1
Full-Speed Dynamic
Radar Cruise Control
(DRCC)
Vehicle-to-vehicle
distance switch
“TRIP” switch
Steering wheel
audio controls2
Telephone
controls2
Voice command switch2Meter control switches
Head-up Display
“HUD” switch
1
Instrument panel
light control switchHeadlight, turn signal and front
fog light
1 controls
Automatic High Beams
(AHB) switch
Tilt and telescopic steering lock release lever
Hood lock release lever
Fuel tank door release switchCharging timer switch
Simple Advanced Parking Guidance
System (S-APGS) switch1
Vehicle Stability Control
(VSC) OFF switch
Parking brakeWiper and washer controls
“POWER” switch Lane Departure Alert
(LDA) switch
Full-Speed Dynamic Radar Cruise
Control (DRCC) switch/Cruise
control switch
Page 5 of 68
3
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
1
If equipped.2
For details, refer to the “Navigation System Owner’s Manual.”

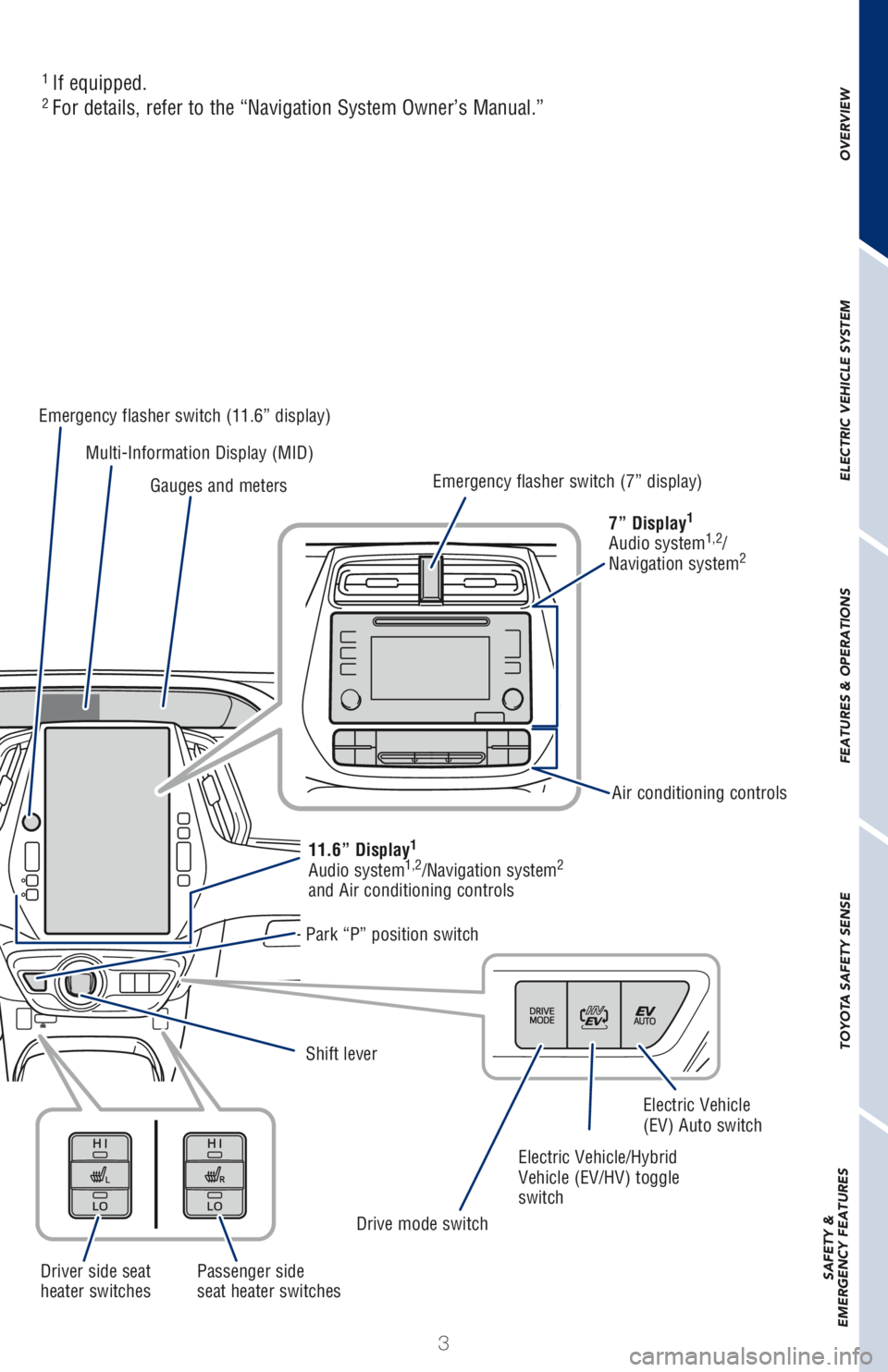

Park “P” position switch
Drive mode switch
Electric Vehicle/Hybrid
Vehicle (EV/HV) toggle
switch
Electric Vehicle
(EV) Auto switch
11.6” Display1
Audio system1,2/Navigation system2
and Air conditioning controls
Shift lever Multi-Information Display (MID) Emergency flasher switch (11.6” display)
Emergency flasher switch (7” display)
7” Display
1
Audio system1,2/
Navigation system2
Gauges and meters
Driver side seat
heater switchesPassenger side
seat heater switchesAir conditioning controls
Page 6 of 68
4
Brake system warning1
Brake system warning1
Blind Spot Monitor (BSM) indicator4
Brake Override System/Drive-Start
Control/Intelligent Clearance Sonar4
Automatic High Beam (AHB)
indicator
OVERVIEW

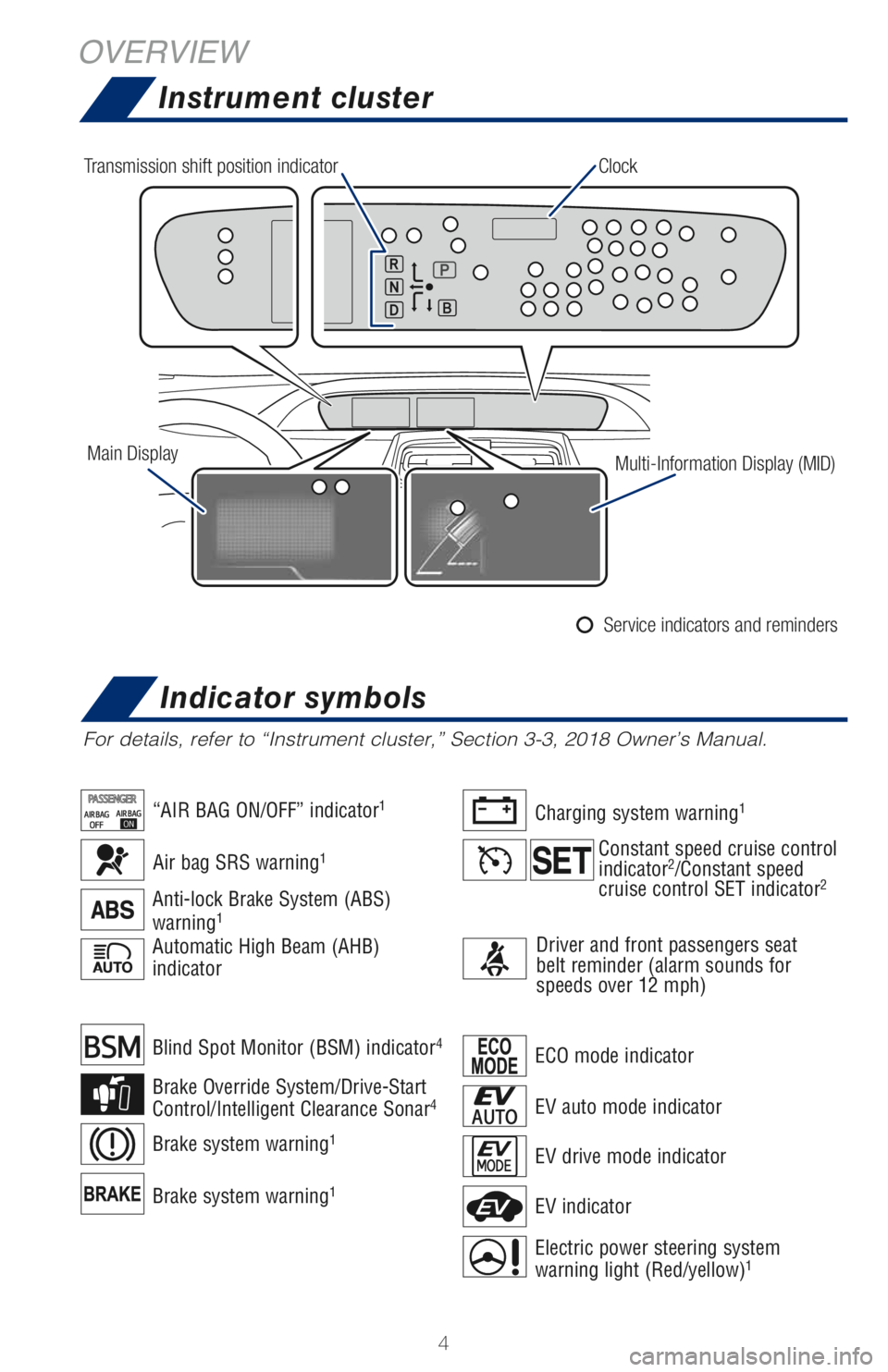

Instrument cluster
For details, refer to “Instrument cluster,” Section 3-3, 2018 Owner’s Manual.
ECO mode indicator
EV drive mode indicator
EV indicator
Electric power steering system
warning light (Red/yellow)1
EV auto mode indicator
Air bag SRS warning1
“AIR BAG ON/OFF” indicator1
Anti-lock Brake System (ABS)
warning1
Charging system warning1
Driver and front passengers seat
belt reminder (alarm sounds for
speeds over 12 mph)
Clock
Main Display
Multi-Information Display (MID) Transmission shift position indicator
Service indicators and reminders
Constant speed cruise control
indicator2/Constant speed
cruise control SET indicator2

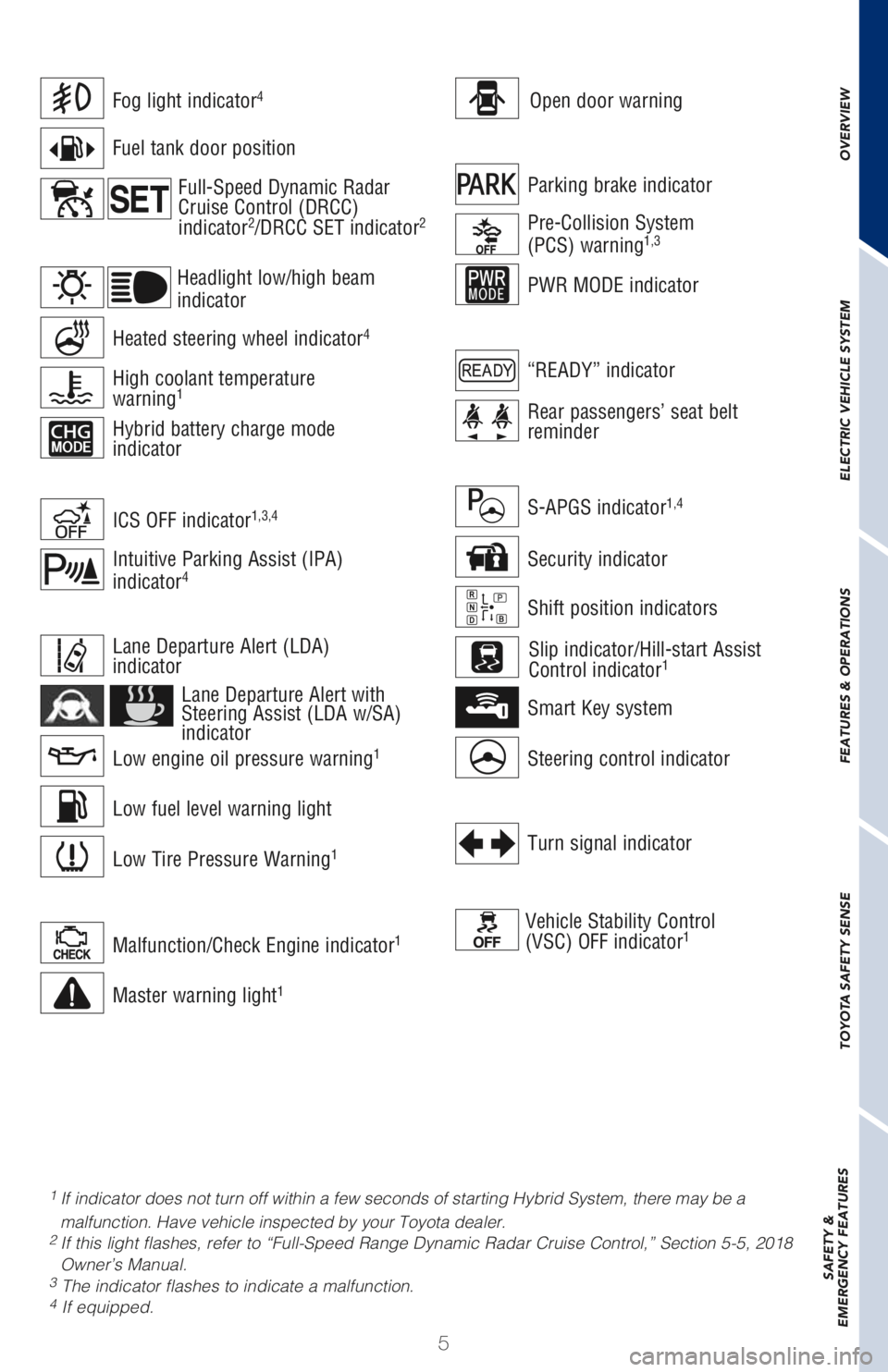

Indicator symbols
Page 7 of 68
5
1 If indicator does not turn off within a few seconds of starting Hybrid System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Full-Speed Range Dynamic Radar Cruise Control,” Section 5-5, 2018
Owner’s Manual.
3 The indicator flashes to indicate a malfunction.4 If equipped.
Open door warningFog light indicator4
Malfunction/Check Engine indicator1
Master warning light1
Low engine oil pressure warning1
Low Tire Pressure Warning1
Low fuel level warning light
Lane Departure Alert (LDA)
indicator
Heated steering wheel indicator4
Intuitive Parking Assist (IPA)
indicator4
Fuel tank door position
Lane Departure Alert with
Steering Assist (LDA w/SA)
indicator
High coolant temperature
warning1
Hybrid battery charge mode
indicator
Headlight low/high beam
indicator
ICS OFF indicator1,3,4
Parking brake indicator
PWR MODE indicator
Pre-Collision System
(PCS) warning1,3
Rear passengers’ seat belt
reminder
“READY” indicator
Turn signal indicator
Vehicle Stability Control
(VSC) OFF indicator1
Shift position indicators
Steering control indicator
S-APGS indicator1,4
Smart Key system
Security indicator
Slip indicator/Hill-start Assist
Control indicator1
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator
2/DRCC SET indicator2
Page 8 of 68
6

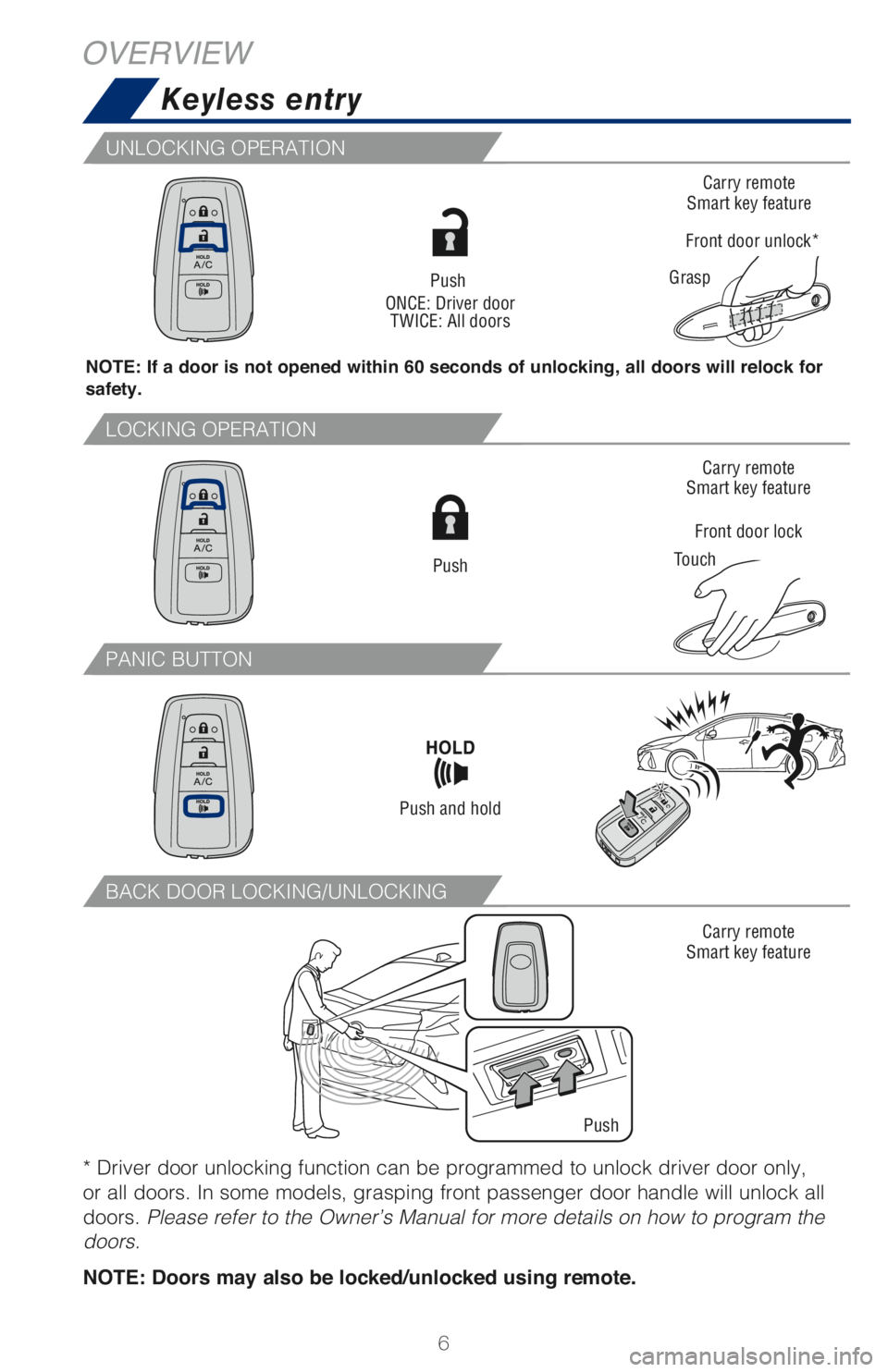

Keyless entry
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.Push
ONCE: Driver door
TWICE: All doors
Carry remote
Smart key feature
Carry remote
Smart key feature
Front door lock
TouchCarry remote
Smart key feature
Grasp
Front door unlock*
Push
Push and hold
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door only,
or all doors. In some models, grasping front passenger door handle will unlock all
doors. Please refer to the Owner’s Manual for more details on how to program the
doors.
NOTE: Doors may also be locked/unlocked using remote.
Push
Page 9 of 68
7

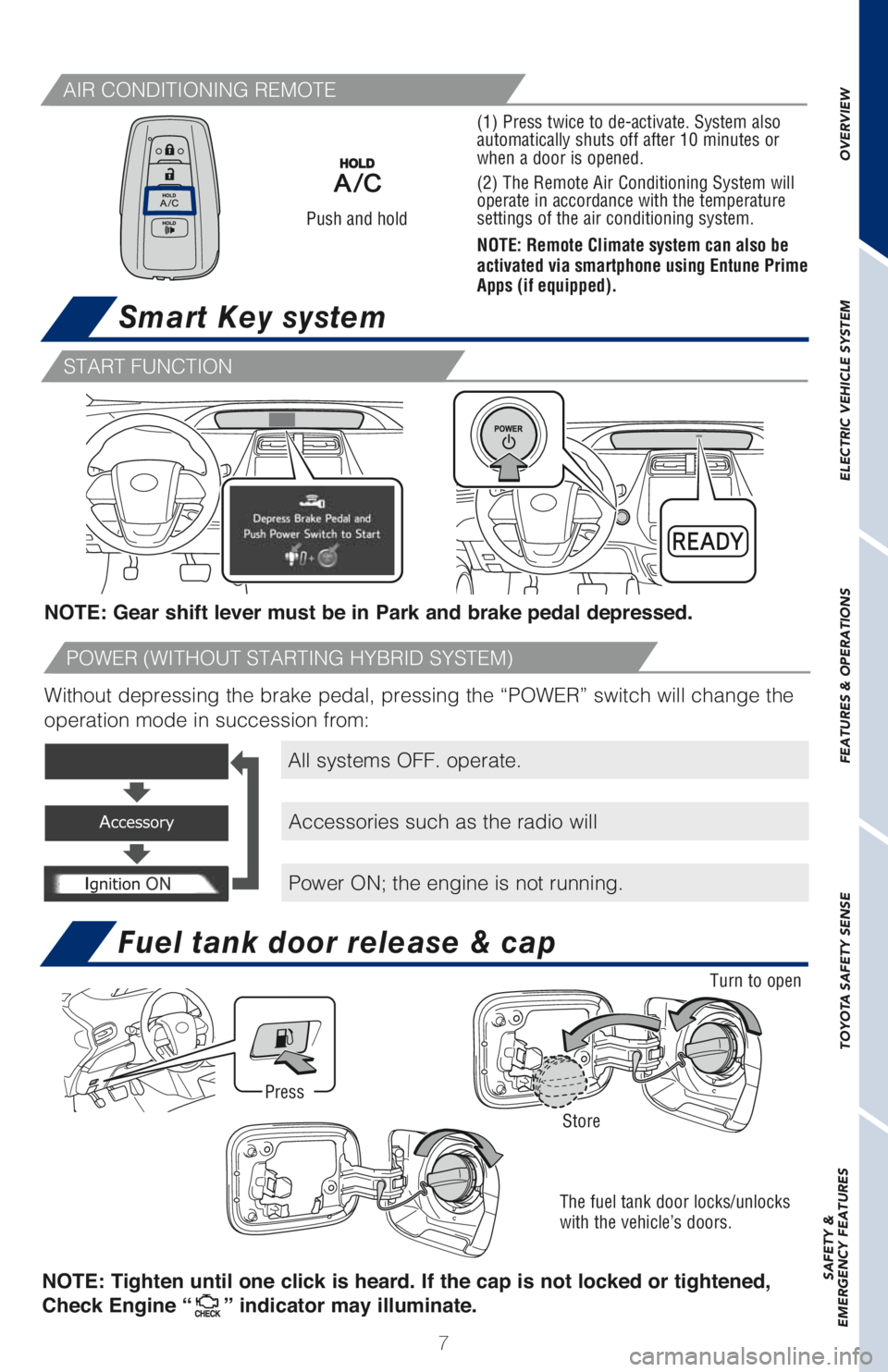

Smart Key system
All systems OFF. operate.
Accessories such as the radio will
Power ON; the engine is not running. NOTE: Gear shift lever must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Push and hold
Fuel tank door release & cap
The fuel tank door locks/unlocks
with the vehicle’s doors.
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
Turn to open
Store
Press
AIR CONDITIONING REMOTE
START FUNCTION
POWER (WITHOUT STARTING HYBRID SYSTEM)
NOTE: Tighten until one click is heard. If the cap is not locked or tightened,
Check Engine “
” indicator may illuminate.
(1) Press twice to de-activate. System also
automatically shuts off after 10 minutes or
when a door is opened.
(2) The Remote Air Conditioning System will
operate in accordance with the temperature
settings of the air conditioning system.
NOTE: Remote Climate system can also be
activated via smartphone using Entune Prime
Apps (if equipped).
Page 10 of 68
8
OVERVIEW
Pull up latch and
raise hood
Pull

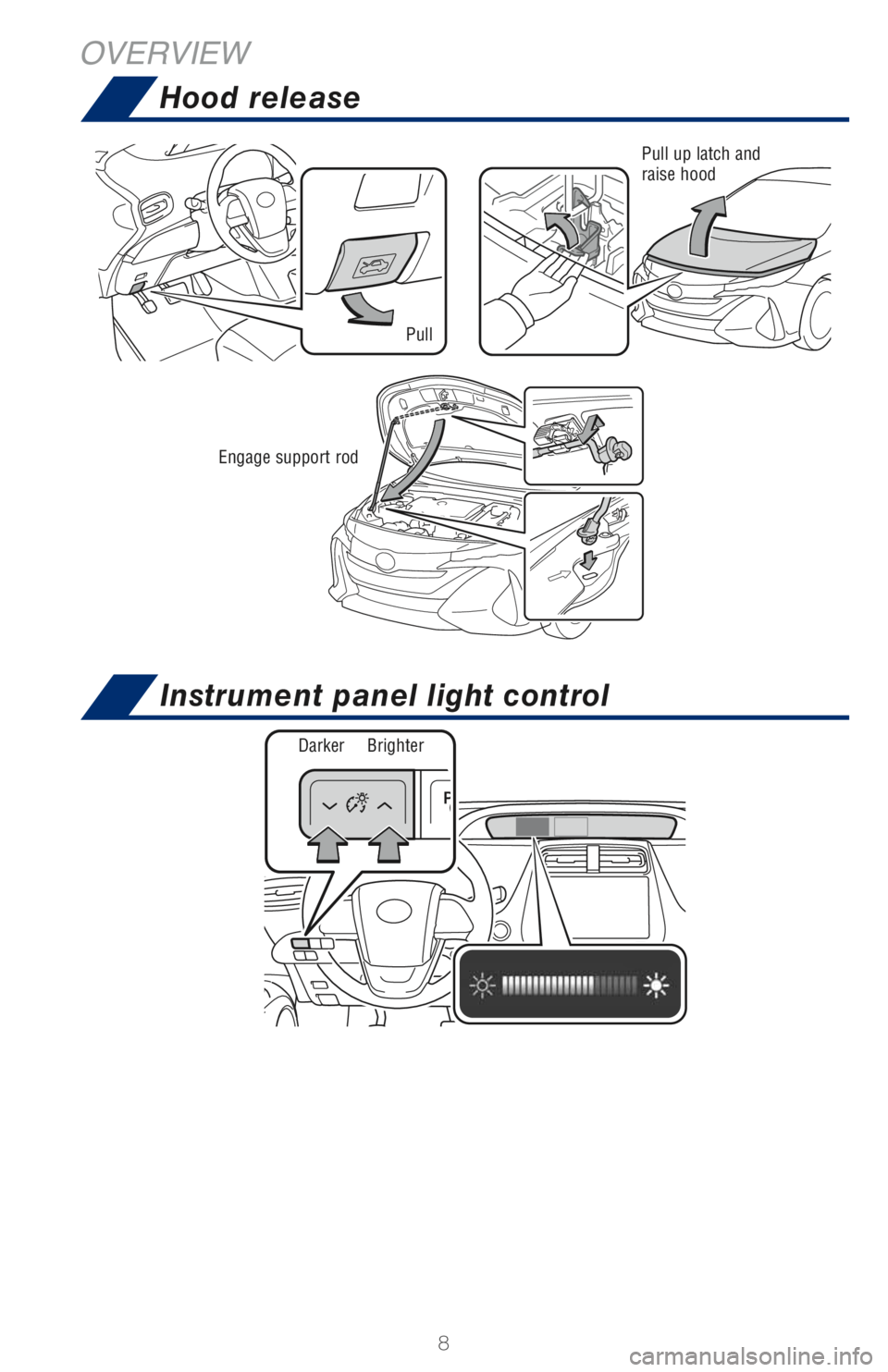

Hood release
Instrument panel light control
Engage support rod
Brighter Darker
