Page 151 of 306

151
1. USEFUL INFORMATION
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06     14:19
INFORMATION
5
1Display  the  “Weather”  screen.
(P.150)
2Select “Current Weather” .
3Select the desired ta b to be displayed.
DISPLAYING THE WEATHER
OF THE CURRENT LOCATION
INFORMATION
●If weather is set to the home screen, the
weather  screen  of  the  current  location
will be displayed.
Page 152 of 306

152
1. USEFUL INFORMATION
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06     14:19
2. DATA SERVICES SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “HD Data” .
4Select the desired item to be set.
Select a checkbox on the right to set.
SETTING DOWNLOAD
METHODS
Data  service  information,  which  is
comprised  of  traffic  information  and
weather  information,  can  be  received
via  the  HD  Radio  and  by  the  Entune
App  Suite  application  on  a  Bluetooth
®
phone.  The  receiving  method  can  be
set  to  both  or  only  via  the  HD  Radio.
For details about the Entune App Suite
application:  P.281
PS081IO
 1 R  ) X Q F W L R Q
 6 H O H F W   W R   U H F H L Y H  G D W D   V H U Y L F H  L Q I R U
 P D W L R Q   Y L D   E R W K   W K H   + '   5 D G L R   D Q G
 W K H  ( Q W X Q H  $ S S  6 X L W H  D S S O L F D W L R Q  R Q
 D   % O X H W R R W K
 Š   S K R Q H    : K H Q   E R W K
 P H W K R G V   D U H   D Y D L O D E O H    W K H   + '   5 D
 G L R  Z L O O  E H  \
V H O H F W H G
 6 H O H F W   W R   U H F H L Y H   G D W D   R Q O \   Y L D   W K H
 + '  5 D G L R
INFORMATION
● These  settings  are  available  in  the  48
states,  D.C.  and  Alaska  of  the  United
States.
Page 153 of 306

6
153
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06     14:19
1
2
3
4
5
6
7
8
9

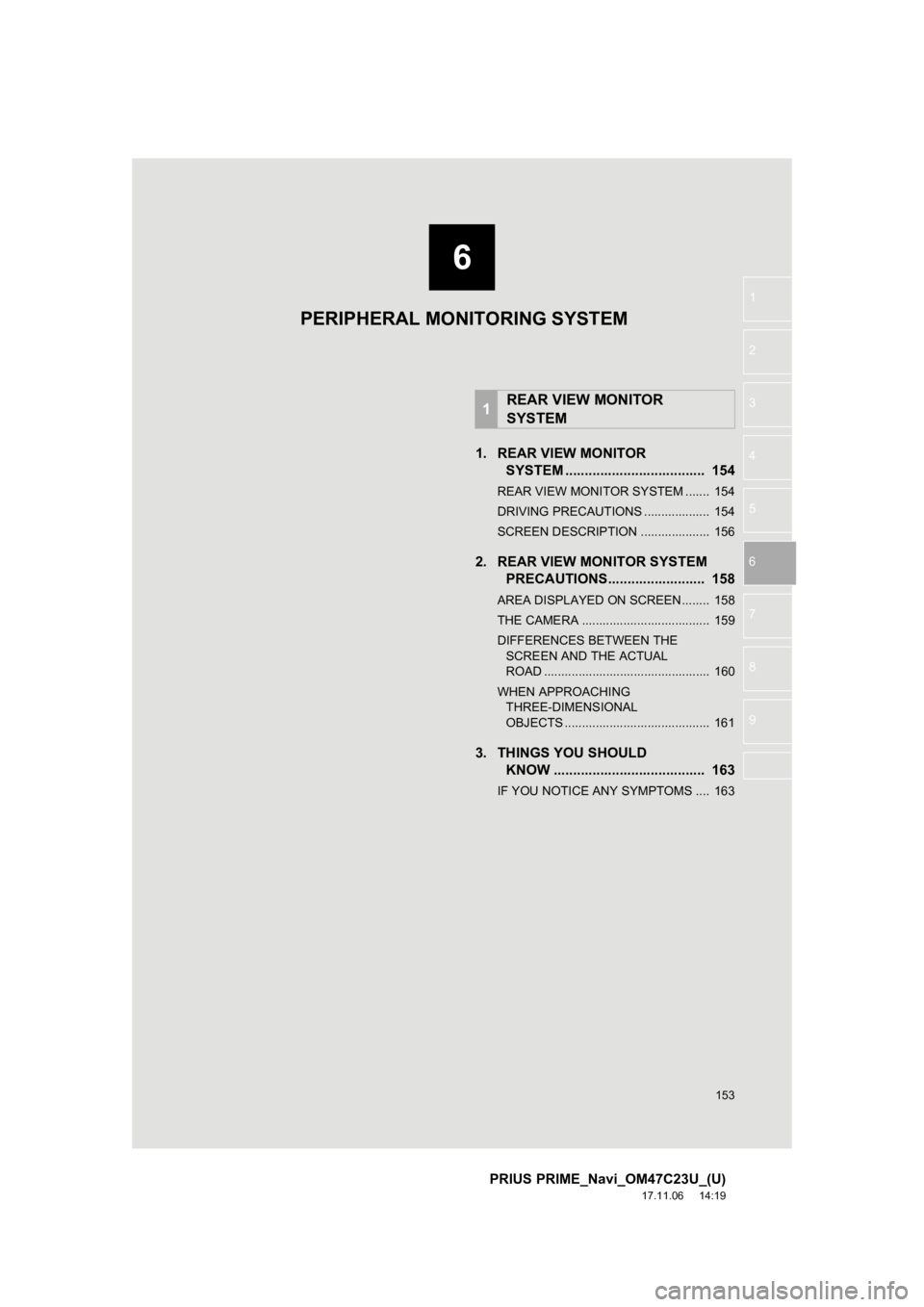

1. REAR VIEW MONITOR SYSTEM .......... ....................... ...  154
REAR VIEW MONITOR SYSTEM .......  154
DRIVING PRECAUTIONS ...................  154
SCREEN DESCRIPTION ....................  156
2. REAR VIEW MONITOR SYSTEM
PRECAUTIONS.........................  158
AREA DISPLAYED ON SCREEN........  158
THE CAMERA .....................................  159
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................  160
WHEN APPROACHING  THREE-DIMENSIONAL
OBJECTS ..........................................  161
3. THINGS YOU SHOULD KNOW .......................................  163
IF YOU NOTICE ANY SYMPTOMS ....  163
1REAR VIEW MONITOR
SYSTEM
PERIPHERAL MONITORING SYSTEM
Page 154 of 306

154
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06     14:19
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM
REAR VIEW MONITOR
SYSTEM
The  rear  view  monitor  system  assists
the driver by displaying an image of the
view  behind  the  vehicle  with  fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
●The  screen  illustrations  used  in  this  text
are  intended  as  examples,  and  may  dif-
fer  from  the  image  that  is  actually  dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors  before  proceeding.  If  you  do
not,  you  may  hit  another  vehicle,  and
could possibly cause an accident.
Pay  attention  to  the  following  precau-
tions when using the rear view monitor
system.
Page 155 of 306

155
1. REAR VIEW MONITOR SYSTEM
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06     14:19
PERIPHERAL MONITORING SYSTEM
6
WA R N I N G
●Never  depend  on  the  rear  view  monitor
system  entirely  when  backing  up.  The
image and the position of the guide lines
displayed  on  the  screen  may  differ  from
the actual state.
Use  caution,  just  as  you  would  when
backing up any vehicle.
● Be  sure  to  back  up  slowly,  depressing
the brake pedal to control vehicle speed.
● The  instructions  given  are  only  guide-
lines.  When  and  how  much  to  turn  the
steering  wheel  will  vary  according  to
traffic  conditions,  road  surface  condi-
tions,  vehicle  condition,  etc.  when  park-
ing.  It  is  necessary  to  be  fully  aware  of
this  before  using  the  rear  view  monitor
system.
● When parking, be sure to check that the
parking  space  will  accommodate  your
vehicle before maneuvering into it.
WA R N I N G
●Do not use the rear view monitor system
in the following cases:
• On  icy  or  slick  road  surfaces,  or  in
snow
• When  using  tire  chains  or  emergency tires
• When the back door is not closed com- pletely
• On  roads  that  are  not  flat  or  straight,
such as curves or slopes.
● In  low  temperatures,  the  screen  may
darken  or  the  image  may  become  faint.
The  image  could  distort  when  the  vehi-
cle  is  moving,  or  you  may  become
unable  to  see  the  image  on  the  screen.
Be  sure  to  visually  check  all  around  the
vehicle  both  directly  and  using  the  mir-
rors before proceeding.
● If the tire sizes are changed, the position
of  the  fixed  guide lines displayed on  the
screen may change.
● The  camera  uses  a  special  lens.  The
distances between objects and pedestri-
ans  that  appear  in  the  image  displayed
on  the  screen  will  differ  from  the  actual
distances. ( P.160)
Page 156 of 306

156
1. REAR VIEW MONITOR SYSTEM
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06     14:19

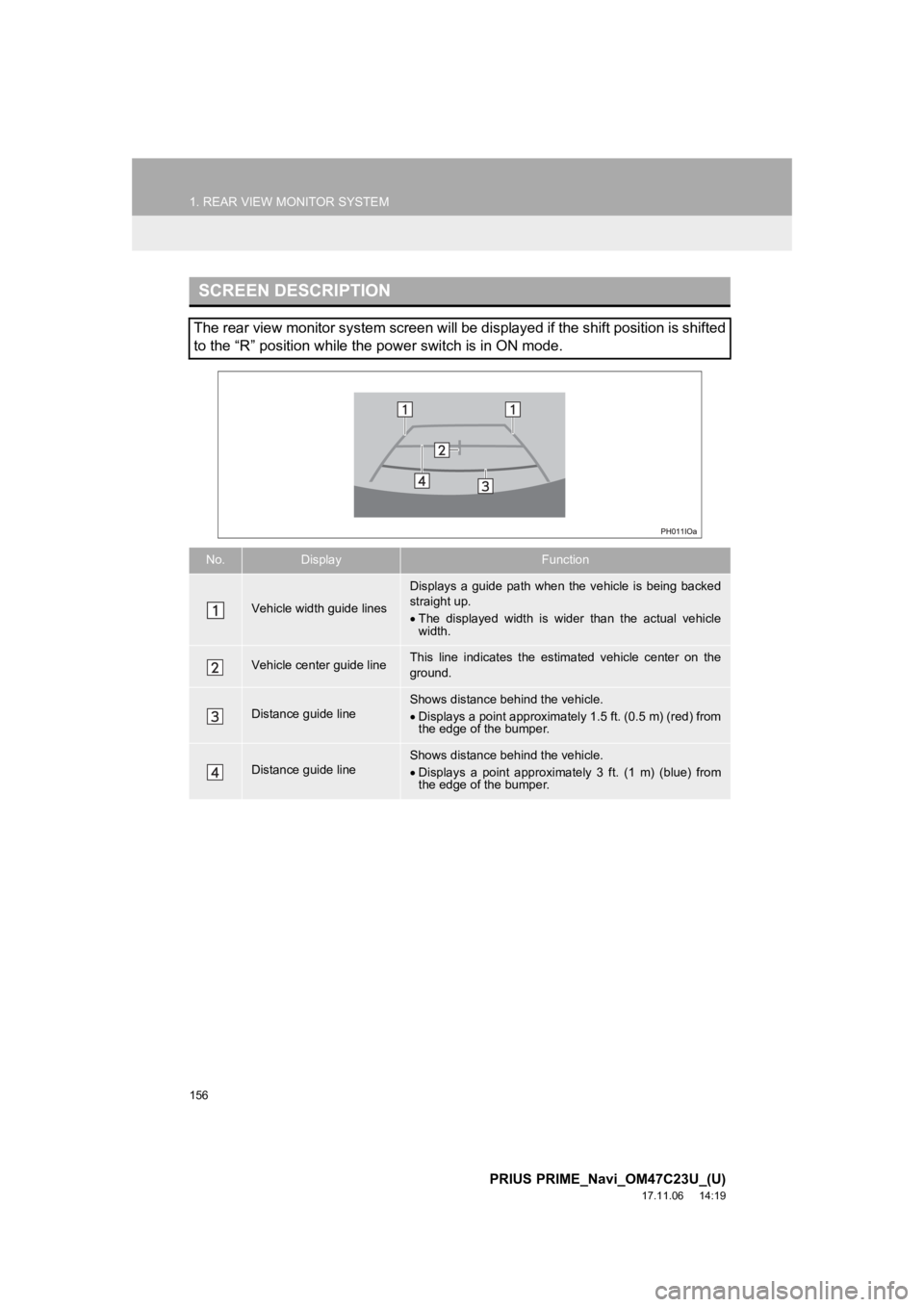

SCREEN DESCRIPTION
The rear view monitor system screen will be displayed if the shift position is shifted
to the “R” position while the power switch is in ON mode.
No.DisplayFunction
Vehicle width guide lines
Displays  a  guide  path  when  the  vehicle  is  being  backed
straight up.
The  displayed  width  is  wi der  than  the  actual  vehicle
width.
Vehicle center guide lineThis  line  indicates  the  estimated  vehicle  center  on  the
ground.
Distance guide lineShows distance behind the vehicle.
 Displays a point approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Distance guide lineShows distance behind the vehicle.
Displays  a  point  approximately  3  ft.  (1  m)  (blue)  from
the edge of the bumper.
Page 157 of 306

157
1. REAR VIEW MONITOR SYSTEM
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06     14:19
PERIPHERAL MONITORING SYSTEM
6
CANCELING REAR VIEW MONITOR SYSTEM
The rear view monitor system is canceled when the shift positio n is shifted into any
position other than the “R” position.
Page 158 of 306

158
1. REAR VIEW MONITOR SYSTEM
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06     14:19
2. REAR VIEW MONITOR SYSTEM PRECAUTIONS
The  image  adjustment  procedure  for  the
rear  view  monitor  system  screen  is  the
same  as  the  procedure  for  adjusting  the
navigation screen. ( P.41)

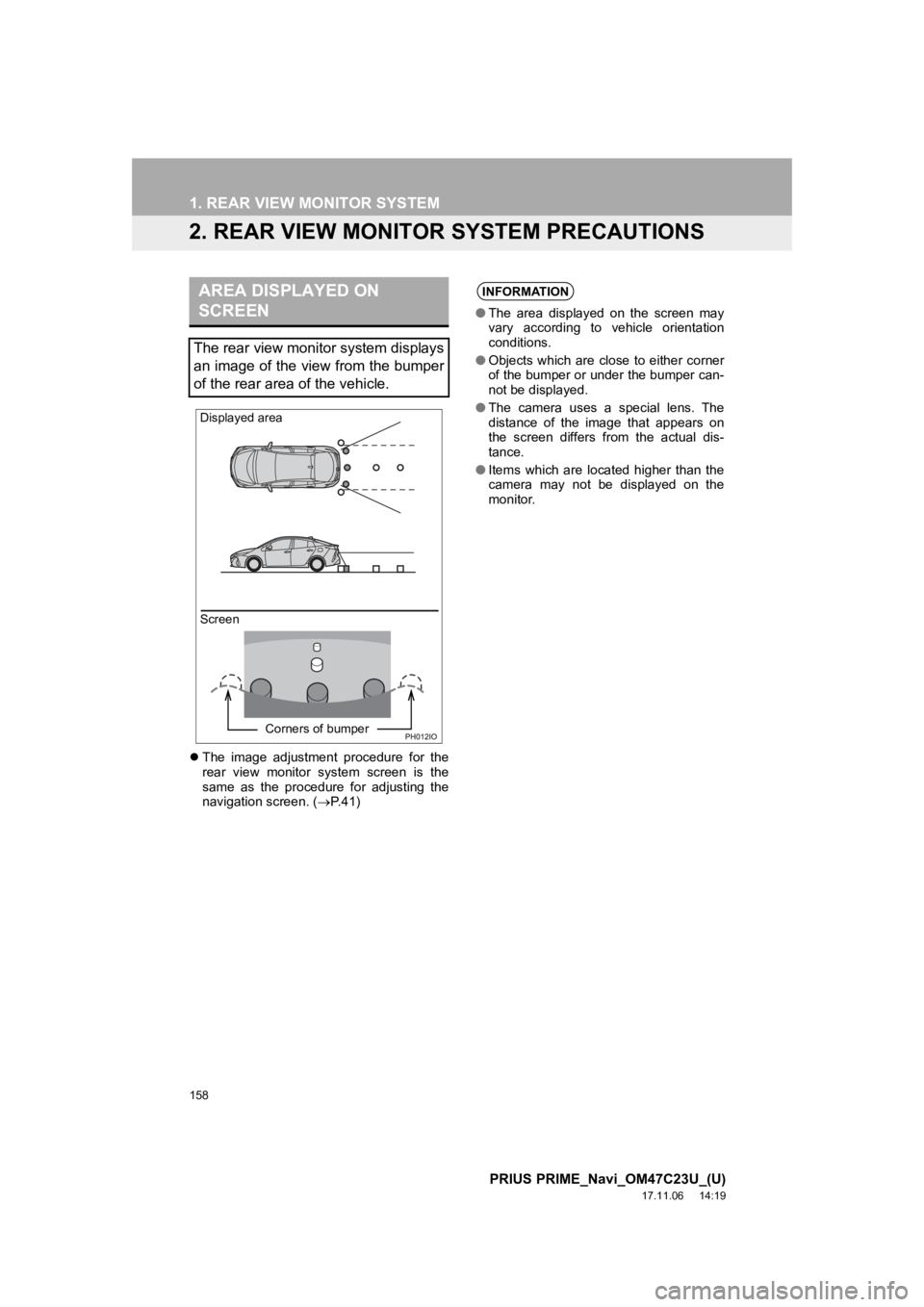

AREA DISPLAYED ON
SCREEN
The rear view monitor system displays
an image of the view from the bumper
of the rear area of the vehicle.
Screen Displayed area
Corners of bumper
INFORMATION
●The  area  displayed  on  the  screen  may
vary  according  to  vehicle  orientation
conditions.
● Objects which  are  close  to  either  corner
of the bumper or under the bumper can-
not be displayed.
● The  camera  uses  a  special  lens.  The
distance  of  the  image  that  appears  on
the  screen  differs  from  the  actual  dis-
tance.
● Items  which  are  located  higher  than  the
camera  may  not  be  displayed  on  the
monitor.
Page 159 of 306

159
1. REAR VIEW MONITOR SYSTEM
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06     14:19
PERIPHERAL MONITORING SYSTEM
6
THE CAMERA
The  camera  for  the  rear  view  monitor
system is located as shown in the illus-
tration.
USING THE CAMERA
If  dirt  or  foreign  matter  (such  as  water
droplets,  snow,  mud  etc.)  is  adhering
to  the  camera,  it  cannot  transmit  a
clear image. In this case, flush it with a
large  quantity  of  water  and  wipe  the
camera lens clean with a soft and wet
cloth.
NOTICE
● The  rear  view  monitor  system  may  not
operate properly in the following cases.
• If  the  back  of  the  vehicle  is  hit,  the
position  and  mounting  angle  of  the
camera may change.
• As  the  camera  has  a  water  proof  con-
struction,  do  not  detach,  disassemble
or  modify  it.  This  may  cause  incorrect
operation.
• When  cleaning  the  camera  lens,  flush the  camera  with  a  large  quantity  of
water  and  wipe  it  with  a  soft  and  wet
cloth. Strongly rubbing the camera lens
may  cause  the  camera  lens  to  be
scratched  and  unable  to  transmit  a
clear image.
• Do  not  allow  organic  solvent,  car  wax, window cleaner or glass coat to adhere
to  the  camera.  If  this  happens,  wipe  it
off as soon as possible.
• If  the  temperature  changes  rapidly,
such  as  when  hot  water  is  poured  on
the vehicle in cold weather, the system
may not operate normally.
• When  washing  the  vehicle,  do  not apply  intensive  bursts  of  water  to  the
camera or camera area. Doing so may
result in the camera malfunctioning.
● Do  not  expose  the  camera  to  strong
impact  as  this  could  cause  a  malfunc-
tion.  If  this  happens,  have  the  vehicle
inspected by your Toyota dealer as soon
as possible.
Page 160 of 306

160
1. REAR VIEW MONITOR SYSTEM
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06     14:19
The  distance  guide  lines  and  the  vehicle
width guide lines may not actually  be par-
allel  with  the  dividing  lines  of  the  parking
space,  even  when  they  appear  to  be  so.
Be sure to check visually.
 The  distances  between  the  vehicle  width
guide  lines  and  the  left  and  right  dividing
lines  of  the  parking  space  may  not  be
equal,  even  when  they  appear  to  be  so.
Be sure to check visually.
 The  distance  guide  lines  give  a  distance
guide  for  flat  road  surfaces.  In  any  of  the
following  situations,  there  is  a  margin  of
error  between the fixed  guide lines on the
screen  and  the  actual  distance/course  on
the road.

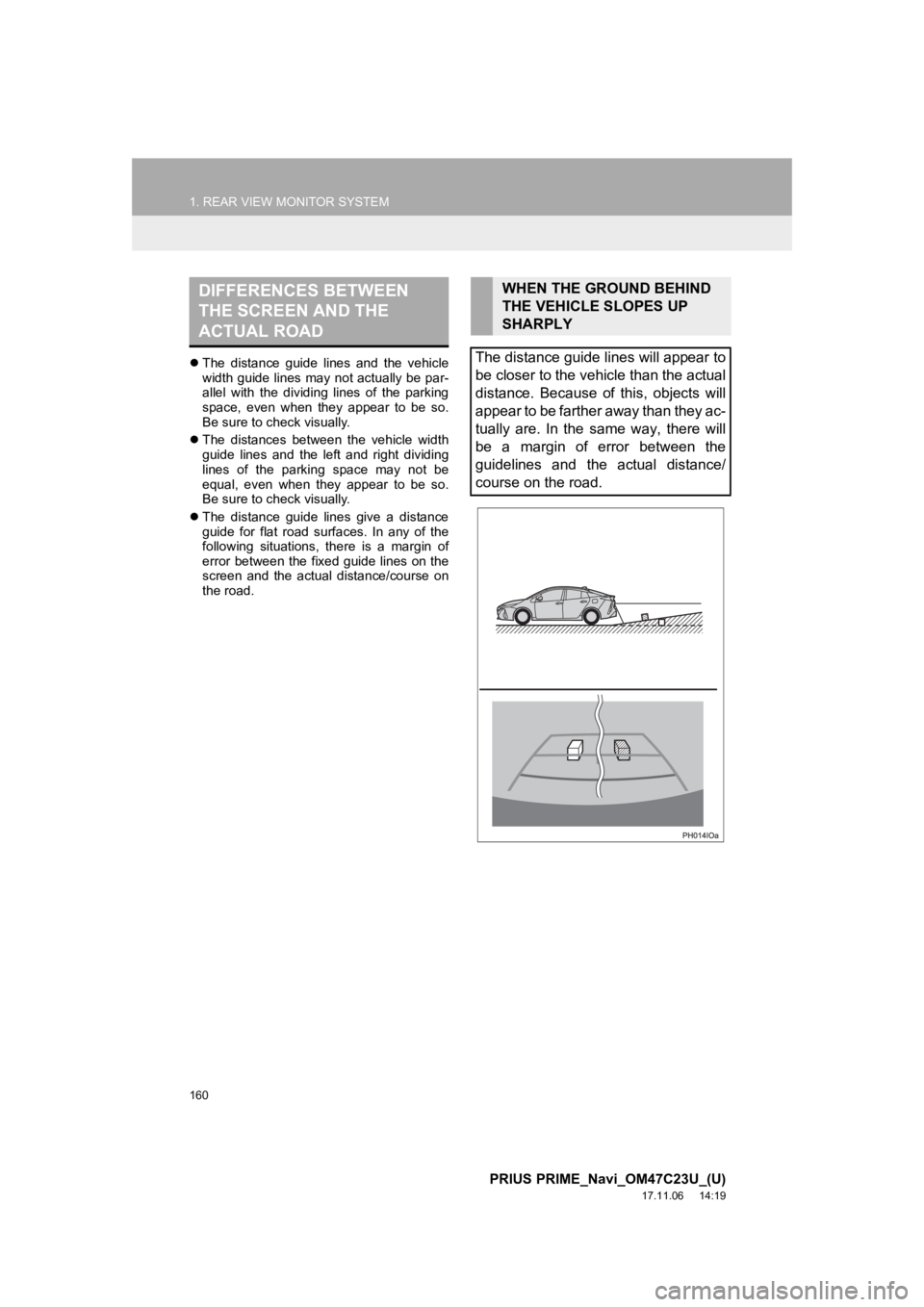

DIFFERENCES BETWEEN
THE SCREEN AND THE
ACTUAL ROADWHEN THE GROUND BEHIND
THE VEHICLE SLOPES UP
SHARPLY
The distance guide lines will appear to
be closer to the vehicle than the actual
distance.  Because  of  this,  objects  will
appear to be farther away than they ac-
tually  are.  In  the  same  way,  there  will
be  a  margin  of  error  between  the
guidelines  and  the  actual  distance/
course on the road.
